Умный Электрический измеритель IGERCN однофазный спиральный электроэнергии в кВтч с Wi Fi
- Категория: Energy Meters >>>
- Поставщик: Yueqing Iger Electric Co. Ltd.
Сохранить в закладки 1600523947701:
Описание и отзывы
Характеристики
Product Description
Specification

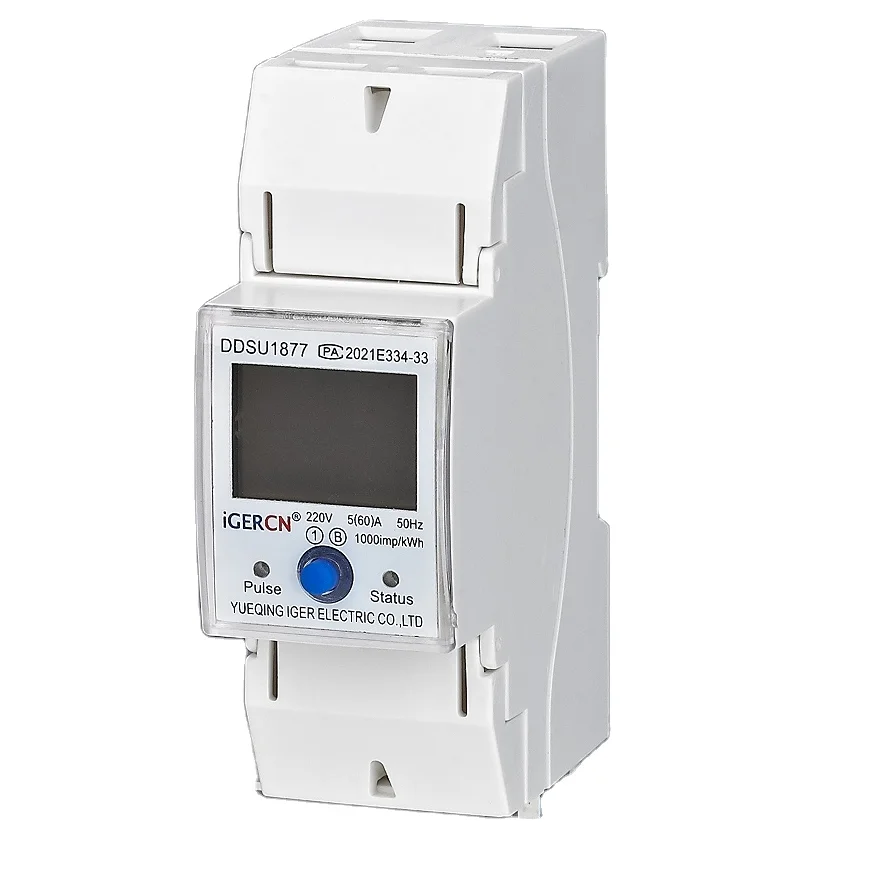

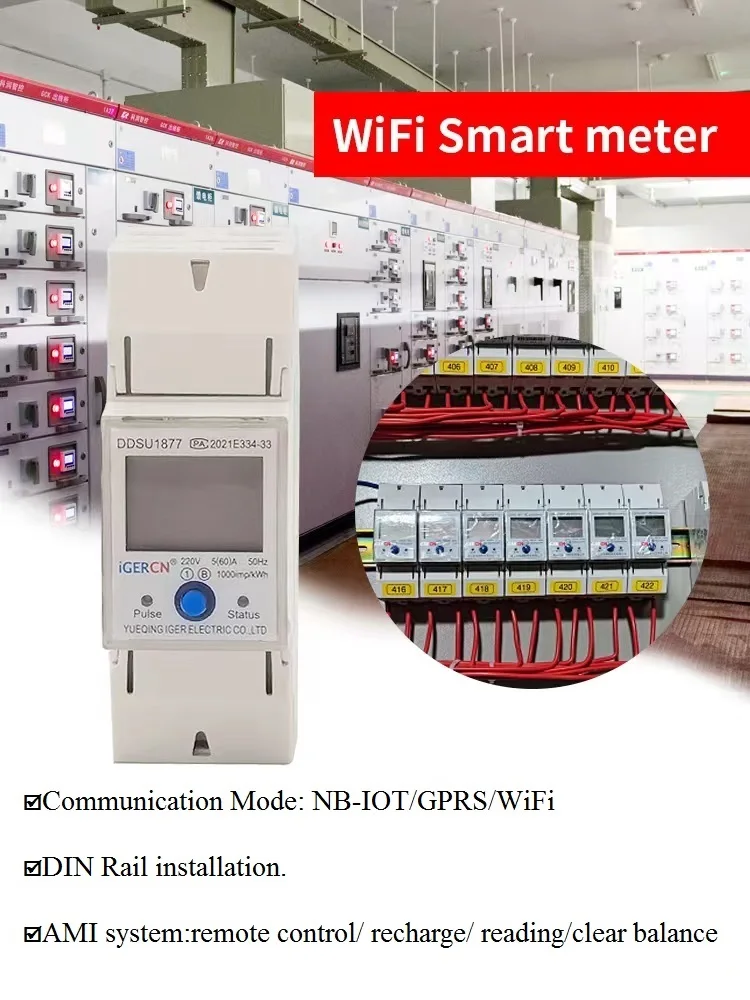

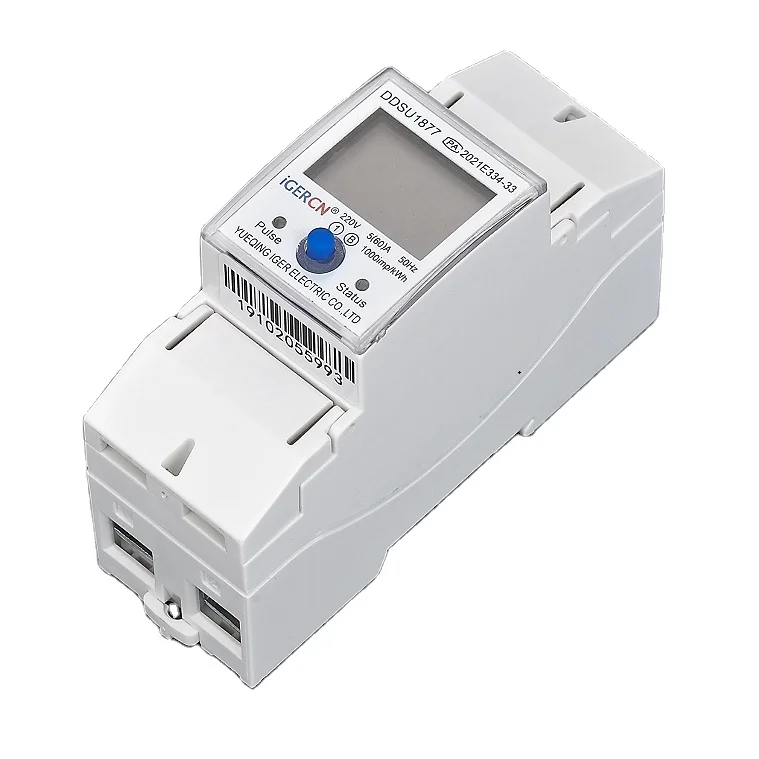

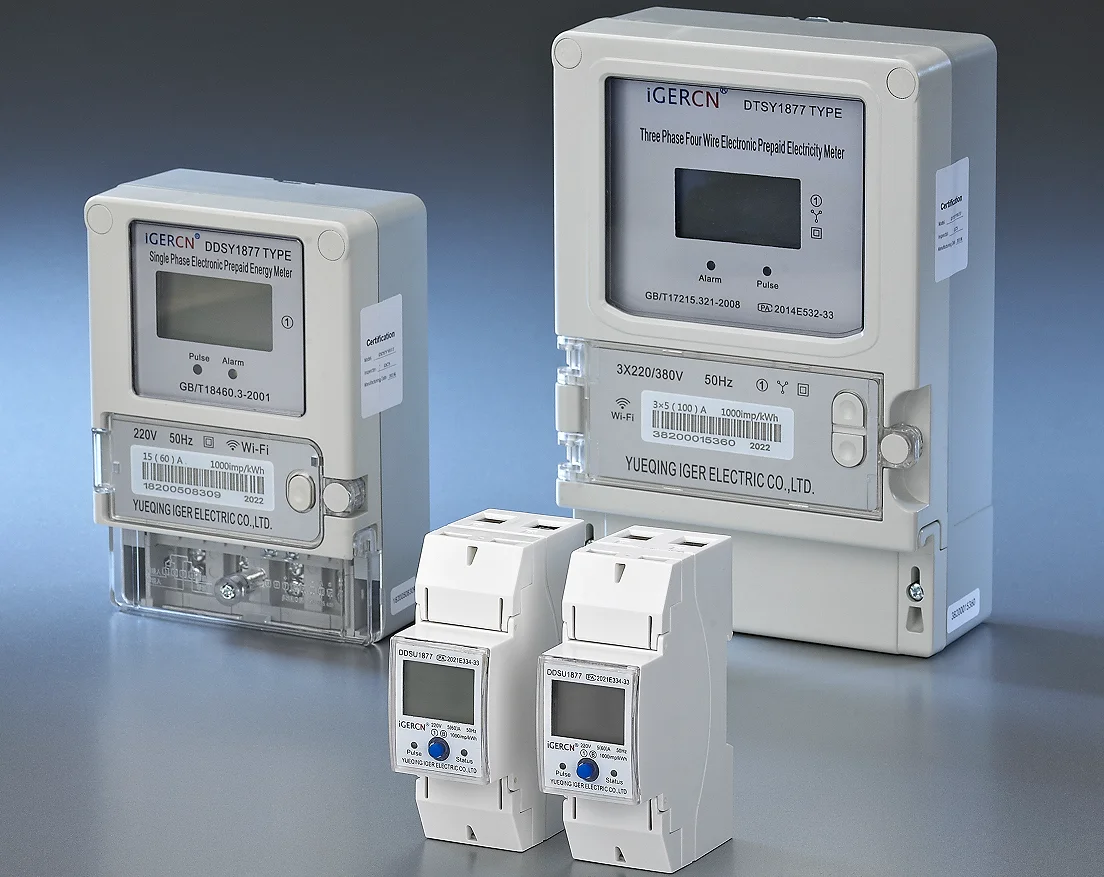

1. DDSY/U1877 single phase smart prepaid meter with DIN Rail installation. There are several
advantages in this meter such as small dimension for easy installation, NB-IOT/GPRS/WiFi three different
communication mode for more choice for different using environment, built-in relay which can trip when
over load, balance run out, and so on. And there are more functions in our AMI system such as remote
control, remote recharge, remote reading, remote clear balance and so on functions.
2. Features
2.1 Measurement: single phase active energy(both forward and reverse energy), class1.
2.1 Measurement: single phase active energy(both forward and reverse energy), class1.
2.2: Prepayment: first recharge then using, meter will cut off power when balance run out.
2.3: Built-in relay: meter(relay) will open automatically when balance off or over power limit,
manual close relay through AMI system remotely.
2.4: Alarm: LED will fast flash when balance is less than 10kWh.
2.5: Communication: 3different communication modem for choosing, NB-IoT and GPRS mode
are from China mobile. WiFi modem works like mobile phone, as soon as access wifi network,
meter can communicate with AMI system immediately.
2.6: Display: display real time parameters, meter ID, signal intensity, network connection status, see
below details.
2.7: Friendly overdraft: meter will cut off power(relay open)automatically when balance off, the
administrator can turn on through AMI system, or press the meter button more than 5seconds
to temporary overdraft 20kWh(user can do this function too), while this function can be used only
one time, after using the overdraft 20kWh, user can only recharge to close meter relay.
2.8: overload protection: The relay will open when overload lasts for 30 seconds and close after 60
seconds. If the above situation happens for more than 5 times in 30 minutes, the relay will open
30minutes, this function will recover after 30minutes.
2.9. data storage: the meter has nonvolatile storage, the energy record is kept forever, it will not lose
when power off or network off.
3.Technology data:
Product name | WiFI Single Phase Electronic KWh Meter |
Brand Name | iGERCN |
Model Number | DDSU1877 |
Display Type | LCD5+1 |
Phase | Single Phase |
voltage | 130V~265V |
Accuracy Class | 1.0 |
rated current | 5(60)A |
Operating Temperature | -20℃~70℃ |
Communication | WIFI |
Display | LCD Digital Display |
Standard: | IEC62052-11/IEC62053-21 |
Power consumption | <2W / <10VA @ Un |
Installation | DIN Rail Installation |
Load control: | Build-in 80A latching relay |
Low balance indication: | Yellow LED |
Pulse | Red LED |
Start current: | 0.4%Ib |
humidity: | < 95% |
communication | NB-IoT/GPRS/WiFi(one of three) |

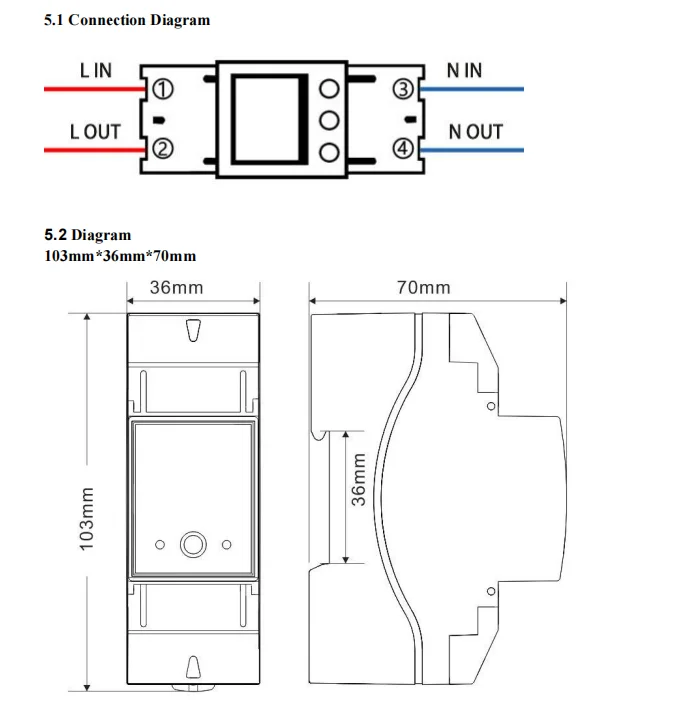

Dimensions | 103*36*70mm |
warranty | 18months |
Load current | Power factor | Percentage error(%) | ||
Class 1 | Class 2 | |||
0.05 -0.1 Ib | Cosφ=1 | ±15 | ±2.5 | |
0.1-0.2 Ib | Cosφ=0.5L | ±1.5 | ±2.0 | |
Cosφ=0.8C | ±1.5 | |||
0.2 Ib-Imax | Cosφ=1 | ±1.0 | ±1.0 | |
Cosφ=0.5L | ±1.0 | ±1.0 | ||
Cosφ=0.8C | Cosφ=0.8C | |||
Packing & Delivery
60PCS/CTN. each unit packing in 1 clour box .
packing dimension:45*22*25CM
G.W/N.W:12/11KGS
packing dimension:45*22*25CM
G.W/N.W:12/11KGS
Company Profile
Yueqing Iger Electric Co., Ltd. CORE COMPETENCIES is intelligent socket, floor socket, time switch&photo electric contorl switch,IP55 wall socket and switches,of zhejiang,china and more than 8years professional with Europe and South Asia and Middle East markets.we have own our 5factory and more than 100 workers and more than 100 new design products ,and we have been service with big company all over the world.such ELANR.S.L,SYCAMORE LIGHT LTD,AL-MANARA GROUP,ASA INTERNATION GROUP,YOBEK ELECTRICAL ENTERPRISE,HAWORTH.EFAPEL,UNILAMP,
we are supply competitive advantage products to the old and the new customers.and the quality is our culture,if you cooperate with us, your business is safety and your money is safety.
we are supply competitive advantage products to the old and the new customers.and the quality is our culture,if you cooperate with us, your business is safety and your money is safety.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2010,sell to Southeast Asia(45.00%),Mid East(22.00%),Oceania(15.00%),South America(10.00%),Domestic Market(4.00%),North America(2.00%),Western Europe(2.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Socket, Switch, Terminal
4. why should you buy from us not from other suppliers?
our company core competencies is intelligent pop up socket,floor socket for 8 years .,our niche is Europe . our markets niche is Europe and Australia and Saudi Arabia, and south Asia. the quality is our culture,we have very competitive advantage items.
5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency: USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2010,sell to Southeast Asia(45.00%),Mid East(22.00%),Oceania(15.00%),South America(10.00%),Domestic Market(4.00%),North America(2.00%),Western Europe(2.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Socket, Switch, Terminal
4. why should you buy from us not from other suppliers?
our company core competencies is intelligent pop up socket,floor socket for 8 years .,our niche is Europe . our markets niche is Europe and Australia and Saudi Arabia, and south Asia. the quality is our culture,we have very competitive advantage items.
5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency: USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
Похожие товары
Высококачественный многофункциональный однофазный умный счетчик энергии Nb-Iot предоплаченный Электрический
49,10 $ - 58,00 $
Энергосберегающий однофазный умный Электрический измеритель потребления энергии в кВтч, домашний помощник, Din-рейка, онлайн
15,20 $ - 18,00 $

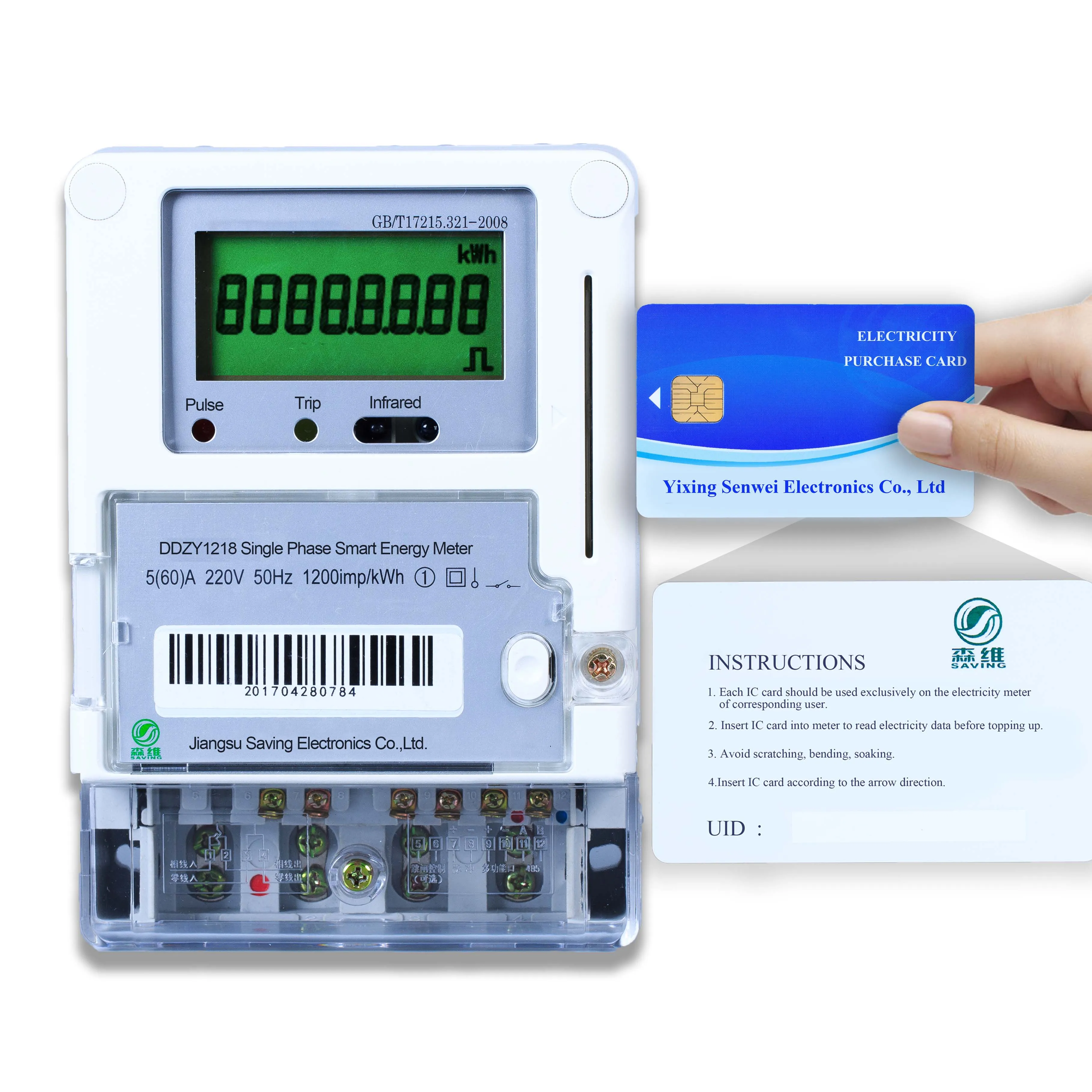

Новый дизайн предварительно оплаченные карты подзаряжаемый счетчик однофазный Электрический с IC-картой
47,40 $ - 56,00 $
Двунаправленный Измеритель постоянного тока на А В с Din-рейкой цифровой измеритель энергии RS485
Цифровой счетчик электроэнергии с Wifi промышленная оптовая цена
103,60 $
EM537-CT 3*230/400V 1,5 (6) счетчик энергии с modbus счетчик электроэнергии с ct

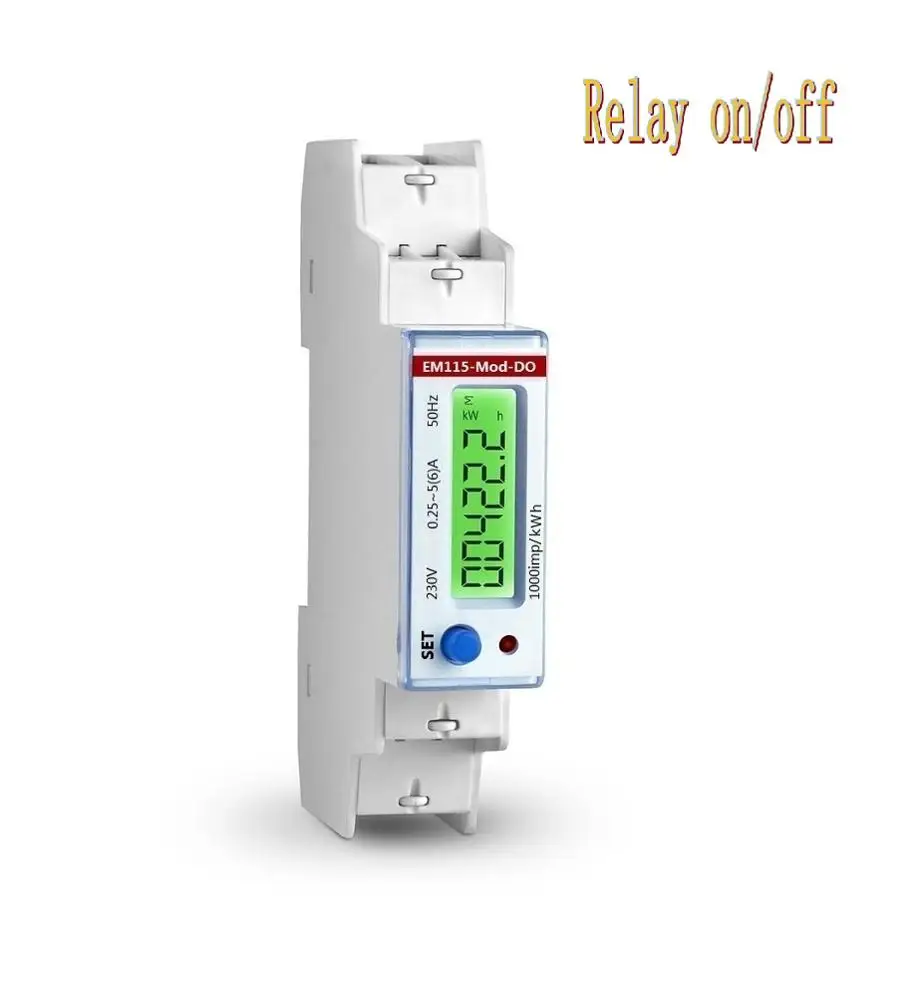

EM115-Mod-DO din-рейка кВт-ч Электрический счетчик киловатт-часов smart многофункциональный пульт дистанционного
