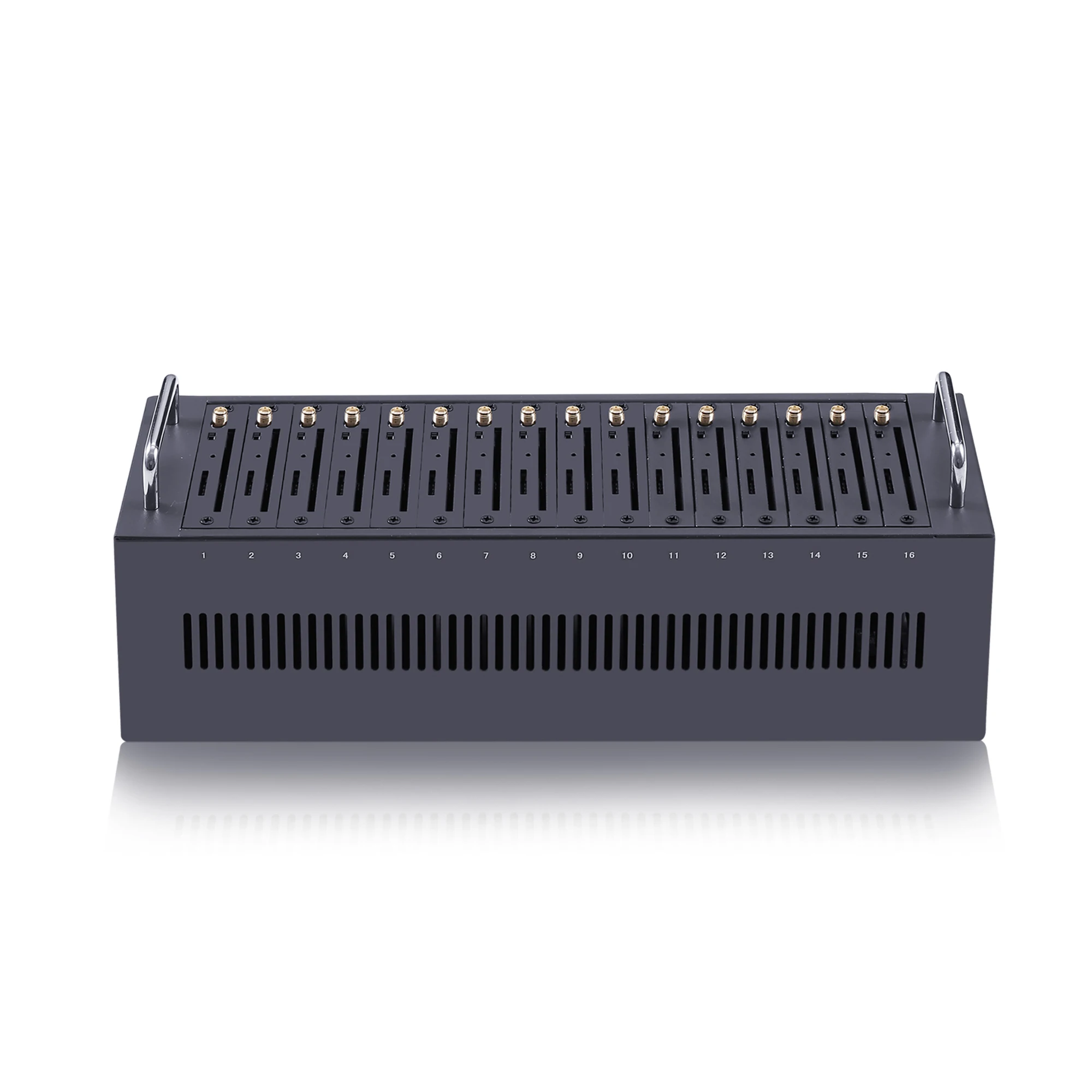

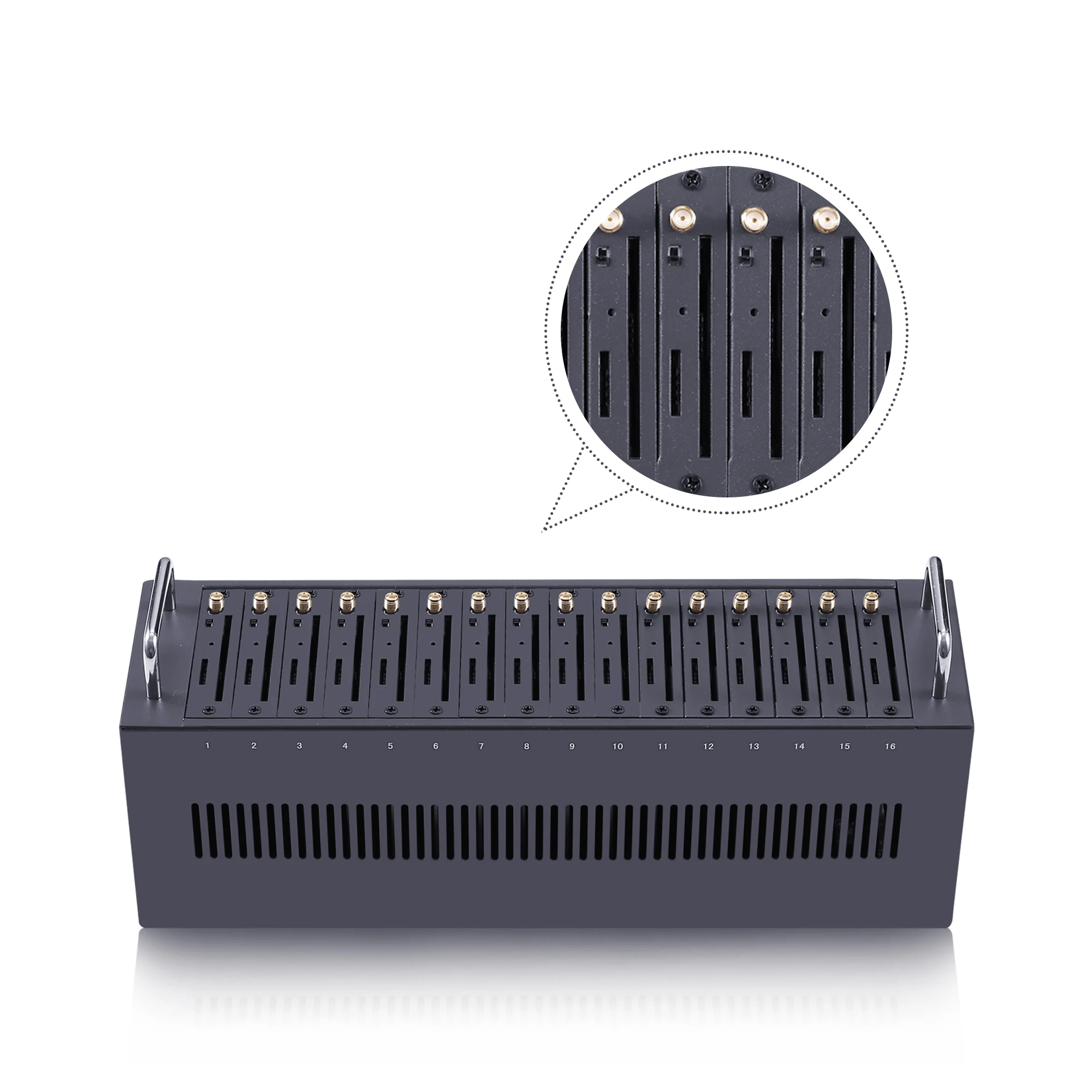

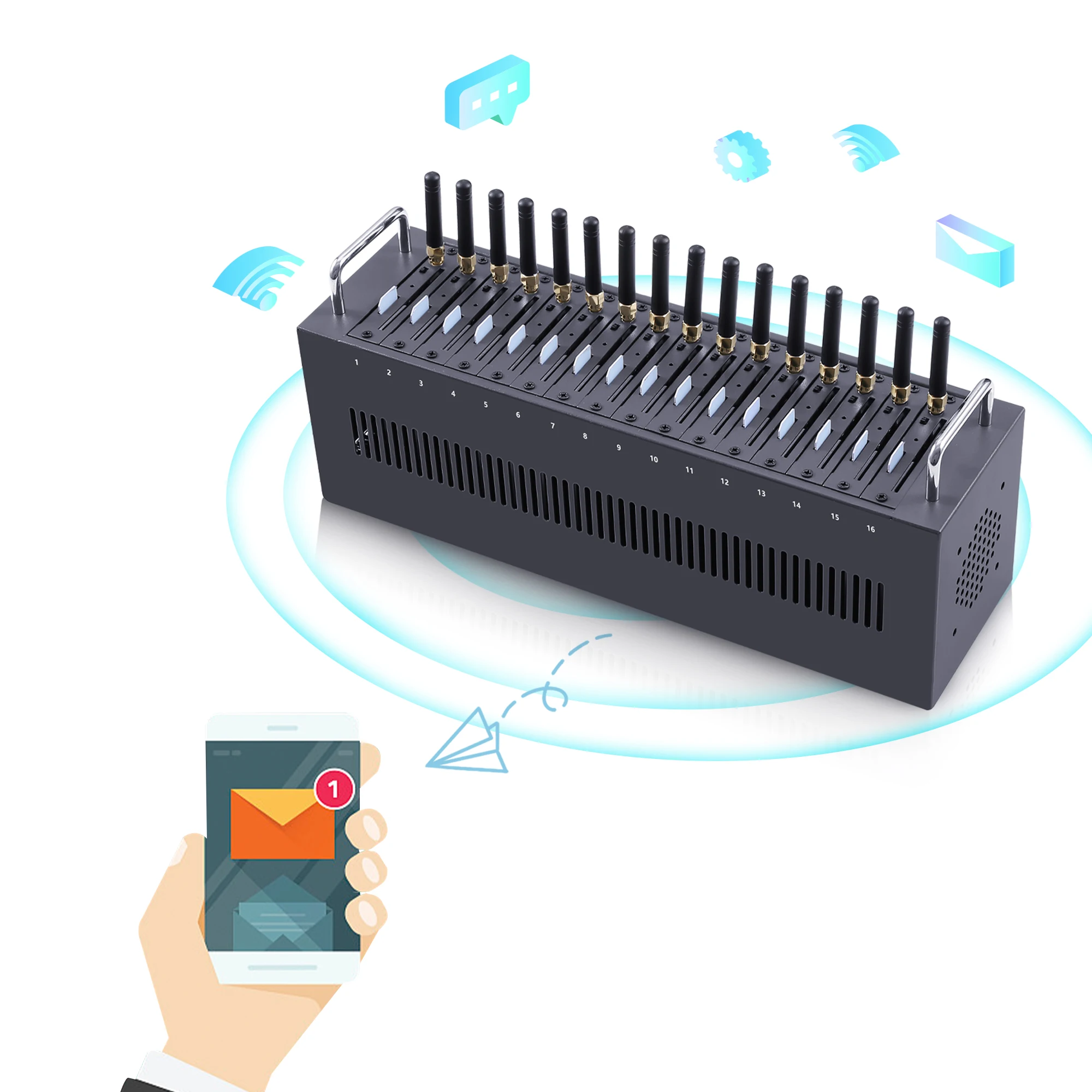

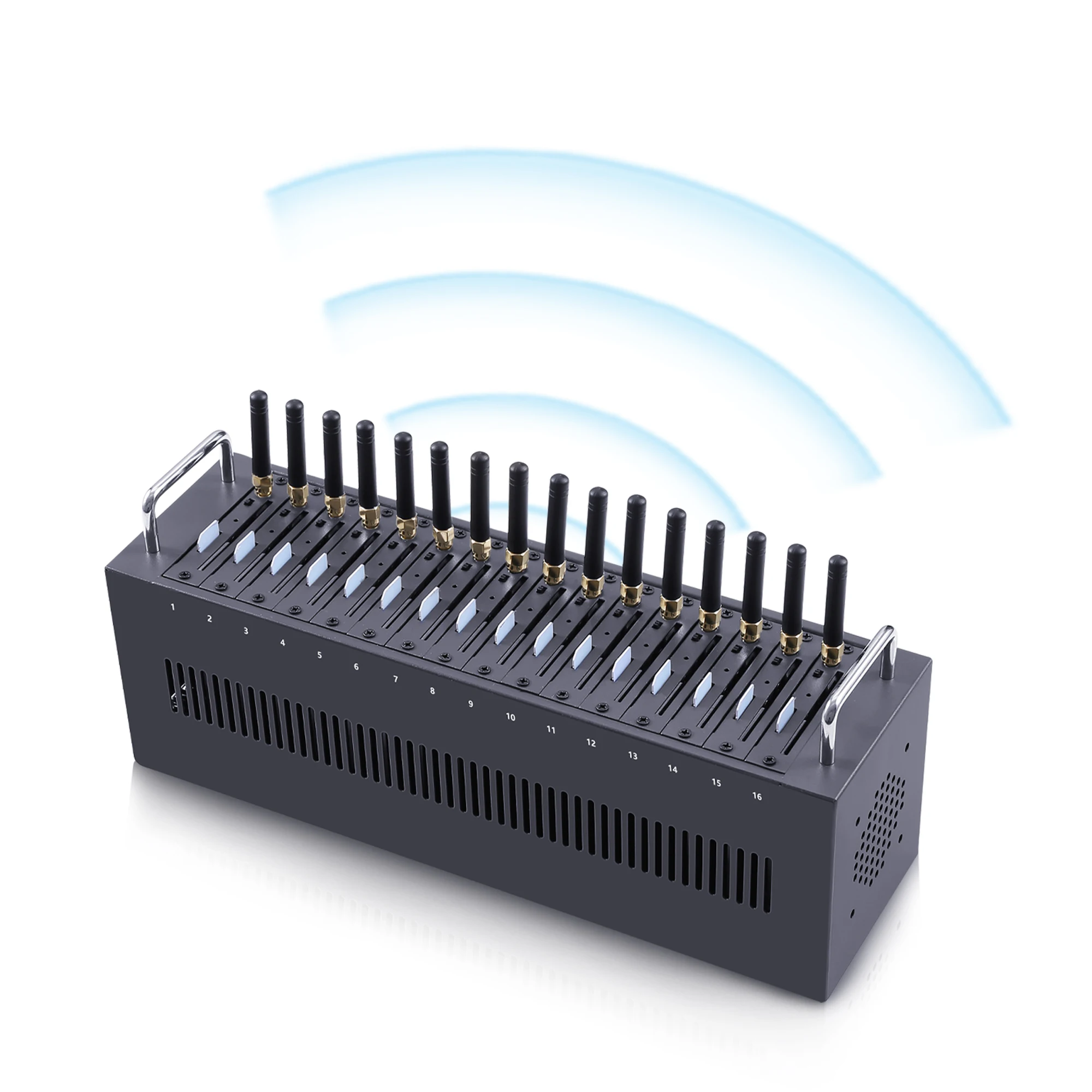

2022 TYH GSM модем с 16 каналами слот для Sim карты модуль SMS M26 Gsm шлюз
- Категория: >>>
- Поставщик: Shenzhen Skyline Technology Co. Ltd
Сохранить в закладки 1600523980405:
Описание и отзывы
Характеристики
Product Description

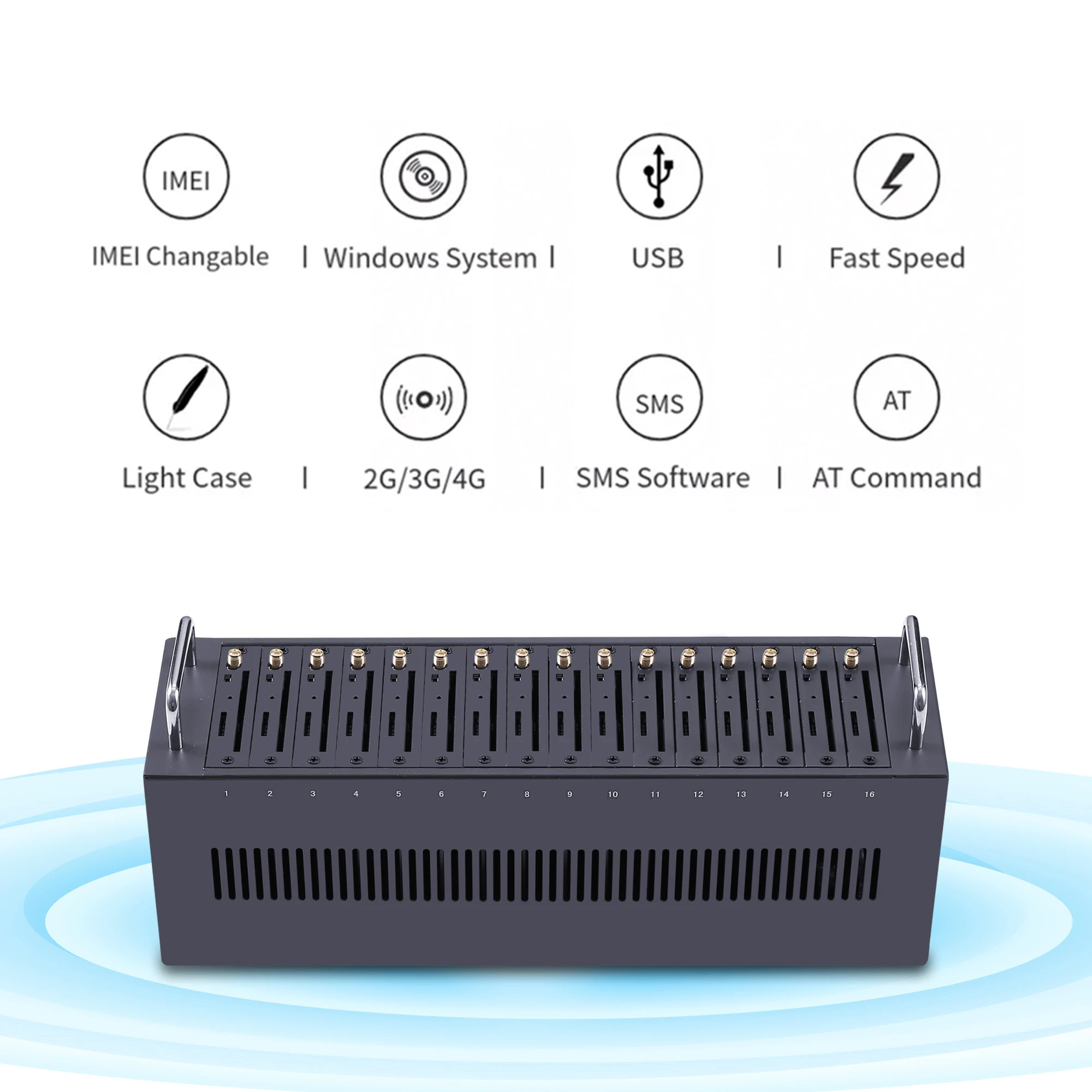

Product Name | GSM Modem 16 | ||||||
Function | Send & Receive SMSIMEI Change AT Command Send USSD Voice Call | ||||||
Frequency | EC25-AUX： LTE FDD:B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD:B40 WCDMA:B1/B2/B4/B5/B8 GSM:B2/B3/B5/B8 EC25-EUX: LTE FDD:B1/B3/B7/B8/B20/B28A LTE TDD:B38/B40/B41 WCDMA:B1/B8 GSM:B3/B8 | ||||||

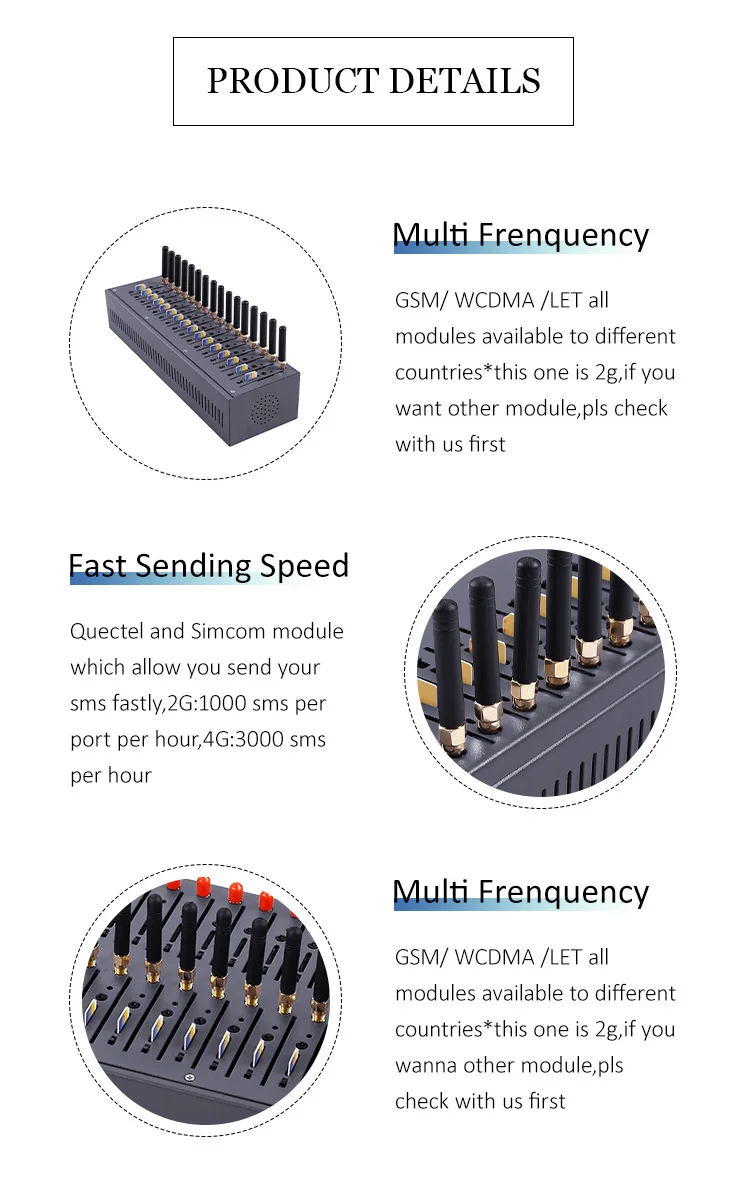

Optinal Module | 2G: M26 3G: UG96, UC20 4G: EC25-AUX/EUX/AFX | ||||||

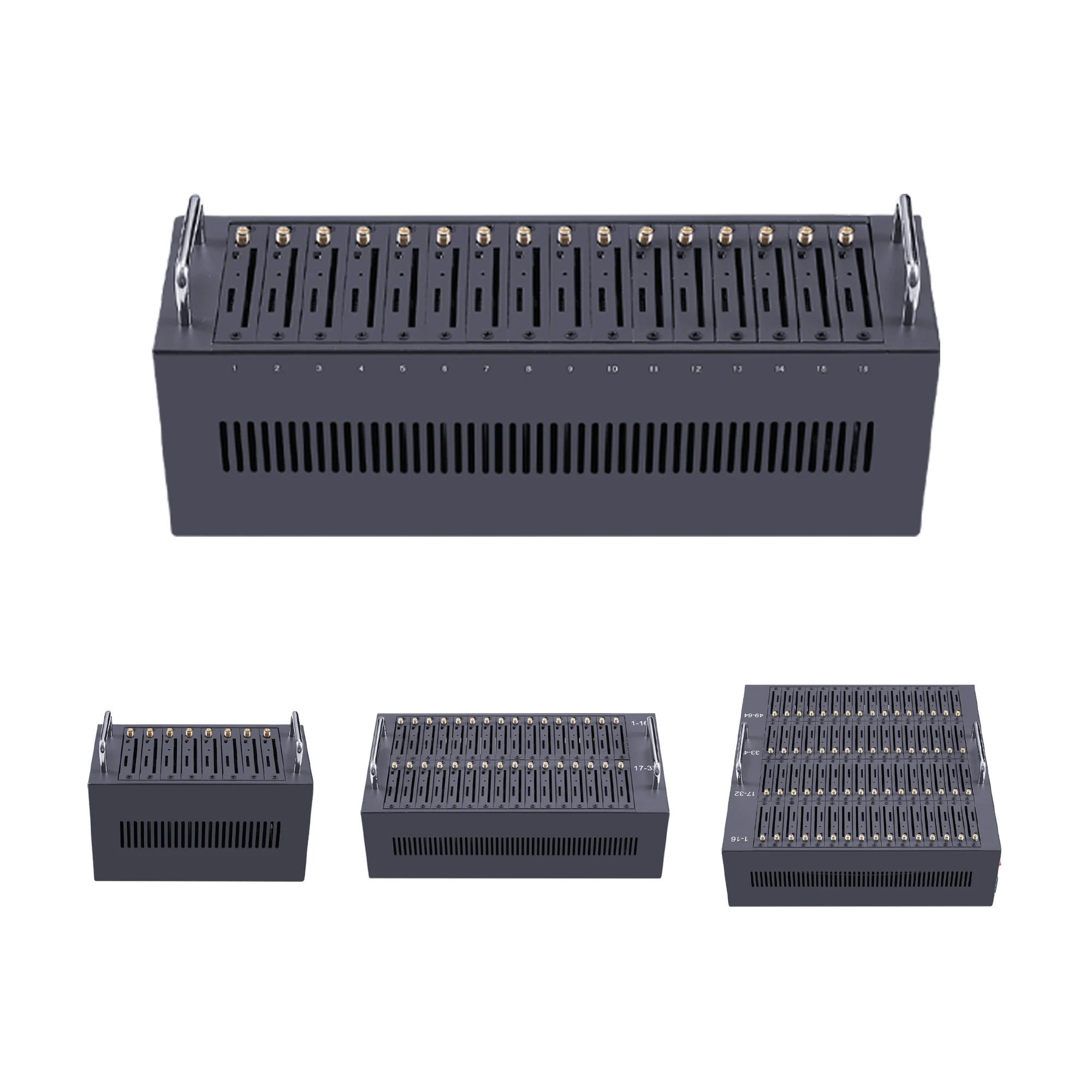

Optional Ports | 8, 16, 32,64 Ports | ||||||
SMS | Support Text and PDU mode | ||||||
Power consumption | Voltage : 3.6V Class4(2W@850/900MHz) Class1(1W@1800/1900MHz) | ||||||
Input | 110~240AC/50~60HZ | ||||||
Interface | USB 2.0 & USB 3.0 | ||||||
Protocol | TCP/UDP/PPP/MMS/HTTP/HTTPS/SMTP/ SMTPS/FTP/NTP/NITZ/PING/SSL | ||||||
Compaitible System | windows 2008 R2, Windows 7, Vista, XP, 2006/2000, 98SE/CE, LINUX. | ||||||
PRODUCT CONFIGURATION
Open the SMS CASTER SOFTWARE

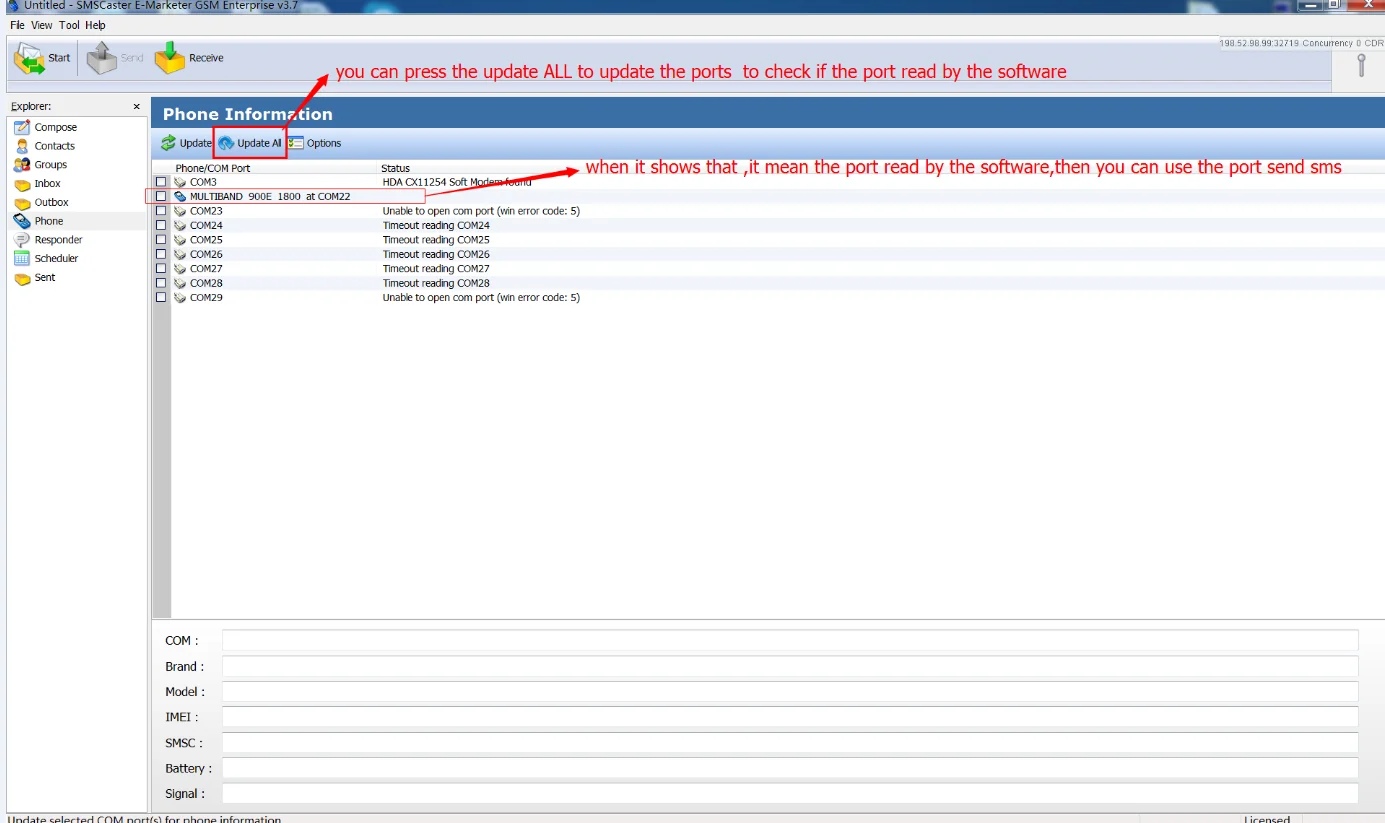

1,open the smscaster ,click the Phone,then update All ,then you can check how many ports can work ,if some ports not shows proper,then you should check the simcards or change another simcards,when you change simcards,you should shutdown the module ,when insert simcards ,then start it .

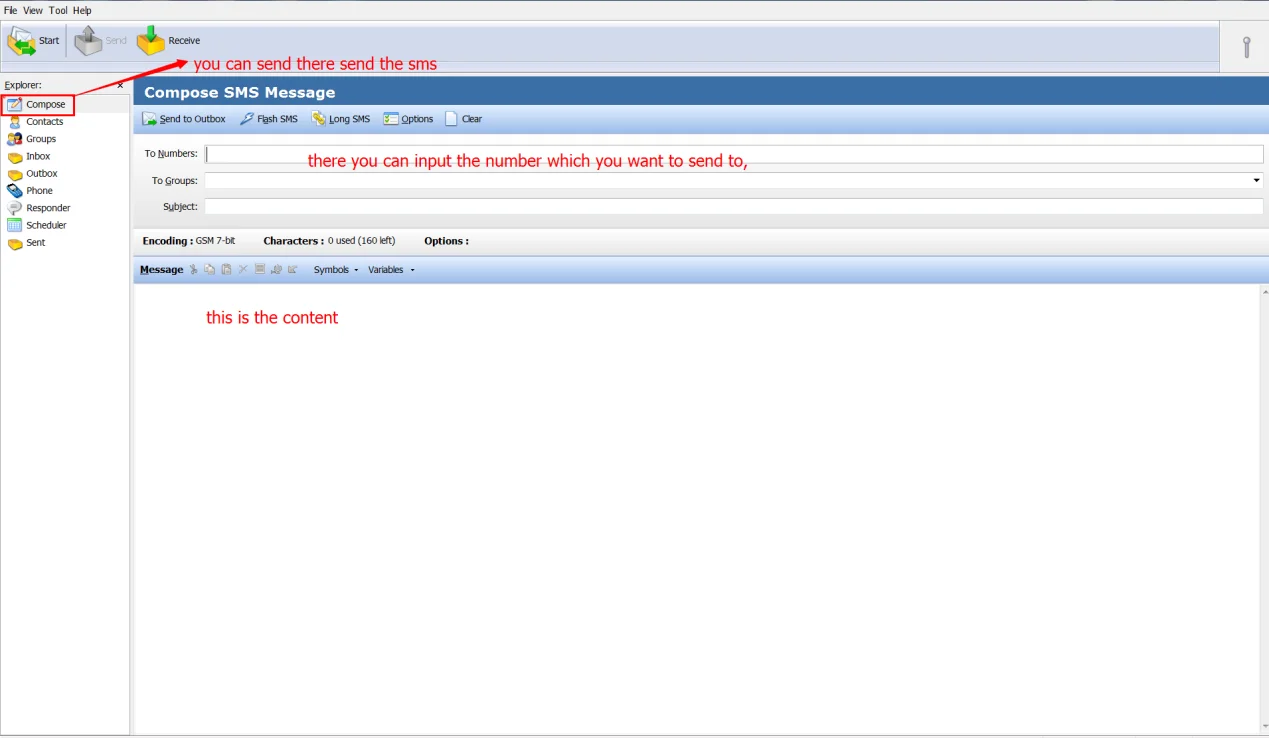

Compose for send sms
2.compose for send sms ,you can input receiver number in To Numbers if you just want to send few numbers,then input the content,when you finish,then press Send to Outbox, the sms will be sent to Outbox, press the Outbox ,then you can see the detail sms list ,then press the Send,they will be sent out(you should firstly choose the ports which you want to send sms .

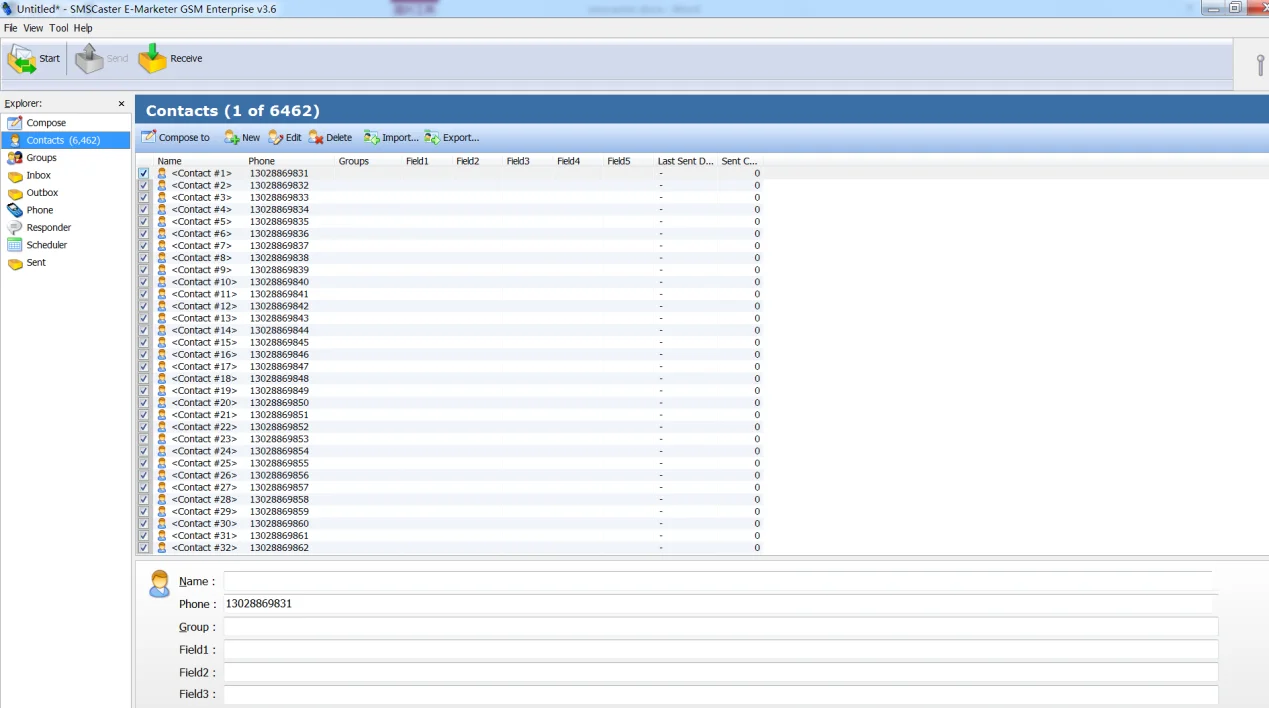

Import Contacts

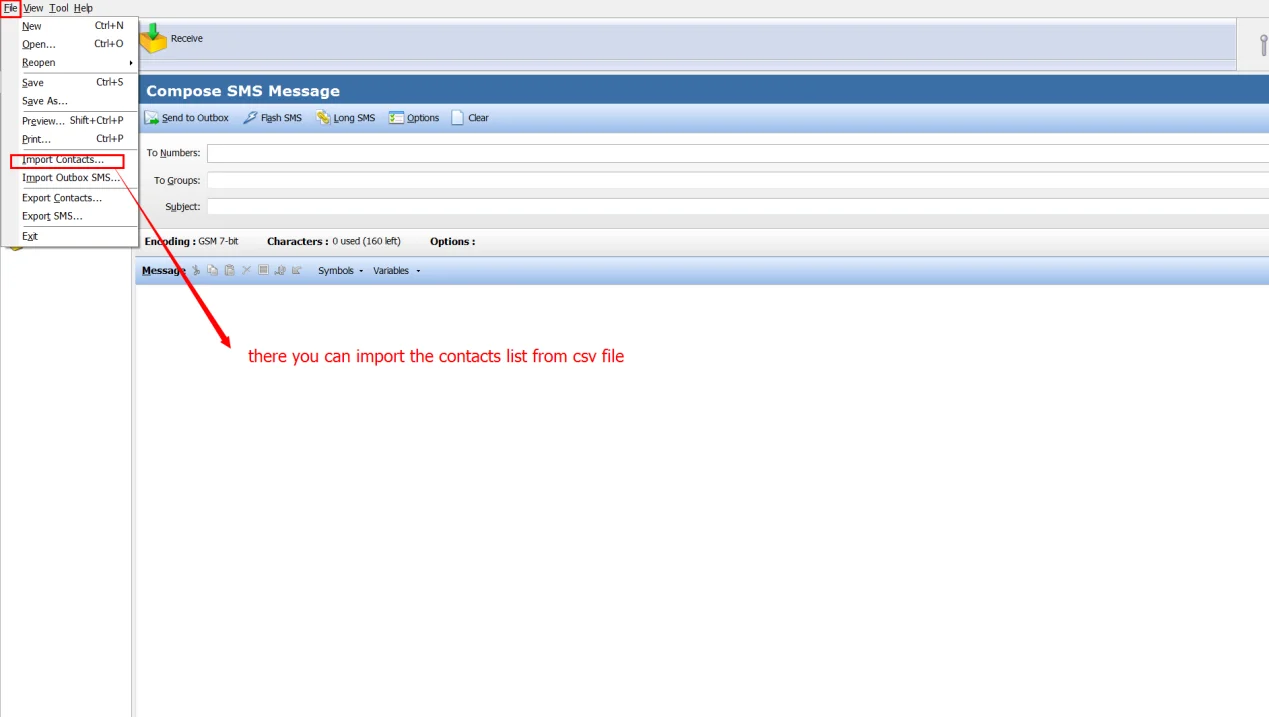

3. when there are lots of contact ,then you can import the list from the CSV file ,File>Import Contacts.
It will show the Import Contacts Wizard,press Browse to choose the file which you want to import ,then Next:
It show you which row you want to start, then Next:
Then it will show the Arrange Fields and Columns.then Next:
Import contacts succeeded ,and show you how many contacts imported ,Done
Send same sms to all the contact
If you want send same sms to all the contact,you can select All Contacts in To Group.then input the contact(you should choose the port which you want to send sms firstly before you send sms).
How to Change Imei
1.Register your sim cards ; Fine COM port
2.Use PuTTY login in COM port
