Huawei 0231A563/0231A564/SFP 1.25G LX10/SFP GE LX SM1310/eSFP GE LX10 SM1310 Совместимость 1000BASE LX SFP 1310nm 10 км трансивер
- Категория: >>>
- Поставщик: Shenzhen Silink Technology Co. Ltd.
Сохранить в закладки 1600523999153:
Описание и отзывы
Характеристики
Product Description
Huawei 0231A563/0231A564/SFP-1.25G-LX10/SFP-GE-LX-SM1310/eSFP-GE-LX10-SM1310 Compatible 1000BASE-LX SFP 1310nm 10km Transceiver Module
Description
The 1000Base-LX transceiver is a high performance, cost effective module which have a Duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses 1310 nm FP laser, up to 15dB link budge ensure this module 1000Base Ethernet 20Km application.
Features
◈ Up to 1.25Gb/s Data Links
◈ Hot-Pluggable
◈ 1310nm FP laser transmitter
◈ Duplex LC connector
◈ RoHS compliant and Lead Free
◈ Up to 20 km on 9/125μm SMF
◈ Single +3.3V Power Supply
◈ Monitoring Interface Compliant with SFF-8472
◈ Low power dissipation <1W typically
◈ Commercial operating temperature range: 0°C to 70°C
Applications
◈ Metro/Access Networks
◈ 1.25 Gb/s 1000Base-LX Ethernet
◈ 1×Fiber Channel
◈ Other Optical Link
◈ Metro/Access Networks
◈ 1.25 Gb/s 1000Base-LX Ethernet
◈ 1×Fiber Channel
◈ Other Optical Link
Specifications
Form Type | SFP | Optical Components | FP 1310nm |
Data Rate | 1.25Gbps | DOM Support | Yes |
Wavelength | 1310nm | TX Power | -9 ~ -3dBm |
Distance | 20km | Receiver Sensitivity | < -23dBm |
Cable Type | SMF | Temperature | 0 to 70°C |
Interface | LC duplex | HS Code | 8517706000 |
Detailed Images
Packing & Delivery
Packing
◈ Antistatic bag
◈ Plastic boxes for packaging（10PCS or 1PCS）
◈ Seperate white Box for each transceiver
◈ Specific packaging as Request, Original packaging
◈ Antistatic bag
◈ Plastic boxes for packaging（10PCS or 1PCS）
◈ Seperate white Box for each transceiver
◈ Specific packaging as Request, Original packaging
Payment
◈ T/T, Western Union, Paypal and so on.
Delivery
◈ International Express: DHL, FedEx, UPS, TNT, Aramex and so on.
◈ You also can choose your own shipping forwarder, please notify us in advance.
◈ Shipments are usually dispatched in 2-5 working days after received payment.
◈ You also can choose your own shipping forwarder, please notify us in advance.
◈ Shipments are usually dispatched in 2-5 working days after received payment.
Ordering Information
Model Number | Description | |
SFP Transceiver | ||

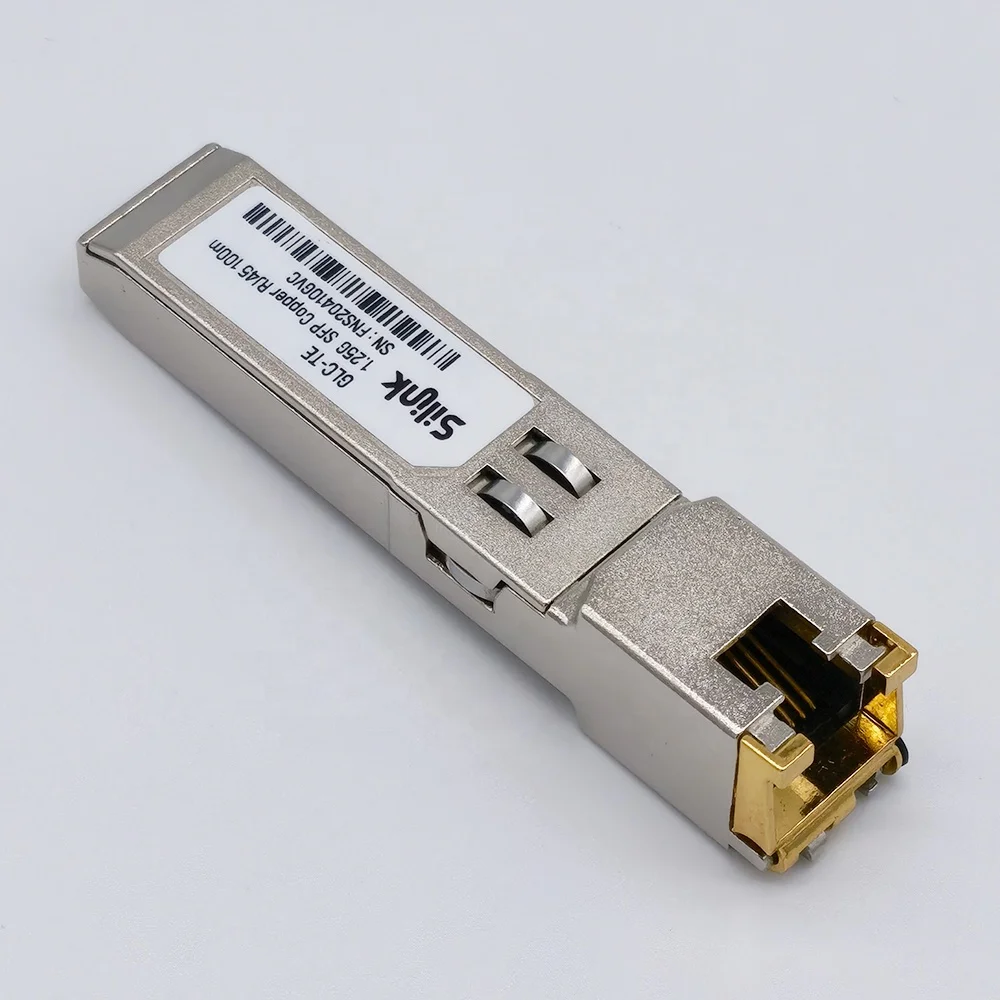

GLC-T | 1000BASE-T SFP Copper RJ-45 100m | |
GLC-SX-MM | 1000BASE-SX SFP 850nm 550m MMF LC | |
GLC-SX-MMD | 1000BASE-SX SFP 850nm 550m MMF LC DDM | |

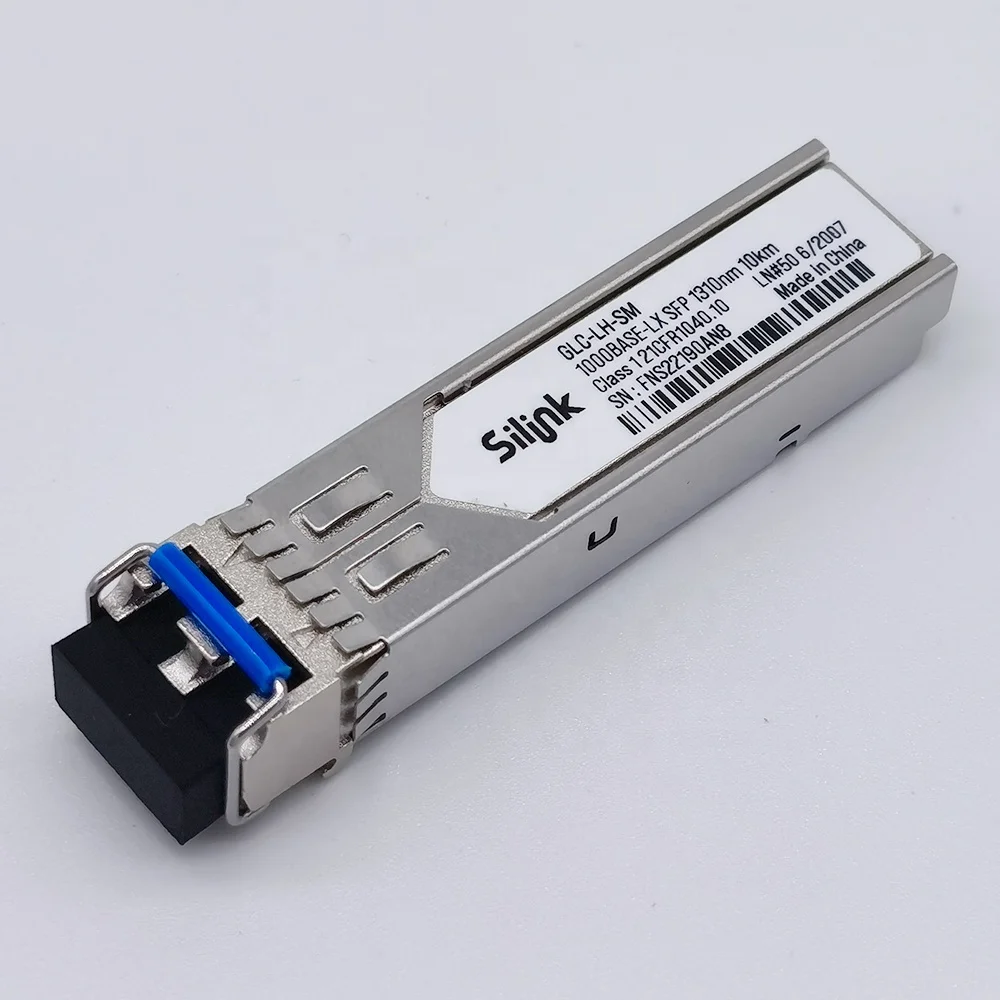

GLC-LH-SM | 1000BASE-LX/LH SFP 1310nm 10km SMF LC | |
GLC-LH-SMD | 1000BASE-LX/LH SFP 1310nm 10km SMF LC DDM | |
GLC-ZX-SM | 1000BASE-ZX SFP 1550nm 70km SMF LC | |
GLC-ZX-SMD | 1000BASE-ZX SFP 1550nm 70km SMF LC DDM | |
GLC-BX-D | 1000BASE-BX-D SFP 1490nm-TX/1310nm-RX 10km SMF LC DOM | |
GLC-BX-U | 1000BASE-BX-U SFP 1310nm-TX/1490nm-RX 10km SMF LC DOM | |
SFP-GE-S | 1000BASE-SX SFP 850nm 550m MMF DOM LC | |
SFP-GE-L | 1000BASE-LX/LH SFP 1310nm 10km SMF LC DOM | |

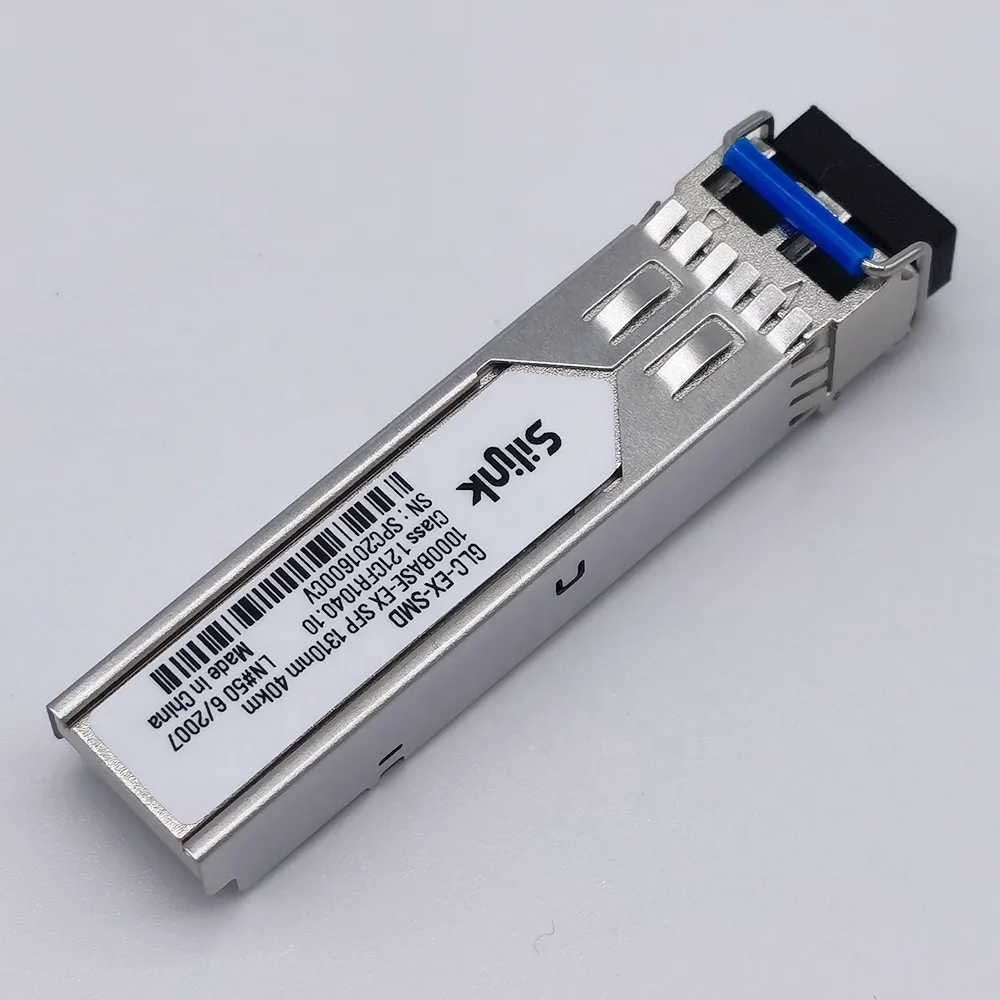

GLC-EX-SMD | 1000BASE-EX SFP 1310nm 40km SMF LC DOM | |
SFP-GE-Z | 1000BASE-ZX SFP 1550nm 70km SMF LC DOM | |
SFP-GE-T | 1000BASE-T SFP Copper RJ-45 100m | |
GLC-SX-MM-RGD | 1000BASE-SX SFP 850nm 550m MMF LC DOM IND | |
GLC-LX-SM-RGD | 1000BASE-LX/LH SFP 1310nm 10km SMF LC DOM IND | |
GLC-ZX-SM-RGD | 1000BASE-ZX SFP 1550nm 70km SMF LC DOM IND | |
GLC-GE-100FX | 100BASE-FX SFP 1310nm 2km MMF LC | |
GLC-FE-100FX | 100BASE-FX SFP 1310nm 2km MMF LC DOM | |
GLC-FE-100EX | 100BASE-EX SFP 1310nm 40km SMF LC DOM | |
GLC-FE-100LX | 100BASE-LX10 SFP 1310nm 10km SMF LC DOM | |
GLC-FE-100BX-D | 100BASE-BX-D SFP 1550nm-TX/1310nm-RX 10km SMF LC DOM | |
GLC-FE-100BX-U | 100BASE-BX-U SFP 1310nm-TX/1550nm-RX 10km SMF LC DOM | |
GLC-FE-100ZX | 100BASE-ZX SFP 1550nm 80km SMF LC DOM | |
GLC-FE-100FX-RGD | 100BASE-FX SFP 1310nm 2km MMF LC DOM IND | |
GLC-FE-100LX-RGD | 100BASE-LX10 SFP 1310nm 10km SMF LC DOM IND | |
More... | ||
SFP+ Transceiver | ||
SFP-10G-SR | 10GBASE-SR SFP+ MMF, 850nm, 300m, LC, DOM | |
SFP-10G-SR-S | 10GBASE-SR SFP+ MMF, 850nm, 300m, LC, DOM | |
SFP-10G-LR | 10GBASE-LR SFP+ SMF, 1310nm, 10km, LC, DOM | |
SFP-10G-LRM | 10GBASE-LRM SFP+ MMF, 1310nm, 220m, LC, DOM | |
SFP-10G-ER | 10GBASE-ER SFP+ SMF, 1550nm, 40km, LC, DOM | |
SFP-10G-ZR | 10GBASE-ZR/ZW SFP+ SMF, 1550nm 80km LC, DOM | |
SFP-10G-T-X | 10GBASE-T SFP+ Copper RJ45 30m | |
More... | ||
Model Number | Description | |
1.25G SFP Transceiver | ||
JD118B | JD118B HPE H3C Compatible 1000BASE-SX SFP 850nm 550m DOM LC MMF Transceiver Module for HPE FlexNetwork and FlexFabric Switch Series | |
JD119B | JD119B HPE H3C Compatible 1000BASE-LX SFP 1310nm 10km DOM LC MMF/SMF Transceiver Module for HPE FlexNetwork and FlexFabric Switch Series | |
J4858C | J4858C HPE ProCurve Compatible 1000BASE-SX SFP 850nm 550m DOM LC MMF Transceiver Module for HPE Aruba and FlexFabric Switch Series | |
J4858D | J4858D HPE Aruba Compatible 1000BASE-SX SFP 850nm 550m DOM LC MMF Transceiver Module for HPE OfficeConnect Switch Series | |
J4859C | J4859C HPE ProCurve Compatible 1000BASE-LX SFP 1310nm 10km DOM LC MMF/SMF Transceiver Module for HPE ProCurve Switch Series | |
J4859D | J4859D HPE Aruba Compatible 1000BASE-LX SFP 1310nm 10km DOM LC MMF/SMF Transceiver Module for HPE OfficeConnect and ProCurve Switch Series | |
J8177B | J8177B HPE ProCurve Compatible 1000BASE-T SFP Copper RJ45 100m Transceiver Module for HPE ProCurve Switch Series | |
J8177C | J8177C HPE ProCurve Compatible 1000BASE-T SFP Copper RJ45 100m Transceiver Module for HPE ProCurve Switch Series | |
J8177D | J8177D HPE Aruba Compatible 1000BASE-T SFP Copper RJ45 100m Transceiver Module for HPE Aruba Switch Series | |
JD089B | JD089B HPE H3C Compatible 1000BASE-T SFP Copper RJ-45 100m Transceiver Module for HPE FlexNetwork and FlexFabric Switch Series | |
More... | ||
10G SFP+ Transceiver | ||
J9150A | J9150A HPE ProCurve Compatible 10GBASE-SR SFP+ 850nm 300m Transceiver Module for HPE Aruba and OfficeConnect Switch Series | |
J9150D | J9150D HPE Aruba Compatible 10GBASE-SR SFP+ 850nm 300m Transceiver Module for HPE Aruba and OfficeConnect Switch Series | |
J9151A | J9151A HPE ProCurve Compatible 10GBASE-LR SFP+ 1310nm 10km Transceiver Module for HPE Aruba and ProCurve Switch Series | |
J9151D | J9151D HPE Aruba Compatible 10GBASE-LR SFP+ 1310nm 10km Transceiver Module for HPE Aruba and OfficeConnect Switch Series | |
J9152A | J9152A HPE ProCurve Compatible 10GBASE-LRM SFP+ 1310nm 220m DOM LC MMF/SMF Transceiver Module for HPE Aruba and OfficeConnect Switch Series | |
J9153A | J9153A HPE ProCurve Compatible 10GBASE-ER SFP+ 1550nm 40km DOM LC SMF Transceiver Module for HPE Aruba and OfficeConnect Switch Series | |
J4860A | J4860A HPE ProCurve Compatible 1000BASE-ZX SFP 1550nm 80km DOM LC SMF Transceiver Module for HPE ProCurve Switch Series | |
J4860C | J4860C HPE ProCurve Compatible 1000BASE-ZX SFP 1550nm 80km DOM LC SMF Transceiver Module for HPE FlexNetwork and ProCurve Series | |
More... | ||
P/N | Form Factor | Data Rate | Wavelength | Distance |
SFP-1G85-055 | SFP | 1.25Gbps | 850nm | 550m |
SFP-1G31-2 | SFP | 1.25Gbps | 1310nm | 2km |
SFP-1G31-20 | SFP | 1.25Gbps | 1310nm | 20km |
SFP-1G31-40 | SFP | 1.25Gbps | 1310nm | 40km |
SFP-1G55-80 | SFP | 1.25Gbps | 1550nm | 80km |
RJ45-SFP-T | SFP | 1.25Gbps | Copper | 100m |
SFP+SR-8503 | SFP+ | 10Gbps | 850nm | 300m |
SFP+LR-3110 | SFP+ | 10Gbps | 1310nm | 10km |
SFP+LRM-3122 | SFP+ | 10Gbps | 1310nm | 220m |
SFP+ER-5540 | SFP+ | 10Gbps | 1550nm | 40km |
SFP+ZR-5580 | SFP+ | 10Gbps | 1550nm | 80km |
SFP+RJ45 | SFP+ | 10Gbps | Copper | 30m |
BiDi SFP SFP+ Transceiver | ||||||||
P/N | Form Factor | Data Rate | Wavelength | Distance | ||||
BIDI-SFP1G3149-20 | SFP | 1.25Gbps | Tx1310/Rx1490 | 20km | ||||
BIDI-SFP1G3149-40 | SFP | 1.25Gbps | Tx1310/Rx1490 | 40km | ||||
BIDI-SFP1G3155-20 | SFP | 1.25Gbps | Tx1310/Rx1550 | 20km | ||||
BIDI-SFP1G3155-40 | SFP | 1.25Gbps | Tx1310/Rx1550 | 40km | ||||
BIDI-SFP1G4955-80 | SFP | 1.25Gbps | Tx1490/Rx1550 | 80km | ||||
BIDI-SFP1G4955-120 | SFP | 1.25Gbps | Tx1490/Rx1550 | 120km | ||||
BIDI-SFP+2733-10 | SFP+ | 10Gbps | Tx1270/Rx1330 | 10km | ||||
BIDI-SFP+2733-20 | SFP+ | 10Gbps | Tx1270/Rx1330 | 20km | ||||
BIDI-SFP+2733-40 | SFP+ | 10Gbps | Tx1270/Rx1330 | 40km | ||||
BIDI-SFP+2733-80 | SFP+ | 10Gbps | Tx1270/Rx1330 | 80km | ||||
BIDI-SFP+4955-80 | SFP+ | 10Gbps | Tx1490/Rx1550 | 80km | ||||
Our Company
Shenzhen Silink Technology Co., Ltd. is a leading manufacturer and exporter specializing in fiber optical communications equipments,optical transceiver modules and network cabling products.
Optical transceiver modules: SFP, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM,Media Converter and other special transceiver modules,which are compatible with Cisco, 3COM, H3C, HP, Alcatel-Lucent, Allied Telesis, Nortel, Juniper, Huawei,etc.
Network cabling products: Keystone jack,patch panel,patch cord,faceplate,etc.
Fiber optical communications equipments: Fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc.
These products are widely used in telecommunications, broadband, broadcast, CATV and network industry
FAQ
1, Can I have a sample order? What is your MOQ?
Answer: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.
2, Are your transceivers compatible?
Answer: Yes,our OEM compatible optical module all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, HP , Huawei, Alcatel, H3C and more.
3, How does your company do regarding quality control?
Answer: We have professional testing equipment and QC team. Every unit will be double tested with perfect performance before shipping.
4, What is your warranty time ?
Answer: We promise 3 years warranty for all products shipped from us.
5, Could I use our own logo, label and package?
Answer: Yes,we could provide a OEM service and according to your requirements, design products label, logo, PN, SN, package.
6, What is the lead time?
Answer: For usual products,We keep stock,could ship 1-3 days after PO.For big quantity and special products,Please check lead time with our sales representative.
7, What is your payment terms?
Answer: T/T, Western union, Paypal.
8, What is the shipping terms?
Answer: We usually ship by Aramex, Fedex, DHL, UPS, TNT and EMS. If you have another preferred carrier, please notify us in advance.
\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t
Похожие товары
612640080039 4110001117108 0445020245 WEICHAI WP10 WP12 WP13 HOWO SHACMAN SINOTRUK SHANTUI LGMG MT95 топливный насос для грузовиков
590,00 $ - 600,00 $
Идеальный лазер Белый Черный Цвет JPT из нержавеющей стали Волоконно-Лазерная цветная маркировочная машина
1 500,00 $ - 1 800,00 $
CM108B QFP-48 звуковой частоты чип CM108 USB декодирующий новый и оригинальный пакет
1,13 $ - 1,45 $
Черно-белая плитка для хлеба от китайского производителя, плитка для метро
Деталь для настольных игр с деревянной ручкой на заказ
0,03 $ - 0,05 $

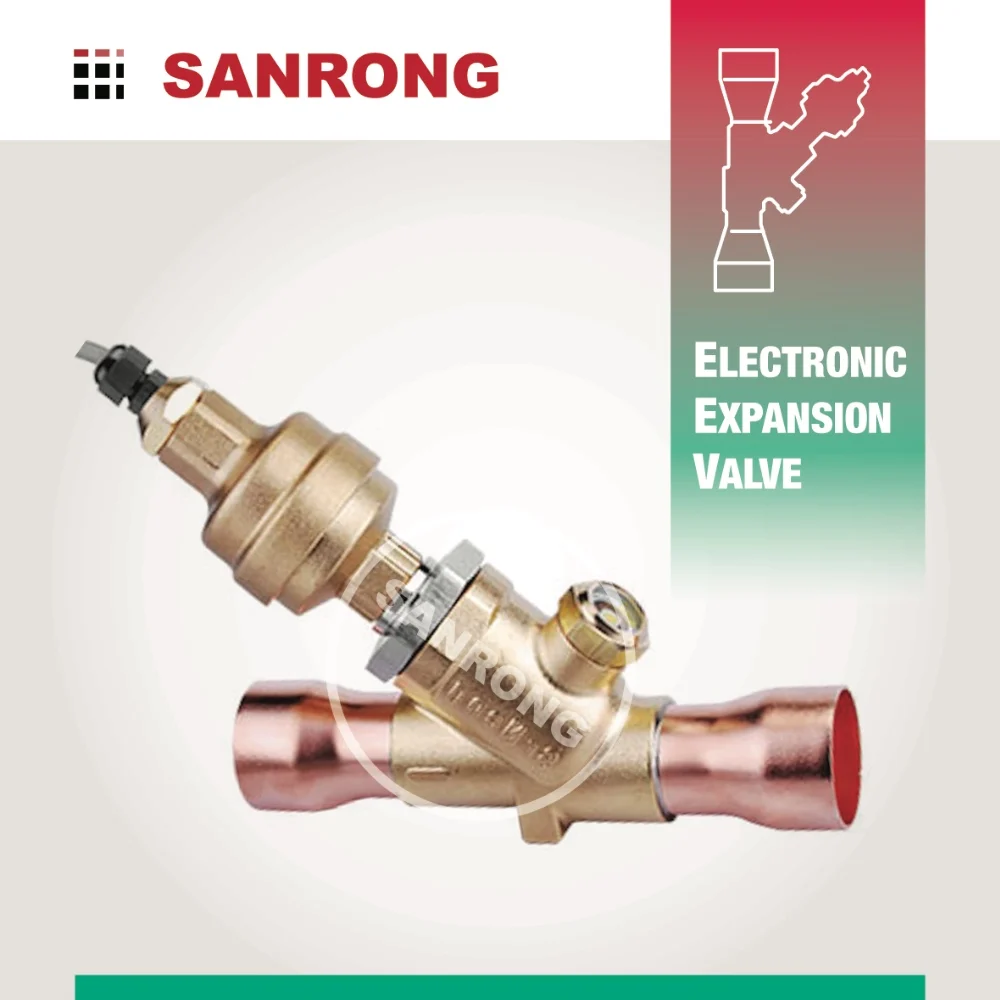

SEY-400 Bi-Flow Электрический регулирующий клапан с 12V DC Step Motor, ETS-400 Carel E7V Sporlan SERI-400 Электрический расширительный клапан

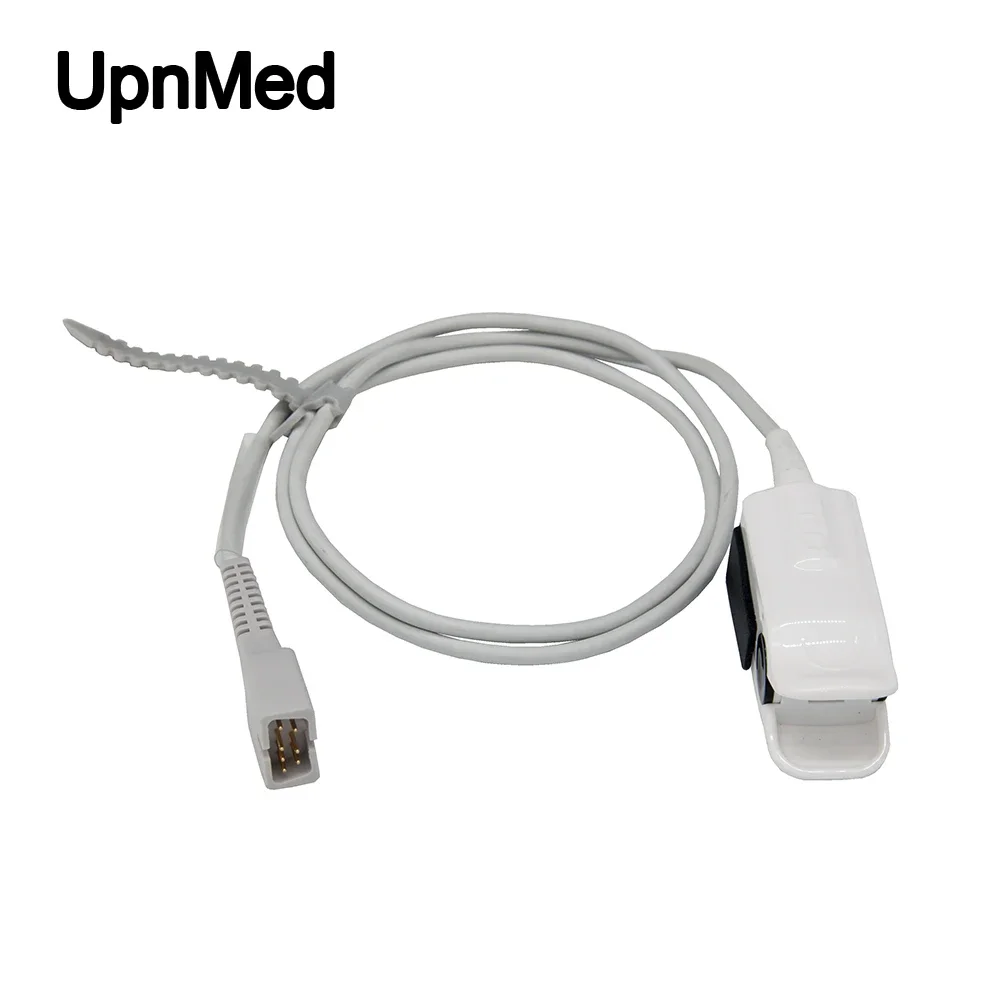

Датчик MS13235 spo2 совместимый датчик siemens spo2
