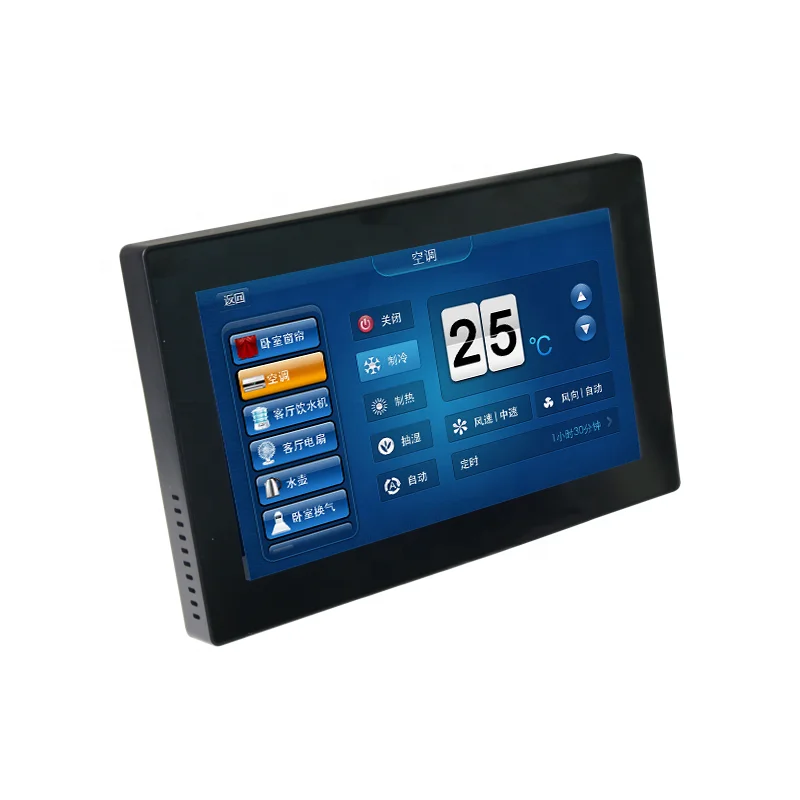

DACAI ЖК дисплей модуль 1024*600 7 дюймов ЖК экран с сенсорной панелью для умного дома цифровых носителях рекламы отраслевые дисплей
- Категория: >>>
- Поставщик: Guangzhou Dacai Optoelectronic Technology Co. Ltd.
Сохранить в закладки 1600524178616:
Описание и отзывы
Характеристики
Product specificatio

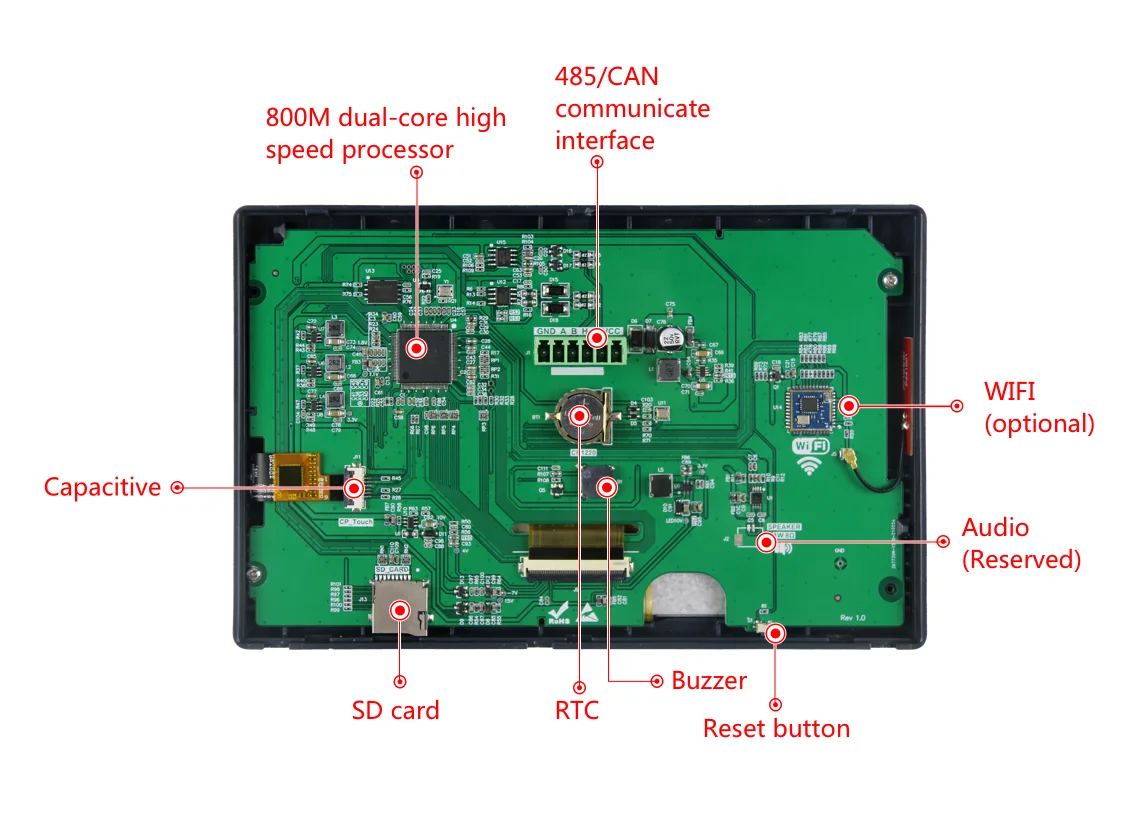

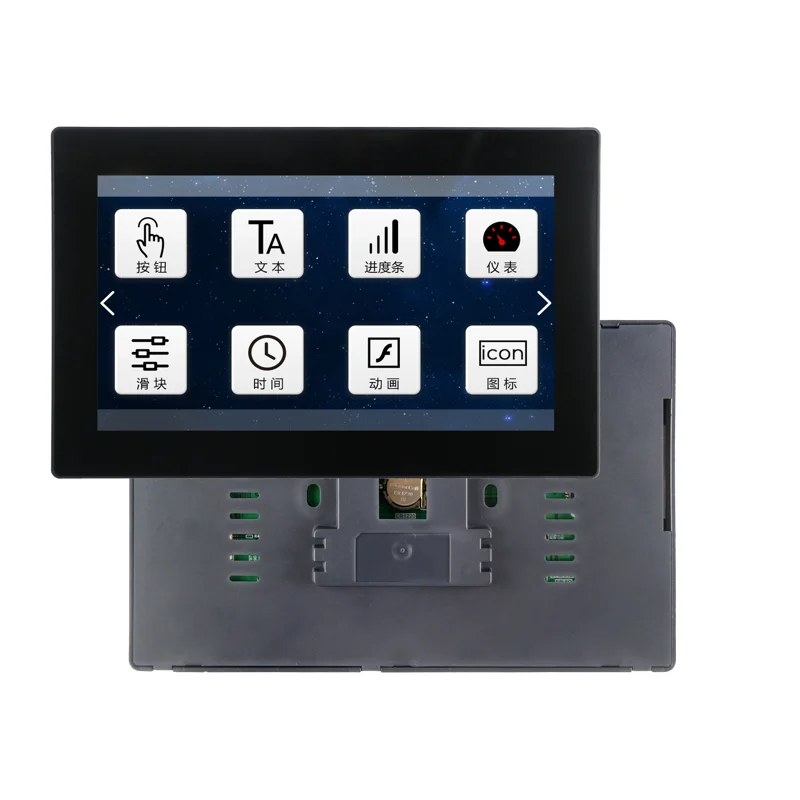

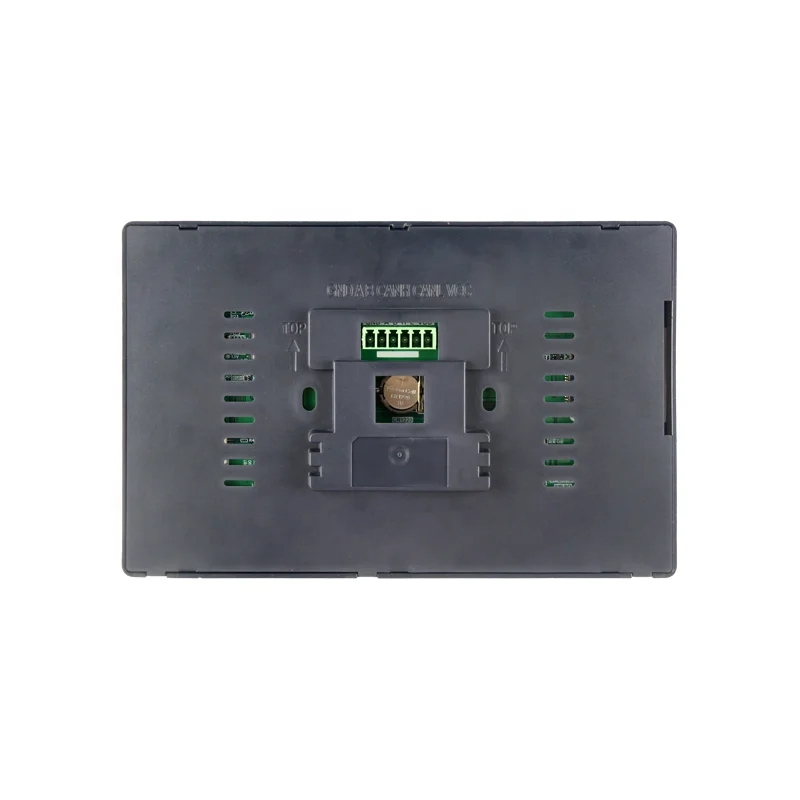

DC10600EW070_1XX1_C_C4,86 box is a 7.0-inch IoT 86 box configuration serial screen with a resolution of 1024*600.
1. Industrial-grade standard design, focusing on cool and IoT, EMI radiation can reach CLASS B medical level;
2. Using 32-bit 800M embedded SOC processor, internal integrated SDRAM, H.264 video hard decoding;
3. Support JPEG image compression, video playback, WIFI communication, vector font, multi-language one-key switching;
4. The panel adopts compatible brands such as BOE/Innolux/Hancai (depending on the market supply, no additional notice will be given);
5. Support common configuration controls and LUA scripts, refresh graphics and text faster, and realize internal logic operations and custom protocols;
6. Support CAN bus, RS485 communication;
7. Support scrolling and sliding effects similar to Android;
3. Support JPEG image compression, video playback, WIFI communication, vector font, multi-language one-key switching;
4. The panel adopts compatible brands such as BOE/Innolux/Hancai (depending on the market supply, no additional notice will be given);
5. Support common configuration controls and LUA scripts, refresh graphics and text faster, and realize internal logic operations and custom protocols;
6. Support CAN bus, RS485 communication;
7. Support scrolling and sliding effects similar to Android;
Product Specifica
Product Model |
DC10600EW070_10W1_C_C4, 86 boxes (RS485, with WiFi, capacitive touch) DC10600EW070_1001_C_C4, 86 boxes (RS485, no WiFi, capacitive touch) | |
Product Series | IOT Series | |
Processor | 800MHz 32-bit dual-core processor | |
Operation System | Embedded real-time operating system(FreeRTOS) | |
Protocol Type | Default Dacai configuration insruction sets,The host computer can be configured to run MODBUS RTU,XGUS protocol | |
Scripting language | LUA script, the logic, protocol and algorithm functions written by the user can be run inside the screen | |
Size | 7.0inch | |
Resolution | 1024*600 | |
Installation Display | Support 0°/90°/180°/270°rotate display | |
Memory Space | 1Gbit | |
Font Library | Built-in vector font, edge anti-aliasing,including ASCII,GBK,GB2312 and UNICODE libraries. Any computer font displayis customizable | |
Image Storage | Support JPEG,PNG (semi-transparent/full transparent)compression,support for any size image storage.Accumulate to store about 807 full-screen images(calculated by size 132KB/sheet,BMP format is not recommended).The image compression ratio is different,this value will float up and down. | |
Color | 65K colour,16-bit RGB | |
Voltage | 4.5-30V(error±0.2V) | |
Power Consumption | Standby:1.6W;Darkest backlight non-speaker:3.1W; Darkest backlight with speaker:3.3W;Brightest backlight non-speaker:4.8 W;Brightest backlight with speaker: 4.9W | |
Communicate Interface | RS485 | |
Communicate Baudrate | RS485:1200~115200bps,typical Braudrate9600 bps | |
Interface Specification | 2EDG3.81-6P | |

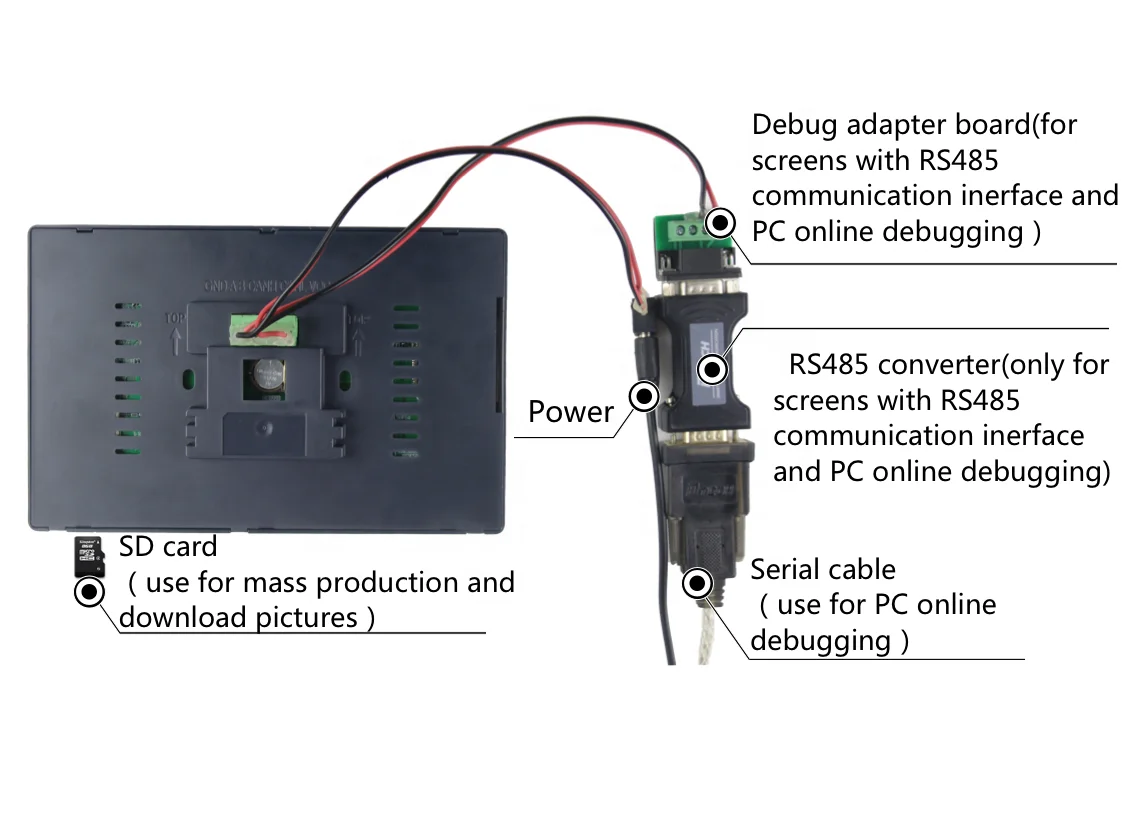

Image Download | SD card/RS485/WIFI | |
Real-time RTC | support countdown,timer,year,month,day,etc.displaying | |
Active Area of Displaying(AA) | L×W = 153.7mm×86.2mm | |
Product Dimension(L*W*H) | L×W×H = 184.0mm×118.0mm×15.1mm | |
Host computer software | VisualTFT® | |
protocol | CAN2.0A,CAN2.0B | |
Video Playing | MP4 video format.If a video file with a resolution of 800*600, a video bit rate of 3000Kbps, an audio code rate of 166Kbps, and a frame rate of 25Hz,it occupies 21.9MB/min | |
WIFI | Adopt RTL8188EUS chip, USB high-speed WIFI, support network card mode and hotspot mode, can be configured as wireless serial port transparent transmission mode, available TCP/IP protocol, FTP protocol, HTTP protocol | |
Three Anti-paint Process | None | |
|
| |
Core Competitiveness | ||
Learning Circle | Familiarize development environment within 30 minutes, complete human-computer interaction design within 3 days. | |
Program Debugging | The host computer integrates ‘Virtual serial port screen’without hardware connection required.It is directly bound with Keil IDE for debugging. | |
Start-up Time | Can display once power-on | |
Configuration Control | With a variety of configuration controls such as buttons, text, drop-down menus, progress bars,sliders,meters,animations,QR codes,curves,data records,circular progress bars,audio and video,etc. | |
System Keyboard | Built-in virtual digital and figure keyboard,Chinese and English input method,user-defined keyboard. | |
Data Record | Support data record controls export to U disk. | |
Replace Boot LOGO | Support use U disk forreplacement | |
Remote Update | Support screen engineering pictures, firmware,user MCU firmware remote upgrade (requires WIFI model) | |
Information Pushing | Support cloud push video or advertisement display, mobile APP and screen communication display (requires WIFI model) | |
Multiple Languages | More than 10 languages can be preset upon delivery.Languages can be switched with one key without multiple UI designs required. | |
Logical Operation processing | The Lua script compiler is embedded in the host computer,and the user can customize various complex logic relationships in the screen to meet the 99.9% product function requirements of the customer. | |
Reliability | All products have passed the test of high and low temperature,ESD, group pulse and radiation in the industrial standards. | |
Life Cycle | Traditional brand processors are adopted without supply shortage for years. | |
| ||
LCD Display | ||
Display Type | TFT LCD | |
Backlight Tube | LED | |
Brightness(cd/m²) | 250 | |
Backlight Life(H) | >20,000 | |
Contrast Ratio | 800:1 | |
Viewing(L/R/T/B) | 85/85/85/85 | |
Contact Us
Похожие товары
Онлайн Ph-датчик
145,00 $ - 189,00 $
Медицинские студенты Подушечка для тренировки швов моделирование удаления и завязывания ротовой раны силиконовая модель хирургической
3,99 $ - 6,99 $

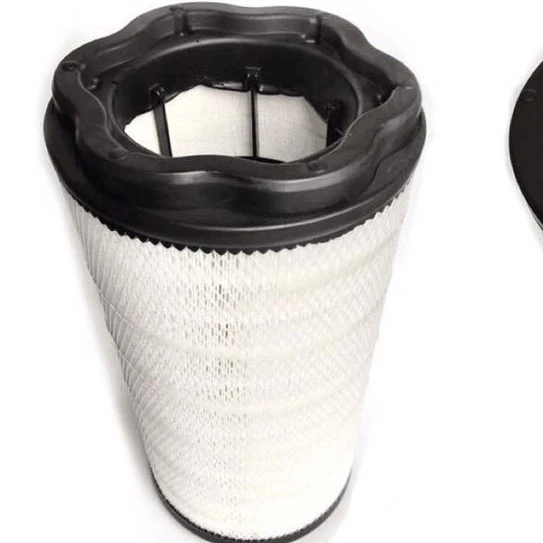

Детали двигателя грузовика, воздушный фильтр 2341657
6,00 $ - 9,00 $
Сексуальный Западный ковбойский женский танцевальный костюм для выступления ночного клуба фотографический Косплей
13,80 $ - 14,95 $

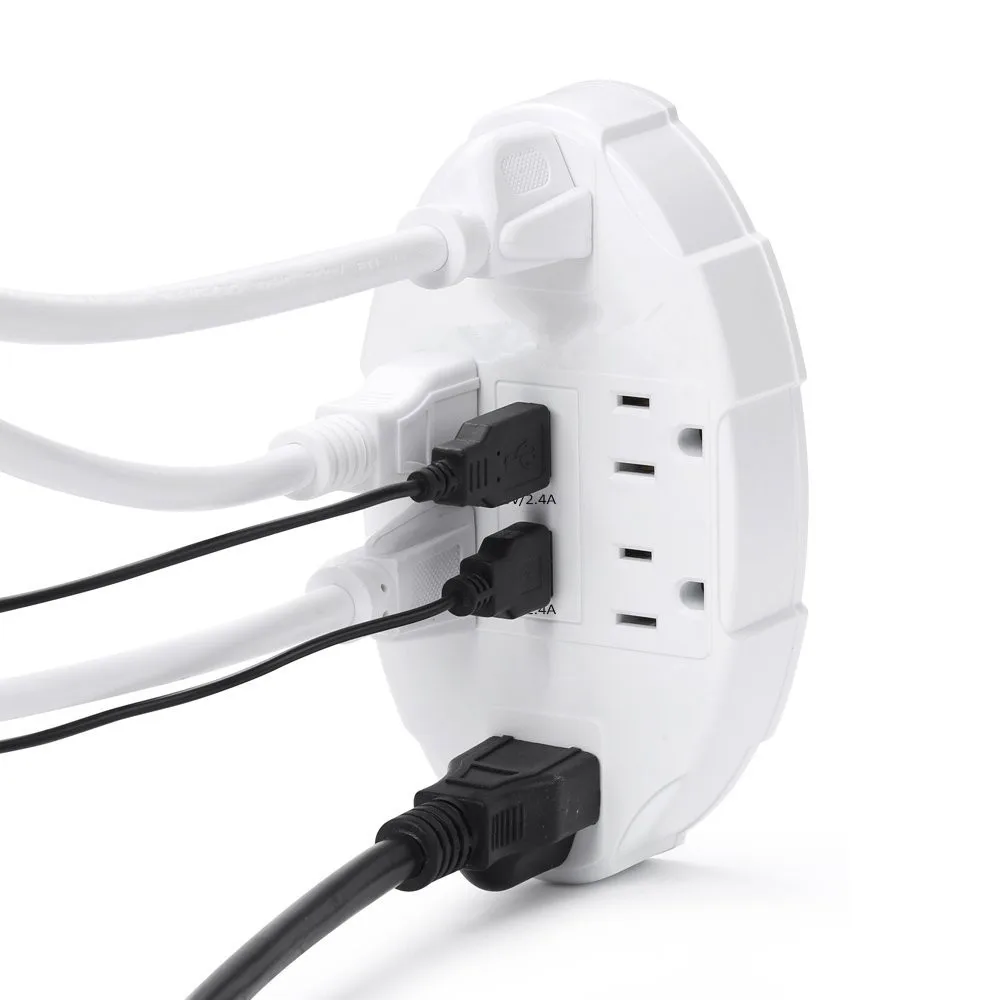

USB несколько розетка переключатель мультипликатор для подключения ЖК-дисплея к порту Универсальный электрических штепсельных вилок
Концентратор Type c для Macbook, 13 в 1, с 5 портами USB 3,0, HDMI, VGA, Gigabit Ethernet, аудио, SD, TF, кардридер PD и Беспроводная зарядка
31,88 $ - 33,38 $

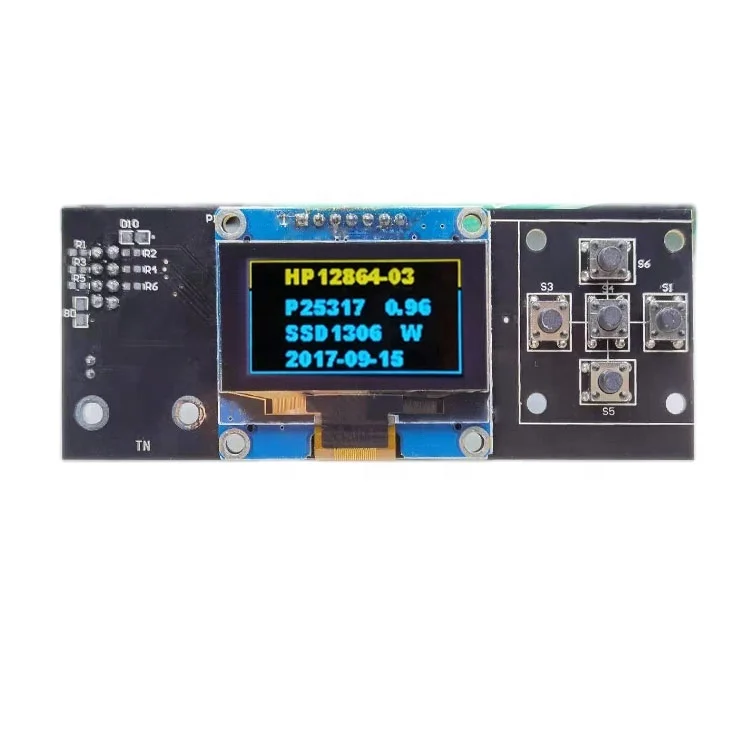

Лидер продаж высокое качество 0 96 дюйма 128x64 последовательный синий модуль IIC 128X64 I2C SSD1306
