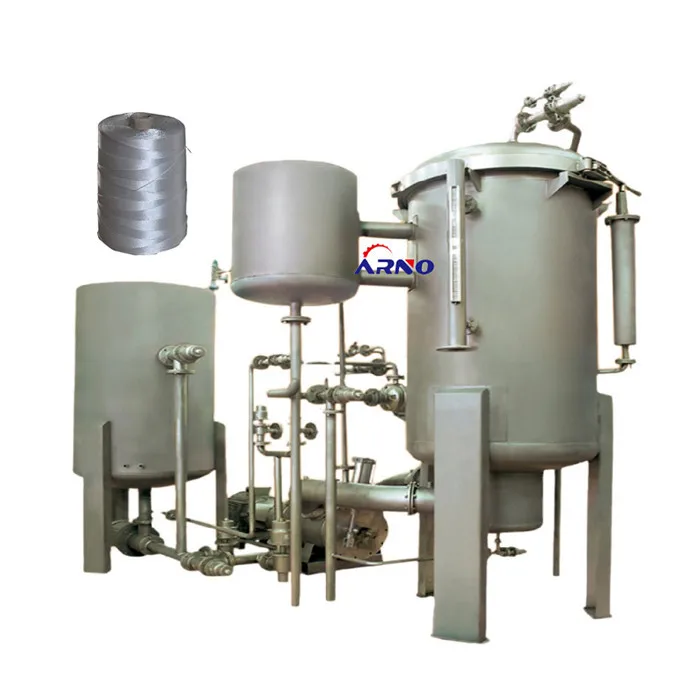

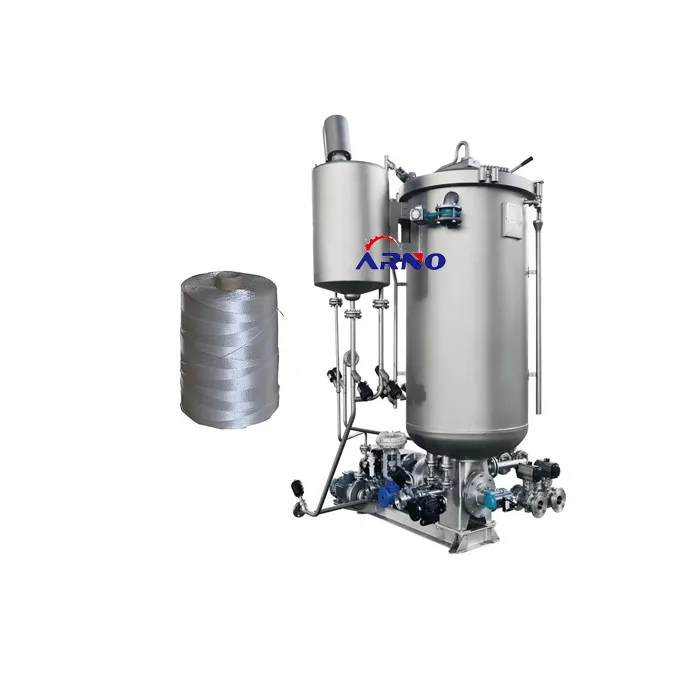

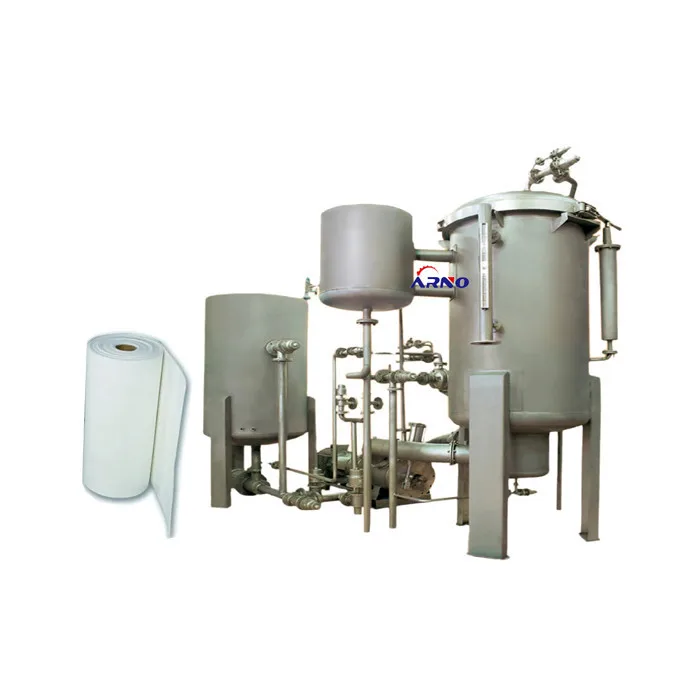

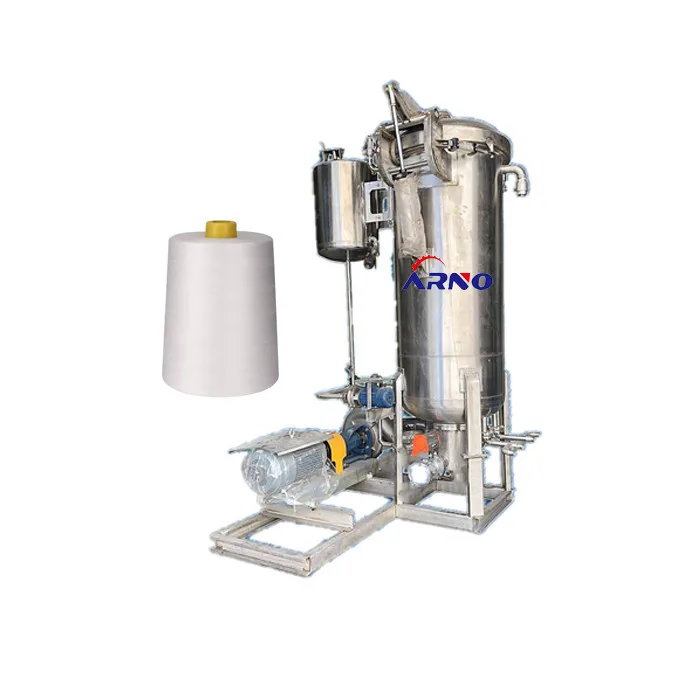

Высокотемпературная машина для окрашивания акрила/машина нейлона/машина химического волокна

Сохранить в закладки 1600524580981:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Parameters of the dyeing machine



Product Description


1. description and function of dyeing machine


The factory mainly produces dyeing equipment such as cloth polyester fiber, including bulk fiber cake press, high temperature jet dyeing machine, high temperature package dyeing machine, high temperature package dryer, normal temperature spray automatic hank dyeing machine, automatic feeding machine, high temperature vacuum setting machine , Tunnel time dryer. We have the entire production line, welcome your consultation.


2. the technical parameter of dyeing machine


















































































































Model:



AN-300



Design capacity (kg)



300



Maximum working temperature ()



100



Maximum operating pressure (MPa)



0.3



Cylinder block (fixed flat base) with manual locking device



3-6mm SUS304



Built-in small circle heat exchanger (design pressure 0.9 MPa)



Equipped with automatic control heating and cooling system



frame



Stainless steel



Inlet valve (1), drain valve (1)



Dg50 (included) stainless steel pneumatic butterfly valve



Heating valve (2pcs)



Stainless Steel Pneumatic Square Valve



Cooling valve (1), cold exhaust valve (1)



Stainless Steel Pneumatic Square Valve



Trap (1 piece)



upside down



Internal and external surface treatment



In-cylinder mirror polishing, out-cylinder polishing or sandblasting



Barrel body 2mmS31603



Automatic water inlet, spray cleaning, dye liquor return, mechanical stirring, backwash mixing, brief temperature rise, automatic liquid level control



Feeding pump power (kw)



2.2



Stirrer power (KW)



0.75



Water inlet valve, heating valve, drain valve, feeding valve, return valve



Stainless steel air angle valve



Cage Diameter (mm)



1400



Cage Height (mm)



1300



Center tube diameter (mm)



415



Material thickness



SUS304/2.5mm



Electric cabinet



SUS202 brushed plate/1.5mm



Motor (KW)



18.5



coloring computer



HG-716 Chinese and English



The electromagnetic valve



Taiwan Yadke



main electrical components



Siemens



PT100



2-core waterproof 5m shielded cable



trachea



6*1 high temperature and pressure resistant nylon tube




3. the feature of dyeing machine


1) Suitable for bleaching and dyeing of pure cotton, polyester, acrylic, acrylic, nylon, wool, hemp and other yarns.
2) Innovative design, energy saving and high efficiency, under the condition of the same heating area, the uniquely designed heat exchanger can achieve the best effect of heating and cooling
3) The main pump and heat exchanger are compact, without heat loss, and improve the circulation efficiency of dye liquor.
4) The fuselage and all parts in contact with the dye solution are made of corrosion-resistant stainless steel.

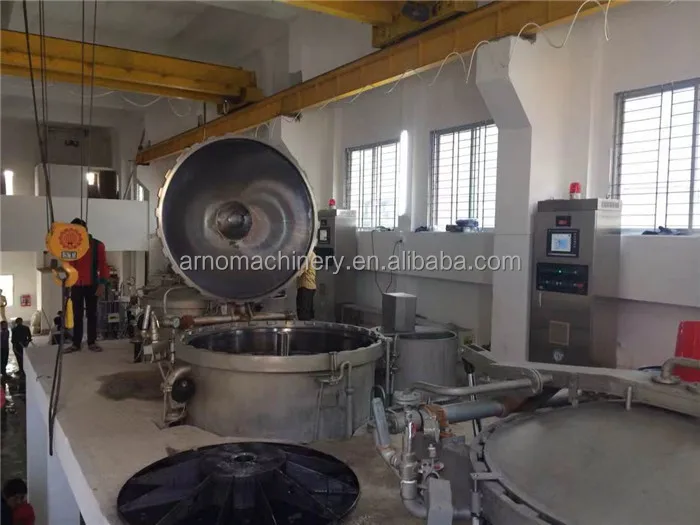

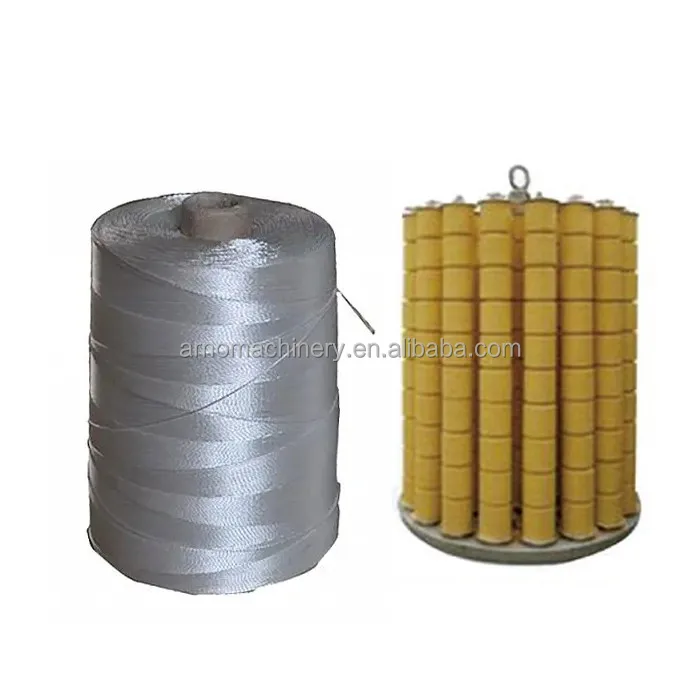

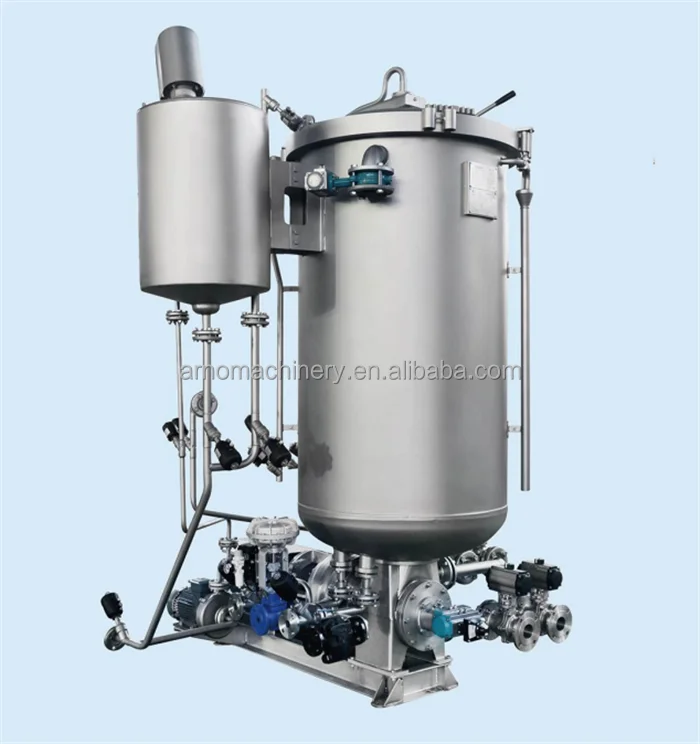

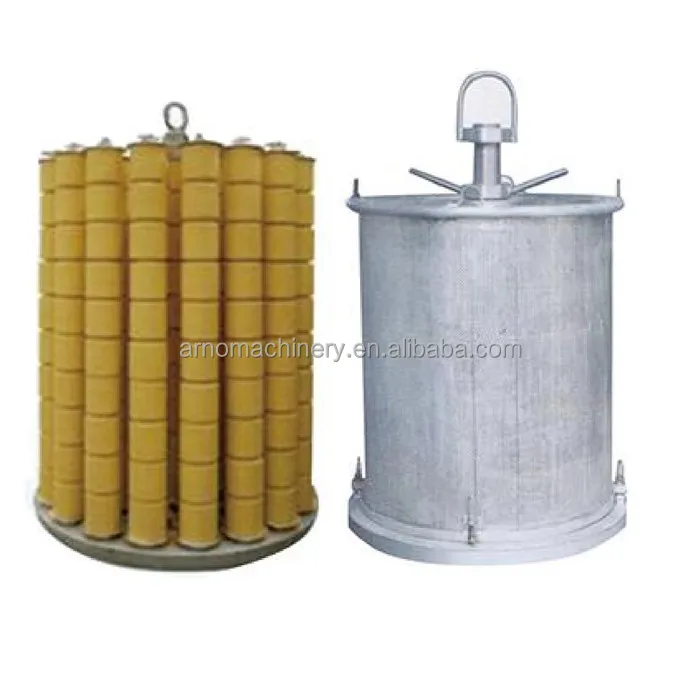

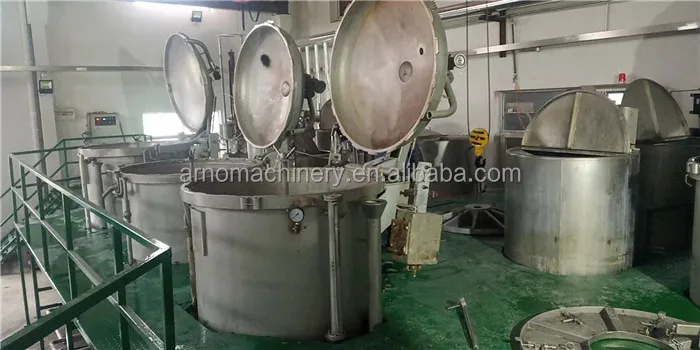

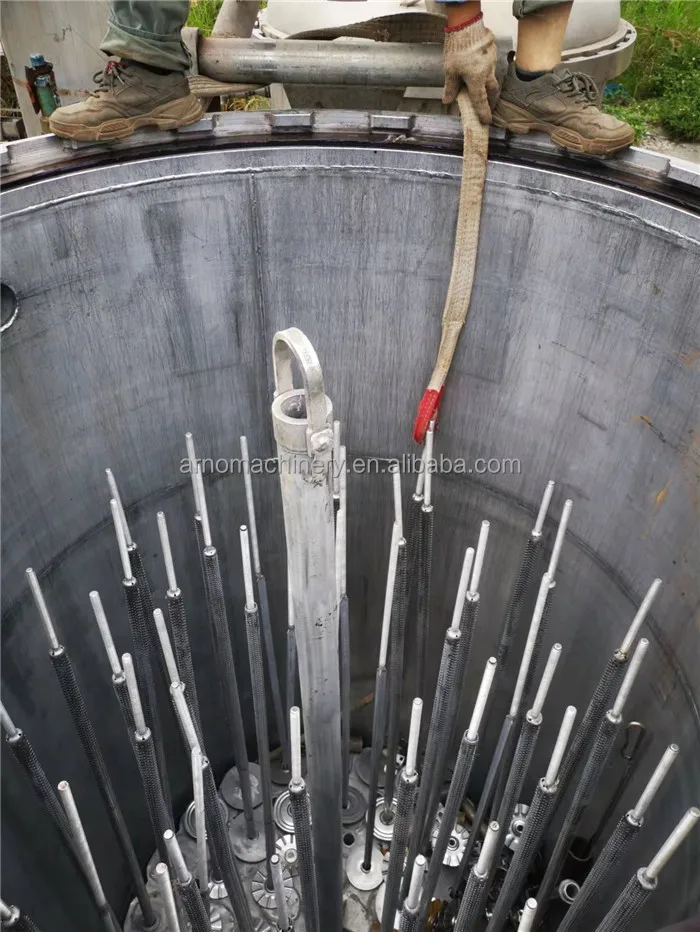

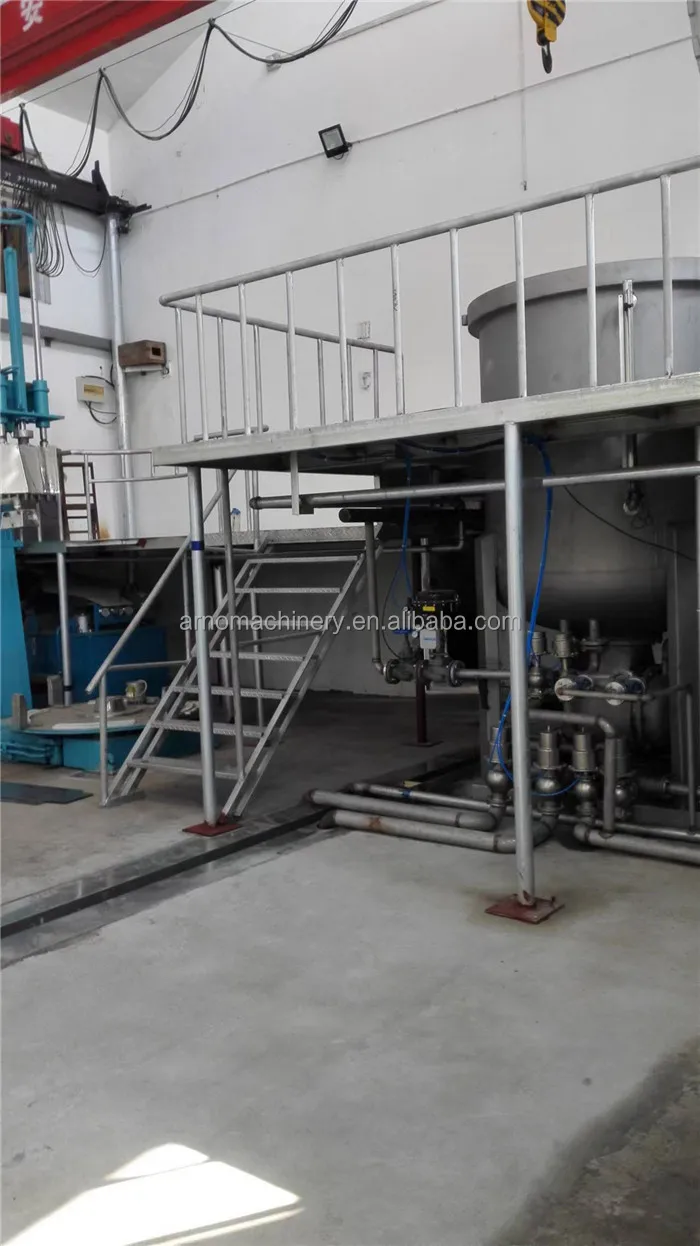

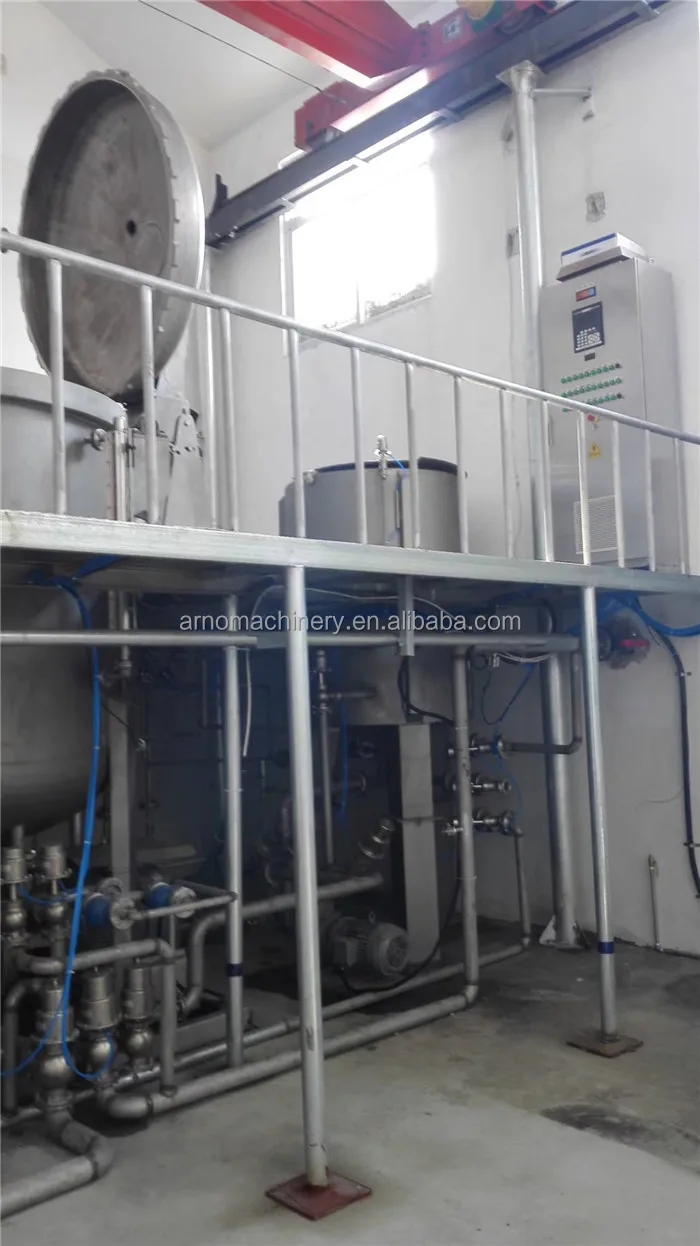

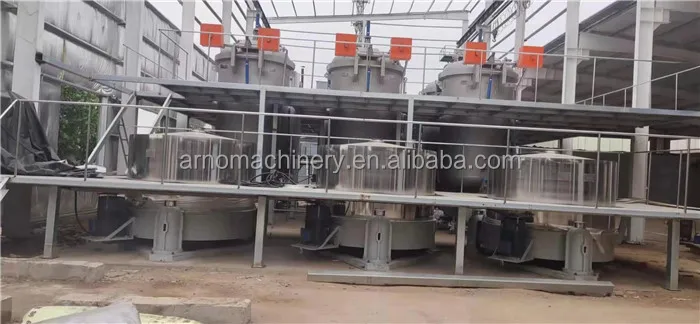

MACHINE PHOTO


 dyeing machine (1).pngdyeing machine (5).jpgdyeing machine (6).jpgdyeing machine (3).jpgdyeing machine (4).jpgdyeing machine (7).jpgdyeing machine (8).jpgdyeing machine (9).jpgdyeing machine (11).jpgdyeing machine (1).jpg





Our Services


Pre- service before sale


 we keep 24hours online,and reply you in time ,you can send inquiry by email or any online chatting tools


and professional to introduce our machine detail and catalogue


Service during the sale


1. keep post the producetion schedule .


2. test new machine,and send you vedio and machine detail


3.packed with wooden case as export standards after you confrimed


4. delivery on time :


if by ship : we will send machine to your seaport, let you know ETD&ETA,


and send your do customs clearance documents


if by Express: we will send machine to your address(DHL,Fedex,TNT) or by air to your airport.




the Service after sale


Provide considerate services to minimize clients' worries.


1.. Assist clients to prepare for the first construction scheme;


2.. Install and debug the equipment;


3.. Train the first-line operators;


4.. Examine the equipment;


5.. Take initiative to eliminate the troubles rapidly;


6.. Provide technical exchanging.
