Машина для выдувного формования
150 000,00 $

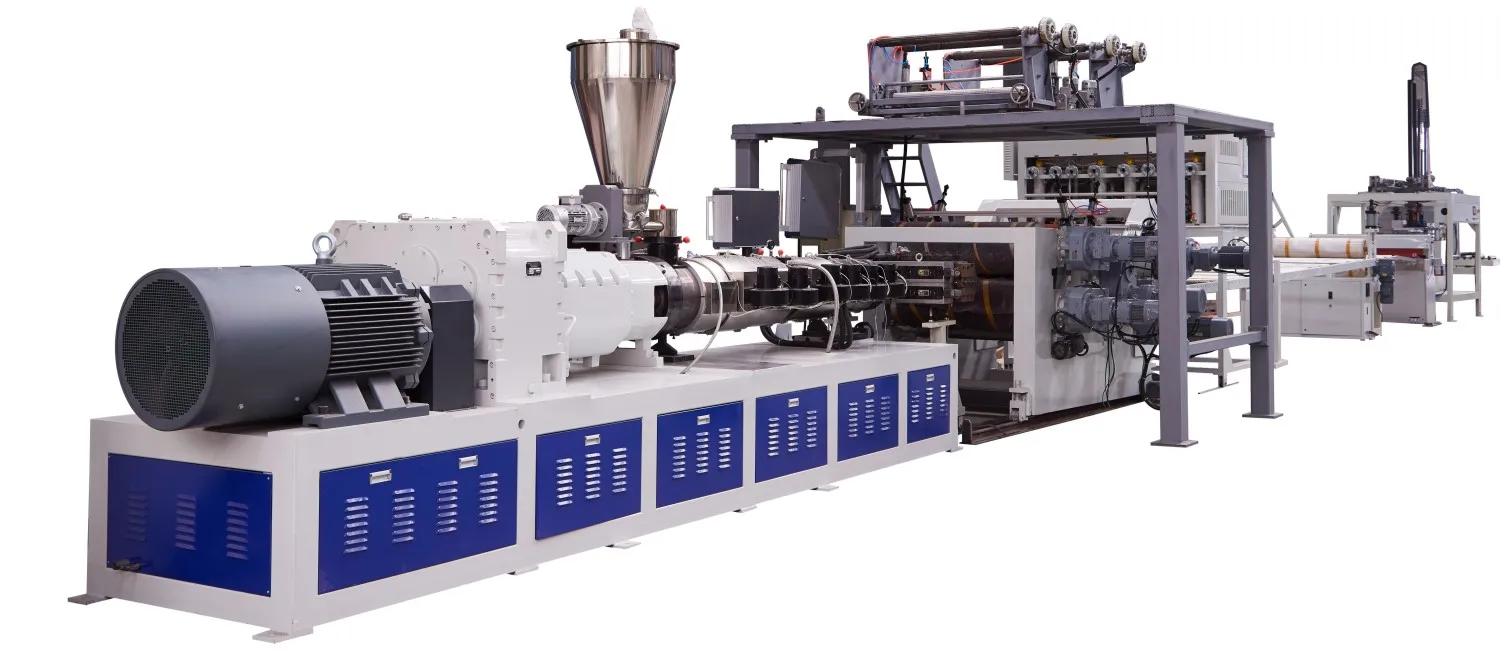

Высококачественная многослойная машина для производства напольного покрытия SPC/Производственная линия LVT виниловых
- Категория: Plastic & Rubber Processing Machinery >>>
- Поставщик: Zhangjiagang Kiwex Machinery Co. Ltd.
Сохранить в закладки 1600524634852:
Описание и отзывы
Характеристики

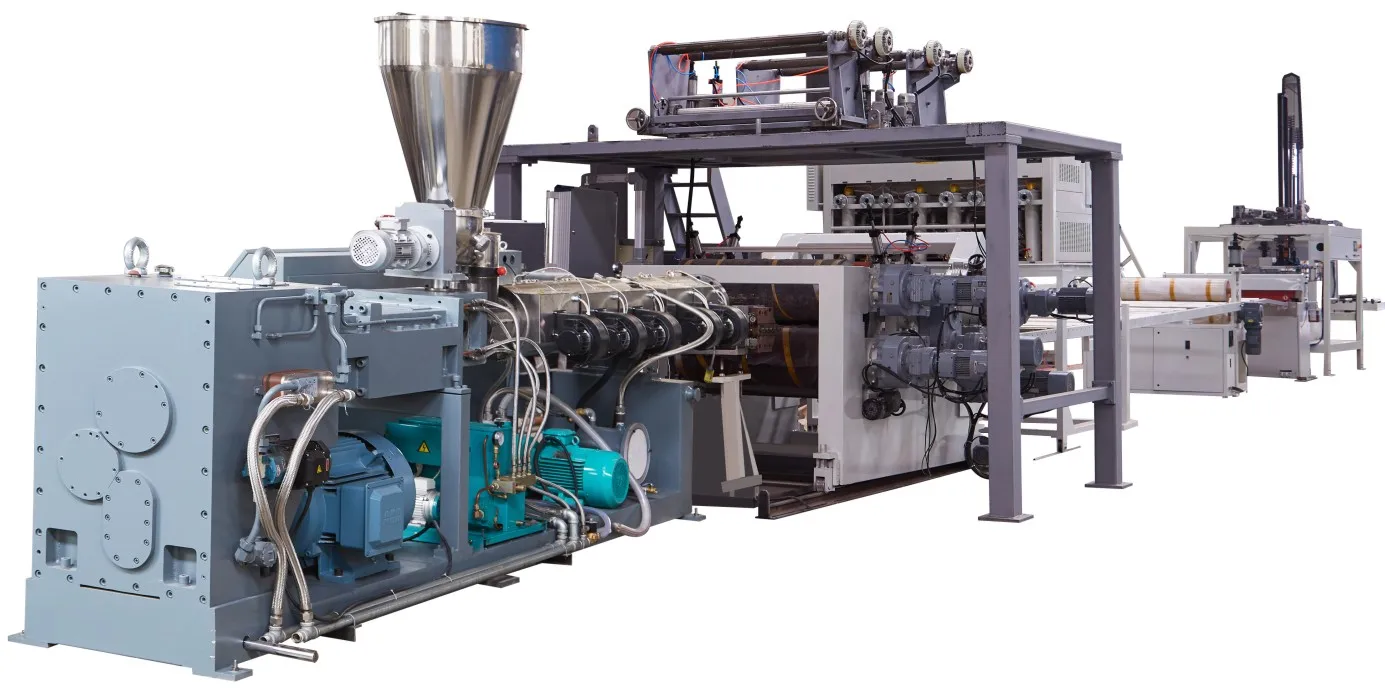

China Stone plastic PVC SPC vinyl flooring making machine Screw Design Double-Screw

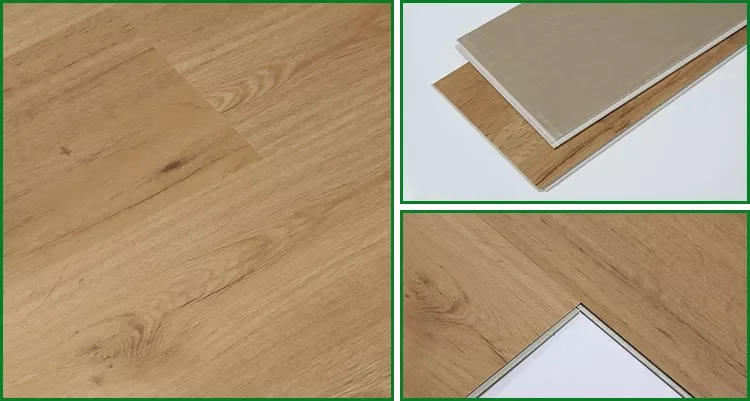

PVC SPC vinyl flooring making machine :
PVC SPC vinyl flooring making machine from KIWEX MACHINERY is advanced in skill and high automation. The based material extrusion,

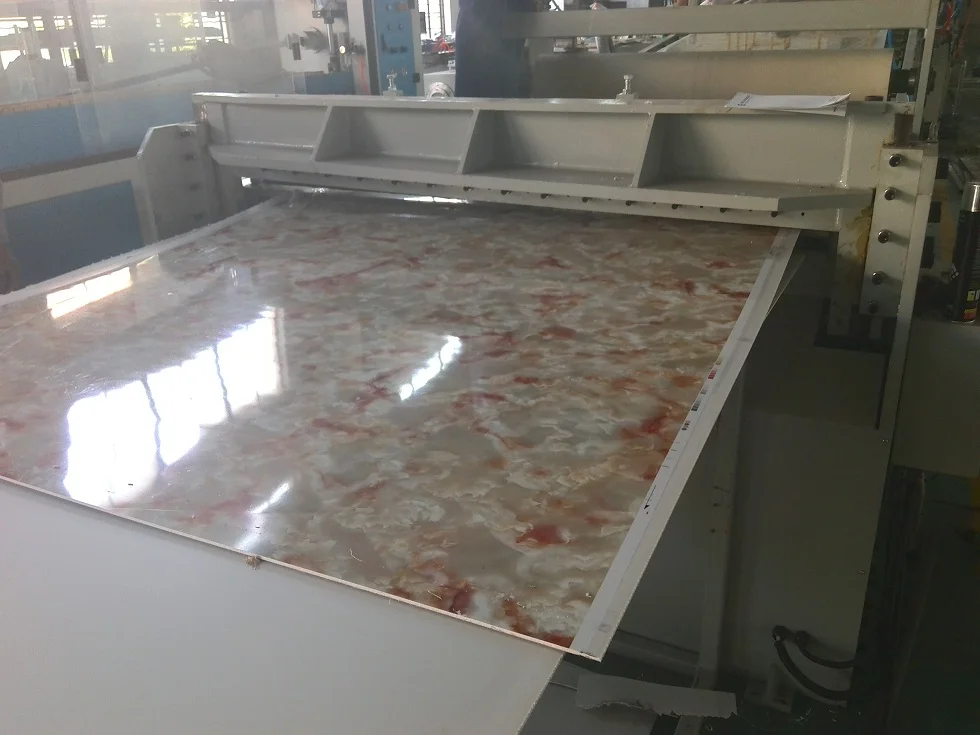

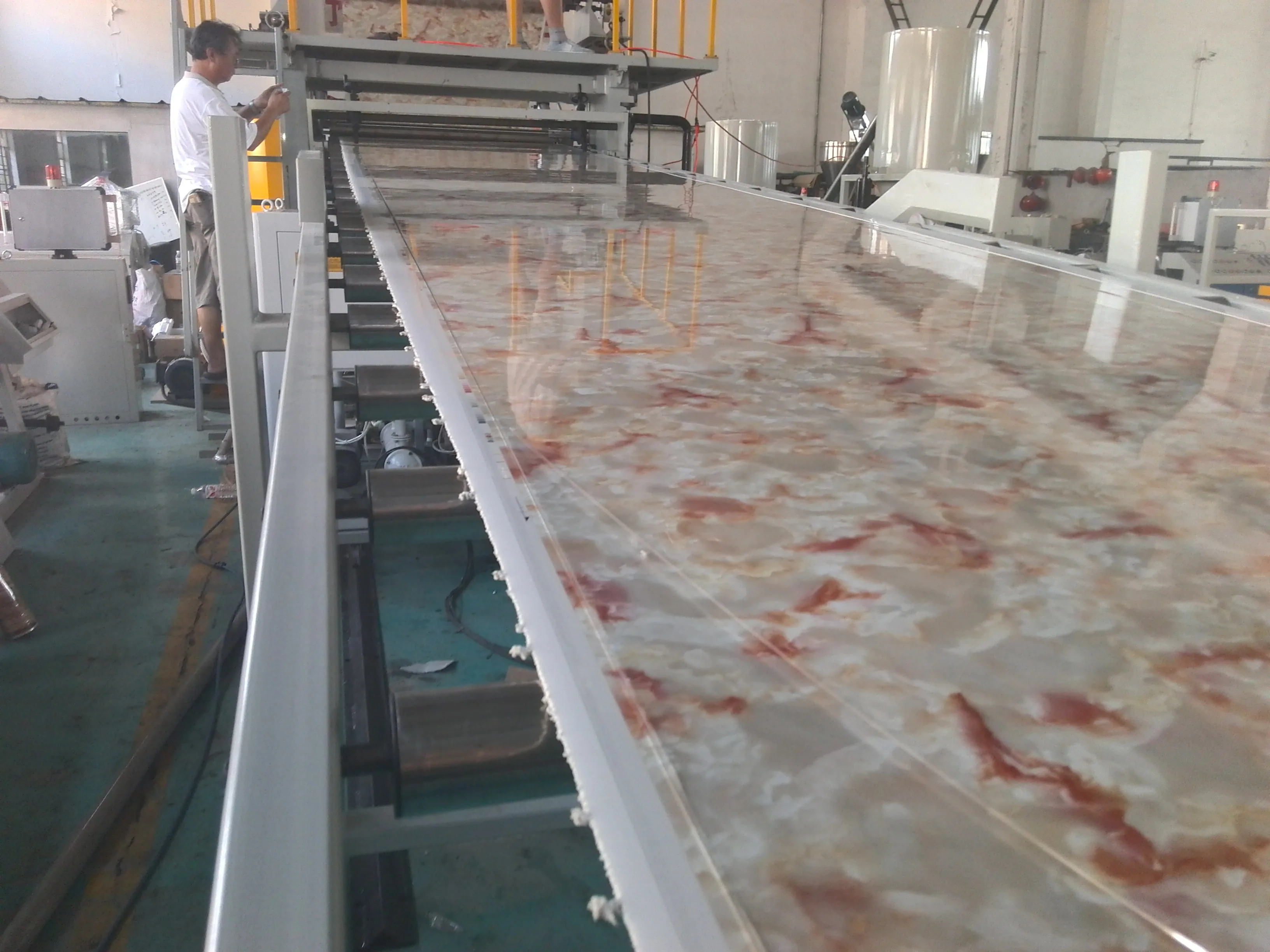

wood grain embossing, color film,wear-resisting film. By changing lamination paper, PVC lamination marble sheet can be made in SPC vinyl flooring making machine.
PVC SPC vinyl flooring making machine from KIWEX MACHINERY is advanced in skill and high automation. The based material extrusion,
wood grain embossing, color film,wear-resisting film. By changing lamination paper, PVC lamination marble sheet can be made in SPC vinyl flooring making machine.
Contacts: Ms. Anny Wu
Mobile: 0086-13914904285
Tel: 0086-512-5896 2619
Fax: 0086-512 5896 0250
E-mail: kwxb@kwxsj.com
Skype: anny52188
Whatsapp/wechat: +86--13914904285
Mobile: 0086-13914904285
Tel: 0086-512-5896 2619
Fax: 0086-512 5896 0250
E-mail: kwxb@kwxsj.com
Skype: anny52188
Whatsapp/wechat: +86--13914904285
Application: Mainly used for produce the sort of PVC Floor leather rolls. PVC Floor leather has the performance of anti-friction,corrosion resistence , skidproof, impermeable and inflaming retarding, is widely used on auto, hotel, amusement place, exhibition hall,house,etc. The structure of this production line is simple, and convenient to operation .According to customers’ requirement ,equipped with different components,used for producing single layer,multi-layer composite production and
also can be equipped with unreeling unit,used for producing inner strengthen production or surface compound non-woven fabrics and
PVC decoration film, etc.
also can be equipped with unreeling unit,used for producing inner strengthen production or surface compound non-woven fabrics and
PVC decoration film, etc.

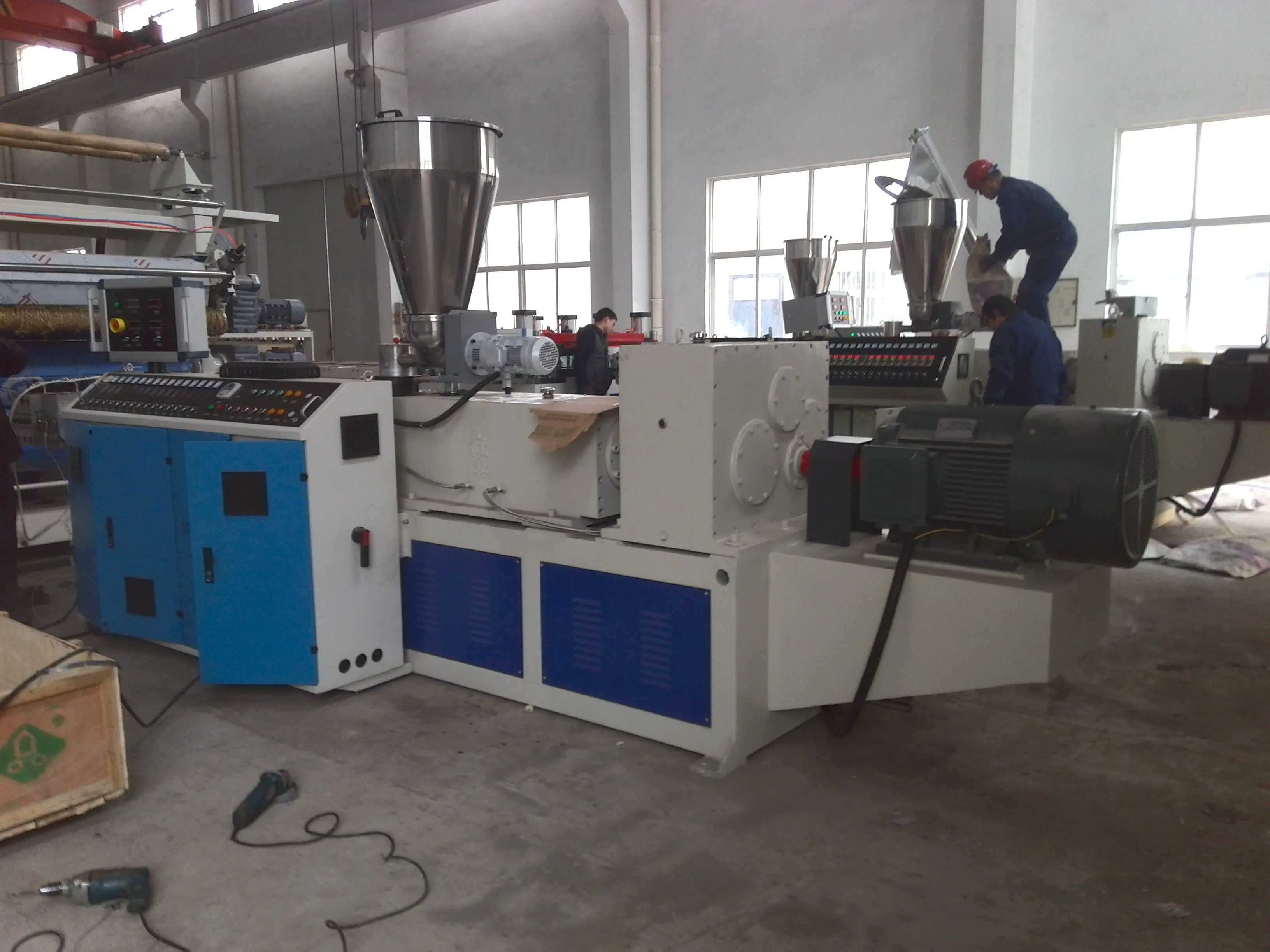

SJSZ-80 Conical Twin-screw Extruder
1) Adopting high quality screws made of 38CrMoAlA, which is treated by percolating nitrogen.
2) The depth of screw percolating nitrogen is 0.5~0.6mm, hardness (HV) 800~900, surface roughness Ra≤0.8um.
3) The depth of feeding hopper is 0.5~0.7mm, hardness over (HV) 950, inner wall roughness Ra≤1.6um.
4) Adopting high quality reducer case, driving by inclined gears treated by percolating nitrogen and polishing.
5) the main motor power: 55KW, the production capacity 350-400kg/h.
6) Cooling mode of roller: by air. Adopting casting aluminum heating ring, heating power: 36kw.
2) The depth of screw percolating nitrogen is 0.5~0.6mm, hardness (HV) 800~900, surface roughness Ra≤0.8um.
3) The depth of feeding hopper is 0.5~0.7mm, hardness over (HV) 950, inner wall roughness Ra≤1.6um.
4) Adopting high quality reducer case, driving by inclined gears treated by percolating nitrogen and polishing.
5) the main motor power: 55KW, the production capacity 350-400kg/h.
6) Cooling mode of roller: by air. Adopting casting aluminum heating ring, heating power: 36kw.

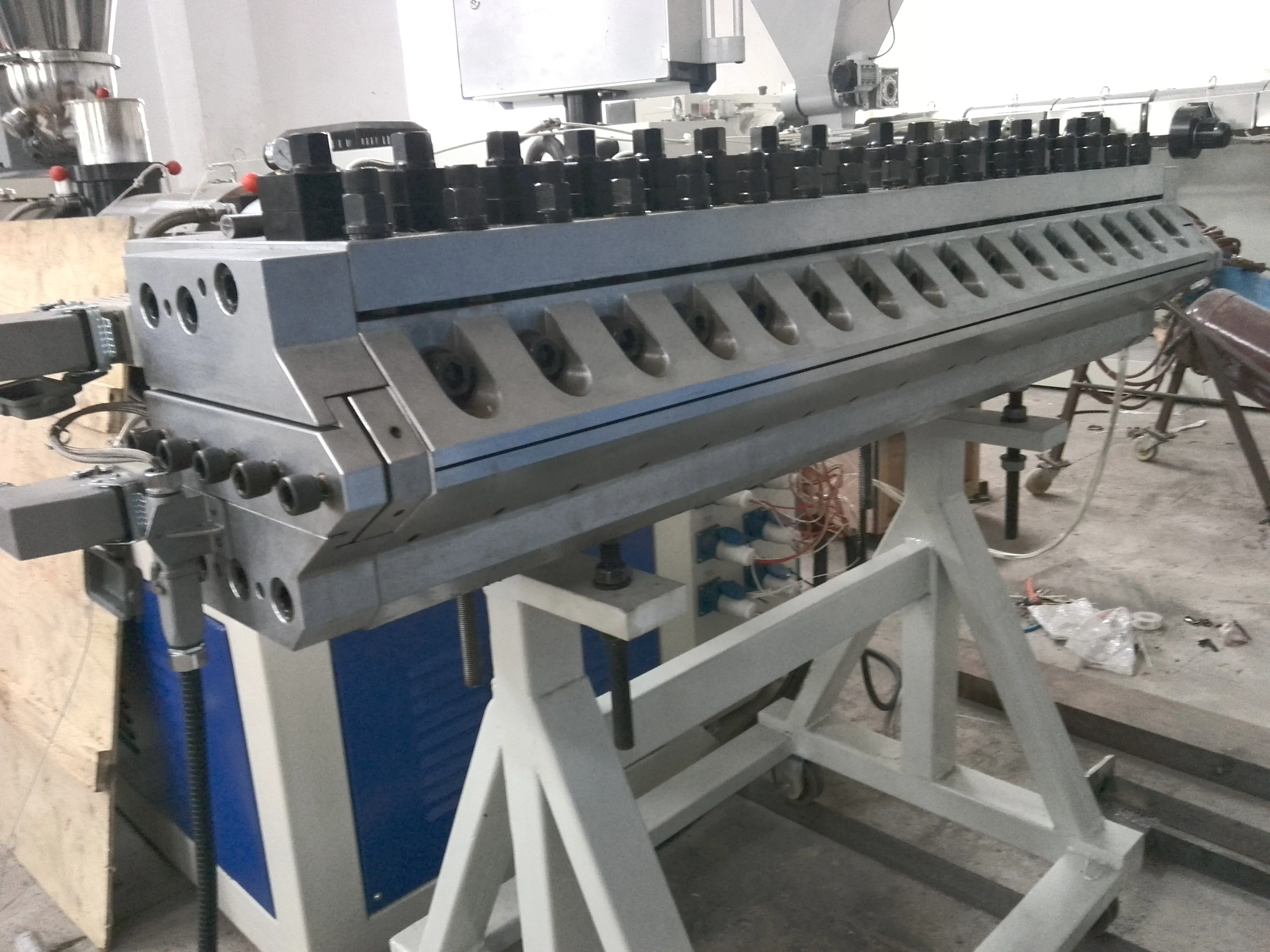

T-Die
1) Open width: 1350mm, 5CrNiMo with chromium plated inside and outside
2) with movable die mouth, which can be adjusted..
3) with 90 degree damper, which can adjust the material flow.
4) Size of finished production: width 1220mm (after trimming ), thickness 2-10 mm
5) Heating power: 16kw, 9zones
2) with movable die mouth, which can be adjusted..
3) with 90 degree damper, which can adjust the material flow.
4) Size of finished production: width 1220mm (after trimming ), thickness 2-10 mm
5) Heating power: 16kw, 9zones

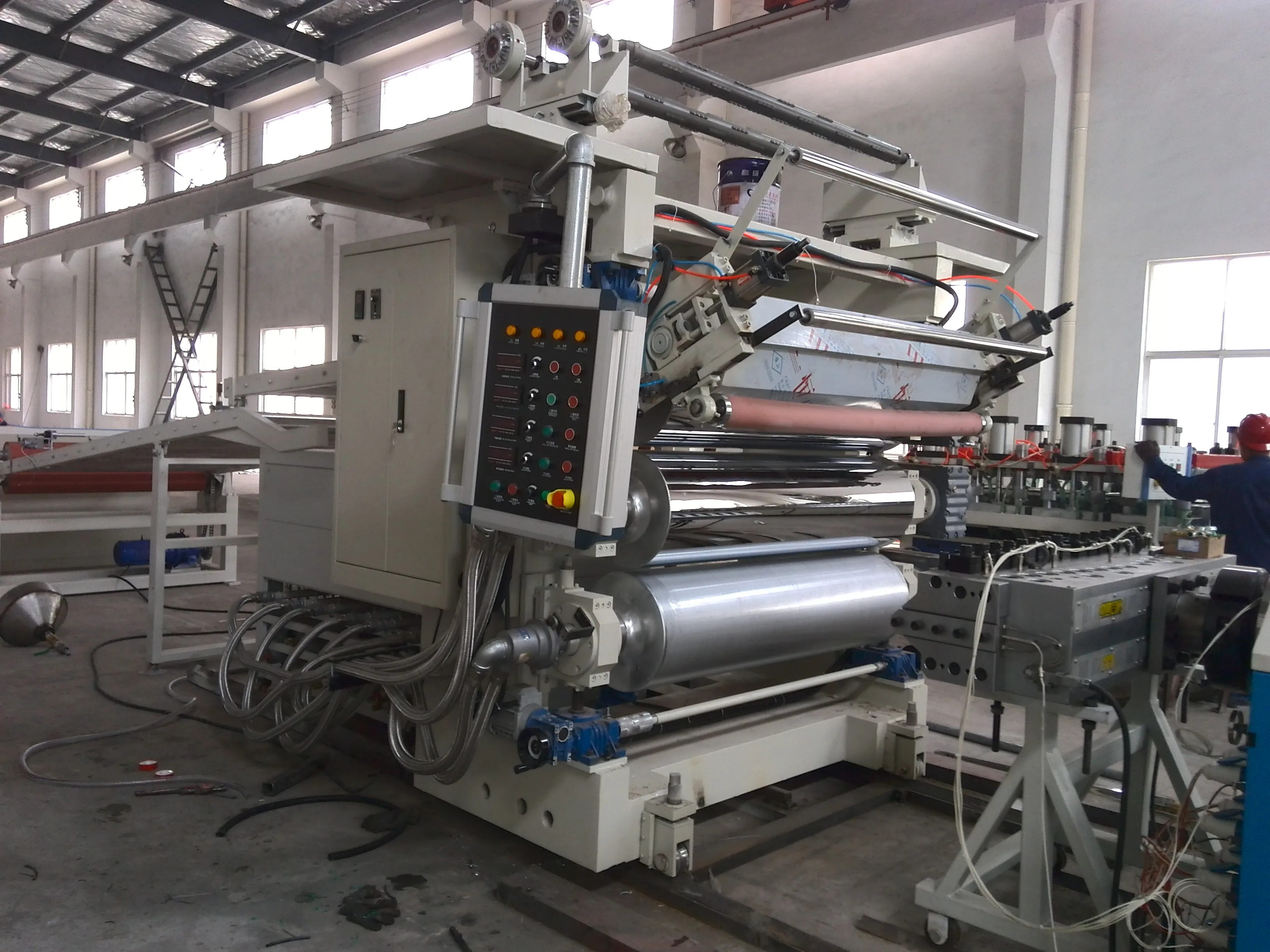

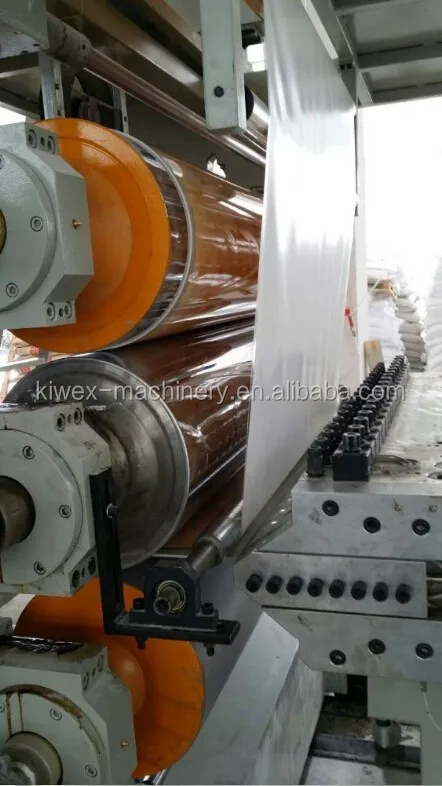

Three-roller Calendar & Temperature Controller & Hot Stamping Machine
Roller diameter: 400mm Roller length: 1400mm
Surface roughness: Ra≤0.025um Surface rigidity: HRC55-60
Chromed layer: 0.08-0.12mm Inverter: TECO inverter
Driving motor: 1.5kw*3 Roller pitch adjustment: hydraulic slide block type
Roller bearing: Japan Omron Three roller type: vertical type
Production speed： 0.6-6m/min Mold center height: 1050mm±50mm
Contactors and relay: Schneider brand Breaker: Delixi brand
Cooling medium: Oil Temperature range: 30-200℃
Temperature error: ≤±1℃ Water pump power： 2.2kw each
Heating power: 9kw each Hot stamping roller size: Φ100×1500mm
Hot stamping heater power: 10kw Speed control: Frequency control by inverter
Surface roughness: Ra≤0.025um Surface rigidity: HRC55-60
Chromed layer: 0.08-0.12mm Inverter: TECO inverter
Driving motor: 1.5kw*3 Roller pitch adjustment: hydraulic slide block type
Roller bearing: Japan Omron Three roller type: vertical type
Production speed： 0.6-6m/min Mold center height: 1050mm±50mm
Contactors and relay: Schneider brand Breaker: Delixi brand
Cooling medium: Oil Temperature range: 30-200℃
Temperature error: ≤±1℃ Water pump power： 2.2kw each
Heating power: 9kw each Hot stamping roller size: Φ100×1500mm
Hot stamping heater power: 10kw Speed control: Frequency control by inverter

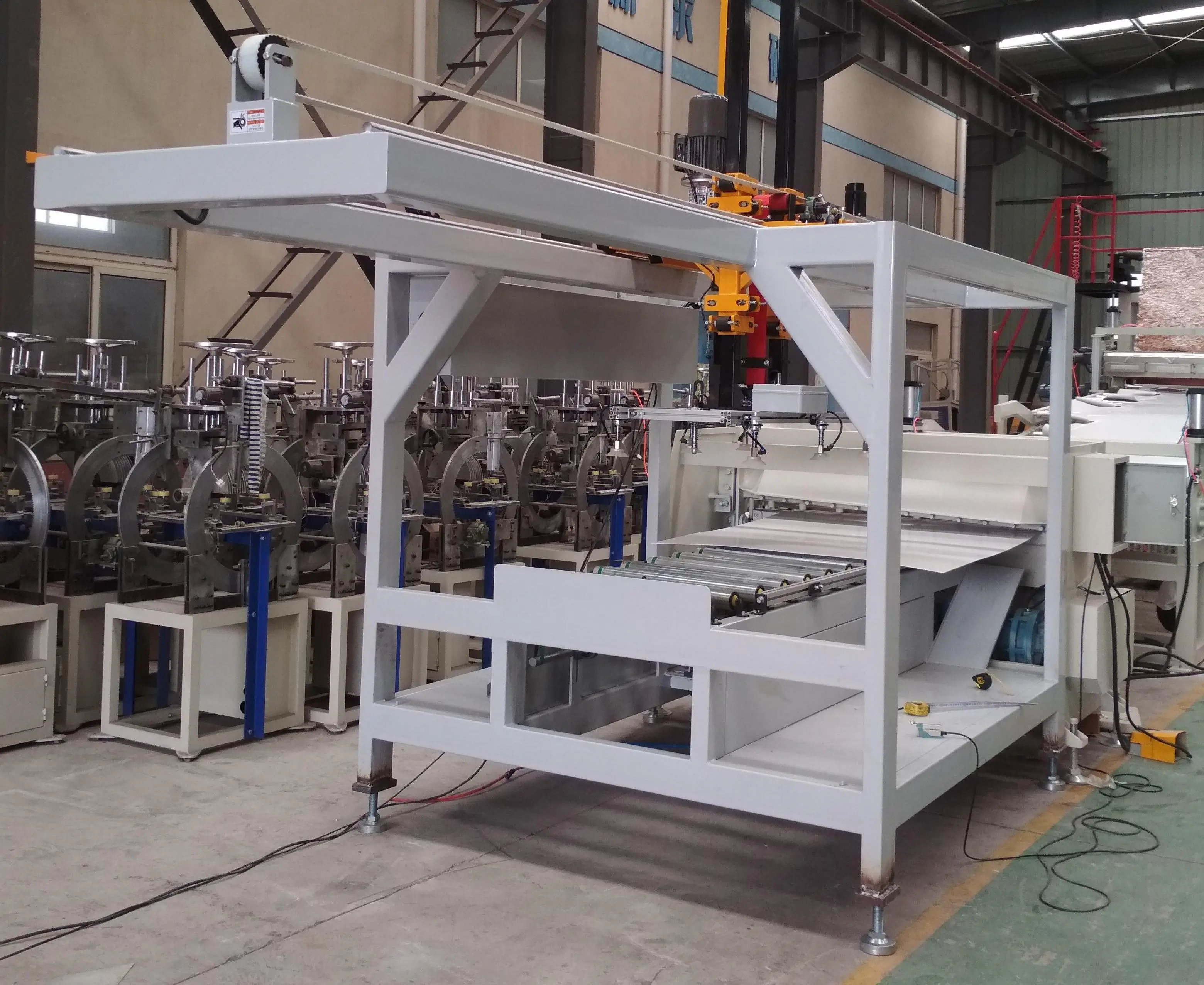

Haul-off Unit, Cooling Frame, Automatic Trimming Unit
1) Haul-off unit adopts inverter speed adjusting.
2) Hauling roller diameter: 220mm, size is 250*1500mm.
3) Cylinder clamping, the strength of clamping is adjustable, distance is 80mm
4) Good material chemigum, against friction, against cracking-off
5) Power of hauling is 3.7kw.
6) Trimming unit, three dimensions adjustable, and the driving power is 2.2kw*2.
7) Automatic trimming unit based on the customer’s requirement.
8) Cooling frame length: 6m
2) Hauling roller diameter: 220mm, size is 250*1500mm.
3) Cylinder clamping, the strength of clamping is adjustable, distance is 80mm
4) Good material chemigum, against friction, against cracking-off
5) Power of hauling is 3.7kw.
6) Trimming unit, three dimensions adjustable, and the driving power is 2.2kw*2.
7) Automatic trimming unit based on the customer’s requirement.
8) Cooling frame length: 6m

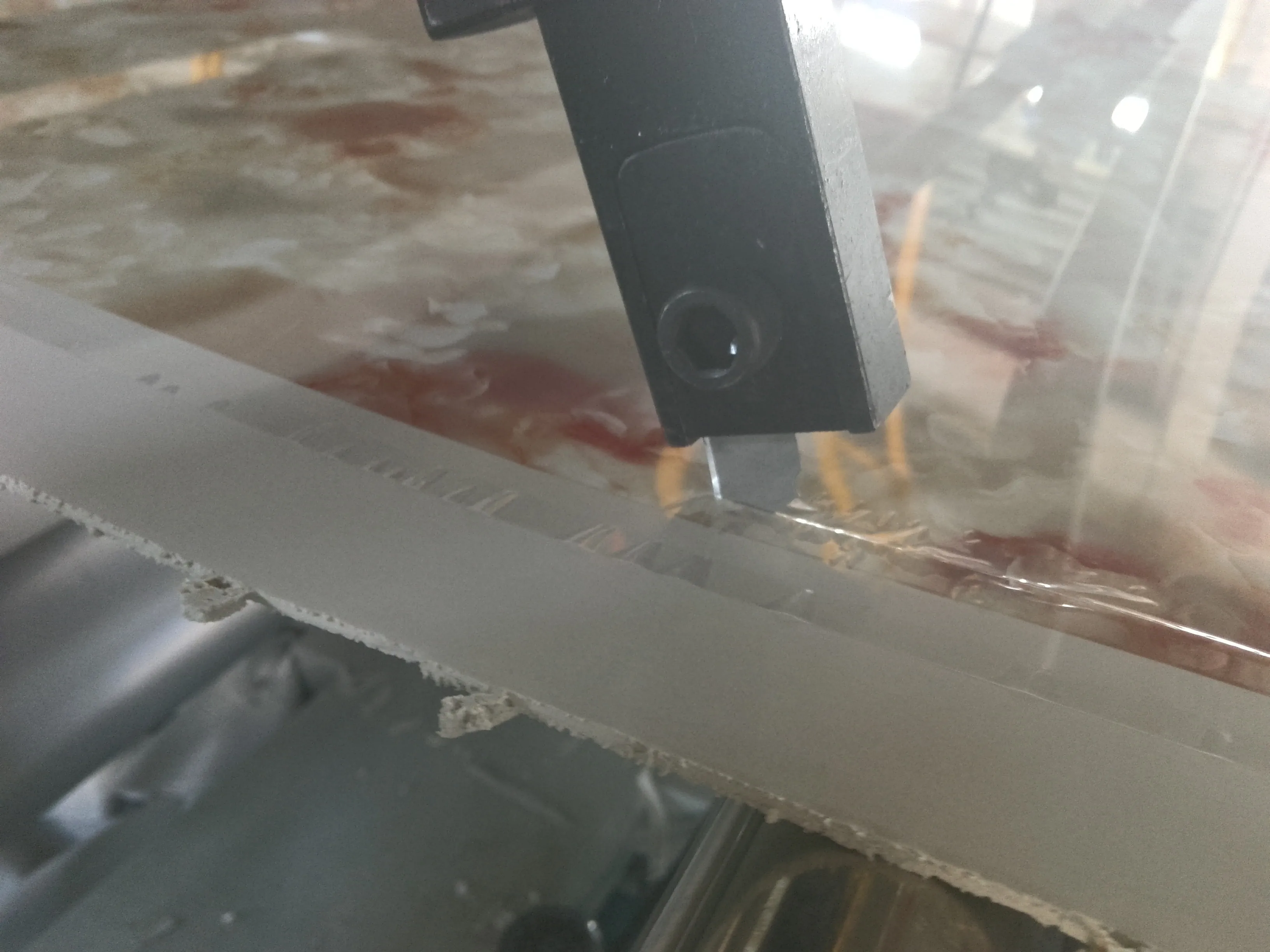

Cutting Machine
1) Pneumatic cutting, length setting.
2) Blade length: 1400mm
3) Cutting thickness: 2-10mm
2) Blade length: 1400mm
3) Cutting thickness: 2-10mm
Auxiliary machinery

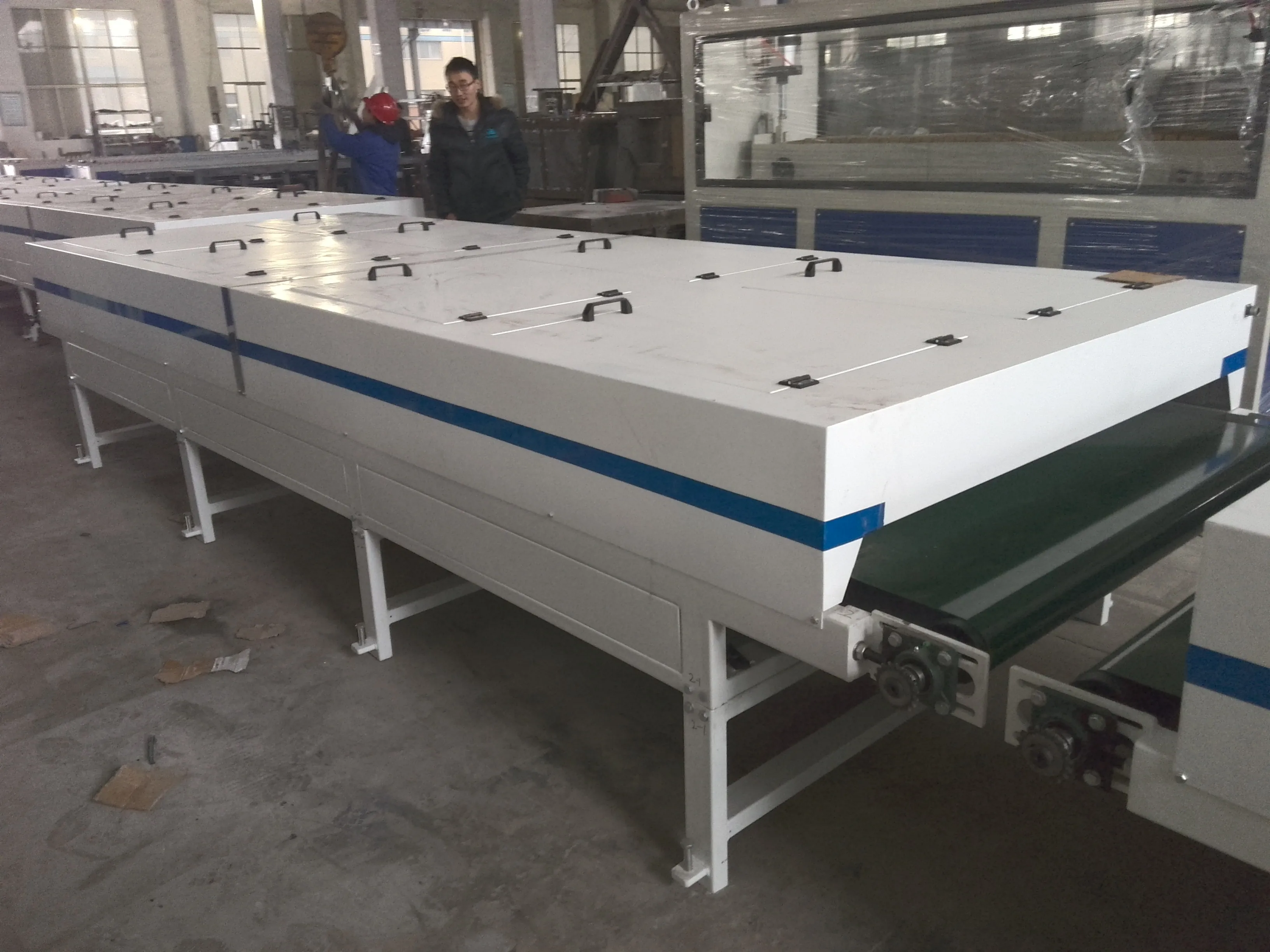

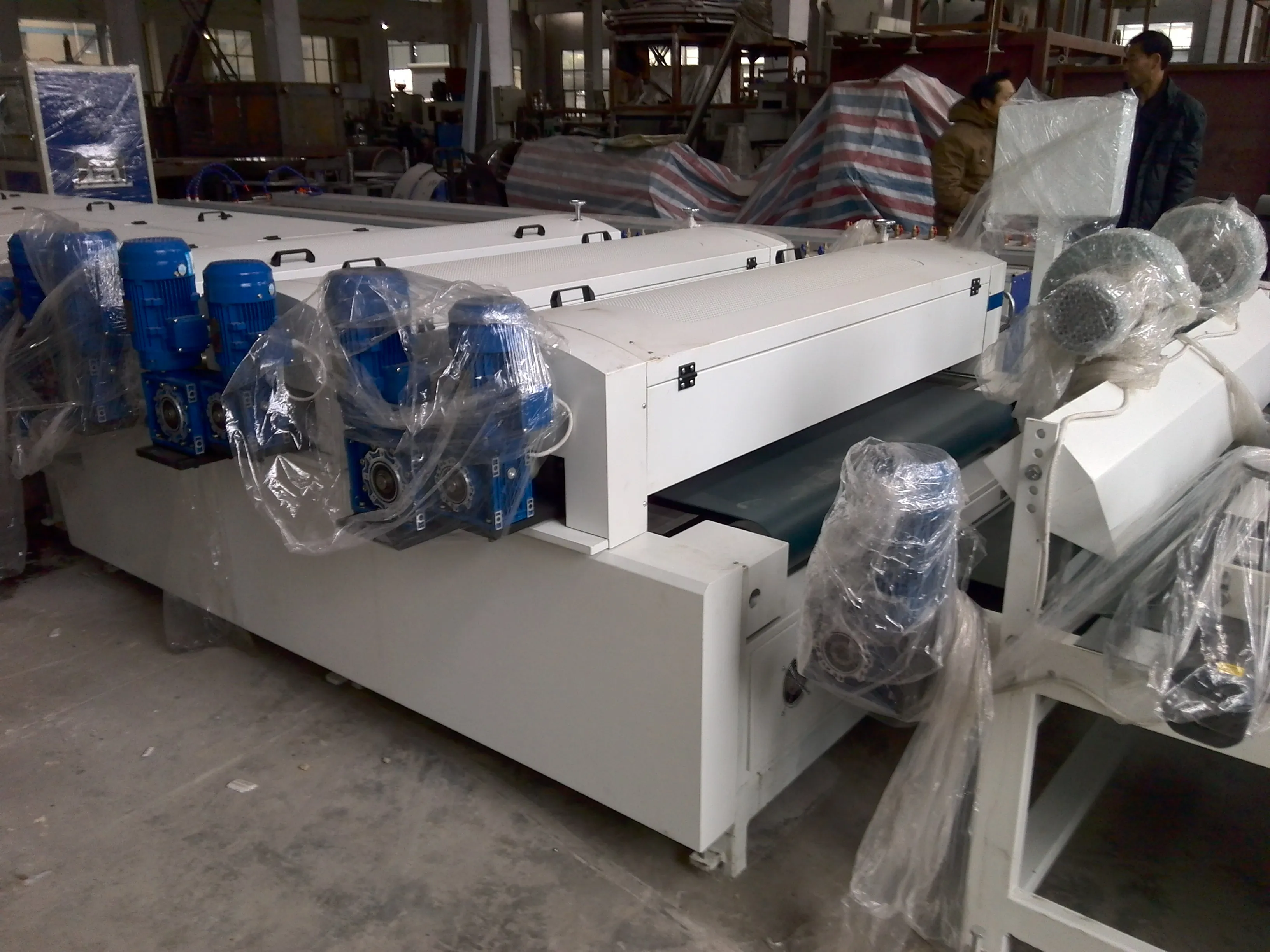

1. UV Coating Line
2.Mechnical Arm
