JK BMS JK B2A25S RP 7S 16S 20S 24S 25S jk умное реле bms для 7S 25S 500A li ion lifepo4 LTO аккумулятор с активным балансом 2A
- Категория: >>>
- Поставщик: Hunan Xiaolithium Technology Limited
Сохранить в закладки 1600524724452:
Описание и отзывы
Характеристики
Products Description

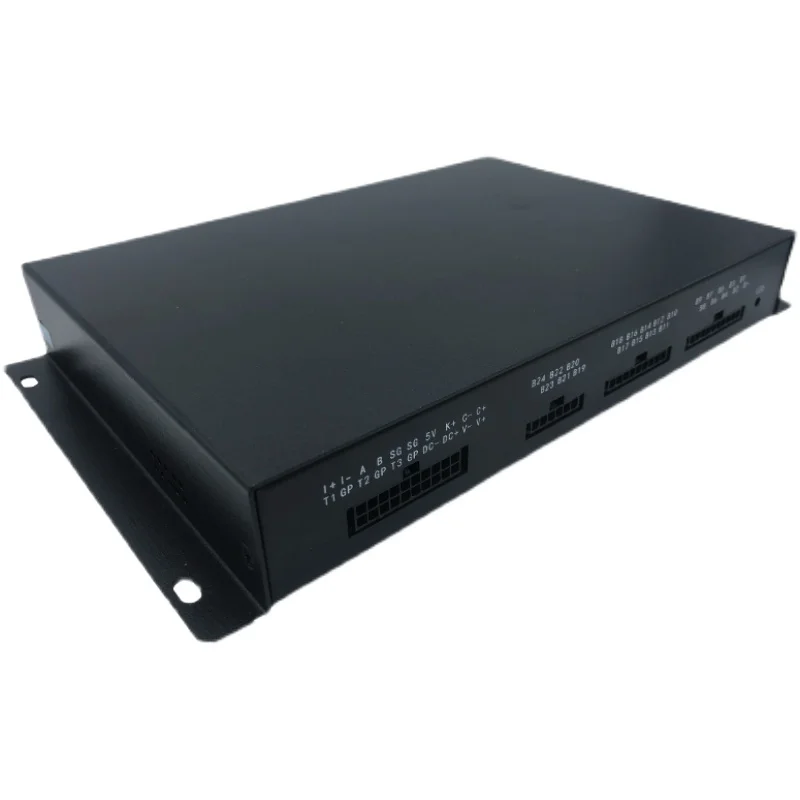

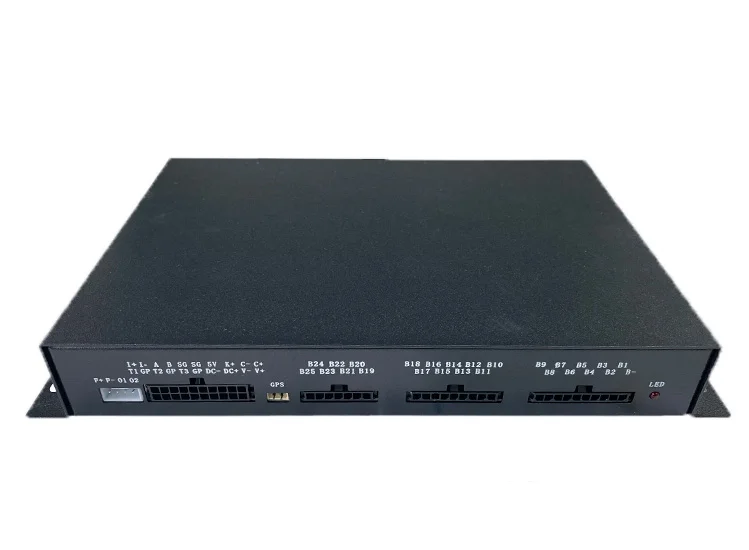

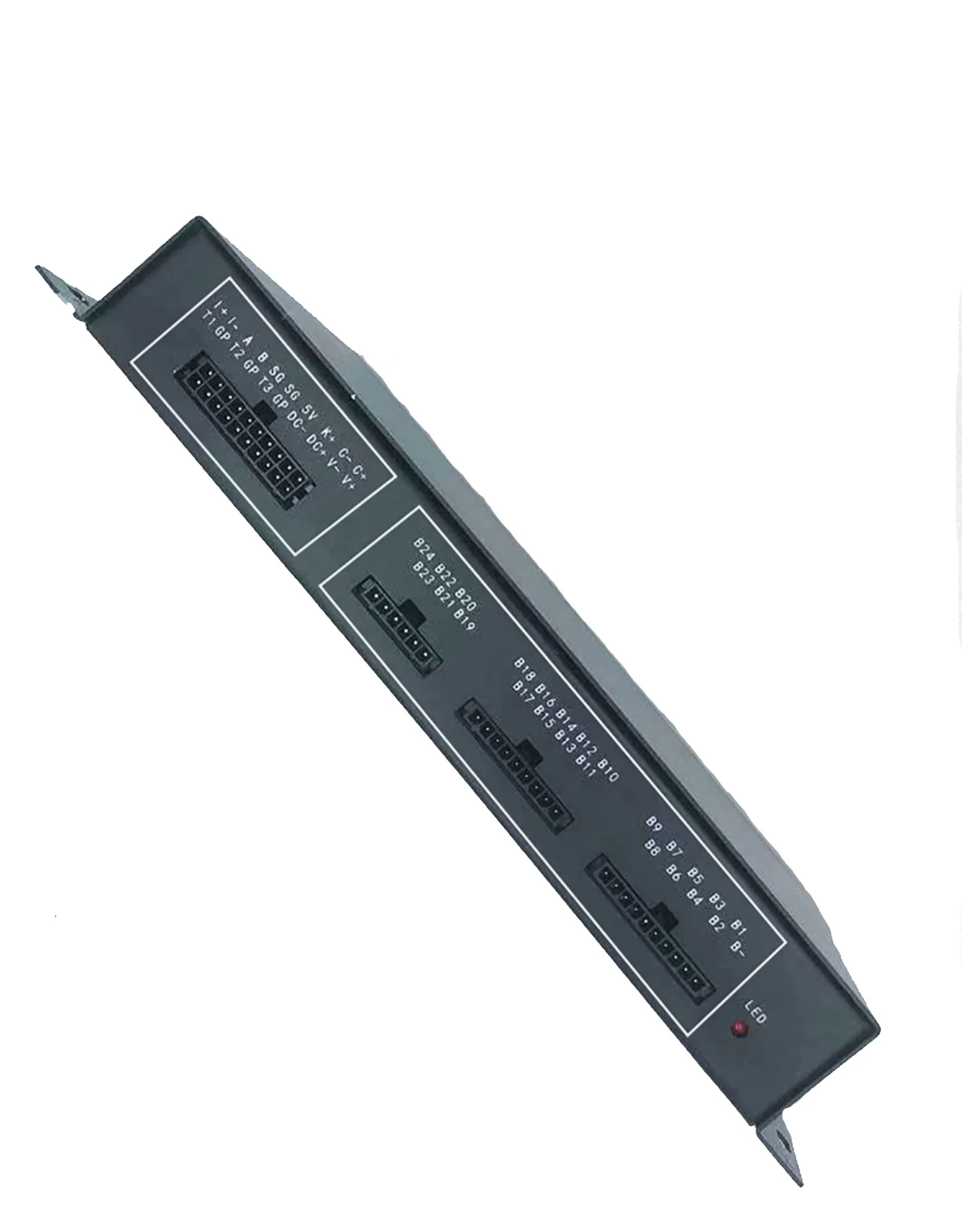

JKBMSJK-B2A25S-RP 7S 16S 20S 24S 25S JK smart relay bms for 7S-25S 500A li ion lifepo4 LTO battery pack with 2A active balance
If you order directly from alibaba it is DAP shipment and you may need pay custom tax.
For Europe If you want DDP or DPD shipment without tax, please contact with us before you buy
2A 5A active balance smart bms JK smart bms for 7S-25S 500A 600A li ion lifepo4 LTO battery pack use
2A 5A active balance smart bms JK smart bms for 7S-25S 500A 600A li ion lifepo4 LTO battery pack use
can use for li-ion Lipo Lifepo4 LTO battery
have English APP for Android and IOS cellphone
each version size is different
it have protection board , have charge/discharge protection , overcharge/over discharge protection ,short circuit protection and so on it's balance is active
Li ion | 5S-25S | ||||||
Lifepo4 | 6S-25S | ||||||
LTO | 9S-25S | ||||||
Balance way | Active balance | ||||||
JK-B2A25S-RP | Continuous Charge 135A Discharge 500A, Peak Discharge current 6 00～1000A，active balance current 2A, Size: 188.6*94*23.5mm | ||||||
JK-B2A25S-60P | Continuous Charge 135A Discharge 500A, Peak Discharge current 6 00～1000A，active balance current 2A, Size: 234*144*32mm | ||||||
Continuous Charge 150A Discharge 600A, Peak Discharge current 7 00～1000A，active balance current 2A, Size: 234*144*32mm | |||||||
JK-B5A25S-60P | Continuous Charge 135A Discharge 500A, Peak Discharge current 6 00～1000A，active balance current 5A, Size: 234*144*32mm | ||||||
Continuous Charge 150A Discharge 600A, Peak Discharge current 7 00～1000A，active balance current 5A, Size: 234*144*32mm | |||||||
out cable way | separate port | ||||||
single cell voltage scale | 1-5V | ||||||
Voltage accurancy | ±5mV | ||||||
Over charge protection voltage | 2.5V-4.25V adjustable | ||||||
Over charge protection release | 2.5V-4.25V adjustable | ||||||
Over current protection release time | 2S-120S adjustable | ||||||
Over discharge protection voltage | 2.5V-4.25V adjustable | ||||||
Over discharge protection release | 2.5V-4.25V adjustable | ||||||
Temp sensor quantity | 3 | ||||||
Short circuit protection | YES | ||||||
Working Temperature | -20 degree to 70 degree | ||||||
BT function | Support andriod and IOS | ||||||
GPS remote control | Support | ||||||
Other communication port | RS485/CAN/LCD screen | ||||||
Recommend Products
Applications
Why Choose Us
Contact Us
Packing & Shipping
About us
Hunan XiaoLithium Technology Limited was located in Changsha City. We focus on designing, researching and developing,
manufacturing and selling Battery Management System, Power Equalizer, Spot Welders,Battery Charger and Accessories Of Battery Pack, etc.
manufacturing and selling Battery Management System, Power Equalizer, Spot Welders,Battery Charger and Accessories Of Battery Pack, etc.
These products are widely used on Electric Bikes, Electric Tricycle, Electric Scooter, Sweeper, Logistics Sorting
Robot, Sightseeing Vehicle,Electric Vehicle, Portable Outdoor Power Supply, Uninterruptible Power Supply, Solar Energy Storage, Peak Shaving Power Station with Energy Storage, etc.
Robot, Sightseeing Vehicle,Electric Vehicle, Portable Outdoor Power Supply, Uninterruptible Power Supply, Solar Energy Storage, Peak Shaving Power Station with Energy Storage, etc.
Our company promises: The product quality is safe and reliable,Reasonable price, Fast delivery time and satisfactory after-sales service. Welcome to contact with us!
FAQ
1.What is the common port and separate port? what is the difference?
We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same point end(our P-), charge cathode and discharge cathode are used in the common connectionport, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 16A, charge current 8A.
2.What is the balance function?
The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, Life Po4 upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage(Li-ion 4.25V, Life Po43.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functionning well
3.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.
4. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge.Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
5. What current BMS should I choose ?
Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in Controller.
6. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 0.1V, the fault is displayed that it cannot run far, no power supply at thestart range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
