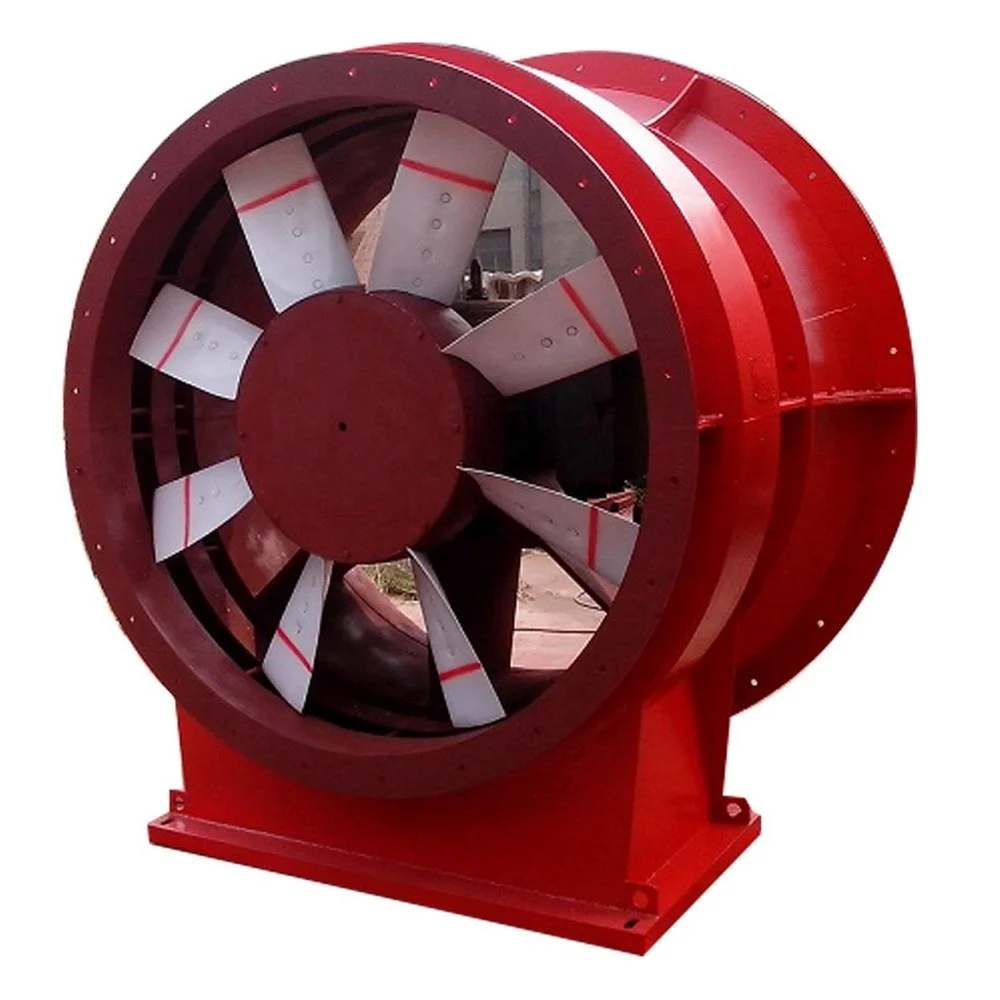

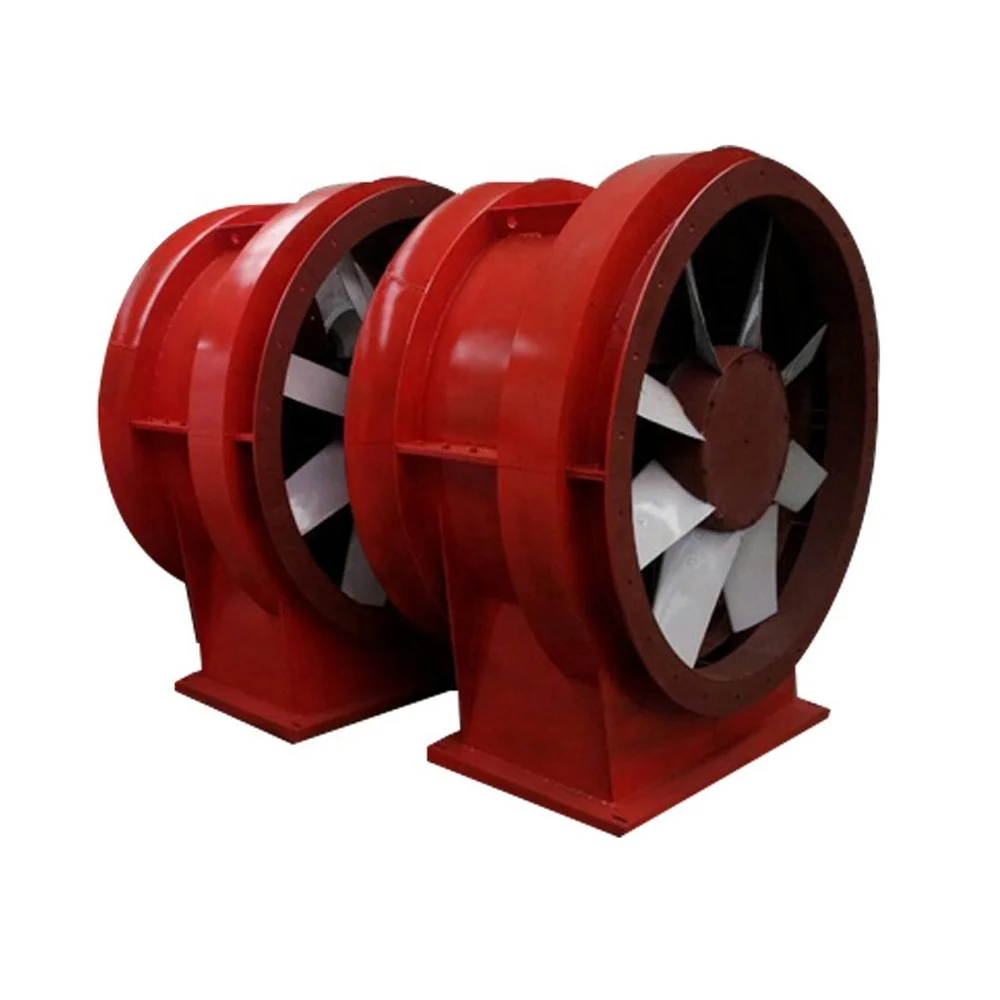

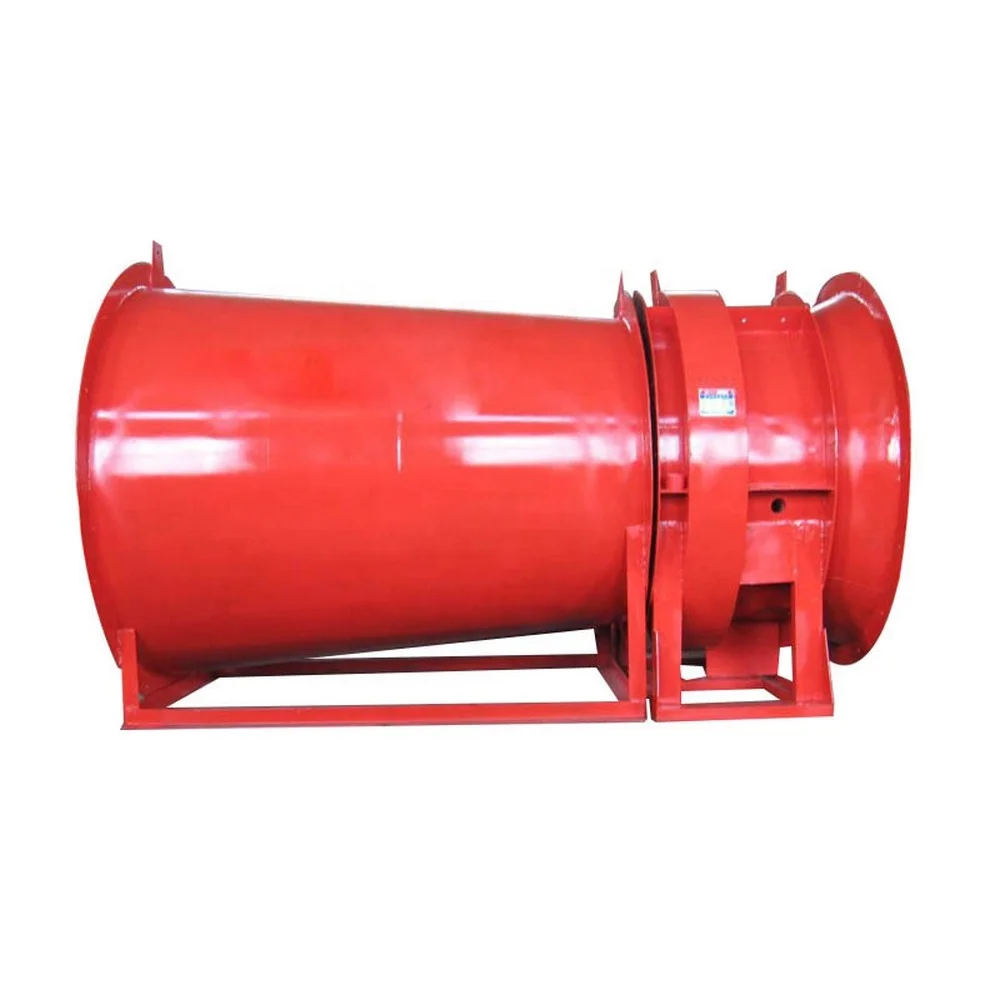

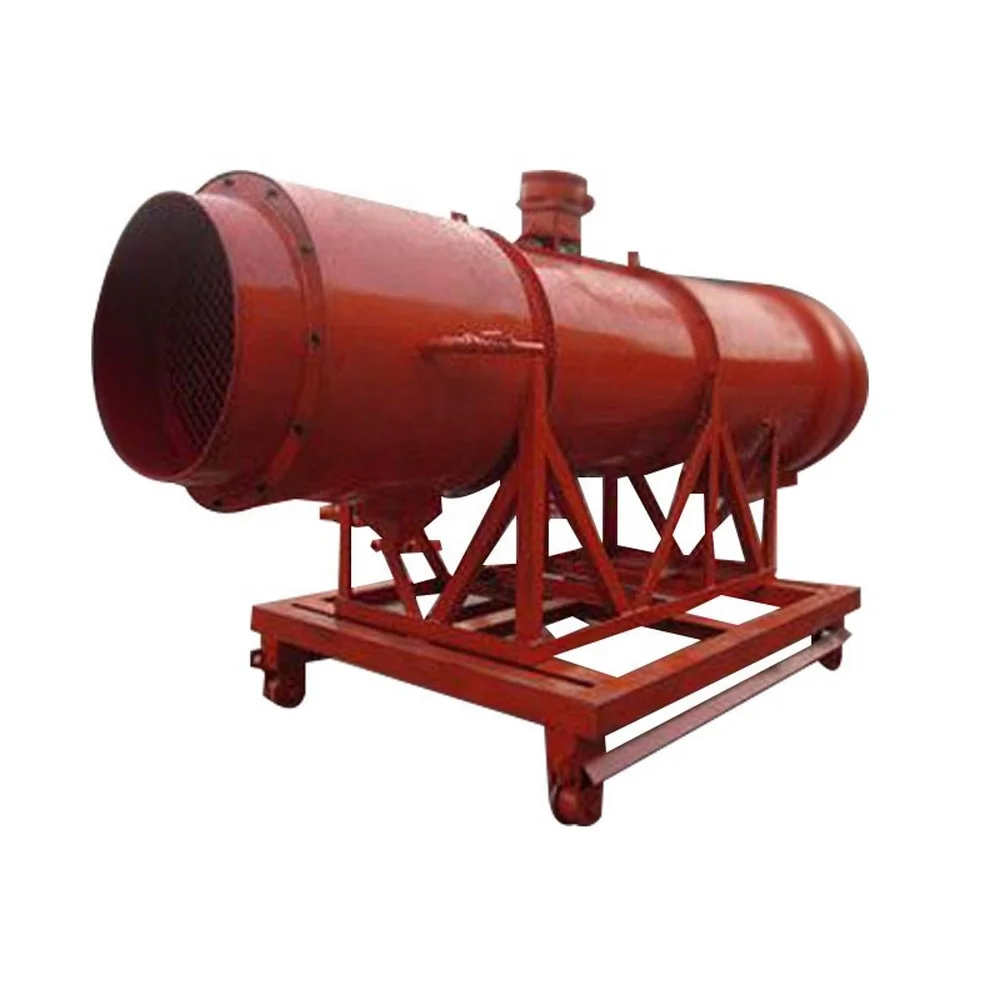

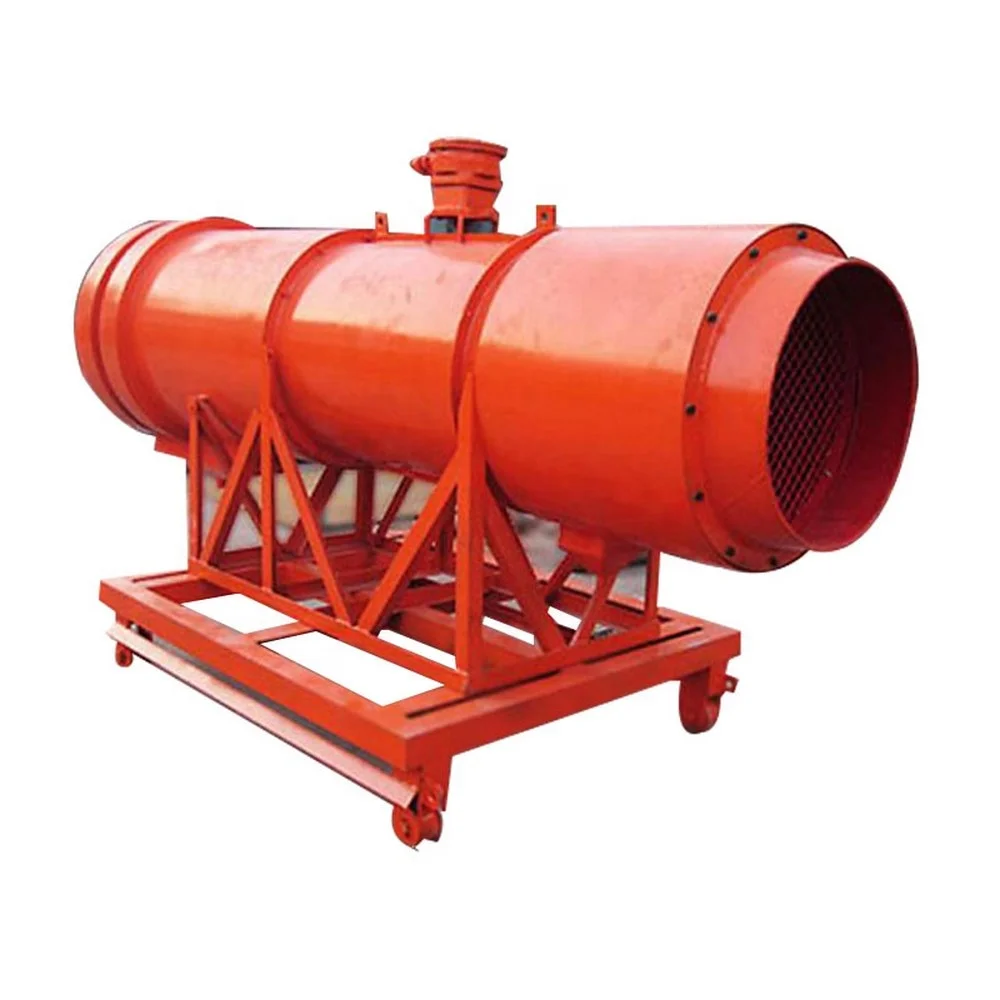

Photos of K45-6-NO13 Factory Wholesale Motor Axial Mining Mini Fans Coal Mine Industrial Exhaust Fan
Products Description
Introduction of K45-6-NO13 Factory Wholesale Motor Axial Mining Mini Fans Coal Mine Industrial Exhaust Fan
The metal mine fan is specially designed according to the needs of various non-coal mines such as metallurgy, nonferrous metals, gold, chemicals, building materials and nuclear industry. It can be used as the main fan and auxiliary fan, which can be installed on the surface or in the underground. It is suitable for combined operation of multiple fans. It is an ideal machine station fan for all levels of multi-stage multi-stage machine station ventilation system. It is also suitable for ventilation in large workshops, tunnels, civil air defense projects and other occasions.zmwm02
1. The twisted airfoil blade is used, the aerodynamic efficiency is high, and the energy saving effect is extremely remarkable.
2, various performance, complete specifications, can be well matched with a variety of resistance and airflow type ventilation network, can maintain long-term efficient operation.
3. With steady flow ring device, there is no hump in the characteristic curve, no risk of surge, safe and stable operation under any resistance state, and suitable for combined operation of multiple fans.
4. The structure of the motor and the impeller is directly connected, the overall stability is good, the installation is convenient, the maintenance is easy, and the device has low resistance.
5, compact structure, good moisture resistance. The main body of the fan is made of steel plate and section steel. The blade is made of steel plate material. It is hollow, and the blade and the whole machine have high strength. It has strong ability to resist downhole blasting shock wave. It can be installed on the surface and is suitable for installation in underground. It is especially suitable as a multi-stage machine. The station fan of the station ventilation system.
6, can reverse the wind, the wind rate is greater than 60%, no need to build a counter-wind.
1. The twisted airfoil blade is used, the aerodynamic efficiency is high, and the energy saving effect is extremely remarkable.
2, various performance, complete specifications, can be well matched with a variety of resistance and airflow type ventilation network, can maintain long-term efficient operation.
3. With steady flow ring device, there is no hump in the characteristic curve, no risk of surge, safe and stable operation under any resistance state, and suitable for combined operation of multiple fans.
4. The structure of the motor and the impeller is directly connected, the overall stability is good, the installation is convenient, the maintenance is easy, and the device has low resistance.
5, compact structure, good moisture resistance. The main body of the fan is made of steel plate and section steel. The blade is made of steel plate material. It is hollow, and the blade and the whole machine have high strength. It has strong ability to resist downhole blasting shock wave. It can be installed on the surface and is suitable for installation in underground. It is especially suitable as a multi-stage machine. The station fan of the station ventilation system.
6, can reverse the wind, the wind rate is greater than 60%, no need to build a counter-wind.
Product Paramenters
Parameters of K45-6-NO13 Factory Wholesale Motor Axial Mining Mini Fans Coal Mine Industrial Exhaust Fan
Fan model | Machine number | Speed r/min | Power (BKW) | Air volume m3/s | Full pressure Pa |
K45-4-NO8#Fan | 8 | 1450 | 7.5 | 6.6-12.5 | 357-685 |
K45-4-NO9#Fan | 9 | 1450 | 15 | 9.5-17.8 | 452-867 |
K45-4-NO10#Fan | 10 | 1450 | 30 | 13.0-24.0 | 558-1071 |
K45-4-NO11#Fan | 11 | 1450 | 45 | 17.3-32.6 | 675-1295 |
K45-4-NO12#Fan | 12 | 1450 | 75 | 22.5-42.3 | 804-1542 |
K45-4-NO13#Fan | 13 | 1450 | 90 | 28.6-53.8 | 943-1810 |
K45-4-NO14#Fan | 14 | 1450 | 132 | 35.7-67.2 | 1094-2099 |
K45-4-NO15#Fan | 15 | 1450 | 200 | 43.9-82.6 | 1256-2409 |
K45-6-NO7#Fan | 7 | 980 | 1.5 | 3.0-5.7 | 125-240 |
K45-6-NO8#Fan | 8 | 980 | 3 | 4.5-8.4 | 163-313 |
K45-6-NO9#Fan | 9 | 980 | 5.5 | 6.4-12.0 | 207-396 |
K45-6-NO10#Fan | 10 | 980 | 7.5 | 8.7-16.5 | 255-489 |
K45-6-NO11#Fan | 11 | 980 | 15 | 11.6-22.0 | 309-592 |
K45-6-NO12#Fan | 12 | 980 | 18.5 | 15.1-28.5 | 367-704 |
K45-6-NO13#Fan | 13 | 980 | 30 | 19.2-36.3 | 431-827 |
K45-6-NO14#Fan | 14 | 980 | 45 | 23.9-45.3 | 500-959 |
K45-6-NO15#Fan | 15 | 980 | 55 | 29.4-55.7 | 574-1101 |
K45-6-NO16#Fan | 16 | 980 | 90 | 35.7-67.6 | 653-1252 |
K45-6-NO17#Fan | 17 | 980 | 110 | 42.8-81.1 | 737-1414 |
K45-6-NO18#Fan | 18 | 980 | 160 | 50.9-96.2 | 826-1585 |
K45-6-NO19#Fan | 19 | 980 | 200 | 59.8-113.2 | 920-1766 |
K45-6-NO20#Fan | 20 | 980 | 250 | 69.8-132.0 | 1019-1956 |
Our Advantages
Why Choose Us
Похожие товары

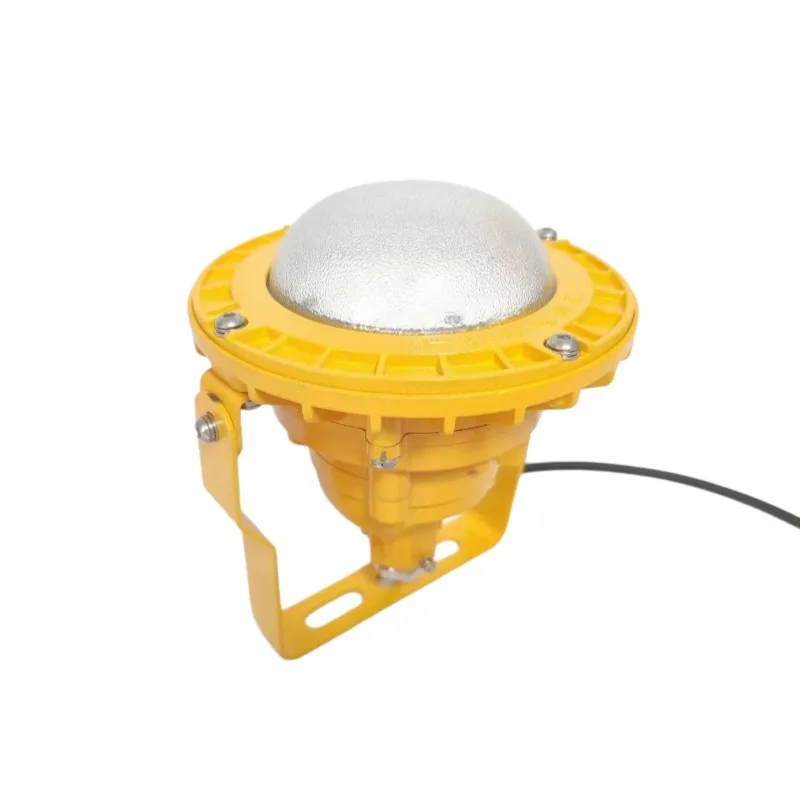

Взрывозащищенная опорная лампа для горнодобывающей промышленности
Взрывозащищенный дробетровый манипулятор CP-60L горного бетона вспомогательное распыление транспортного средства автоматический торкретный автомобиль

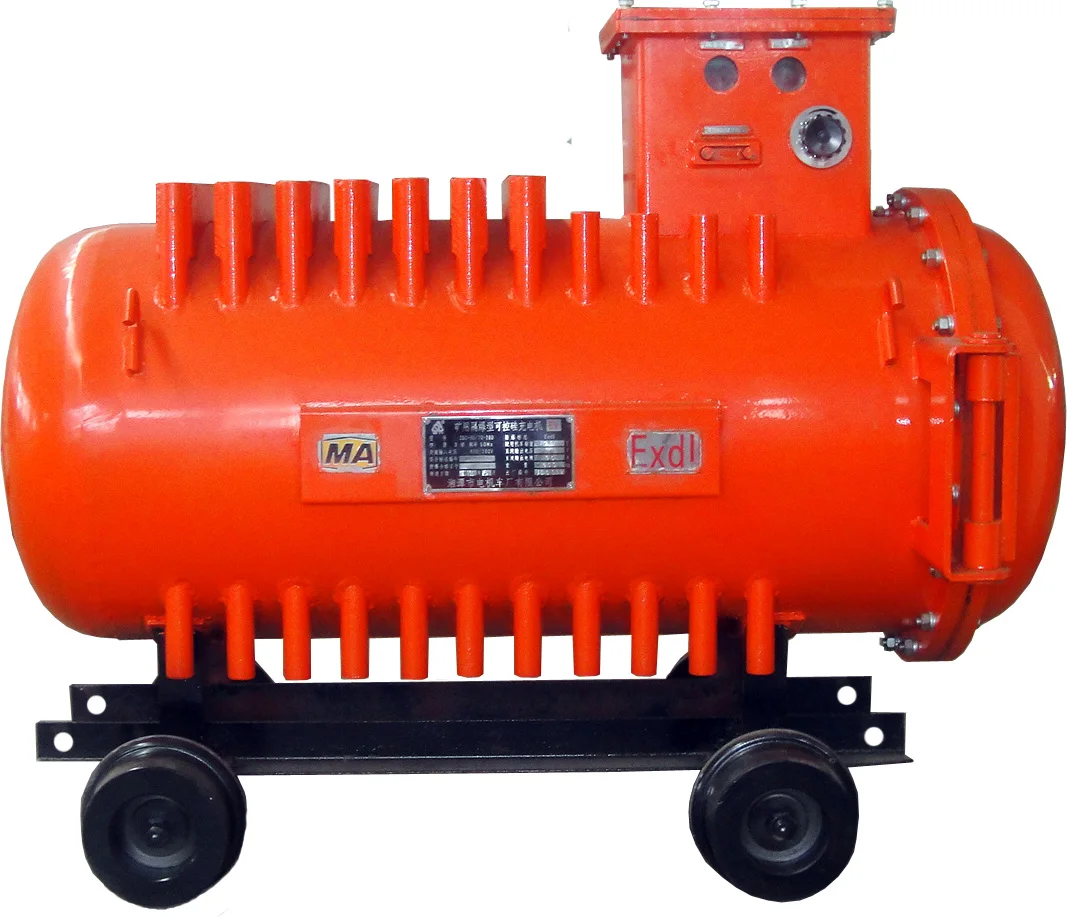

Подземное Взрывобезопасное зарядное устройство для электроаккумулятора
1 147 996,00 ₽
Взрывозащищенный манипулятор для горных работ вспомогательное распыление автомобиля угольной шахты подземного бетона с дистанционным управлением

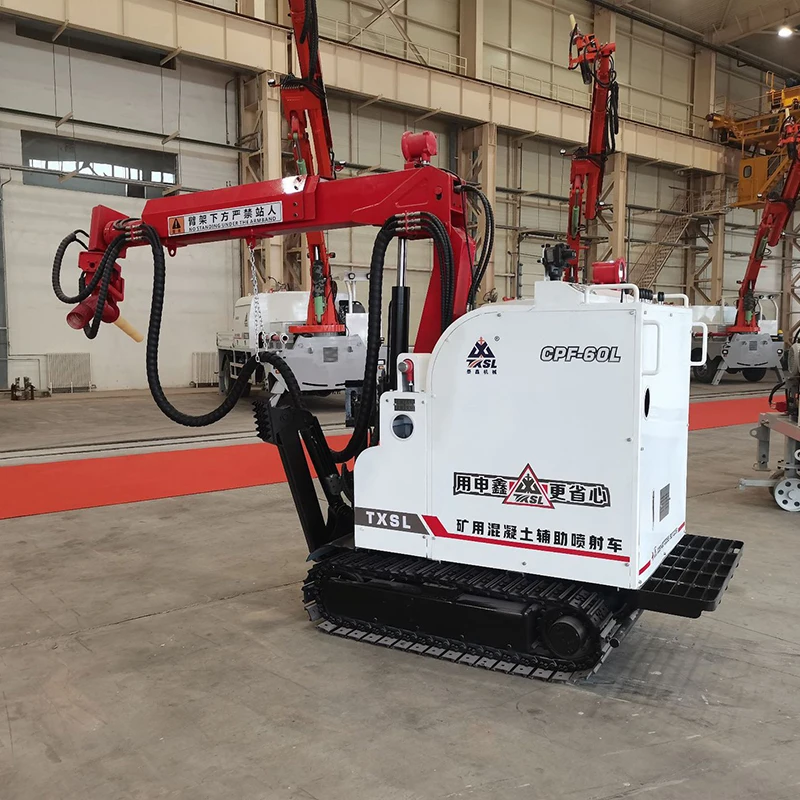

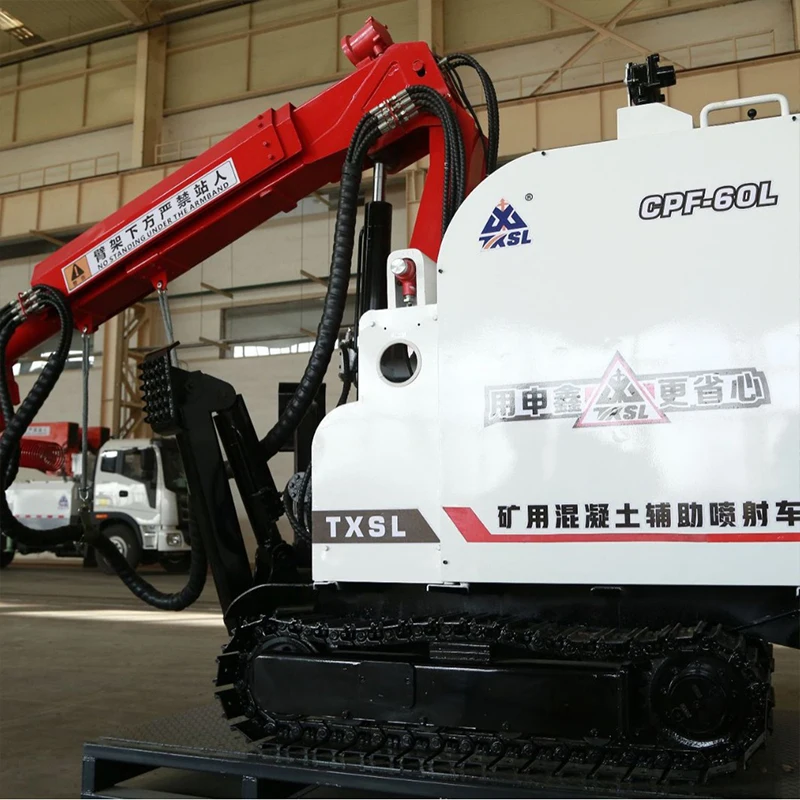

Взрывозащищенный дробетровый манипулятор CPF-60L добычи бетона вспомогательное распыление транспортного средства автоматический дробовик угольная шахта

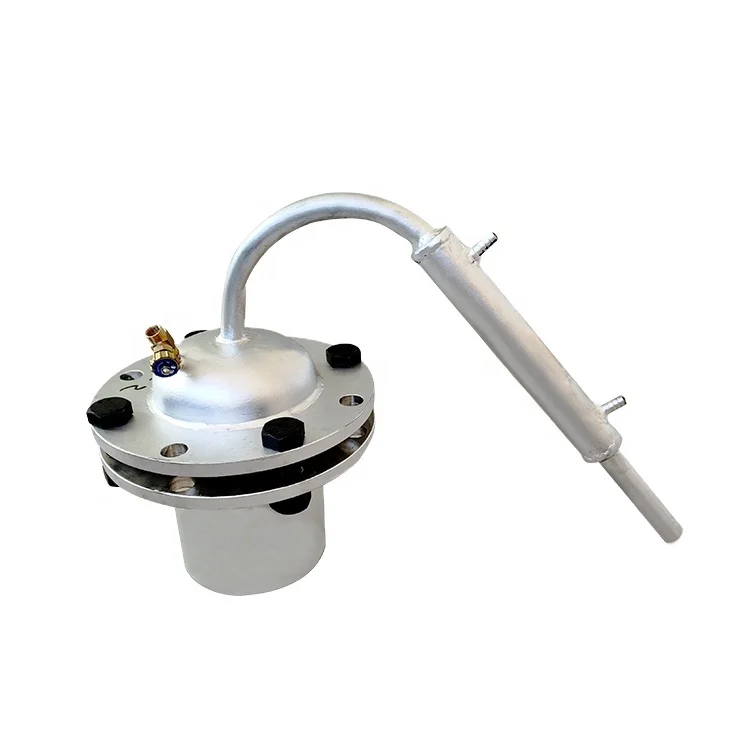

Горячая Распродажа реторт ртути из нержавеющей стали для восстановления золота переработки
29 847,90-34 325,09 ₽

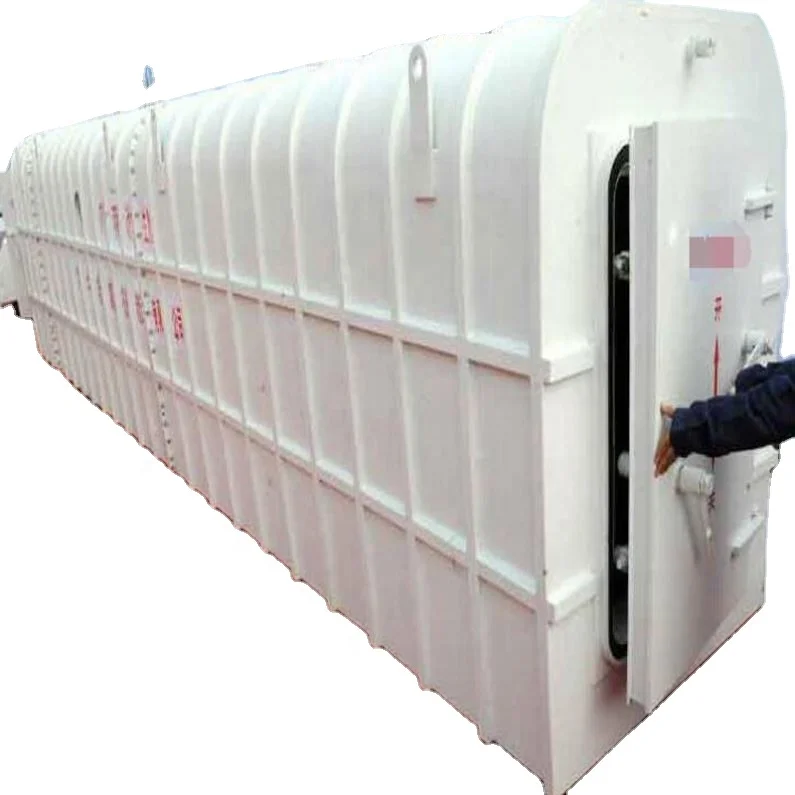

2023 Прямая продажа с завода оборудование для подземных горных работ спасательная капсула
