Product introduction
XK, LK, SC electric locomotives are narrow-gauge mining electric locomotives driven by DC, and their power sources can be supplied by batteries, lithium batteries, and super capacitors. It is mainly used in non-explosion-proof places such as transportation traction and narrow-gauge railway ground in coal mines, metallurgical mines, forests, subway tunnels, railway tunnels, kilometer tunnel construction and other industries.
Timespower 18T Narrow gauge locomotive Subway construction Mud Truck Tractor locomotive | ||||||||
Modle | XK（LK/SC）18 | |||||||
Dimensions | 6360×1360×1800mm | |||||||
Gauge | 900/762mm | |||||||
Power | 45KW×2 | |||||||
Starting traction forth | 46.8KN | |||||||
Continuous traction forth | 33.84KN | |||||||
Continuous speed | 9Km/h | |||||||
Max.speed | 15Km/h | |||||||
Min.negotiable curve radius | 15m | |||||||
Wheel diameter | 680mm | |||||||
Transmitting method | DC-AC | |||||||
Control method | Intelligent microprocessor | |||||||
Weight | 18000Kg | |||||||

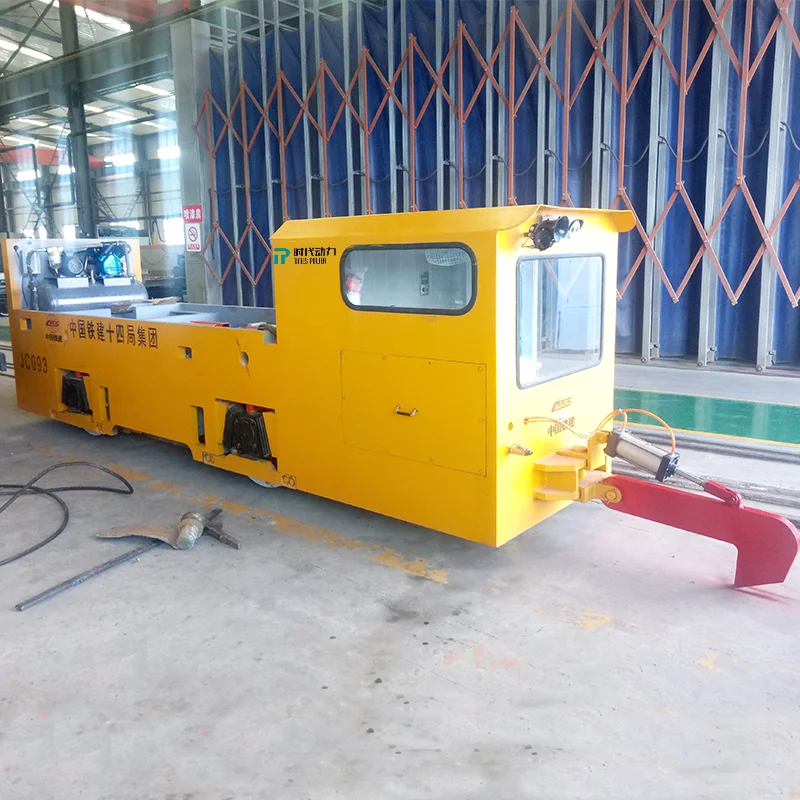

Product Display
Product configuration instructions
1.Frequency converter takes the 32-bit digital signal DSP as the control unit and combines the frequency control, slip control and vector control together, which could realize dynamic control and has the advantage of good output waveform, high pull-in torque,strong self-adjusting and quick response. The locomotive could move smoothly and steadily and be used on the long ramp through the S-type speed controller and flexible PWM dynamic braking.
2.The display adopts large screen. The real time speed, operating frequency, battery’s voltage, quantity and fault information will be displayed, which could be convenient to operate and maintain.
2.The display adopts large screen. The real time speed, operating frequency, battery’s voltage, quantity and fault information will be displayed, which could be convenient to operate and maintain.
3.If there is something wrong with the frequency converter (such as lu2, pc, sc, fan failure), the emergency air braking will start automatically. Avoid the sliding accident (especially on the heavy load ramp.).
4.The single-action brake cylinder is changed into double-action brake cylinder, which could improve the braking reliability.
5.There is an inching device to adjusting the loading and unloading position.
6.The traction motor adopts AC variable frequency traction motor, which has the advantage of wide speed range (0HZ-90HZ), strong lading ability and high insulation grade.
4.The single-action brake cylinder is changed into double-action brake cylinder, which could improve the braking reliability.
5.There is an inching device to adjusting the loading and unloading position.
6.The traction motor adopts AC variable frequency traction motor, which has the advantage of wide speed range (0HZ-90HZ), strong lading ability and high insulation grade.
Company Profile
Our Advantages
Packing & Shipping
Contact Us
FAQ
1. Do you have after-sales support?
Yes, we are pleased to give advice and also have skilled technicians available to maintain the machine if needed.
Timespower 18T Narrow gauge locomotive Subway construction Mud Truck Tractor locomotive
2. What can you do if the machine is broken?
Our machine's warranty period is 12 months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the shipping cost by yourself. if the warranty period is expired, we will negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
Timespower 18T Narrow gauge locomotive Subway construction Mud Truck Tractor locomotive
3. Do you have overseas engineers?
Yes, we provide overseas engineers, but also support technical training.
Timespower 18T Narrow gauge locomotive Subway construction Mud Truck Tractor locomotive
4. Can one machine only produce one size?
It’s depends on the machine parameters.
Timespower 18T Narrow gauge locomotive Subway construction Mud Truck Tractor locomotive
5. Can you be responsible for transport?
Yes, we will provide the best shipping methods according to your address. we have rich experience in transport.
Yes, we are pleased to give advice and also have skilled technicians available to maintain the machine if needed.
Timespower 18T Narrow gauge locomotive Subway construction Mud Truck Tractor locomotive
2. What can you do if the machine is broken?
Our machine's warranty period is 12 months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the shipping cost by yourself. if the warranty period is expired, we will negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
Timespower 18T Narrow gauge locomotive Subway construction Mud Truck Tractor locomotive
3. Do you have overseas engineers?
Yes, we provide overseas engineers, but also support technical training.
Timespower 18T Narrow gauge locomotive Subway construction Mud Truck Tractor locomotive
4. Can one machine only produce one size?
It’s depends on the machine parameters.
Timespower 18T Narrow gauge locomotive Subway construction Mud Truck Tractor locomotive
5. Can you be responsible for transport?
Yes, we will provide the best shipping methods according to your address. we have rich experience in transport.
Timespower 18T Narrow gauge locomotive Subway construction Mud Truck Tractor locomotive
6. You are a trade company or manufacture?
We are a Manufacturer.
6. You are a trade company or manufacture?
We are a Manufacturer.
Timespower 18T Narrow gauge locomotive Subway construction Mud Truck Tractor locomotive
