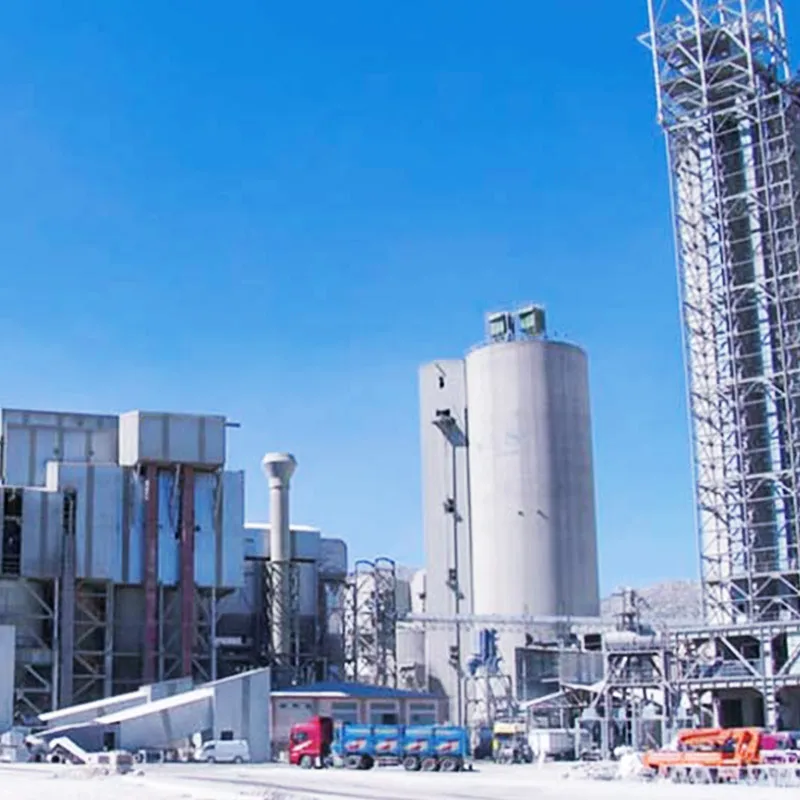

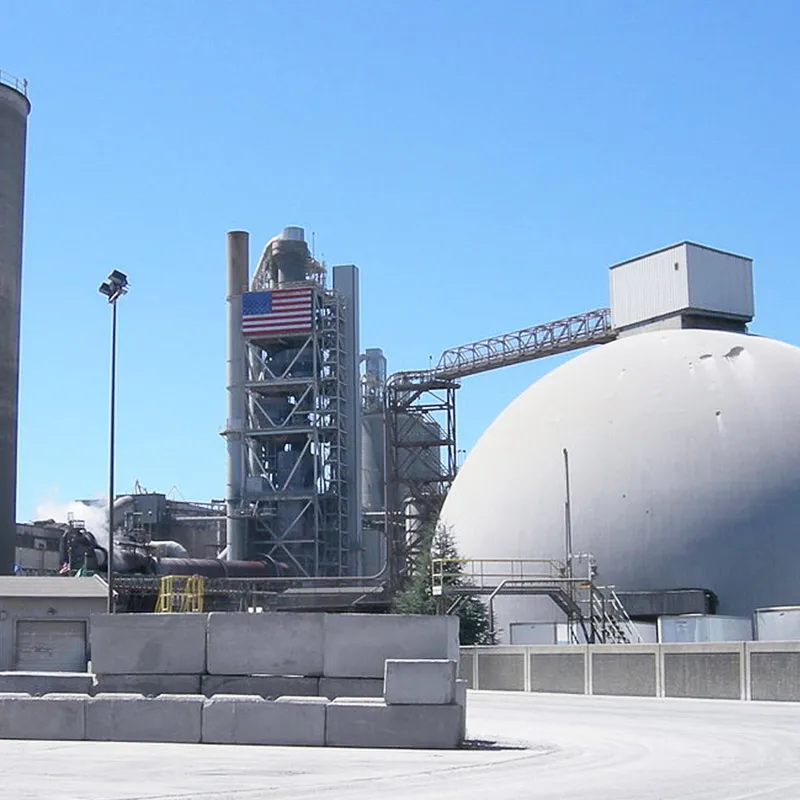

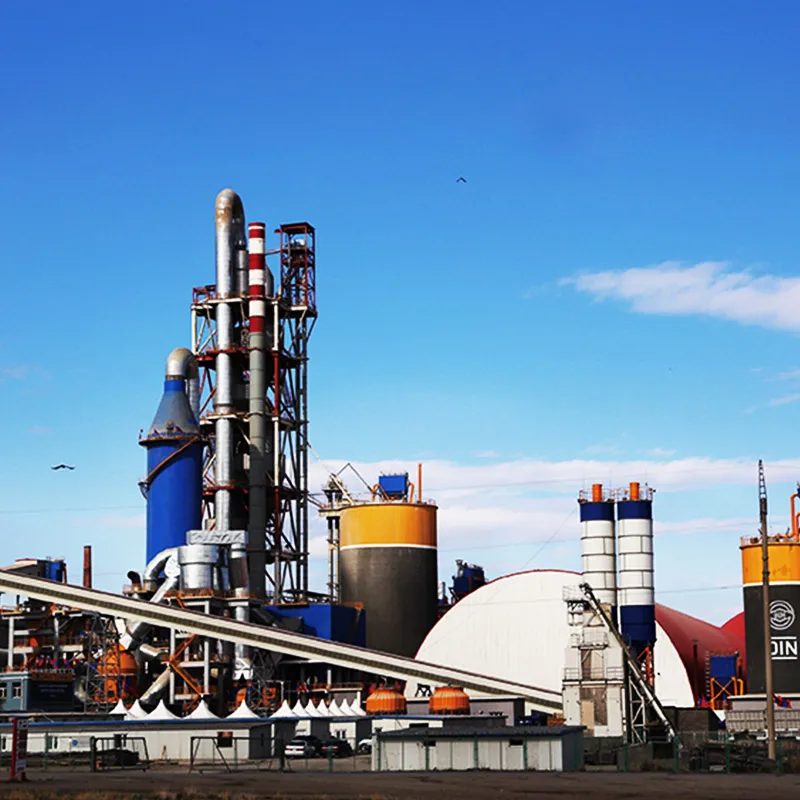

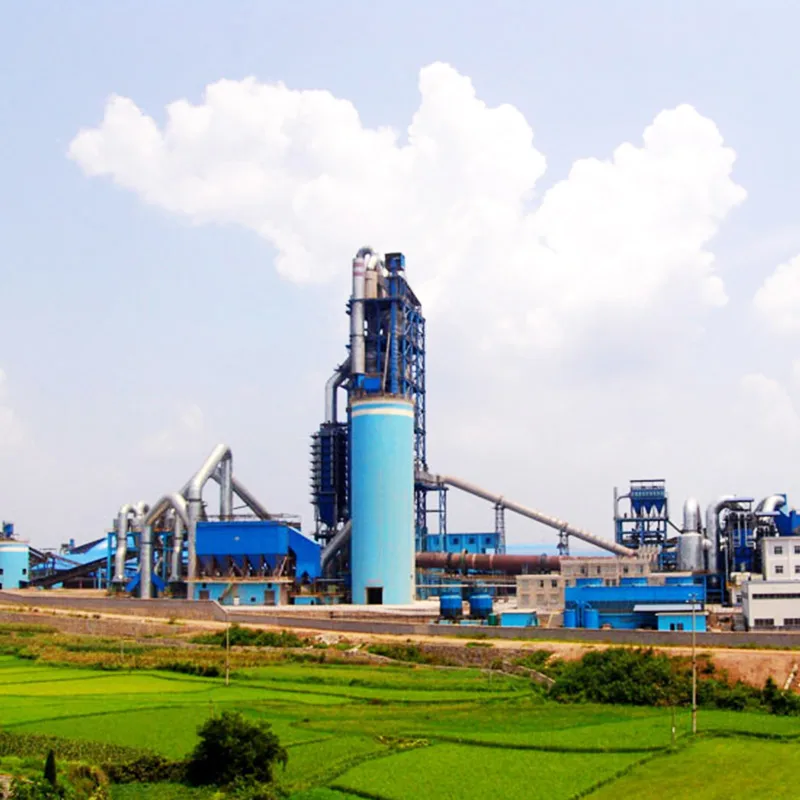

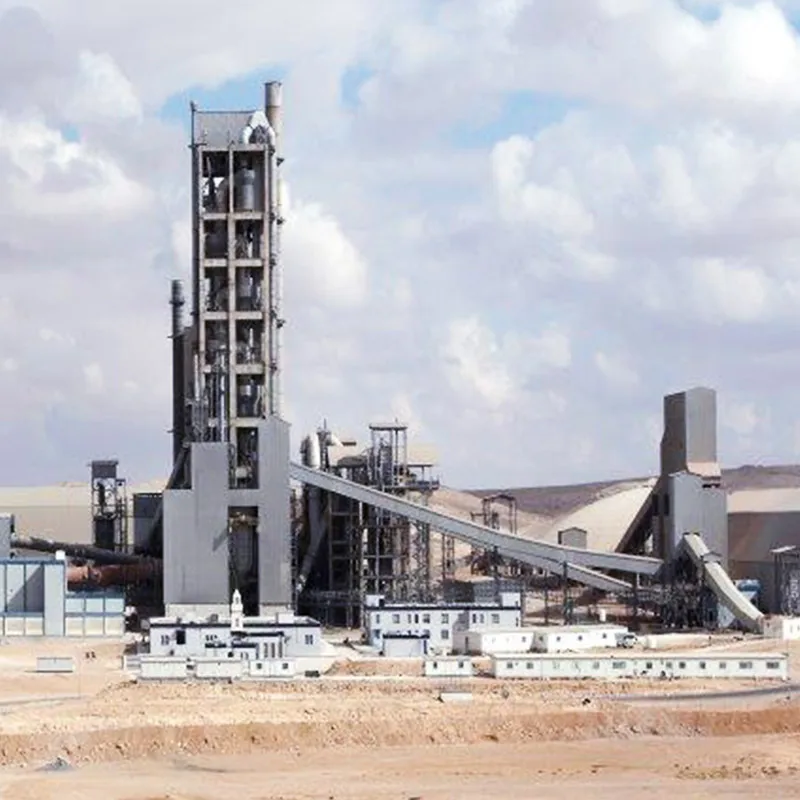

Продается мини цементный завод с энергосберегающей вращающейся печью / производственной линией цементного завода 100 тонн в день
- Категория: >>>
- Поставщик: Henan Turui Machinery Co. Ltd.
Сохранить в закладки 1600525422864:
Описание и отзывы
Характеристики
Product Description
The cement production line is a production line construction project composed of a series of supporting equipment for the
production of cement. It is mainly composed of crushing, homogenizing, raw material preparing, drying, preheating decomposition,
clinker firing, cooling, grinding, packaging, conveying, environmental protection dust collection and other equipment. Turui
company provides process design, civil construction, complete sets of equipment, installation and commissioning, technical and
other services.
production of cement. It is mainly composed of crushing, homogenizing, raw material preparing, drying, preheating decomposition,
clinker firing, cooling, grinding, packaging, conveying, environmental protection dust collection and other equipment. Turui
company provides process design, civil construction, complete sets of equipment, installation and commissioning, technical and
other services.
Process Parameters
In the process of cement production line, 3 tons of materials (including various raw materials, fuels, clinkers, mixtures, and
gypsum) are required to be grinded for every 1 ton of Portland cement produced.
According to statistics, the power consumption of dry cement production line grinding operation accounts for more than 60% of the
power of the whole plant, of which raw meal grinding accounts for more than 30%, coal grinding accounts for about 3%, and cement
grinding accounts for about 40%.
Therefore, reasonable selection of grinding equipment and process flow, optimization of process parameters, correct operation, and
control of operation system are of great significance to ensuring product quality and reducing energy consumption.
Heat Consumption: ≤840kcal/kg
Power Consumption: ≤110kwh/t
Water Consumption: 1020m³/d maximum
gypsum) are required to be grinded for every 1 ton of Portland cement produced.
According to statistics, the power consumption of dry cement production line grinding operation accounts for more than 60% of the
power of the whole plant, of which raw meal grinding accounts for more than 30%, coal grinding accounts for about 3%, and cement
grinding accounts for about 40%.
Therefore, reasonable selection of grinding equipment and process flow, optimization of process parameters, correct operation, and
control of operation system are of great significance to ensuring product quality and reducing energy consumption.
Heat Consumption: ≤840kcal/kg
Power Consumption: ≤110kwh/t
Water Consumption: 1020m³/d maximum
Specification
No. | Workshop name | Main equipment | Work plan | Quantity |
1 | Limestone crushing | Single-Stage Hammer Crusher Feeding size: <600mm Capacity: 120t/h Discharging size: 90% <25mm | 6d/w×7h/d | 1 |
2 | Mixed material crushing | High-Efficiency Crusher Feeding size: <215mm Capacity: 50t/h Discharging size: 90% <20mm | 1d/w×7h/d | 2 |
3 | Raw material grinding | Ball Mill Feeding size:≤25mm Finished fineness:Feeding moisture:≤ 8% Finished moisture:<1% Capacity: 50 t/h | 7d/w×20h/d | 1 |

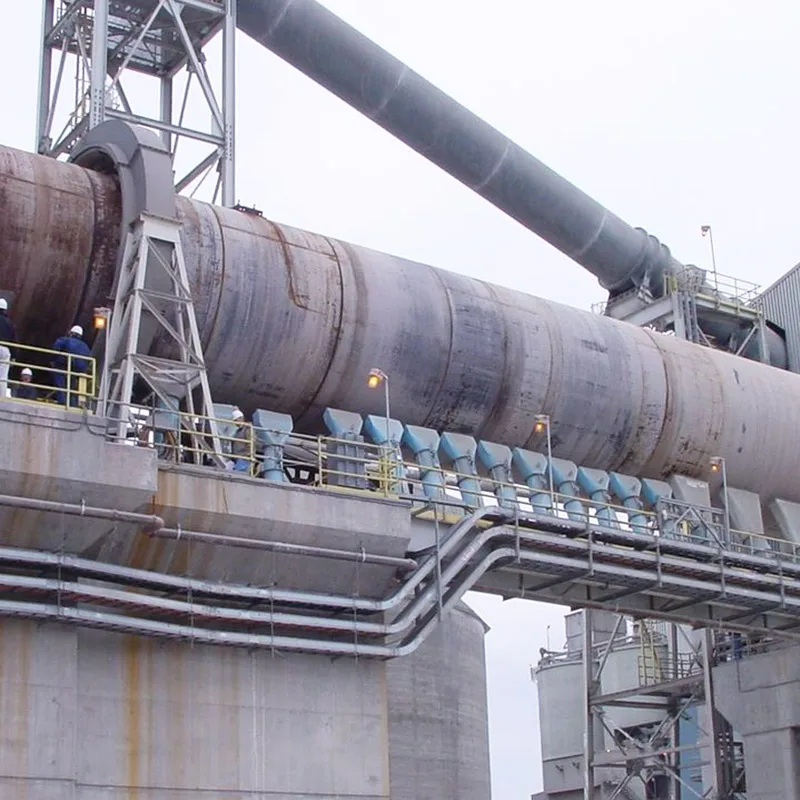

4 | Clinker calcination | Rotary Kiln Heat consumption: ≤950kCal/kg Capacity: 800t/d(33.3t/h) Power: 220kW Fuel: gas | 7d/w×24h/d | 1 |
5 | Cement grinding | Cement Mill Feeding size:≤20mm Finished fineness:Capacity: 45 t/h PC32.5 Power: 1600kw | 7d/w×22h/d | 1 |
6 | Cement packing | Rotary Packing Machine Capacity: 100t/h With cement bulk machine | 6d/w×12h/d | 1 |

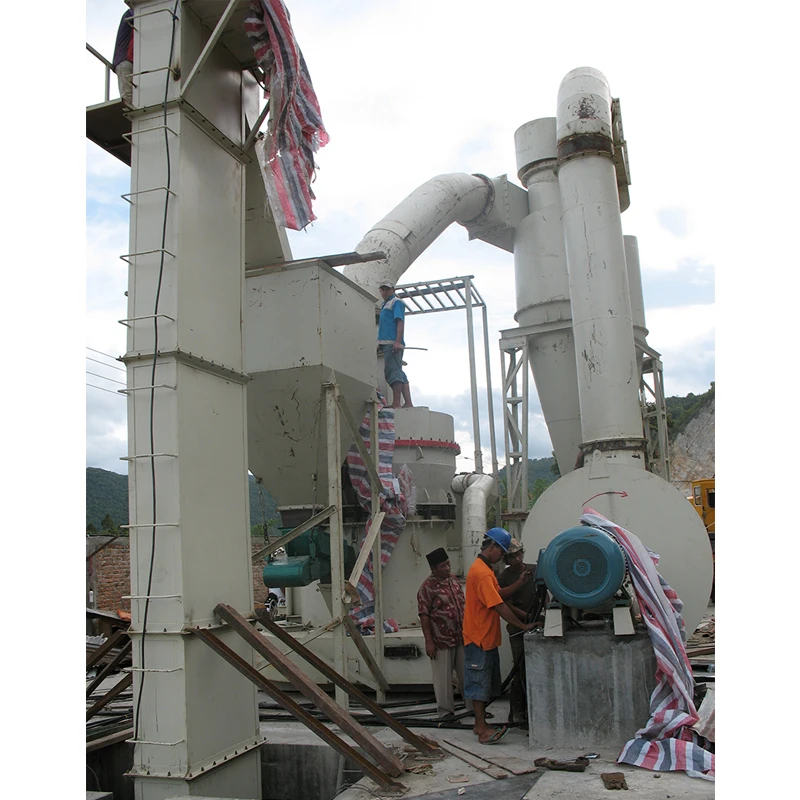

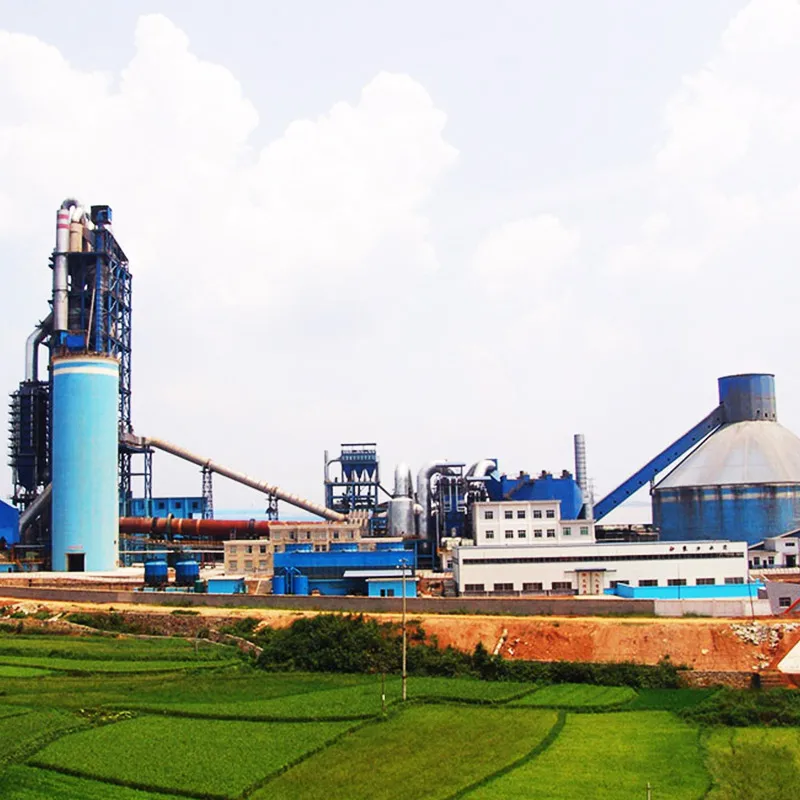

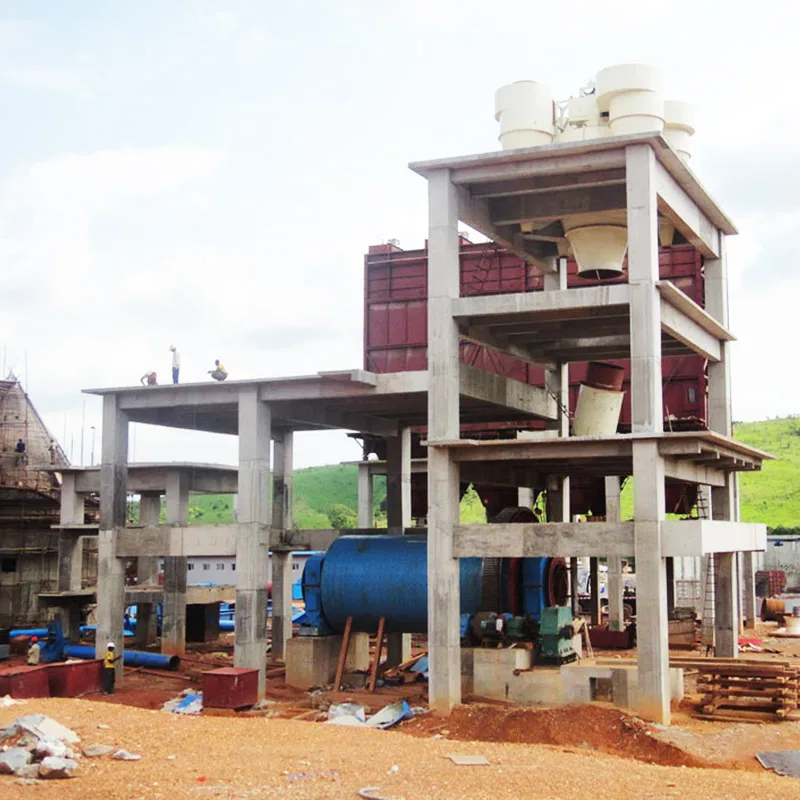

Project Cases
Company Profile
Henan Turui Machinery Co., Ltd is a professional manufacturer of different mining machinery. It integrates the design, research,
production, sales and installation together, guaranteeing the reliable and stable quality.
Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling
equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as in
south-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000
square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling
machine, vertical lathe, and travelling crane at the workshop.As a big and professional manufacturer and exporter in China, we are always here to provide you with high quality products and best services. Welcome to contact us in the following ways to get price and detail information. We will reply to you within 24 hours as soon as possible.
production, sales and installation together, guaranteeing the reliable and stable quality.
Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling
equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as in
south-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000
square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling
machine, vertical lathe, and travelling crane at the workshop.As a big and professional manufacturer and exporter in China, we are always here to provide you with high quality products and best services. Welcome to contact us in the following ways to get price and detail information. We will reply to you within 24 hours as soon as possible.
Certifications
FAQ
1. who are we?
Henan Turui Machinery Co., Ltd is a professional manufacturer of different mining machinery. It integrates the design, research,
production, sales and installation together, guaranteeing the reliable and stable quality.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Calcining Equipment,Ore Dressing Equipment,Crushing & Screening Equipment,Grinding Equipment,Conveying & Lifting Equipment
4. why should you buy from us not from other suppliers?
Our Innovative Solutions Feature High Quality And Rugged Designs For The Most Challenging Environments In Industries Such As Cement, Steel, Chemicals And Power Plants.
Henan Turui Machinery Co., Ltd is a professional manufacturer of different mining machinery. It integrates the design, research,
production, sales and installation together, guaranteeing the reliable and stable quality.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Calcining Equipment,Ore Dressing Equipment,Crushing & Screening Equipment,Grinding Equipment,Conveying & Lifting Equipment
4. why should you buy from us not from other suppliers?
Our Innovative Solutions Feature High Quality And Rugged Designs For The Most Challenging Environments In Industries Such As Cement, Steel, Chemicals And Power Plants.
Похожие товары
Многие серии светодиодных ламп для прицепа, телескопические мобильные осветительные приборы, многофункциональные грузовые автомобили с повышенным освещением, буксируемое освещение
378 021,70 ₽ - 442 825,42 ₽
Бензиновый двигатель, оборудование для резиновых ленточных конвейеров, древесный процессор, ленточный конвейер для лифта
108 006,20 ₽ - 129 607,44 ₽
Большая грузоподъемность энергосберегающая горная машина конвейер ковшовый элеватор
324 018,60 ₽ - 540 031,00 ₽

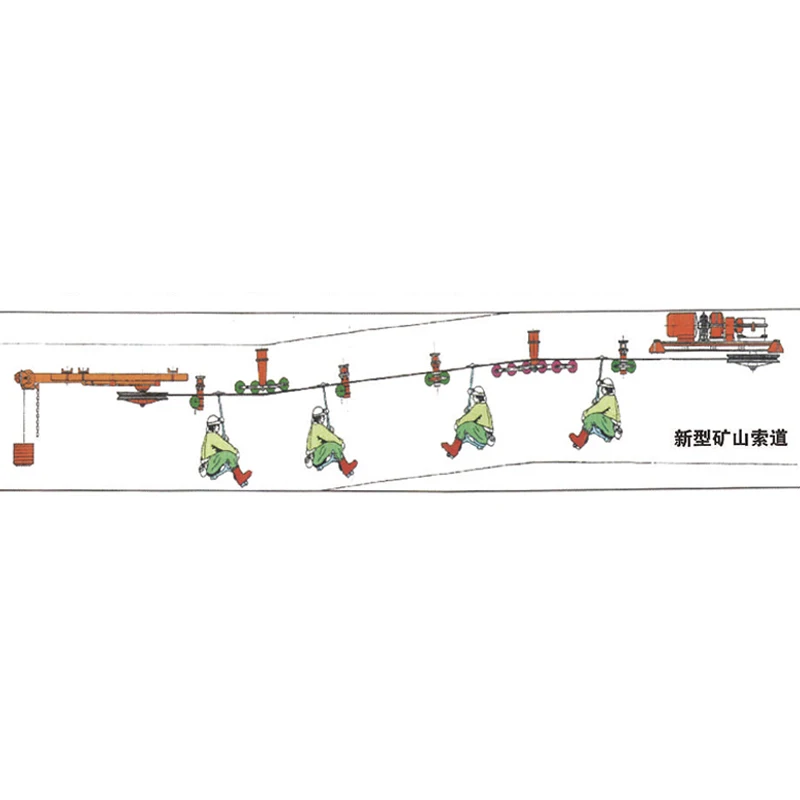

Безопасное и практичное верхнее пассажирское устройство для угольных шахт фиксированный держатель кабеля для деятельности угольных шахт и верхнее устройство
10 800 512,00 ₽

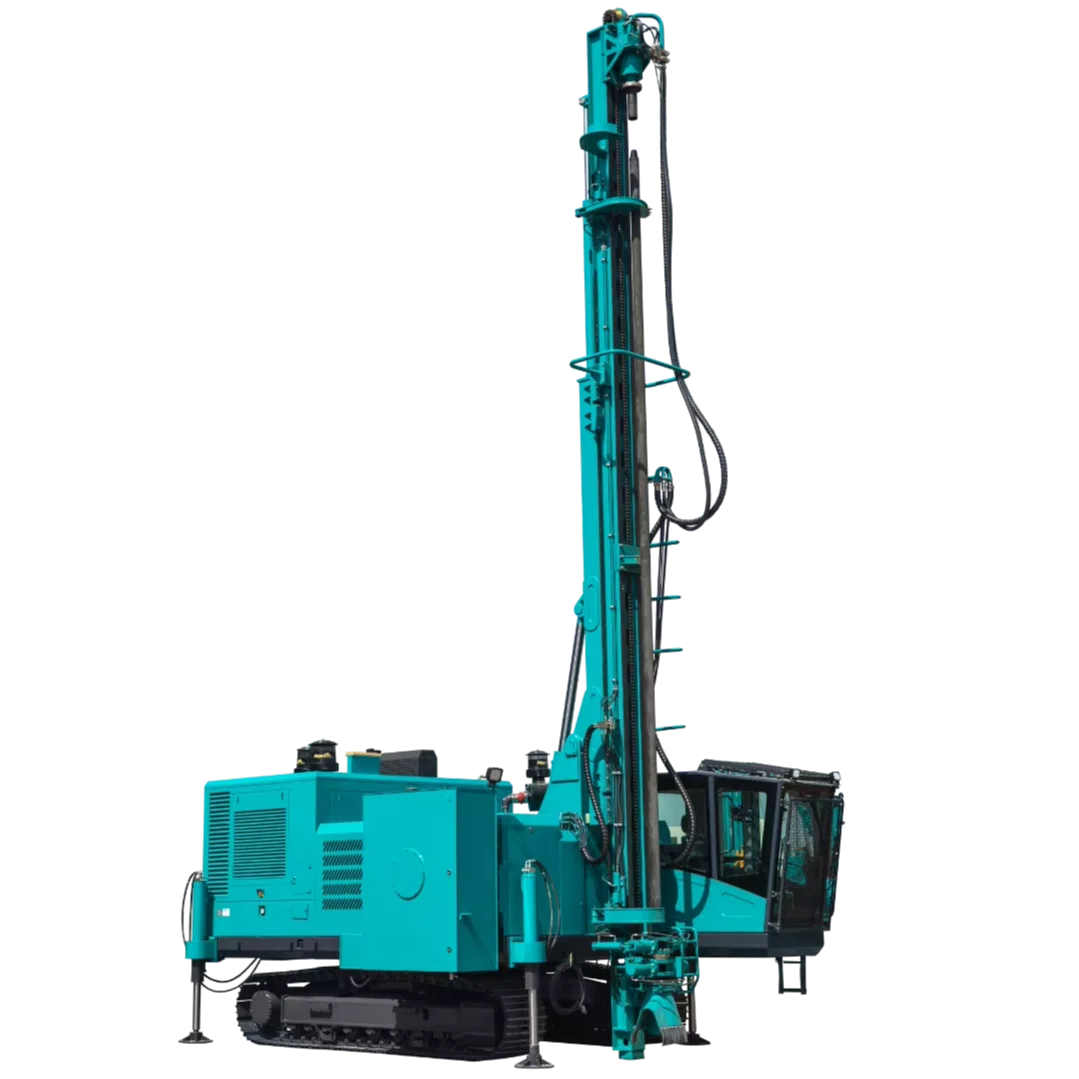

Буровая установка для добычи угля высшего бренда Sunward для шахт

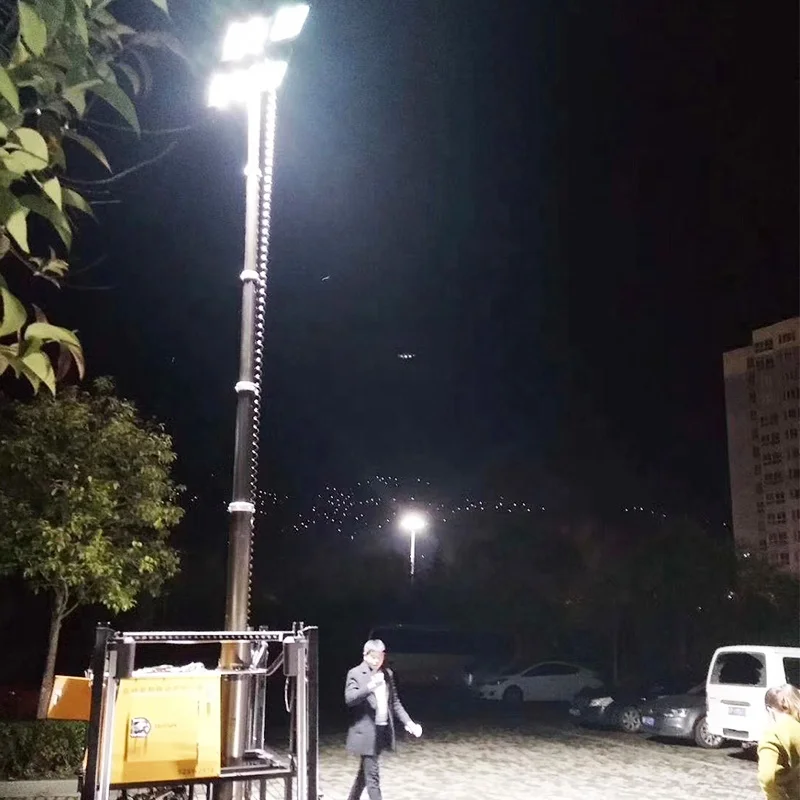

Генератор аварийного освещения с поворотом на 360 градусов, переносная простая Мобильная подъемная аварийная световая башня

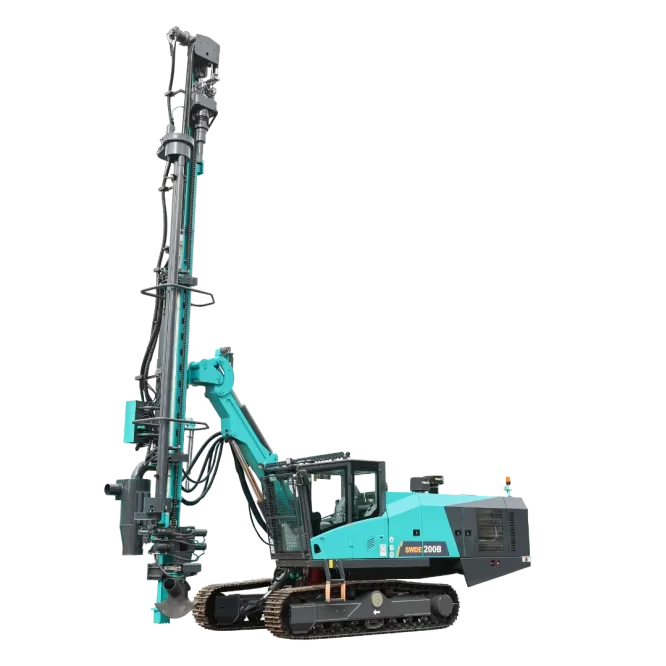

Высококачественная буровая установка Sunward по заводской цене
