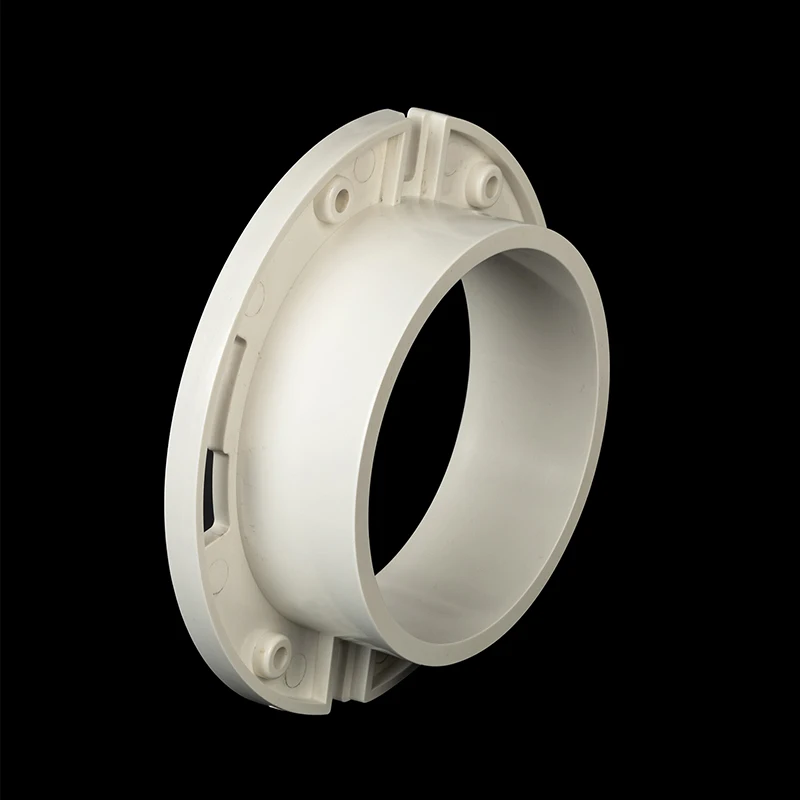

Китайский завод лидер продаж ПВХ пластиковые трубы и фитинги фланец для сантехники
0,20 $

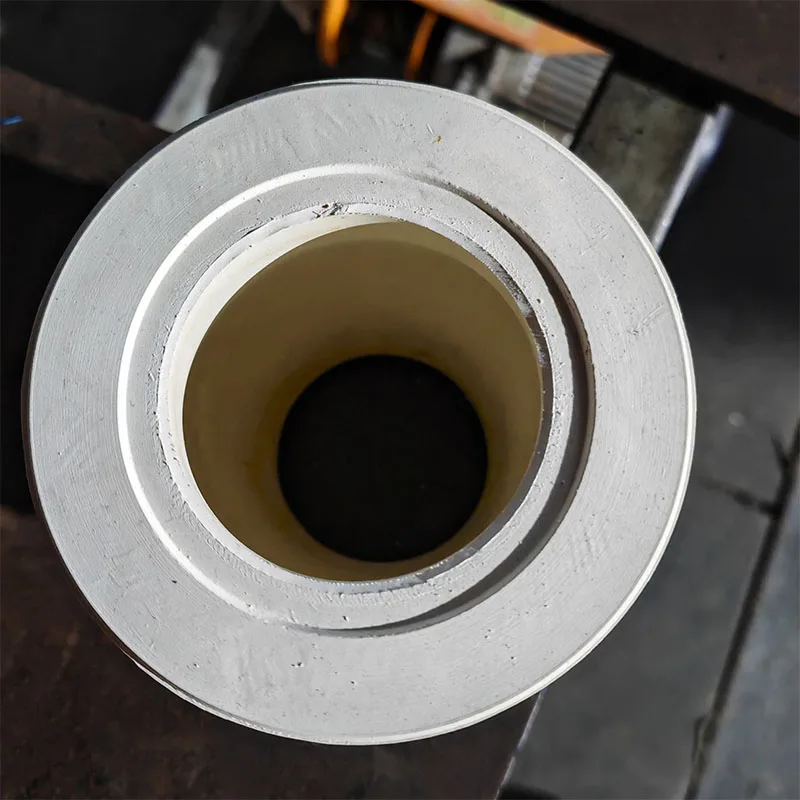

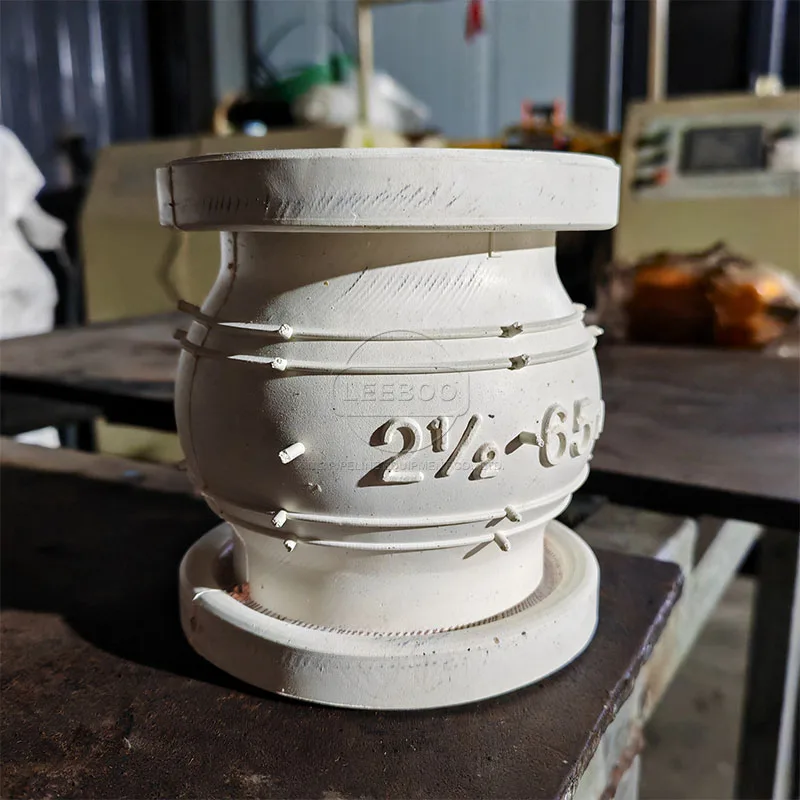

Leeboo оптовая продажа DN40 DN600 белый Сферический фланец из нержавеющей стали для пищевых напитков гибкий резиновый расширительный шов цена
- Категория: >>>
- Поставщик: Gongyi Xinli Pipeline Equipment Co. Ltd.Gongyi Ltd.
Сохранить в закладки 1600525578048:
Описание и отзывы
Характеристики
Related products
Product Description

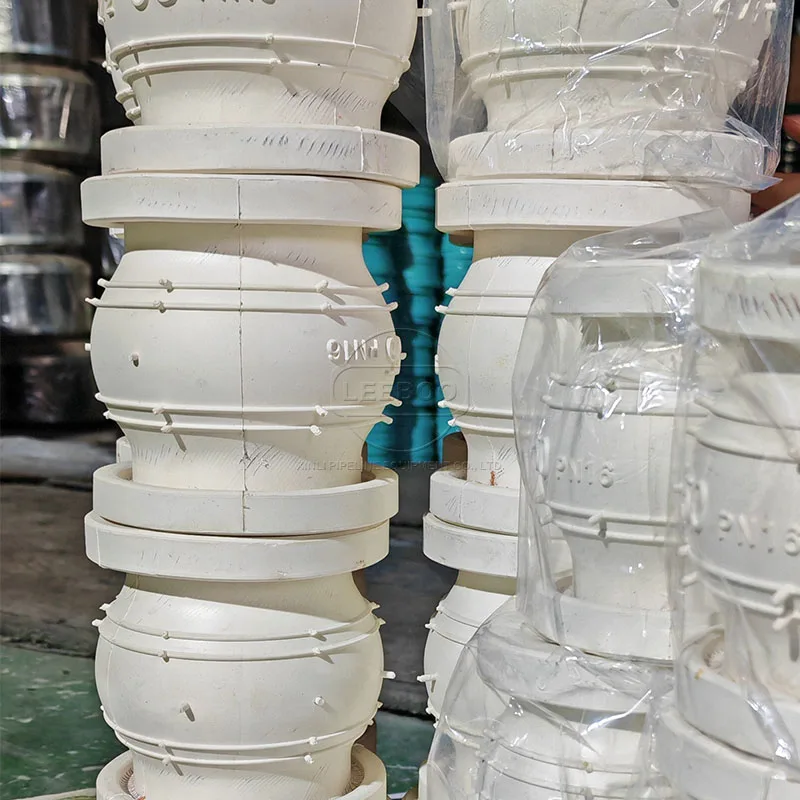

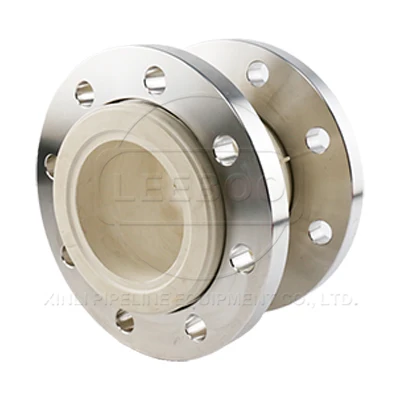

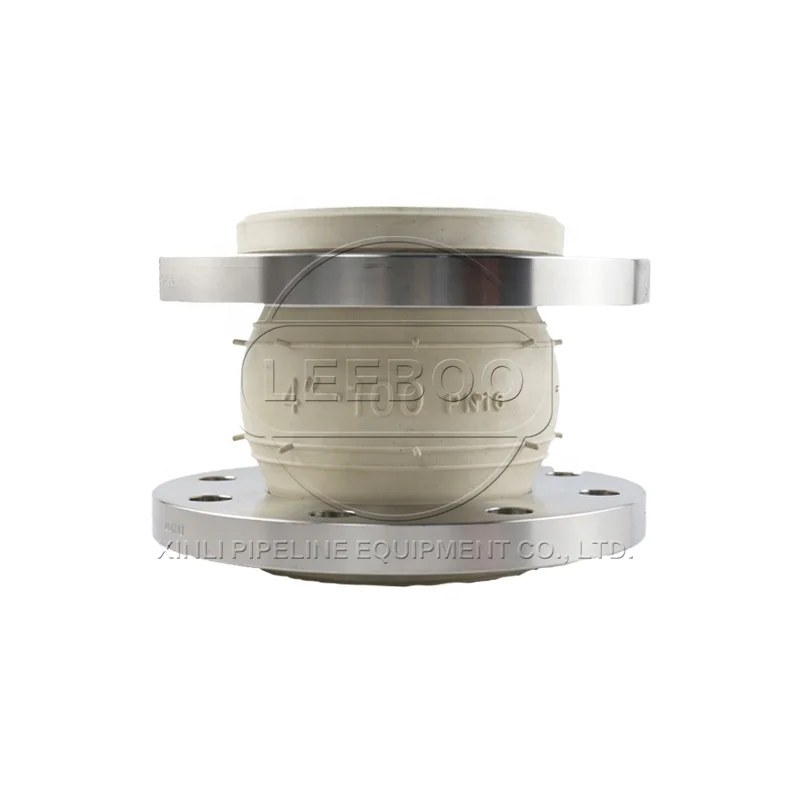

Product name: | Rubber expansion joint |
Rubber material: | NR,epdm, |
Flange material: | Carbon steel, stainless steel,ductile iron,etc |
Flange standard: | ANSI,DIN,JIS,EN,etc |
Applicable medium : | drinking water, juice and other edible products |
Temperature： | -40℃~220℃ |
0.6Pressure： | 0.6~2.5Mpa |
Product advantages：
1. The material is silicone rubber, which is odorless and non-toxic. It can ensure that the medium inside the pipeline is not affected.
2. Multi layer rubber superposition, thicker layer wall.
3. Built in steel ring to increase flexibility.
2. Multi layer rubber superposition, thicker layer wall.
3. Built in steel ring to increase flexibility.
Focus on solutions
4.Over the past 20 years, we have gained many partners with rich experience and can provide customers with solutions throughout the process.
Support personalization
5.Various molds of DN32~DN3000mm and advanced equipment meet large quantities of personalized orders.
Technical parameter
Technical Conditions of Rubber Expansion Joint | ||||||
Item | KXT-10 | KXT-16 | KXT-25 | |||
Working pressure | 1.0 Mpa | 1.6 Mpa | 2.5 Mpa | |||
Burst pressure | 2.0 Mpa | 3.0 Mpa | 4.5 Mpa | |||
Vacuum | 53.3 Kpa (400) | 86.7 Kpa (650) | 100 Kpa (750) | |||
Nominal Diameter | Length | Axial Displacement | Horizontal Deflection | Angular Deflection | ||||
(mm) | (mm) | (mm) | (a1+a2) ° | |||||
mm | inch | Extension | Compression | |||||
32 | 1.25 | 95 | 6 | 9 | 9 | 15 | ||
40 | 1.5 | 95 | 6 | 10 | 9 | 15 | ||
50 | 2 | 105 | 7 | 10 | 10 | 15 | ||
65 | 2.5 | 115 | 7 | 13 | 11 | 15 | ||
80 | 3 | 135 | 8 | 15 | 12 | 15 | ||
100 | 4 | 150 | 10 | 19 | 13 | 15 | ||
125 | 5 | 165 | 12 | 19 | 13 | 15 | ||
150 | 6 | 180 | 12 | 20 | 14 | 15 | ||
200 | 8 | 210 | 16 | 25 | 22 | 15 | ||
250 | 10 | 230 | 16 | 25 | 22 | 15 | ||
300 | 12 | 245 | 16 | 25 | 22 | 15 | ||
350 | 14 | 255 | 16 | 25 | 22 | 15 | ||
400 | 16 | 255 | 16 | 25 | 22 | 15 | ||
450 | 18 | 255 | 16 | 25 | 22 | 15 | ||
500 | 20 | 255 | 16 | 25 | 22 | 15 | ||
600 | 24 | 260 | 16 | 25 | 22 | 15 | ||
700 | 28 | 260 | 16 | 25 | 22 | 15 | ||
800 | 32 | 260 | 16 | 25 | 22 | 15 | ||
900 | 36 | 260 | 16 | 25 | 22 | 15 | ||
1000 | 40 | 260 | 18 | 26 | 24 | 15 | ||
1200 | 48 | 260 | 18 | 26 | 24 | 15 | ||
1400 | 56 | 350 | 20 | 28 | 26 | 15 | ||
1500 | 60 | 350 | 20 | 28 | 26 | 15 | ||
1600 | 64 | 350 | 25 | 35 | 30 | 10 | ||
1800 | 72 | 350 | 25 | 35 | 30 | 10 | ||
2000 | 80 | 350 | 25 | 35 | 30 | 10 | ||
2200 | 88 | 350 | 25 | 35 | 30 | 10 | ||
2200 | 88 | 400 | 25 | 35 | 30 | 10 | ||
2400 | 96 | 400 | 25 | 35 | 30 | 10 | ||
2600 | 104 | 400 | 25 | 35 | 30 | 10 | ||
2800 | 112 | 400 | 25 | 35 | 30 | 10 | ||
3000 | 120 | 400 | 25 | 35 | 30 | 10 | ||
Packing & Delivery
Packing:Inner plastic film，outer wooden box.
Shipping:by express,by air or by sea.
Shipping port: Shangahi, Qingdao, Tianjin or according to your needs.
Shipping time:5-15 days after receiving 30% down payment,or according to your needs.
Shipping:by express,by air or by sea.
Shipping port: Shangahi, Qingdao, Tianjin or according to your needs.
Shipping time:5-15 days after receiving 30% down payment,or according to your needs.
Company Profile
Gongyi Xinli pipeline equipment Co., Ltd.
Manufacturer since 1997.
Gongyi Xinli Pipeline Equipment Co., Ltd. is a professional production-oriented enterprise
integrating technology research and development, manufacturing, market development, business negotiation and import and export of goods and technologies.
Our products have passed the GB/TI9001-2008-IS09001:2008 quality certification system. Our company has strong technical force, sophisticated production equipment, advanced production technology and complete product quality testing equipment.
Our company specializes in the production and sales of reinforced flanged rubber joints, flexible synthetic single ball rubber joints, double spherical rubber joints, different diameter rubber joints (large and small rubber joints), rubber elbows, rubber compensators, flexible synthetic rubber joint protection devices, Strengthen the anti-drop device, stainless steel roundness and squareness bellows expansion joint.
It is our eternal goal to build a famous brand enterprise, develop the international market, and advance to the first-class enterprise management level.
integrating technology research and development, manufacturing, market development, business negotiation and import and export of goods and technologies.
Our products have passed the GB/TI9001-2008-IS09001:2008 quality certification system. Our company has strong technical force, sophisticated production equipment, advanced production technology and complete product quality testing equipment.
Our company specializes in the production and sales of reinforced flanged rubber joints, flexible synthetic single ball rubber joints, double spherical rubber joints, different diameter rubber joints (large and small rubber joints), rubber elbows, rubber compensators, flexible synthetic rubber joint protection devices, Strengthen the anti-drop device, stainless steel roundness and squareness bellows expansion joint.
It is our eternal goal to build a famous brand enterprise, develop the international market, and advance to the first-class enterprise management level.
Production Process
Project Cases
Customer Visit
Why choose us
1. Who are we?
We are based in Henan, China, start from 2007,sell to Domestic Market(57.00%),MidEast(10.00%), Africa(8.00%), Oceania(6.00%),
Southeast Asia(6.00%), Eastern Asia(6.00%),
Southern Europe(4.00%), North America(2.00%), Eastern Europe(1.00%).
There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Pipe Fittings (Rubber Joint,Expansion Joint,Compensator,Water-proof Sleeve,Duck-billed Valve) (Don't Involve Pressure)
4. Why should you buy from us not from other suppliers?
Manufacturer since 1997.
We are based in Henan, China, start from 2007,sell to Domestic Market(57.00%),MidEast(10.00%), Africa(8.00%), Oceania(6.00%),
Southeast Asia(6.00%), Eastern Asia(6.00%),
Southern Europe(4.00%), North America(2.00%), Eastern Europe(1.00%).
There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Pipe Fittings (Rubber Joint,Expansion Joint,Compensator,Water-proof Sleeve,Duck-billed Valve) (Don't Involve Pressure)
4. Why should you buy from us not from other suppliers?
Manufacturer since 1997.
LEEBOO brand won "China Famous Brand".
First level supplier to National Petroleum Corporation in 2008.
Small orders / OEM orders acceptable. Mainly produce special size and length rubber joint.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,
Russian,Korean,Hindi,Italian
Small orders / OEM orders acceptable. Mainly produce special size and length rubber joint.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,
Russian,Korean,Hindi,Italian
FAQ
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q: Do you accept small quantity order?
A: Yes, MOQ 1 pc for standard size, 5 pcs for customized size.
Q: How can you guarantee the quality or any warranty?
A: Under the correct installation and use, the warranty of our products is 1 year.
Q : Are you trading company or manufacturer?
A: We are manufacturer of rubber expansion joint,bellow joint, rubber duckbill check valve,dismantling joint with more than
18-year experience.
Q: What is your payment terms?
A: Usually T/T(30% as deposit, the rest 70% will be paid before delivery). L/C, Western Union, Paypal also acceptable.
Q: What about the lead time?
A: Usually 3-10 days for sample order. Lot production time according to order quantity.
A: Yes, we can produce by your samples or technical drawings.
Q: Do you accept small quantity order?
A: Yes, MOQ 1 pc for standard size, 5 pcs for customized size.
Q: How can you guarantee the quality or any warranty?
A: Under the correct installation and use, the warranty of our products is 1 year.
Q : Are you trading company or manufacturer?
A: We are manufacturer of rubber expansion joint,bellow joint, rubber duckbill check valve,dismantling joint with more than
18-year experience.
Q: What is your payment terms?
A: Usually T/T(30% as deposit, the rest 70% will be paid before delivery). L/C, Western Union, Paypal also acceptable.
Q: What about the lead time?
A: Usually 3-10 days for sample order. Lot production time according to order quantity.
Похожие товары

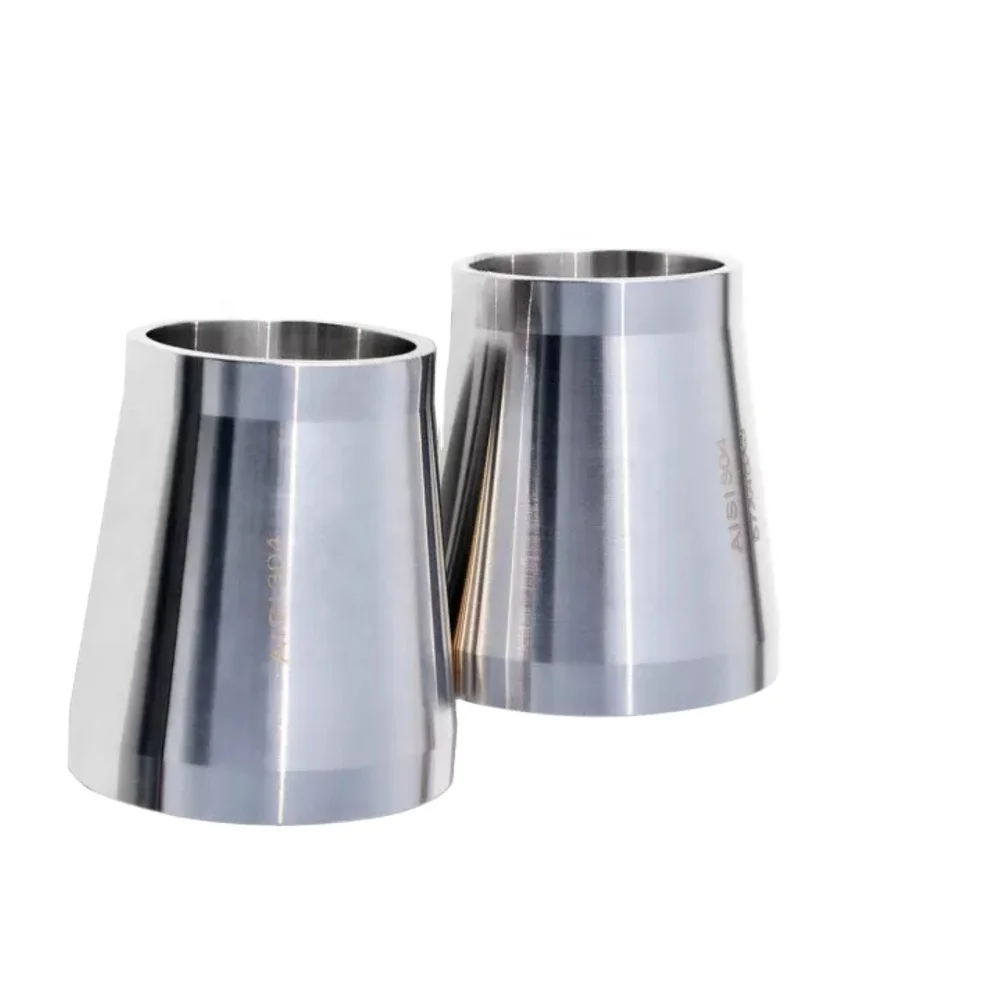

Пятнистая отделка эксцентриковый редуктор фитинги для SS санитарно-трубные фитинги
221,80-532,31 ₽

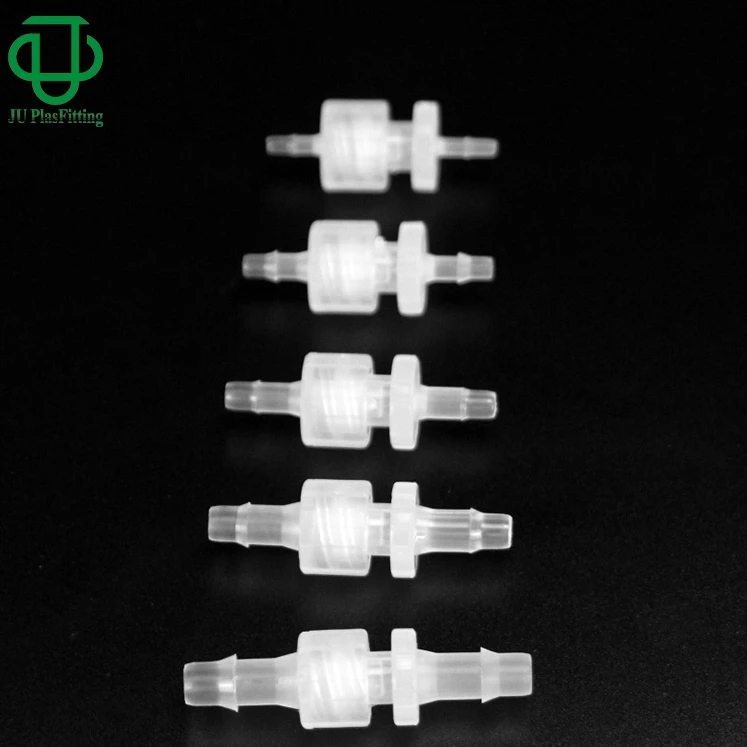

Оптовая продажа, полипропиленовые/поликарбонатные трубы, замок с зазубринами, переходник с женским и мужским разъемами, фитинги с зазубринами

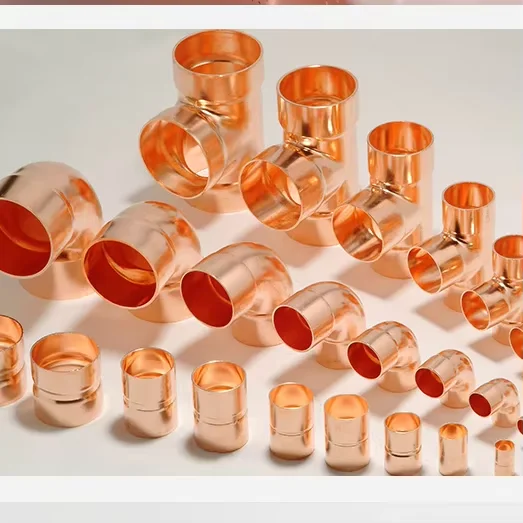

Репрессионная медная Соединительная муфта
0,50-2,00 $

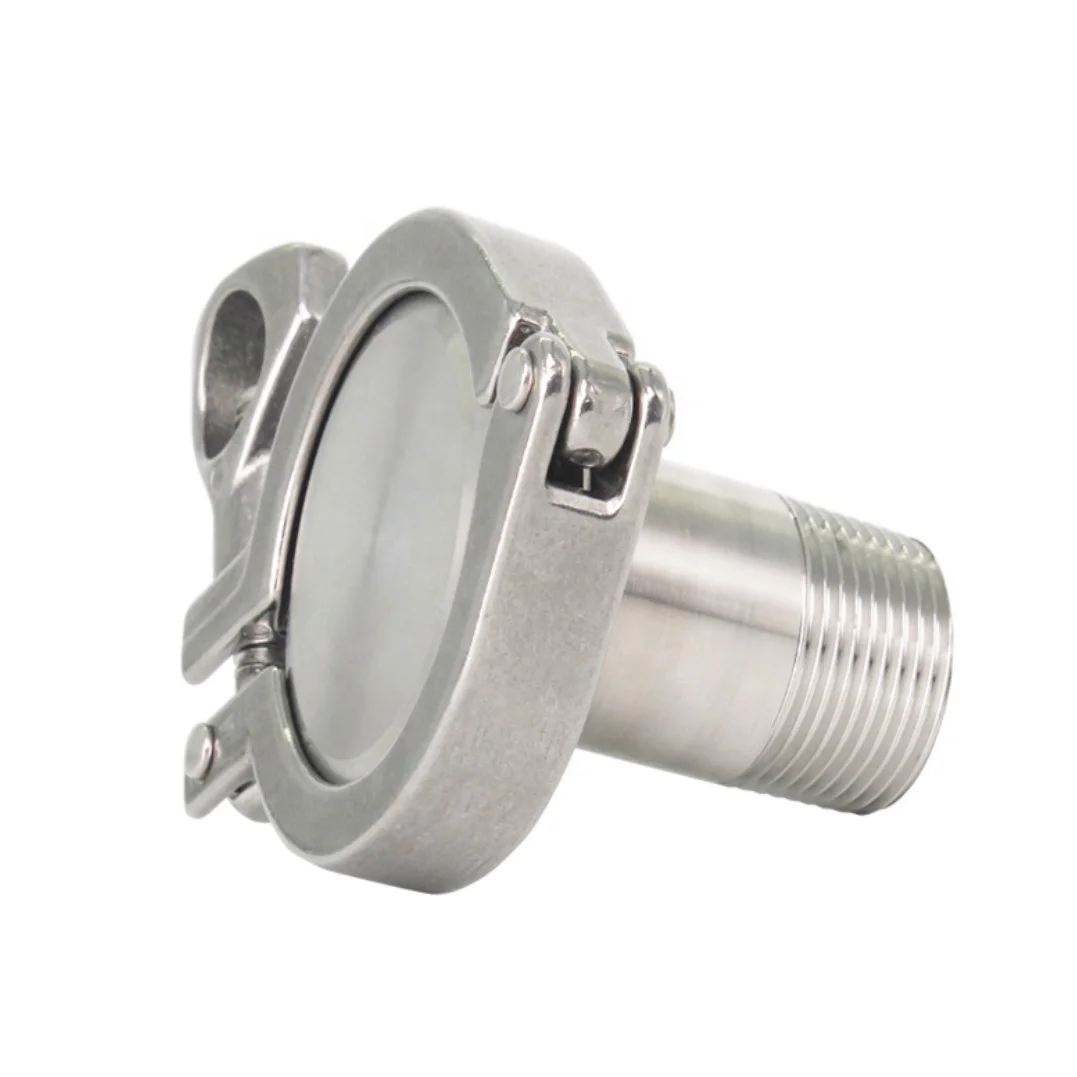

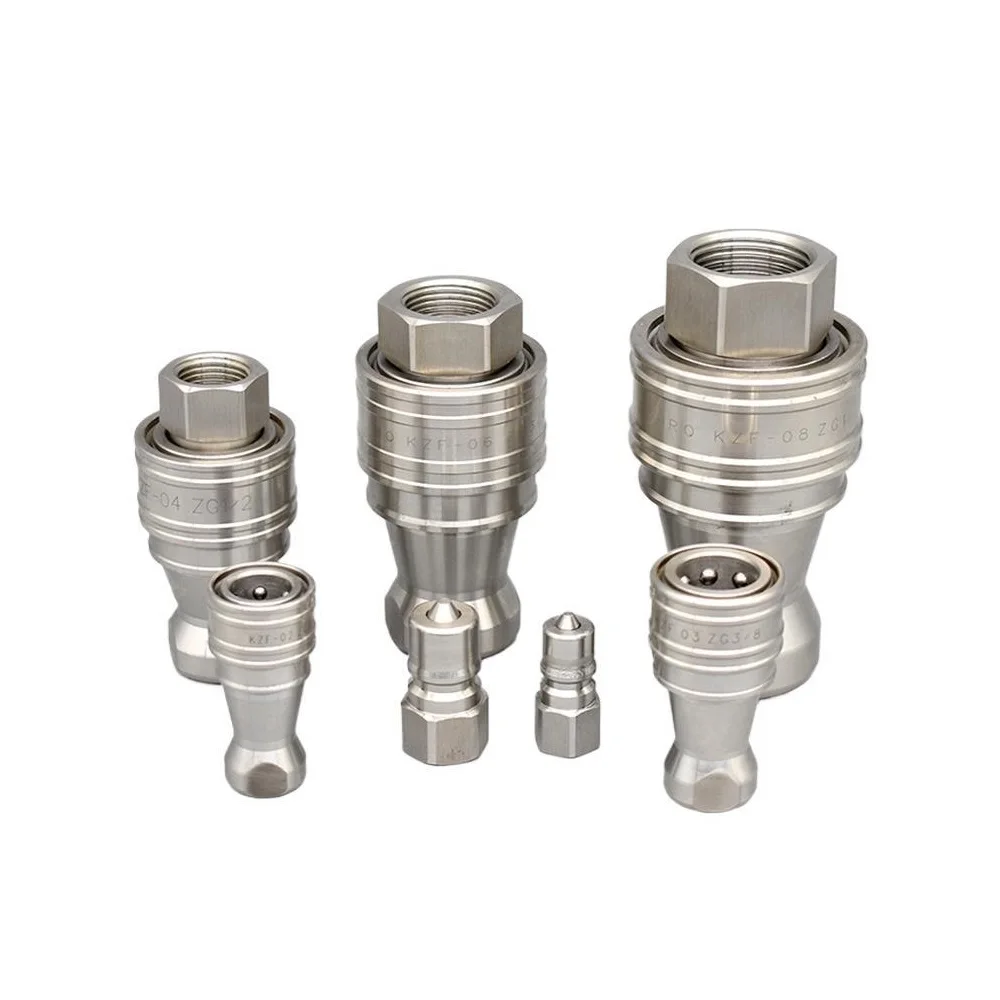

3A санитарный набор Быстросъемных трех зажимов и фитинг для шланга из нержавеющей стали с наружной внутренней резьбой
1,55-2,55 $

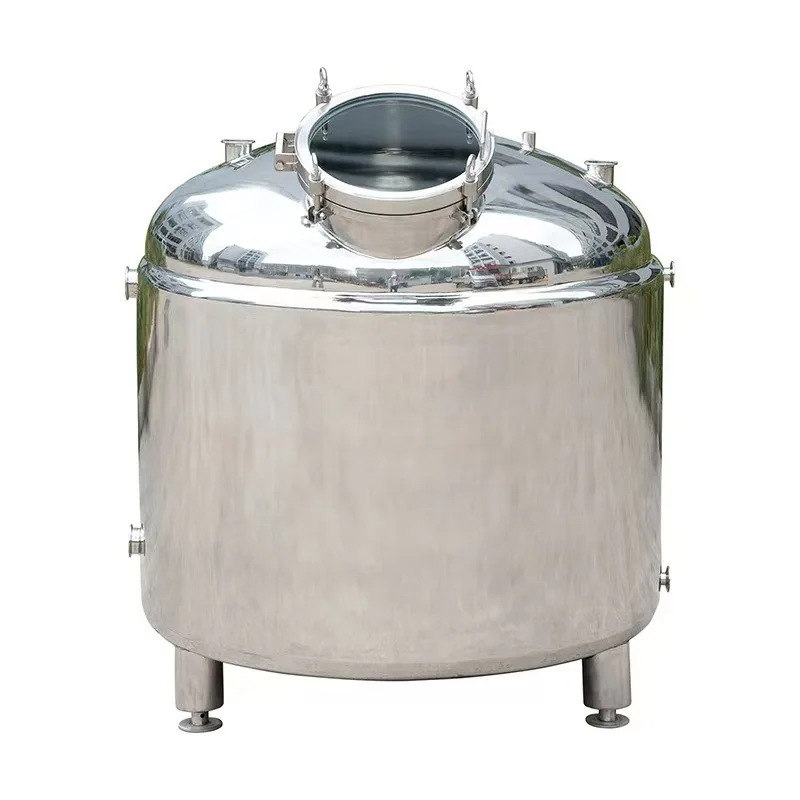

Дистиллятор из нержавеющей стали
1 750,00-2 060,00 $
Оптовая продажа из нержавеющей стали гидравлический шланг фитинги женские трубы

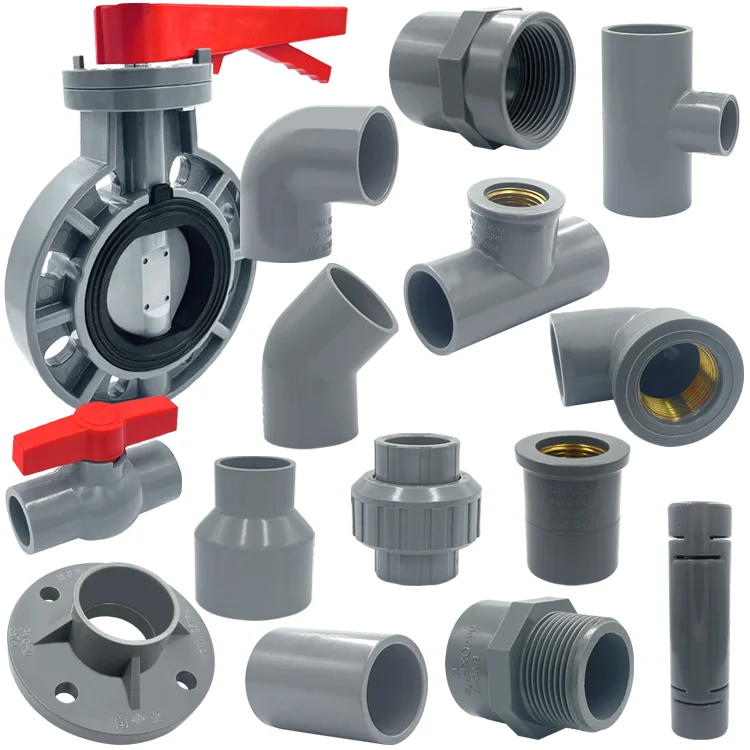

Высококачественные пластиковые фитинги для труб из ПВХ
