Zcst 3 осный 40FT Скелет полуприцепа контейнер с автоматической загрузкой шасси трейлер используемый в порт перевозки 30T
- Категория: >>>
- Поставщик: Shandong St Trailer Co. Ltd.
Сохранить в закладки 1600525777933:
Описание и отзывы
Характеристики
PRODUCT DESCRIPTION
Skeleton semi-trailer
Skeleton semi-trailer, also known as chassis trailer, is a very simple and basic structure of other semi-trailers.
The skeleton semi-trailer is light in weight, but large in loading capacity. It is mainly used for loading containers of all different sizes.

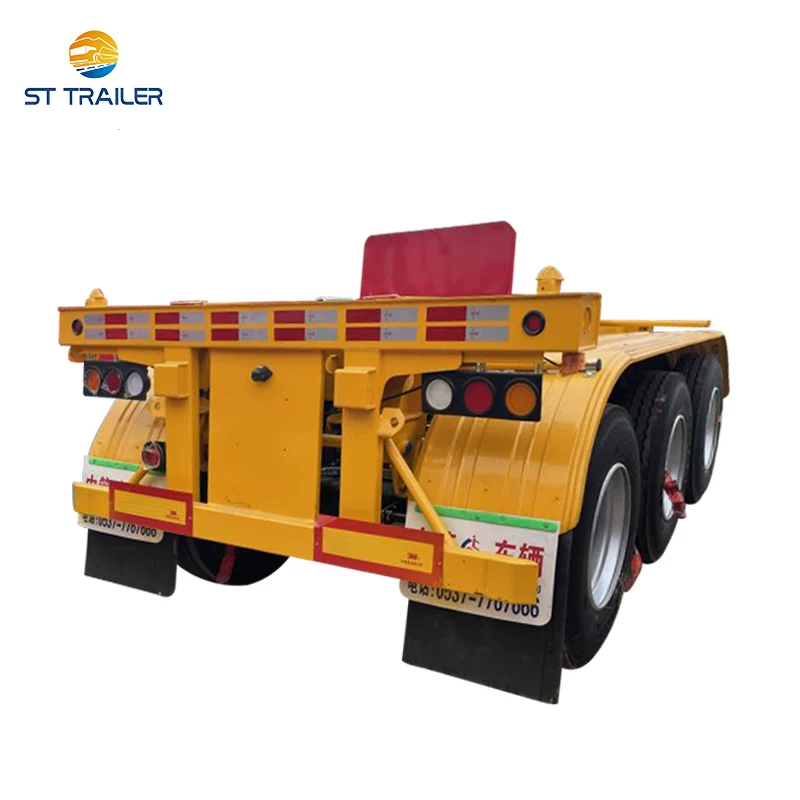

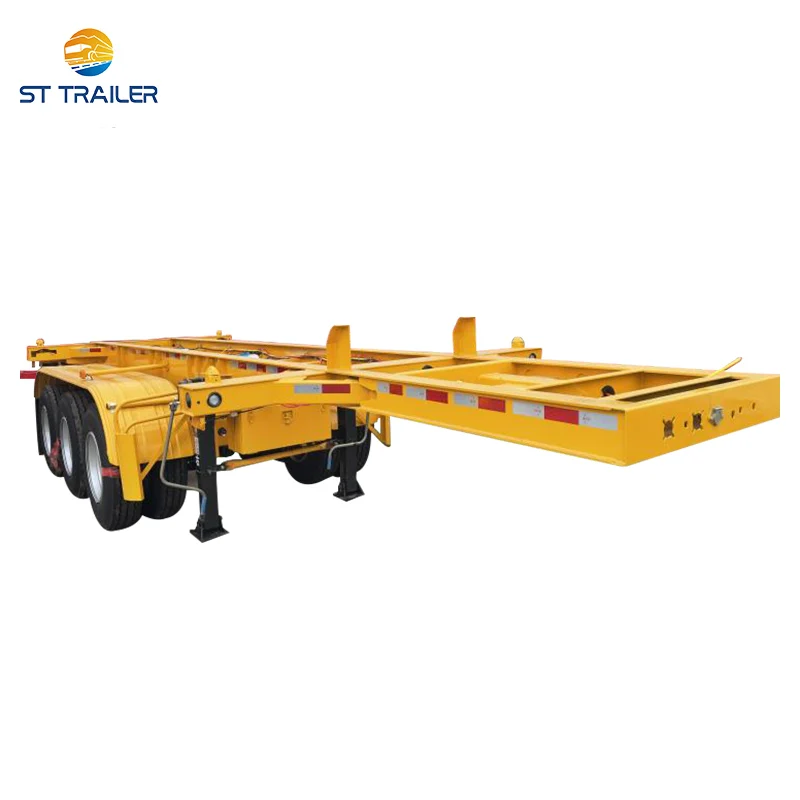

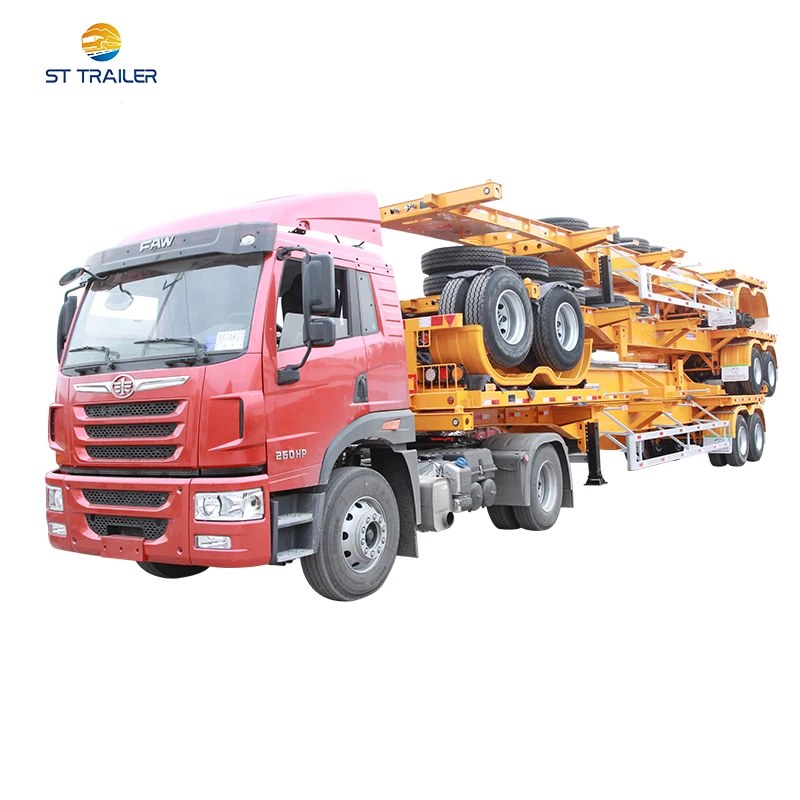

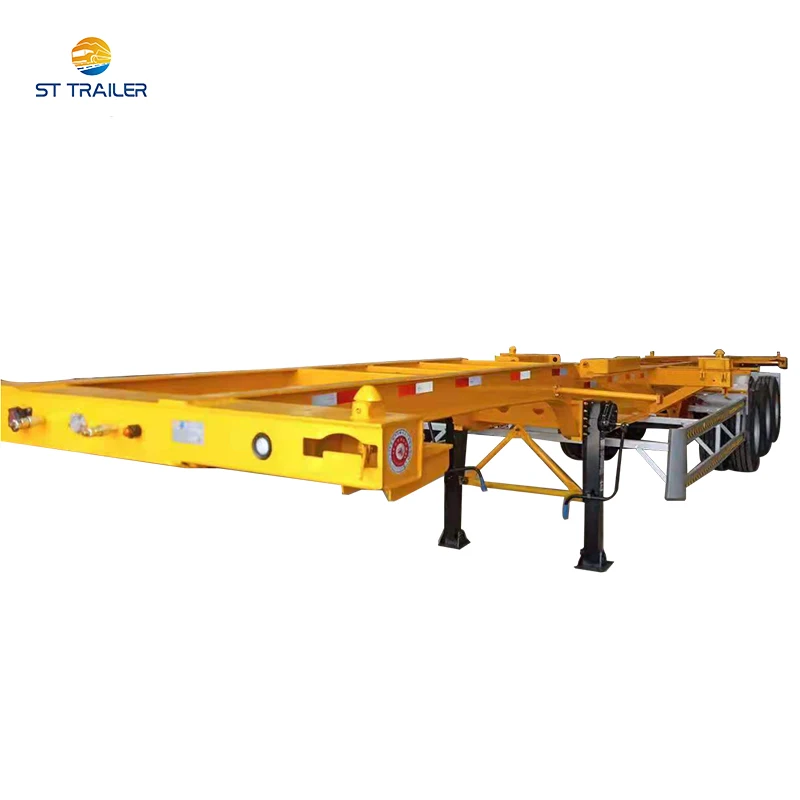

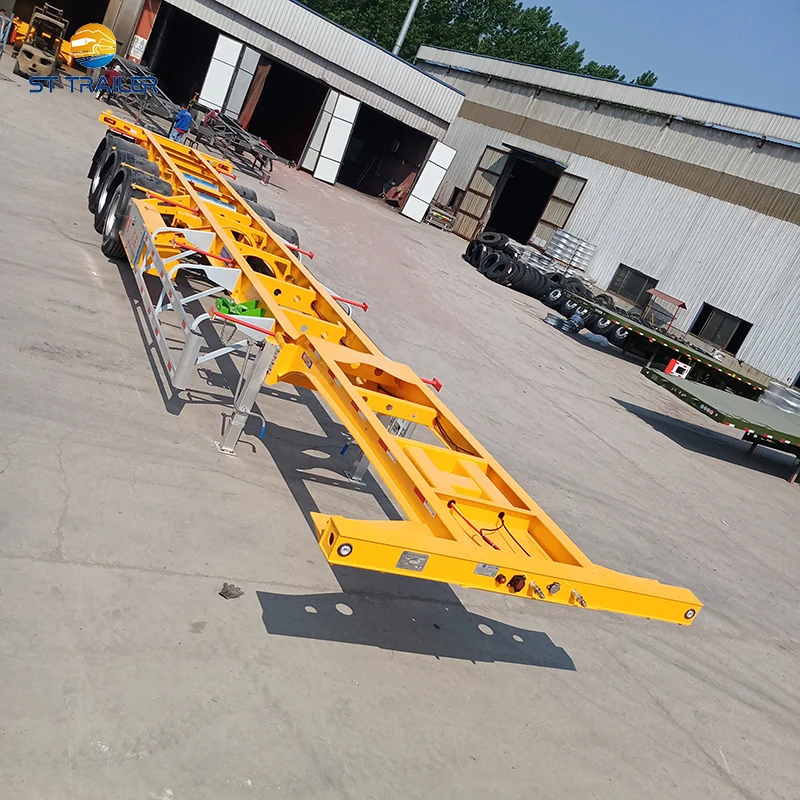

This pictures shows a 3-axle 40ft chassis trailer. It is painted yellow, which is the most popular color of the semi-trailer.
Besides the size you can see in this picture, the chassis trailer can also be designed to different lengths, like 20ft, 45ft according to customers' requirements.
China High Quality 2 Axle 3 Axles 40 ft Container Gooseneck Chassis Skeleton Semi Trailer | ||||||||||
Dimension (Optional) | Axle No. | Rated Load (kg) | Tire No. | Tire Size | ||||||
20ft | 2 | 40000 | 8 | 825R20; 1000R20 1100R20; 1200R20 12R22.5 (Contact US for detailes) | ||||||
40ft 45ft 48ft 53ft | 3 | 60000 | 12 | |||||||
40ft 45ft 48ft 53ft | 4 | 75000 | 16 | |||||||
Wheel Base (mm) | 1310 | |||||||||
Leaf Spring | 10 pieces | |||||||||
Axle | 13 /16 /18 T, FUWA, BPW etc brand | |||||||||
Suspension | Heavy duty mechanical suspension | |||||||||
Main Beam Material | Q345B manganese plates, automatic submerged arc welded | |||||||||
Brake System | Dual line braking system with automatic braking system/chambers | |||||||||
King Pin | 2' or 3.5' | |||||||||
Landing Gear | 28T, JOST | |||||||||
Electrical System | 24V, 7 core socket, lights according to European standards. | |||||||||
Main Beam | Upper plate | 14mm | ||||||||
Lower plate | 16mm | |||||||||
Middel plate | 8 mm | |||||||||
Height | 500-520mm | |||||||||
Tool Box | 1 box of standard tools | |||||||||
Spare Tire Carrier | 2 sets | |||||||||
Color and Logo | As requested | |||||||||
Painting | 2 coats of Epoxy high rust resistant primer undercoat, 2 coats of acrylic paint | |||||||||
Other Specifications | The frame can be flat plate style and skeleton style.Twist lock settings installed 12 pics, 8 pics, and 4pcs to satisfy the containers with different sizes for convince. | |||||||||
Application | For transportation of 2 x 20ft or 1 x 40ft containers | |||||||||
Above Information are ZCST Trailer Standard Specifications. If you want to change the specification, freely to | ||||||||||
PRODUCT DETAIS

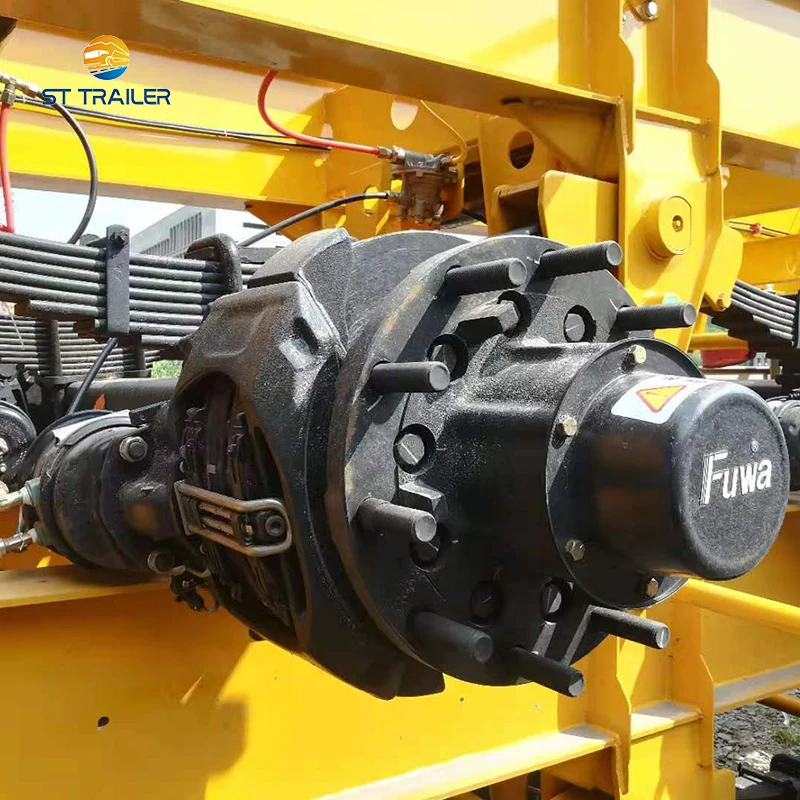

Famous Brand Axles, Just Like Fuwa

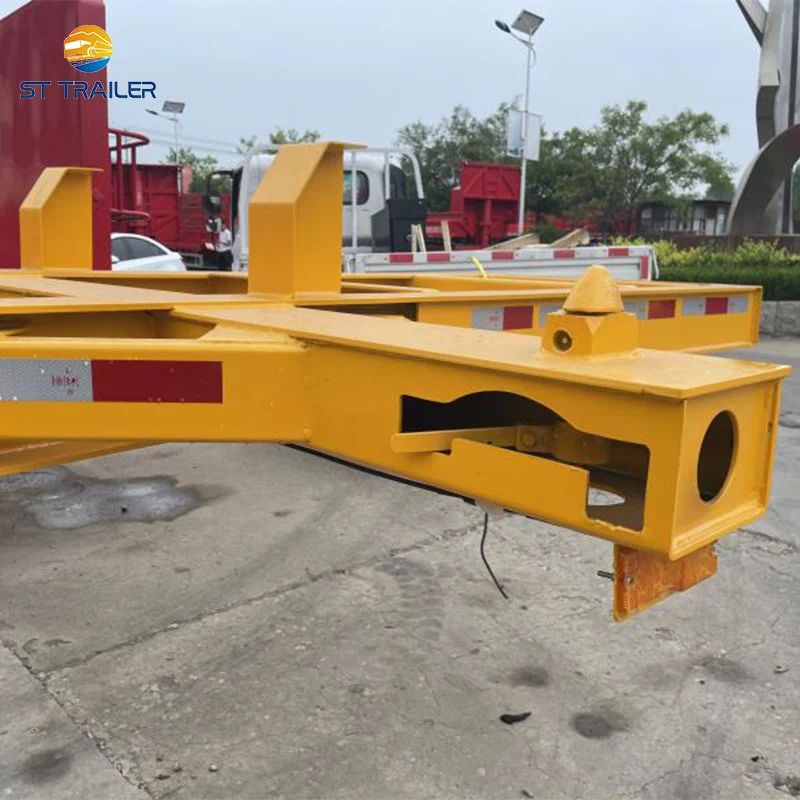

Container Lock

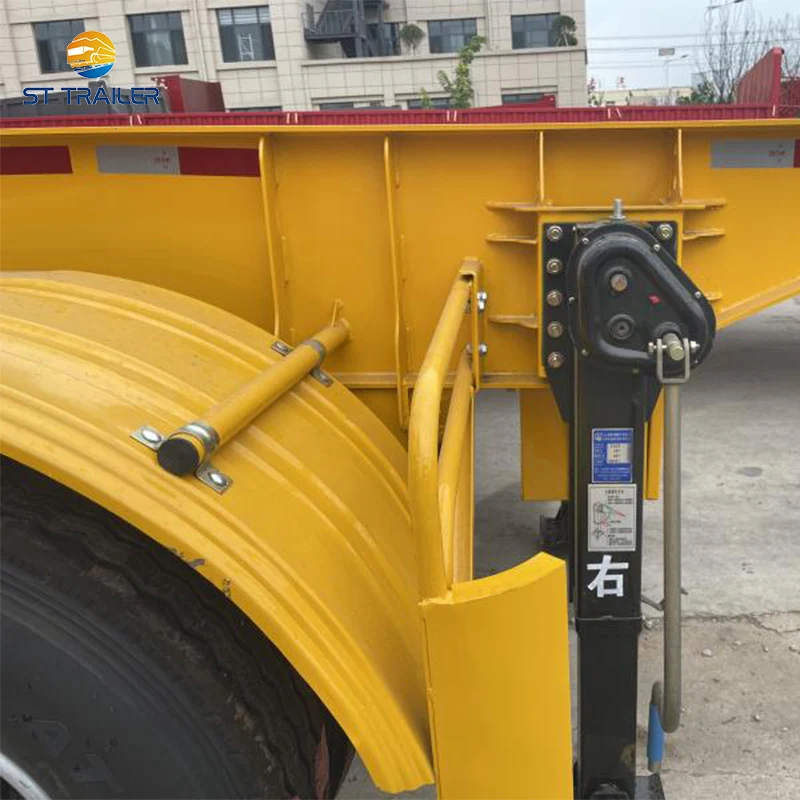

JOST Landing Gear

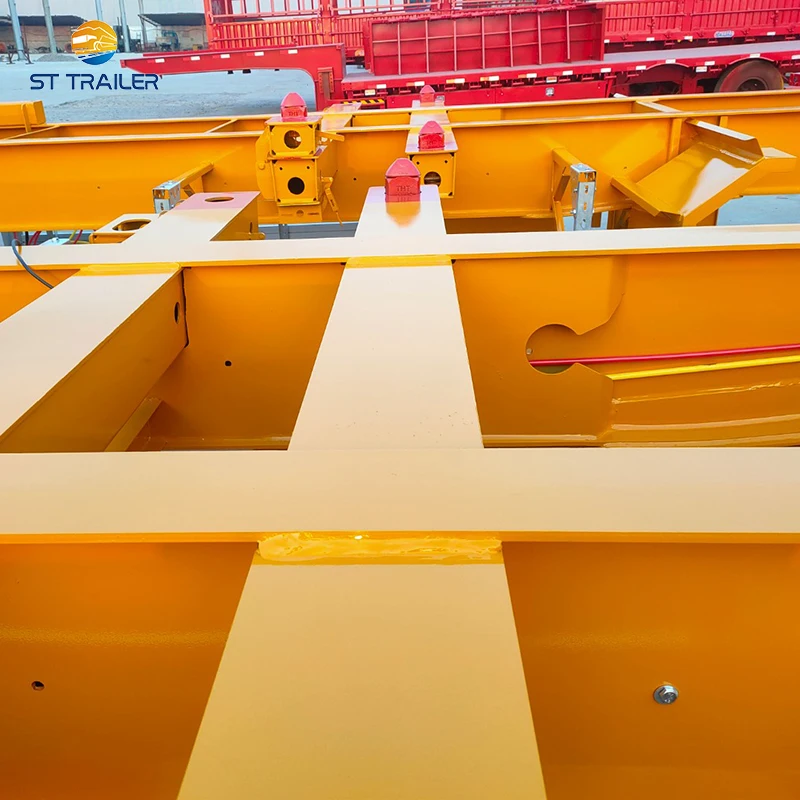

Good Painting
SALES AND SERVICE
COMPANY OVERVIEW

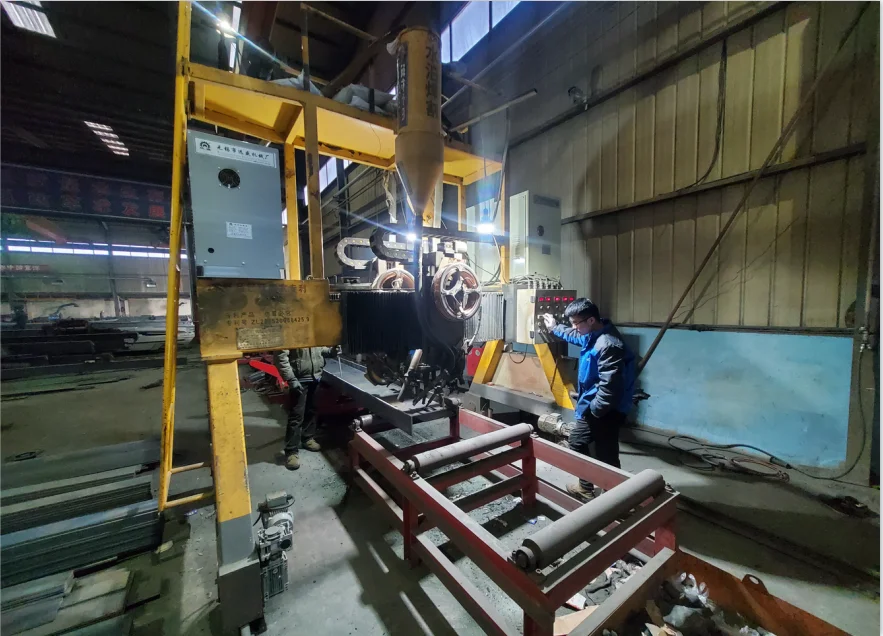

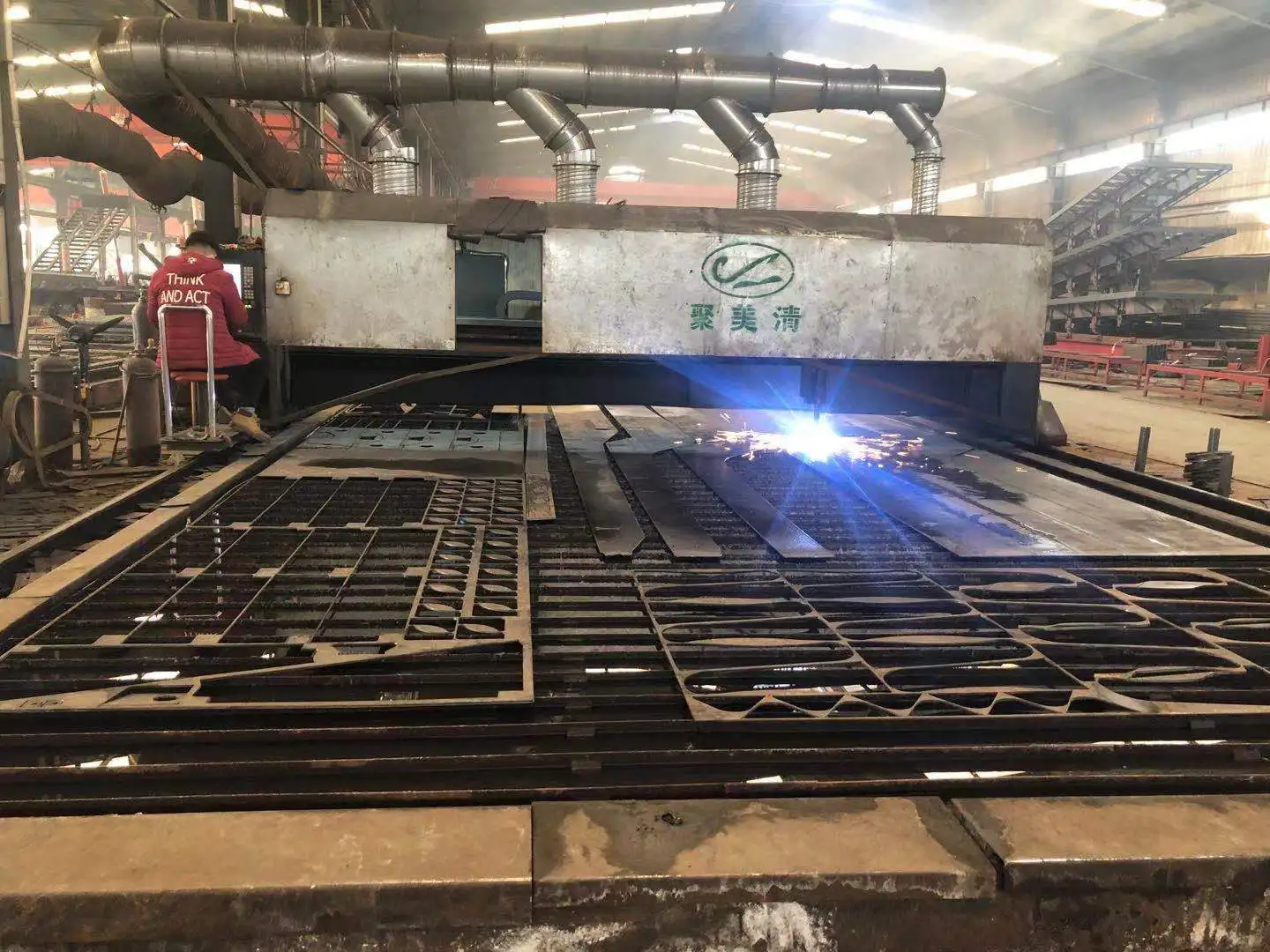

Shandong ST Trailer Co., Ltd. is a trailer sales company approved by the State Administration for Industry and Commerce, which integrates production, scientific research and sales. It has passed the mandatory "3C" certification and ISO9001:2000 quality management system certification by the China Quality Certification Center. The company is well-funded, covers an area of more than 68,000 square meters, has a production plant of 32,000 square meters, and has more than 2000 employees. It has first-class standard and strong production capacity flow-through production tooling equipment, using advanced production technology and high-quality raw materials and parts. . The company insists on taking first-class equipment, first-class technology, and first-class quality as the root of enterprise development, and adheres to the tenet of people-oriented and sincere treatment, strengthens internal management, improves various systems, and serves new and old customers. Guests from all walks of life are welcomed to come to the factory to negotiate business.

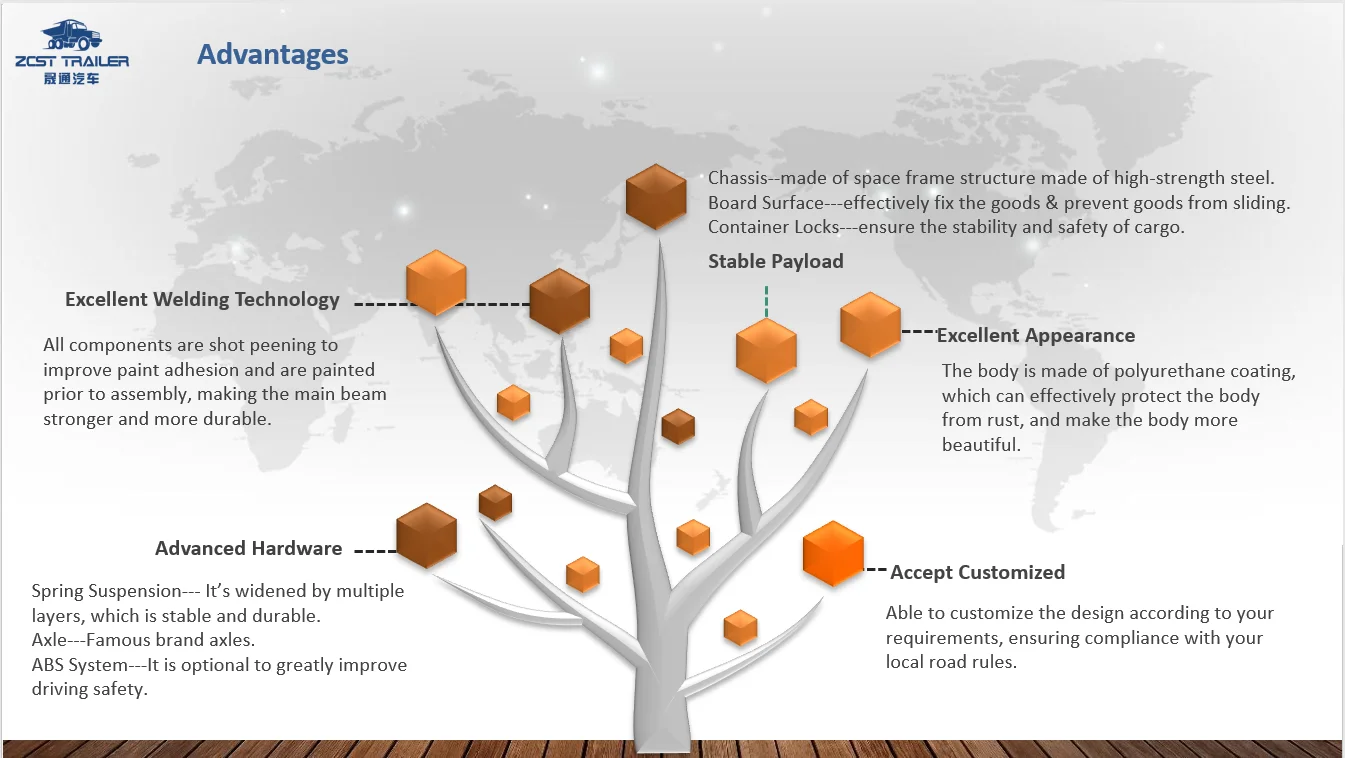

OUR ADVANTAGES
QUALITY ASSURANCE
RICH EXPERIENCE
ALIBABA ASSURANCED
PRICE ADVANTAGE
Quality always comes first. ZCST TRAILER has advanced production technology and management team! We always attach great importance to quality controlling from the very beginning, and every unit of product undergoes a strict inspection process..
R&D TEAM
ZCST TRAILER has our own professional design team, technical personnel have many years of experience.
RICH EXPERIENCE
ZCST TRAILER has rich experience in overseas production and export business, to provide better service, ZCST TRAILER has established many overseas offices in many countries.
ALIBABA ASSURANCED
Your order would assuranced by Alibaba, about the payment, shipping time and quality control.
PRICE ADVANTAGE
Good quality, resonable price, on time shipping and best service for each customers. ZCST TRAILER mini-mize all loses that may arise from the trailers.
PACKAGES & DELIVERY
Nude and wax, to save freight cost for you, we usually shipped the skeleton semi trailers in bulk cargo ship, flat deck or RO-RO. We can also transport by containers if you need.
(1) Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping.
(2) Package:
Stable fixing with steel wire,to protect the trailer during shipping.
(3) Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly.
(1) Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping.
(2) Package:
Stable fixing with steel wire,to protect the trailer during shipping.
(3) Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly.
FAQ
Q: Does your company have your own factory?
A: Yes, we have a factory in Liangshan, Shandong Province
We have been focusing on manufacturing semi trailers over decades. ZCST TRAILER has our own R&D team, with years experiences, we've became the leading manufacturer of semi-trailers in China.
Q: How can we guarantee quality?
A: ZCST TRAILER always insists that "Quality always comes first". We have advanced production technology and management team! And ZCST TRAILER always attach great importance to quality controlling from the very beginning, every unit of trailer undergoes a strict inspection process.
Q: Could you special design and produce for me?
A: Definitely! With professional engineers, ZCST TRAILER could design and produce special trailers according to your requirements & the road conditions.
Q: What logistics ways we can work for shipment?
A: To save freight cost for you, we usually shipped the skeleton semi trailers in bulk cargo ship, flat deck or RO-RO. We can also transport by containers if you need.
Похожие товары
Бесплатный образец 1 м 1,5 м 2 м usb type c usb-кабель для зарядного устройства сотового телефона
W1088 двойной светодиодный цифровой датчик температуры метр контроллер Электрический нагревательный термостат 220 в аквариум инкубатор терморегулятор
Песочные часы с таймером, песочные часы для комнаты, кухни, офиса, инструменты для управления временем, 30 минут, 5 минут

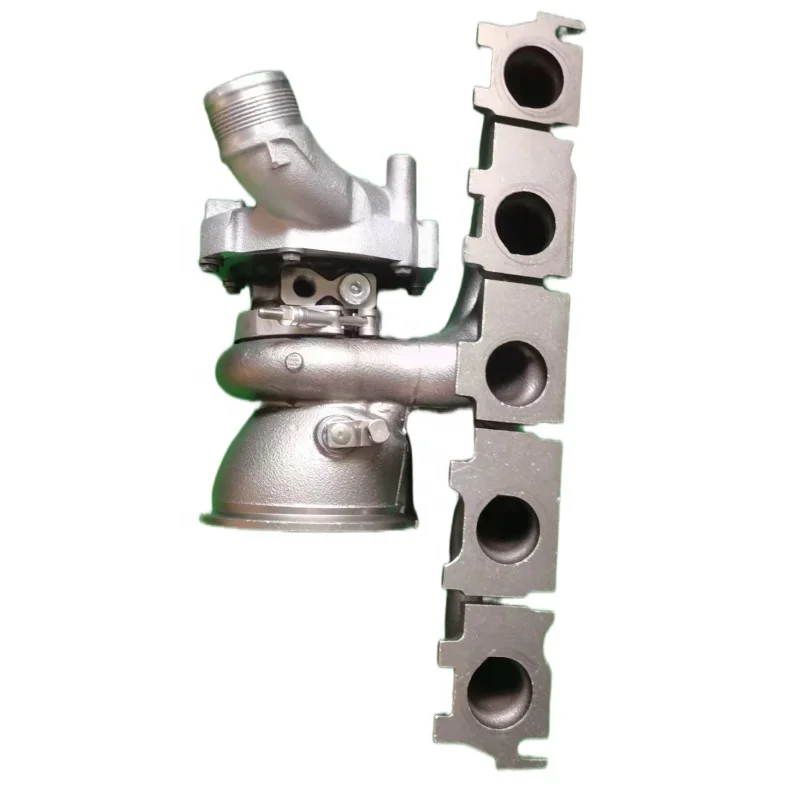

B03G 18559700021 07K145701J обновления 650HP G30-770 turbo шарикоподшипник Гибридный Турбокомпрессор Для Audi RS3 TTRS EA855 2 5
1 500,00 $ - 1 700,00 $
Полуприцеп рама 3-х осевой контейнер прицеп шасси 40ft Скелет
6 000,00 $ - 7 800,00 $

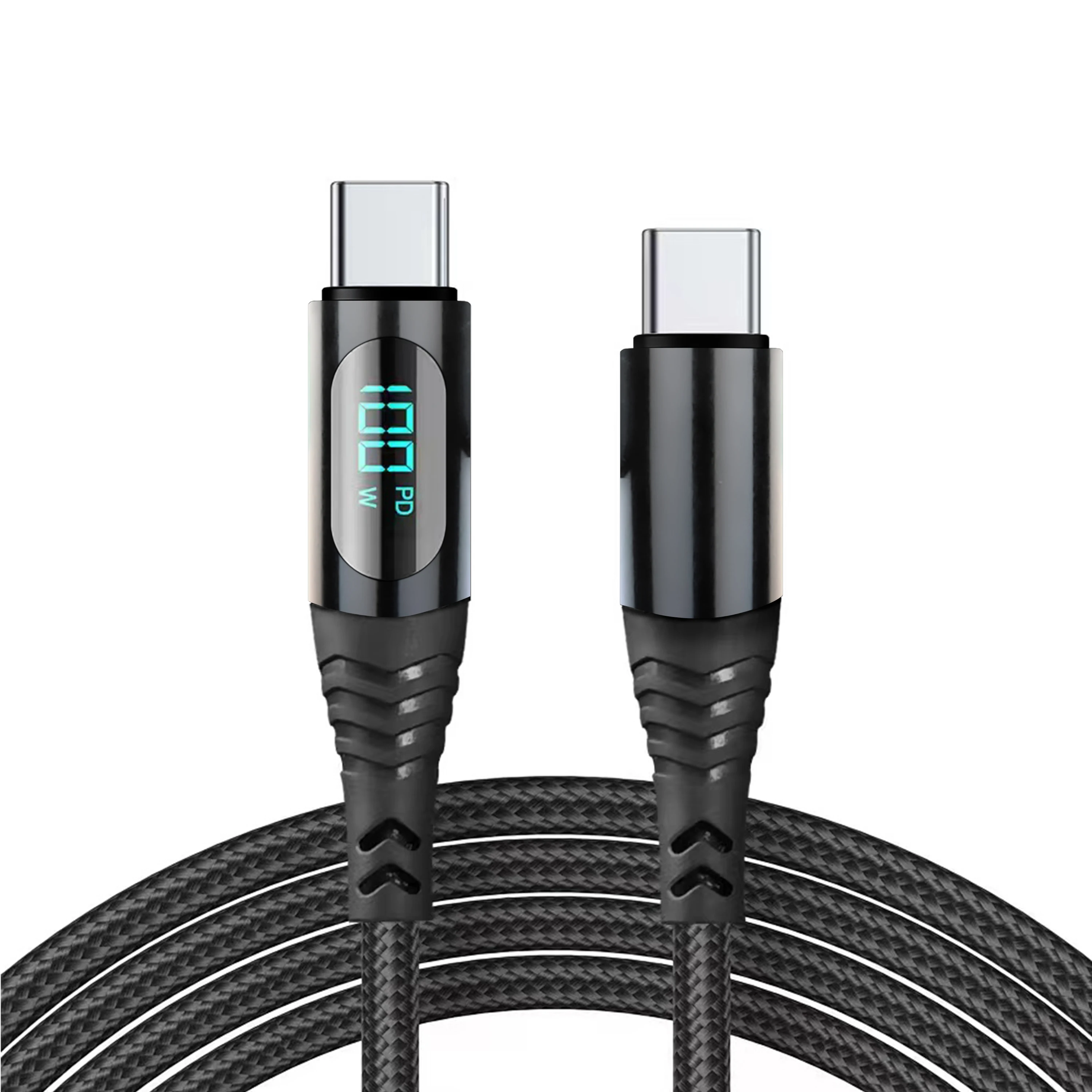

Умный нейлоновый кабель типа C 5A 100 Вт Usb C кабель со светодиодным цифровым дисплеем, быстрая зарядка Usb кабель 1 м 2 м
2,10 $ - 2,90 $

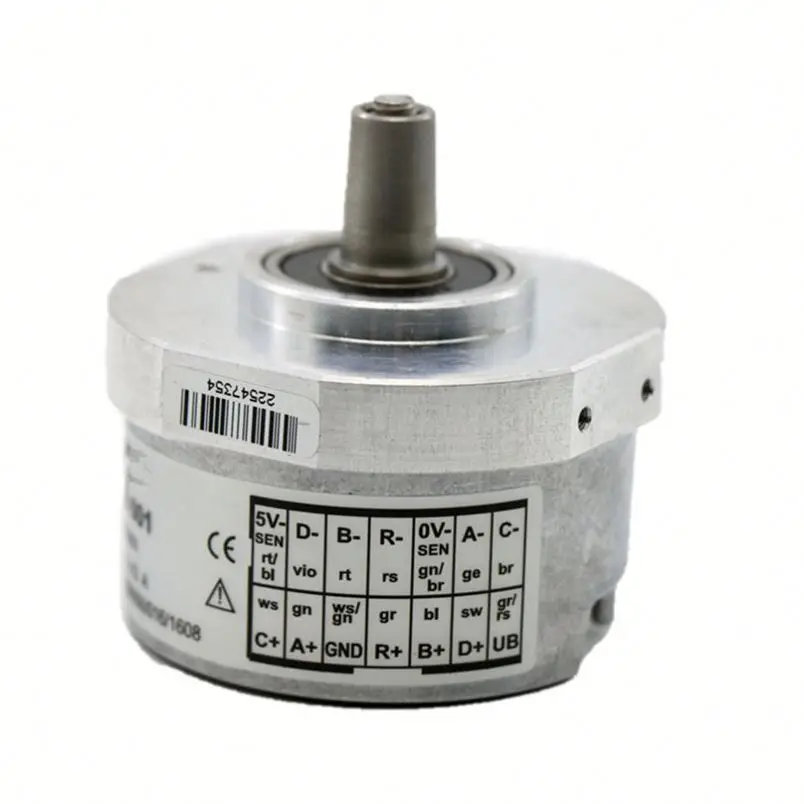

Роторный энкодер RON 285 18000 358699-12
