Ручная мини машина для плазменной резки новая модель плазменного резака с ЧПУ

Сохранить в закладки 1600526050917:


Цена:1 990,00 $ - 5 300,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Specification


How Plasma Cutting Works? Advantages & Disadvantages
Metal cutting can be categorised into two – mechanical and thermal cutting. Plasma cutting is a thermal cutting method where ionised gas is used for cutting the metal.

Plasma cutters use compressed air or other gases, such as nitrogen. Ionisation of these gases takes place to create plasma. As the plasma arc contacts the metal, its high temperature melts it. At the same time, the high speed gases blow away the molten metal.


Portable plasma cutter

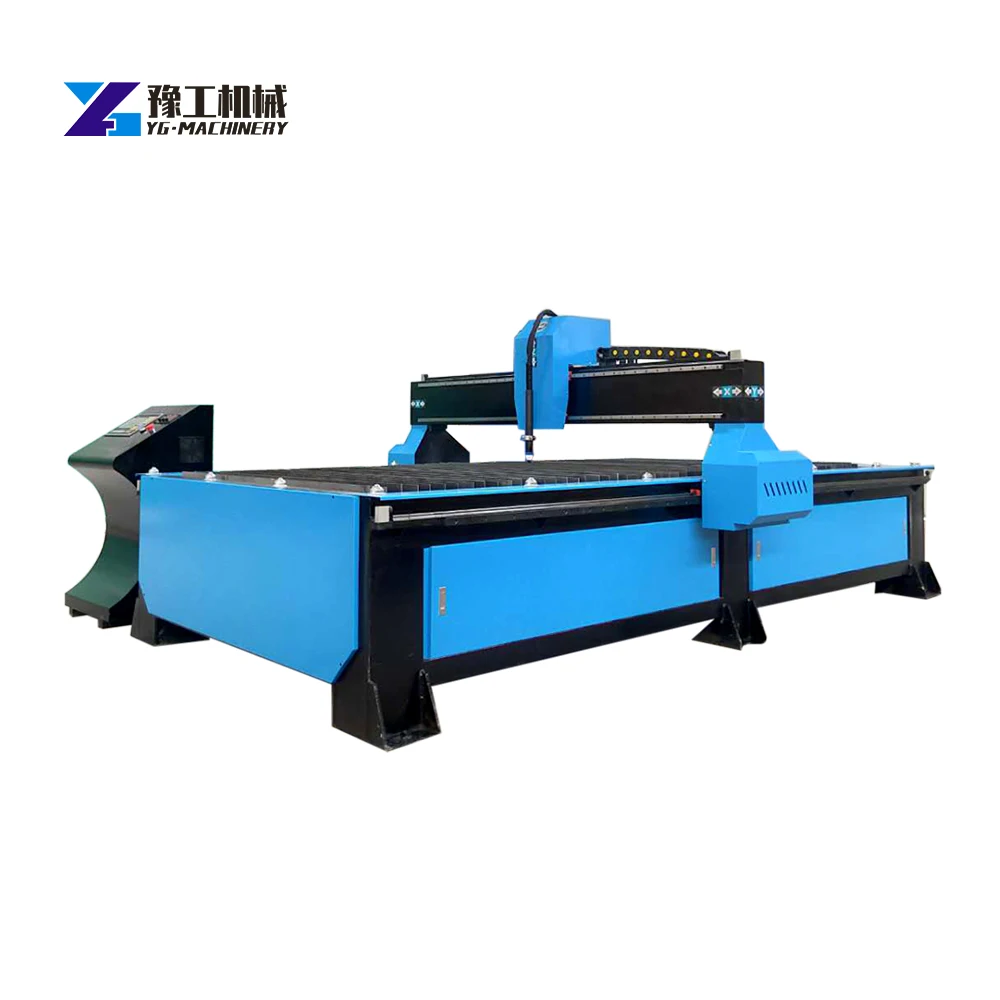

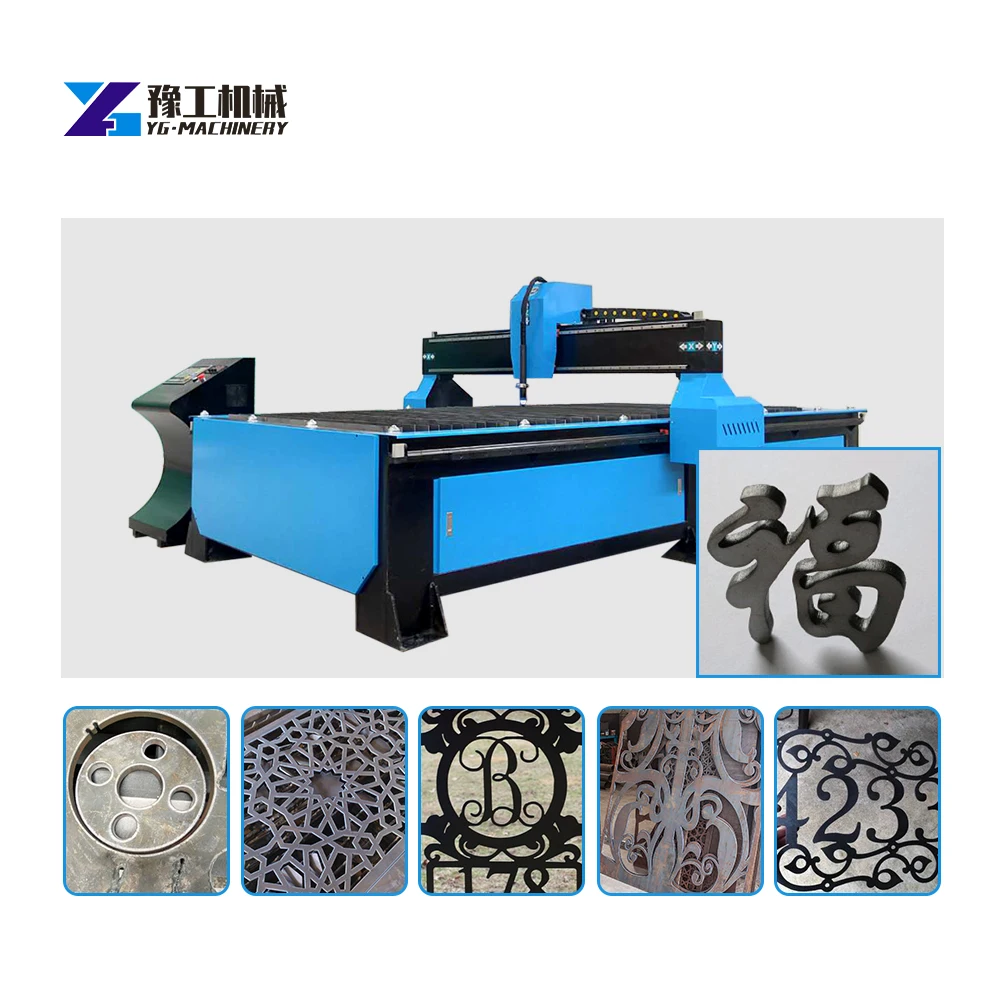

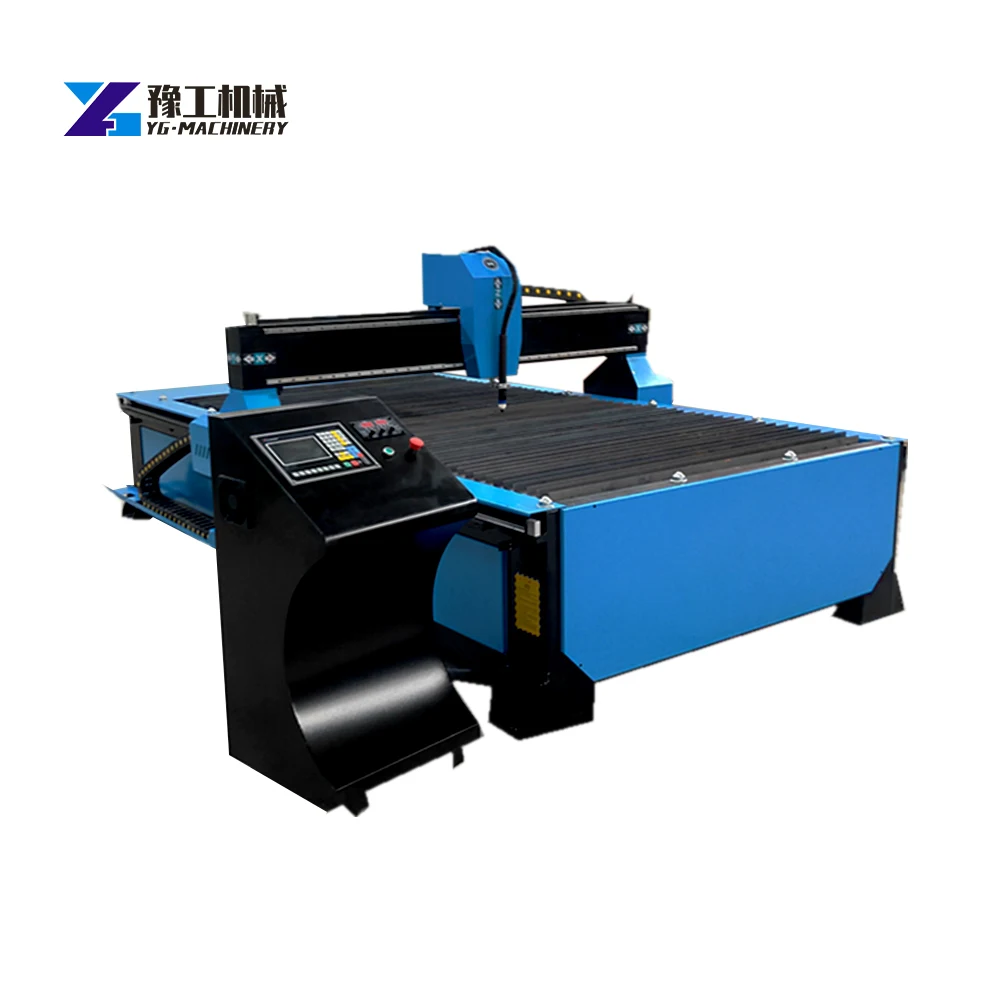

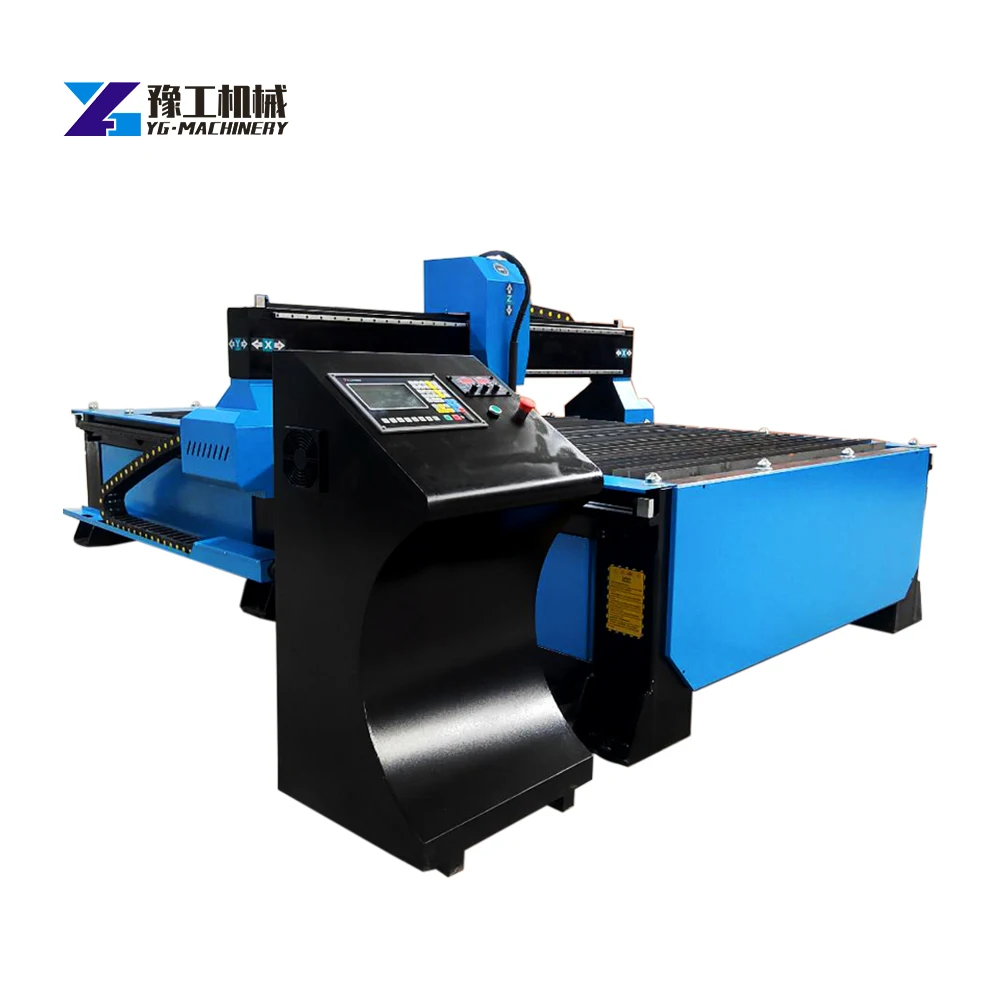

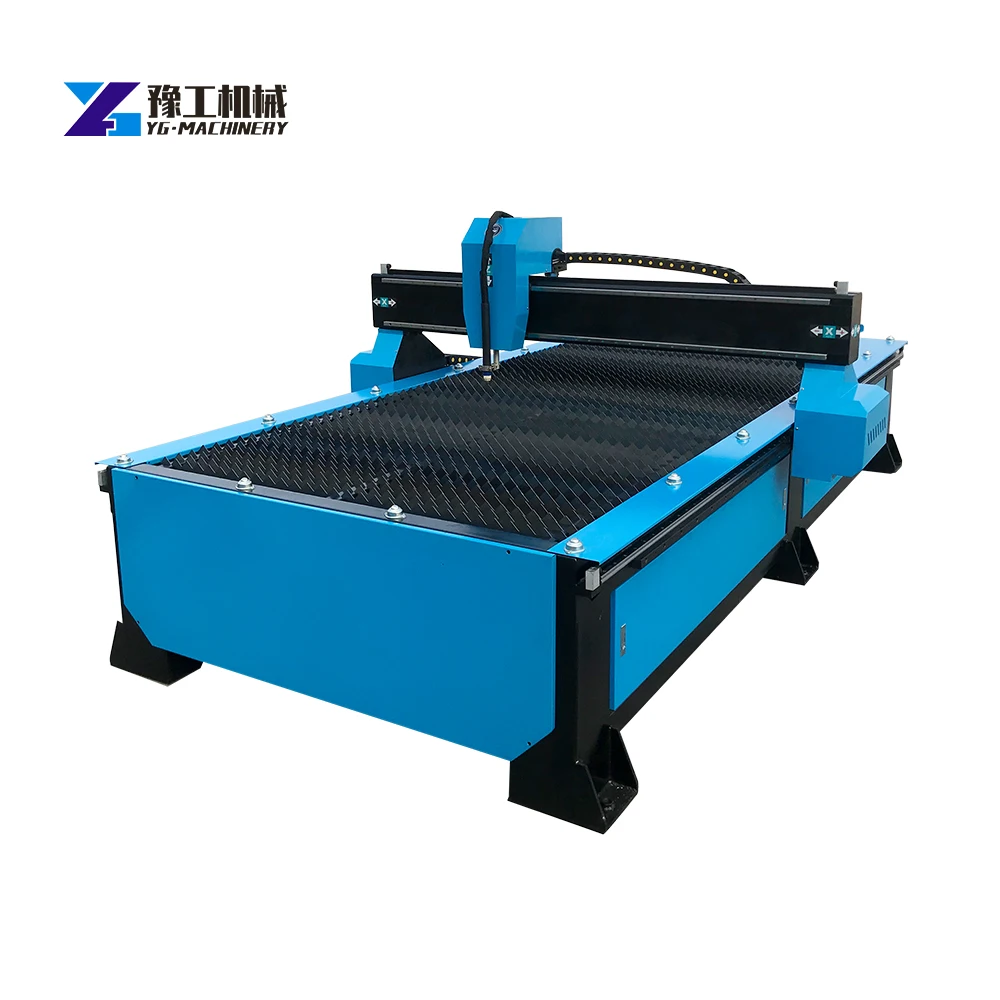

Gantry plasma cutter


item
value
Dimensions
1500*3000mm
Motor Type
Stepper Motor
Condition
New
Place of Origin
HEN
Brand Name
YG
Model Number
YG-1530
Voltage
380V
Rated Power
8.5KW
Dimension(L*W*H)
2200mm*3600mm*1450mm
Weight (KG)
1800KG
Year
2022
Warranty
2 years
Key Selling Points
Easy to Operate
Applicable Industries
Garment Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Showroom Location
None
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Bearing, Gear, Motor, PLC
Keywords
Cnc Plasma Cutter Portable
X,Y working area
1500*3000mm
Z working area
150mm
Processing precision
0.1mm
Maximum cutting speed
12000mm/min
Cutting thickness with flame
150mm for carbon steel
Cutting thickness with plasma
25mm for carbon steel
Plasma power supply
China LGK 120A
Plasma Air Pressure
Max.0.8Mpa
Working Temperature
-10°C-60°C. Relative Humidity, 0-95%.


Product Description




Advantages
* Able to cut all conductive materials. Flame cutting, though also suitable for cutting thick metals, is limited to ferrous metals only.
* Great quality for thickness up to 50 mm.
* Maximum thickness up to 150 mm.
* Comparatively cheap for medium thickness cuts.
* Best way to cut medium thickness stainless steel and aluminium.
* CNC machines are available to provide high precision and repeatability.
* Can cut in water, resulting in smaller HAZ. Also reduces noise levels.
* Smaller cutting kerf compared to flame cutting.
* Quicker cutting speed than oxyfuel.
Disadvantages
* Larger HAZ compared to laser cutting.
* Quality with thinner sheets and plates not as good as laser cutting.
* Tolerances not as precise as laser cutting.
* Does not reach thicknesses like waterjet or flame cutting.
* Leaves a HAZ which waterjet does not.
* Wider kerf than laser cutting.




Company Profile




Henan Yugong Machinery Co., Ltd. located in China's national central city--Zhengzhou, with abundant resources and convenient transportation. Our company is a integrated large-scale manufacturing enterprise.
Our company experienced 15 years of high-speed development, gathering large number of talents and winning sound reputation and credibility. Our product quality, rapid and healthy development ensured by convenient transportation network, advanced management concepts, and comprehensive management system.
Henan Yugong Machinery Co., Ltd.: Take the reforming as the motive force, science and technology oriented, culture as the soul, continuously strengthen and improve enterprise management toward scientization, informatization, modernization. We sincerely expect to cooperate with various circles, achieve mutual benefit and win-win situation.


FAQ


1. who are we?
We are based in Henan, China, start from 2016,sell to South Asia(18.00%),Eastern Europe(14.00%),Domestic Market(13.00%),Mid East(11.00%),South America(10.00%),Southeast Asia(6.00%),Western Europe(6.00%),North America(5.00%),Oceania(5.00%),Northern Europe(4.00%),Central America(3.00%),Africa(2.00%),Southern Europe(2.00%),Eastern Asia(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Liquid Filling Machine,Powder Filling Machine,Granule Packaging Machine,Paste Liquid Packaging Machine,Powder Packaging Machine

4. why should you buy from us not from other suppliers?
We insist on the strategy of technology research and development. Technical design, material purchasing, precised manufacturing and strict quality inspection are all processed according to the ISO9001 standard.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DEQ,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
