Wholesale Price Jaw Crusher Stone HD110
80 565,00-80 570,00 $

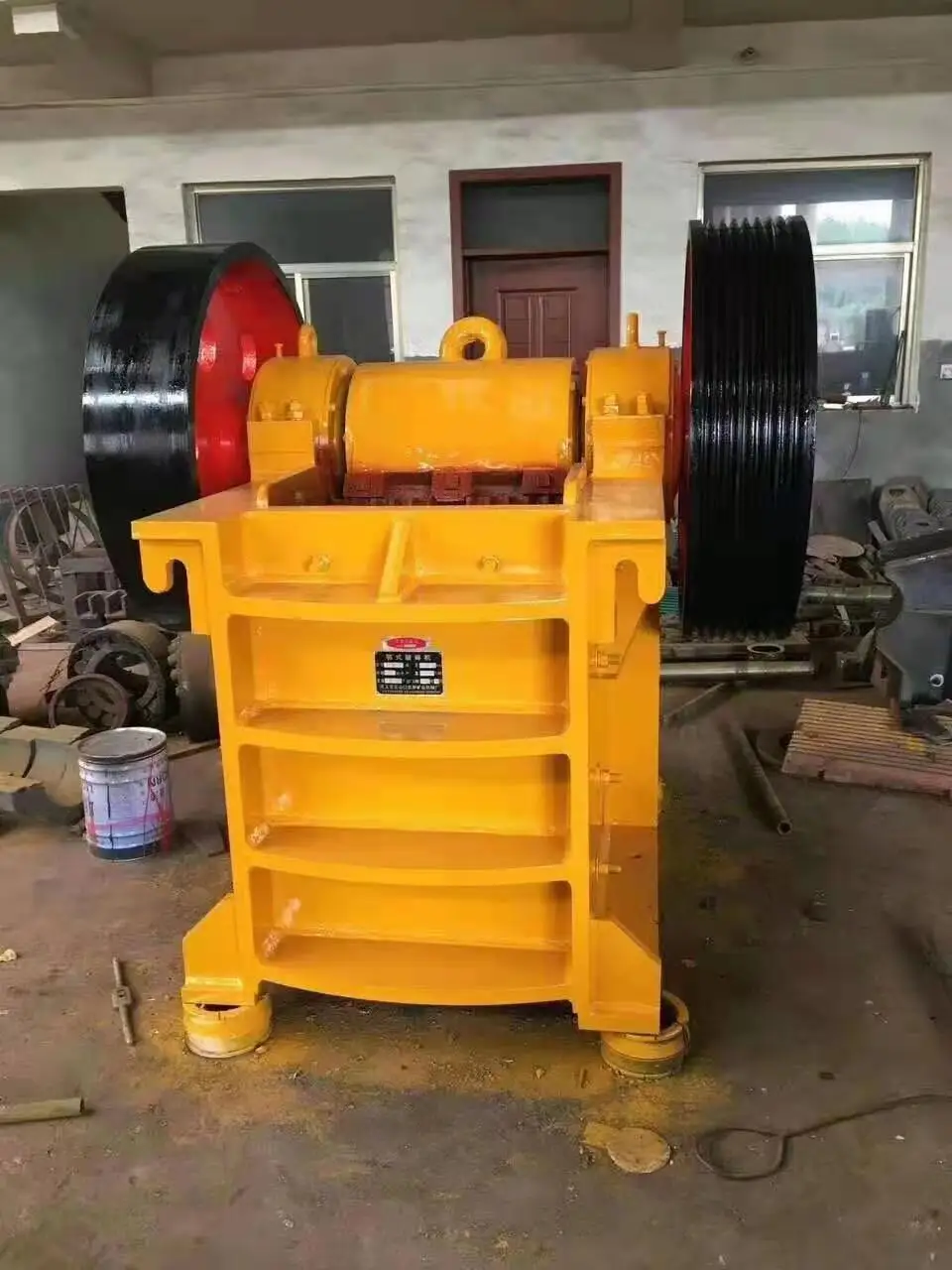

Portable Plate diesel Engine 400 600 Stone Used Small Mini Hydraulic 250 Mobile 100tph Ore Quarry Jaw Crusher for Sale
- Категория: >>>
- Поставщик: Gongyi Wanlong Machinery Manufacturing Co. Ltd.Gongyi Ltd.
Сохранить в закладки 1600526191002:
Описание и отзывы
Характеристики
Products Description
Jaw crusher commonly known as jaw broken, also known as tiger mouth. The crusher is composed of two jaw plates of moving jaw and static jaw, which simulates the movement of two jaws of animals to complete material crushing operation.

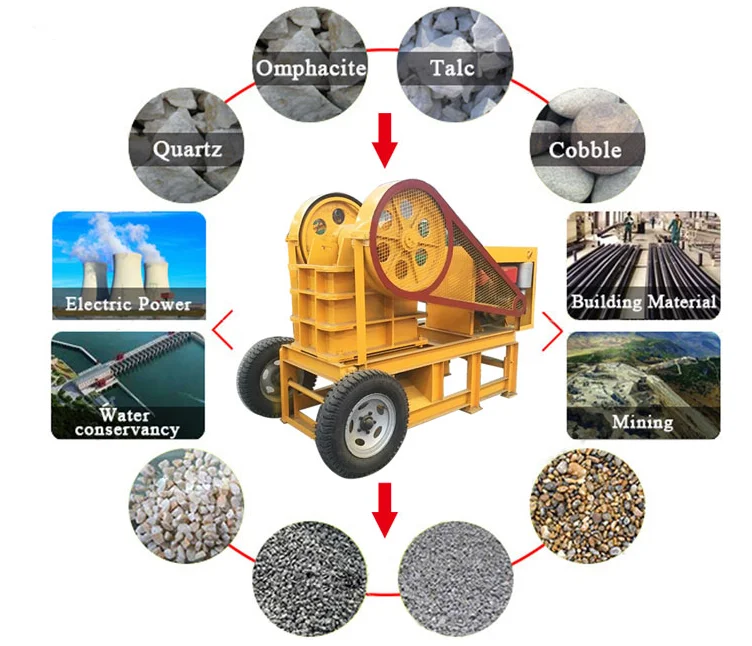

Application of jaw crusher
Jaw crusher is suitable for crushing hard materials (compressive strength < 320MPa), such as iron ore, steel slag, phosphate rock, silicon ore, copper ore, limestone, quartz, ceramics and other solid materials with the same hardness, such as coarse crushing of large blocks in various concentrators, coarse crushing of large materials in stone factories, coarse crushing of large limestone materials in cement plants, etc. It has the characteristics of large crushing ratio, low maintenance cost, low power consumption and reliable performance. It can be widely used in mining, stone mills, building materials, metallurgy, ceramics and other industries.
Working principle of jaw crusher
When the jaw crusher is working, the movable jaw plate makes periodic reciprocating motion to the fixed jaw plate, sometimes approaching and sometimes leaving. When approaching, the material is crushed by extrusion, splitting and impact between two jaw plates; when leaving, the crushed material is discharged from the discharge port by gravity. In the process of breaking boulders into small pieces, the first crusher is usually the "main" crusher. Solid crusher is jaw crusher. When feeding the jaw crusher, the material is poured into the crushing chamber with jaw teeth from the top entrance. Jaw teeth push the material against the chamber wall with great force and break it into smaller stones. The support jaw movement is an eccentric shaft through the fuselage frame. Eccentric motion is usually produced by the flywheel attached to both ends of the shaft. Spherical roller bearings are commonly used in flywheel and eccentric bearing. The bearing must bear huge impact load, abrasive water and high temperature.
model | yield(t/h) | power(kw) | weIght(KG) |
150*250 | 5 | 5.5 | 800 |
200*300 | 10 | 11 | 1200 |
220*350 | 16 | 13 | 1400 |
250*400 | 25 | 15 | 1700 |
300*500 | 40 | 18.5 | 3200 |
400*600 | 60 | 30 | 5600 |
500*750 | 100 | 55 | 10000 |
600*900 | 150 | 75 | 16000 |
750*1060 | 220 | 110 | 29000 |

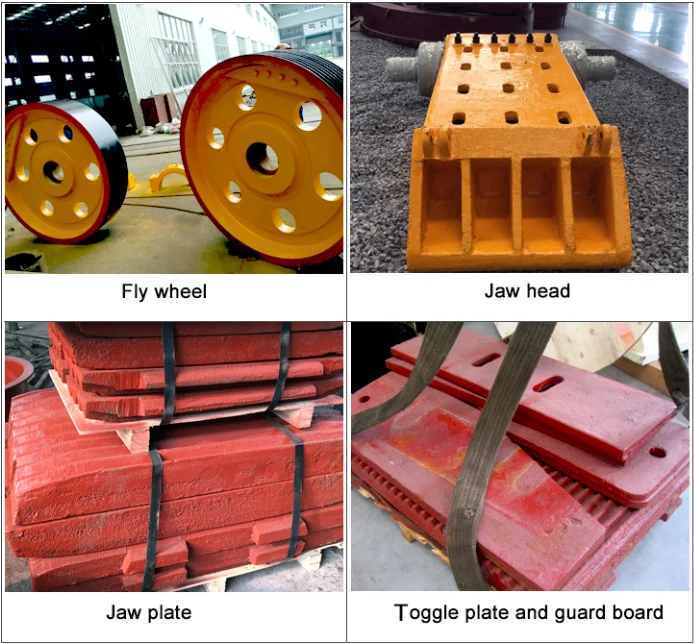

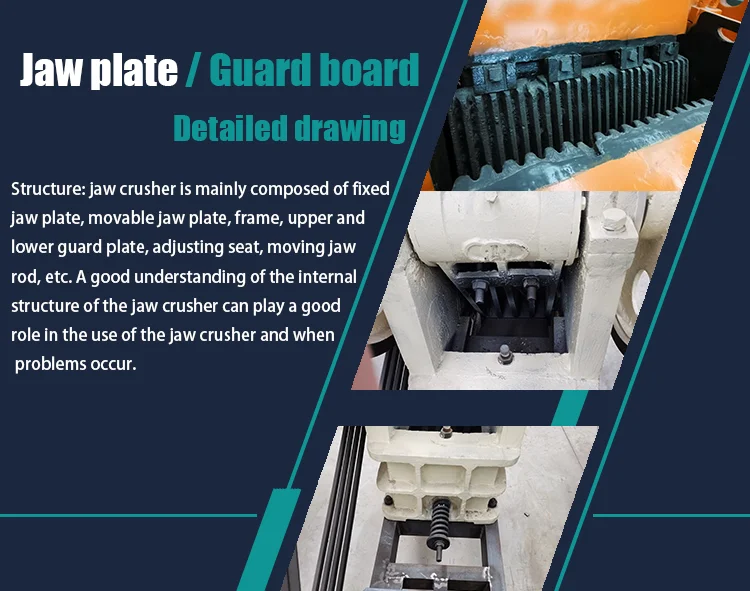

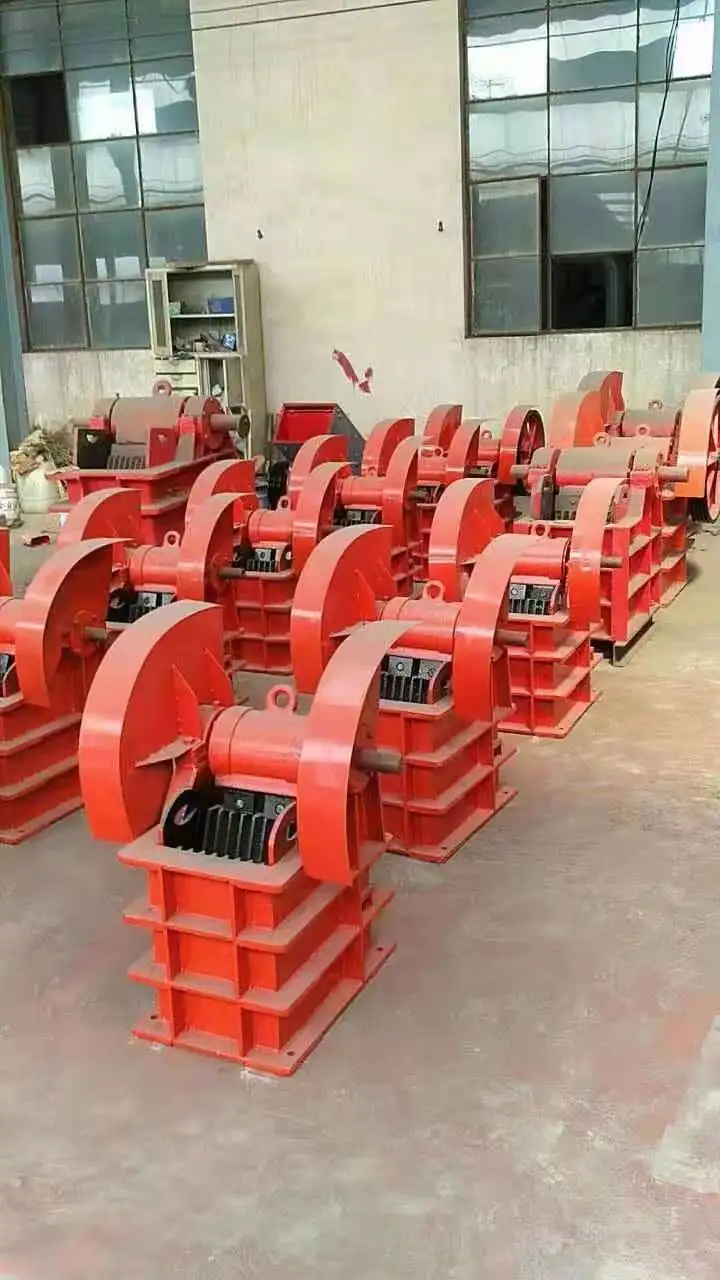

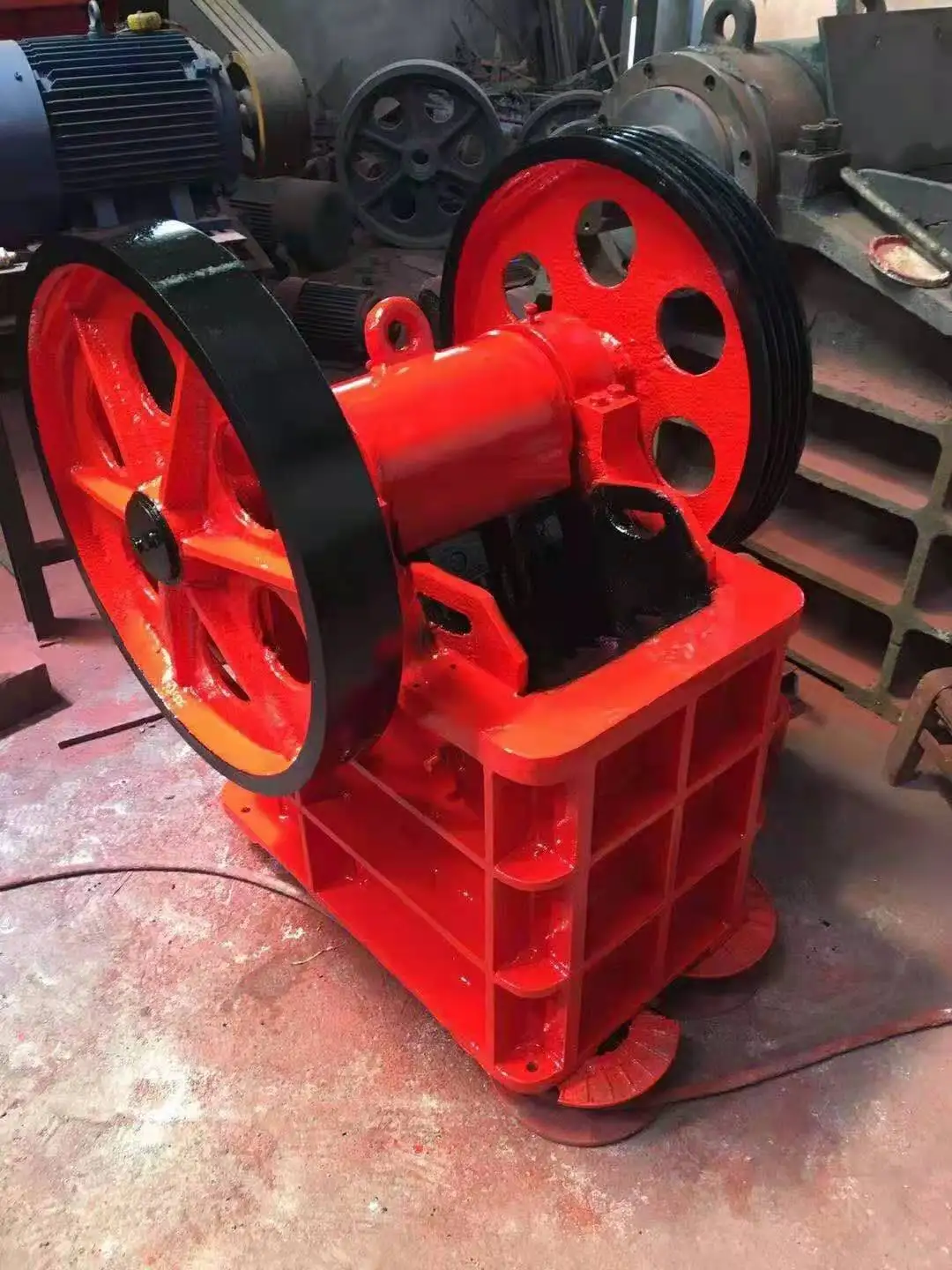

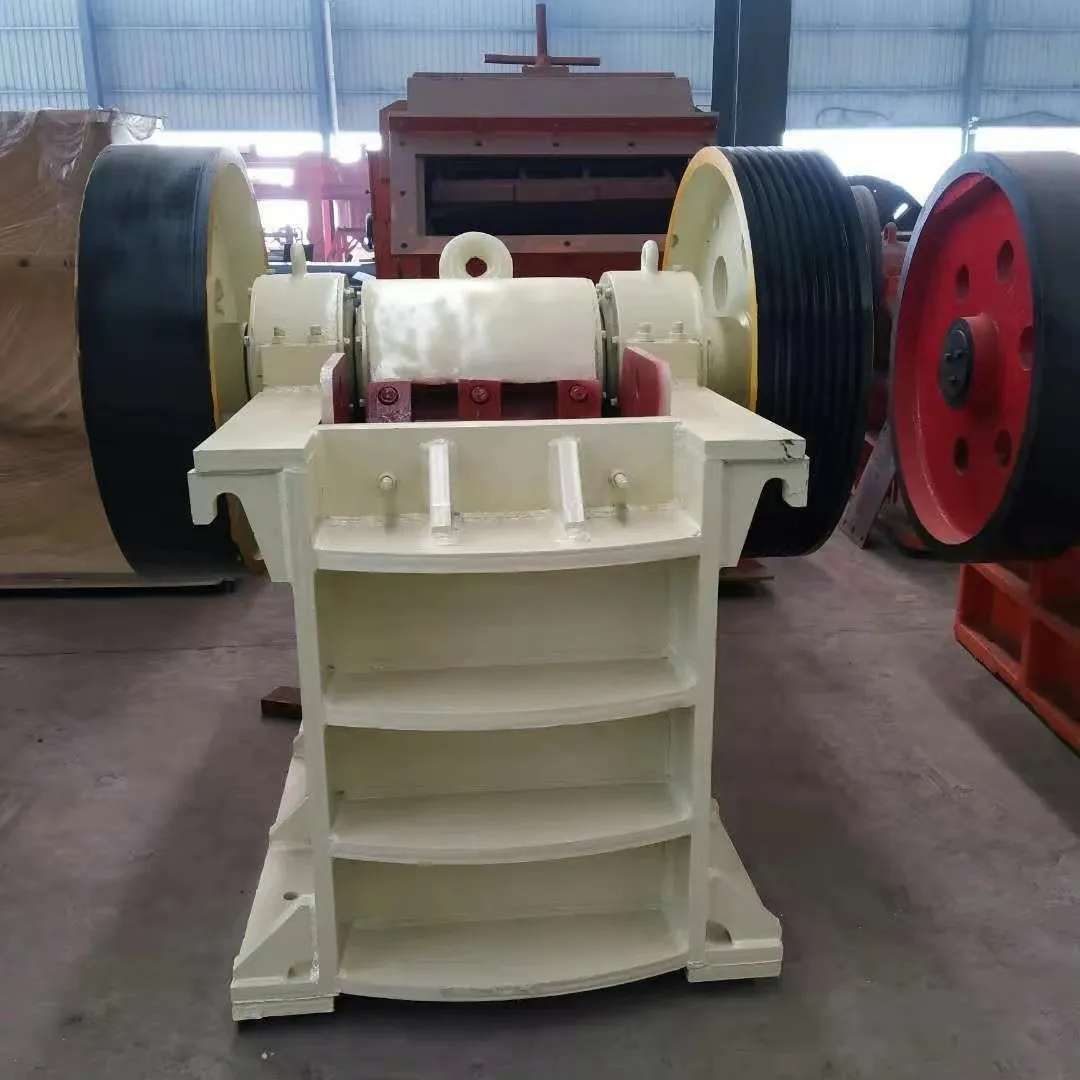

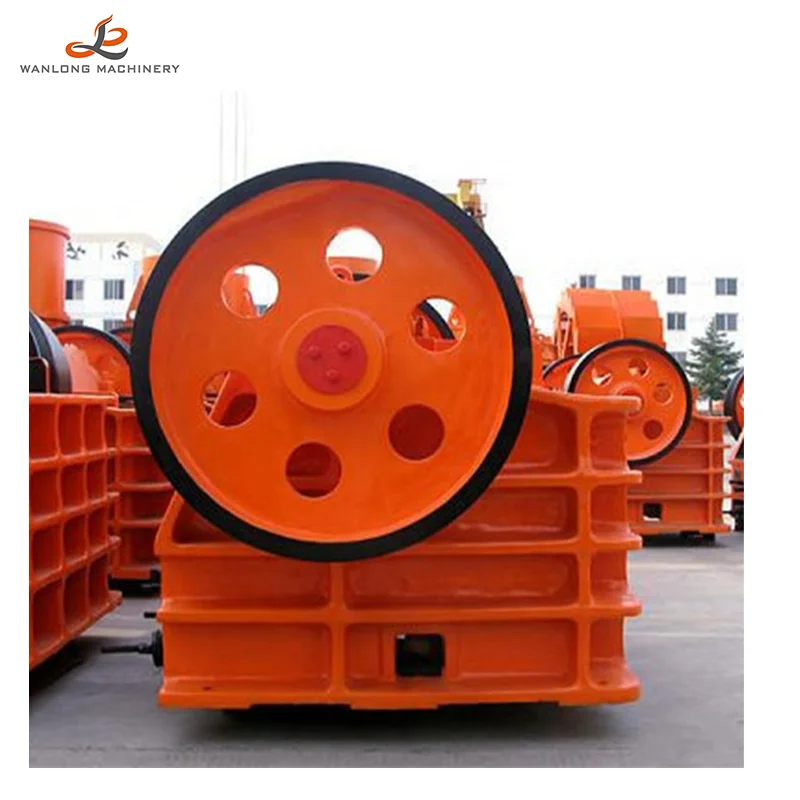

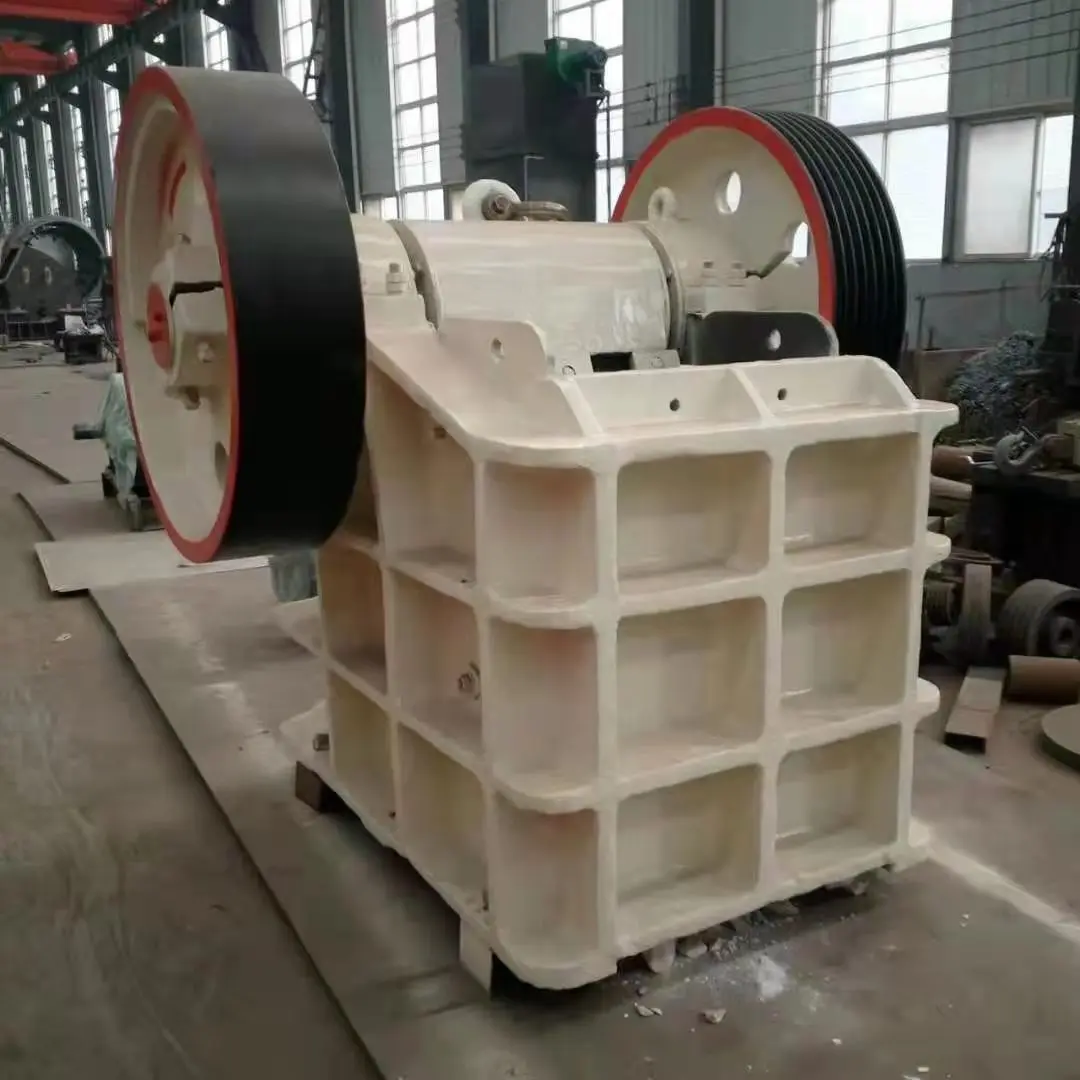

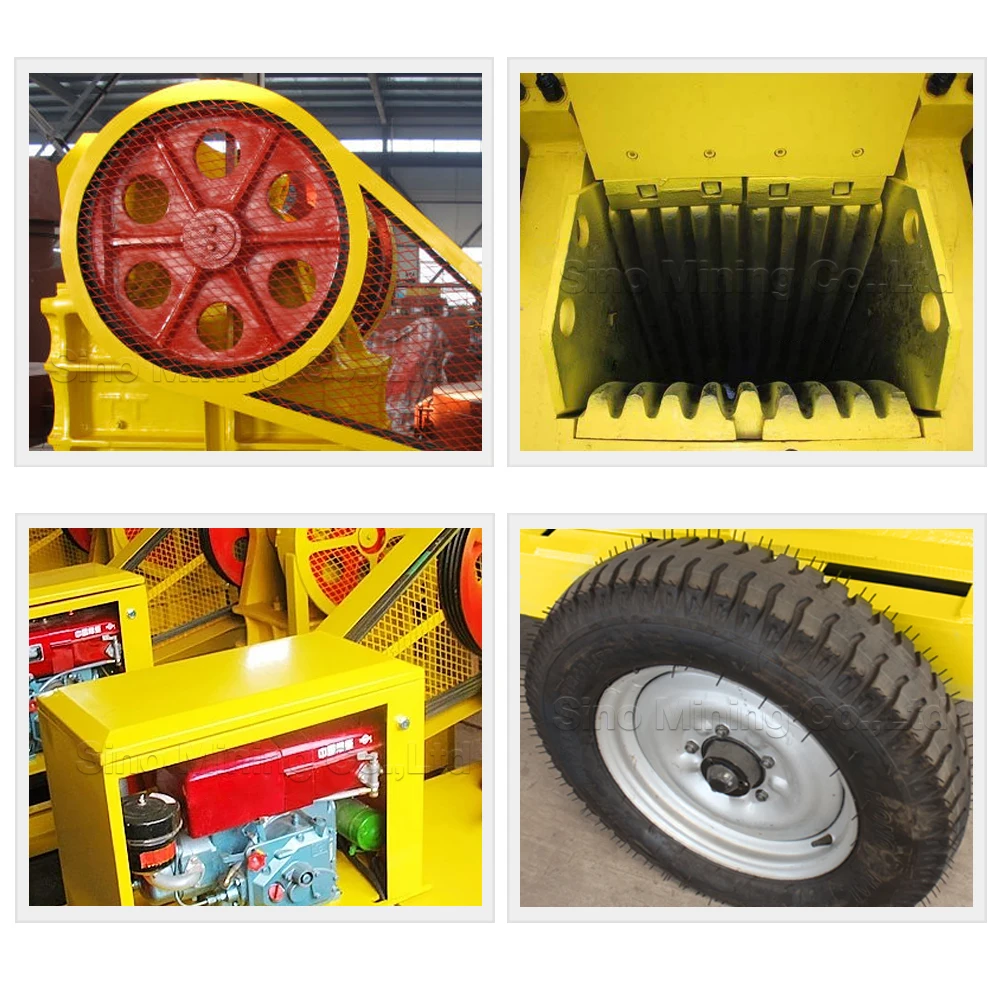

Details Images

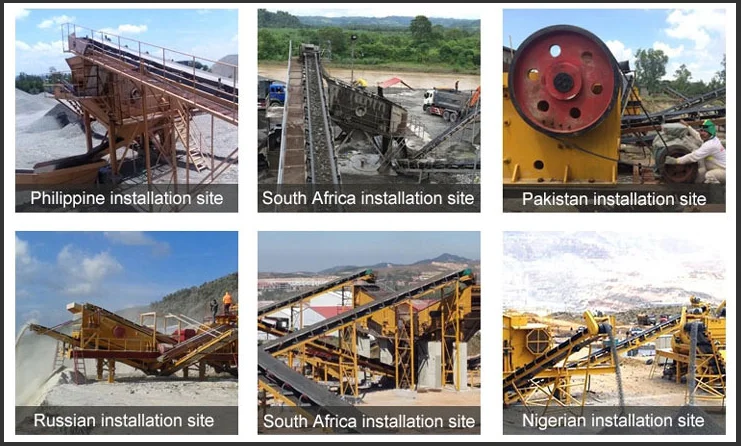

Customer Site
Packing & Delivery
Our company
Why Choose Us
FAQ
Q: What is the quality of your products?
A: We are based on integrity and put quality first. Our machines are manufactured in strict accordance with national and international standards, and every equipment must be tested before leaving the factory. You can also use Alibaba's trade guarantee to protect product quality, on time delivery and payment protection.
Q: How about the price?
A: We pursue small profits and quick turnover. We can offer you a lower price than other trading companies. In addition, Alibaba customers can enjoy discounts. If this product is really suitable and can benefit you, the price can be negotiated.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the construction site for equipment installation, debugging and operation training. All our engineers have passports.
Q: Can you help to choose the right product?
A: Yes. We have many experts who have worked in this field for many years. They can help you choose the most suitable product according to your actual situation, and design the appropriate process flow according to your special situation. If necessary, we can even send professionals to your place for site planning and workflow design.
Q: When do you deliver the goods?
A: According to the specific products, we usually deliver within 10 days. We will inform you of the time of delivery according to your specific inquiry.
Q: Do you have after-sales service?
A: Yes. Our machine warranty period is one year, we have a professional after-sales service team, can timely and thoroughly solve your problems.
A: We are based on integrity and put quality first. Our machines are manufactured in strict accordance with national and international standards, and every equipment must be tested before leaving the factory. You can also use Alibaba's trade guarantee to protect product quality, on time delivery and payment protection.
Q: How about the price?
A: We pursue small profits and quick turnover. We can offer you a lower price than other trading companies. In addition, Alibaba customers can enjoy discounts. If this product is really suitable and can benefit you, the price can be negotiated.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the construction site for equipment installation, debugging and operation training. All our engineers have passports.
Q: Can you help to choose the right product?
A: Yes. We have many experts who have worked in this field for many years. They can help you choose the most suitable product according to your actual situation, and design the appropriate process flow according to your special situation. If necessary, we can even send professionals to your place for site planning and workflow design.
Q: When do you deliver the goods?
A: According to the specific products, we usually deliver within 10 days. We will inform you of the time of delivery according to your specific inquiry.
Q: Do you have after-sales service?
A: Yes. Our machine warranty period is one year, we have a professional after-sales service team, can timely and thoroughly solve your problems.
