500V 4x0 75 мм2 4x2 5 CU/PVC IEC стандартный кабель управления
- Категория: >>>
- Поставщик: Tangshan Huadian Cable Co. Ltd.
Сохранить в закладки 1600526388002:
Описание и отзывы
Характеристики

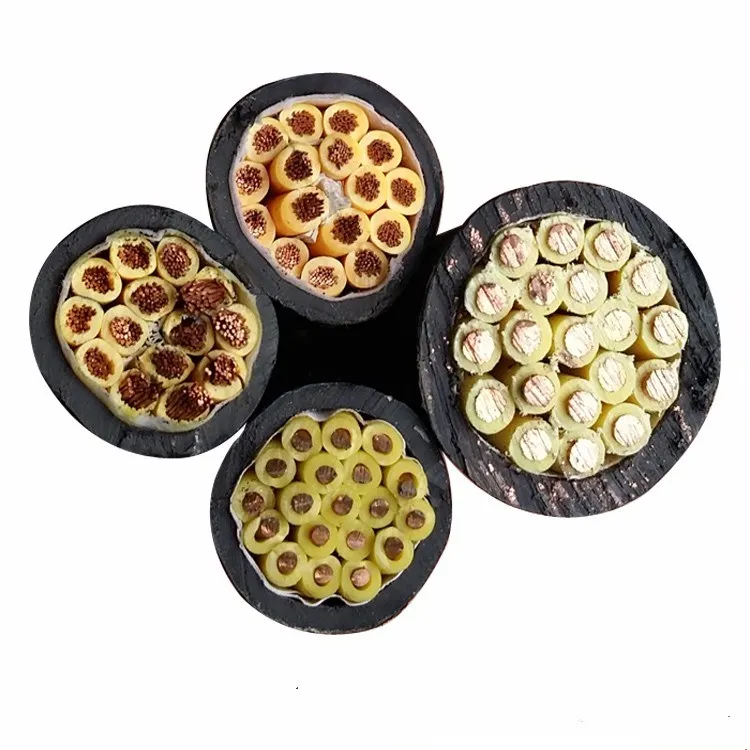

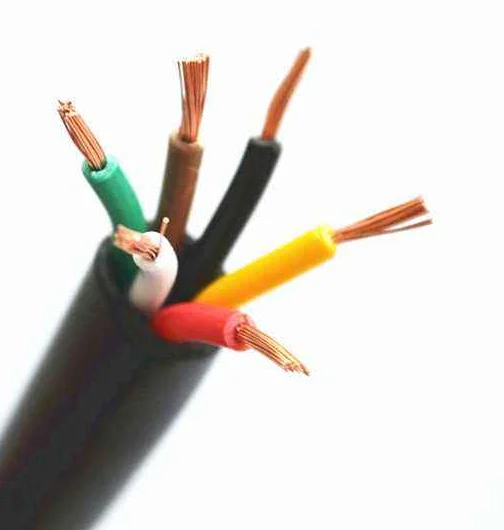

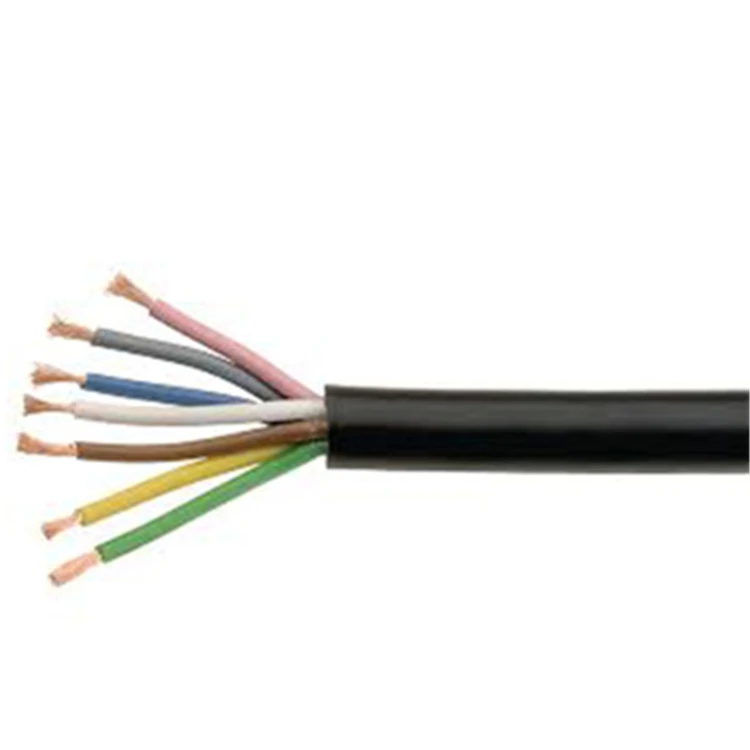

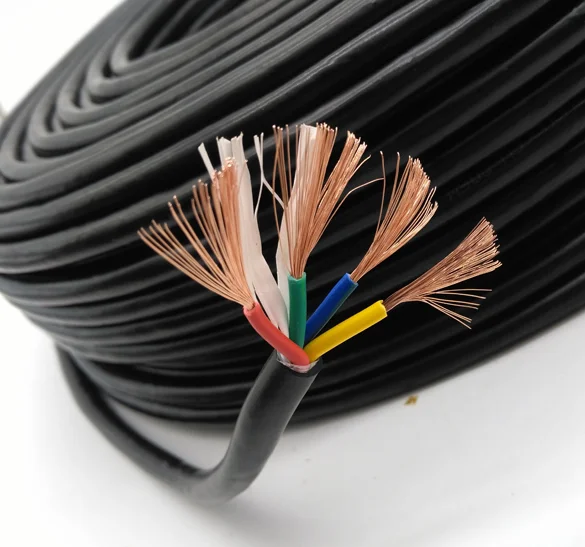

PVC Sheath for Equipment Connection and Control 0.75mm2 to 6mm2 KVV Control Cable
Products Description
System
This product is suitable for power frequency AC rated voltage 0.45/0.75kV and below automatic control, monitoring circuit, protection circuit and other systems.
This product is suitable for power frequency AC rated voltage 0.45/0.75kV and below automatic control, monitoring circuit, protection circuit and other systems.
Occasion
Fixed installation in metallurgy, electric power, construction and other industries indoors and other occasions.
Fixed installation in metallurgy, electric power, construction and other industries indoors and other occasions.
Features
This product has certain combustion resistance, the raw materials are widely sourced and the price is low, and it is easy to process and manufacture.
This product has certain combustion resistance, the raw materials are widely sourced and the price is low, and it is easy to process and manufacture.
Rated voltage
The rated voltage of power frequency AC is 0.45/0.75kV, and the maximum voltage of the AC system should not exceed 1.0kV.
Operating temperature
The long-term allowable maximum working temperature of the cable conductor is 70°C; in the event of a short circuit, the maximum temperature of the cable conductor shall not exceed 160°C and the duration shall not exceed 5s.
Ambient temperature
The minimum working environment temperature is -15℃.
The rated voltage of power frequency AC is 0.45/0.75kV, and the maximum voltage of the AC system should not exceed 1.0kV.
Operating temperature
The long-term allowable maximum working temperature of the cable conductor is 70°C; in the event of a short circuit, the maximum temperature of the cable conductor shall not exceed 160°C and the duration shall not exceed 5s.
Ambient temperature
The minimum working environment temperature is -15℃.
Size | Conductor structure | Conductor diameter | Reference outer diameter | Weight |
4×1.5 | 1/1.38 | 1.38 | 9.7 | 137.3 |
8×0.75 | 1/0.97 | 0.97 | 10.2 | 142.4 |
7×4 | 1/2.25 | 2.25 | 15.2 | 432.4 |
19×1.0 | 1/1.13 | 1.13 | 15.3 | 366.1 |
24×1.0 | 1/1.13 | 1.13 | 17.6 | 453.0 |
