Китай добыча железной руды производственная линия по обогащению завод для продажи
1 996 695,00 ₽ - 4 437 100,00 ₽
Миниатюрный центробежный концентратор для добычи золота мелкий золотой минеральный Kacha Австралии
- Категория: >>>
- Поставщик: Jiangxi Henghong International Mining Machinery Co. Ltd.
Сохранить в закладки 1600526596535:
Описание и отзывы
Характеристики
Gold Mining Equipment Gold Recovery Separator Knelson Gold Concentrator Bowl Mini Washing Gold Kacha Centrifugal Concentrator
1. Gold Kacha concentrator features
The gold Katch concentrator was developed especially for small mining applications and is ideal for gold prospecting. It has a high recovery of both coarse & fine precious metals, particularly fine gold recovery.
Let's check how to use this small mini gold concentrator.

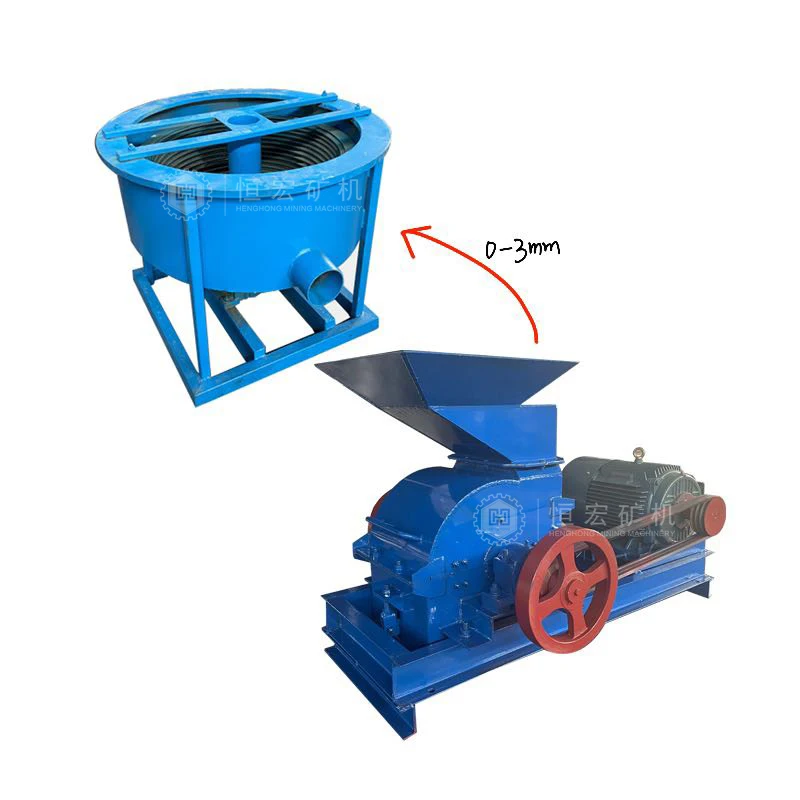

Firstly, feeding the 3mm slurry into the feeding port in the middle of this mini gold concentrator, and the materials will fall into the spinning cone and the heavier precious metals and minerals are forced outward and become trapped within the riffles.
The concentrating action is enhanced by a unique reflux principle, resulting in several concentrating stages on the ore before it exits.
The concentrate is purged approximately once every hour and collected for a further upgrade using a process such as conventional gold panning or sluice box. The concentrator is driven by an electric 1.1KW motor, which can be connected to a small generator to allow for operation in remote areas.
Let's check how to use this small mini gold concentrator.
Firstly, feeding the 3mm slurry into the feeding port in the middle of this mini gold concentrator, and the materials will fall into the spinning cone and the heavier precious metals and minerals are forced outward and become trapped within the riffles.
The concentrating action is enhanced by a unique reflux principle, resulting in several concentrating stages on the ore before it exits.
The concentrate is purged approximately once every hour and collected for a further upgrade using a process such as conventional gold panning or sluice box. The concentrator is driven by an electric 1.1KW motor, which can be connected to a small generator to allow for operation in remote areas.

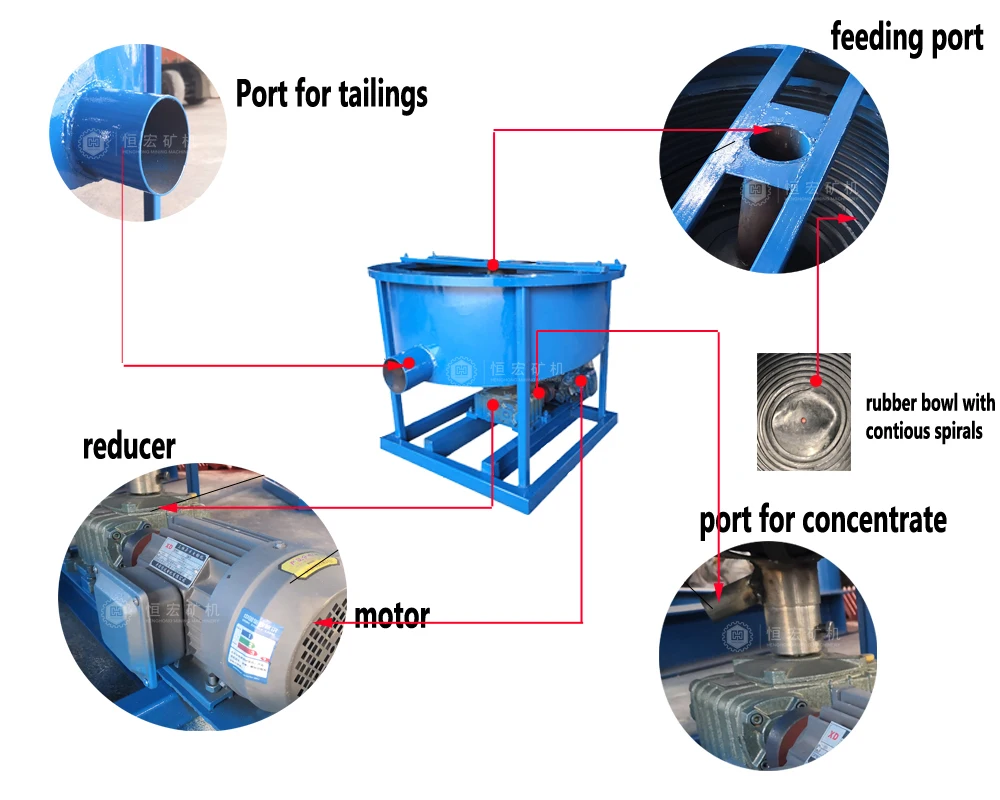

2. Gold Katch concentrator structure
name | NEFCO Centrifuge Concentrate |
Diameter | 80 cm |
Capacity | 1-3 TPH |
Power | 1.1KW |
Motor | 380V, 50HZ or Customized |
Water requirement | 2-4 m3 per hour |
concentrate weight | 8-10 KG per time |
wash frequency | 1 hour |

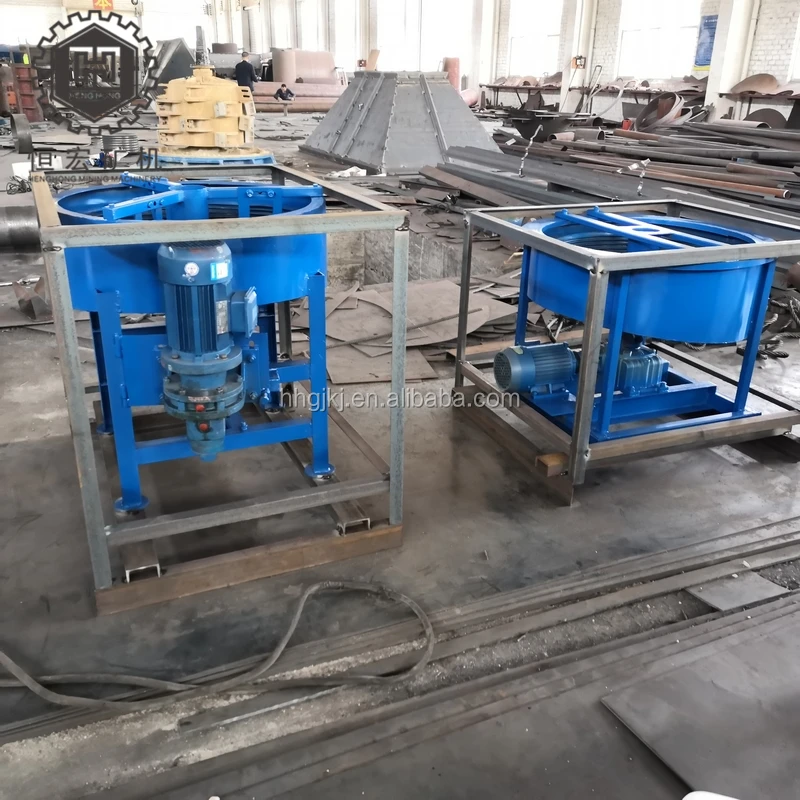

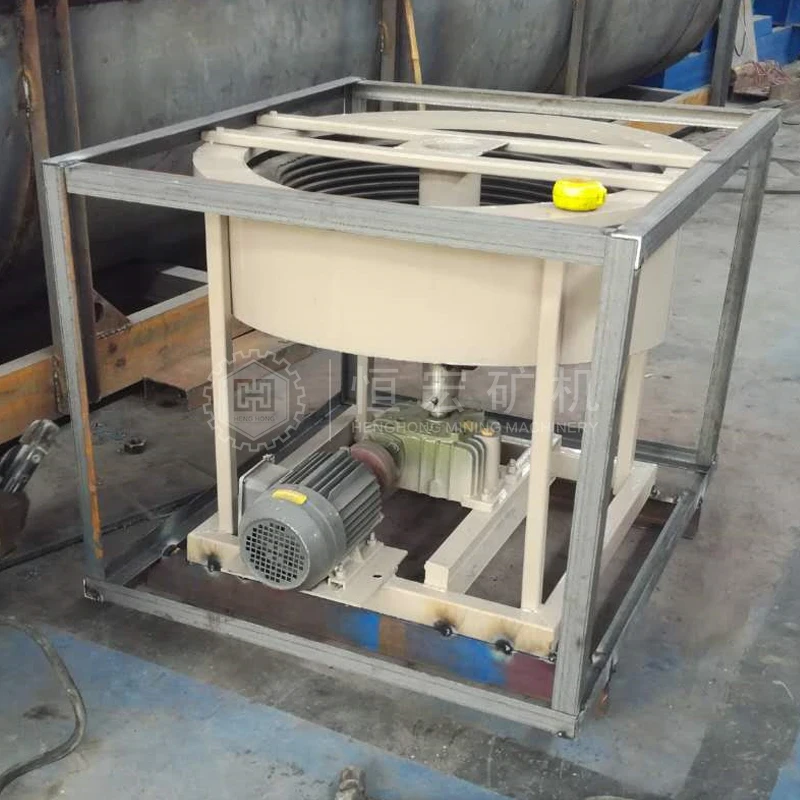

3. Two styles of our mini gold concentrator
The function is the same, only the style is different. Contact us to let us know which one is your favorite.
4. Compared with the gold shaker tables
The gold recovery rate of this mini gold centrifugal concentrator and gold shaker table is almost the same, but you may want to know how to choose one from these two gravity separators.
(1) Easy to install
The Gold Kacha concentrator does not need to be installed. When you get the goods, you can use them directly after connecting the power.
For the shaking tables, you need to build a foundation first, and then need to install the channel frame, motor, and deck.
(2) Saving the space
After packing, the small mini gold centrifugal concentrator only takes around 1 m2 space, but for the shaking tables, it will take around 12 m2.
(3) Lightweight
The gold Kacha has more lightweight, which saves the shipping cost. and also it can be moved easily from one mining site to another mining site.
Contact us to let me know which one is your favorite.
(1) Easy to install
The Gold Kacha concentrator does not need to be installed. When you get the goods, you can use them directly after connecting the power.
For the shaking tables, you need to build a foundation first, and then need to install the channel frame, motor, and deck.
(2) Saving the space
After packing, the small mini gold centrifugal concentrator only takes around 1 m2 space, but for the shaking tables, it will take around 12 m2.
(3) Lightweight
The gold Kacha has more lightweight, which saves the shipping cost. and also it can be moved easily from one mining site to another mining site.
Contact us to let me know which one is your favorite.
5. Frequently bought together
6. About Us
Похожие товары
Гравитационная концентрирующая встряхивающая Таблица 6S для марганца золота цирконовой руды
113 146,05 ₽ - 127 566,63 ₽
FG-500 * 4500 железа цинка меди золота Спиральный сепаратор для переработки руды
743 214,25 ₽ - 776 492,50 ₽
Высокое качество оптовая продажа 4-дюймовый промышленный полиуретановый Гидроциклон Fx100 для десандера грязевого песка десилтерный сепаратор
6 544,73 ₽ - 10 870,90 ₽
Shangpin Smax350GT циклонный фильтр для воды сепаратор песок центробежный песочный
8 874 089,08 ₽
Энергосберегающая шлифовальная машина для золотой руды цена простота в эксплуатации влажная сковорода мельница шлифовальные машины

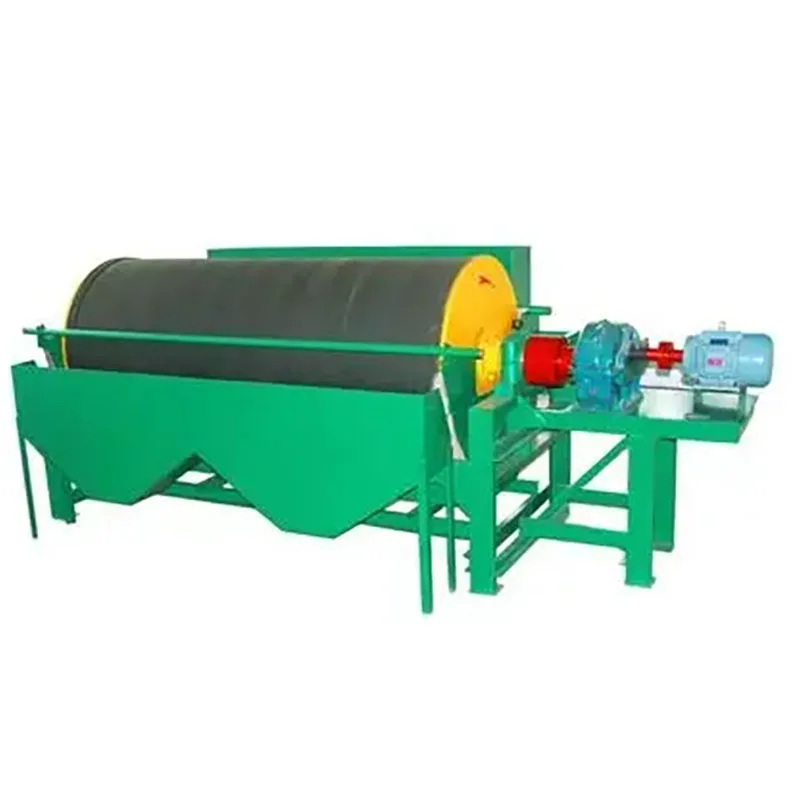

Низкая цена черный Золотой магнитный сепаратор циркон машина для разделения песка оборудование железа минеральный
354 212,59 ₽

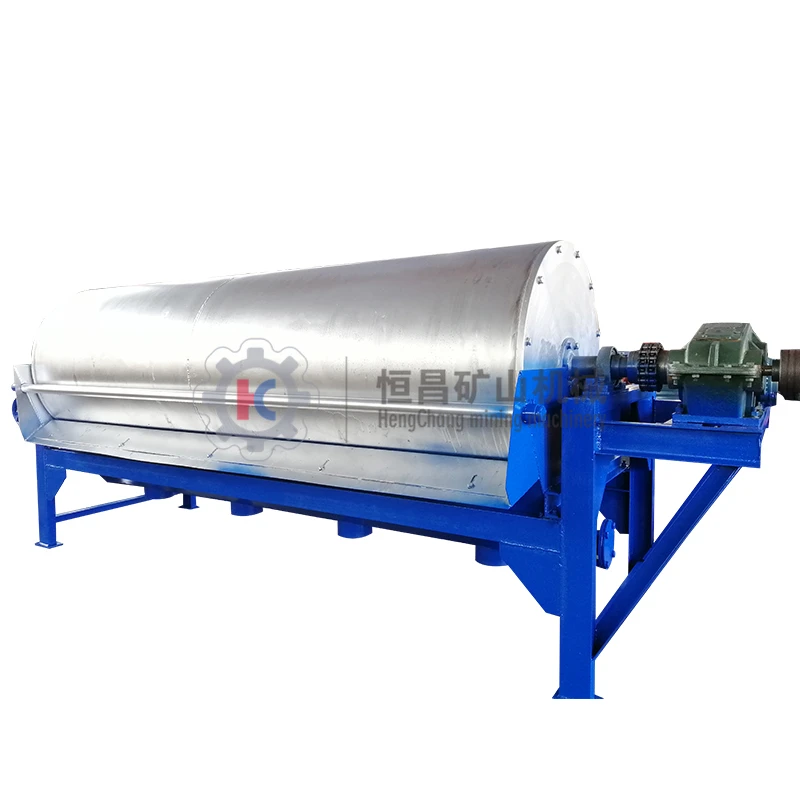

Минеральное оборудование портативный магнитный сепаратор для концентрирования железной руды
