Гомогенизатор серии SS304/316L смеситель с высоким сдвигом диспергирующий
500,00 $
Высококачественные вязкие жидкости мешалка MachMix серии смесители для боковых входных
- Категория: >>>
- Поставщик: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO. LTD
Сохранить в закладки 1600526863232:
Описание и отзывы
Характеристики

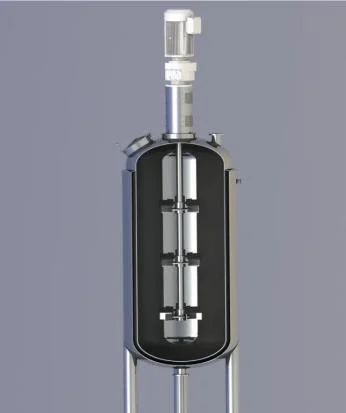

Mechanical Stirrer
Product Description:
Mechanical Agitators Are Widely Used In: Chemical, Pharmaceutical, Water Treatment, Scientific Research Units And Food And Other High-Viscosity Media Industries According To The Physical Properties, Capacity And Stirring Purpose Of Different Media, The Corresponding Stirrer Can Be Selected, Which Can Make The Reaction Mixture Mix More Uniformly, Which Can Play a Great Role In Promoting The Reaction Speed And Improving The Production Efficiency.
Double Mechanical Seal With Collection Groove
Ordinary Type Single Mechanical Sealing Belt Collecting Tank
Standard Type: Single Mechanical Dense Type With Bearing And Collecting Groove
Model
MachMix-FS
Frame Type With Scraper Inside And Outside Forward And Reverse Stirring
Suitable For Mixing High Viscosity Media
Power Range: 0.37-37KW
Specification Range: 0.03-10m3
MachMix-SH
Double Axis Double Speed Outer Frame Type With Scraper Inner High Speed Dispersion
Suitable For Mixing And Dispersing High Viscosity Media
Power Range: 0.37-110KW
Specification Range: 0.03-10m3
MachMix-SZ
Mechanical Stirring On SZJ Type
With Different Blade Combinations, It Can Meet The Requirements Of Different Media And Stirring Processes
With Different Blade Combinations, It Can Meet The Requirements Of Different Media And Stirring Processes
Power Range: 0.37-200KW
Specification Range: 0.03-100m3
Specification Range: 0.03-100m3

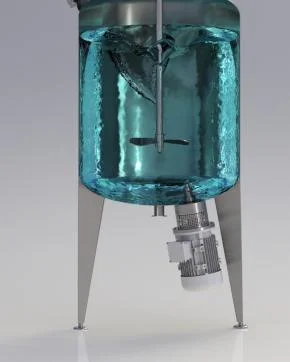

MachMix-D
Bottom-Mounted Mechanical Mixer
The Bottom Installation Can Meet a Small Amount Of Stirring, And There Is Enough Space On The Top
Of The Tank
Of The Tank
Power Range: 0.37-55KW
Specification Range: 0.03-30m3

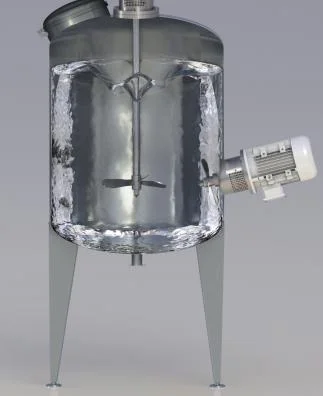

MachMix-C
Side-Mounted Mechanical Mixer
Side Mounted For Low Viscosity Liquid-Liquid Mixing, Anti-Settling
Power Range: 0.37-37KW
Specification Range: 0.03-30m3
Specification Range: 0.03-30m3
Features:
The Blade Of The Spiral Belt Agitator Is a Spiral Belt, And The Number Of The Spiral Belt Is Two Or Three, Which Are Installed On The Screw In The Center Of The Agitator.The Pitch Of The Spiral Belt Agitator Determines The Outer Diameter Of The Spiral Belt. It Is Usually Operated In Laminar Flow State And Is Suitable For Mixing Of High Viscosity Liquid And Quasi Plastic Fluid.
The Double-Axis Double-Speed Agitator Integrates High Speed Dispersing And Low Speed Strong Stirring, And Has Good Stirring Effect For Medium And High Viscosity And Thixotropic Materials. According To Customers Material Characteristics And Production Process Requirements Customized Reasonable Configuration. All Kinds Of Impeller For Customers To Choose.
Wall-Scraping Anchor Mixing Slurry In The Process Of Rotation,Drive The Material To Do Axial Rotation And Radial Rotation, So That The Mixing And Mixing Evenly, At The Same Time In The Stirrer Around With Tetrafluoron Scraping Board,The Tank Wall And Tank Bottom Without Residue Scraping Wall.The Middle High Speed Dispersing Plate Has High Shear Force Under High Speed State And Disperses The Material Evenly In a Short Time. Lt Completely Solves The Problems Of Mixing Effect And Wall Sticking That The Traditional Agitator Cannot Meet The Technical Requirements Due To Its High Viscosity And High Density.
Some Common Stirrers

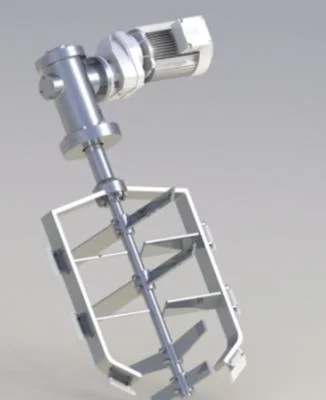

Frame Stirring Paddle
Suitable For High Viscosity Laminar Flow Conditions Viscosity Range CP: 5000-30000
Twin-Belt Stirring Paddle
Suitable For High Viscosity Laminar Flow Conditions
Viscosity Range CP: 5000-100000
Six Straight Blade Propeller
Suitable For Low And Medium
Viscosity Turbulent Flow Conditions Viscosity Range CP: 1-10000
Three-Bladed Propeller
Suitable For Low And Medium
Viscosity Turbulent Flow Conditions Viscosity Range CP: 1-5000
Flat Folding Blade
Suitable For Medium To High
Viscosity Turbulent/Laminar Flow Conditions
Viscosity Range CP: 5000-80000
Twin-Belt Stirring Paddle
(Large Industrial Grade)
Suitable For High Viscosity Laminar Flow Conditions
Viscosity Range CP: 5000-100000
Three-Blade Propeller
(Large Industrial Grade)
Suitable For Medium To High Viscosity Turbulent/Laminar Flow Conditions
Viscosity Range CP: 5000-80000
Two-Shaft Two-Speed Stirring
(Large Industrial Grade)
Suitable For Medium To High Viscosity Turbulent/Laminar Flow Conditions
Viscosity Range CP: 5000-80000
Designing Process
The Root Of A Good Product Comes From Design
LTPM China Calculates The Main Parameters Of Agitator And Configuration Specifications Revolutions, Stirring Flow Rate, Velocity Gradient, Shear Force, Uniform Mixing Time, Gas-Liquid Mass Transfer Coefficient Kla And Other Main Parameters Through A Large Number Of Practical And Theoretical Data For 20 Years To Ensure Stirring. To Achieve The Best Effect Of The Process, The Configuration Is Not Wasted, And Won The Praise Of Users. On The Premise Of Achieving The Effect, It Can Save Costs, Improve Energy Efficiency And Reduce Energy Consumption. The Product Takes A Number Of Agitator Patents.
LTPM China Has A Variety Of Stirring Experimental Equipment. When The Experimental Conditions Of Some Media Cannot Be Achieved, It Can Provide Users With A Large Number Of Optimized Designs In Combination With CFD Fluid Mechanics Simulation Experiments.
Determine The Program Process
1. Provide Design Information (Container, Medium Characteristics, Process, Etc.)
1. Provide Design Information (Container, Medium Characteristics, Process, Etc.)
2. Technical Exchange
3. Determine The Blade Type, Speed And Sealing Type According To The Process Parameters
4. Calculate The Blade Size, Power And Shaft Size Based On The Above Parameters
5. Determine The Mechanical Design Such As The Installation Method And The Structure Of The Reducer
6. Based On The Final Plan In Front Of The Design Drawing
Theoretical Formula Calculation
Twenty Years Of Professional Team Practical Experience Plus Theoretical Calculation
1.Stirring Flow Calculation;
2.Mix Evenly Time.
3.Speed Gradient.
4.Blade Linear Velocity, Blade Thrust.
5.Shear Force
6.Power, Torque, Shaft Diameter, Critical Speed.
7.Dissolved Oxygen: Gas Holdup, Gas-Liquid Mass Transfer Coefficient Kla(S-1)
7.Dissolved Oxygen: Gas Holdup, Gas-Liquid Mass Transfer Coefficient Kla(S-1)
CFD Simulation
The Company Has Its Own CFD Simulation Software, Which Can Complete The Working Conditions That Cannot Be Completed By The Experiment.
The Company Has Its Own CFD Simulation Software, Which Can Complete The Working Conditions That Cannot Be Completed By The Experiment.
Simulation Verification Is Carried Out According To The Demand Conditions. Provide Customers With a Large Number Of Optimized Design And Process Improvement Data
Experimental Equipment Verification
The Small And Medium-Sized Experimental Test Equipment Is Tested And Verified By The Customer's Stirring Experiment. Provide The Best Guarantee For Equipment Enlargement
Experimental Equipment Verification
The Small And Medium-Sized Experimental Test Equipment Is Tested And Verified By The Customer's Stirring Experiment. Provide The Best Guarantee For Equipment Enlargement
Various Software Parameter Calculations
Confirm The Scheme Through The Above Multiple Calculation Verification
1. Determine The Appropriate Stirring Form And Size According To The Calculation Results Of The Medium And Stirring Purpose;
2. According To The Calculation Results Of Mixing Time, Shear Force And Blade Thrust, Determine The Rotating Speed To Achieve The Most Efficient Stirring;
3. If Dissolved Oxygen Stirring Is Required, The Blade Diameter And Rotational Speed Need To Be Checked Based On Factors Such As Gas Content, Gas-Liquid Mass Transfer Coefficient Kla(S-1), Etc.
4. According To The Determination Of The Above Conditions, The Stirring Power And Shaft Diameter Are Finally Determined, And The Reducer Is Selected.
5. Determine The Sealing Material And Structure According To The Medium, Pressure, Temperature, Speed And Other Working Conditions.
Ordinary Type Single Mechanical
Sealing Belt Collecting Tank
Double Mechanical Seal
With Collection Groove
Standard Type: Single Mechanical
Dense Type With Bearing And Collecting Groove
Sanitary Magnetic Seal
High Option
1. The Reducer Is Equipped With a High-Efficiency Helical Gear Reducer, Which Is Highly Efficient And Energy-Saving, With Low Noise And Small Size.
2. At Low Speed, The Standard Mechanical Seal Is The Mechanical Seal Cartridge Type With Bearing And
Collection Groove. These Mechanisms Are Stable, Have a Long Service Life, Are Easy To Replace And Install, And Do Not Require Professional Debugging.
Collection Groove. These Mechanisms Are Stable, Have a Long Service Life, Are Easy To Replace And Install, And Do Not Require Professional Debugging.
3. The Shaft Material Is Preferably High-Quality Dual-Phase Steel 2205, Which Is High-Strength And
Anti-Corrosion. Make Sure The Shaft Is Stable.
Anti-Corrosion. Make Sure The Shaft Is Stable.
4. The Details Of The Sanitary Structure Are Finely Designed, And The Structure Configuration Without Dead Ends And Easy To Clean Is Fully Considered.
Manufacturing and Applications
Product Quality Is a Combination Of Design-Based And Finishing-Based
After Detailed Calculation Of Strength, Bending Distance, And Critical Speed, The Shaft Is Rough-Machined, And Then Annealed And Tempered To Ensure That The Stress Deformation Of The Shaft Is Minimized After Machining. Do Processing After Solid Solution Quenching And Tempering. The Hollow Shaft Is First Dynamically Balanced And Then Finished. The Final Polishing Meets The Surface
Roughness Requirements.
Roughness Requirements.
The Fully Sealed Design Between The Blade And The Shaft Of The Sanitary Agitator Is Easy To Clean, Has No Residue, And Has No Dead Angle. After The Blade Is Processed, The Dynamic Balance Reaches G6.3 Level. Together With The Shaft Mounting, a Large Dynamic Balancing Machine Is Used For The Second Time To Ensure High-Speed Operation Without Vibration.
Dynamic Balancing Machine
CNC Lathe
Four-Axis Machining Center
It Is Processed By Sophisticated Equipment Such As Four-Axis And Three-Axis Machining Centers, CNC Lathes, And Large-Scale Dynamic Balancing. Ensure That The Machining Accuracy Meets The Design Requirements.
Customer Production Site
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc.
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
Our Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Sales Team
Our Customers
Orders from Alibaba
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
Q: What is the warranty period for your machine?
A: 5 years free warranty.
Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.
Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.
Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.
Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.
Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
Похожие товары
Поставка пластикового миксера материал из нержавеющей стали может использоваться для размешивания пластмассовых порошковых
1 280,00 $ - 1 380,00 $
Мешалка для жидкого мыла 200
1 050,00 $
Вакуумная эмульгирующая машина для производства сыра 50-20000

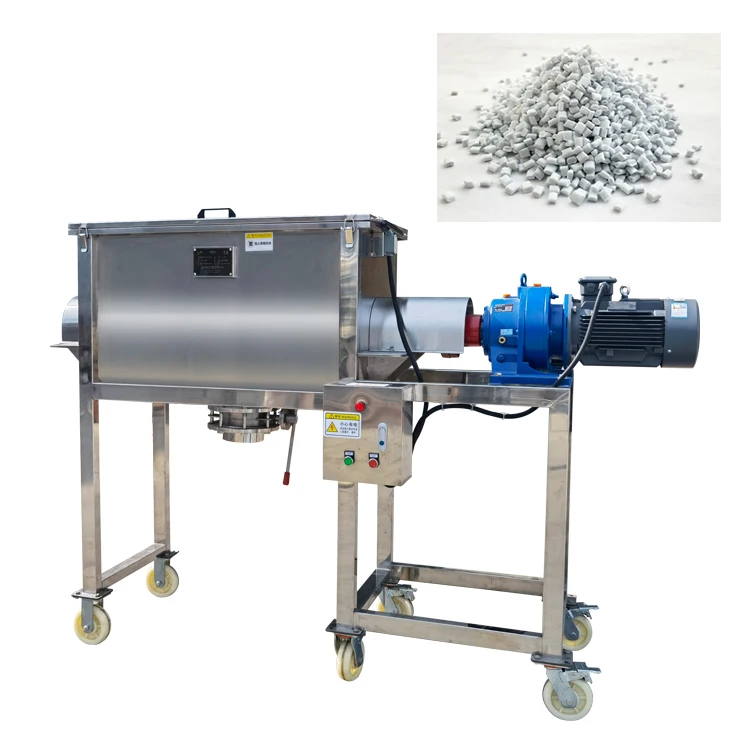

Смесительный станок SUS304 смесительный с ленточным блендером 500 литра из нержавеющей
3 400,00 $ - 3 600,00 $

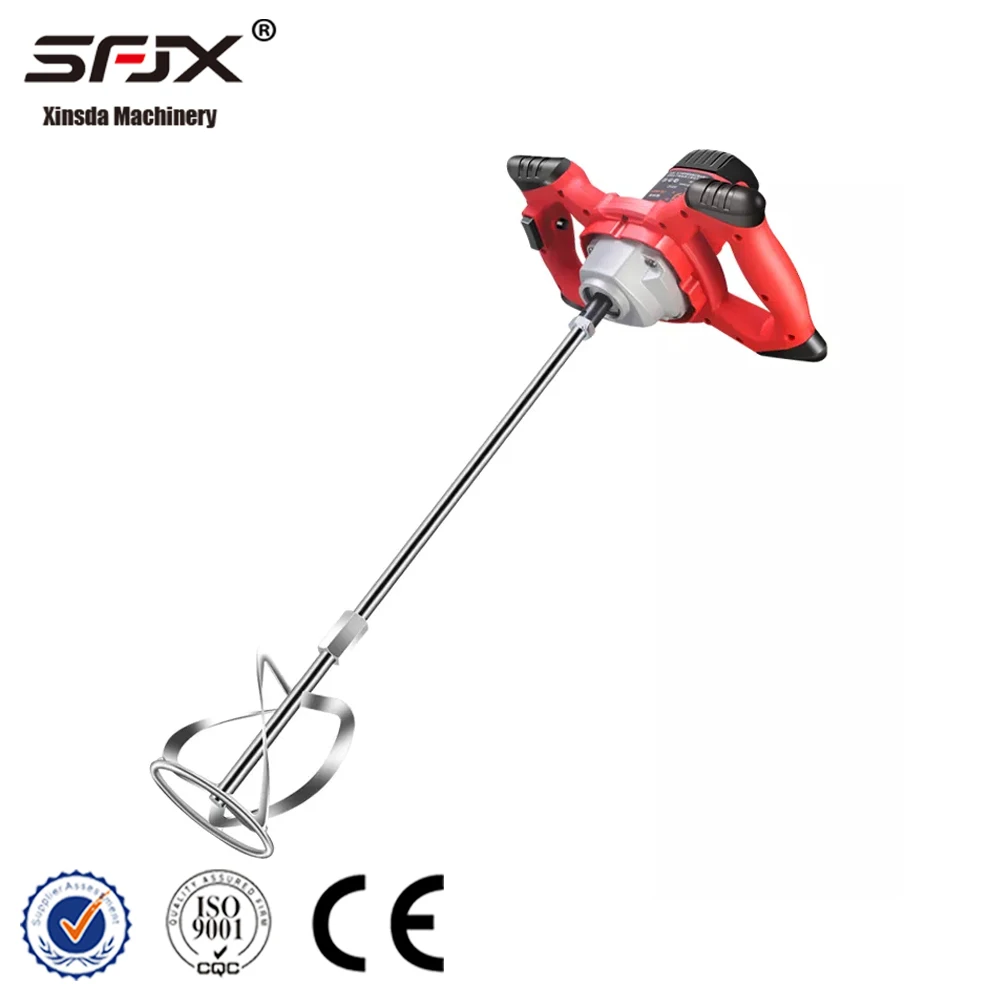

Ручной электрический миксер 6-ступенчатая Регулируемая краска цемента замазки порошок
20,00 $ - 30,00 $

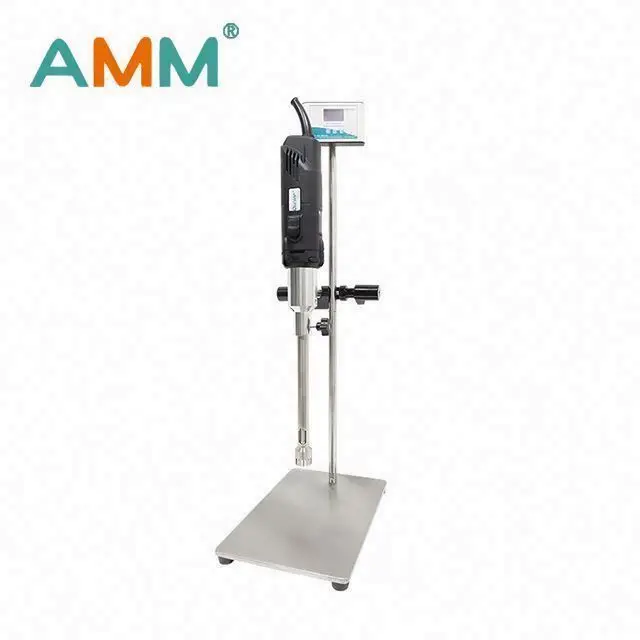

Гомогенизатор M30 высокоскоростной диспергирующий диспергатор смешивающий эмульгатор танкетного типа 15
