Products Description
Titanium Anode&Electrode
Titanium anodes belong to the anodic oxide is the anode of the titanium foundation oxide coating of titanium based. depending on the different surface catalytic coating,they are separated to the function of oxygen evolution and chlorine evolution. Generally, electrode materials should have good electrical conductivity, small change in pole pitch, high corrosion resistance, good mechanical strength and processing performance, long life, low cost, and good electro-catalytic performance for electrode reaction. Currently, titanium is the best metal to meet the above comprehensive requirements.Gr1/Gr2 titanium is generally used.
Classification | Ru-Coated | Ir-Coated | Pt-Coated | ||
Substrate | Gr1 Gr2 Titanium | ||||
Coating | RuO2/RuO2+IrO2+X | IrO2+Ta2O5 | Pt | ||
Specifications | · Rod type: diameter 10~50mm · Wire type: diameter 0.5~10mm · Tubular Type: diameter 10~200mm · Plate Type: thickness 0.5~5mm · Mesh Type: thickness 0.5-2.0mm | ||||
Parameter | Current range:<2000A/m2 Operating temperature:25-50C Ru-Ir content:10-15g/m2 Coating thickness:3-10um Applied environment: PH value 0-14(neutral electrolyte solution is recommended) | Current range:<2000A/m2 Operating temperature:25-60C Ir content:10-15g/m2 Coating thickness:3-10um Applied environment: PH value 0-14 | Current range:<5000A/m2 Operating temperature:25-80C Pt content:3-30g/m2 Coating thickness:0.3-3um Applied environment: PH value 0-14 | ||
Introduction | The product surface is black,with uniform coating,strong bonding,low chlorine potential,long service life,high current efficiency. | The surface is black,with uniform coating,firm combination,low oxygen evolution potential,acid resistance,corrosion resistance,long service life,through large surrent and so on. | The product surface is silver gray,Pt content 99%,with high corrosion resistance,stable operation under high voltage,high electrolysis efficiency,energy saving,no secondary pollution and so on. | ||
Applications | Chlor-alkali industry,chlorate industry,ionized water electrolysis,food tableware electrolysis,food tableware disinfection,electrolysis of seawater chlorine production,circulating water descaling,electrodealysis,sewage treatment and so on. | Metal foil,electrolytic electroplating,cathodic protection,organic electrolysis synthesis,cyclone electrolysis,hydrometallurgy,HHO generate,Sewage treatment and so on. | Electrolytic ionized water,acid oxidation potential water,electroplating,hydrogen generator and so on. | ||

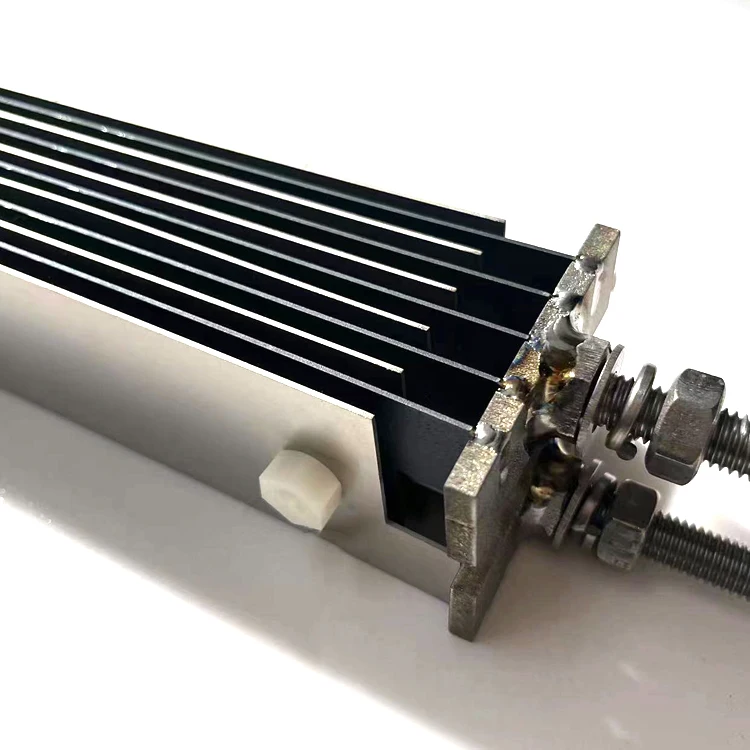

Electrolysis Cell
The large electrolysis cell developed and put into production by our factory in Feb.,2010,treats water quantity from 120L/H to 3T/H,PH value is 4.5-9.5,and various technical indexes are advanced.The experiment has been successful.At present,this project alrady passed the authoritative appraisal of national department concerned.
Name | Size | Coated Metal | PH or Hydrogen Content | Handing Capacity | Power Range |
Small Size electrolyzer | 110*220*20 | Ru-Ir | 5-10.5 | 120L/H | 0-12V 0-3A |
Medium Size electrolyzer | 110*160*100 | Ru-Ir | 2.6-12.5 | 1500L/H | 0-24V 0-25A |
Large Size electrolyzer | 110*160*150 | Ru-Ir | 2.6-12.5 | 3000L/H | 0-24V 0-40A |
Small Size electrolyzer | electrolyzer | Pt | 5-10.5 | 120L/H | 0-12V 0-3A |
Medium Size electrolyzer | electrolyzer | Pt | 2.6-12.5 | 1500L/H | 0-24V 0-25A |
Large Size electrolyzer | electrolyzer | Pt | 2.6-12.5 | 3000L/H | 0-24V 0-40A |
Hydrogen-rich electrolyzer | 135*85*25 | Pt | 1400ppb | 80L/H | 0-12V 0-5A |
Titanium Clad Copper Rod is a bi-directional metal composite rod coated with a certain thickness of titanium layer(generally 1.0mm-1.2mm)around the copper rod.According to its section geometry,it is mainly divided into roud,flat,square,rectangular and drum shape.
Product | Material | Specifications(mm) | Standard | Applications |
Titanium Copper Composite Rod | Gr1 Gr2 titanium Tu1 Copper | Width 10-120 thickness 6-20 length<7000; Circle:D6.35-78 length<7000; | ASTM B338 | Electroplating,electrolysis industry, hydrometallurgy industry,PCB industry, power chemical,water treatment industry, ocean engineering industry,etc. |
RC-002 HClO Generator is a new type of equipment used in the field production of HClO solution, suitable for all kinds of HClO disinfection sites. Electrochemical activation (ECA) technology was used to produce a high concentration and high stability HClO solution with only salt and water as raw materials through the electrolytic cell of ceramic nanometer diaphragm. The pH value was adjusted freely between 2.0-12.0, the effective chlorine concentration was 50-800ppm, and the REDOX potential value (ORP) was more than 1100mv.RC HClO was stored under closed shading for one year at room temperature, and its effective chlorine decreased by no more than 6%.The entire production process is free from any potential hazards.
Project | Units | Reference |
Maximum Output | L/h | 500 |
Active Chlorine | ppm/L | 20-800 |
PH | ph | 2.0～12 |
Maximum Current | A | 60 |
Maximum Power | W | 1800 |
Nominal Voltage | V | 220, 50-60HZ |
Temperature | ℃ | 25(+/-15) |
Level of protection | IP | 55 |
Maximum continuous running time | h | 20 |
Size | mm | 600×600×1300 |
Salt solution cell volume | L | 50 |
Company Profile
Baoji Ruicheng Titanium Metals Co.,Ltd.
is located in High-tech Development Zone of Baoji City,Shaanxi P.R. of China,It has engaged in Titanium anodes filed for more than 19 years,including Ru-Coated,Ir-Coated,Pt-Coated tiatnium electrodes and anodes,electrolysis Cells as well as Hypochlorous acid generators which have already exported to many countries and regions.
Customer Photos
Certifications
Package&Delivery
Package
In wooden cases or as customer required.
Delivery
We usually ship by DHL dirently from Baoji to abroad.They will arrival Within 7 days,if you perfer Fedex.UPS TNT please tell us before shipment.
Why Choose Us
1. 19 years Manufacturer OEM and customized available
2. Products quality control and good service
3. Reasonable price
4. Professional research ability
5. Free sample available
8. Fast delivery
2. Products quality control and good service
3. Reasonable price
4. Professional research ability
5. Free sample available
8. Fast delivery
Contact Us
Contact Person | Tina |
Position | Sales Manager |
Tel. | 86-18591708594 |
Fax | 86-917-3124008 |
Mob./Wechat/Whatsapp | 86-18591708594 |
Email | sales3@bjrcti.com |
