Product Description

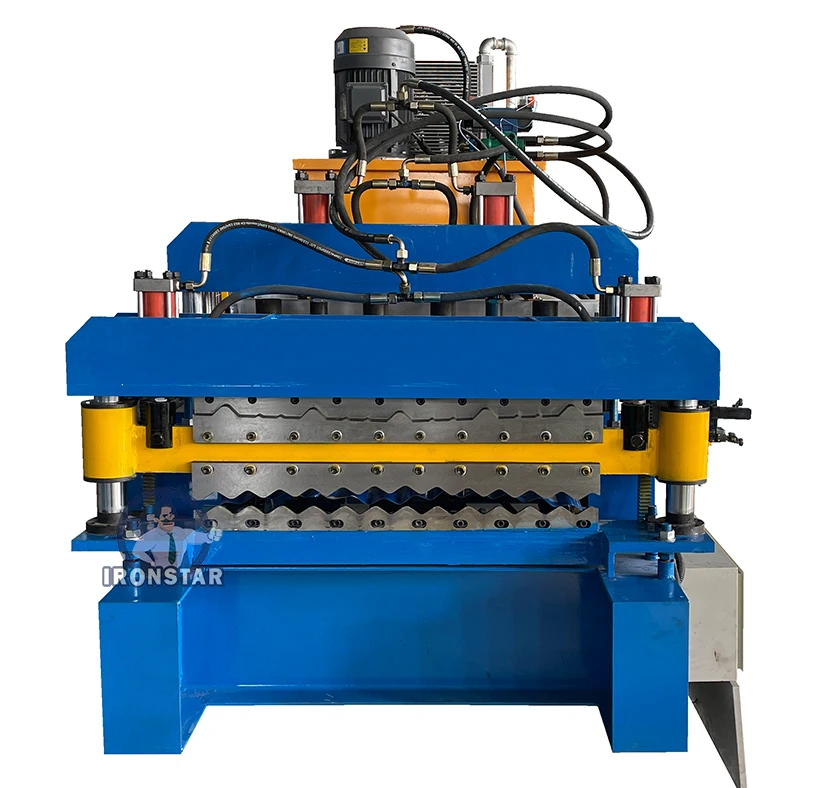

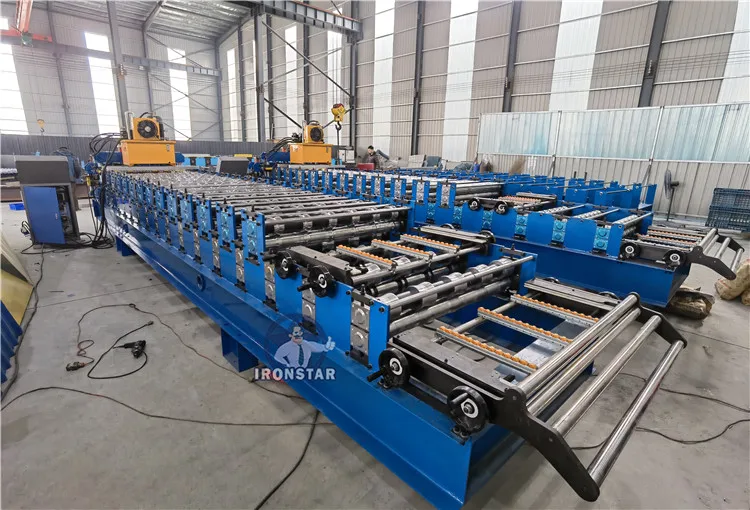

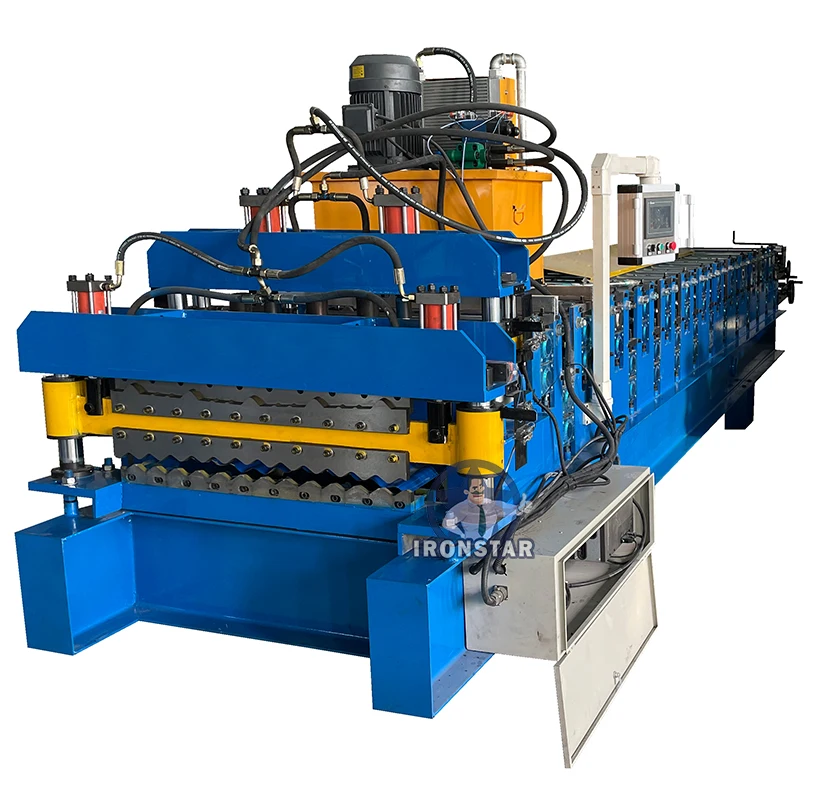

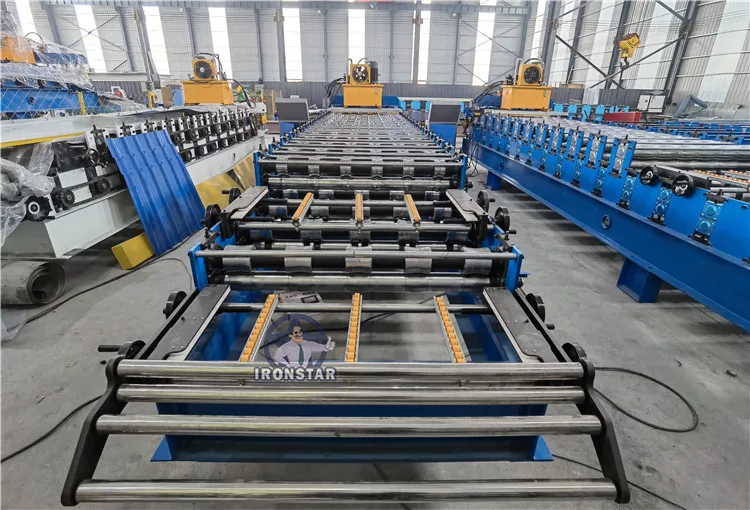

Double layer roll forming machine | double deck roll forming machine | 2 layer roll forming machine
To save space and save money, some customer like to choose double layer roll forming machine, double layer roll forming machine popular sell in many countries, 2 shapes make in one machine, common it include:
1. Trapezoidal sheet and trapezoidal sheet double layer machine

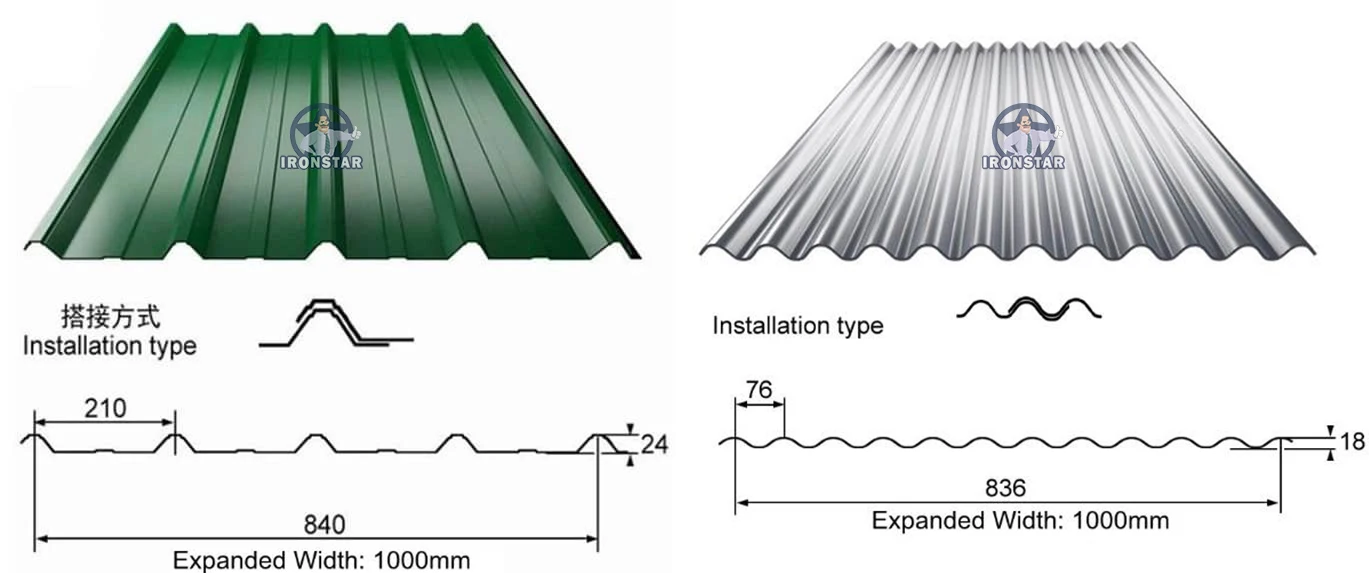

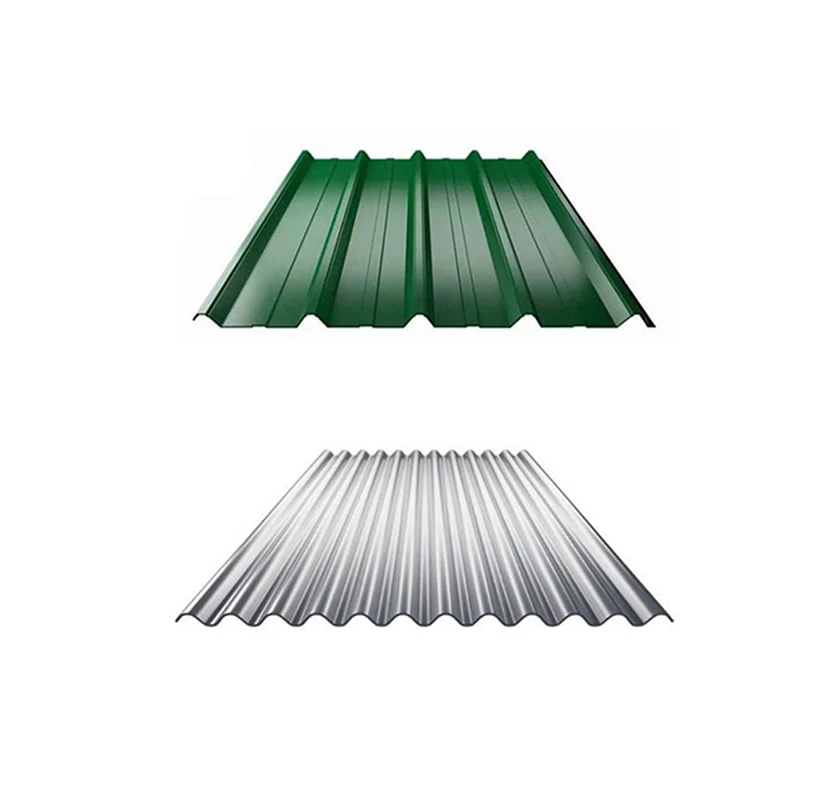

2. Trapezoidal sheet and corrugated sheet double layer machine
3. Corrugated sheet and corrugated sheet double layer machine
4. Trapezoidal sheet and glazed tile sheet double layer machine
5. Corrugated sheet and glazed tile sheet double layer machine
2. Trapezoidal sheet and corrugated sheet double layer machine
3. Corrugated sheet and corrugated sheet double layer machine
4. Trapezoidal sheet and glazed tile sheet double layer machine
5. Corrugated sheet and glazed tile sheet double layer machine
Please noted that double layer machine only can work one layer one time, can not 2 layer work at same time, it also meet problem: bottom layer broken somewhere, need take up layer out to repair bottom layer. So consider well choose one set double layer machine or 2 single layer machine. Any confuse, talk me no heistate.
Machine spections
Working flow
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
| Part details | Item Name | Specification |
| Material | Raw material | PPGI |
| Thickness | 0.3-0.8 mm | |
| Machine | Roller station | Depend on customer' drawing |
| Shaft diameter | 70 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | 45# steel with 0.05mm chrome | |
| Machine size | About 6×1.5×1.3 m | |
| Machine weight | About 5.5 ton | |
| Machine color | As customer' request | |
| Working speed | 3-8 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1 mm | |
| Material | Cr 12 | |
| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 1 inch |
| Main power | 5.5 kw | |
| Pump power | 7.5 kw | |
| Voltage | 380v/50HZ,3P or customize as customer' request | |
| Control system | PLC brand | Delta made in Twaiwan |
| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need | |
| Decoiler | Operation | Manual |
| Weight capicatity | 5 ton | |
| Price | Free as gift | |
| Receiving table | Operation | Manual |
| Length | 3 m | |
| Price | Free as gift |
Machine video
If u want to see the machine working video, please contact with Selena with any way below
More for you choose

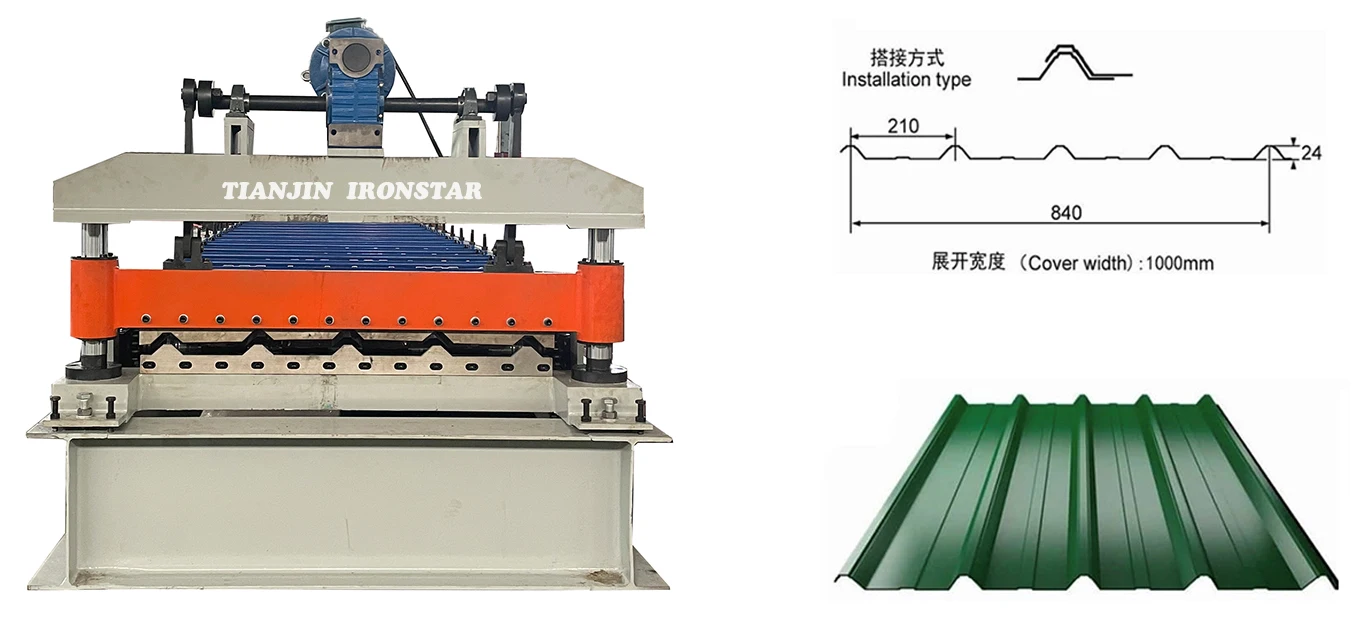

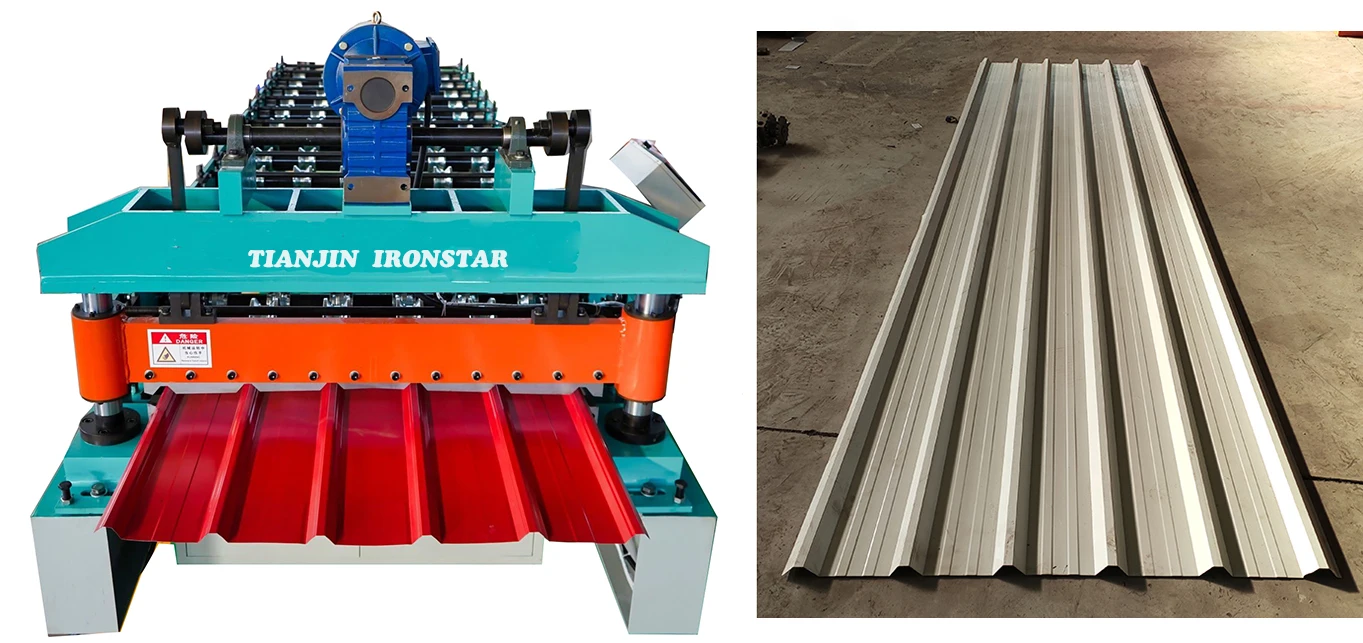

1. 840 trapezoidal sheet roll forming machine
840 roofing sheet roll forming machine | metal roof roll forming machine | metal roof machine | trapezoidal sheet roll forming machine | roofing sheet making machine | wall sheet roll forming machine

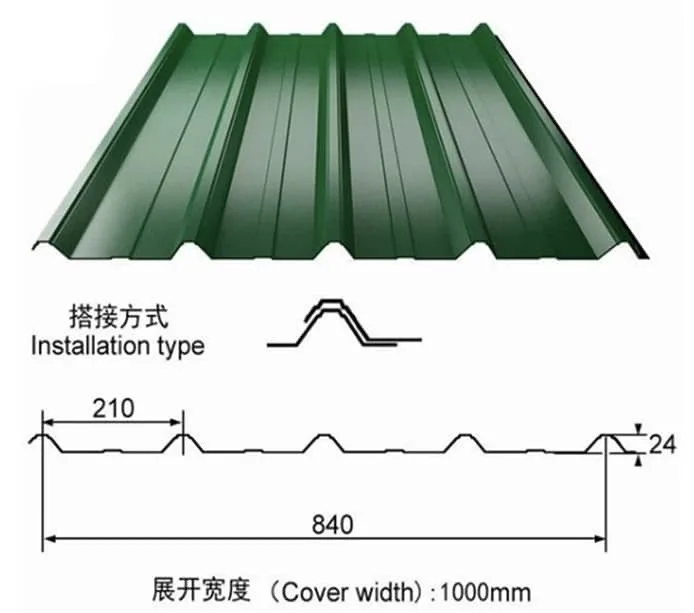

840 trapezoidal sheet roll forming machine popular sell in many countries, Coil width before rolling is 1000mm /1200mm / 1250mm. After rolling product width is 840mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm. Machine details is like up type:
2. 1000 trapezoidal sheet roll forming machine
1000 roofing sheet roll forming machine | metal roof roll forming machine | metal roof machine | trapezoidal sheet roll forming machine | roofing sheet making machine | wall sheet roll forming machine
1000 trapezoidal sheet roll forming machine popular sell in many countries, Coil width before rolling is 1200mm /1220mm / 1250mm. After rolling product width is 1000mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm. Machine details is like up type:

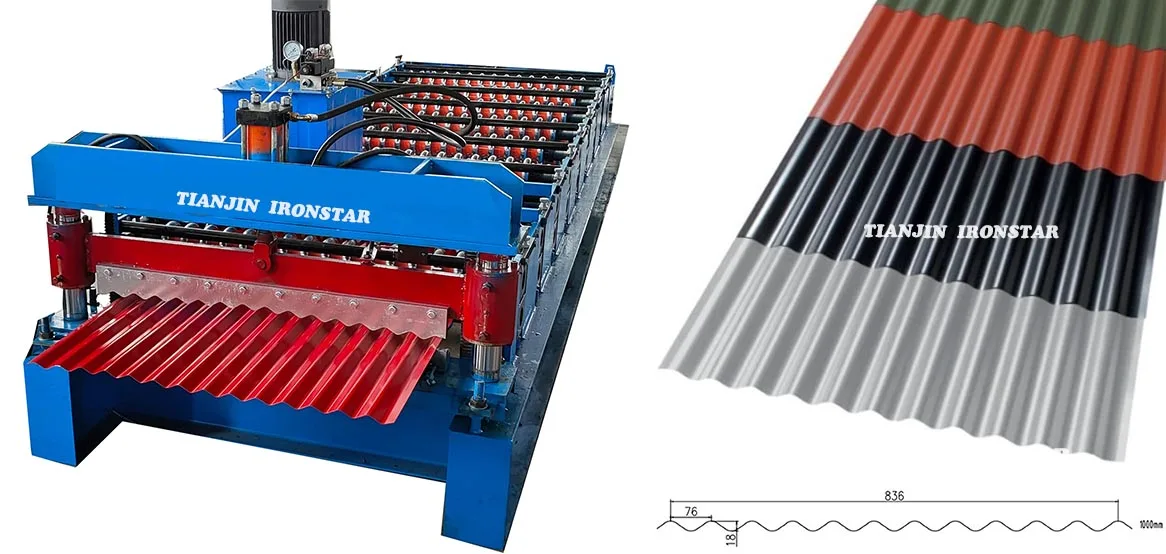

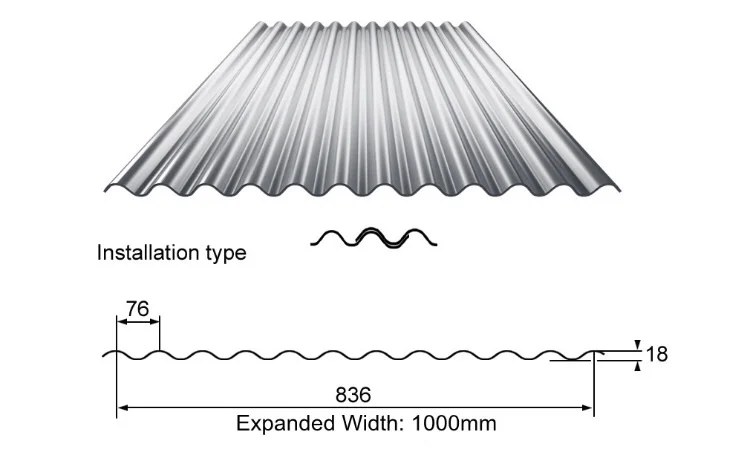

3. Corrugated roofing sheet roll forming machine
1064 Corrugated roll forming machine | corrugated roofing sheet machine | corrugated machine | 836 corrugated roofing sheet machine
Corrugated roofing sheet roll forming machine popular sell in many countries, Coil width before rolling is 1000mm / 1200mm /1220mm / 1250mm. Material common is PPGI material, material thickness common between 0.3-0.8 mm. Machine details is like up type:

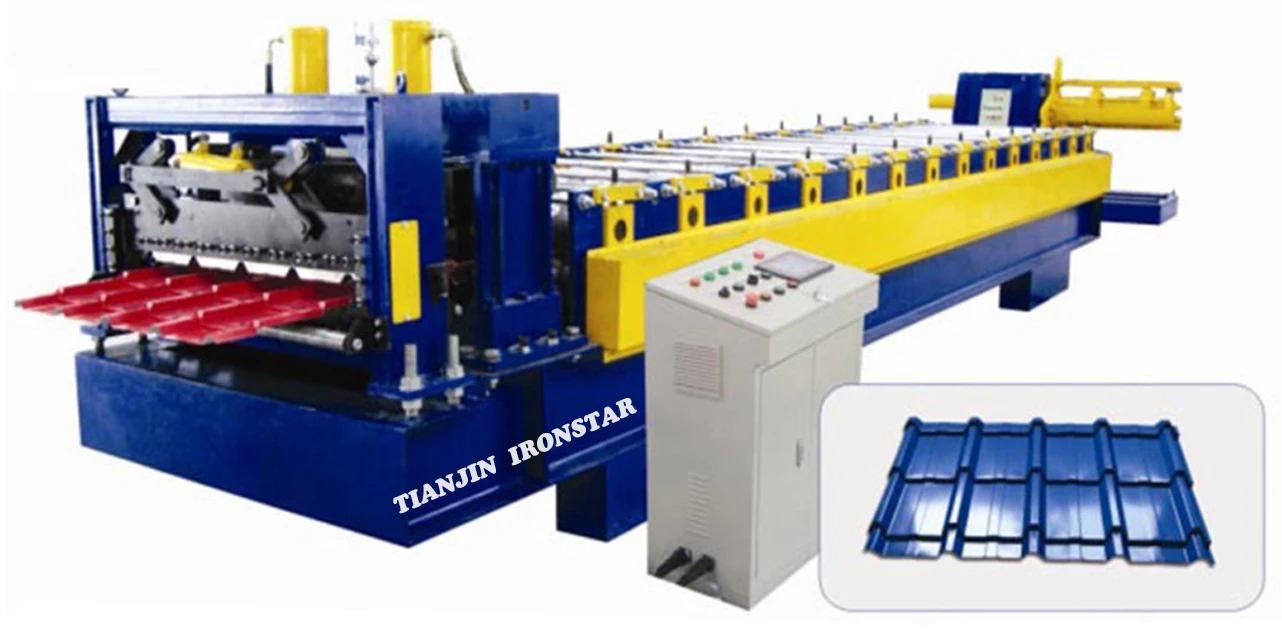

4. Glazed tile roll forming machine
Glazed tile machine | step tile machine | C tile machine | tile make machine | roof tile roll forming machine
Glazed tile roll forming machine popular sell in many countries, Coil width before rolling is 1000mm / 1200mm /1220mm / 1250mm. Material common is PPGI material, material thickness common between 0.3-0.8 mm. Machine details is like up type:
Company Information
Tianjin Ironstar Industry Co., ltd is one professional roll forming machine manufacturer, 26 years working experience and 400 worker provide service for you. Products mainly include: Trapezoidal steel roof/wall panel machine, Glazed tile roofing roll forming machine, C U channel, Angle bead, Omega and T bar machine, Shutter slat door, door frame roll forming machine, C&Z shape interchangeable machine, Cap ridge, water gutter roll forming machine, cutting, bending, slitting, curving machine, floor deck and other customized machine etc.
We machine sell
FAQ
1. Q: How to visit our company:
A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station(1hour), then we can pick up you to factory(40min).
A:Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine?
A: U need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty?
A: Within 24 months, all technical staff are ready to serve you at any time.
4. Q: What can you do if the machine broken?
A: Our machine's warranty period is 24 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.
5. Q: If need technician to workshop to debug and teach, how to do?
A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
