Dezhou Shengda поставка высокого качества 12 шт Высокая точность ER20 пружинная цанга Для CNC BT30 держатели инструментов
- Категория: >>>
- Поставщик: Dezhou Shengda Precision Tools Co. Ltd.
Сохранить в закладки 1600527640891:
Описание и отзывы
Характеристики
Product Description

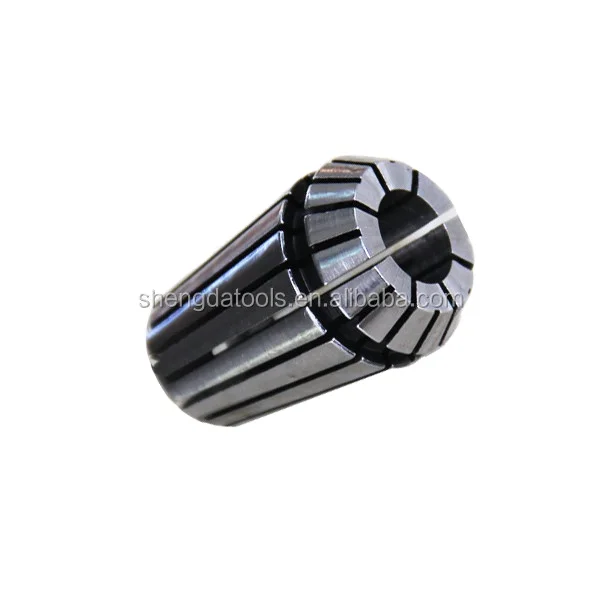

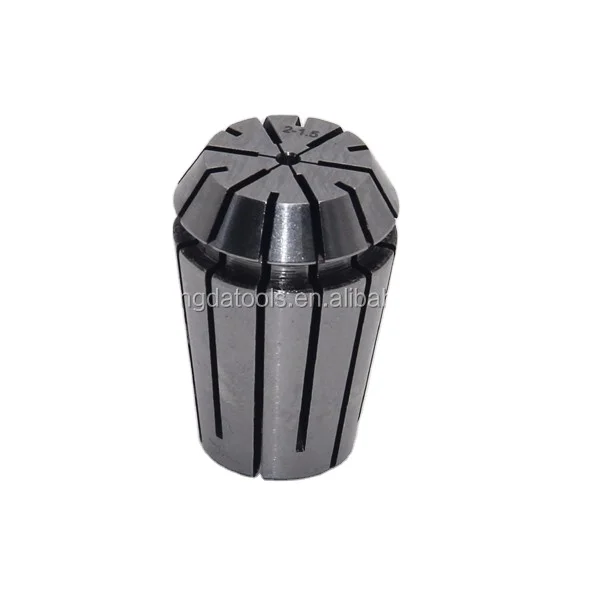

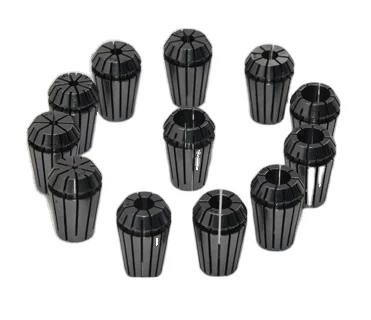

Dezhou Shengda supply high quality 12pcs high accuracy ER20 Spring collet set for CNC BT30 Tool holders
01
Made of special elastic steel material.
Power clamping ability, precise accuracy.
Used for boring ,milling ,drilling, tapping
grinding and engraving operation etc.
02
The clamping accuracy :
General precision :0.015mm
High precision:0.008mm
Top precision:0.005mm
General precision :0.015mm
High precision:0.008mm
Top precision:0.005mm
03
Material:65Mn
Hardness:HRC44-48
Accuracy of DIN6499 Standard
Detailed Images

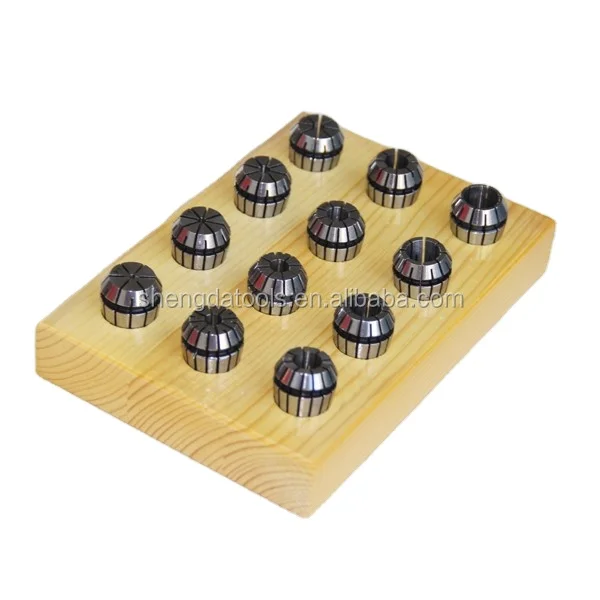

Dezhou Shengda supply high quality 12pcs high accuracy ER20 Spring collet set for CNC BT30 Tool holders
1. Put the collet into the nut, turn the collet slightly, pust it into the nut at the offered direction evenly. When the offset
flange into the undercut of the collet.
2. Fix the nut and collet on the spindle rotate the nut until the collet is in pressing.Wipe the straight shank of cutter, and
insert it into the pilot hole. Tighten the unt with a wrench till the cutter is clamped heavily.
3. When changing the tool, Loosen the nut and it shall bring out the collet and the cutter together, and then draw the cutter out
push out slightly the collet in the offered , it shall be ready for any change of the cutter.
Then screw the locking nut with the chuck onto the post or the handle, and after the tool is
flange into the undercut of the collet.
2. Fix the nut and collet on the spindle rotate the nut until the collet is in pressing.Wipe the straight shank of cutter, and
insert it into the pilot hole. Tighten the unt with a wrench till the cutter is clamped heavily.
3. When changing the tool, Loosen the nut and it shall bring out the collet and the cutter together, and then draw the cutter out
push out slightly the collet in the offered , it shall be ready for any change of the cutter.
Then screw the locking nut with the chuck onto the post or the handle, and after the tool is
.
Size Information
Size Chart of This Design
If no special requirement,we would supply to you according to II grade;if you require I grade, the price would be advanced.
Model | D | L | d | Wt(kg) |
ER20 | 21 | 31 | 2,3,4,5,6,7,8,9,10,11,12,13, | 0.04 |
ER20(inch) | 21 | 31 | 1/8,5/32,3/16,7/32,1/4,5/16,11/32,3/8,7/16,15/32,1/2 | 0.04 |
Related Products
Packing&Shipping
Packing
The packing of the products should be wrapped in plastic transparent packing bags,and the packed onto cylindrical plastic buckets
or paper boxes.
We can laser mark your logo and pack according to your requirement.
Shipping
1. FedEx/DHL/UPS/TNT for samples,Door-to-Door.
2. By Air or By Sea for batch goods.
3. Customers specifying freight forwarders or negotiable shipping methods.
4. Goods have in stock will be sent out directly,but customed need to 2-3 weeks for delivery.
The packing of the products should be wrapped in plastic transparent packing bags,and the packed onto cylindrical plastic buckets
or paper boxes.
We can laser mark your logo and pack according to your requirement.
Shipping
1. FedEx/DHL/UPS/TNT for samples,Door-to-Door.
2. By Air or By Sea for batch goods.
3. Customers specifying freight forwarders or negotiable shipping methods.
4. Goods have in stock will be sent out directly,but customed need to 2-3 weeks for delivery.
After Sales Service
1.We can offer you the sample to check our products. If the products are not what you are looking for.Please give me your detail
requirement.
2. If you have any questions,please contact me at any time.I will reply you soon as possible.
3. We also undertake processing all kinds of CNC machine tools accessories with your requirement.
4.Service: Offer excellent service: technical service, design service, after-sales service with experienced staff.
requirement.
2. If you have any questions,please contact me at any time.I will reply you soon as possible.
3. We also undertake processing all kinds of CNC machine tools accessories with your requirement.
4.Service: Offer excellent service: technical service, design service, after-sales service with experienced staff.
Company Introduction
We are Dezhou Shengda Precision Tools CO.,LTD. Located in Longmen Economic Developement Zone, Pingyuan City. Shandong Province, China.
We hammers at investigation exploitation, manufacturing, selling of cnc machine tools accessories for more than 15 years. The main products include: ER, SK , OZ , R8, 5C and other series spring collets, BT tool holder, DIN69871 SK tool holder, ISO CAT HSK MS cnc tool holder and R8 Shank milling chuck and other machine tools accessories. Company also undertakes customized processing business and owns import and export rights. The products are exported to the United States, Germany , Italy, Britain, Spain, Southeast Asia and other company and regions, winning the good public praise.
Relying on the advanced production and testing equipment, following the scientific management concept, our company actively keep to offer the good quality products to serve all customers.
We hammers at investigation exploitation, manufacturing, selling of cnc machine tools accessories for more than 15 years. The main products include: ER, SK , OZ , R8, 5C and other series spring collets, BT tool holder, DIN69871 SK tool holder, ISO CAT HSK MS cnc tool holder and R8 Shank milling chuck and other machine tools accessories. Company also undertakes customized processing business and owns import and export rights. The products are exported to the United States, Germany , Italy, Britain, Spain, Southeast Asia and other company and regions, winning the good public praise.
Relying on the advanced production and testing equipment, following the scientific management concept, our company actively keep to offer the good quality products to serve all customers.
Our Services & Strength
We are golden supplier with trade assurance First, we will give our customers best shipping delivery,and following the order. When the customers have received our products and testing them ,if there is any problem,contact us at any time. We are golden supplier with trade assurance.
FAQ
1.What’s your delivery time?
If a case of stock, generally within two or three days for delivery arrangement.Others require custom need 5-20 days.
2.Do you have MOQ?
Yes, we do. Our MOQ is 10 pcs. Set product’s MOQ is 5 sets.
3.What’s your payment way?
T/T, L/C, Paypal, Western Union. For keeping safe , you’d better
Choose trade assurance on alibaba.com.
4.Could you undertake customized?
Yes, we could. But we need your supply drawings or samples.
5.How to control the quality of your product?
Our products meet the standard of ISO9001, We have our own perfect testing equipment and sophisticated detection personnel.
6.What’s your package?

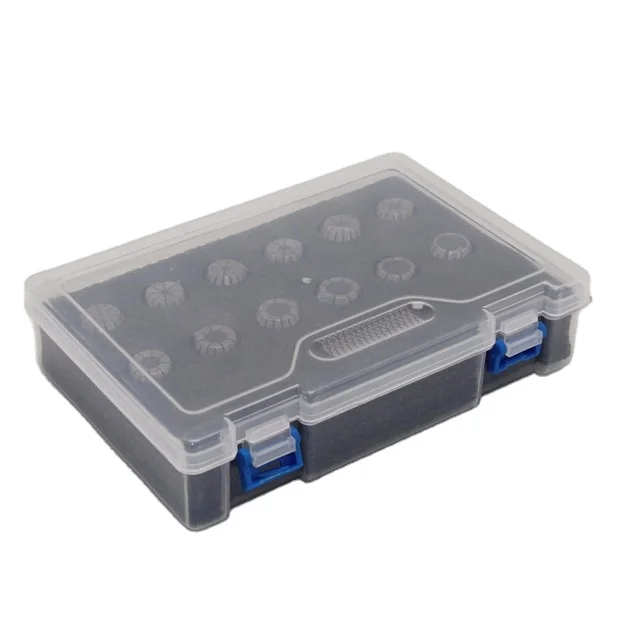

Plastic bag+ packing box. Set product have special kit box.
7.How about the quality of your products?
Our company carries our “the quality first, the goods faith for this purpose”, reply on advanced productions technology and equipment, follow the scientific management concept, and strive to provide qualified perfect products for client.
If a case of stock, generally within two or three days for delivery arrangement.Others require custom need 5-20 days.
2.Do you have MOQ?
Yes, we do. Our MOQ is 10 pcs. Set product’s MOQ is 5 sets.
3.What’s your payment way?
T/T, L/C, Paypal, Western Union. For keeping safe , you’d better
Choose trade assurance on alibaba.com.
4.Could you undertake customized?
Yes, we could. But we need your supply drawings or samples.
5.How to control the quality of your product?
Our products meet the standard of ISO9001, We have our own perfect testing equipment and sophisticated detection personnel.
6.What’s your package?
Plastic bag+ packing box. Set product have special kit box.
7.How about the quality of your products?
Our company carries our “the quality first, the goods faith for this purpose”, reply on advanced productions technology and equipment, follow the scientific management concept, and strive to provide qualified perfect products for client.
Похожие товары

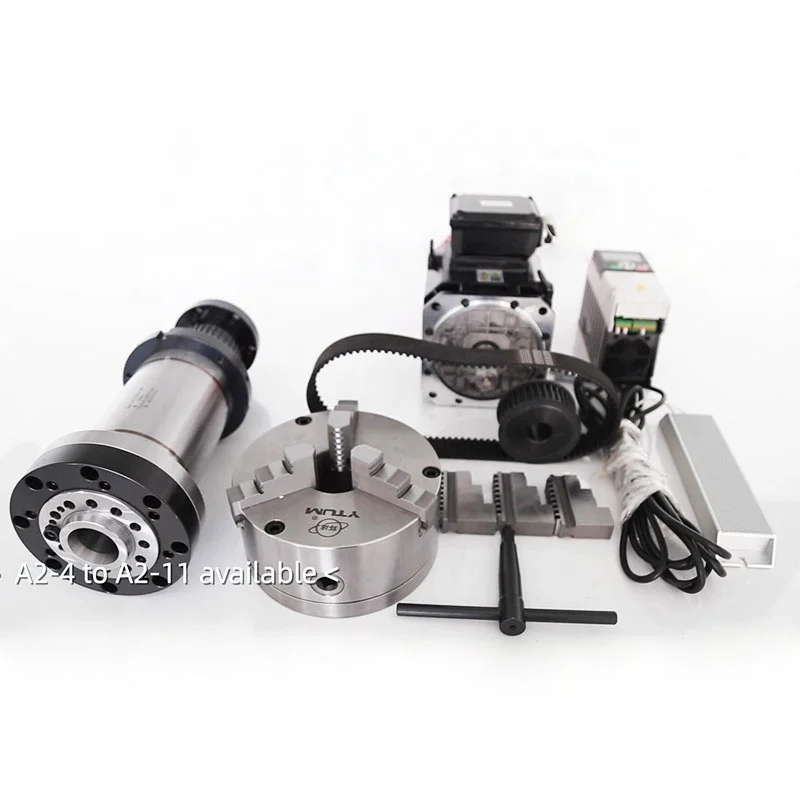

A2-4 5000 об/мин 150 мм шпинделя токарного станка комплект 45 сквозное отверстие диаметром с гидравлическим цилиндром и патроном для cnc
3 750,00 $ - 3 980,00 $

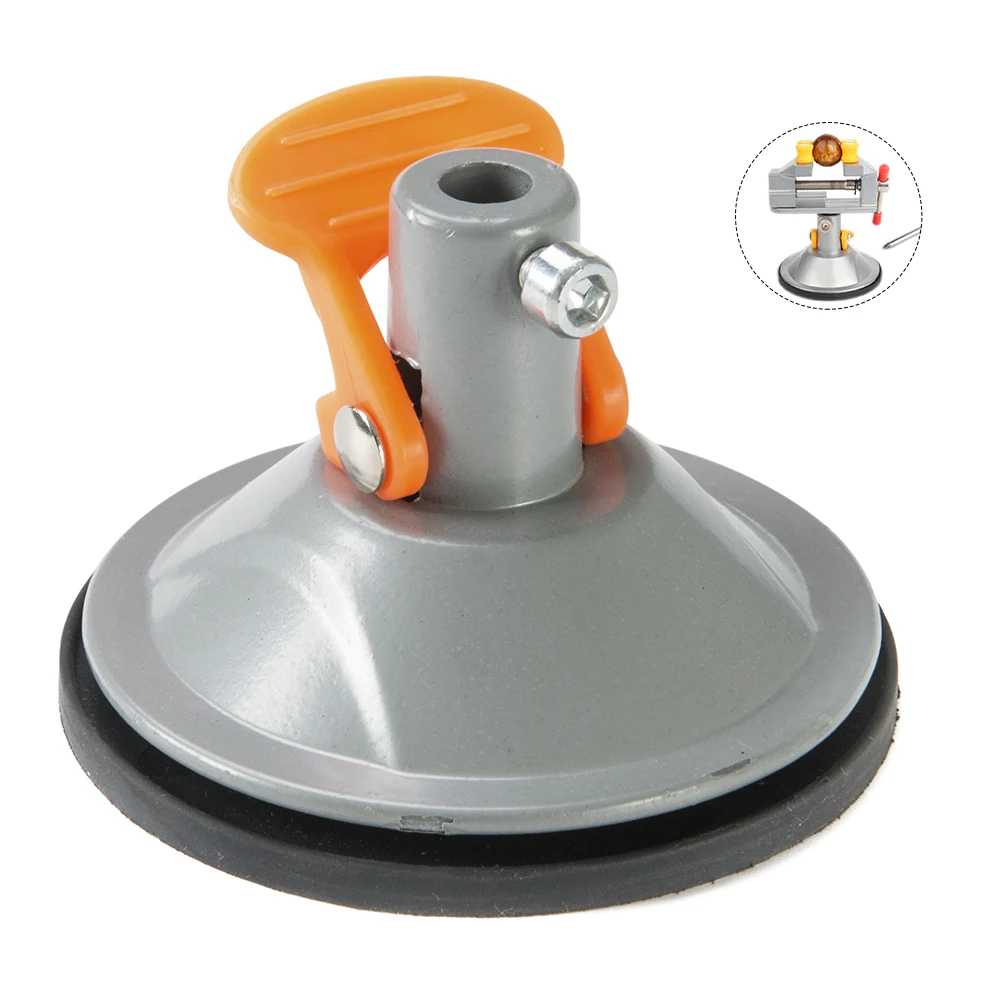

Регулируемый универсальный износостойкий мини-верстак для ремонта электроники диаметр 76
1,19 $ - 1,46 $

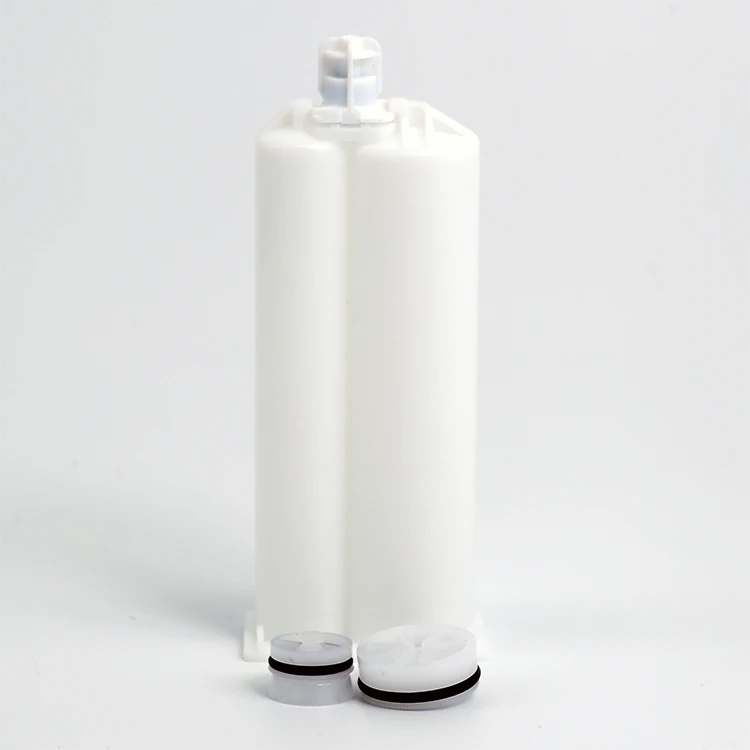

50 мл 2:1 пластиковый шприц для дозирования клея AB с двойным
0,48 $ - 0,55 $
Продольное круглое лезвие/высокоточное продольное режущее лезвие/прямые продажи от
50,00 $

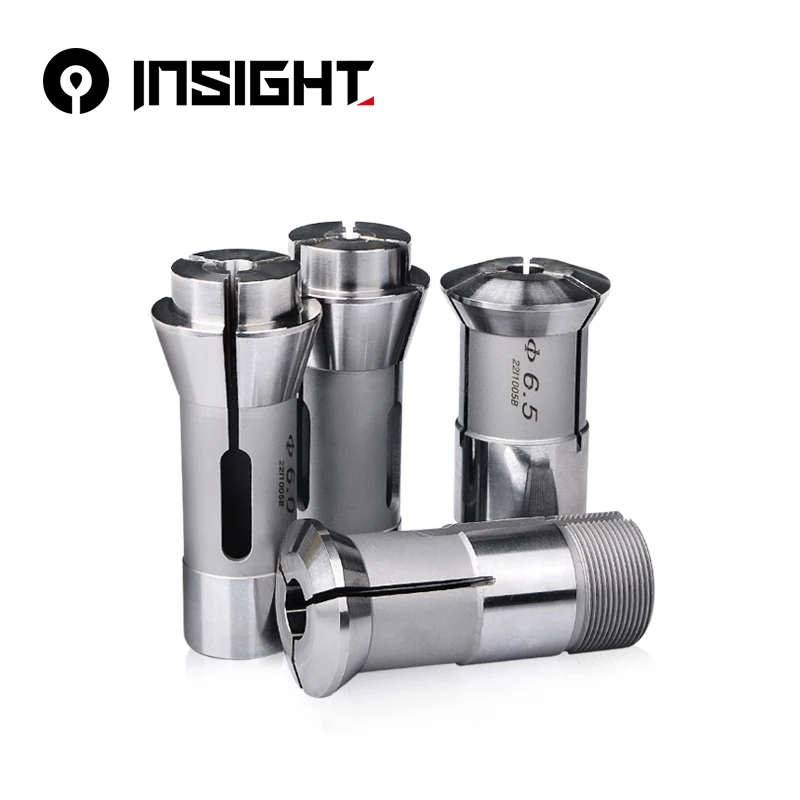

TF8 Цанга патрон PD4 направляющая втулка для CITIZEN R04 машинная работа токарный станок F8/76-511 / 101E 3077E (1 001
16,15 $ - 21,50 $

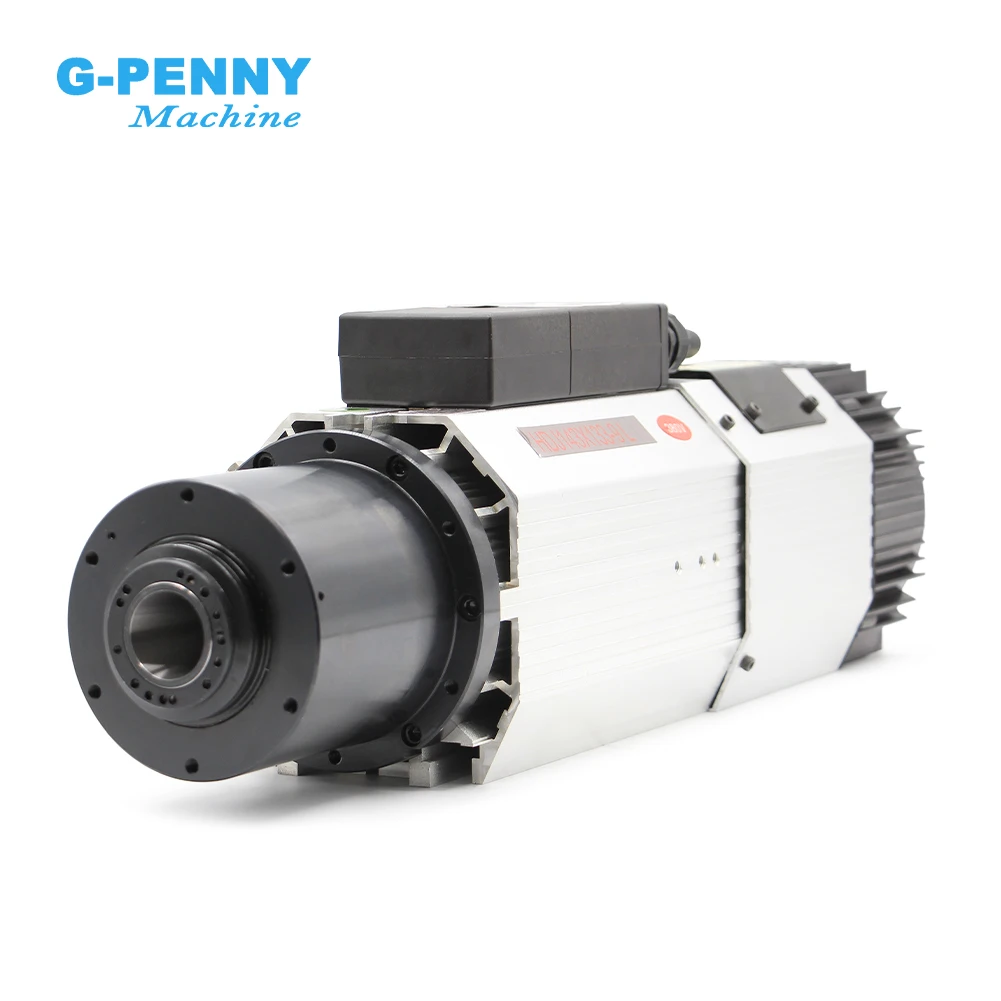

Керамические подшипники с автоматическим сменным шпинделем 9 кВт cnc atc Шпиндельный двигатель
