PRODUCT SPECIFICATIONS

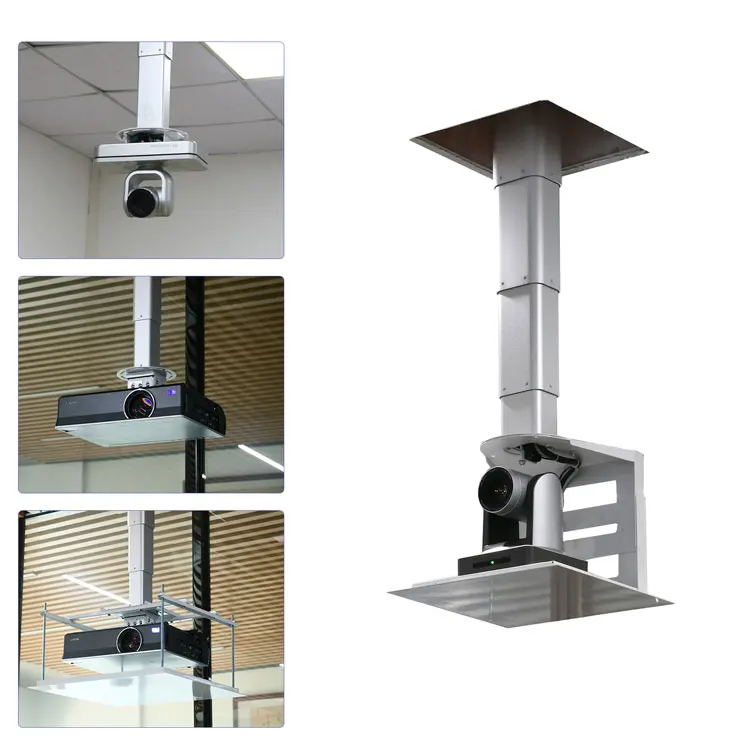

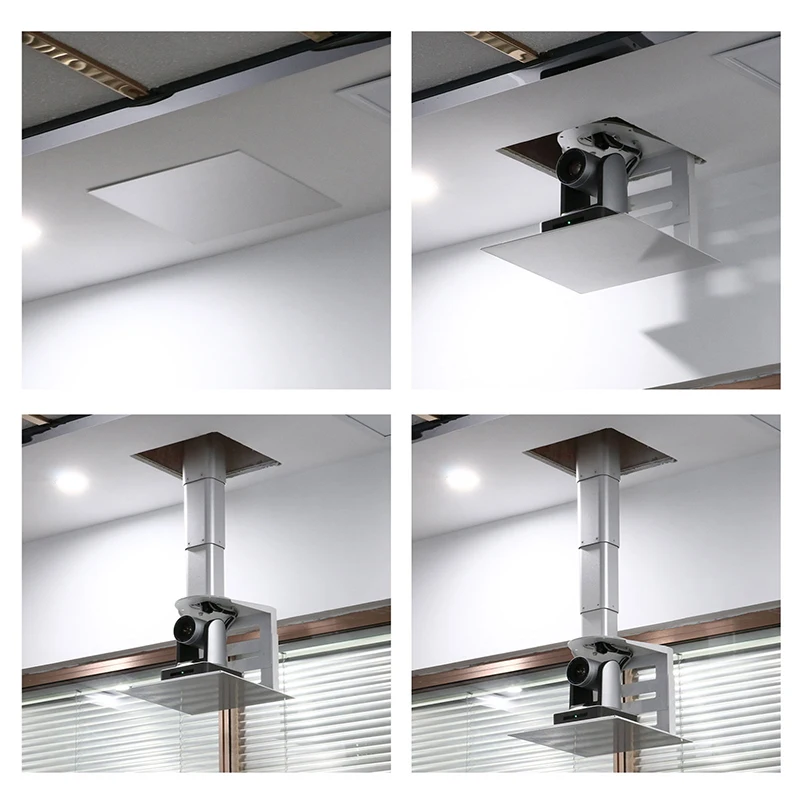

Ceiling Recessed Camera & Projector Lift
Tips: Please pay attention to tell me whether the product you need to install is a projector or a camera.
Product Name | Ceiling Recessed Camera & Projector Lift | ||||||
Brand | JGST | ||||||
Product Weight | 18KG | ||||||
Model | JG1500-1N | ||||||
Color | White | ||||||
Height | 400-1650MM | ||||||
load-bearing | 15KG | ||||||
Warranty | 3 years | ||||||
Material | Aluminum + CRS | ||||||
Packing | Foam+Carton | ||||||
Feature | Not only can install cameras but also projectors | ||||||

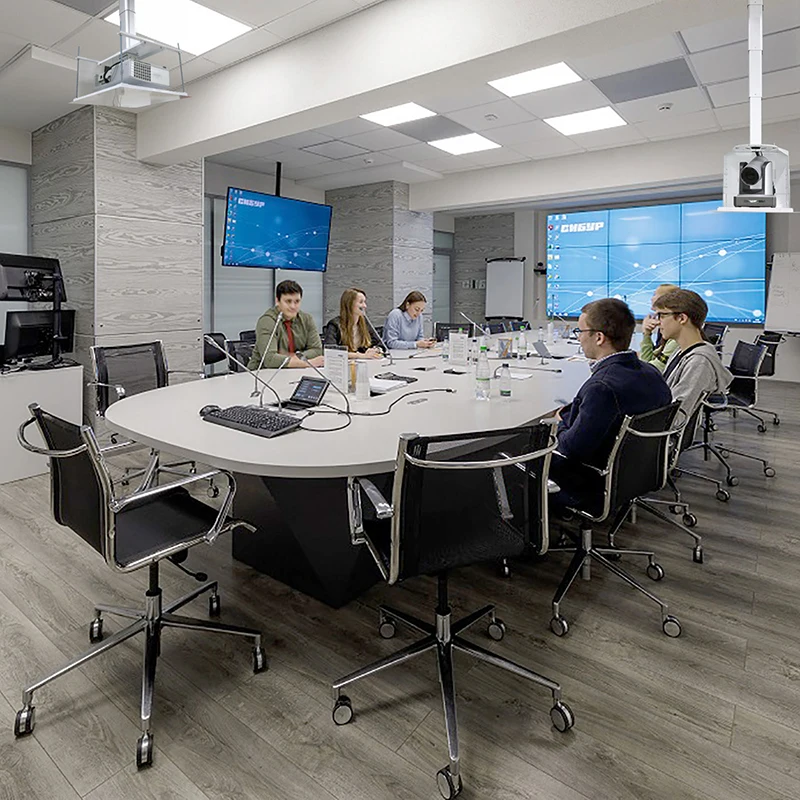

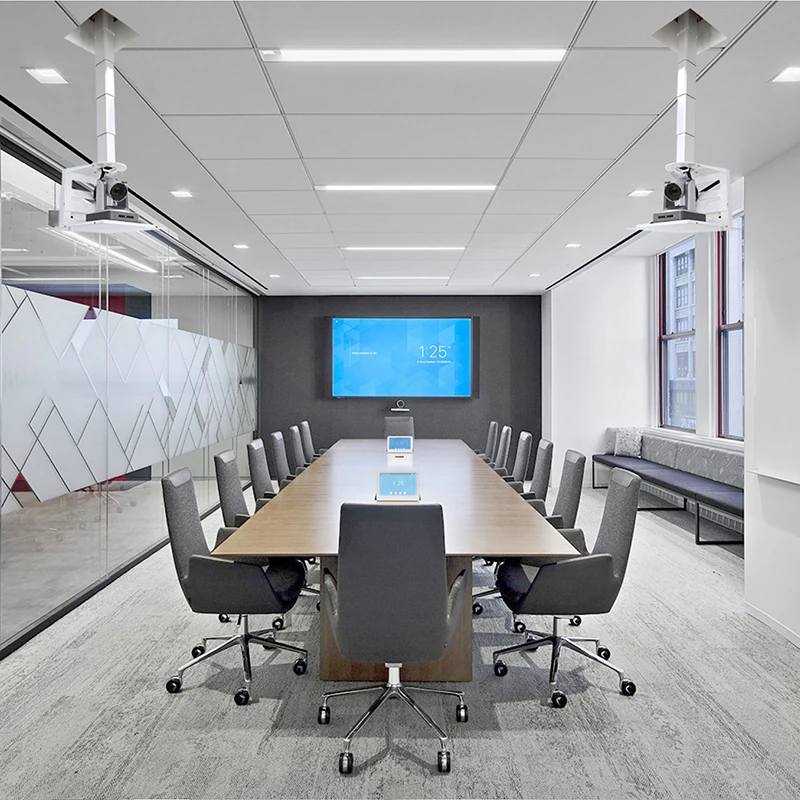

Application | School, Conference Room, KTV, Showroom, Entertainment places, Stage, etc | ||||||

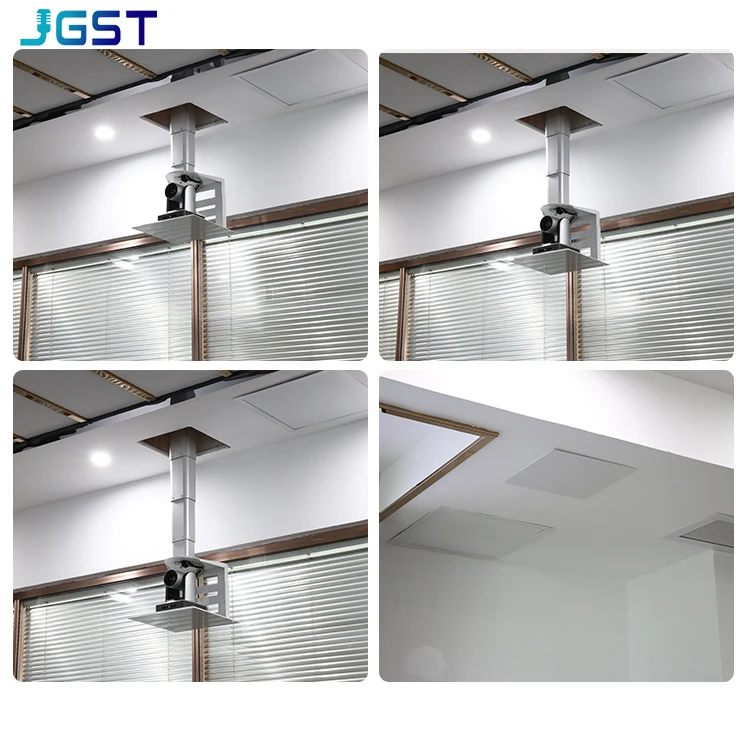

PRODUCT SHOWS
Details Images

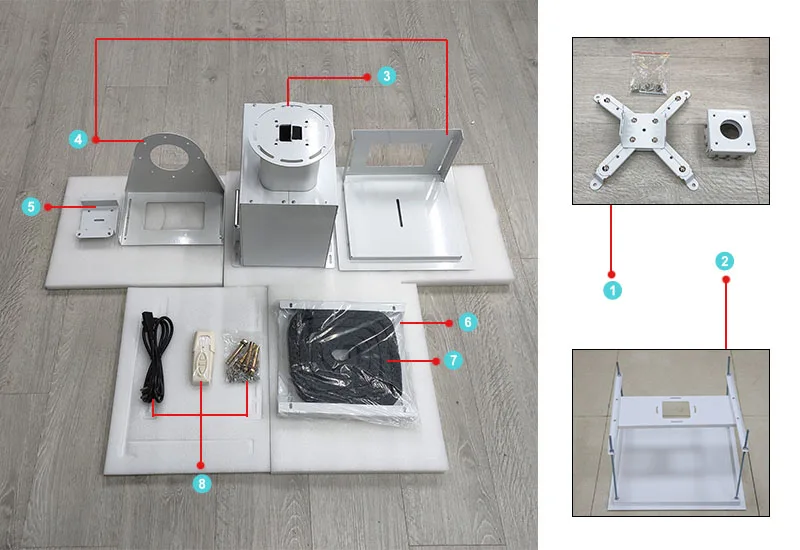

Product accessories overview
1.Universal claw square plate (Projector standards)
2.Square decorative bottom plate (Projector options)
3.The lifting box（Standard）
4.U-shaped decorative bottom plate (Camera selection)
5.Chassis (Camera standard)
6.Fixed plate（Standard）
7.Tanks chain（Standard）
8.Power cord, remote control, nuts, screws, washers（Standard）

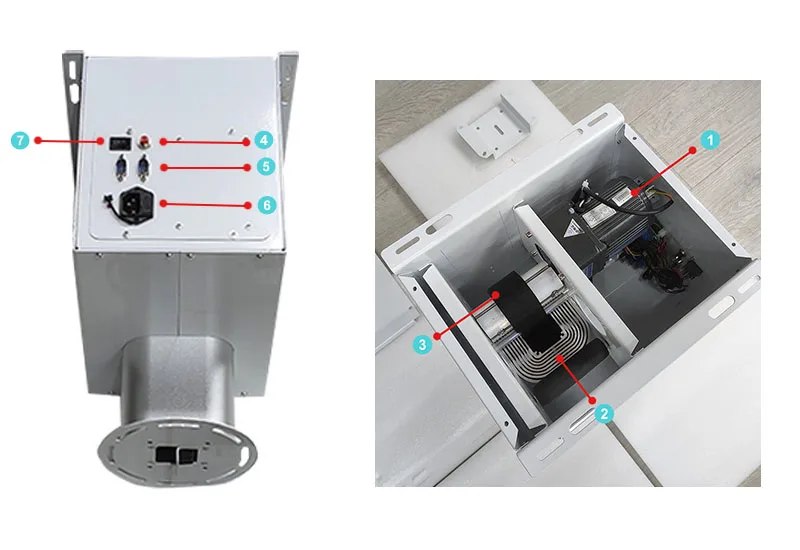

The main structure of the lifting box
1.VTV big motor，strong load capacity, high safety factor.
2.Extensible belt.
3.Eight lifting square tubes.
4.Setting button.
5.RS232/RS485 central control interface.
6.Power interface.
7.Wire control button.
Advantages of tank chain
Various wires such as projectors and cameras can be threaded through the telescopic tube through the tank chain, which can not only be easily managed but also prevent the mouse from biting the wire.
Perfect appearance
The square tube is made of aviation aluminum alloy sandblasted silver material
Electronic limit position function
Use the remote control to easily adjust the position you need and limit the drop position of the hanger
INSTALLATION
Step 1
The fixing plate can be fixed to the ceiling with 4 M8 screws.
Step 2
Push the lift chassis onto the fixed bottom plate from one side, and then lock the four fixing screws.
Push the lift chassis onto the fixed bottom plate from one side, and then lock the four fixing screws.
Step 3
Use a screwdriver to open one side of the tank chain, press the thread in and close the cover.
Step 4
Fix the head end of the tank chain on the bottom plate of the disc with screws.
Step 5
Fix the end of the tank chain with screws on the upper part of the box.
Step 6
Camera installation (exposed installation): Fix the screw hole at the bottom of the camera with the special bracket for the camera, and then fix it with the hanger disk.
Step 7
Camera installation (concealed installation): first remove the screws on both sides of the U-shaped decorative board, then fix the middle of the camera with screws, and then fix the U-shaped decorative board with the hanger disk.
Step8
Projector installation (exposed installation): Take out the universal claw of the ceiling mounted projector, align the projector with the mounting hole and fix it on the universal claw, and then fix it with the hanger disk.
Step9
Projector installation(concealed installation): Find out the following accessories: screw *4, M8 nut* 16, cross bar *2. Install the four screws into the four corresponding waist holes of the decorative board, according to the site Adjust the installation height according to the situation, and fix the decorative bottom plate and the long plate on the host through two cross bars.
