Многофункциональный ковш для дробления экскаватора камней
- Категория: >>>
- Поставщик: Shandong Aolai Machinery Co. Ltd.
Сохранить в закладки 1600529489789:
Описание и отзывы
Характеристики

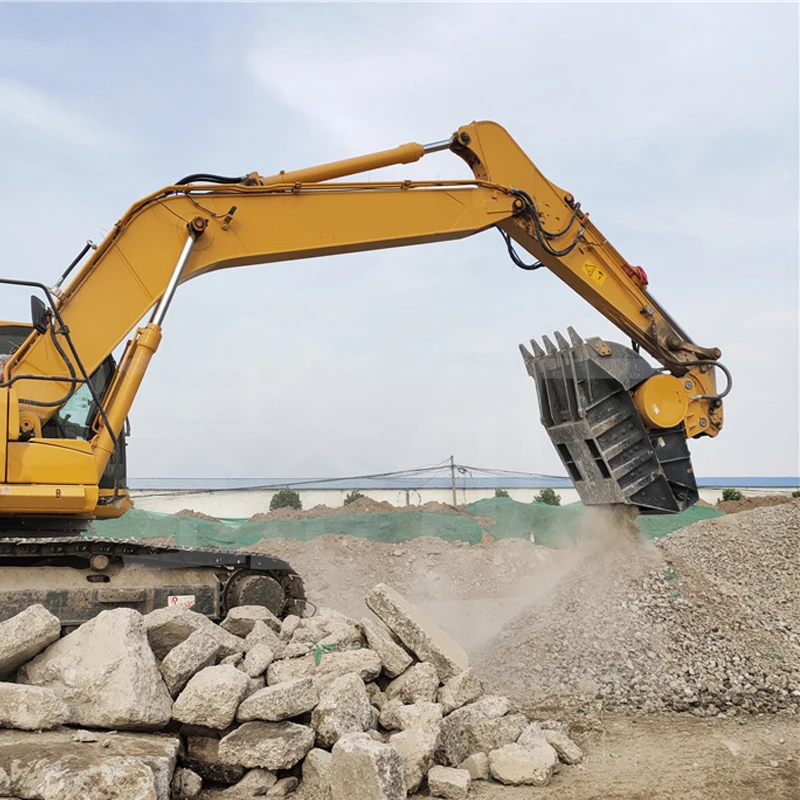

The excavator crushing bucket is suitable for crushing hard rocks and is widely used in quarrying, mining, gravel, and recycling of waste materials and asphalt. The crushing bucket is suitable for excavators weighing more than 18.5 tons. The crushing bucket is compact, multi-purpose and suitable for crushing and recycling of inert materials, or building materials generated by demolition (road engineering-infrastructure-pipelines and pipelines). Compared with larger models, despite its small size and light weight, the output can reach 34 cubic meters per hour. It is suitable for crushing hard rocks, widely used in quarrying, mining, gravel, and recycling of waste materials and asphalt.
Products Description
Working principle of excavator crushing bucket:

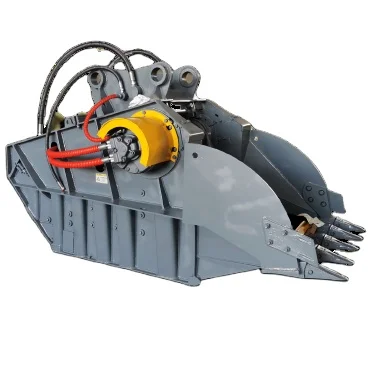

The crushing method of this series of excavator crushing bucket is curved extrusion type. The hydraulic motor drives the eccentric main shaft through the spline shaft, and the movable jaw moves up and down through the eccentric shaft. When the movable jaw rises, the angle between the top plate and the movable jaw becomes larger. , The wedge-shaped space of the feed port becomes larger, and the large piece of material moves downward under the action of gravity. When the movable jaw plate approaches the fixed flange, the wedge-shaped space of the feed port becomes smaller, and the material is squeezed and rubbed. Multiple crushing such as, crushing, etc.; at the same time, when the movable jaw descends, the angle between the top plate and the movable jaw becomes smaller, the excavator crushes the bucket, and the movable jaw leaves the fixed jaw plate under the action of the pull rod and the spring. It is discharged from the lower mouth of the crushing cavity. With the continuous rotation of the hydraulic motor, the crushing bucket of the stone excavator and the movable jaw of the crushing bucket are periodically crushed and discharged.
The crushing method of this series of excavator crushing bucket is curved extrusion type. The hydraulic motor drives the eccentric main shaft through the spline shaft, and the movable jaw moves up and down through the eccentric shaft. When the movable jaw rises, the angle between the top plate and the movable jaw becomes larger. , The wedge-shaped space of the feed port becomes larger, and the large piece of material moves downward under the action of gravity. When the movable jaw plate approaches the fixed flange, the wedge-shaped space of the feed port becomes smaller, and the material is squeezed and rubbed. Multiple crushing such as, crushing, etc.; at the same time, when the movable jaw descends, the angle between the top plate and the movable jaw becomes smaller, the excavator crushes the bucket, and the movable jaw leaves the fixed jaw plate under the action of the pull rod and the spring. It is discharged from the lower mouth of the crushing cavity. With the continuous rotation of the hydraulic motor, the crushing bucket of the stone excavator and the movable jaw of the crushing bucket are periodically crushed and discharged.
Product Specification
Model | AL-PS200 | AL-PS300 | ||||
Applicable excavator | (ton) | 18-25 | 30-38 | |||
Weight | (kg) | 3500 | 4800 | |||
Excavation capacity | (m3) | 0.7 | 0.8 | |||
Appearance size (No other attachments are included) | Long | (mm) | 2,250 | 2,380 | ||
Wide | (mm) | 1,300 | 1,670 | |||
High | (mm) | 1,440 | 1,580 | |||
Ducking opening size | Wide | (mm) | 1,240 | 1300 | ||
High | (mm) | 500 | 500 | |||
Actual material inlet size | Wide | (mm) | 700 | 900 | ||
High | (mm) | 500 | 500 | |||
Schedule size | Minimum | (mm) | 15 | 15 | ||
Maximum | (mm) | 120 | 120 | |||
Hydraulic motor | Oil pressure | (MPa) | 24.5 | 25 | ||
Speed | (min-1) | 350 | 350 | |||
Oil volume | (1/min) | 260 | 260 | |||
Our Company
Packaging And Shipping
Our Service
Before sale
1. Quick response
2. Professional technical consulting services
3. Provide a variety of related information about the product
2. Professional technical consulting services
3. Provide a variety of related information about the product
On sale
1. Delivery on schedule
2. Strict factory acceptance
3. Use negotiated or suitable packaging for transportation
2. Strict factory acceptance
3. Use negotiated or suitable packaging for transportation
After sale
1.24 hours technical support
2. Long warranty
3. Sufficient spare parts guarantee
2. Long warranty
3. Sufficient spare parts guarantee
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO,EPA(USA),CCC
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
6.What about the service?
1). Quick response to every inquiry.
2). Professtional and detailed answer to any of customer's questions.
3). Strict QC and in time delivery.
4). Offer all relative material for customer to know and better use the machine.
5). Periodically after service follow up, offer any necessary support if needed.
6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 20
00 working hours(whichever comes first).
7).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical
department of the manufacture.
8).The repairation or replacement for the parts should not exceed the warranty period.
9).The warranty is valid on the condition of all the terms listed in the contract was observed.
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO,EPA(USA),CCC
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
6.What about the service?
1). Quick response to every inquiry.
2). Professtional and detailed answer to any of customer's questions.
3). Strict QC and in time delivery.
4). Offer all relative material for customer to know and better use the machine.
5). Periodically after service follow up, offer any necessary support if needed.
6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 20
00 working hours(whichever comes first).
7).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical
department of the manufacture.
8).The repairation or replacement for the parts should not exceed the warranty period.
9).The warranty is valid on the condition of all the terms listed in the contract was observed.
Contact Us
Shandong Aolai Machinery Co., Ltd
Contact person : Michele chen Tel/Wechat/Whatsapp:+8613176189701Linkedin: 13325178055
Facebook: Michele chen
Email : a13176189701@hotmail.com
Похожие товары

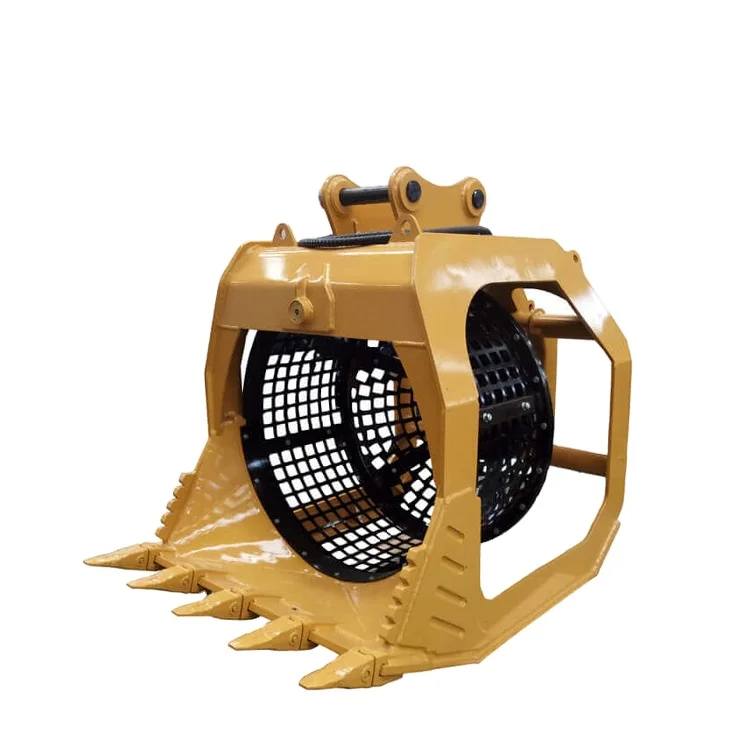

XCMG ковш для скрининга грунта
