12000 Вт чистый синусоидальный инвертор 5000 12 В/24 В/48 В/60 В/72 В/96 В преобразователь солнечной энергии светодиодный высокомощный напряжения
168,00-176,00 $

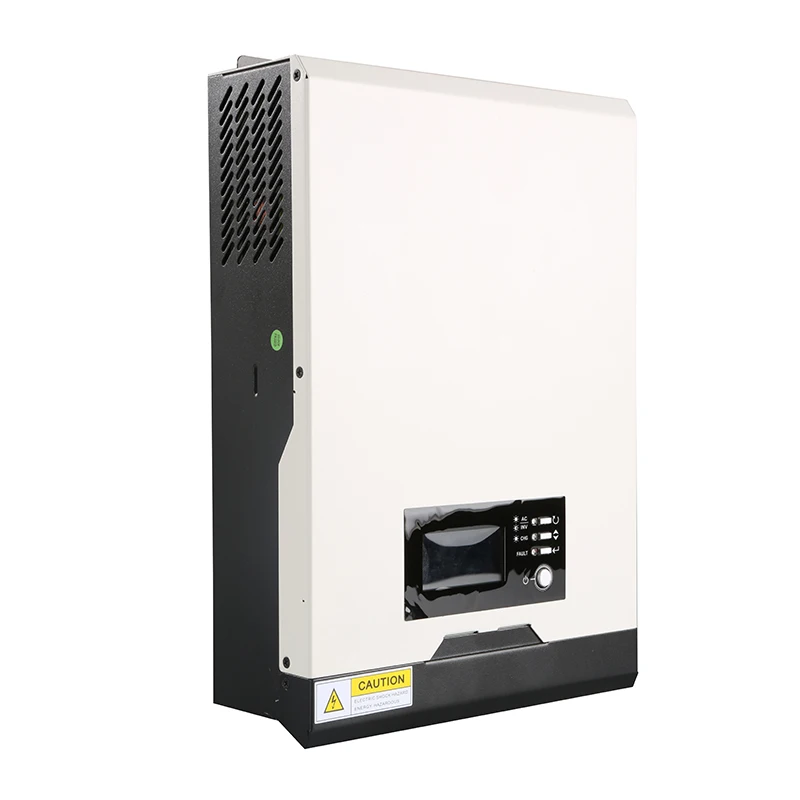

Инвертор SKE система питания Встроенный Mppt солнечный инвертор 1200VA 1200 Вт
- Категория: >>>
- Поставщик: Shenzhen Smartkey Power Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600529539871:
Описание и отзывы
Характеристики
MODEL | PH21 1000-12 | PH21 3000-24 | PH21 5000-48 | |||
RATED POWER | 1000VA/1000W | 3000VA/3000W | 5000VA/5000W | |||
INPUT | INPUT | |||||
Voltage | 230 VAC | |||||
Selectable Voltage Range | 170-280VAC(For Personal Computers);90-280VAC(For Home Appliances) | |||||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||||
OUTPUT | ||||||
AC Voltage Regulation (Batt. Mode) | 230VAC±5% | |||||
Surge Power | 2000VA | 6000VA | 1000VA | |||
Eficiency(Peak) | 90%～93% | |||||
Transfer Time | 10 ms(For Personal Computers);20 ms(For Home Appliances) | |||||
Wavefom | Pure sine wave | |||||
BATTERY | ||||||
Battery Voltage | 12 VDC | 24 VDC | 48 VDC | |||
Floating Charge Voltage | 13.5 VDC | 27 VDC | 54 VDC | |||
Overcharge Protecion | 16 VDC | 33 VDC | 63 VDC | |||
SOLAR CHARGER & AC CHARGER | ||||||
Solar Charger type | MPPT | MPPT | MPPT | |||
Maximum PV Array Open Circuit Voltage | 102 VDC | 102 VDC | 145 VDC | |||
Maximum PV Aray Power | 500 W | 1000 W | 3000 W | |||
MPP Range Operating Voltage | 17～80VDC | 30~80 VDC | 60～115 VDC | |||
Maximum Solar Charge Current | 40 A | 40 A | 60 A | |||
Maximum AC Charge Current | 20A | 25A | 60A | |||
Maximum Charge Current | 60 A | 60 A | 120 A | |||
ENVIRONMENT | ||||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||
Operating Temperature | -10℃ to 50℃ | |||||
Storage Temperature | -15℃ to 60℃ | |||||
MODEL | PH24 1000-12 | PH21 3000-24 | PH21 5000-48 |
RATED POWER | 1000VA/1000W | 1000VA/1000W | 1000VA/1000W |
Dimension DxWxH(mm) | 88x225x 320 | 100x 285x334 | 100×300×440 |
Net Weight (kg) | 4.4 | 6.5 | 9.7 |

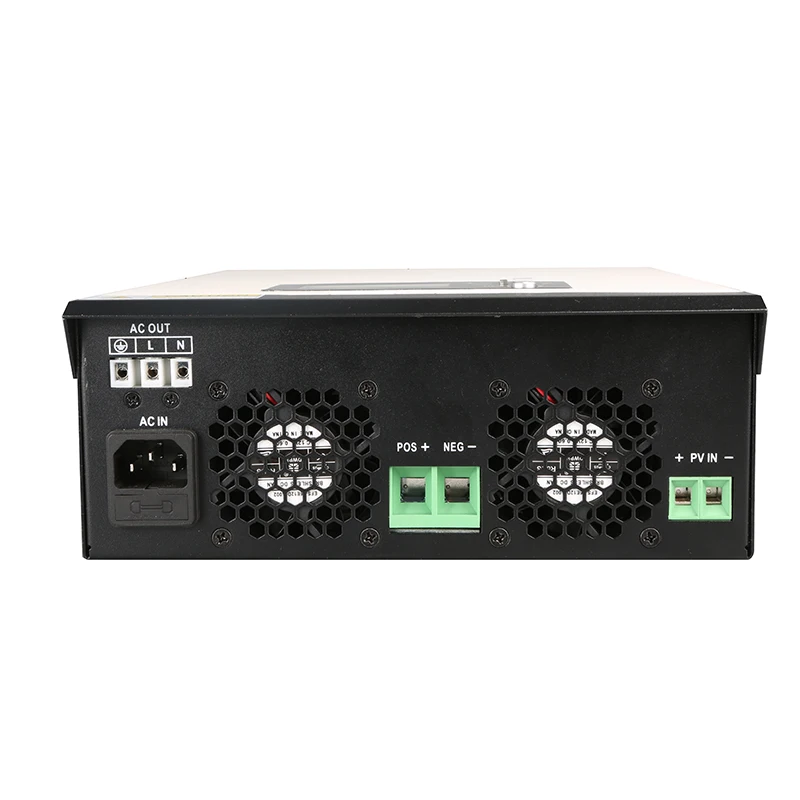

1. LCD display 2. Status indicator 3. Charging indicator 4. Fault indicator 5. Function buttons
6. Power on/off switch 7. ACinput 8. AC output 9. PV input 10. Battery input
11. Fuse 12. USB communication port 13. RS-232 communication port
1. LCD display 2. Status indicator 3. Charging indicator 4. Fault indicator 5. Function buttons
6. Power on/off switch 7. AC input 8. AC output 9. PV input 10. Battery input
11. Circuit breaker 12. USB communication port 13. RS-232 communication port
Our Services
1. OEM&ODM services acceptable.
2. Lots of cooperated agent for shipping by sea or by air.
3. 1year warrenty , if it is quality problem , we will provide the parts for free .
Little hint:
1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare
parts at a cost price.
3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional
machine.
2. Lots of cooperated agent for shipping by sea or by air.
3. 1year warrenty , if it is quality problem , we will provide the parts for free .
Little hint:
1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare
parts at a cost price.
3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional
machine.
FAQ
Q1: Why you should choose us?
---16 years Inverter and UPS experiences
---Professional team for both oversea and domestic market
--provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,and so on
Our products could pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 45-60days.
---16 years Inverter and UPS experiences
---Professional team for both oversea and domestic market
--provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,and so on
Our products could pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 45-60days.
