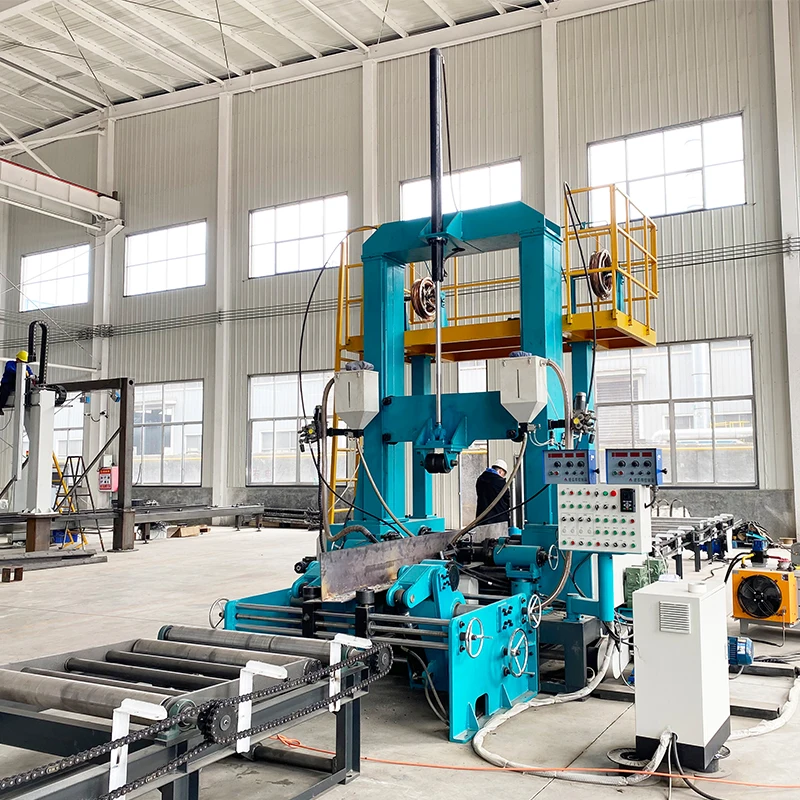

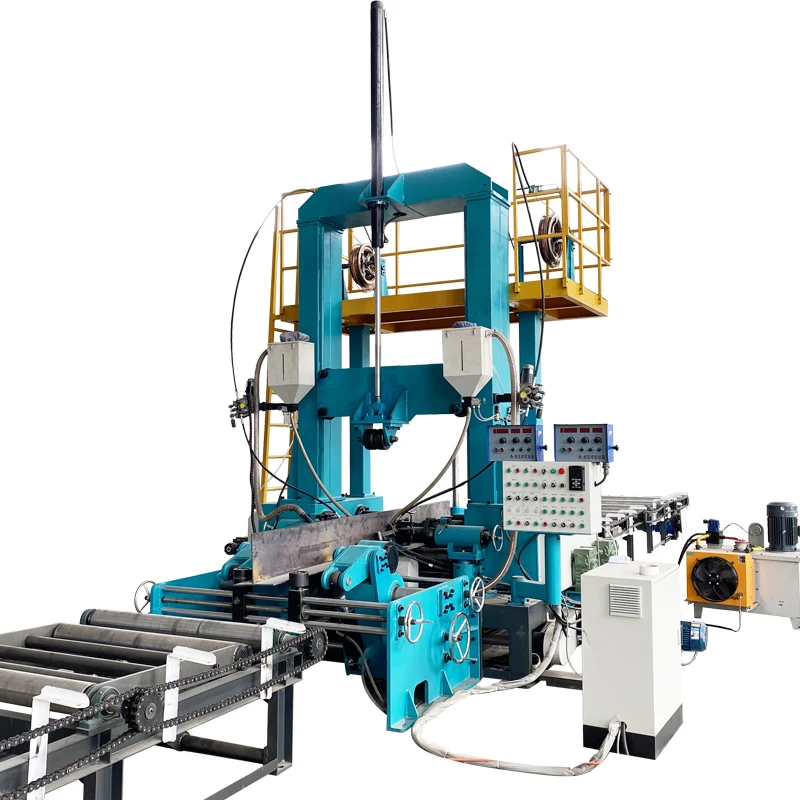

Автоматический сварочный выпрямитель H Beam с системой отслеживания швов
3 882 462,50 ₽ - 4 437 100,00 ₽
Автоматическая 3 в 1 h образная балка собрать сварки выпрямление машина
- Категория: >>>
- Поставщик: Shandong Yomi Intelligent Science And Technology Co. Ltd.
Сохранить в закладки 1600530603760:
Описание и отзывы
Характеристики
The machine is a special equipment for assembling, welding, and straightening H beam, I beam and conical I Beam.It integrates the processes completed by the three machines of assembly machine, gantry welding and straightening machine into one machine, which significantly improves production efficiency,reduces, equipment costs, saves equipment installation space, and it is the most efficient production equipment for H-beam and T-beam.
Web height | 200~2000mm |
Web thickness | 6~16mm |
Flange width | 200~800mm |
Flange thickness | 6~20mm |
Work-piece length | 12m or as user’s request |
Assembly and welding speed | 0.2~3m/min |
Main machine power | 5kW |
Roller conveyor motor power | 1.1kW*4=4.4kW |
Flux recycling machine motor power | 3*2=6kW |
Pump station power | 5.5kW |
Welding source | Huayuan1250*2 |
Above are our standard model, it can be designed and manufactured according to customer’s request.
The Details Show
1.Various kinds of welding type, it can use single arc single wire welding or single arc double wire welding according to users’ requirement; it uses submerged arc welding.
2.Double-wire flat fillet welding is used to weld on both sides at the same time, with small deformation and improved efficiency.
3.Flange Straightening Part,Correction of the auxiliary transmission idler mechanism, the left and right clamping mechanism of flange
4.PARAMETRIC INTERFACE
Using parameterized interface, it is convenient to adjust processing specifications and various public parameters
Our Advantages
(1) Small floor space
H beam traditional welding production line: the production area is more than 4500 square meters;
Yomi H/T steel assembly welding and straightening machine: the production area is more than 270 square meters, equivalent to the area occupied by a assembly machine;
Yomi H/T steel assembly welding and straightening machine: the production area is more than 270 square meters, equivalent to the area occupied by a assembly machine;
(2) Reduced labor costs
H beam traditional welding production line :1 set assembly machine, 2 sets gantry welding machines, 1 set straightening machine,total 3 sets of equipment, the continuous production personnel operation of 5-6 people (2 people of assembly machine, 2 people gantry welding machines, 1-2 people straightening machines);
Yomi H/T steel assembly welding straightening machine: personnel operation for 1-2 people;
(3) High qualified rate
H beam traditional welding production line: the qualified rate of production is about 30%;
Yomi H/T steel assembly welding straightening machine: according to the customer said production pass rate of about 90%;
(4) Low power consumption
H beam traditional welding production line :(1 assembly machine, 2 gantry welding machine, 1 straightening machine) the total power is about 250KW, calculated by working 10 hours a day, the coefficient is about 0.8. The electricity consumption is about 2000 degrees/day.
Yomi H/T steel assembly welding straightening machine: The total power is 125KW, calculated by working 10 hours a day, the coefficient is about 0.8, and the electricity consumption is about 1000 degrees/day;
H beam traditional welding production line :1 set assembly machine, 2 sets gantry welding machines, 1 set straightening machine,total 3 sets of equipment, the continuous production personnel operation of 5-6 people (2 people of assembly machine, 2 people gantry welding machines, 1-2 people straightening machines);
Yomi H/T steel assembly welding straightening machine: personnel operation for 1-2 people;
(3) High qualified rate
H beam traditional welding production line: the qualified rate of production is about 30%;
Yomi H/T steel assembly welding straightening machine: according to the customer said production pass rate of about 90%;
(4) Low power consumption
H beam traditional welding production line :(1 assembly machine, 2 gantry welding machine, 1 straightening machine) the total power is about 250KW, calculated by working 10 hours a day, the coefficient is about 0.8. The electricity consumption is about 2000 degrees/day.
Yomi H/T steel assembly welding straightening machine: The total power is 125KW, calculated by working 10 hours a day, the coefficient is about 0.8, and the electricity consumption is about 1000 degrees/day;
(5) Without welding arc plate
H beam traditional welding production line: the traditional production line needs to add arc plate, calculated according to the annual output of 10,000 tons, the arc plate generated by the material, welding (wire) connection, grinding (piece), labor, etc., is expected to cost about 300,000 yuan;
Yomi H/T steel assembly welding straightening machine: skilled operation, without arc plate welding head;
(6) Reduce rotating times, high production efficiency
H beam traditional welding production line: traditional production line (1 assembly machine, 2 gantry welding machine, 1 straightening machine), each H beam lifting about 8 times (assembly 4 times,gantry welding 4 times, straightening many times), waste time, efficiency is greatly reduced:
Yomi H/T steel assembly welding and straightening machine: the production efficiency is higher than the traditional production line (1 assembly machine, 2 gantry welding machine, 1 straightening machine), reduce the lifting times, only need 2 times;
(7) Save hoist driving
H beam traditional welding production line: about 4 hoist driving are needed, resulting in fighting or insufficient driving;
Yomi H/T steel assembly welding straightening machine: use 1 hoist driving, save 3 hoist driving;
(8) Advanced equipment for the production of t-beam one-time forming in the industry
H beam traditional welding production line :T beam is the use of H beam in the center of the web with plasma or flame and other equipment hot cutting, cutting process deformation, difficult to correct, the rejection rate is very high, resulting in high cost;
Yomi H/T assembly welding straightening machine: a molding without two times, save more materials, for enterprises to create higher benefits:
H beam traditional welding production line: the traditional production line needs to add arc plate, calculated according to the annual output of 10,000 tons, the arc plate generated by the material, welding (wire) connection, grinding (piece), labor, etc., is expected to cost about 300,000 yuan;
Yomi H/T steel assembly welding straightening machine: skilled operation, without arc plate welding head;
(6) Reduce rotating times, high production efficiency
H beam traditional welding production line: traditional production line (1 assembly machine, 2 gantry welding machine, 1 straightening machine), each H beam lifting about 8 times (assembly 4 times,gantry welding 4 times, straightening many times), waste time, efficiency is greatly reduced:
Yomi H/T steel assembly welding and straightening machine: the production efficiency is higher than the traditional production line (1 assembly machine, 2 gantry welding machine, 1 straightening machine), reduce the lifting times, only need 2 times;
(7) Save hoist driving
H beam traditional welding production line: about 4 hoist driving are needed, resulting in fighting or insufficient driving;
Yomi H/T steel assembly welding straightening machine: use 1 hoist driving, save 3 hoist driving;
(8) Advanced equipment for the production of t-beam one-time forming in the industry
H beam traditional welding production line :T beam is the use of H beam in the center of the web with plasma or flame and other equipment hot cutting, cutting process deformation, difficult to correct, the rejection rate is very high, resulting in high cost;
Yomi H/T assembly welding straightening machine: a molding without two times, save more materials, for enterprises to create higher benefits:
(10) Different straightening methods and times
H beam traditional welding production line: it belongs to cold straightening, multiple straightening, about 15mm/ time, for example, 16mm flange, need straightening about 10 times;
Yomi H/T steel assembly welding straightening machine: belongs to heat straightening, forming at one time;
(11) Different straightening thickness
H beam traditional welding production line: 40 straightening machine is used in general industry, which belongs to cold straightening. The maximum thickness of straightening flange is 18mm-20mm.
Yomi H/T steel assembly welding straightening machine: belongs to the heat straightening, straightening thickness 40mm;
(12) Automatic model adjustment
H beam traditional welding production line: the flange and web need to be manually adjusted when the assembly machine and the straightening machine work, which wastes time. For example, when the assembly machine works, the equipment needs to be adjusted when H beam of different specifications is replaced every time, and the normal skilled operators also need about half an hour.
Yomi H/T steel assembly welding straightening machine: automatic model adjustment, web, flange automatic reference alignment, convenient and fast;
(13) High melting depth
H beam traditional welding production line: web 14mm or more need to bevel;
H/T steel assembly welding straightening machine: it belongs to hot welding, the company promises that the web below 20mm is free of groove welding;
(14) Workpiece walking
H beam traditional welding production line :(gantry welding) for equipment walking, need to be removed from the equipment into the component before welding, efficiency reduced;
H/T steel assembly welding straightening machine: workpiece walking, equipment fixed, equipment continuous work, workpiece uninterrupted welding, efficiency increased by about 20%;
H beam traditional welding production line: it belongs to cold straightening, multiple straightening, about 15mm/ time, for example, 16mm flange, need straightening about 10 times;
Yomi H/T steel assembly welding straightening machine: belongs to heat straightening, forming at one time;
(11) Different straightening thickness
H beam traditional welding production line: 40 straightening machine is used in general industry, which belongs to cold straightening. The maximum thickness of straightening flange is 18mm-20mm.
Yomi H/T steel assembly welding straightening machine: belongs to the heat straightening, straightening thickness 40mm;
(12) Automatic model adjustment
H beam traditional welding production line: the flange and web need to be manually adjusted when the assembly machine and the straightening machine work, which wastes time. For example, when the assembly machine works, the equipment needs to be adjusted when H beam of different specifications is replaced every time, and the normal skilled operators also need about half an hour.
Yomi H/T steel assembly welding straightening machine: automatic model adjustment, web, flange automatic reference alignment, convenient and fast;
(13) High melting depth
H beam traditional welding production line: web 14mm or more need to bevel;
H/T steel assembly welding straightening machine: it belongs to hot welding, the company promises that the web below 20mm is free of groove welding;
(14) Workpiece walking
H beam traditional welding production line :(gantry welding) for equipment walking, need to be removed from the equipment into the component before welding, efficiency reduced;
H/T steel assembly welding straightening machine: workpiece walking, equipment fixed, equipment continuous work, workpiece uninterrupted welding, efficiency increased by about 20%;
(15) Investment expenses
H beam traditional welding production line: need to purchase gantry welding guide rail, welding cable, W frame and so on, about 8000$ dollars;
H/T steel assembly welding straightening machine: access to the power supply can be used, no extra cost, convenient and fast, cost saving;
H beam traditional welding production line: need to purchase gantry welding guide rail, welding cable, W frame and so on, about 8000$ dollars;
H/T steel assembly welding straightening machine: access to the power supply can be used, no extra cost, convenient and fast, cost saving;

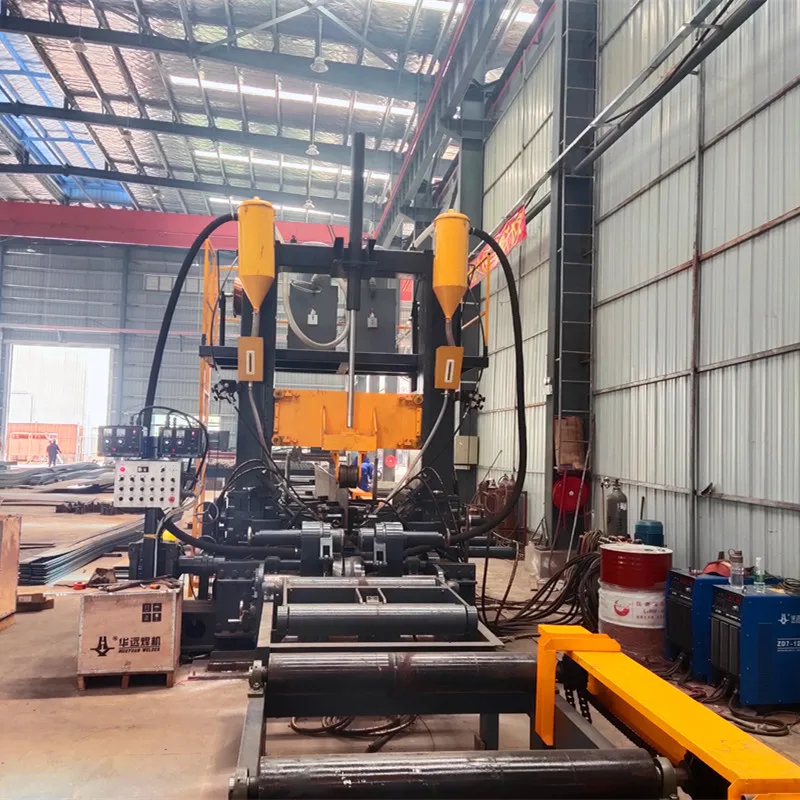

Customer Site Display

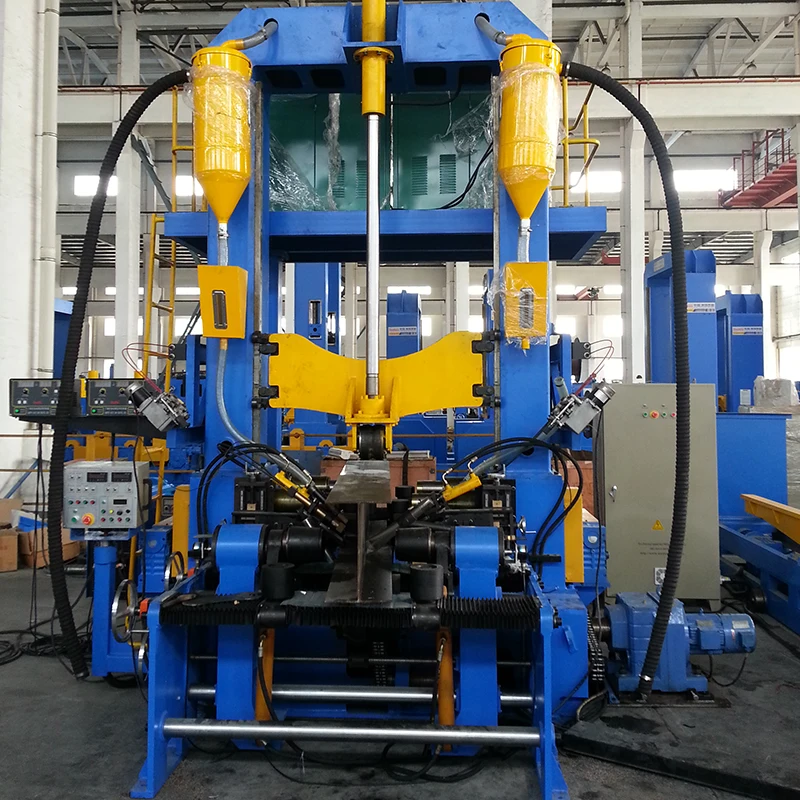

T/H Beam assembling, welding, and straightening three in one Machine
Company Introduction
Shandong Yomi Intelligent Science and technology Co., Ltd is an Industrial Leader in the Cutting & Welding Field. We target to build the Integrated Supply Chain with High Quality Products at Competitive Prices and offer a complete After-Sales Service in the Local Market. We cater for all Steel Fabricators, Heavy Equipment Manufacturers as well as Small Workshops and Engineering Companies, etc. We have established overseas warehouses in South Africa. This is our first overseas warehouse. More warehouses will be established around the world. In addition to the warehouse, it is also equipped with local after-sales service personnel who have been trained in our factory. Inventory products + local services + integrated supply chain will be our main business method.
The Exhibition
FAQ
1.Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2.What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3.What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
4.What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
5.What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
6.What's the leading time after payment?
The leading time is according to your ordered products and quantity.Gantry cutting machine need 15 days ;pipe cutting machine need 30 days ;h beam cutting machine need 60 days .It should be confirmed by the communication with our sales staff.
7.What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement
2.What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3.What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
4.What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
5.What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
6.What's the leading time after payment?
The leading time is according to your ordered products and quantity.Gantry cutting machine need 15 days ;pipe cutting machine need 30 days ;h beam cutting machine need 60 days .It should be confirmed by the communication with our sales staff.
7.What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement
