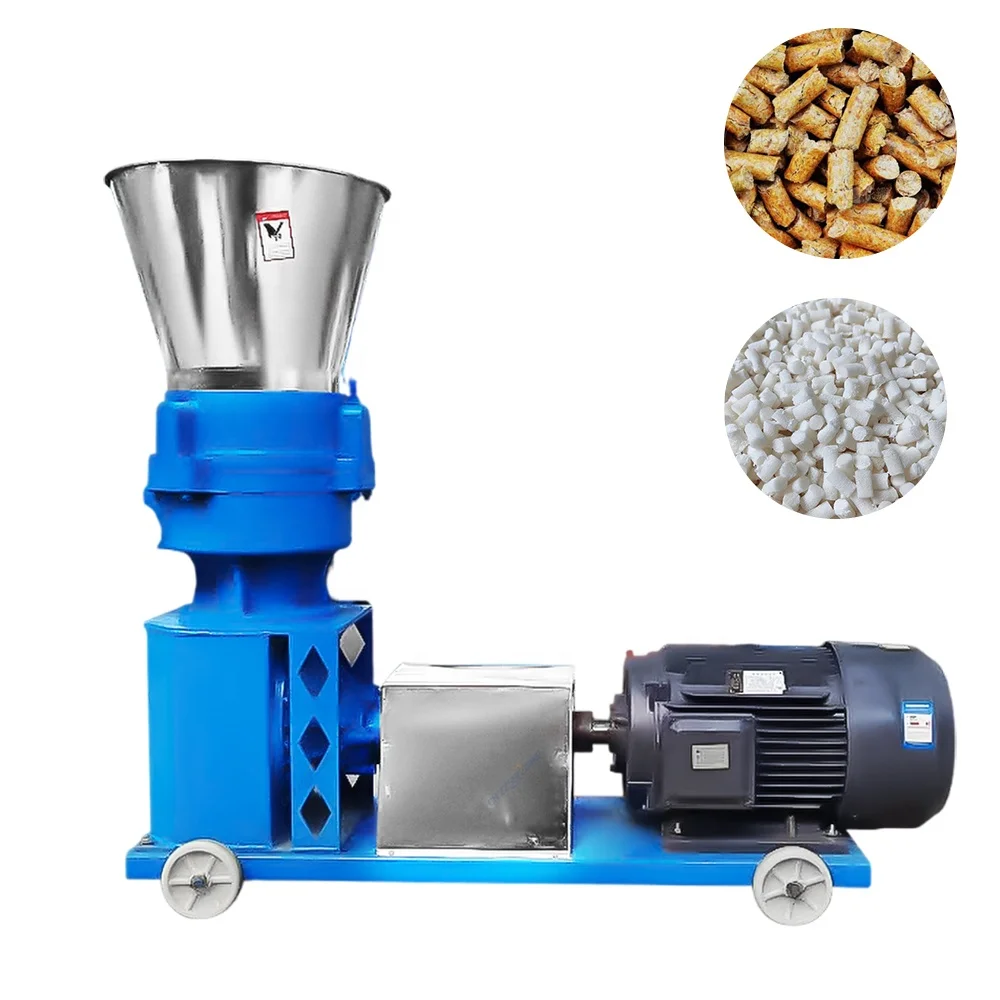

Home Use Diesel Engine Cattle Duck Feed Pellet Mill Cow Dung Manure Fertilizer Pellet Machine Price

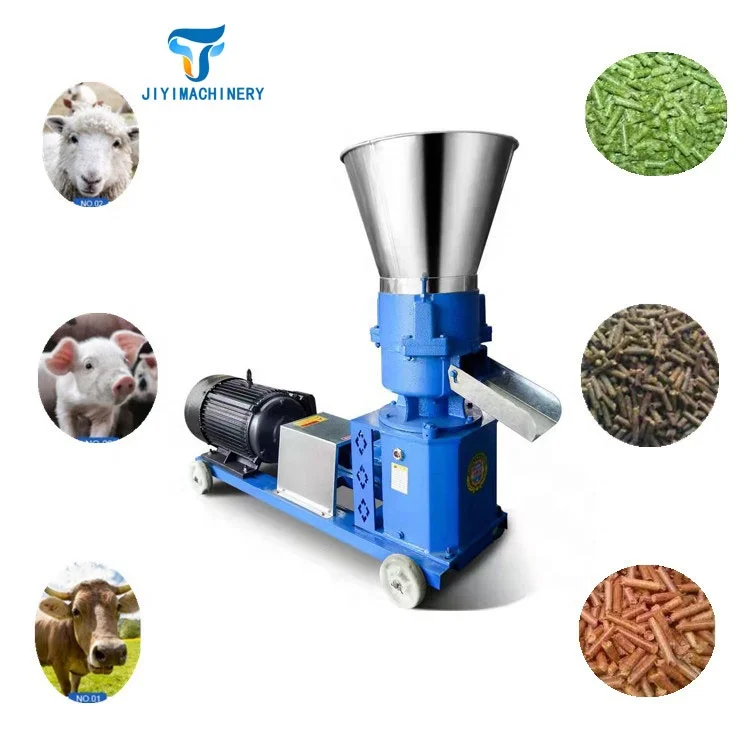

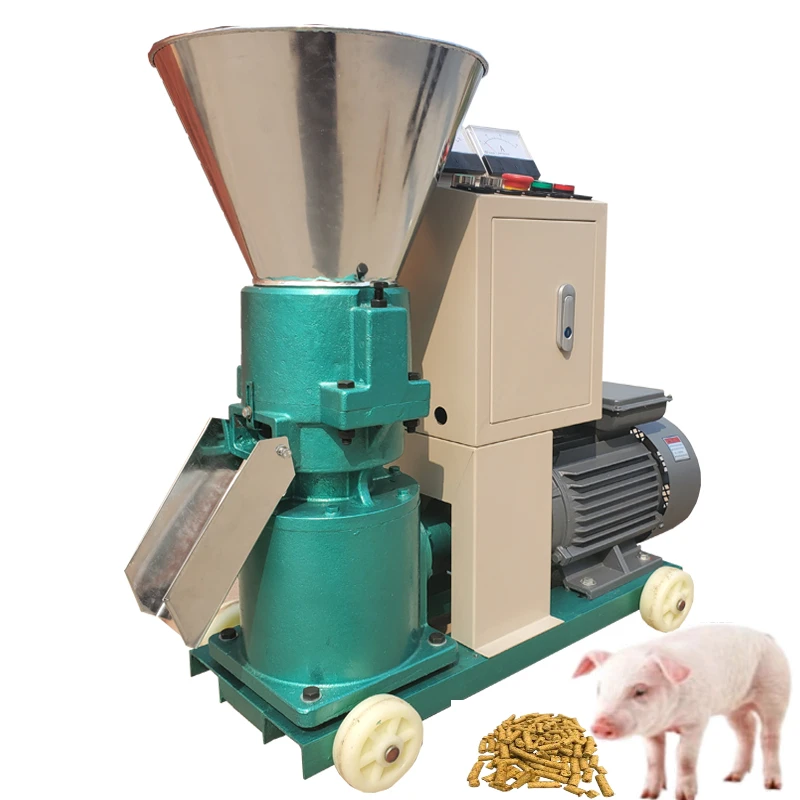

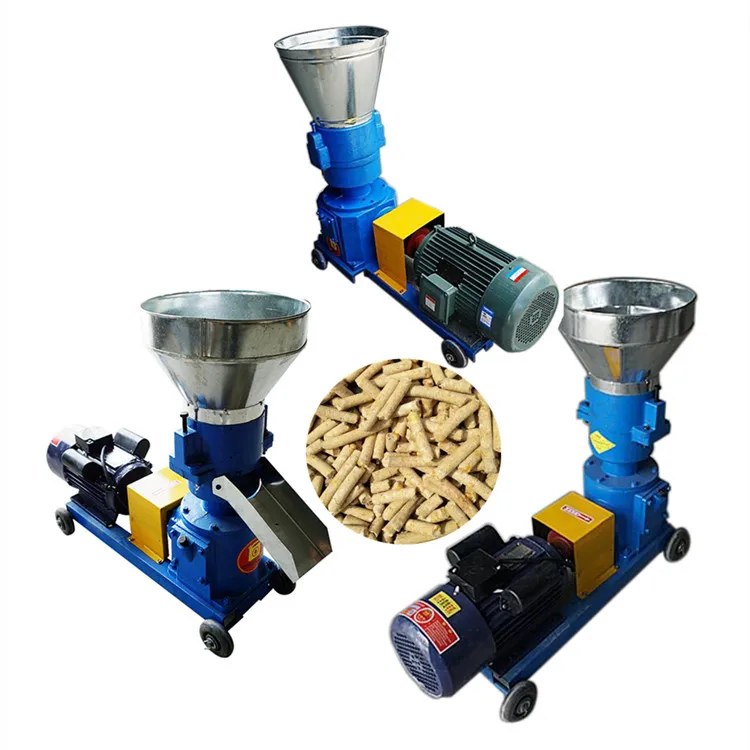

Production description-------animal feed pellet mill
Main parameter-------animal feed pellet mill
Model | Power (kw) | Capacity(kg/h)
| Weight (kg) | Package size(cm) |
PM-120B | 3 | 75-100 | 80/100 | 75*32*51 |
PM-150B | 4 | 100-200 | 95/115 | 75*35*65 |
PM-200B | 7.5 | 200-300 | 240/270 | 100*43*95 |
PM-230B | 11 | 300-400 | 290/320 | 114*47*97 |
PM-260B | 15 | 400-600 | 330/380 | 120*50*107 |
PM-300B | 22 | 600-800 | 410/450 | 127*52*107 |
PM-360B | 22 | 800-900 | 470/500 | 127*52*107 |
PM-400B | 30 | 900-1100 | 630/660 | 147*60*115 |

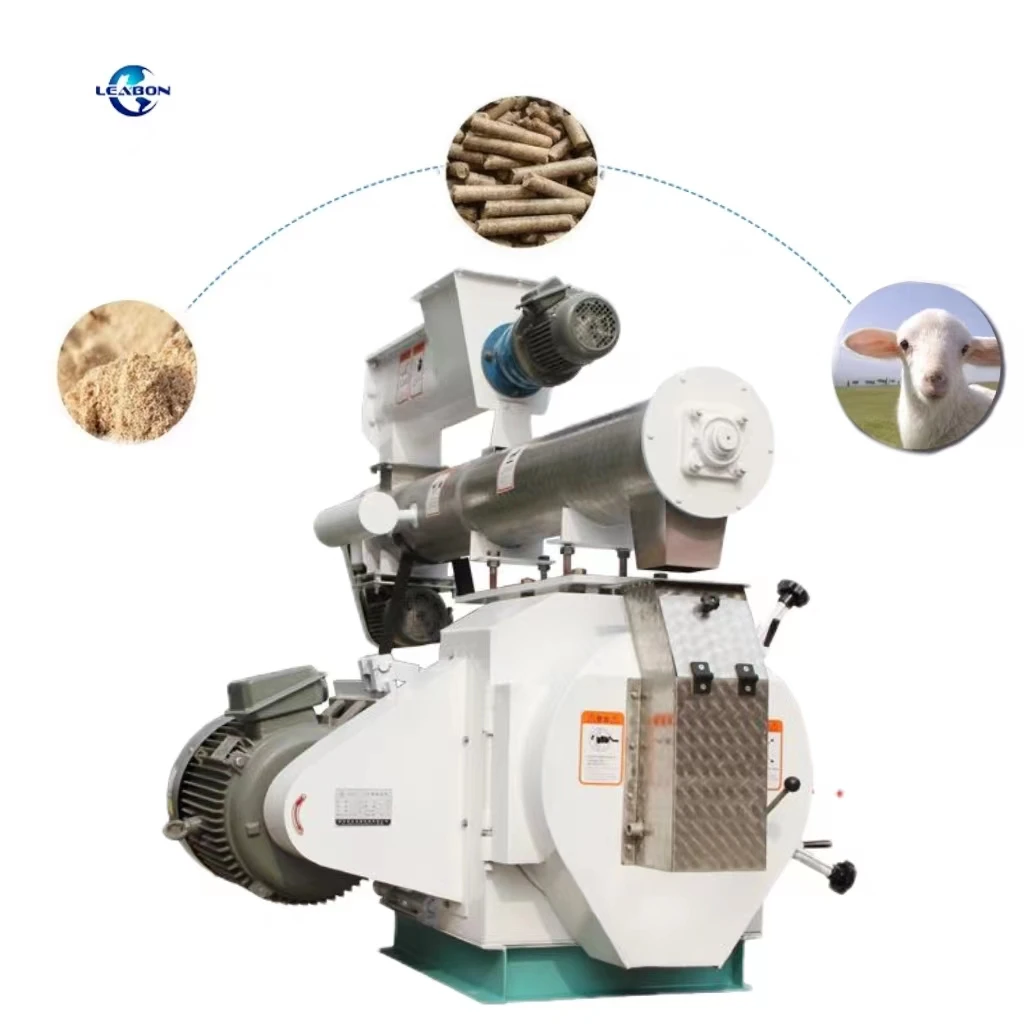

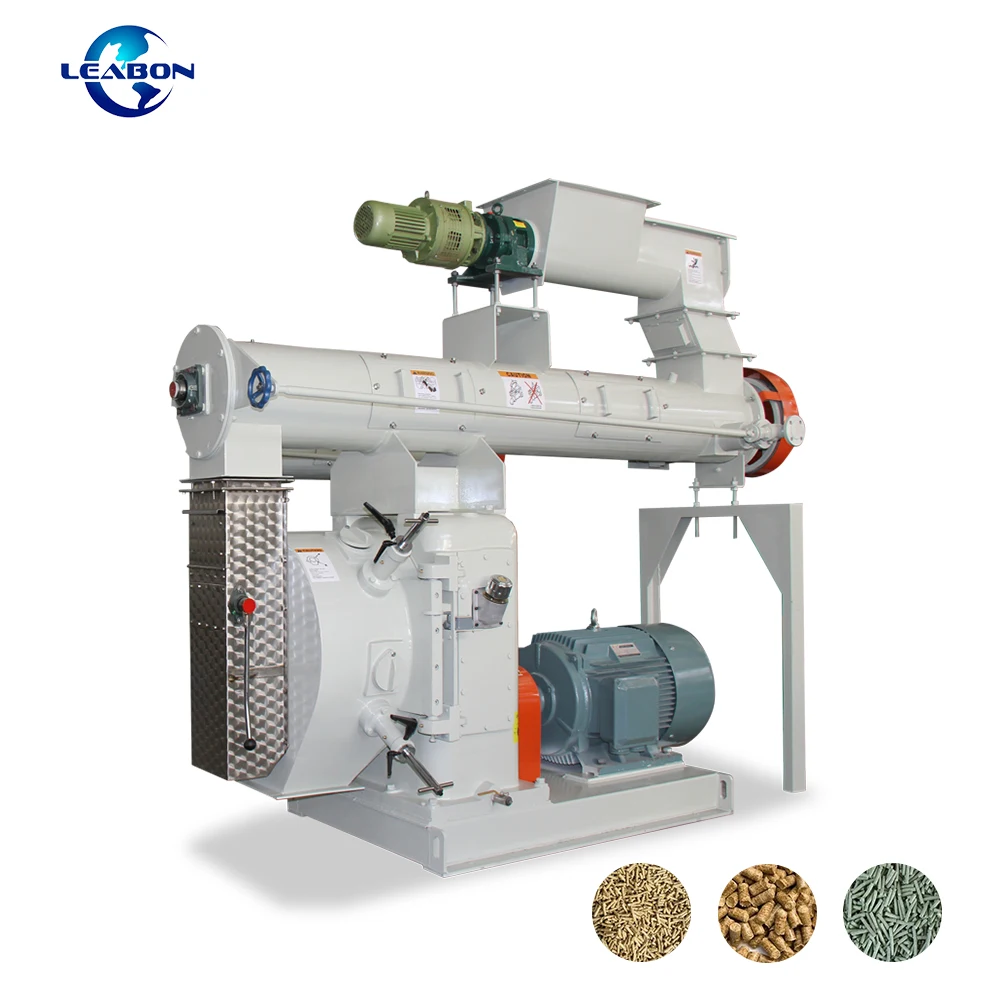

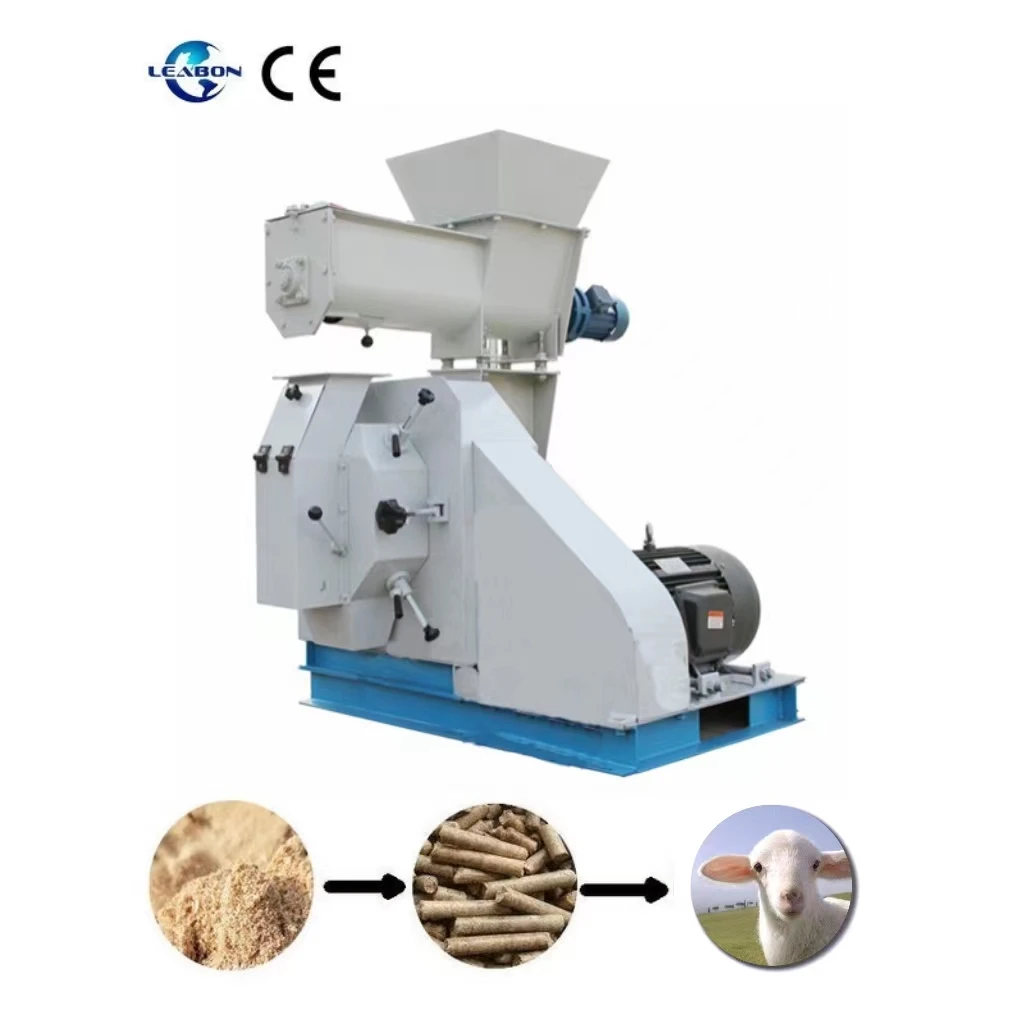

Ring Die Feed Pellet Machine
1.CM Series
Parameter/Model | CM-25A | CM-25B | CM-30B |
Output(kg/h) | 1000-1200 | 1000-1500 | 1500-2000 |
Power (kw) | 22 | 22 | 30 |
Feeding motor(kw) | / | 0.75 | 0.75 |
Revolving Speed of ring die (r/min) | 306 | 306 | 330 |
Inside diameter of ring die(mm) | 250 | 250 | 304 |
Pellet diameter(mm) | Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8 | ||
Dimension(m) | 1.1*1.15*1.25 | 1.1*1.15*1.25 | 1.35*1.3*1.6 |
Weight(kg) | 625 | 710 | 960 |

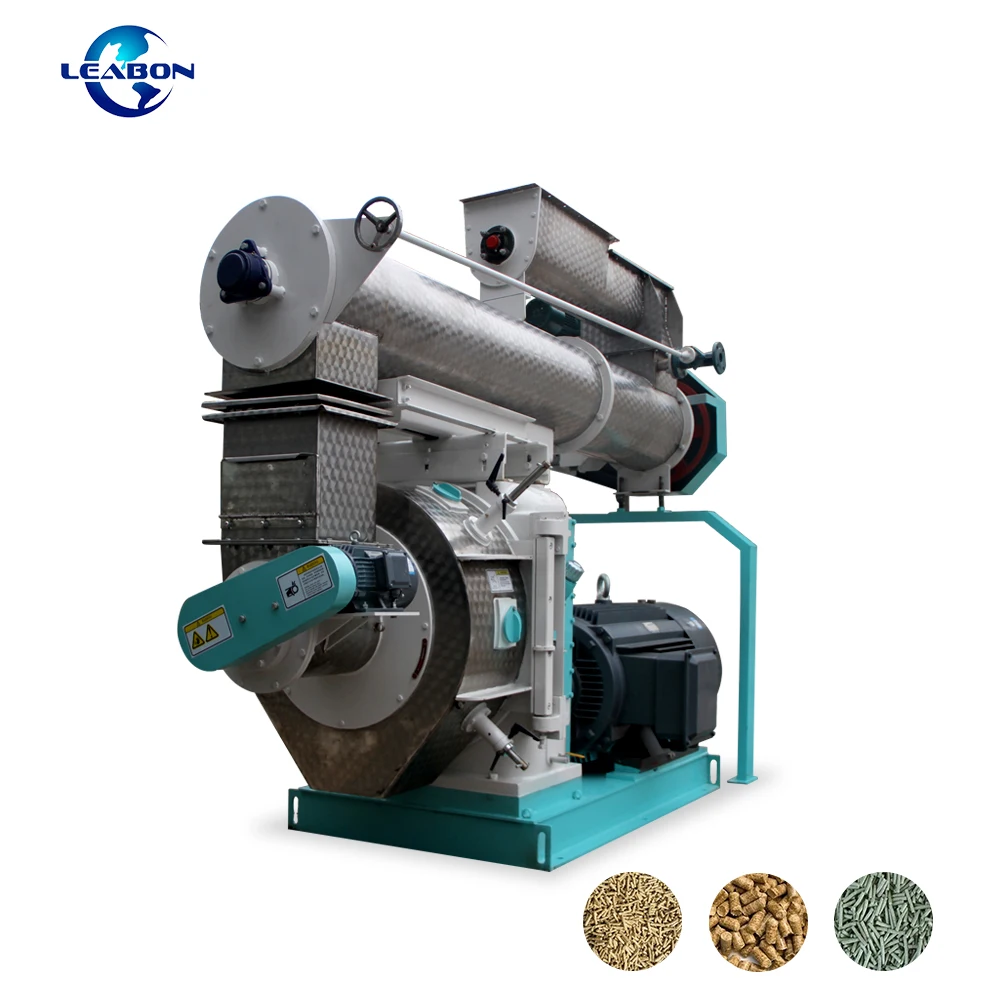

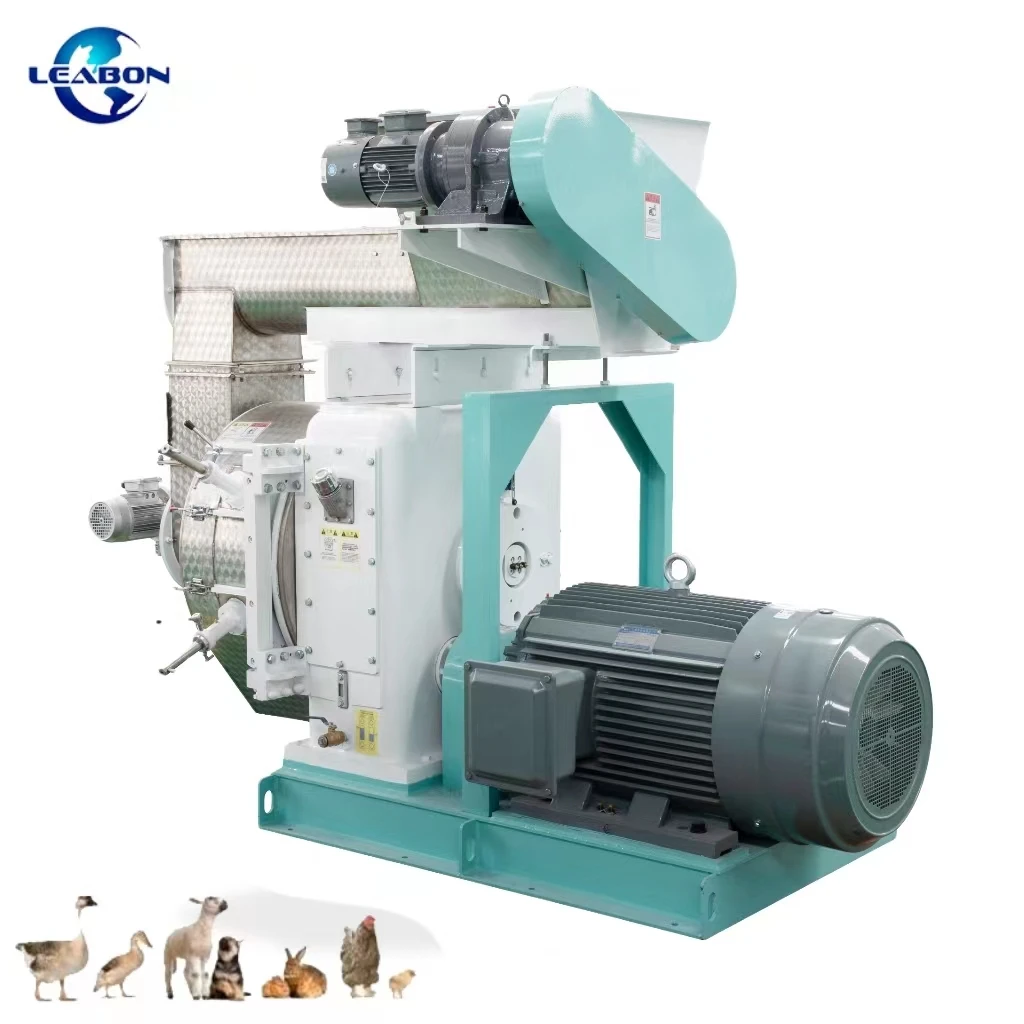

2.SZLH Series
Model | Main power | Out-put | Power of Conditioner | Power of screw feeder | In-side of rind die |
SZLH320 | 37 | 2-3 | 2.2 | 0.75 | 320 |
SZLH350 | 55 | 3-5 | 3 | 0.75 | 350 |
SZLH400 | 75/90 | 3-10 | 5.5 | 1.5 | 400 |
SZLH420 | 90/110 | 3-14 | 5.5 | 1.5 | 420 |
SZLH508 | 110/132/160 | 6-15 | 7.5 | 2.2 | 508 |
SZLH558 | 180/200 | 10-20 | 11 | 2.2 | 558 |
SZLH678 | 220/250 | 25-30 | 18.5 | 3 | 678 |
Working principle---------animal feed pellet mill
The main shaft and flat die in the effect of friction drive the compression roller rotating itself. The temperature will rise between the compression roller and mould disk, then the high temperature will ripen the starch, make the protein denaturation and solidification. Finally the raw materials will discharged from the mould holes. Then the pellets can be get out of the machine through the throwing disk. We can control the length of the pellets according to adjust the angle of cutting knives.
Our feed pellet mill can produce biomass or feedstuff pellet well. It may also be applicable to biological fertilizer, organic manure as well as fertilizer for low-temperature granulation.
The raw material: corn, soybean, fishmeal, grass, straw, etc.
The moisture of raw material: between 12-20%
The size of raw materials: Less than 5mm
Final feed pellet-------------------------------animal feed pellet mill
Pellet density: 1100-1200kg/m³
Pellet moisture: 10%
Pellet diameter: 1.5-20mm
Pellet length: adjustable

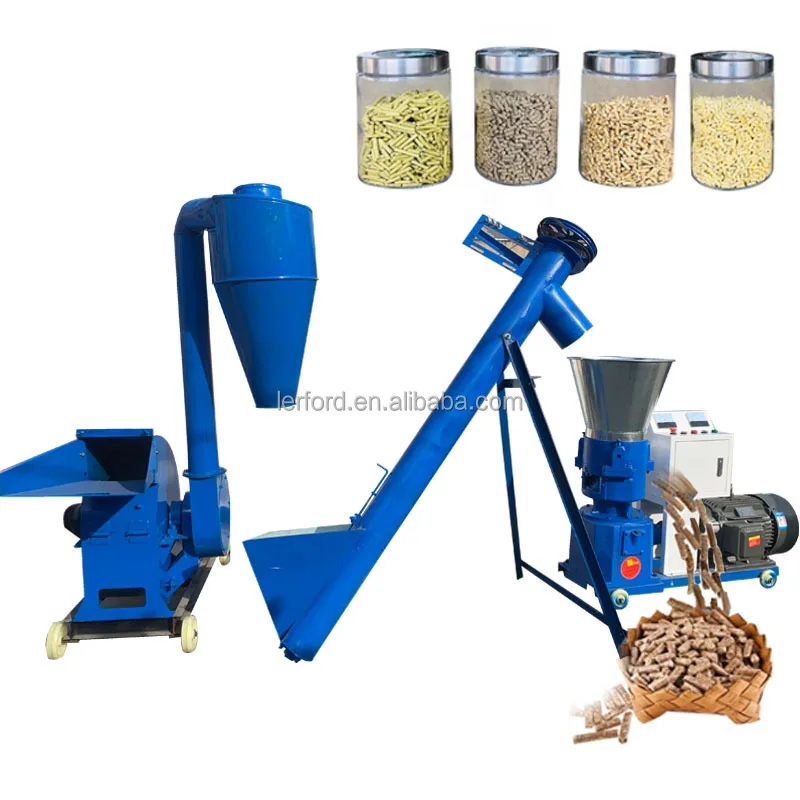

Complete Line-------Animal Feed Pellet Making Line
Packing--------animal feed pellet mill
1. According to specific size of each equipment, we twine thick plastic coating for each machine.
2. Tight the equipment in the truck without space to ensure no rubbing during the transportation.
3. High density fiberboard,wooden case
Zhengzhou Leabon Import and Export Trading Co., Ltd is professional Supplier for pellet machine, briquette machine, pellet stove, wood crusher, sawdust dryer, and Pellet making line, briquette making line, filtration equipment,combining development, design, manufacture, sales and services. It enjoys professional production technology, superior manufacturing equipment and good testing means. our company have established many oversea clients. You are welcomed to vist our company and know the products. We are very pleased to provide you sincere service.
