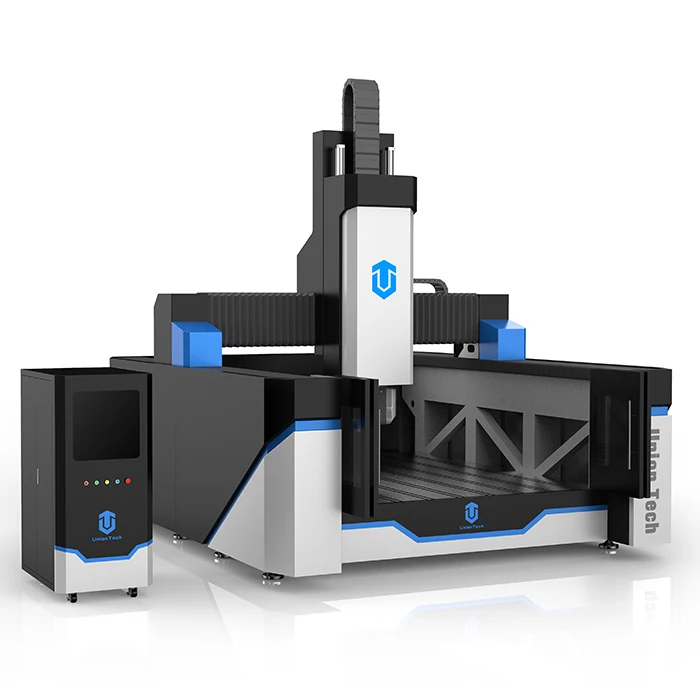

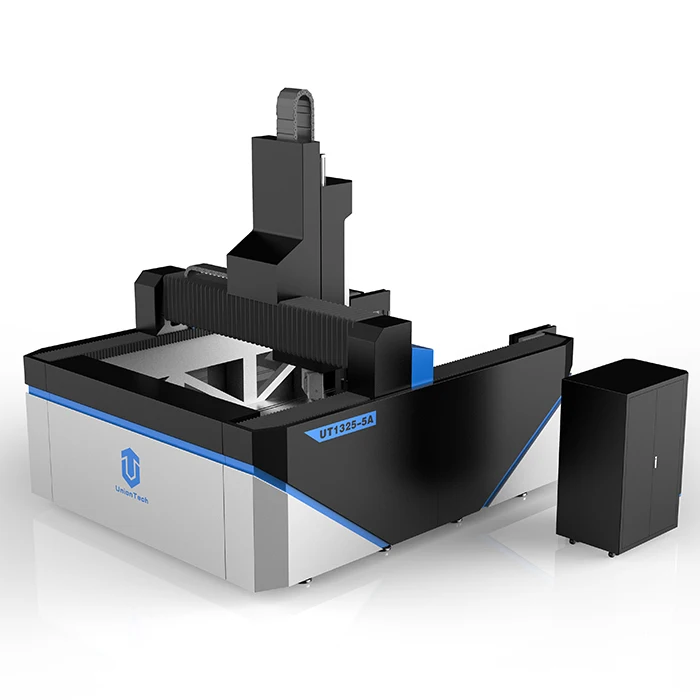

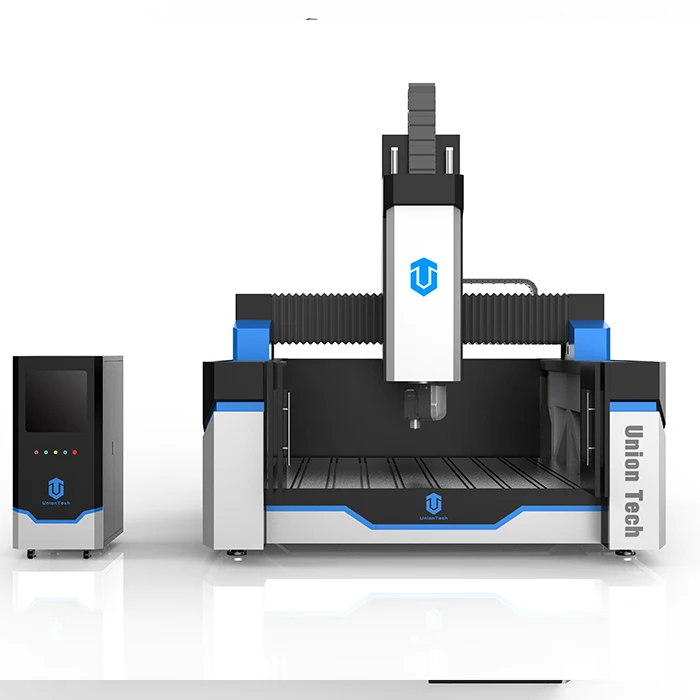

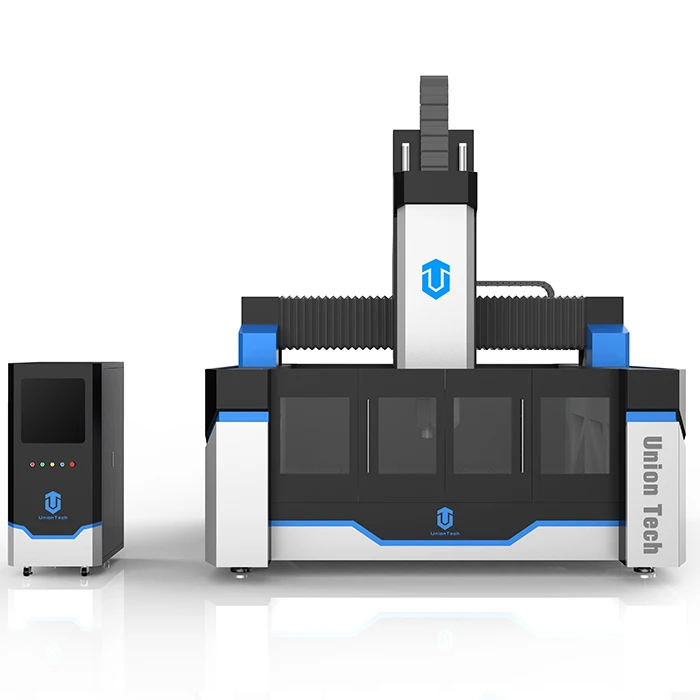

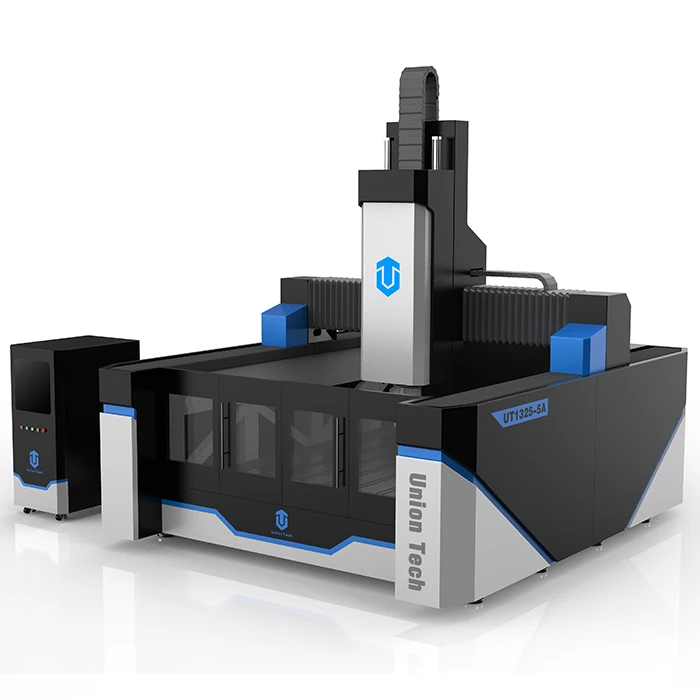

Станок с ЧПУ EPS из пенополистирола 3d станок для резки фрезерная ось cnc eps Форма фрезерование

Описание и отзывы

Характеристики

  Features

• Effective working area : 1300*2500*1200mm, Z axis travel can increase to 1.5 meters, large format, suitable for large-scale three dimensional surface protection.


• Italy Hiteco brand 5 axis head. ORBITAL JQX 100.


• Japan YASKAWA servo driver 1.5KW


• Taiwan SYNTEC 220MA-5 control system


• Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel


• Double Taiwan HIWIN #35 Linear guide for Y axis one side,total 4pcs #35 linear guide for Y axis.


• X, Z axis Taiwan HIWIN #35 linear guide .


• Taiwan TBI ball screw with high precision


• Dust hood for axis,dust collect hood and pipe for dust collector


• Heavy duty gantry and structure, 12mm thickness steel

  Parameters

  Machine Details

Introduction of the 5 axis head:

• Standard Servo motors: Hiteco Axes Motors


  B Axis stall / max torque: 320Nm; 570Nm




  C Axis stall / max torque: 320Nm; 570Nm




  Servo motor encoder: Absolute




  Gear box: Harmonic Drive




  Axis positioning accuracy: 60 arcsec; 60 arcsec




  B Axes rotation ±185°




  C Axes rotation ±320°









  Direct Axis encoder: no




  Axes Brakes: no




•


  Available electrospindle




  Taper HSK F63




  Power 10kW







  Liquid cooling


  Max RPM 24.000




  Rated RPM: 12.000




  Applications

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Ideal for automobile mold industry, suitable for EPS foam, casting wood mold, automobile

interior decoration, engineering plastic and other non-metal materials

  Hot Products

  The Factory To Show

Jinan UnionTech Machinery Co., Ltd. is located in Jinan City, Shandong Province. We have always been devoted to the research and manufacture of CNC machines. We have R & D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in Woodworking, Advertising, Model, Electricity, CAD/CAM Industrial Models, Clothing, Package Printing, Marking, Laser Sealing and so on. We can offer you high quality products with the competitive price. Our products got the CE certificate. Our main products are robot arm CNC Routers, 5 axis CNC router, Laser Engraving and Cutting Machines, Fiber Laser Cutting Machines, Plasma Metal Cutting machines and so on. With advanced technology, high quality, reasonable price and perfect post-sales service, our products have attained favorable comments among other our clients and our business has developed rapidly. Our products are exported worldwide, including Southeast, the Middle East, Africa, Europe and the U.S.A. We are looking forward to establishing relationships with you in the near future.

  Customer Photo

   Product Process

  Certificate Showing

   Packing and delivery

  RAQ

Q1. Delivery time of CNC router machine?
