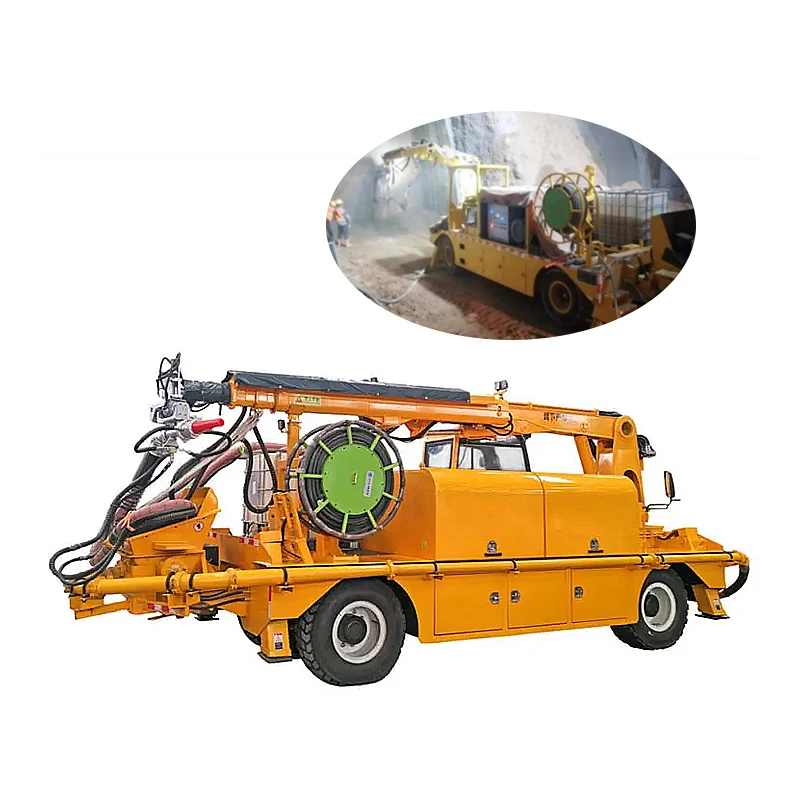

High efficiency ML-3015A Truck Mounted wet Shotcrete Robot shotcrete concrete pump machine for Tunnel Construction


mobile/wechat/whatsapp 86-15866001919


Choose MINLE as partner,let us make every effort to support your custruction works!


shotcrete pump truck


MINLE ML-3015A truck mounted wet shotcrete machine is an advanced, reliable and intelligent wet shotcrete machine. truck mounted wet shotcrete machine that is continuously upgraded and optimized in combination with the advantages of domestic and foreign products. With Large spraying capacity, high operating efficiency, good spraying effect, flexible and convenient control, strong self-ability, it widely used in tunnels, culverts, subways, slopes and other projects.








Truck mounted wet shotcrete machine Advantages


1. A dedicated off-road chassis, four-wheel drive, four-wheel braking, four-wheel steering (crab, centripetal, front, and rear wheels are four steering modes), good maneuverability, small turning radius, suitable for narrow and complex road conditions.
Open cab with wide view and two-way driving. It adopts the imported carro axle of Italy Carraro, the hydrostatic system is used for walking, and the main pump and motor of PMP travel in Italy.





2. The manipulator has a large spray range, many degrees of freedom, flexible remote control operation, good spray flatness, less rebound, high spray efficiency, good construction quality, stable structure, safe and reliable, and smooth movement.





3.The accelerating agent adding system adopts screw pump, which has large flow, long life and good reliability. According to the preset ratio, the amount of admixture is automatically consistent with the concrete pumping output, and can be monitored and adjusted in real time through the industrial control screen or remote control.





4.The electrical system is reliable and durable. Components are imported from domestic and foreign famous brand products.
All spray operations can be operated by one person on the remote control.



5.It adopts wireless remote control, which is convenient and flexible. It is equipped with a lead cable of 80m, which is retracted by a cable drum driven by a hydraulic motor.
It is driven by a motor during normal spray construction. In the case of power interruption, the power of the diesel engine can also be used to make the pumping system work for a short time, and the injection robot can realize various operations such as collecting and releasing the robot and cleaning the pump at a slow speed.








wet shotcrete machine specification:
































































































































































































































overall parameterItemUnitML-3015A Specification
Total weightKg15200
Dimensions(L×w×h)mm7900*2500*3200
Chassis parametersDiesel engineModel YCD4T33T6-115
 powerKw/rpm85kw/2400rpm
 Emission Standards III
Pumping systemDrive method Hydrostatic transmission, four-wheel drive
Steering method Four-wheel steering, two-way driving
Brake system Oil brake
Gradeability%> 40
Turning radiusm6
Driving speedkm/h>17
powerKw55
Max.capacitym3/h30
Aggregate sizemm0-10,Max16
Concrete slumpcm120-200
Concrete delivery pressureMPa7.5
Concrete cylinder bore × strokemmφ180x1000
Hopper capacitym30.35
Feeding heightm1.5
Robot parametersMaximum working rangeupm15
 forwardm13
 widthm26
Big Boom swing angle°270°
Big Boom pitch range°0- 70 °
 Small Boom pitch range°0- 70 °
Small boom Telescopic rangem2x2.2
Nozzle seat axial rotation range°360
Nozzle seat axial swing range°240
Nozzle deflection angle x brushing 8°x360°
Operation method remote control
Delivery pipe diametermm90
Accelerator pumpmodel SN02-24
type Screw
Drive method Hydraulic motor + electric ratio
Max.capacityL/h800
Maximum delivery pressureBar24
Electrical SystemWorking voltageV380/50Hz
control method Construction machinery dedicated controller + professional industrial control screen display
Cable specifications, lengthm(3*35+1)x80
Drive method of cable drum hydraulic

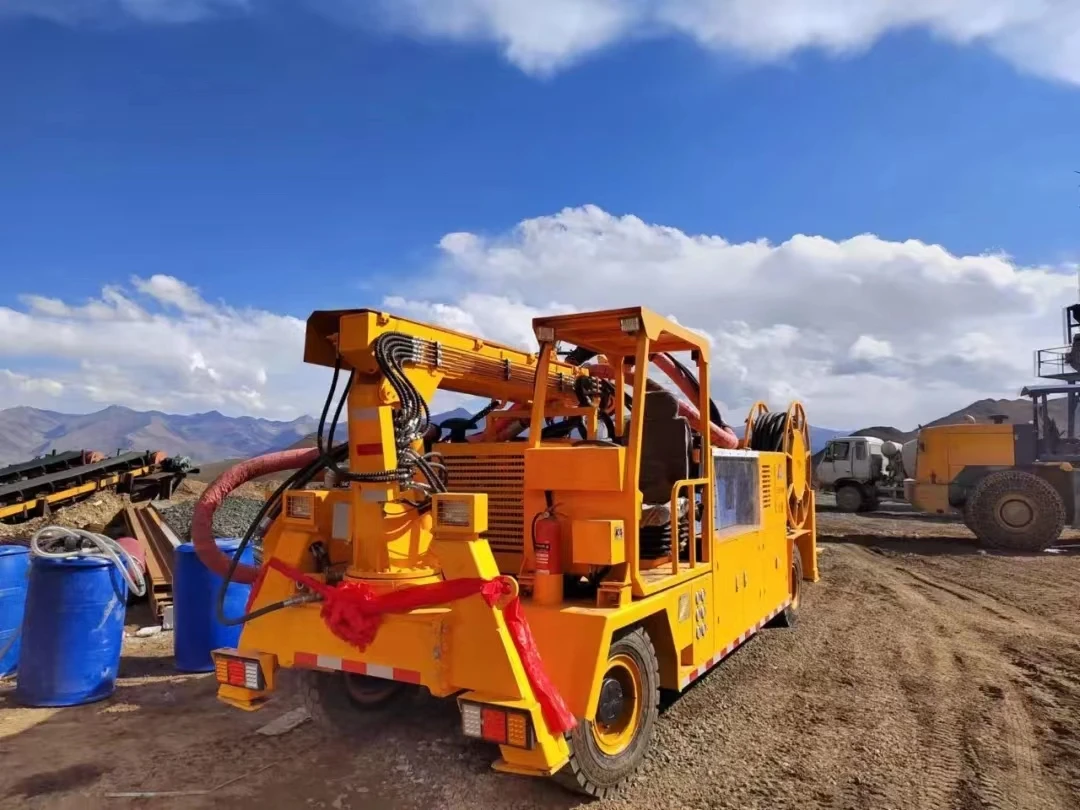

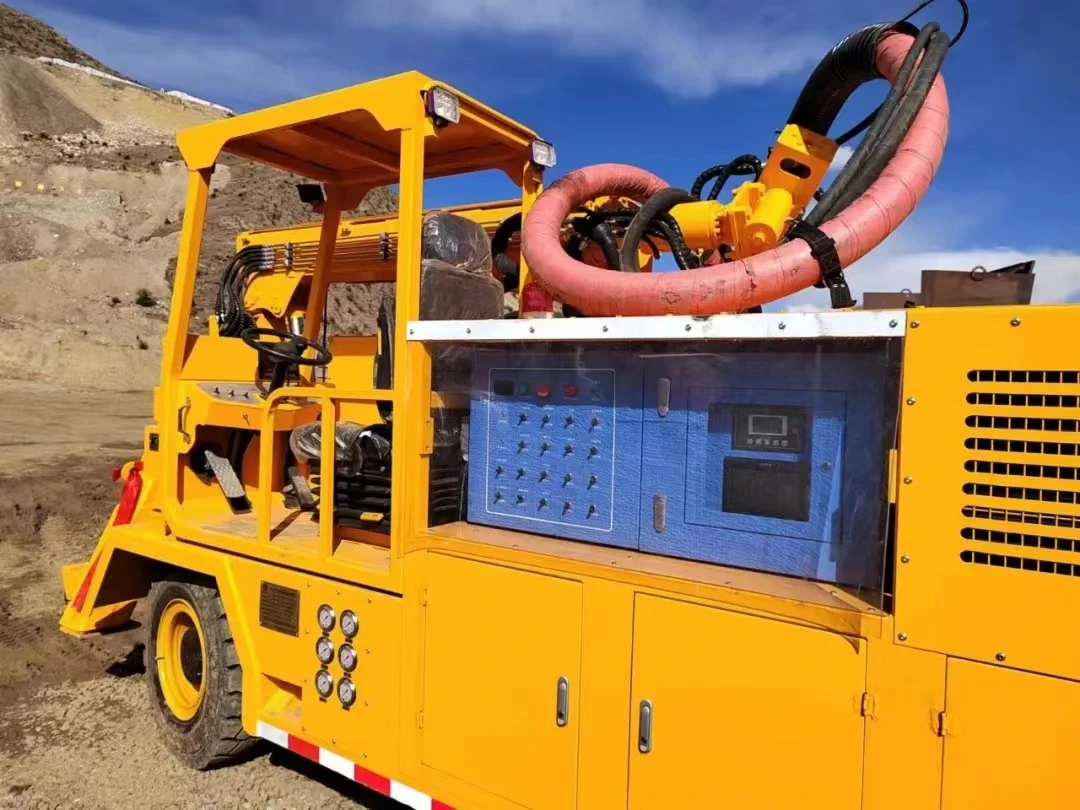

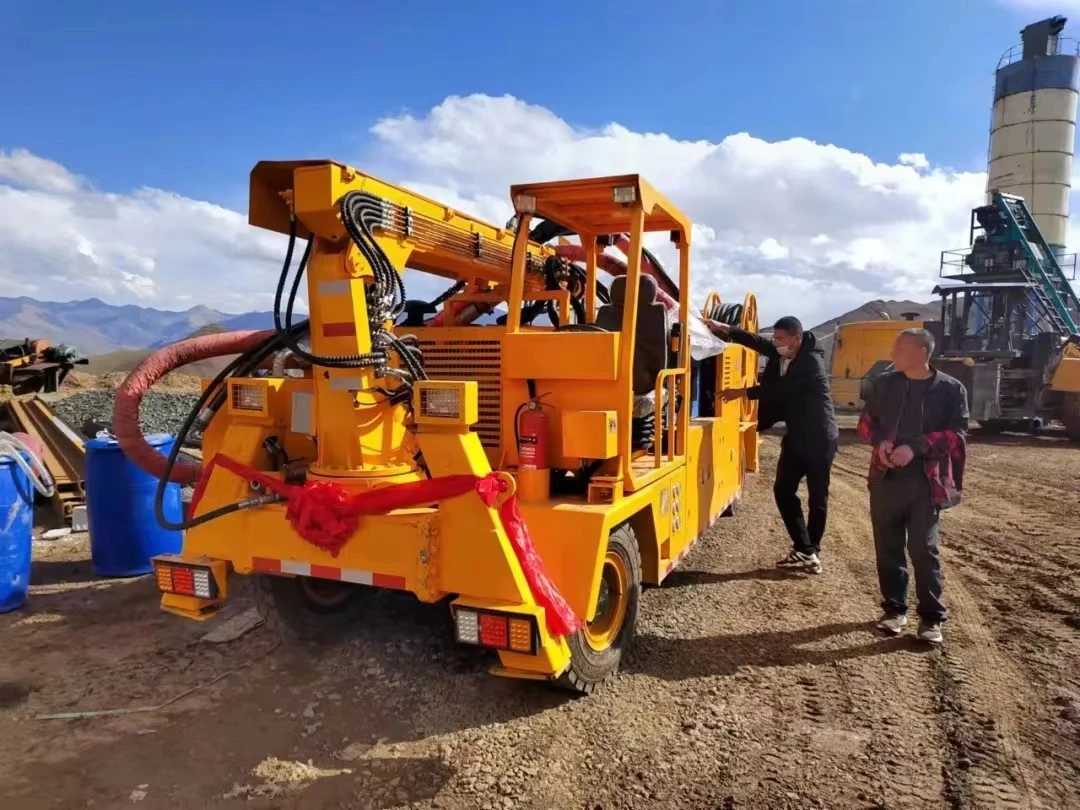

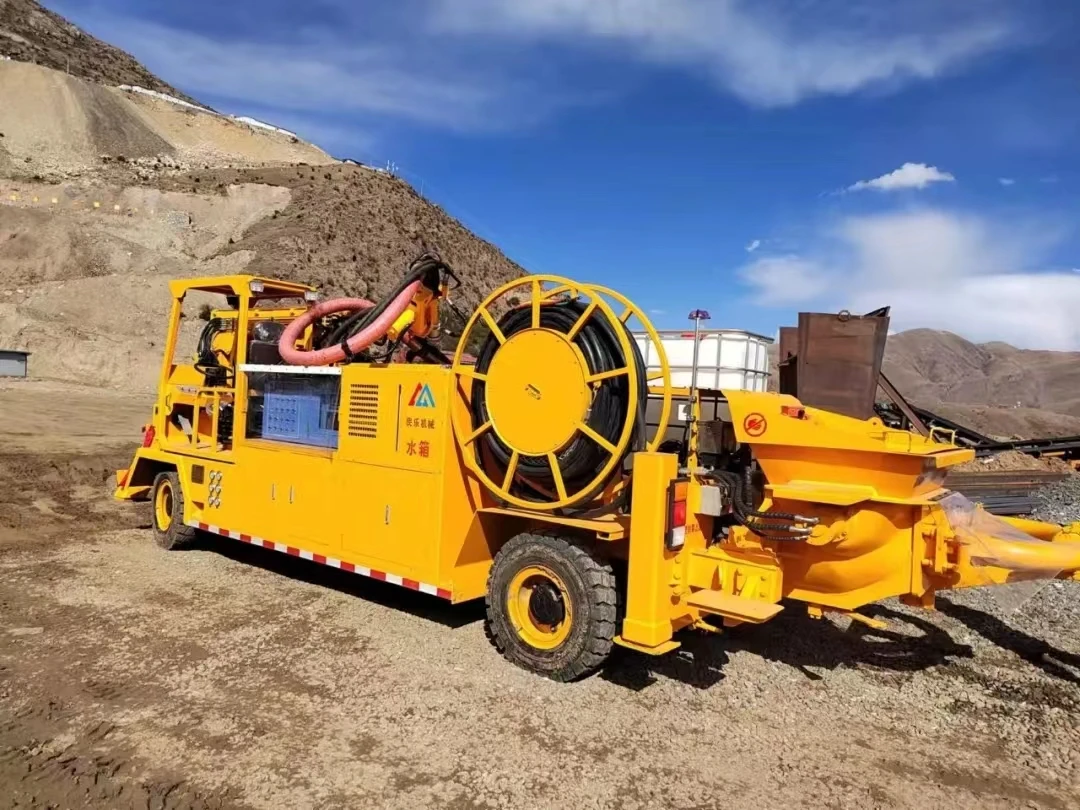

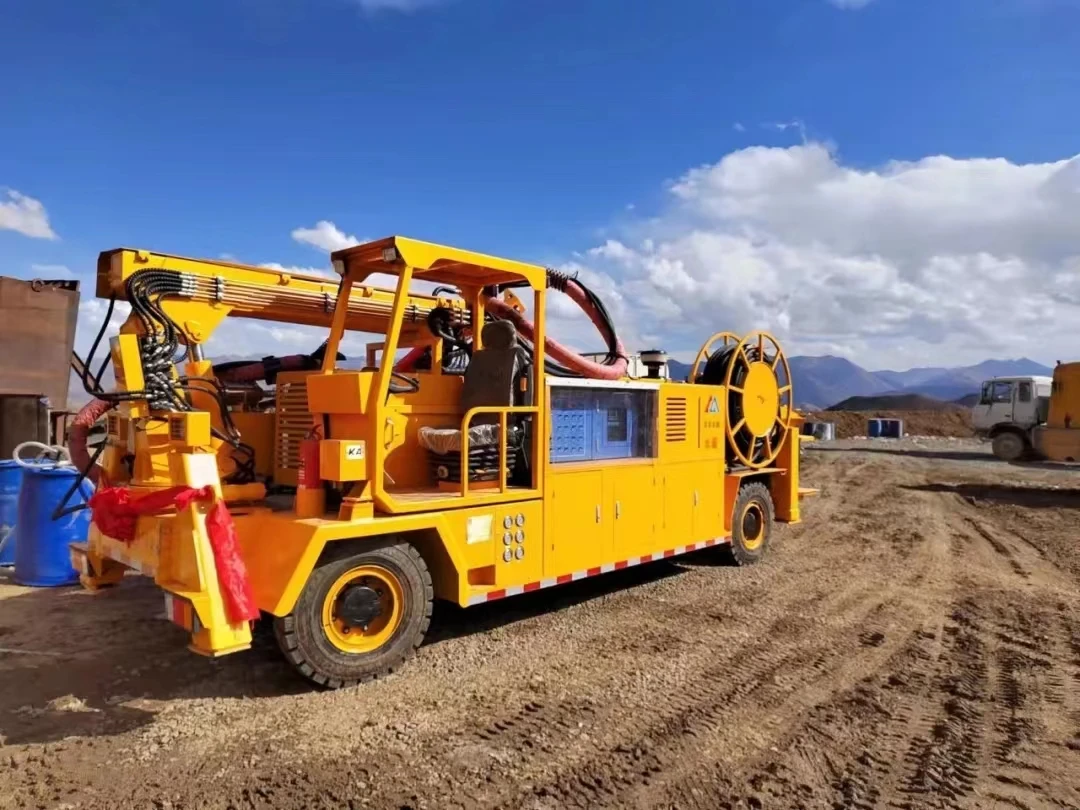

 More pics of wet shotcrete machine
