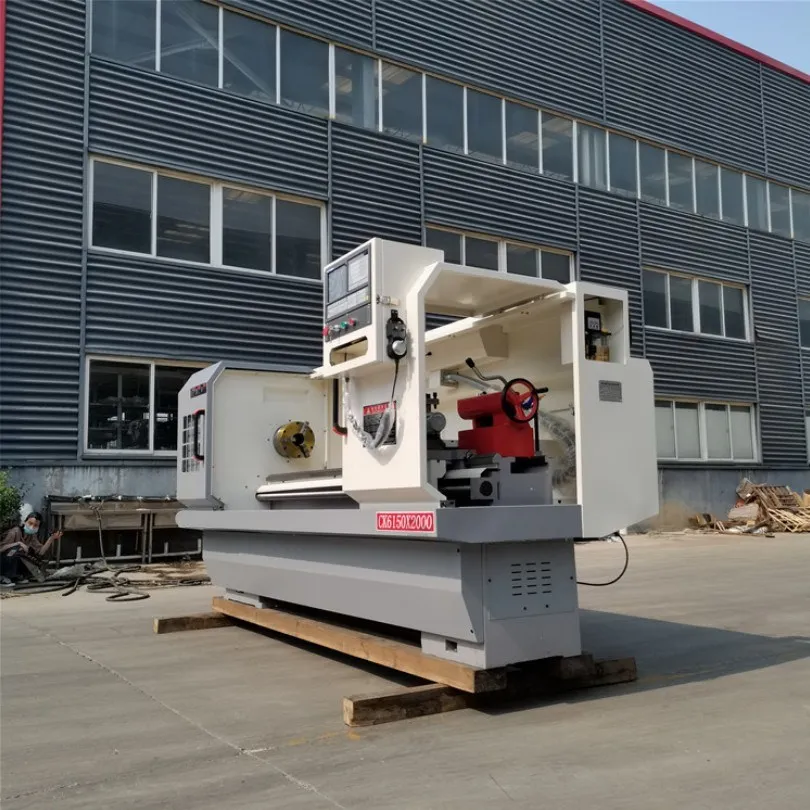

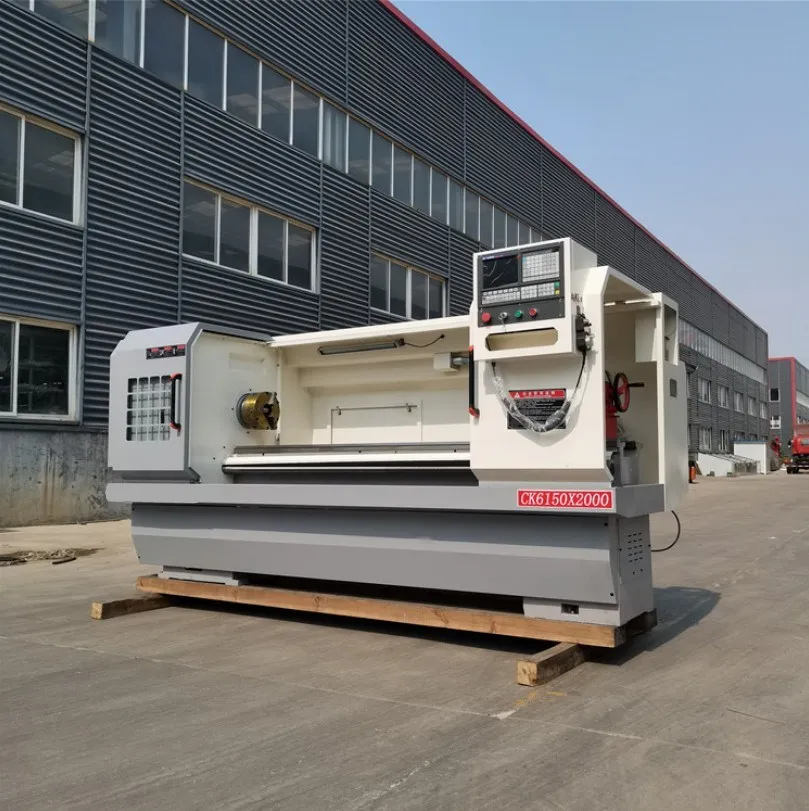

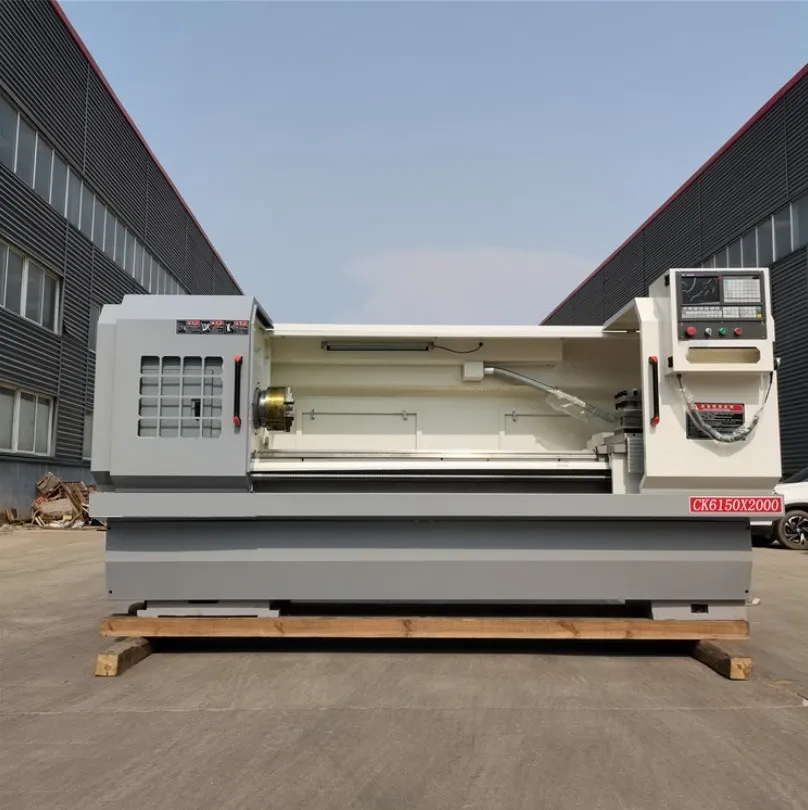

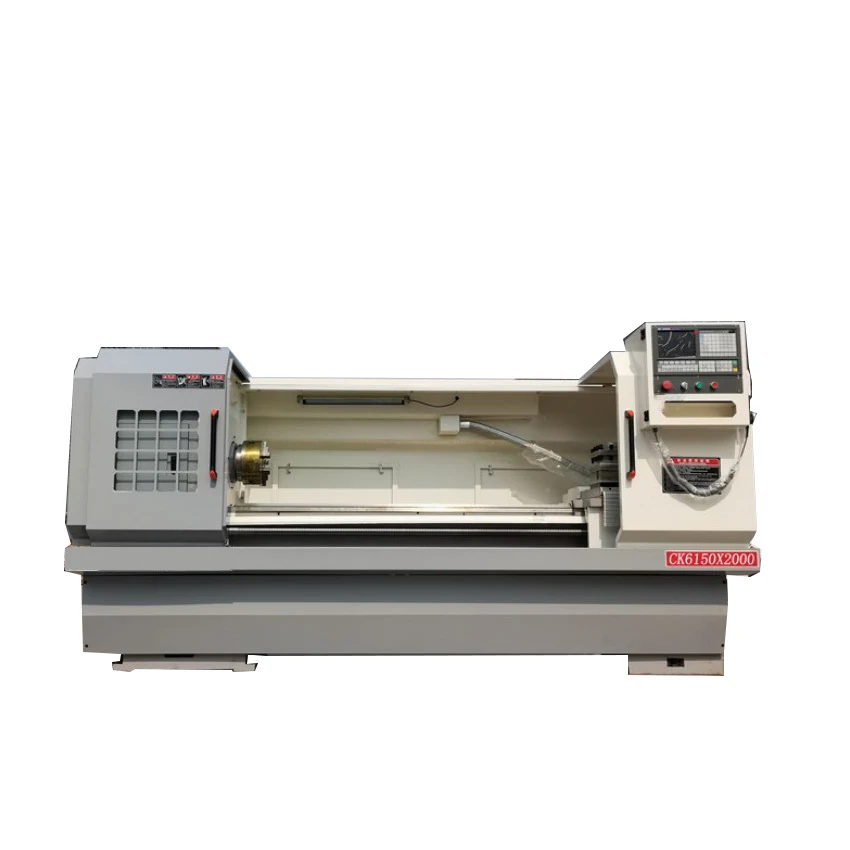

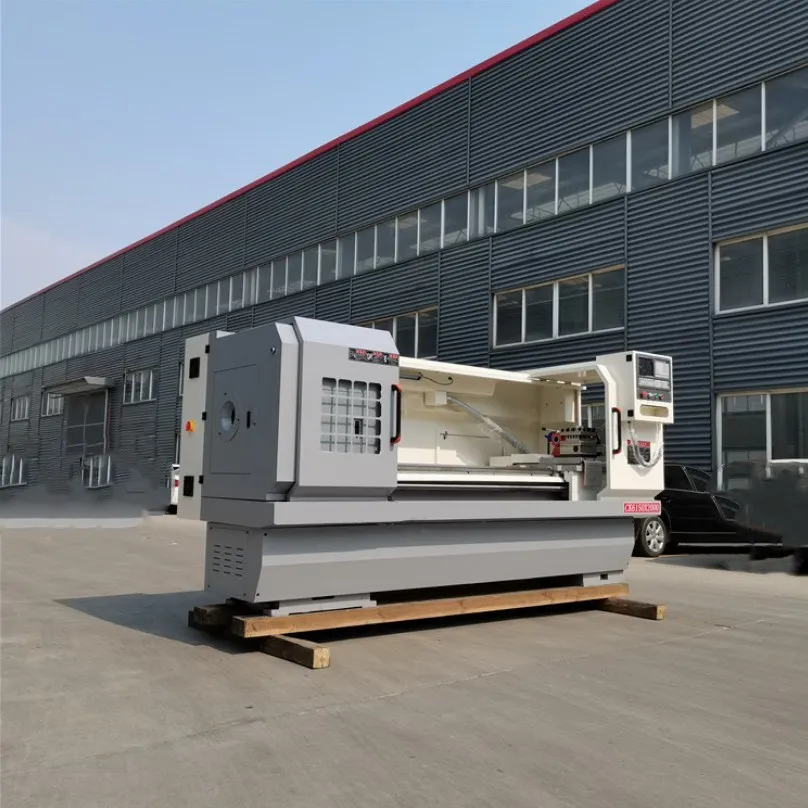

Токарный станок Ck6150 * 20120cmc Многофункциональный Одноместный горизонтальный Швейцарский Тип токарный с ЧПУ 20 плоская кровать Sx325
- Категория: >>>
- Поставщик: Tengzhou Runde Heavy Industry Machinery Co. Ltd
Сохранить в закладки 1600533123563:
Описание и отзывы
Характеристики
Products Description
Product Paramenters
1、CK6150 series CNC horizontal lathe has the characteristics of high precision, high power, high rigidity, etc. its main
components and structures have been optimized. It is the preferred equipment for processing shaft, disc, sleeve, special surfaceand screw workpiece.
2、Gsk980tb3 CNC system and full digital AC servo system, X and Z axes adopt semi closed-loop control, C3 precision ball screw is used for ball screw pair, and electrical components are imported or domestic well-known brands, which comply with CE or domestic 3C certification.
3、The machine tool is equipped with a domestic well-known brand vertical four position CNC tool rest, which has the
characteristics of high positioning accuracy, high strength, good seismic performance and so on.
4、The machine tool shall be inspected in strict accordance with the inspection procedures before leaving the factory. Each machine tool adopts a laser interferometer to detect the positioning accuracy and repeated positioning accuracy of X and Z axes, so as to ensure the stability and reliability of the accuracy of the machine tool.
components and structures have been optimized. It is the preferred equipment for processing shaft, disc, sleeve, special surfaceand screw workpiece.
2、Gsk980tb3 CNC system and full digital AC servo system, X and Z axes adopt semi closed-loop control, C3 precision ball screw is used for ball screw pair, and electrical components are imported or domestic well-known brands, which comply with CE or domestic 3C certification.
3、The machine tool is equipped with a domestic well-known brand vertical four position CNC tool rest, which has the
characteristics of high positioning accuracy, high strength, good seismic performance and so on.
4、The machine tool shall be inspected in strict accordance with the inspection procedures before leaving the factory. Each machine tool adopts a laser interferometer to detect the positioning accuracy and repeated positioning accuracy of X and Z axes, so as to ensure the stability and reliability of the accuracy of the machine tool.
Specifications | unit | CK6150 |
Max.swing over bed | mm | 500 |
Max.swing over cross slide | mm | 300 |
Max.processing length | mm | 1500 |
X/Z axis travel | mm | X:300 Z:2000 |
Spindle transmission type | Three speed transmission | |
Spindle speed steep | stepless | |
Spindle speed | rpm | 300-1100 |
Spindle nose | A2-8 | |
Thru-hole dia.of spindle | mm | 82/105/130 |
Spindle taper | MT6 | |
Spindle motor | KW | 7.5 |
Chuck size | mm | 250 |
Ball screw dia.and pitch | mm | 2506/4008 |
X/Z axis feed motor torque | N.m | 5.5/7.5 |
X/Z axis fast moving speed | mm/min | X:6 Z:8 |
X/Z axis repeatability | mm | 0.005 |
Processing accuracy | IT6-IT7 | |
Workpiece surface roughness | Ra1.6 | |
Tailstock sleeve dia. | mm | 65 |
Tailstock sleeve travel | mm | 140 |
Tailstock sleeve taper | # | MT5 |
Tool post form | Electric four station | |
Cutting tool shape size | mm | 25X25 |
Guide form | Single Hill + horizontal rail | |
Total power capacity | KVA | 12 |
Machine dimension(L×W×H) | mm | 2500X1500X1650 |
N.W. | kg | 2000 |
Details Images
Company Profile
Tengzhou Runde Heavy Industry Machinery Equipment Co., Ltd
Our main products: CNC gantry machining center, CNC machining center, CNC milling machine, CNC lathe, CNC drilling machine and other products. Our products are widely used in automobile, motorcycle, powder metallurgy, textile machinery, plastic, rubber, ceramic products, hardware products, tableware and kitchenware, gold and silver jewelry, cold extrusion and other industries.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
Contact Us
Похожие товары
Запасные части для легких грузовиков Shacman Foton Beiben, передняя и задняя Тормозные Камеры LG7118361601 LG7118361602 для продажи
30,00 $ - 40,00 $
Новый iprog + плюс 777 программирующее устройство для IMMO ПП сброс Профессиональный программатор системного блока управления инструмента
58,20 $ - 77,70 $
QU-167 20 дюймов стенд большой рождественского Санты для скандинавский Декор gnok рождественские украшения
3,60 $ - 4,40 $
Нейлоновая 100% хлопковая высокоэластичная шелковая швейная нить 70D /2
2,50 $ - 3,00 $
Запчасти для бетононасосов DN200 бетонный насос поршень

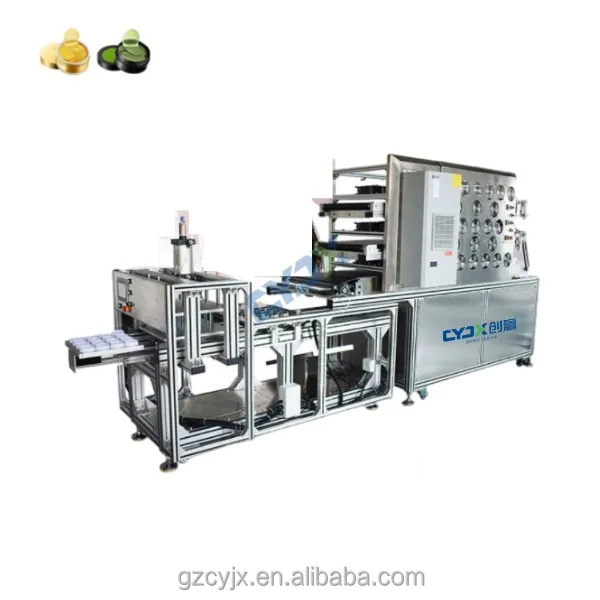

Самая популярная продукция, машина для производства гидрогелевых масок для глаз, машина для формования гелей для глаз, упаковочная машина для гелевых накладок для глаз
