1,How to classify CNC 4/5/6 Axis Welding Robot?

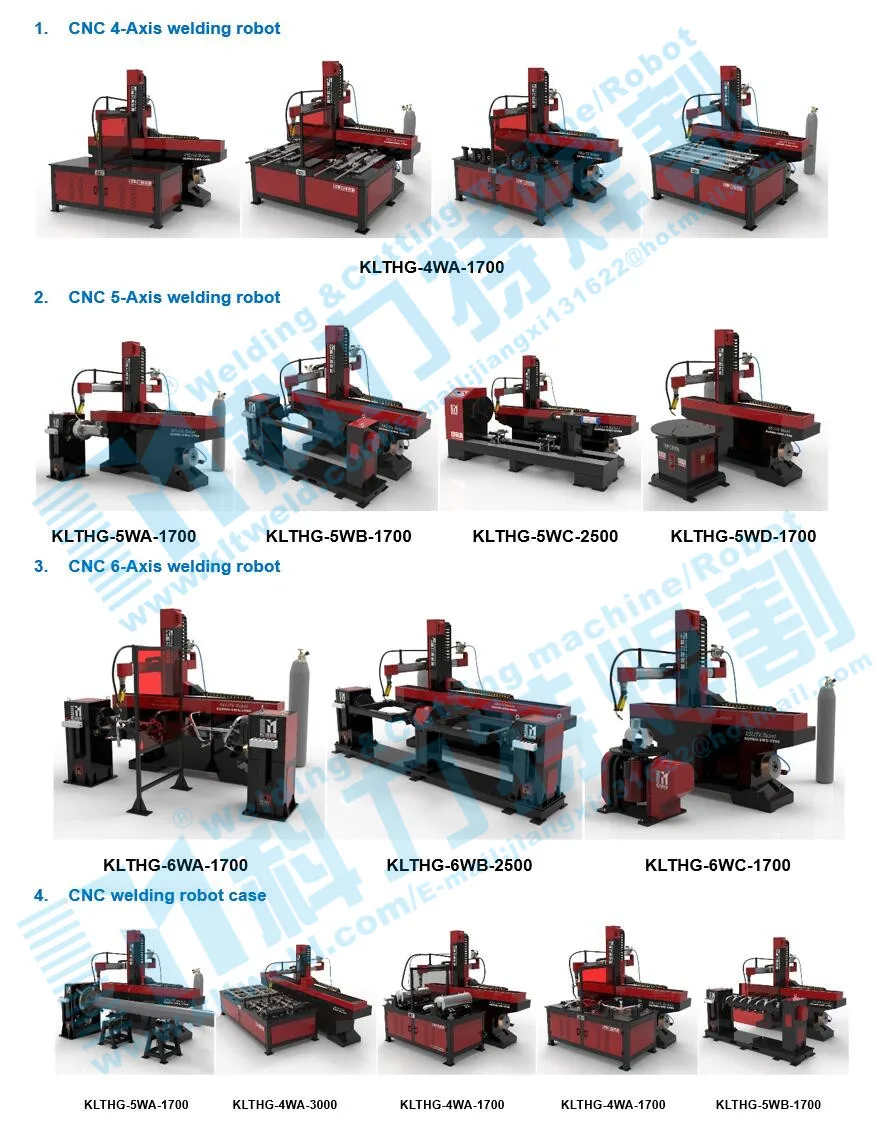

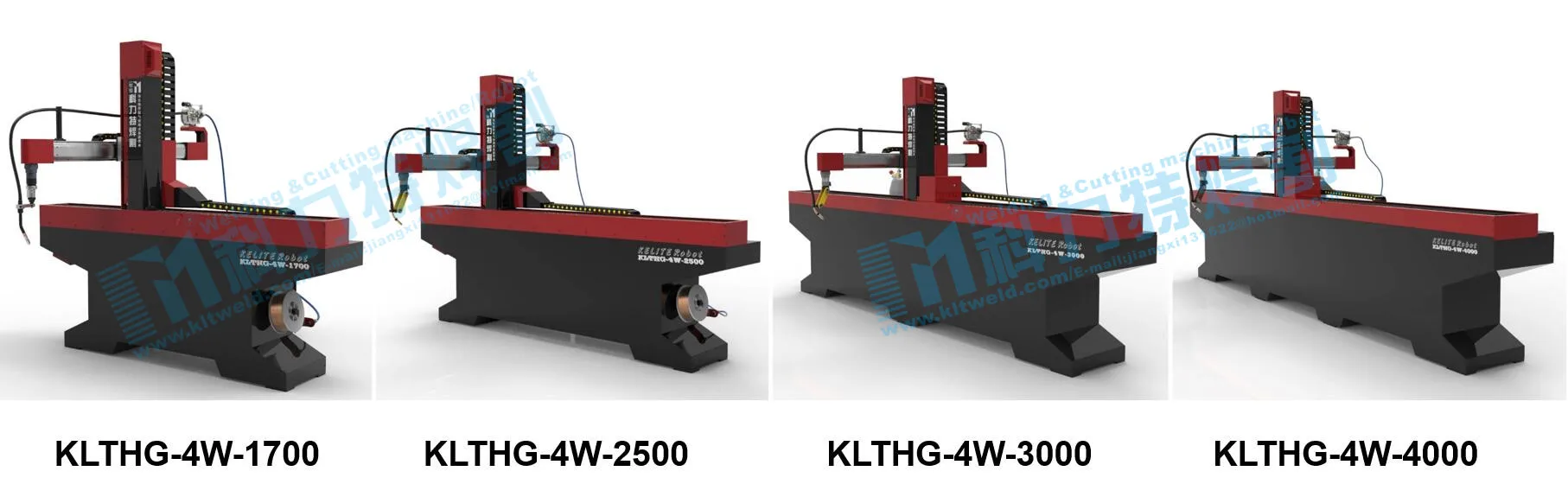

KLTHG-4W-(1700/2500/3000/4000)(A/B/C/D)

1) KLTHG:Our Company Name(KELITEWELD)

2) 4W: Cnc 4 Axis Linkage;

    5W: Cnc 5 Axis Linkage;

    6W: Cnc 6 Axis Linkage

3) 1700/2500/3000/4000: X-Axis Effective Length: 1700mm or 2500mm or 3000mm or 4000mm

Remarks: Due to the large number of models of our company, if there are new models in the later stages of our company, we will explain the new quotation.

4) (A/B/C/D) Means the form of positioner cooperated with CNC welding robot

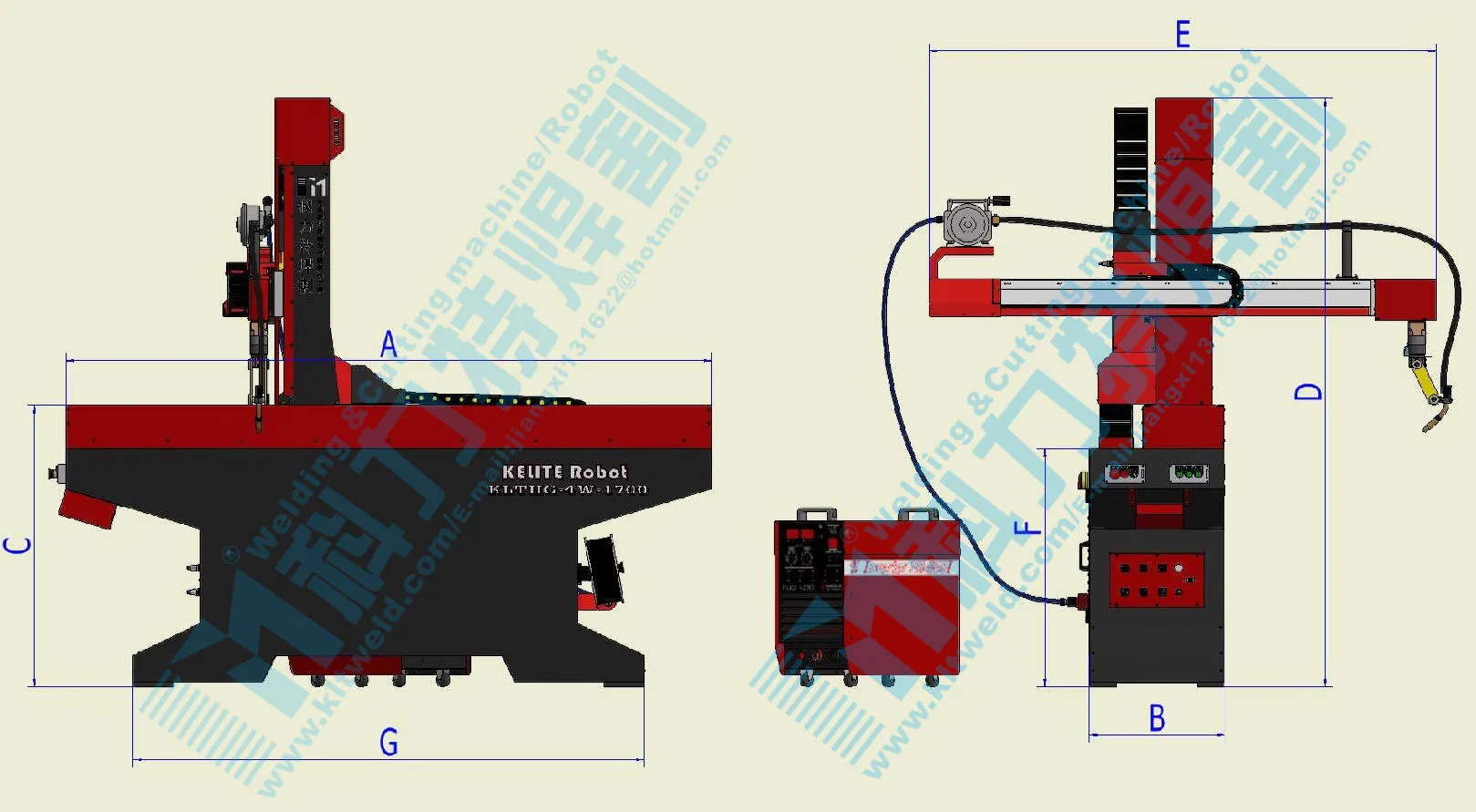

 CNC welding robot appearance size(mm)

The equipment consists of welding main machine, control system, welding power supply and so on. Each system is connected by cable to form an organic whole, which is convenient for the installation and maintenance of equipment.

1,Bed base 2,X axis walking slipway 3,Z axis lifting slide table 4,Y axis linear module

5,R axis rotation axis 6,Wire feeder assembly  7,Welding power 8,Wire feed plate

9,Power switch 10,Control button 11,External control signal port

KLTHG-4/5/6W-1700/2500/3000/4000 CNC 4/5/6 axis welding machine is a digital, similar to the 6 axisjoint robot,can achieve four axis simultaneous linkage, and efficient implementation of various types of plane 2D and space 3Darc welding special CNC welding equipment. The main machine is welded by four axis vertical coordinate system. X, Y and Z are linear axes, and the R axis is the rotating shaft.

1  Main technical parameters:

1.1  In the teaching mode, the welding track can be recorded automatically as long as the track is moved by hand and taken into each moving point. Greatly save programming time, simple learning

1.2  Control system specific motion control chip technology can achieve 4 or 5 axis linkage, with PLC can achieve complex sequence of action requirements, high speed stability.

1.3  The executive part adopts AC servo motor to realize high precision, high speed operation and high stability.

1.4  The transmission part uses the Taiwan TBI precision ball screw to improve the repetitive positioning accuracy and service life, guide the use of silver linear guide, accuracy and service life and reduce the noise of the machine, wire rod repeat positioning accuracy within 0.1mm.

1.5  The installation method adopts floor mounted type, greatly improving the flexibility of the machine.

1.6  The machine is simple to operate and has high stability. It can be operated by ordinary workers without professional welders.

1.7  The price of the welding manipulator is only 20% of the joint manipulator and greatly reduces the use cost, and is the real manipulator.

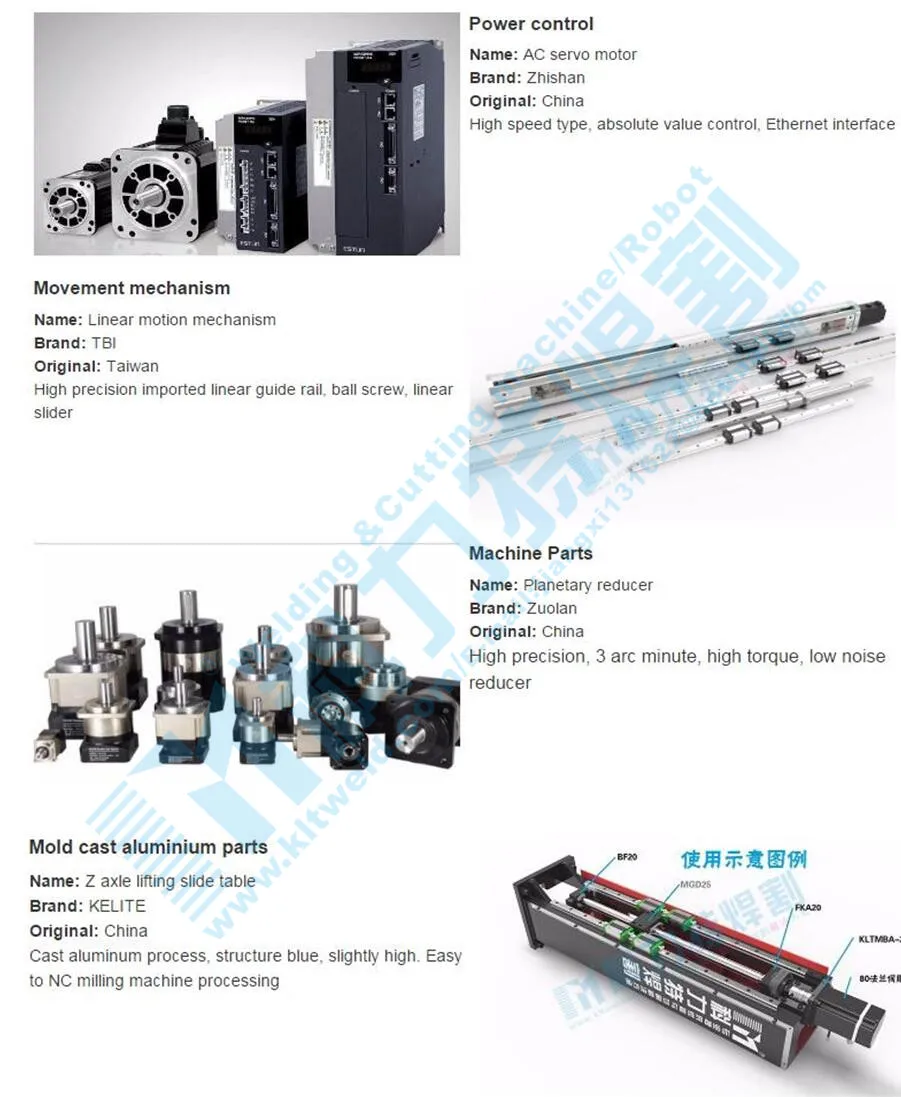

2. CNC 4 Axis welding robot optional components

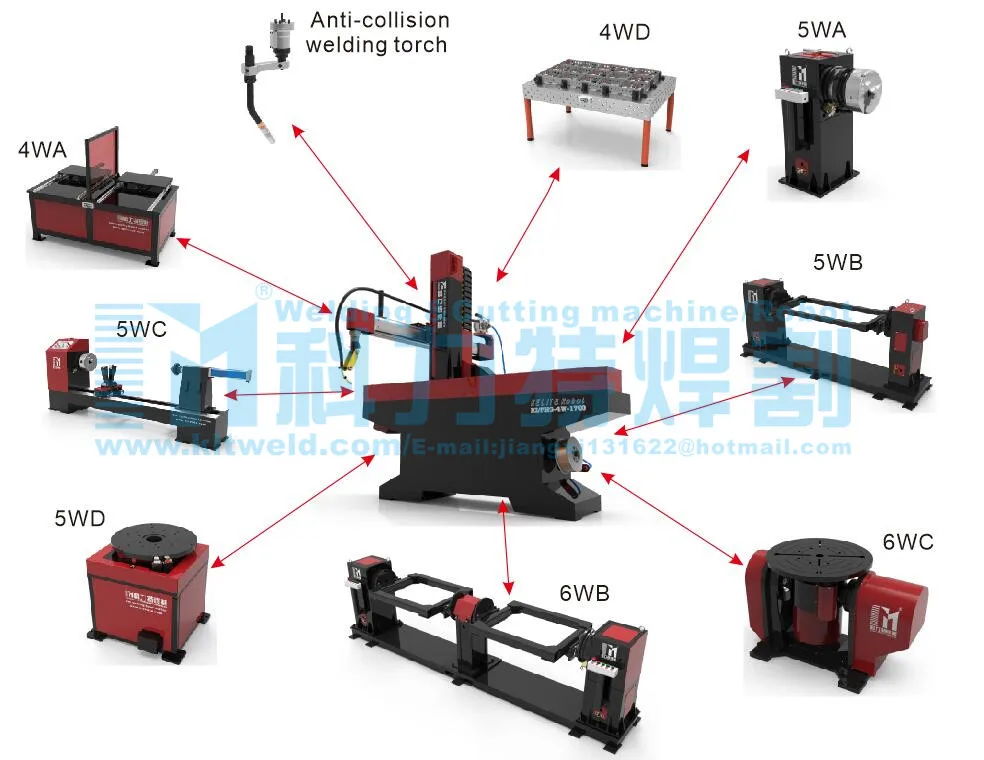

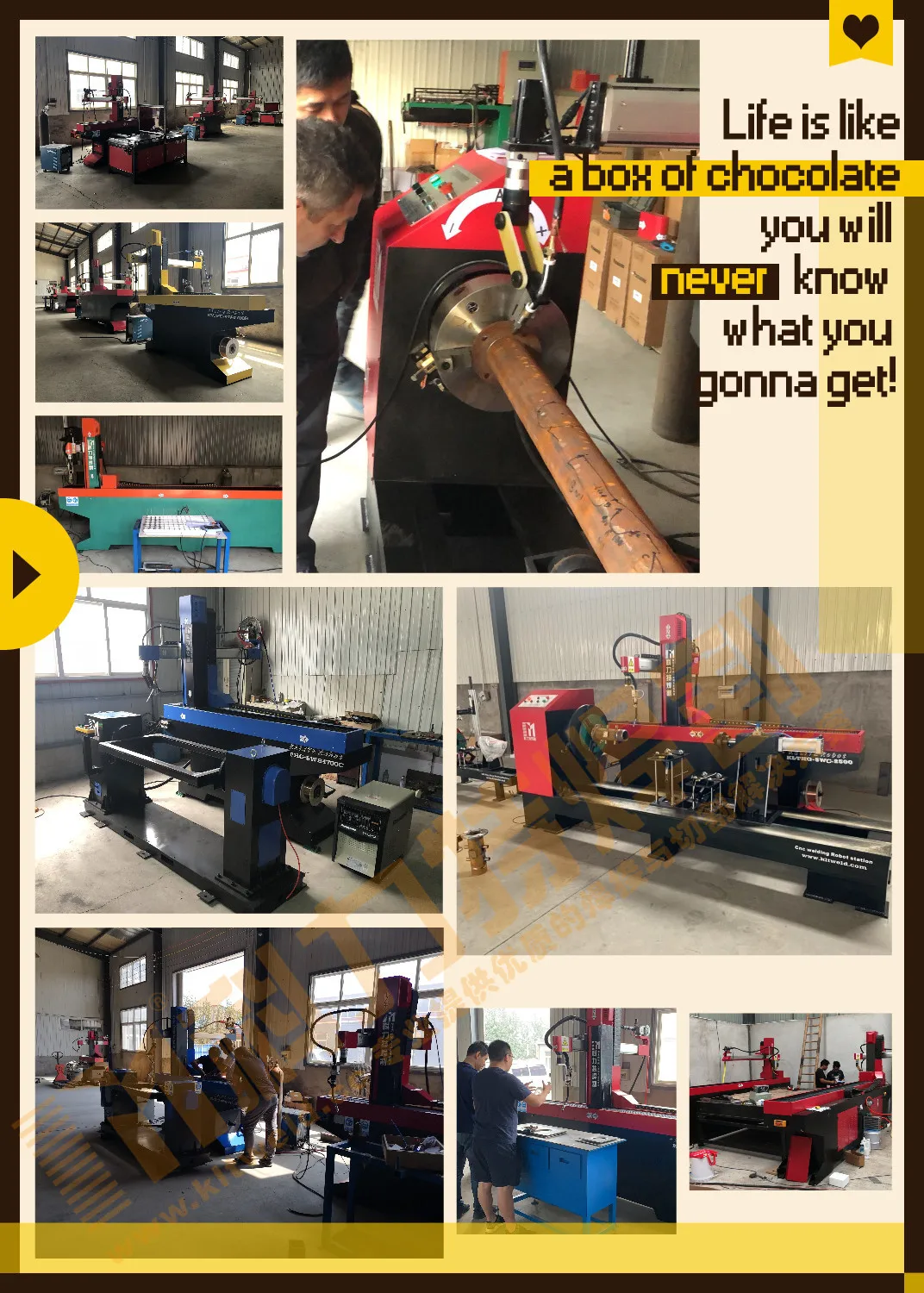

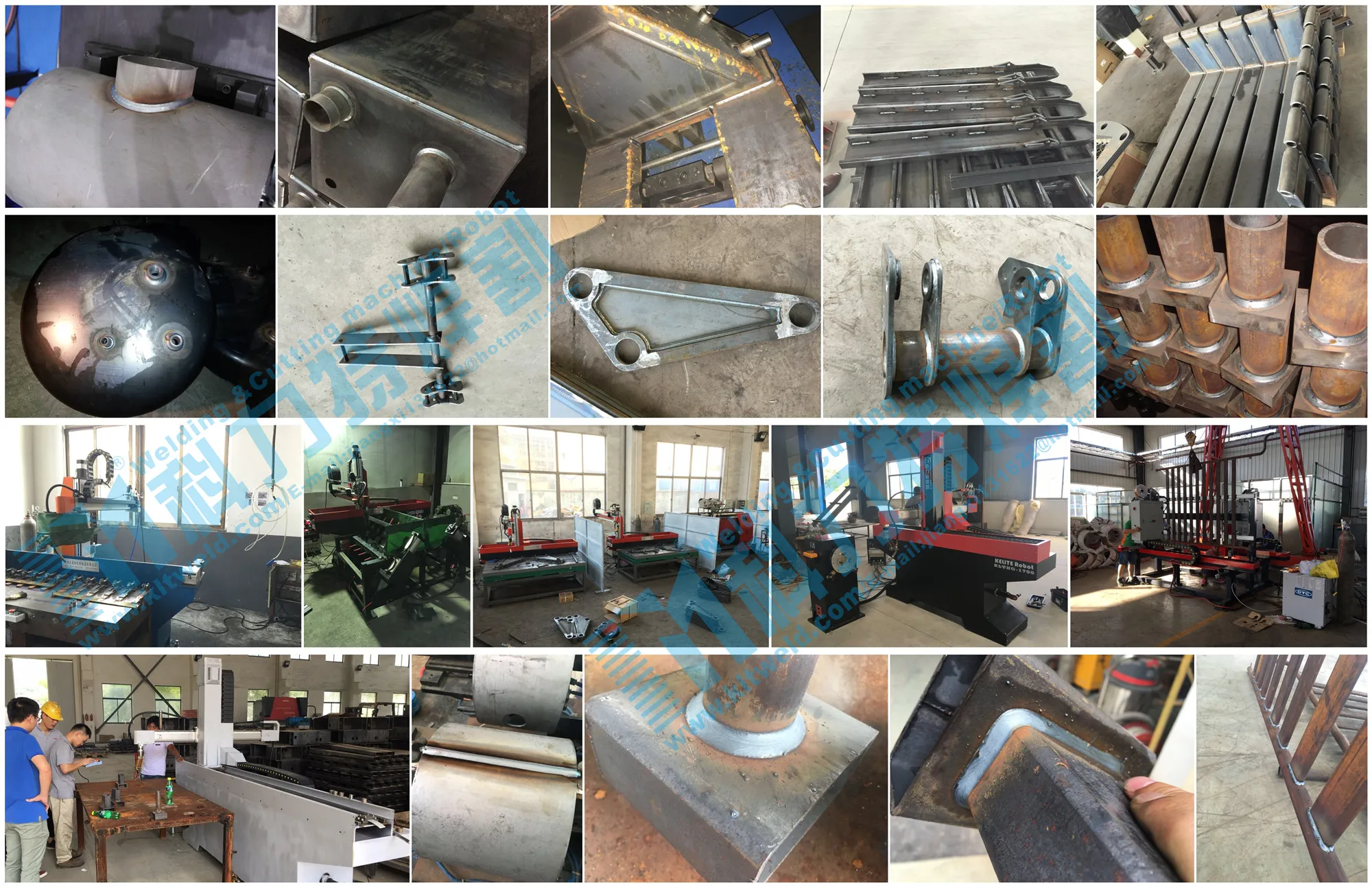

KLTHG-4W-1700/2500/3000/4000 can be used with external platforms, external shaft positioners, anti-collision welding guns, analog modules, etc., and can realize double-station/5-axis/6-axis automatic welding robot workstations. Welding production efficiency and quality.

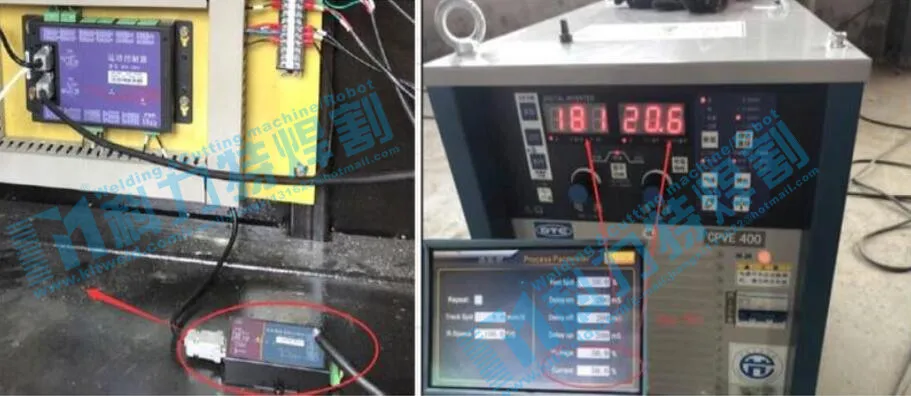

3. CNC welding robot-Analog module

3.1  The welder analog module means that the current and voltage of the welding power supply

can be directly set by the CNC controller. Adding this kind of module can realize one or more

welding seams to obtain different voltages and currents.

3.2  Setting method: Only the percentage of current and voltage need to be set in the controller.

3.3  if there is no such module, you can only manually adjust the knob in the welding power supply

to set the current and voltage. In automatic welding, the current and voltage of each weld are

almost the same.

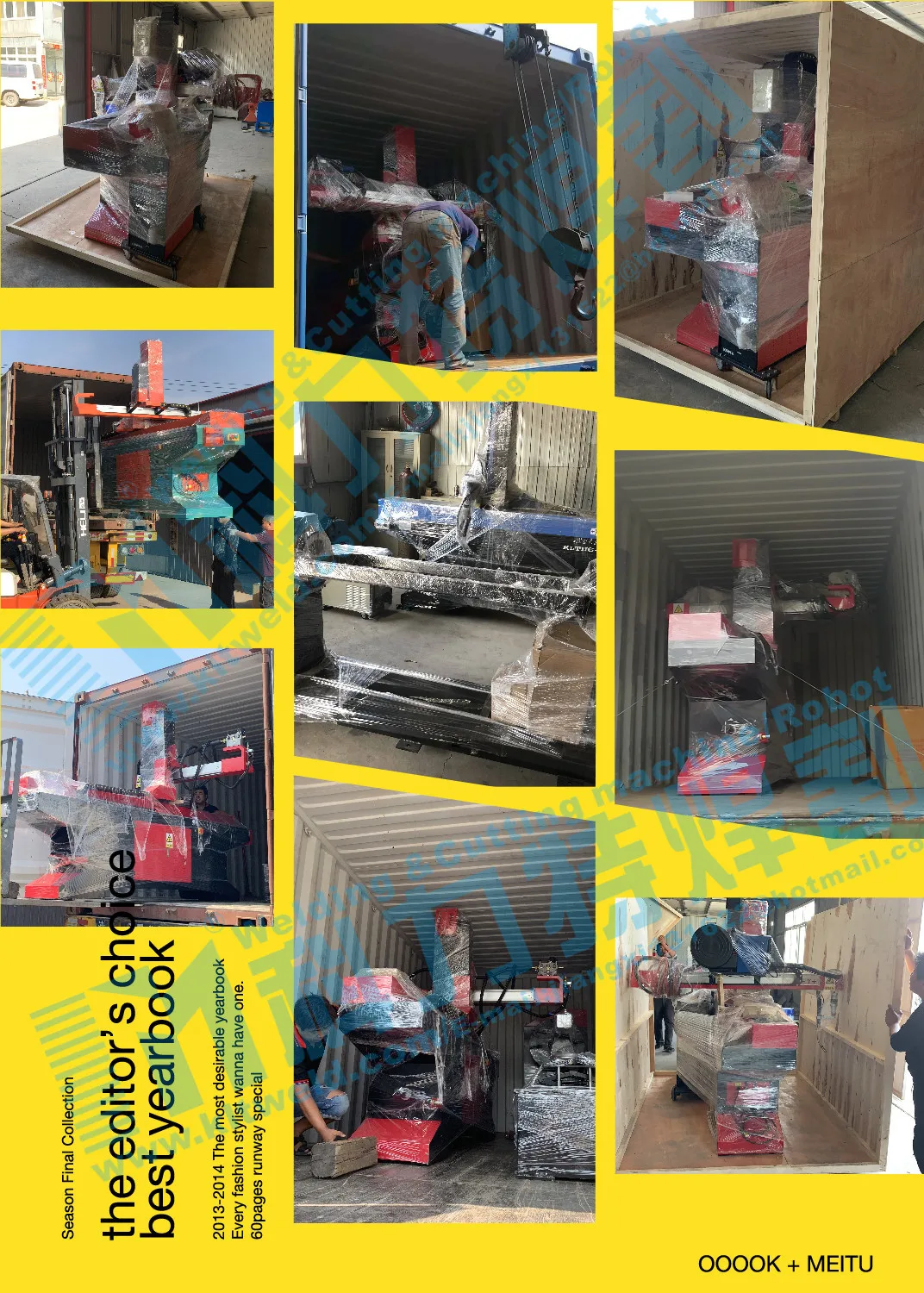

Packaging & Shipping
