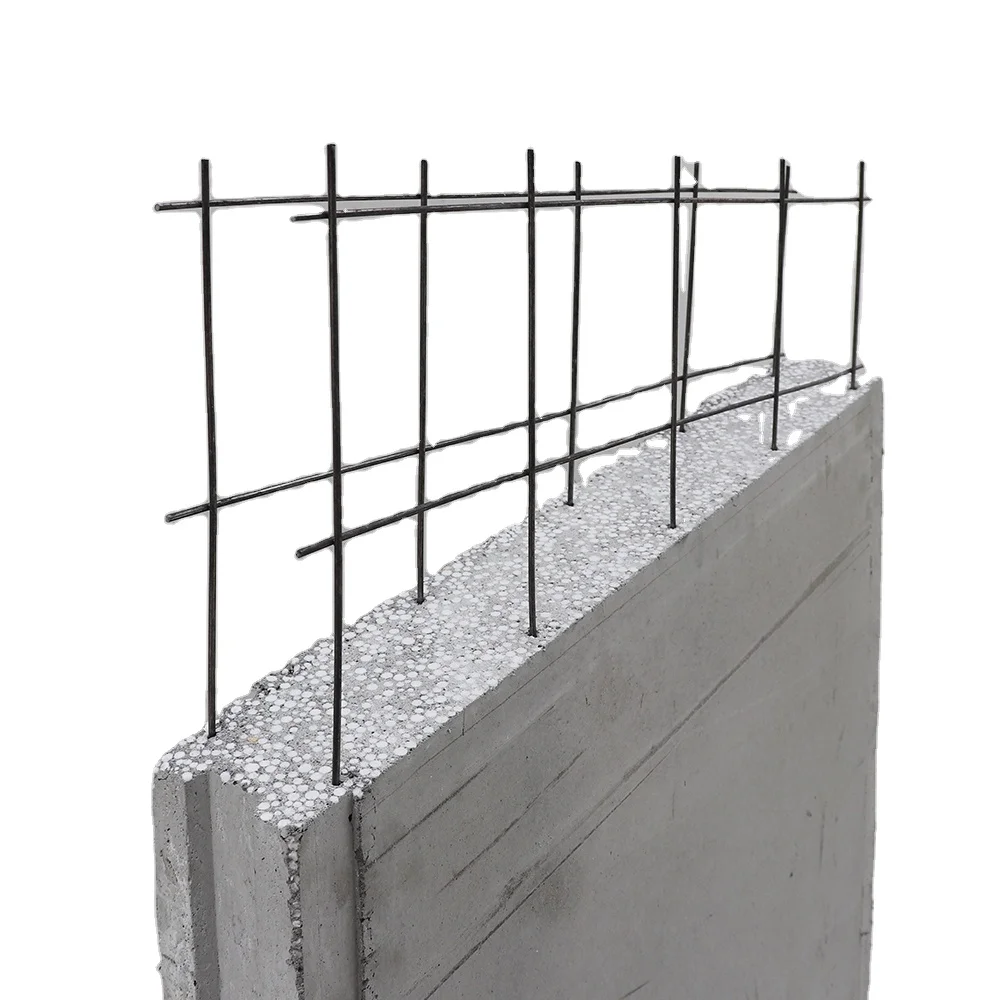

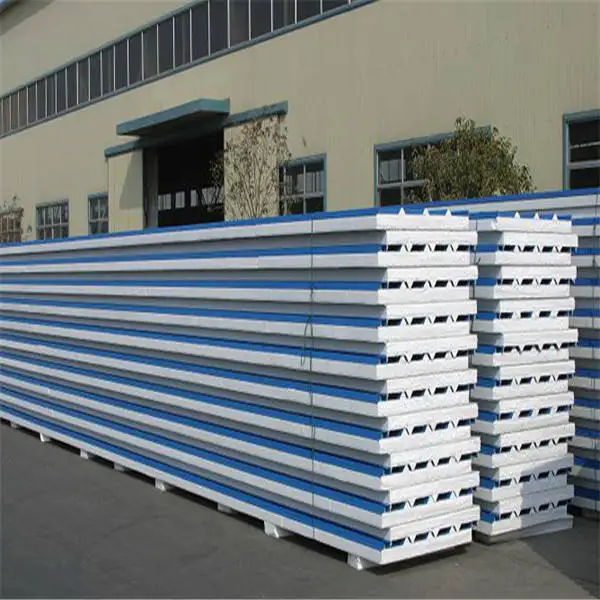

Складская пенополистироловая структурная изоляционная панель, стеновые Eps сэндвич-панели
969,84 ₽ - 1 046,98 ₽
Толстые высококачественные панели Xps из пенополистирола по индивидуальному заказу для каплевидного автофургона производители сэндвич панелей Frp домов на колесах
- Категория: >>>
- Поставщик: Shanghai Topolo New Materials Co. Ltd.
Сохранить в закладки 1600534157087:
Описание и отзывы
Характеристики
Fiberglass XPS foam sandwich panel is a kind of thermoplastic composite panel containing a thermoplastic resin and continuous fiberglass. The outer skin adopts glossy continuous glass fiber and the inner skin is composited with thermoplastic UD tapes. The core adopting extruded polystyrene connects with the skins through vacuum compression with special adhesives.

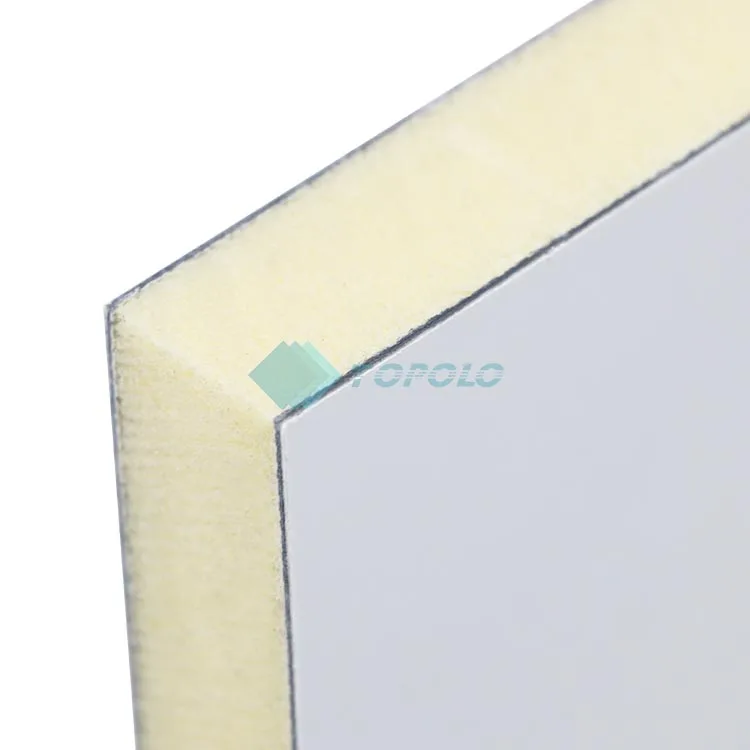

The basic structure of the XPS foam sandwich panel

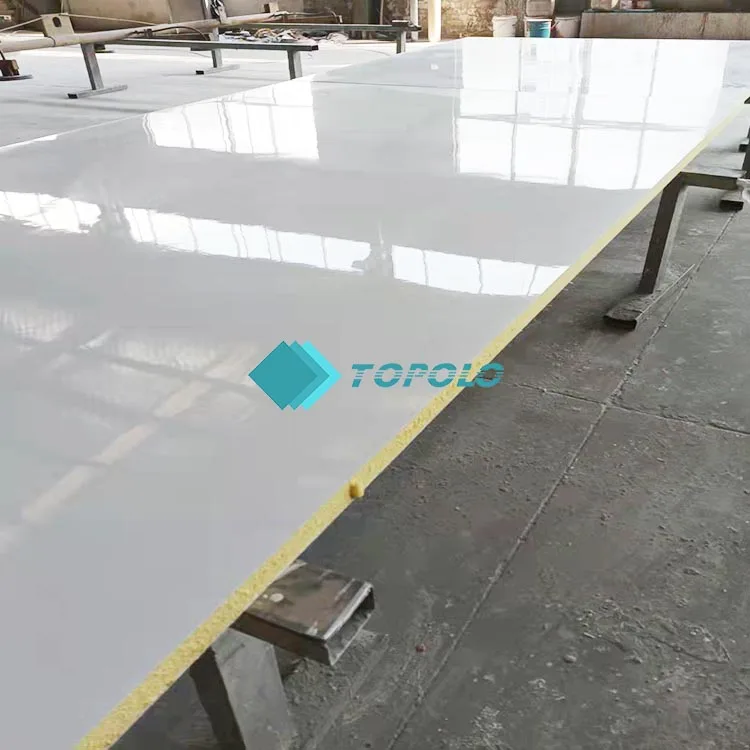

The outer skin with glass fiber is formed by an automatic panel line. The surface is coated with a colorful gel made of international food-grade resin. The gel coat makes the panel surface more smooth and easy to clean. The panel becomes colorful and glossy. The panel is brightly colored and glosses are retained.
The high body strength of extruded polystyrene in the core prevents the damage caused by embedded parts and gives the panel a flat appearance without indentations. The extruded polystyrene also performs well under a temperature as low as -50℃.
Continuous Fiber Reinforced Thermoplastic Skin
The continuous fiber-reinforced thermoplastic UD tapes used in the inner skin of the panel are laminated in different directions, thus keeping the fiber continuity and reinforcing the material in every force direction. This part is lightweight and strong in specific strength and specific modulus. It is water, corrosion, impact, and rubber resistant, and inert to most acids and alkalis. The inner skin is formed with thermoplastic PP, which is recyclable with no gas pollution.
Specification | ||
Type | XPS Foam Sandwich Panels | |
Width | Max 3.2m | |
Thickness | Skin: 0.7mm~3mm Core: 25mm~120mm | |
Length | Custom-made | |
Core Density | 35kg/m3~45kg/m3 | |
Skin | FRP/GRP Sheet， CFRT Sheet, Aluminum sheet | |
Color | White, black, green, yellow, or customized. | |
Core Material | XPS foam | |
Application | RVs, trailers, vans, refrigerated trucks, campers, Caravans, motorboats, mobile homes, clean rooms， cold rooms, etc. | |
Custom-Made | Embedded Tube/Plate, CNC service | |
What are The Advantages of XPS Foam Sandwich Panel?
Compared with thermo-setting, the thermoplastic XPS foam sandwich panel wins in the following aspects:
•Strong inner skin (higher toughness and impact resistance)
Instead of short fiber, the continuous fiber introduced in the skin resin gives the panel strength much higher than what traditional glass fiber did.
•Lightweight
The fiber content of the thermoplastic skin is about 60%, much higher than that of glass fiber skin (only 30% to 35%). Therefore for the same fiber content, the thermoplastic panel is about 50% lighter.
•Green and odorless
The panel skin is formed through the lamination of glass fiber and PP resin. PP is a food-grade plastic for it is green and odorless. However, some newly produced thermo-setting compartments are prone to odor because the small molecules of styrene have not been completely cured before they come into use.
The Application of Fiberglass XPS Foam Panels
XPS sandwich panels are widely used in automobiles, buildings, decoration, industrial production and other fields.
*Vehicle industry
XPS panels are suitable for the thermal insulation of small vehicles, large trucks, food trucks, RVs, and refrigerated trailers.
* Cold room
Suitable for transport and storage containers for fresh meat, vegetables, and fruits.
* Building wall insulation
Steel structure walls, ground moisturizing, square ground, ground frost heave control, central air conditioning ventilation pipes,
etc.
Interior decoration
It is widely used in interior decoration, ceiling, sound insulation walls, and sandwich door filling material, and has the effects of heat insulation, sound insulation, moisture retention, weight reduction, etc.
Choose TOPOLO Fiberglass Sandwich Panels
TOPOLO fiberglass sandwich panels factory covers an area of tens of thousands of square meters, with a daily production area of more than 10,000 square meters. Our FRP panels are very popular in the international market, and currently sell well in Europe, South America, North America, Middle East, Central Asia, Southeast Asia, Africa and other markets.
Professional International Sales Team
Professional international sales team – English, French, Russian, Spanish, Portuguese, etc., make our communication unimpeded, from pre-sales product consultation to after-sales logistics services, to provide you with professional solutions.
Похожие товары
Огнеупорные модульные Филиппины, стандартные пенополистирол, производство сэндвич-плит для прохладной комнаты
903,71 ₽ - 1 024,94 ₽
Полиуретановая сэндвич-панель, противопожарная Внутренняя/внешняя стеновая панель, декоративная теплоизоляционная металлическая панель
881,67 ₽ - 936,78 ₽
Доска для холодного хранения PU
855,22 ₽ - 1 041,47 ₽
Высокое качество прохладная комнатная полиуретановая/PU сэндвич-панель/холодная панель для хранения
855,22 ₽ - 1 041,47 ₽
Новый стиль, украшение в Европейском стиле, Легкий Настенный настенный шкаф с изолированным электрошкафом
109,11 ₽ - 219,32 ₽
Заводская поставка легко устанавливается 50 мм толщина EPS сэндвич стеновая панель потолочная панель
1 091,07 ₽ - 1 531,90 ₽

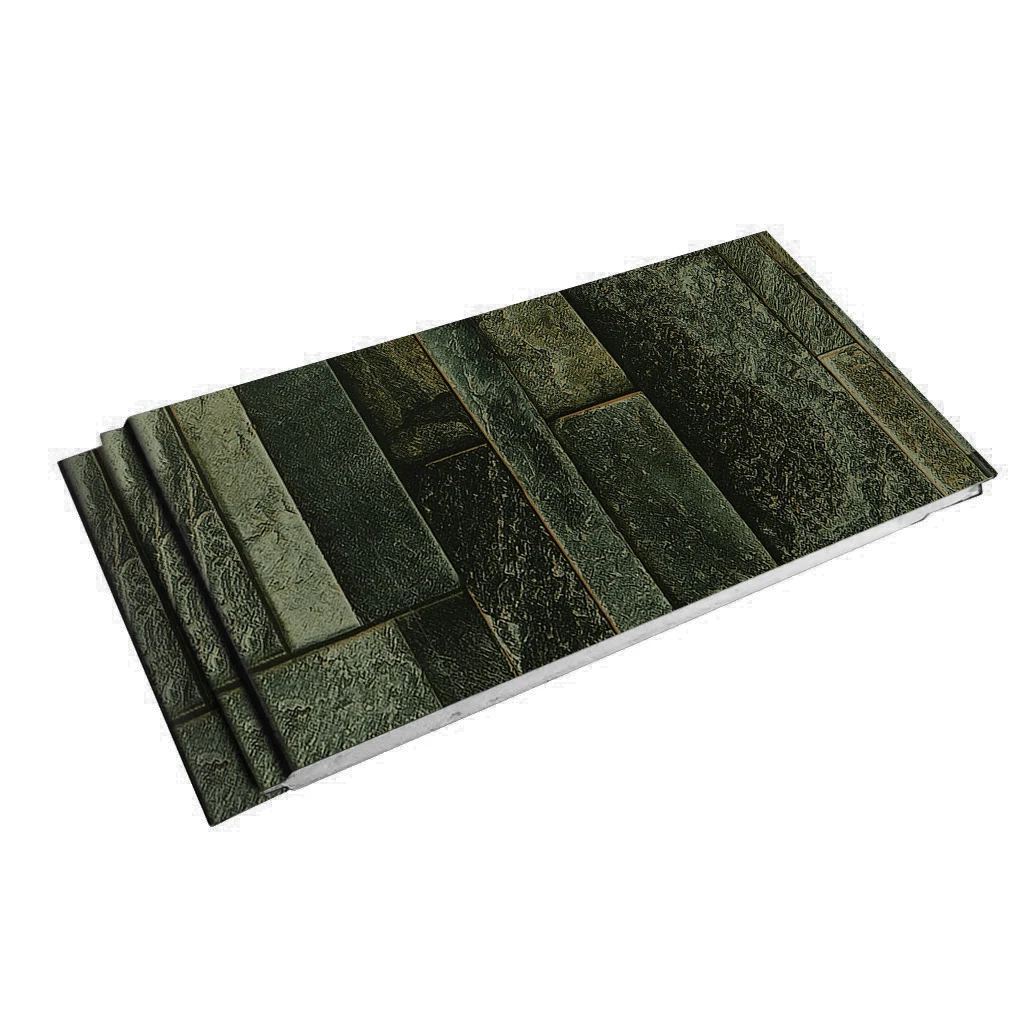

Панель из искусственного камня декоративная потолочная доска облицовка внешней стены
