Интеллектуальный электронный тестер емкости разряда батареи aiпаук 150 в 10 А с американской вилкой

Product selling points
1: Widely used
2: 2.4 inch color screen
3: Instruction form: Paste the tutorial QR code in the fan center, and scan the code to obtain the electronic tutorial
4: Chinese English interface can be switched
5: Operating modes: four modes CC - constant current mode CV - constant voltage mode CP - constant power mode CR - constant resistance value mode

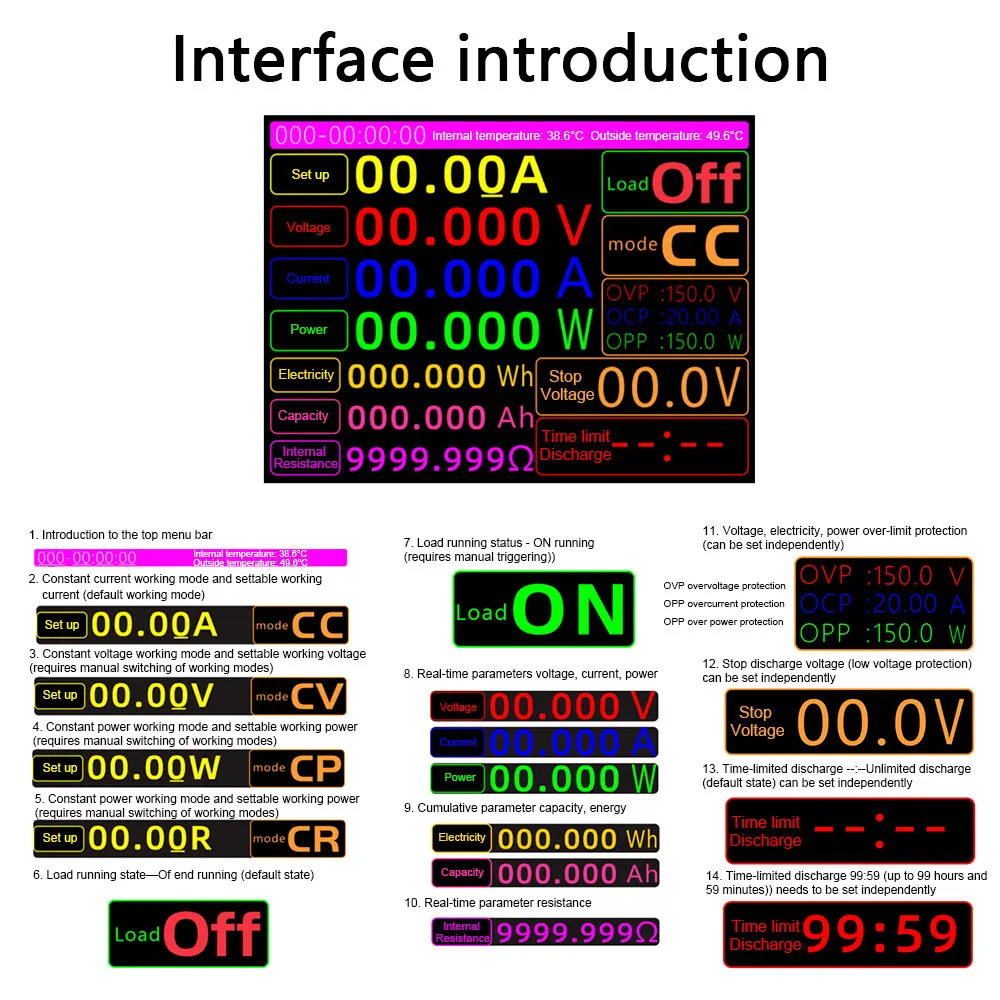

The DTL150 is a DC digital control electronic load, equipped with a 2.4 inch TFT color screen, with a maximum power of 150W and a maximum carrying current of 20A. It has four working modes: constant current, constant voltage, constant power and constant resistance; Voltage, current and power overrun protection can be set; Set the stop discharge voltage and discharge time; Monitor the power supply temperature through an external NTC sensor.
The product uses 12V1A independent power supply, equipped with alloy integrated silent (20 ± 3dBA) radiator, and the intelligent temperature control system controls the radiator fan.
Compared with the traditional analog electronic load, the DTL150 uses the mode of protection before operation to control the discharge, which can effectively protect the discharge power supply and avoid power damage caused by over limit and over discharge.

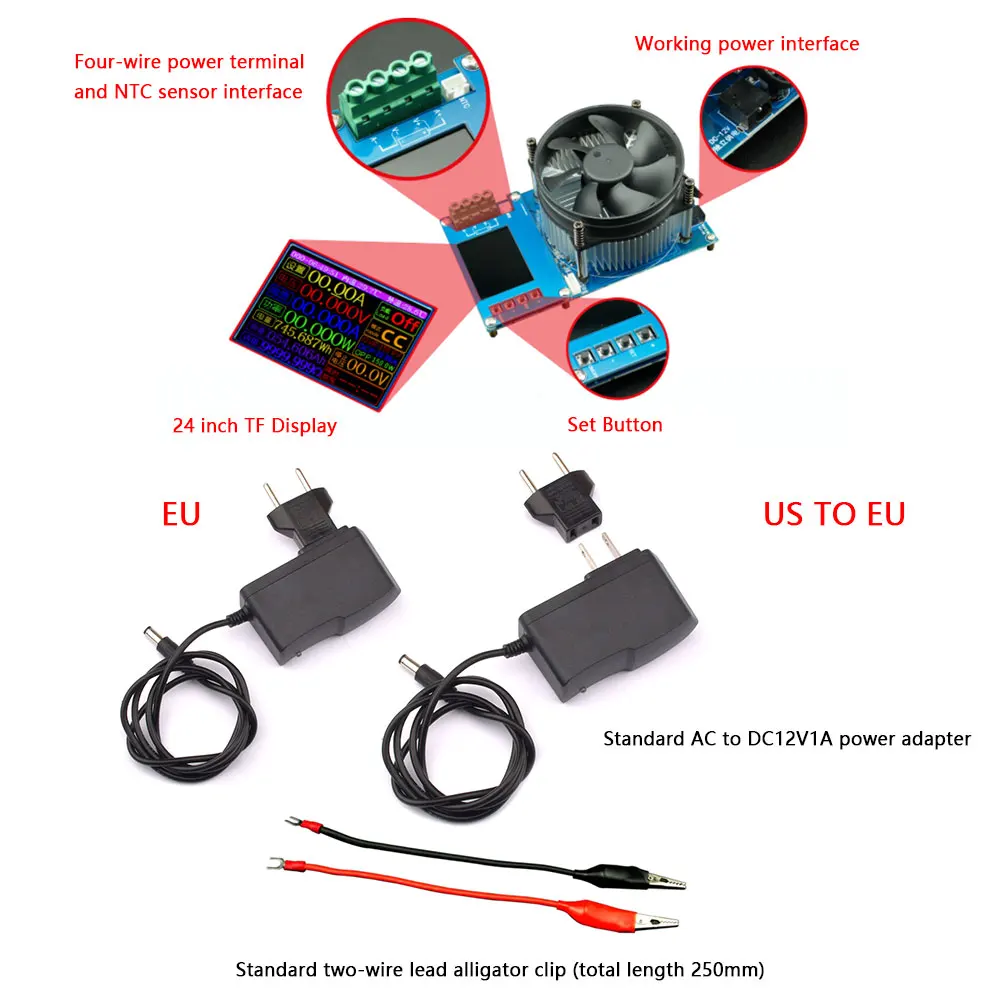

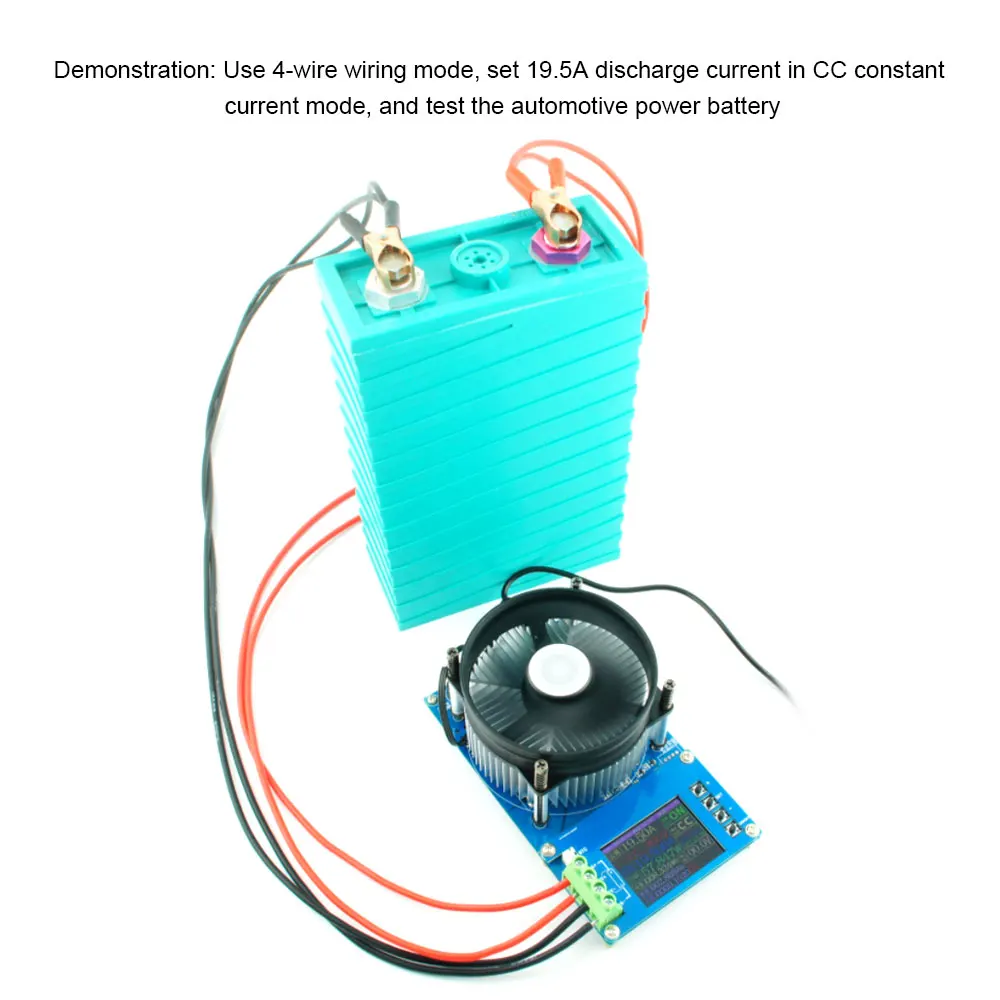

DTL150 adopts the four wire wiring method. The voltage measurement is not affected by the voltage drop of the conductor, making the voltage measurement more accurate. The four wire system is compatible with the two wire wiring method downward. When wiring, it is only necessary to short circuit A+and V+, V - and A - respectively.

technical parameter
Load type: DC numerical control electronic load
Working voltage: DC12V equipped with 12V 1A power adapter
Load voltage: DC0~150V
Load current: DC0~20A
Load power: 0~150W (maximum load of 60W above 120V)
Wiring mode: A+V+V - A - four wire system, downward compatible with two wire system
Upper limit of electricity metering: 999.999Wh
Upper limit of capacity measurement: 999.999Ah
Cumulative timing range: ddd: hh: mm: ss (day: hour: minute: second)
Operating modes: four modes CC - constant current mode CV - constant voltage mode CP - constant power mode CR - constant resistance value mode
Overvoltage protection: support maximum 150V overvoltage protection
Overcurrent protection: support maximum 20A overcurrent protection
Over power protection: support maximum 150W over power protection
Voltage limiting discharge: also known as low-voltage protection, supported, with no voltage limiting discharge by default, and set by yourself according to needs
Time limited discharge: up to 99 hours: 59 minutes
Radiator: alloy integrated mute (20 ± 3dBA), radiator internal temperature ≥ 40 ℃, automatic operation
External temperature measurement: connect NTC 3950 10K 1% temperature sensor to measure and display the temperature of 0~100 ℃
Chinese English interface switching: supported
Clearing cumulative data: supported
Zero return of voltage and current without load: supported
Voltage open calibration: supported
Current open calibration: supported
Screen brightness adjustment: support
Screen hibernation standby setting: supported
Computer software online: not supported
Restore factory settings: Supported

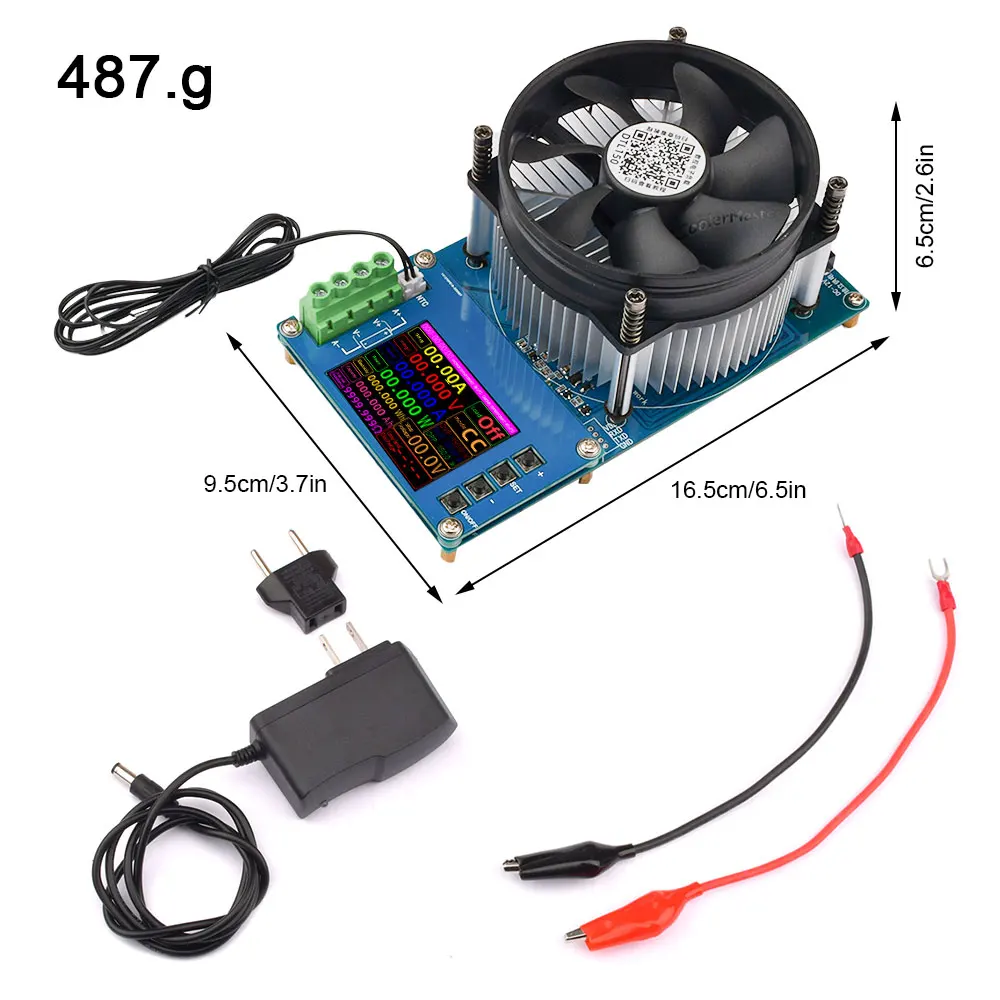

Product size: 165 × ninety-five × 80（mm）
Product package size: 195 × one hundred and five × 135mm
Product package weight: 625g Net weight of main machine: 400g
Paper instruction: None
Instruction form: Paste the tutorial QR code in the fan center, and scan the code to obtain the electronic tutorial

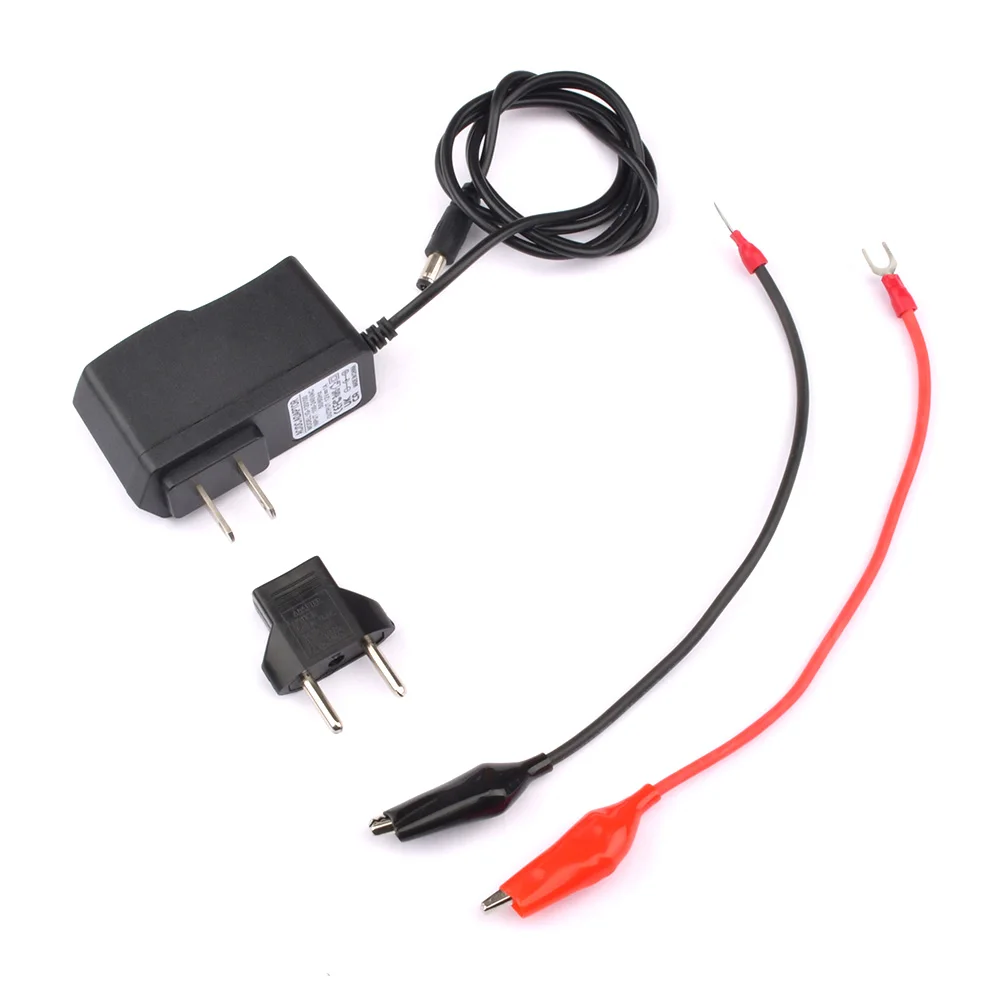

detailed list
1 * Electronic load
1 * Adapter
1 * Adapter
2 * Crocodile thread
