Product Description
Small Size 15Kw 35Kw 45kW Industrial electric induction vacuum melting furnace
vacuum induction melting furnace process, the whole process of melting, refining and alloying of metals are carried out in a vacuum state, thus avoiding the same gas-phase interaction and pollution. Secondly, in a vacuum, carbon has a strong deoxidation ability, and its deoxidation product CO is constantly pumped out of the system, overcoming the pollution problem of metal deoxidizer deoxidation.
The vacuum induction melting furnace process can accurately control the chemical composition of the alloy, for the reactive elements containing and oxygen and nitrogen affinity Al, Ti, B, Zr, etc., can be controlled in a very small range. The low melting point and volatile metal impurities, such as Pb, Bi, Sn, Sb, etc. can be removed by evaporation, which plays an important role in improving material properties. Strong induction stirring can accelerate its reaction speed, which is very effective for the melt pool temperature uniformity, chemical composition uniformity and so on.

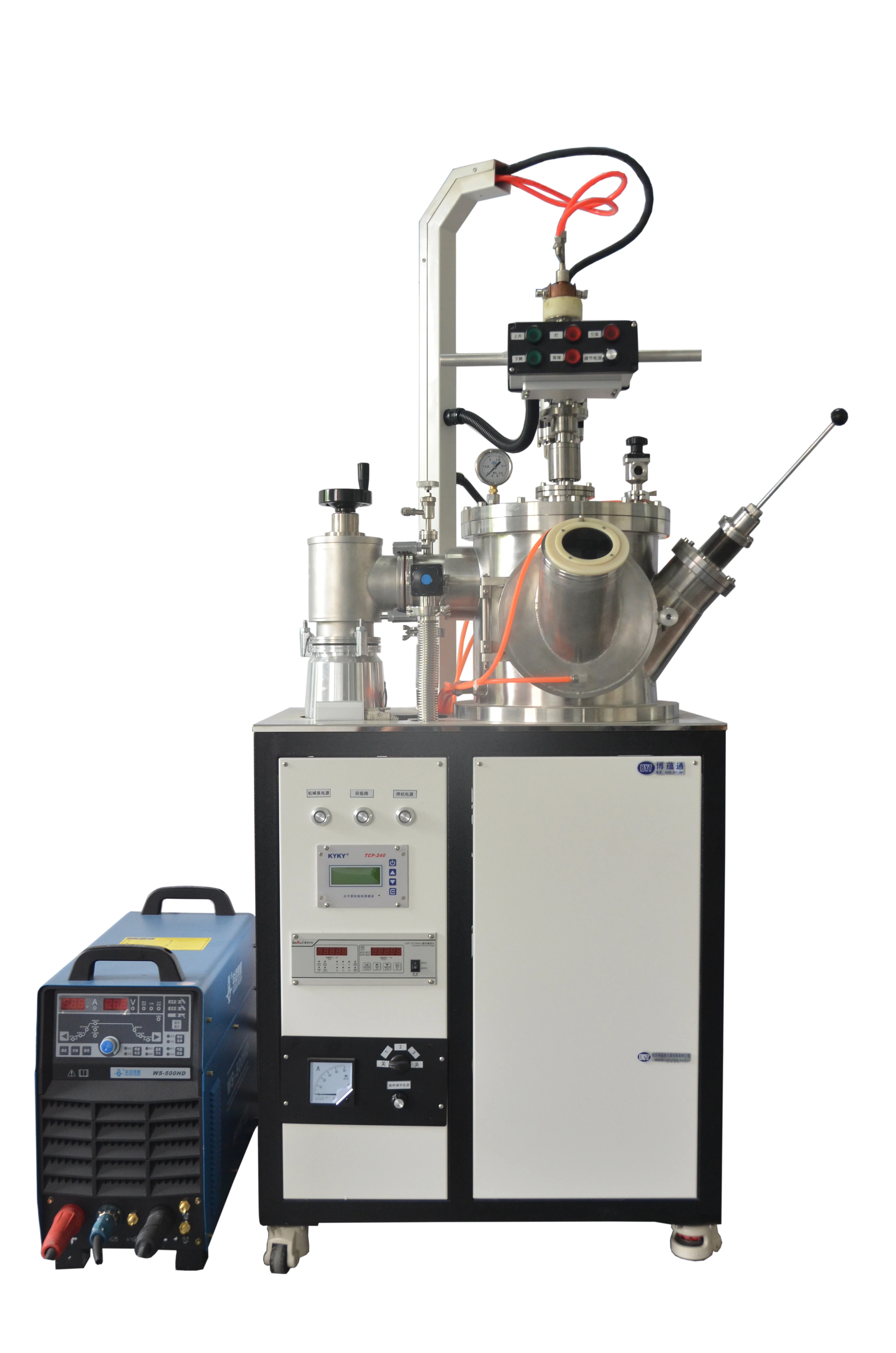

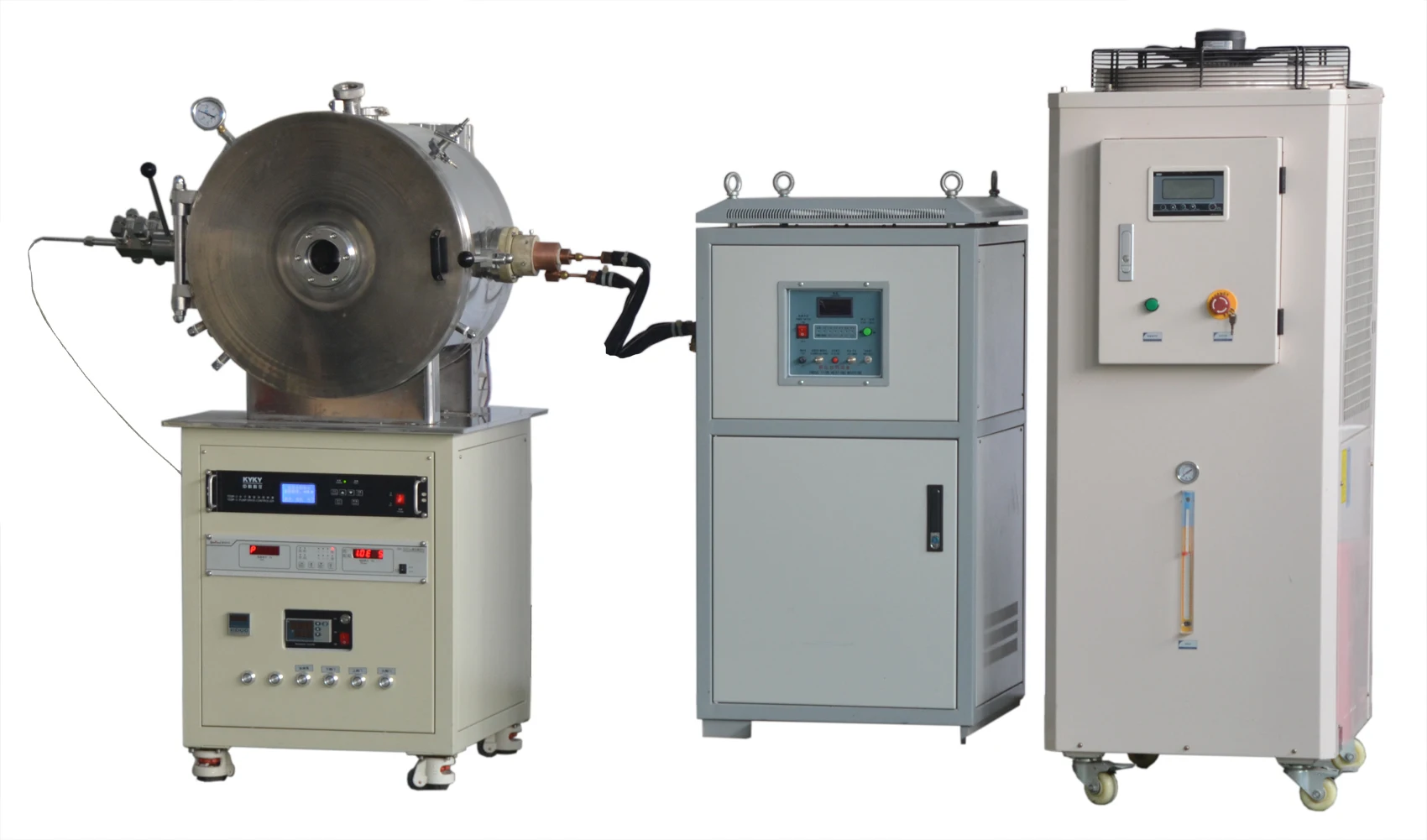

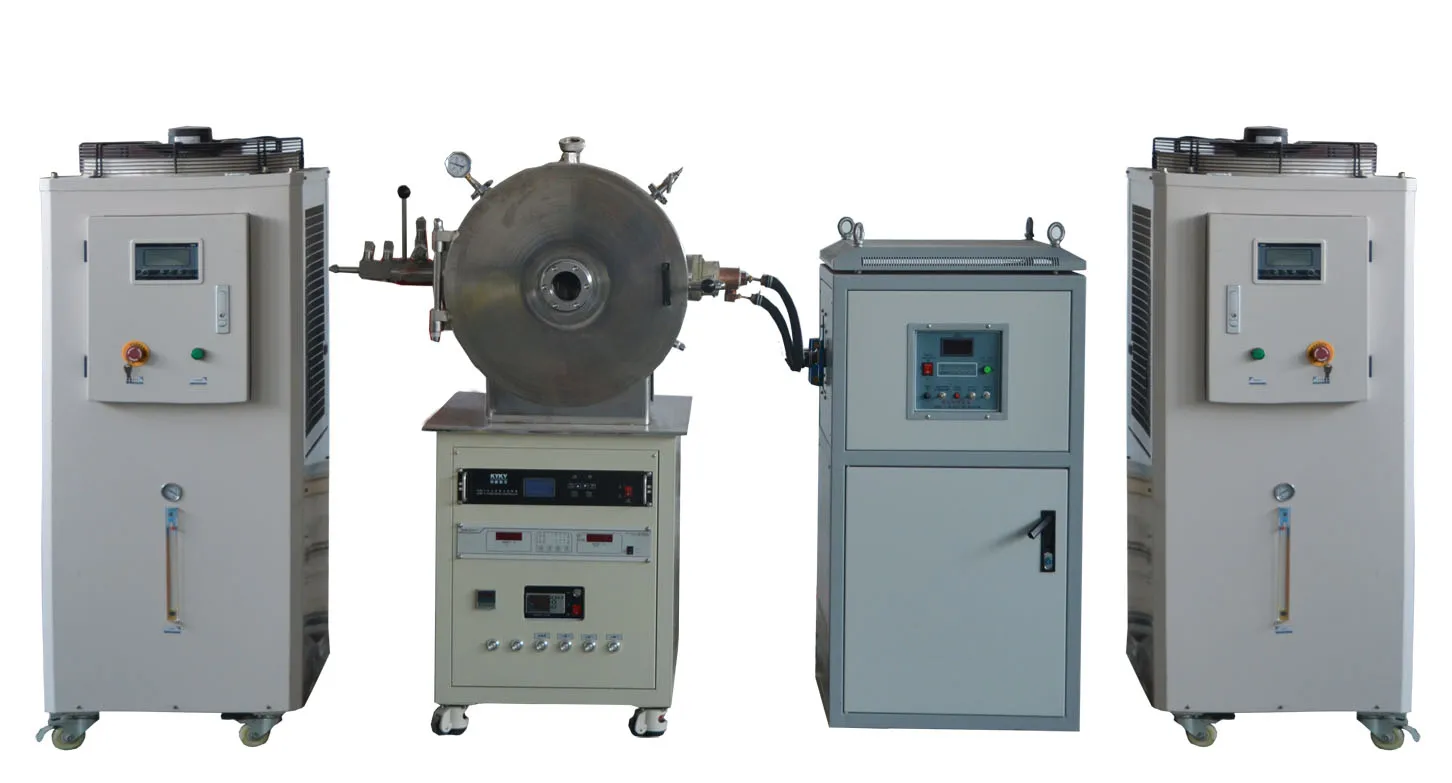

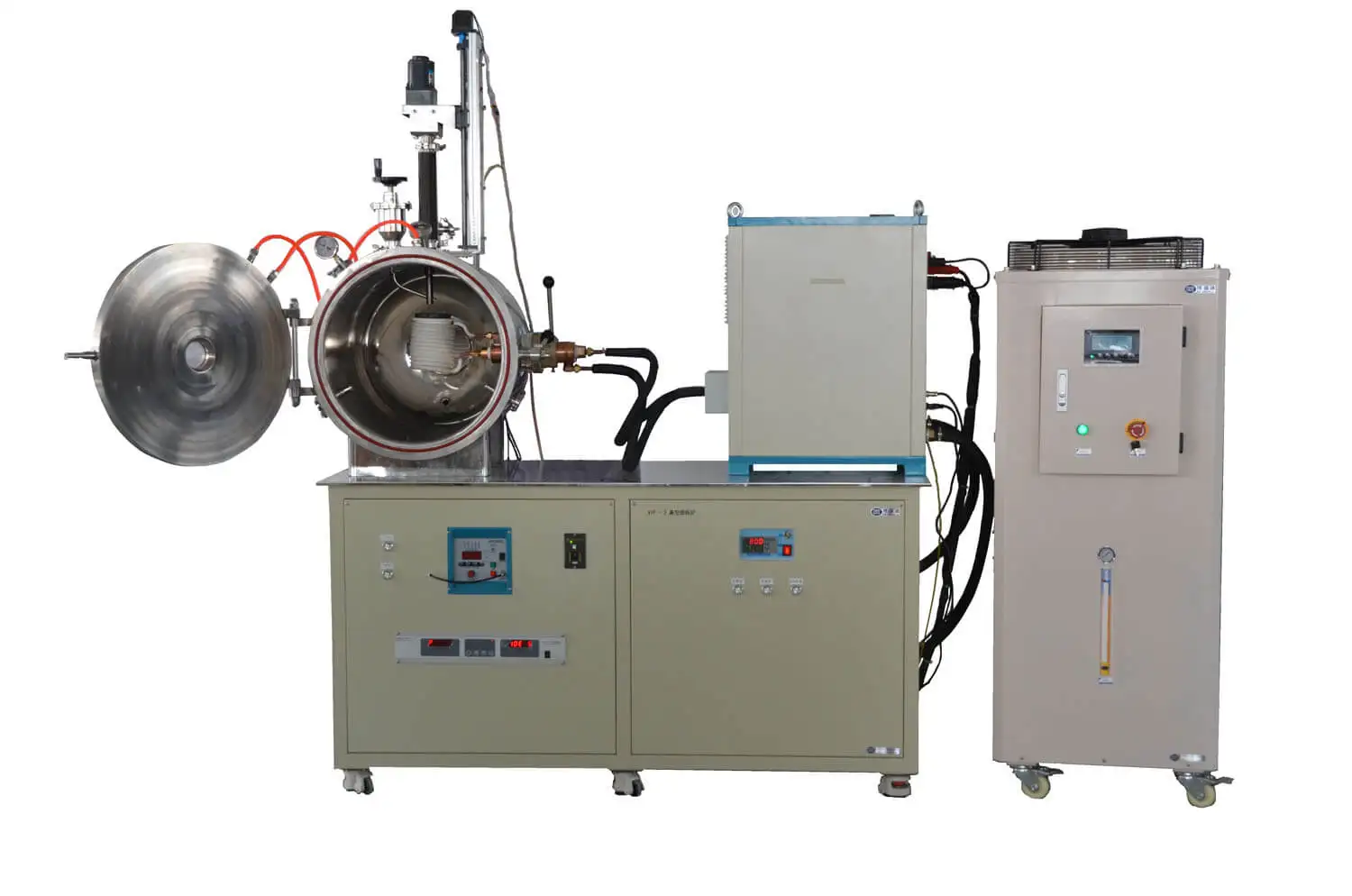

Details Images
Specification

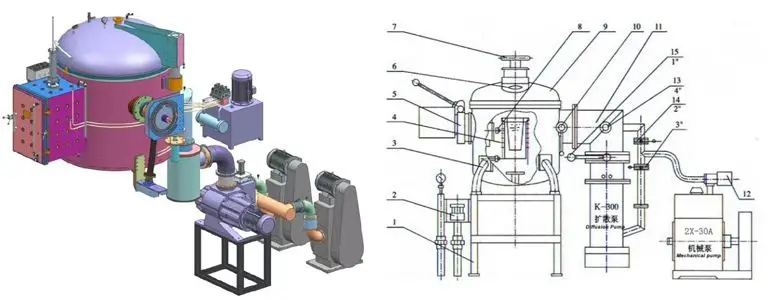

1, Support frame; 2, cooling system; 3, Furnace body; 4, Inductor; 5, Seal Sewing Bearing; 6, Inspecion window; 7, Feeder; 8,Electrode ; 9, Furnace Cover;10, Temperature measuring device; 11, Vacuum system; 12, Electromagnetism Vacuum inflation valve; 13,deflation valve;14, Dia 50 vacuum valve, 15, diameter 300
Model NO. | VIF-01 | VIF-02 | VIF-03 | VIF-05 | VIF-10 | VIF-25 | |||||
Max melting weight (calculated by molten iron) | 1 KG | 2KG | 3KG | 5KG | 10KG | 25KG | |||||
Max heating temperature ℃ | 1900℃ | 1900℃ | 1700℃ | 1700℃ | 1700℃ | 1700℃ | |||||
Power supply | HF induction power supply | IF induction power supply | |||||||||
Oscillation frequency | 30-80KHZ | 30-80KHZ | 30-80KHZ | 1-20KHZ | 1-20KHZ | 1-20KHZ | |||||
Maximum input power | 15KW | 15KW | 35KW | 45KW | 60KW(can be changed according to material) | 80KW (can be changed according to material) | |||||
Heating current | 2-50A | 2-52A | 12-70A | 15-95A | 10-90A | 20-130A | |||||
Cooling water requirements | ≥0.2MPa ≥6L/min | 10P (Change according to different requirements) | |||||||||
Power supply weight | 35KG | 35KG | 68KG | 45KG | 70KG | 80KG | |||||
Input voltage | 3P 380V 50/60HZ | ||||||||||
Feature
1. Small vacuum melting furnace has fashionable appearance and compact structure, covering an area of less than 2 square meters
2. The vacuum furnace can be designed as a side door opening structure, which is convenient for taking and placing materials.
4. The furnace shell adopts double-layer water cooling structure, and the surface temperature does not exceed 40 ℃, which is more safe and reliable.
5. An observation window is arranged on the furnace cover to facilitate the observation of material melting. Gas inlet and outlet are installed on the furnace body, and multiple KF interfaces are reserved to facilitate connection to other devices.
6. The electrode can rotate.
7. Equipped with a secondary feeding device, other elements can be added in the smelting process to make various alloy materials.
8. IGBT special power supply and all digital circuit are adopted. The electrical system is equipped with overcurrent, overvoltage feedback and protection circuit. The electric control panel box is made according to Siemens standard, with high temperature control accuracy and convenient operation.
9. Small vacuum melting furnace can adopt two-stage pump, that is, mechanical pump and molecular pump, and the vacuum degree can reach 8 × 10-4P.
2. The vacuum furnace can be designed as a side door opening structure, which is convenient for taking and placing materials.
4. The furnace shell adopts double-layer water cooling structure, and the surface temperature does not exceed 40 ℃, which is more safe and reliable.
5. An observation window is arranged on the furnace cover to facilitate the observation of material melting. Gas inlet and outlet are installed on the furnace body, and multiple KF interfaces are reserved to facilitate connection to other devices.
6. The electrode can rotate.
7. Equipped with a secondary feeding device, other elements can be added in the smelting process to make various alloy materials.
8. IGBT special power supply and all digital circuit are adopted. The electrical system is equipped with overcurrent, overvoltage feedback and protection circuit. The electric control panel box is made according to Siemens standard, with high temperature control accuracy and convenient operation.
9. Small vacuum melting furnace can adopt two-stage pump, that is, mechanical pump and molecular pump, and the vacuum degree can reach 8 × 10-4P.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Customer Photos
FAQ
1. What is your advantage to compared to others?
① We provided turnkey solution, cost-effective, highly efficient, durable and easy-to operate machine is what we deliver.
② We have strict quality control system, before being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video how the machine is broken,we will find out which part of the machine is broken and then we will send you the broken part By DHL.
3. What is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In warranty period,we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system.When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
① We provided turnkey solution, cost-effective, highly efficient, durable and easy-to operate machine is what we deliver.
② We have strict quality control system, before being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video how the machine is broken,we will find out which part of the machine is broken and then we will send you the broken part By DHL.
3. What is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In warranty period,we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system.When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
