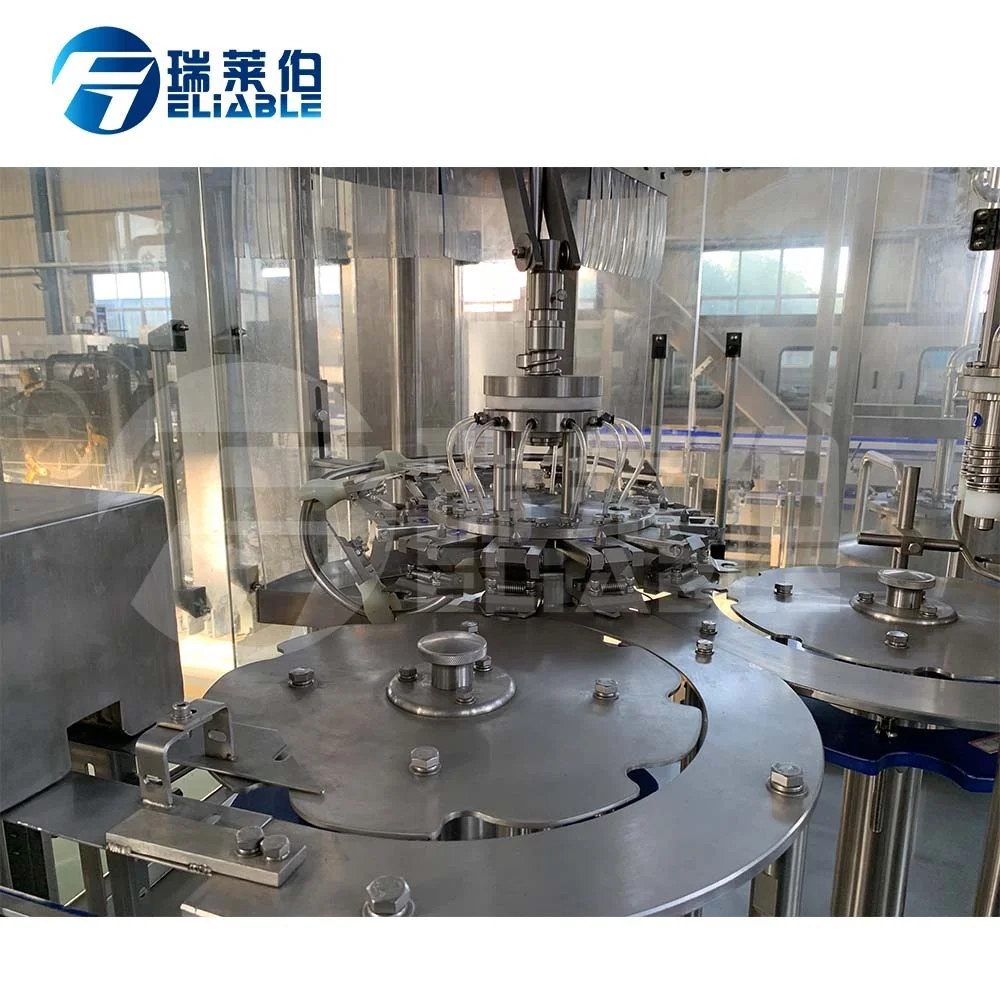

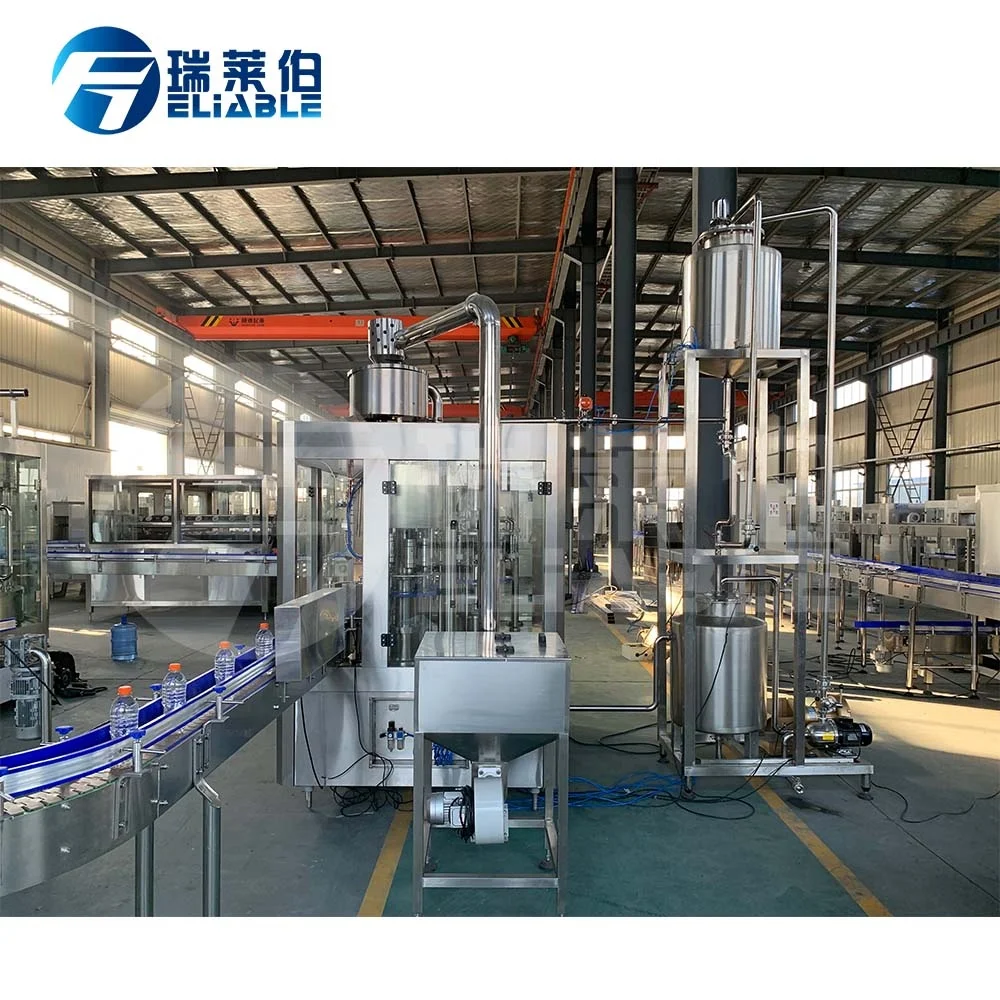

Концентрированная машина для наполнения фруктового сока мягких напитков линия по производству свежего винограда манго горячего
- Категория: >>>
- Поставщик: Zhangjiagang Reliable Machinery Co. Ltd.
Сохранить в закладки 1600534870947:
Описание и отзывы
Характеристики
Product Description
Automatic Concentrated Fruit Juice Mixing Filling Packing Machine Soft Drink Grape Mango Apple Fresh Juice Making Hot Filling Production Line
Products Introduction:
The concentrated juice mixing filling machine adopts the bottleneck transmission technology to realize the automatic bottle washing, filling, capping and other processes, with high degree of automation. The series of juice filling machines are suitable for the filling of juice, black tea, green tea, lemon tea and milk drinks.
Equipped with perfect temperature control system and reflux system, with perfect filling equipment automatic cleaning system and control program, all parts in contact with liquid are made of high-quality stainless steel materials and food grade rubber, which is sanitary and easy to clean.
What Can Be Produced？
Production capacity: 2000-30000 bottles/hour (based on 500ml)
Production capacity: 2000-30000 bottles/hour (based on 500ml)
Applicable products: It is suitable for filling fruit juice beverage and tea beverage in high temperature resistant PET(polyester) bottle, as well as non-carbonated beverage such as mineral water, purified water, milk, tonic water, etc.
Applicable container: PET bottles of various capacities and shapes Filling system: Equip with reflux system for hot filled juice
Applicable container: PET bottles of various capacities and shapes Filling system: Equip with reflux system for hot filled juice
Technical Parameters
Model | CGFD8-8-3 | CGFD12-12-6 | CGFD18-18-6 | CGFD 24-24-8 | ||
washing, filling and capping heads No. | 8-8-3 | 12-12-6 | 18-18-6 | 24-24-8 | ||
Capacity | 2000BPH | 4000 | 8000 | 12000 | ||
Bottle Volume Range | volume=330-2000ml | φ=50-110 H=150~340mm volume=330-2500ml | ||||
Motor power(kw) | Main motor | Main motor 3.5kw | Main motor 4.0kw | Main motor 4.8kw | ||
Overall dimensions (mm) | 1.9kw | 2450*1800*2400 | 2650*1900*2400 | 2900*2100 *2400 | ||
Weight (kg) | 1900*1420*2000 | 2500 | 3500 | 4500 | ||
Model | CGFD 32-32-8 | CGFD 40-40-10 | CGFD 50-50-12 | CGFD 60-60-15 | ||
washing, filling and capping heads No. | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 | ||
Capacity | 150000 | 20000 | 24000 | 28000 | ||
Bottle Volume Range | volume=330-2000ml | φ=50-110 H=150 ~340mm volume=330-2500ml | ||||
Motor power(kw) | Main motor 7.6kw | Main motor 8.3kw | Main motor 9.6kw | Main motor 15Kw | ||
Overall dimensions (mm) | 4100*2000 *2400 | 4550*2650 *2400 | 5450*3210 *2400 | 5500*3510 *2400 | ||
Weight (kg) | 6500 | 8500 | 9800 | 12000 | ||
Detailed Images

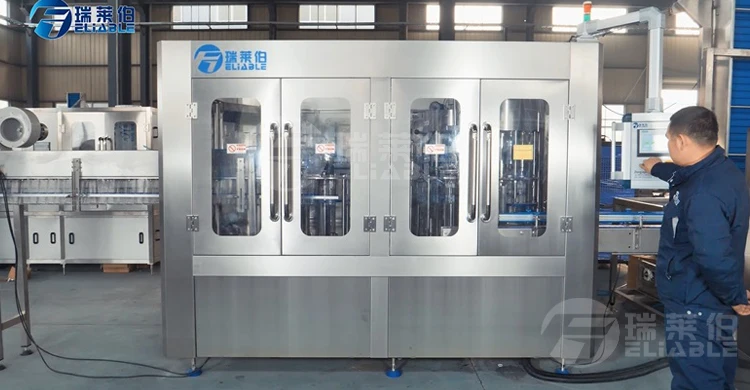

Out Look
> 304 stainless steel frame
> Tempering Glass window, Clear & no door
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever antirust
> All seal where liquid may Leakage & base neck come with rubber, water proof
> Manual lubrication system

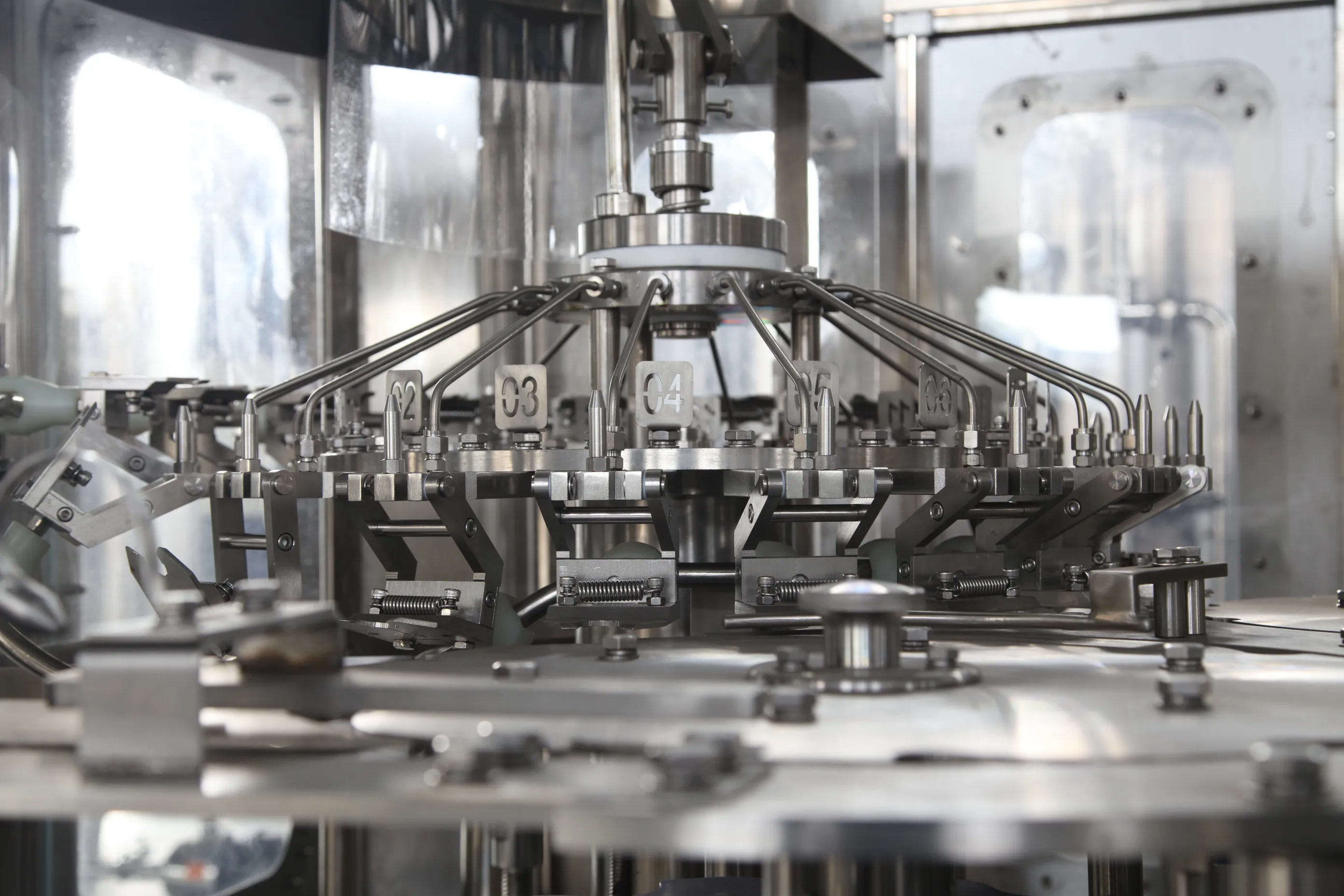

Washing/Rinsing Station
* Adopting the direct connection technology between the air duct and the bottle feeding wheel, the bottle feeding screw and
conveyor chain are eliminated, and the bottle shape is simple and easy to change.
* Bottle transmission adopts the bottleneck clamping technology throughout the whole process. Changing the bottle shape does not
need to adjust the height of the equipment. It only needs to replace the arc guide plate, dial wheel and other nylon parts related
to the bottle diameter.
* The high-speed line adopts bottle clamp transmission technology, the bottle shape changes more freely, and the internal working
surface of the unit is more concise.

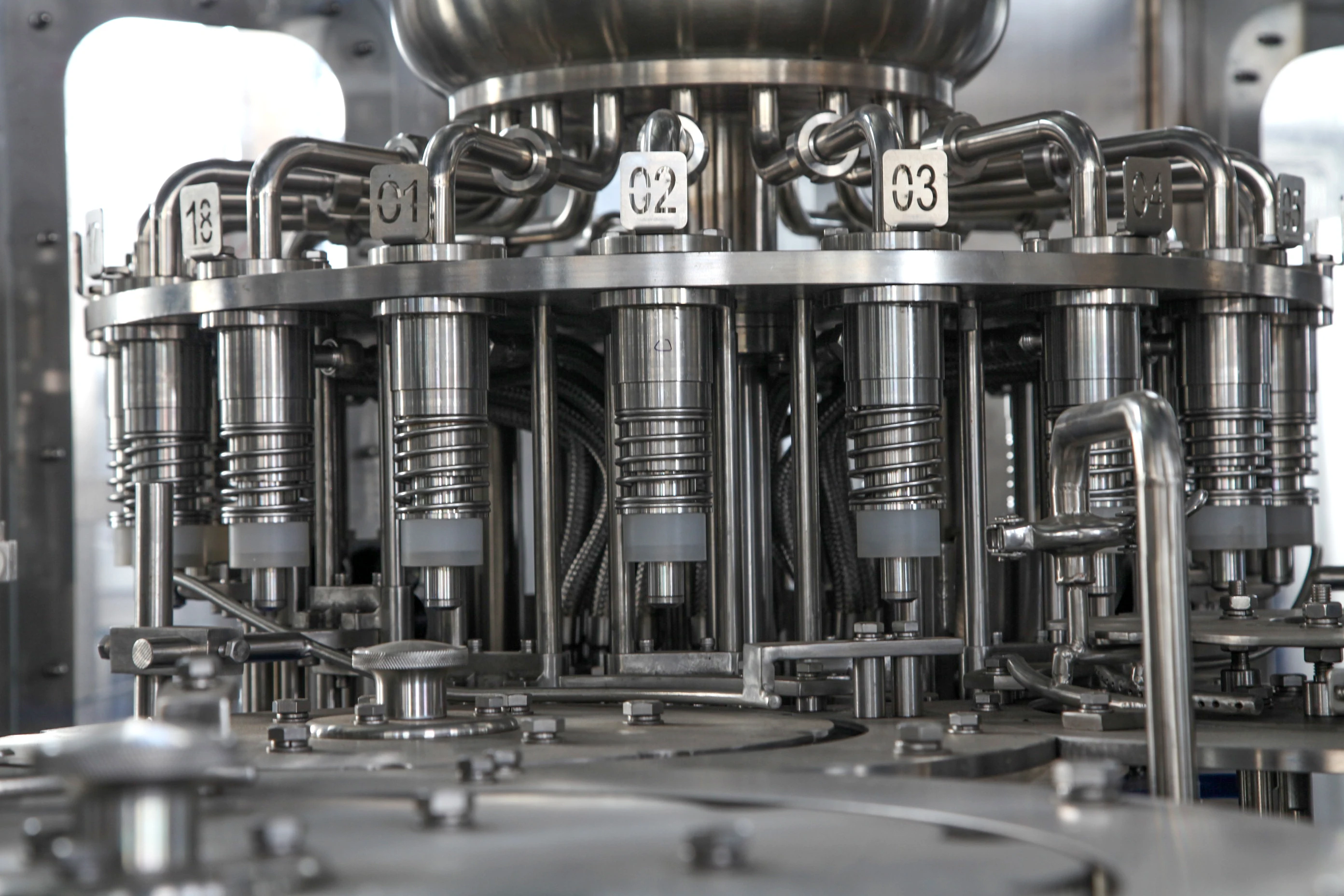

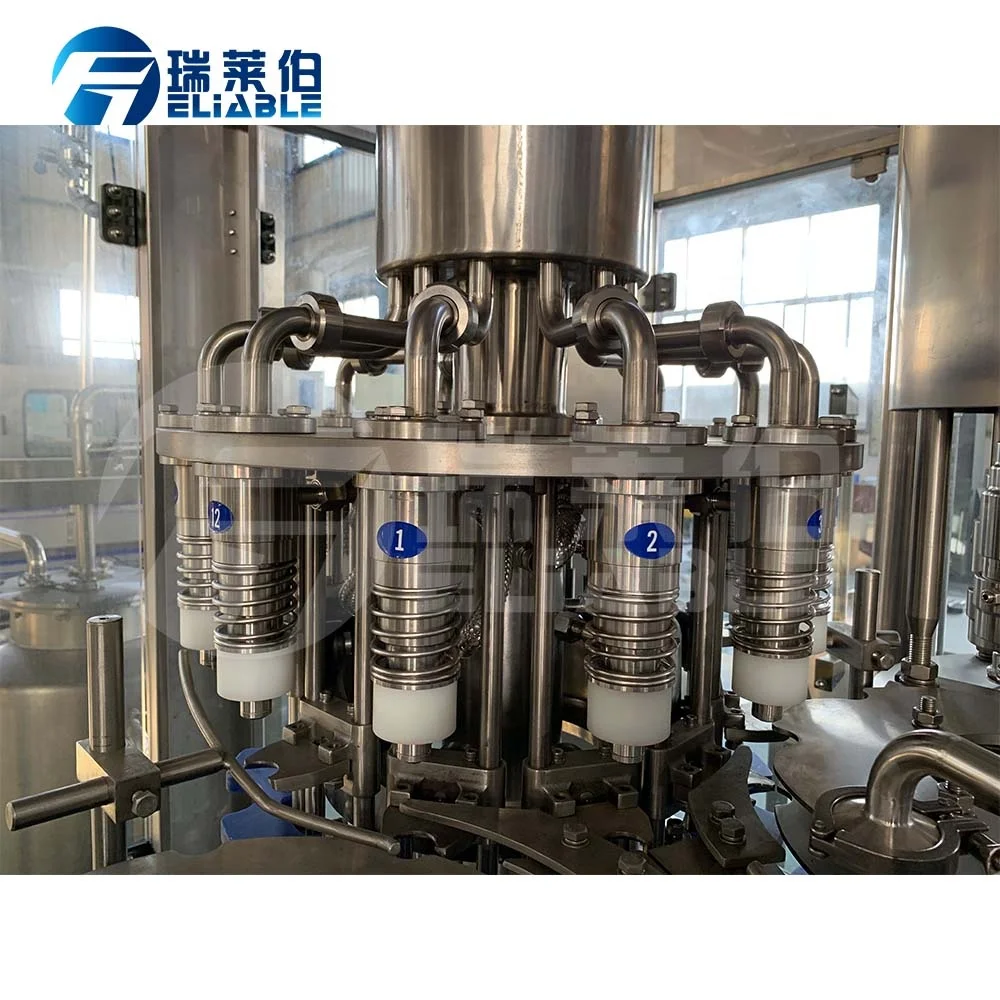

Filling Station
* The three-in-one unit completes the three processes of bottle washing, filling and capping at one time, with little bottle wear,
accurate and stable transmission, and convenient bottle type replacement.
* The specially designed all-stainless steel bottle washer bottle clamp is sturdy and durable, and does not touch the threaded
part of the bottle mouth to avoid secondary pollution of the bottle mouth.
* High-speed filling valve, fast filling speed, accurate liquid level without liquid loss.

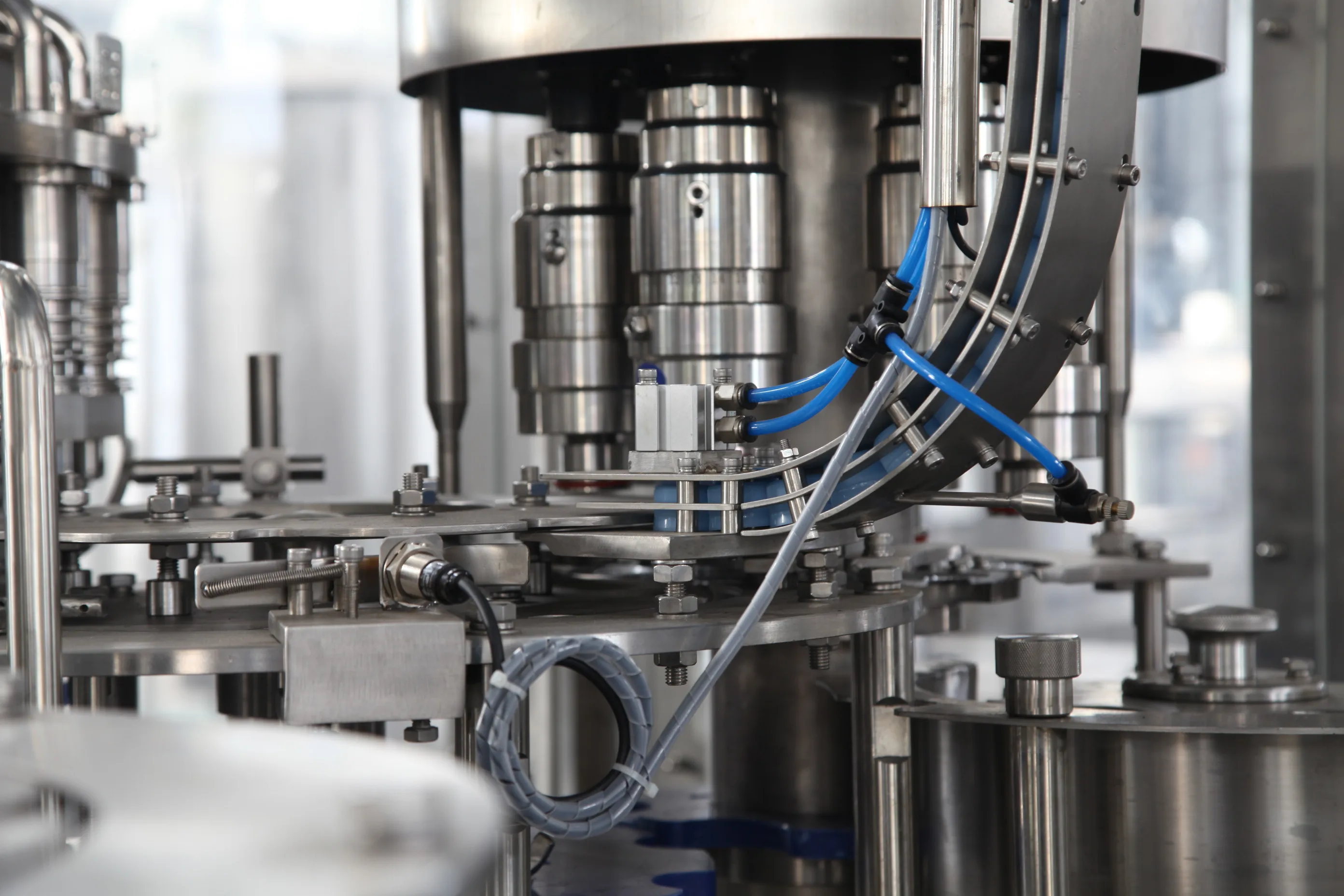

Capper Station
* All parts in contact with liquid are made of high-quality stainless steel materials or food-grade engineering plastics, which
meet the national food hygiene standards.
* The bottle bottom support plate of the bottle output wheel adopts a spiral descending method, and the height of the bottle
conveyor chain is not required to change the bottle shape.

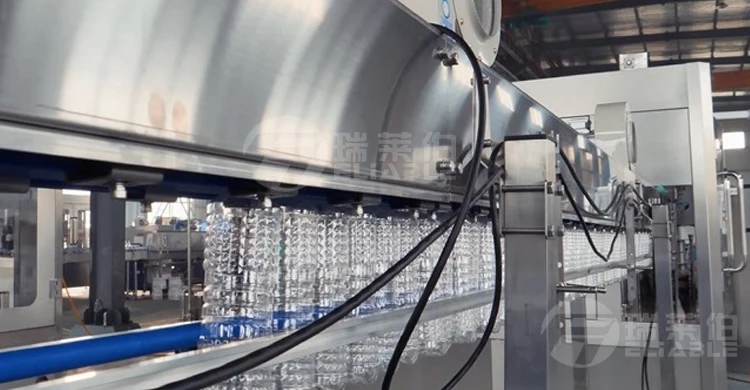

Bottle Inlet (Air Conveyor)
All Stainless Steel 304 include the all the connection parts and bottle exchange part .
Big motor Air fan
Steady running for the machine . Strong Machine . Can be customizer the length and design .
Our Service
Free 2D & 3D Bottle Design
Our Machine can fit bottle size from 100ml ~ 2000ml Bottle / 3L ~10L Bottle 10~25L Bottle
And three size of bottle fitting parts for free .
Free Layout Plant Design
Every Factory are different and unique , We will special design the layout according to your factory , supply the best beverage package solution for you
Free Spare Parts
All Reliable Machine will be supply One year Spare parts for Free . High Quality Parts ensure the stable of machine's running .
Engineers Available for Installation Service
We have our overseas engineers team to support customers' machinery installation and staff training. Our engineer can go to your factory to install the machine, give you the operating manual and train your employee until they can operate the machine well.
Cooperation Suppliers
Our Company
RELIABLE will supply you bottle design, label design, workshop design free and make turnkey project equipments for you.
Don't hesitate to contact us if you show interesting on our beverage production machine and our RELIABLE company.
Похожие товары
Высококачественные какао-бобы, шоколадные бобы по оптовой цене в Бельгии, оптовая продажа фруктов, сухие сырые чистые какао бобы для продажи

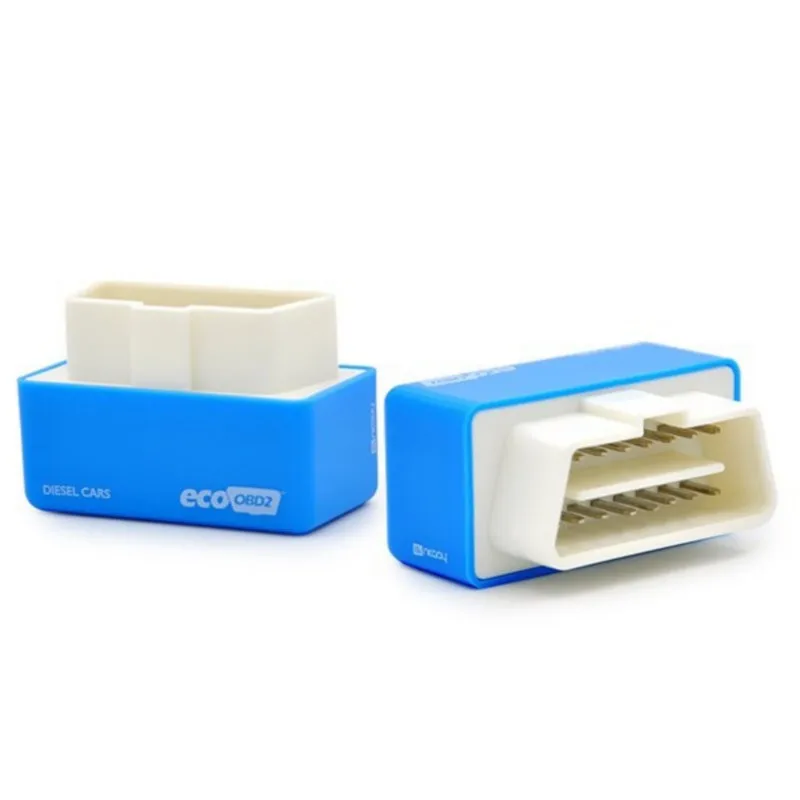

Чип-тюнинг Super ECO OBD2 для экономии топлива и меньшего излучения, чип OBD2 для тюнинга дизельных бензиновых автомобилей, интерфейс ECO OBDII
1,90 $ - 4,00 $
Электрическая Рабочая Изолированная дышащая стальная защитная обувь Honeywel
16,90 $ - 19,30 $

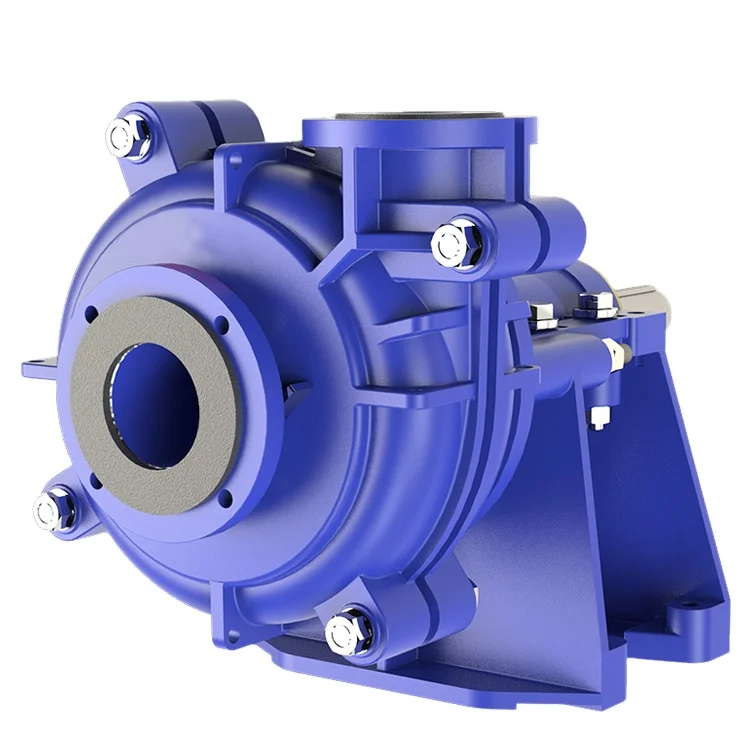

Завод Хэбэй, экспорт, шламовый насос, песочный насос, грязевой вакуумный всасывающий насос для песка
1 650,00 $

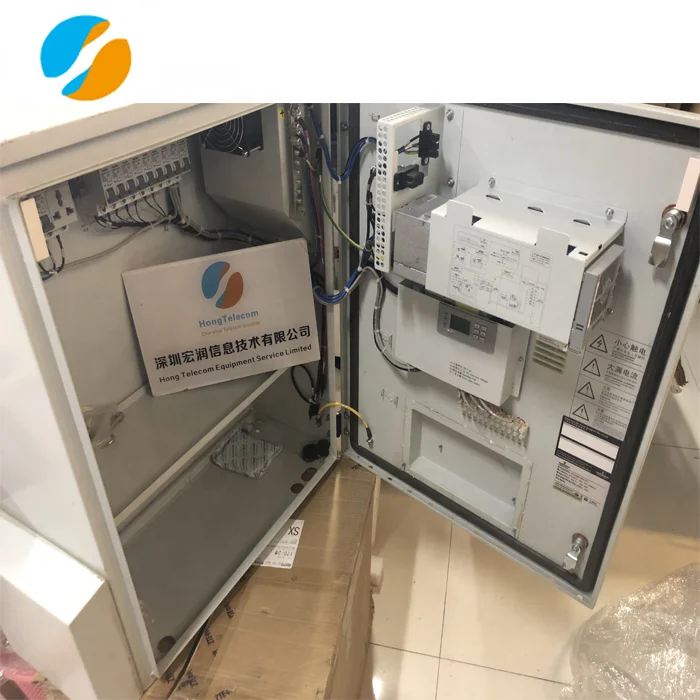

Наружный шкаф APM5930 220 В AC наружная система питания для Huawei DBS 5900 3900
