Полный комплект полностью автоматическая машина для розлива ПЭТ пластиковой питьевой воды в бутылки Машина Для Розлива Чистой минеральной производственная линия
- Категория: >>>
- Поставщик: Zhangjiagang Links Machine Co. Ltd.
Сохранить в закладки 1600535157614:
Описание и отзывы
Характеристики
Products Description

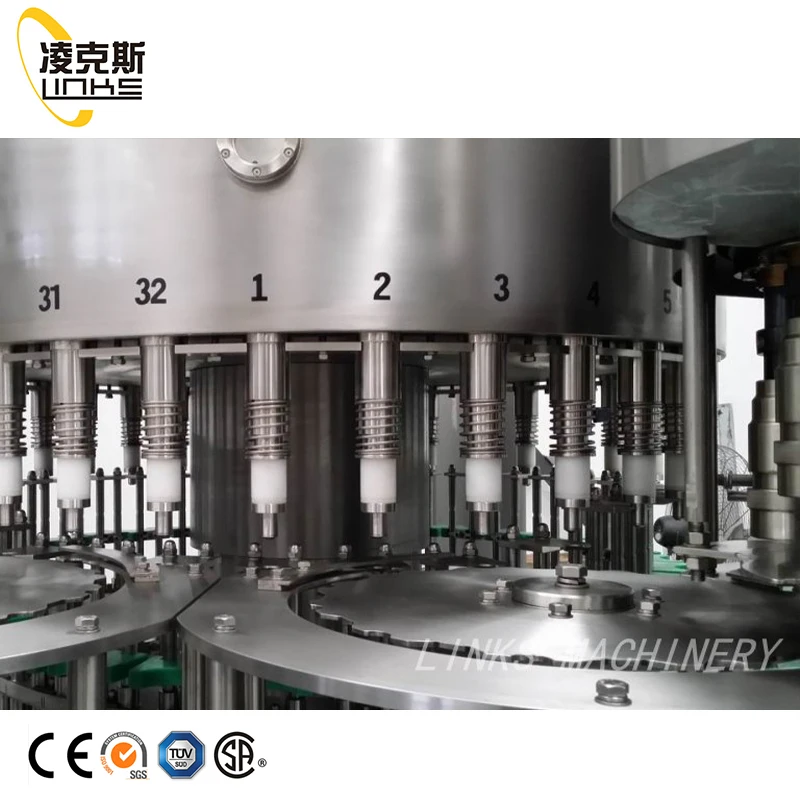

Automatic Bottled Water Production Line For Pure Water or Mineral Water
*We supply complete solution for the water filling plant ,including Water treatment system / Washing filling capping machine /Code sprayer / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system
Technical parameter : water filling machine | ||||||||||||
Model | XGF8-8-3 | XGF14-12-4 | XGF18-18-6 | XGF24-24-6 | XGF32-32-8 | XGF40-40-10 | ||||||
Capacity(for 500ml) | 2000 | 3000-4000 | 6000-8000 | 8000-12000 | 13000-15000 | 16000-18000 | ||||||
Suitable bottle shapes | PET circular or square | |||||||||||
Bottle diameter(mm) | Dia50-Dia115mm | |||||||||||
Bottle height (mm) | 160-320mm | |||||||||||
Compressor air | 0.3-0.7Mpa | |||||||||||
Washing meidium | Aseptic water | |||||||||||
Rinsing pressure | >0.06Mpa | |||||||||||
Application | Water filling machine | |||||||||||
Total power (KW) | 4.4kw | 4.4kw | 4.4kw | 5.2kw | 6.2kw | 7.8kw | ||||||
Overall dimensions | 2.3*1.9m | 2.5*1.9m | 2.8*2.15m | 3.1*2.5m | 3.8*2.8m | 4.5*3.3m | ||||||
Height | 2.3m | 2.5m | 2.5m | 2.5m | 2.5m | 2.6m | ||||||
Weight(kg) | 2500kg | 3200kg | 4000kg | 4500kg | 6500kg | 8000kg | ||||||
Different filling capacities
8-8-3 Bottle Water Filling Line Capacity:1000-2000 bottles per hour.
14-12-5 Bottle Water Filling Line Capacity:2000-3000 bottles per hour.
16-12-6 Bottle Water Filling Line Capacity:4000-6000 bottles per hour.
18-18-6 Bottle Water Filling Line Capacity:6000-8000 bottles per hour.
24-24-8 Bottle Water Filling Line Capacity:10000-12000 bottles per hour.
32-32-10 Bottle Water Filling Line Capacity:12000-15000 bottles per hour.
40-40-12 Bottle Water Filling Line Capacity:20000-24000 bottles per hour
14-12-5 Bottle Water Filling Line Capacity:2000-3000 bottles per hour.
16-12-6 Bottle Water Filling Line Capacity:4000-6000 bottles per hour.
18-18-6 Bottle Water Filling Line Capacity:6000-8000 bottles per hour.
24-24-8 Bottle Water Filling Line Capacity:10000-12000 bottles per hour.
32-32-10 Bottle Water Filling Line Capacity:12000-15000 bottles per hour.
40-40-12 Bottle Water Filling Line Capacity:20000-24000 bottles per hour
Details Images
According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment plants.
Main Features
*Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
* Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

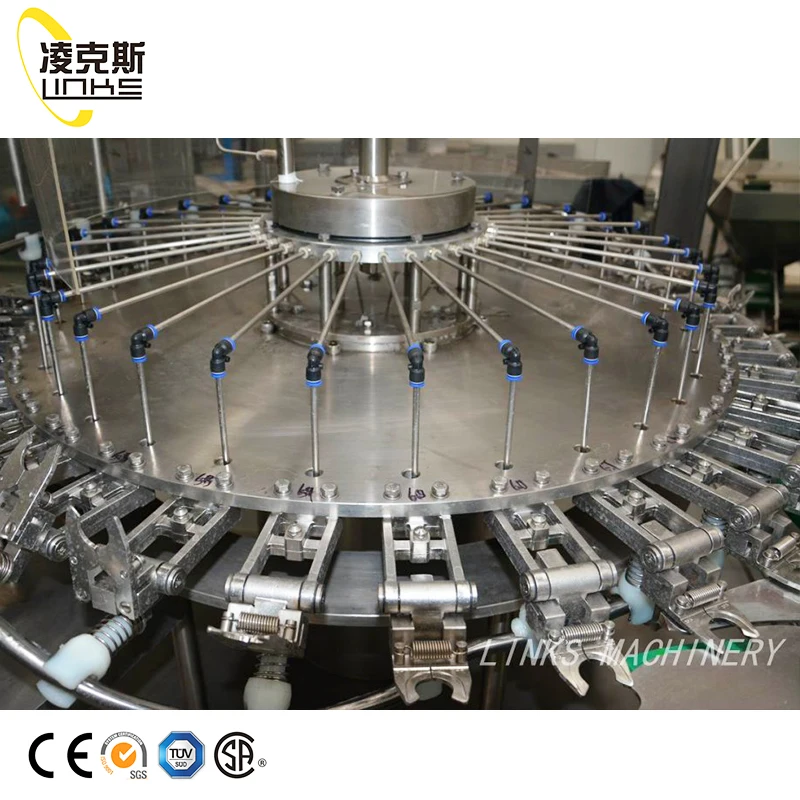

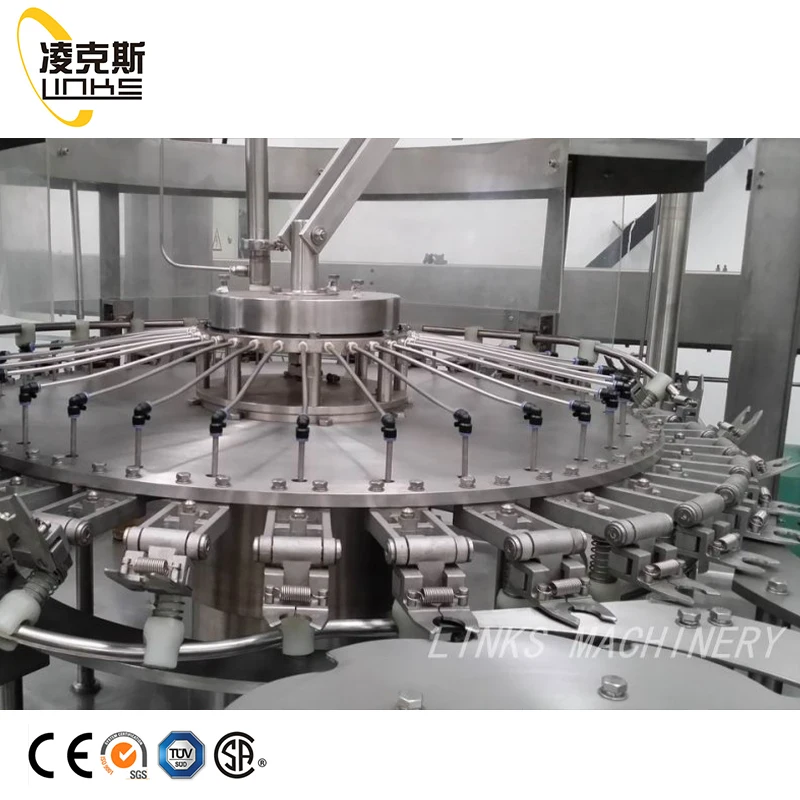

* The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

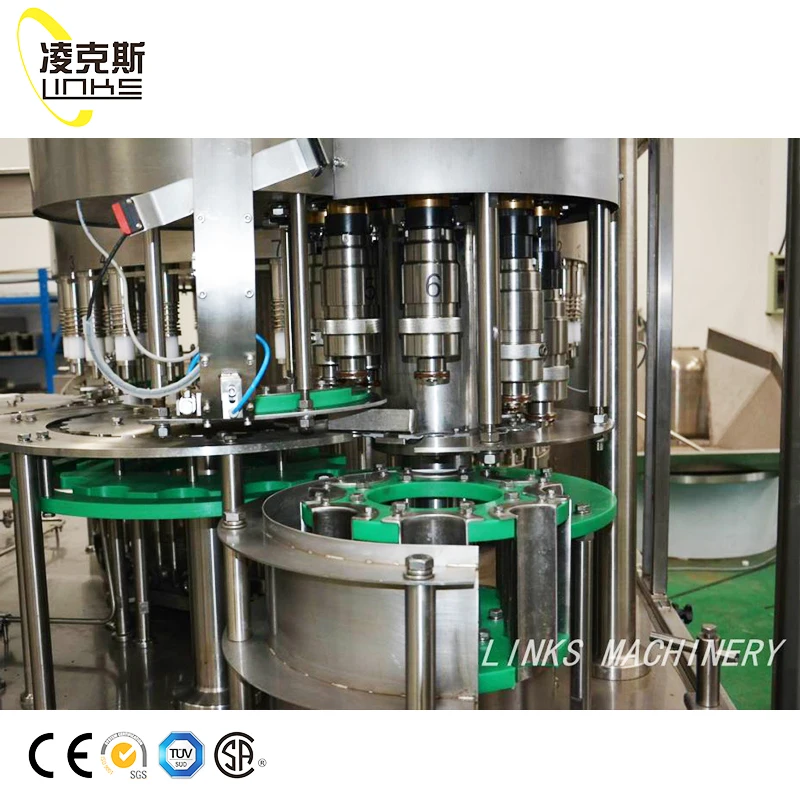

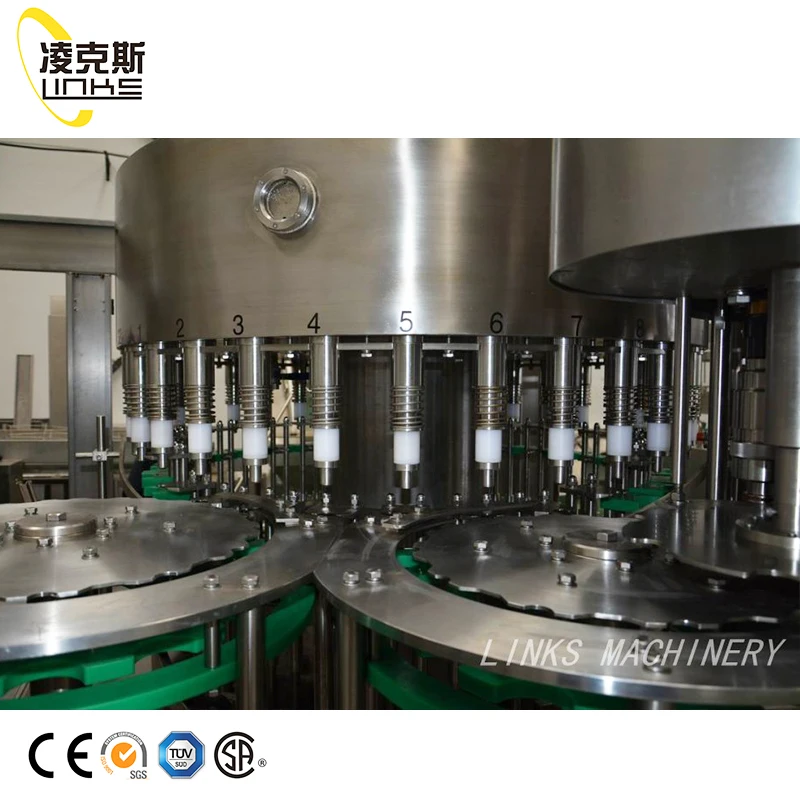

*High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid loss.
*Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
*Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
*Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
* Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
* The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
*High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid loss.
*Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
*Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Name | Brand | Area |
PLC | Siemens | Germany |
Inverter | Siemens | Germany |
Contactor | Siemens | Germany |
Touch screen | Siemens | Germany |
Inverter | Siemens | Germany |
Motor | ABB | Swiss |
Pneumatic parts | FESTO | Germany |
Electrical parts | Schneider | France |
As customer request and market demand, we provide the better solution for the final product package,We have various kinds of options. Labeling machine have the PVC sleeve label, BOPP hot glue label, Adhesive stick label, Wet glue label ,and packing machine have the film shrink machine and carton box package.
We design the factory layout based on customer factory sizes,whole line design is based on famous brand motors and automatic lubricant system ,and with less power consumption ,and save space .
This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in food, beverages, cosmetics, pharmaceutical industry.
Turnkey Solution
Leadership in quality and technology from raw material to bottled liquid to selling products - Links Co.,Ltd, A-Z turnkey plant supplier, is known for developing innovative high-end products and new technologies.
Похожие товары
Лидер продаж мотоциклетная толстовка с кевларовым капюшоном внутренней меховой подкладкой мотоциклетные толстовки унисекс первоклассная
Новое поступление мотоциклетные толстовки с кевларовой подкладкой верхние унисекс первоклассная

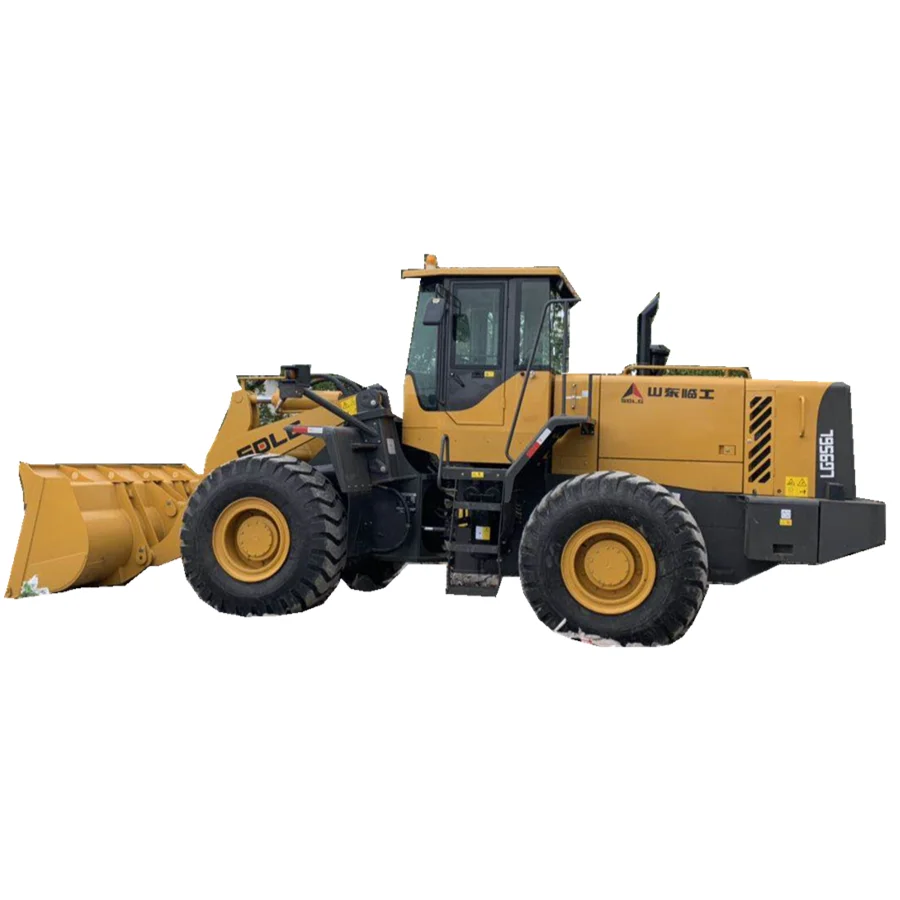

Б/у Caterpillar 966/950/980/930-G-K-H-F Komatsu 320/380/470/500-3-5-6 б/у Sdlg958/956/953 Liugong856 Lonking855 Xc Mg50

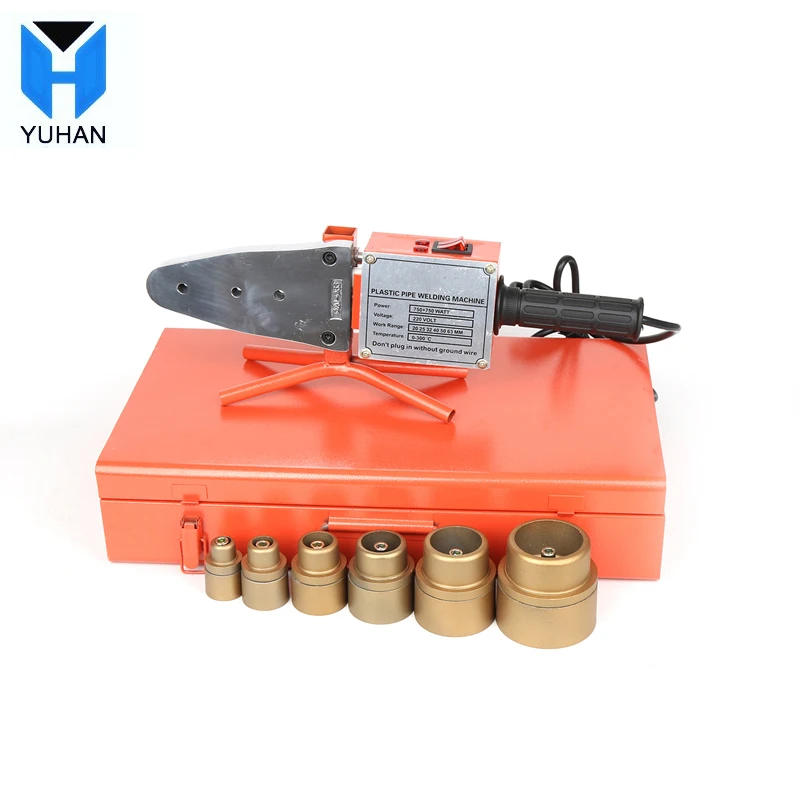

Сварочный аппарат ppr для труб 20-63 мм 1500 Вт
