SY B174V портативный ветеринарный крови машины иммунофлюоресценции быстрого количественного анализатор
- Категория: Clinical Analytical Instruments >>>
- Поставщик: Guangzhou Sunnymed Limited
Сохранить в закладки 1600535246386:
Описание и отзывы
Характеристики
SUNNYMED Reliable Quality Affordable Price

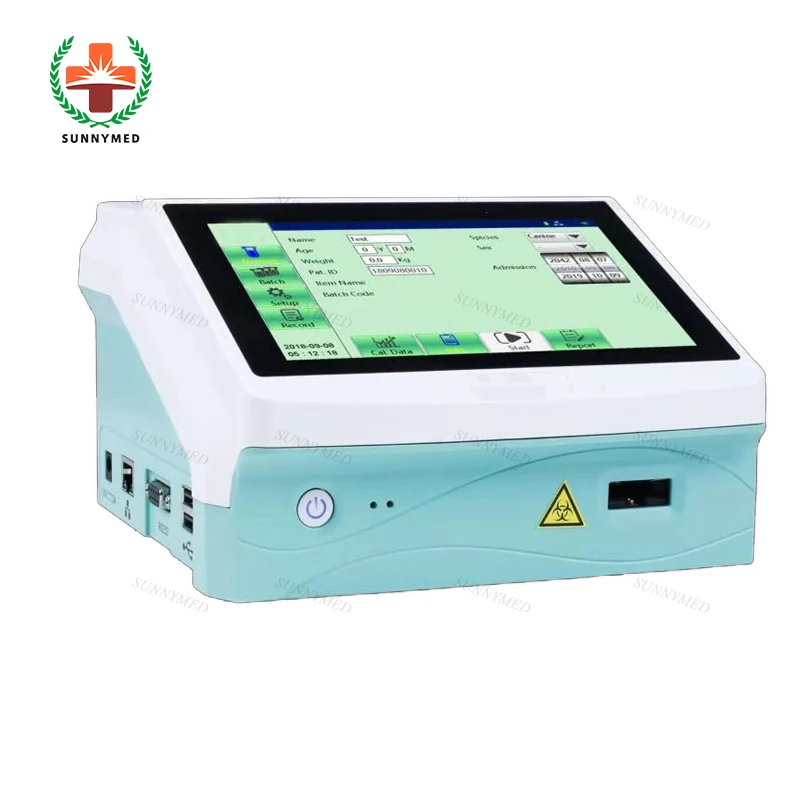

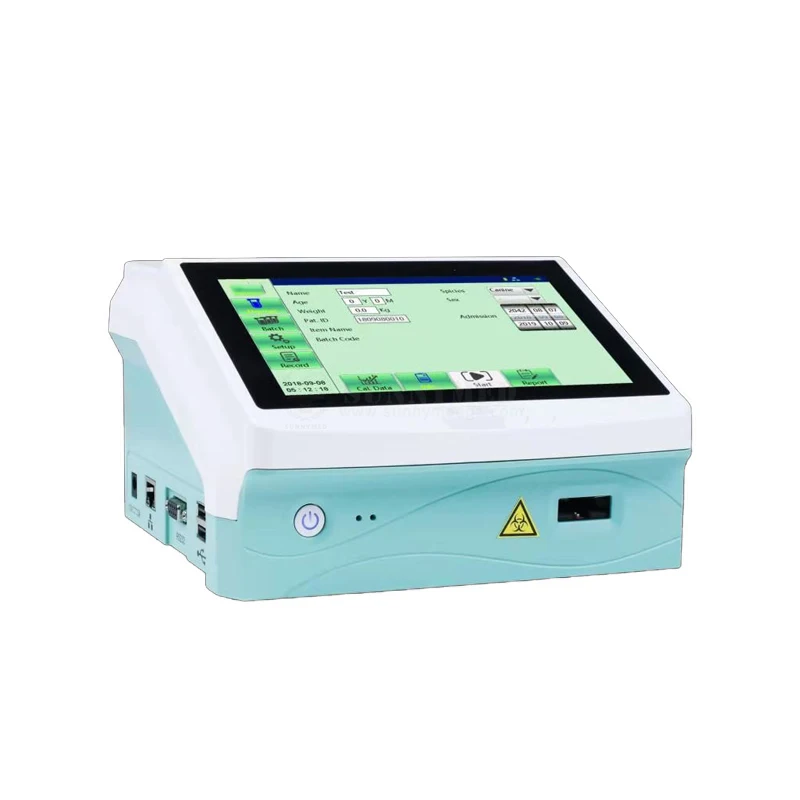

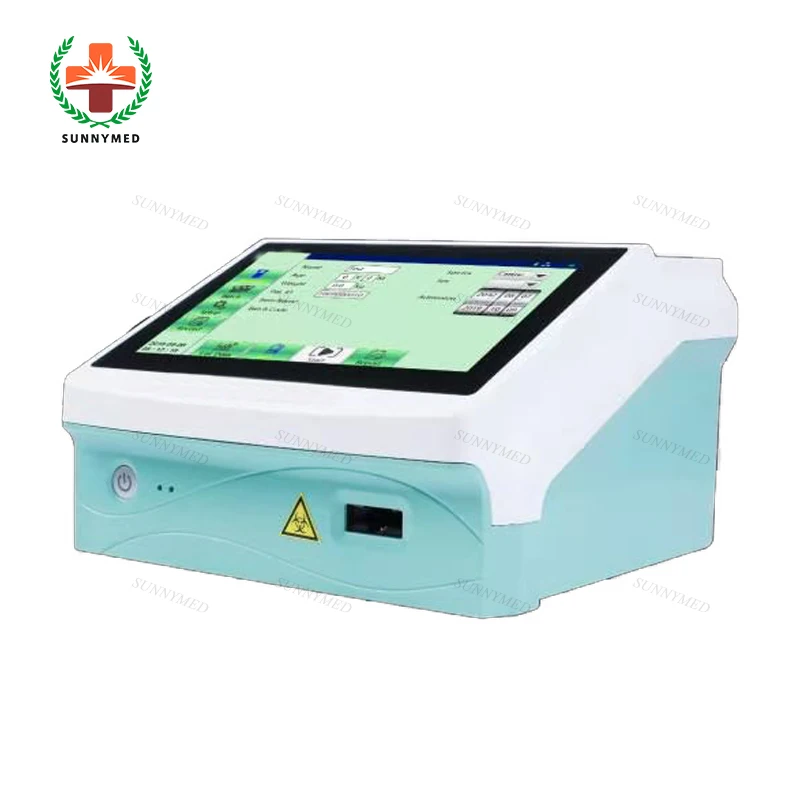

SY-B174V Portable Vet Blood Test Machine Immunofluorescence Rapid Quantitative Analyzer
Products Description
Working conditions of Dry Immunofluorescence Quantitative Analyzer:
1.Ambient temperature: 5 ~ 40℃
2.Relative humidity: ≤ 80%
3.Atmospheric pressure: 86KPa ~ 106KPa
4.Surrounding environment:There is no strong electromagnetic interference source,avoid direct exposure of strong light, and has a good grounding environment.
5.Power supply: AC 100~240V 50Hz/60Hz
6. Space requirements: the required space is at least capable of lowering this instrument at an elevation of not more than 2000 meters.
7.Avoid direct exposure of strong light.
8.It has good grounding environment and indoor use.
(1) Use UZ LED as the excitation light source,when detection, add the sample with buffer after thoroughly into the sample hole of test card, sample of being formed in the process of chromatographic analysis of immune complex.

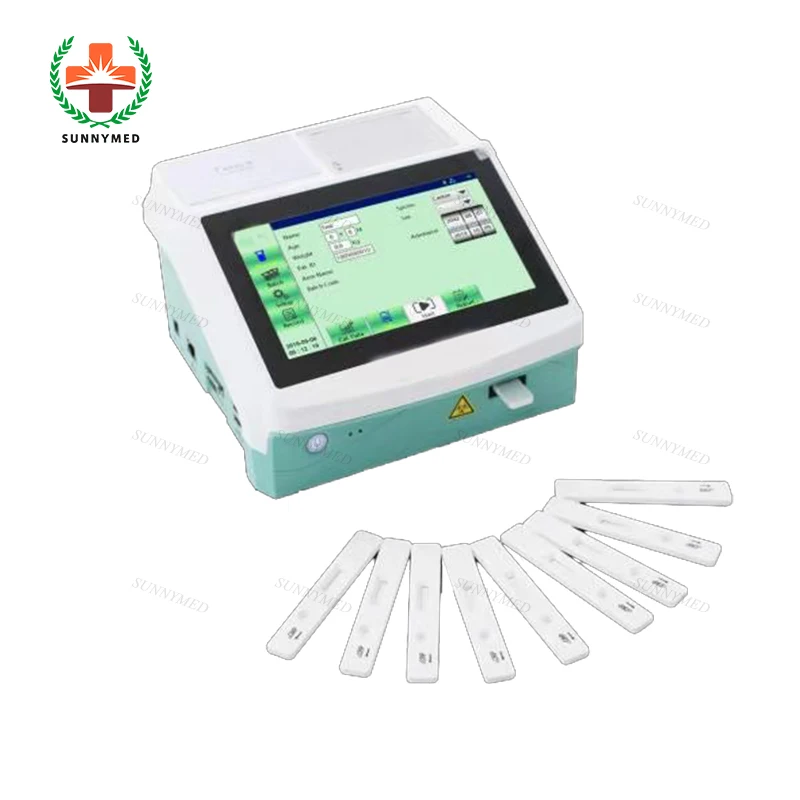

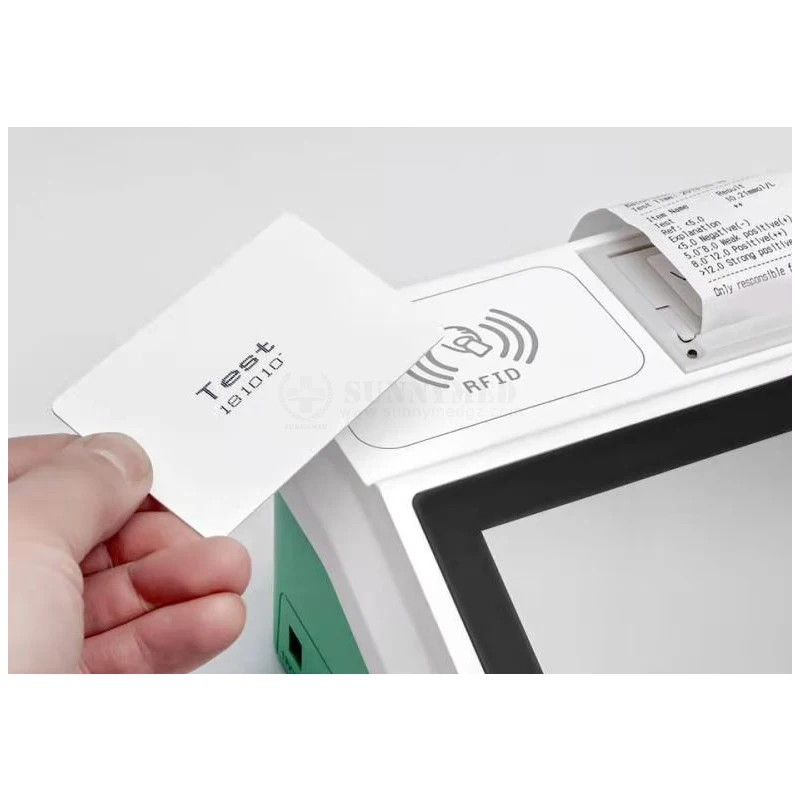

(2) When test card is inserted into the dry immune fluorescence quantitative analyzer, light irradiation to the testing area of the test card and quality control area, stimulate the adhesion of fluorescent material, emitting light are collected and translated into electrical signals, the strength of the electrical signals and fluorescence molecular quantity strictly related, analyzer, automatic scanning and calculate the sample under test can be the amount of analyte and printing paper report.
Feature of SY-B174V Dry Immunofluorescence Quantitative Analyzer:
* microprocessor-based dry immunofluorescence quantitative analyzer
* equipped with immunofluorescence quantitative rapid test reagents

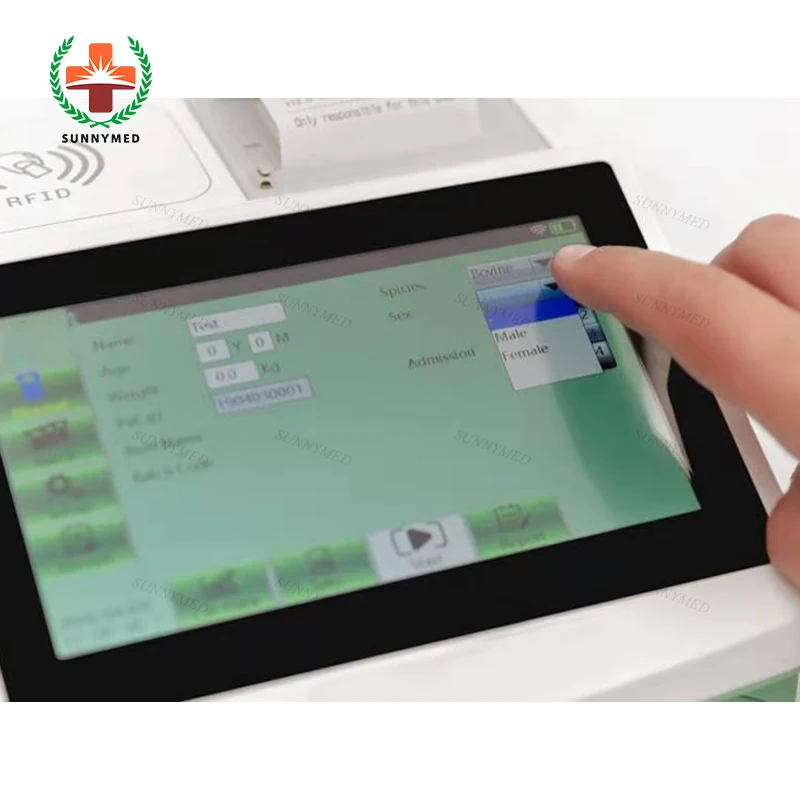

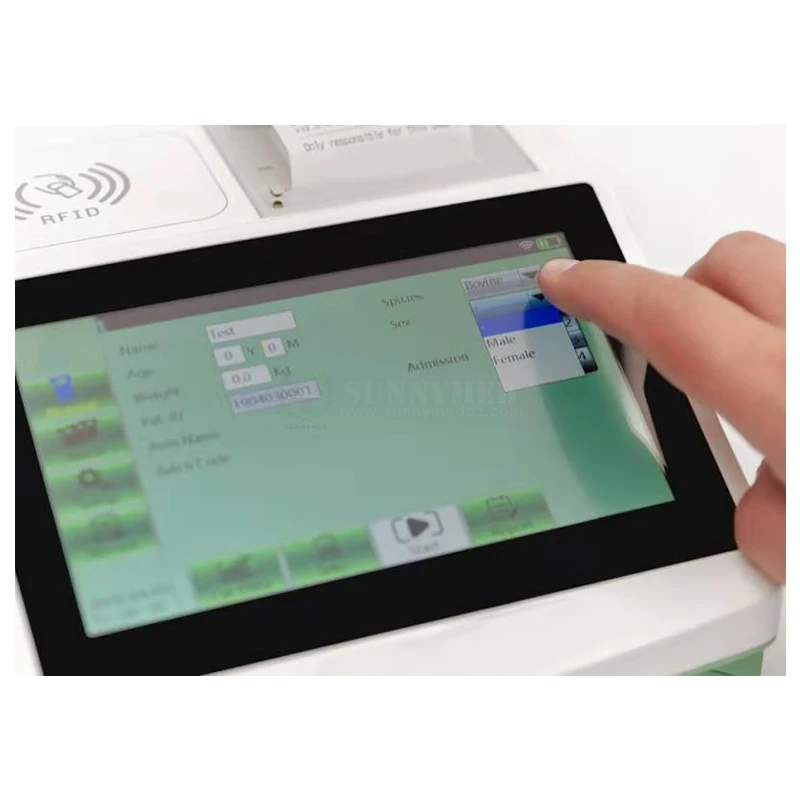

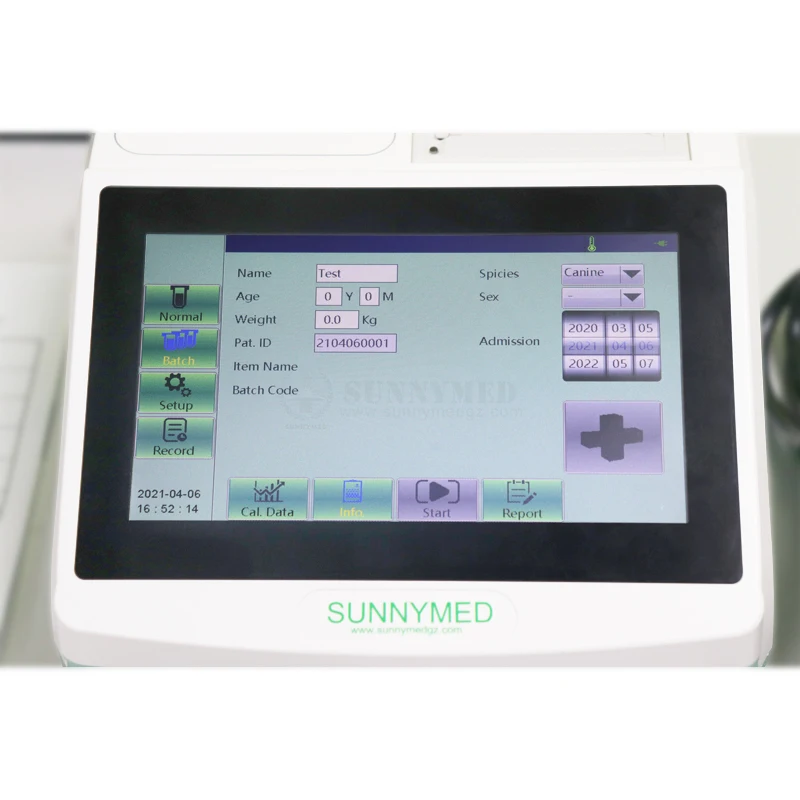

* 7 inch touch screen LCD monitor;
* Portable light main unit: N.W. 1.65kg
* WIFI wireless data transmission;

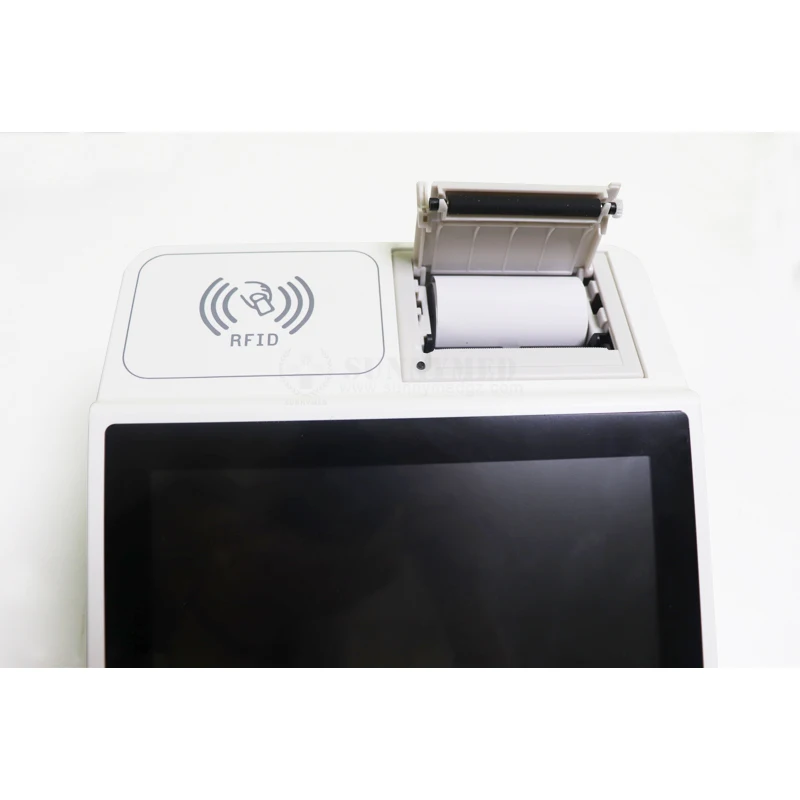

* built-in thermal printer;
* buil-in large capacity battery;
* Large storage space: more than 10,000 images
* Rapid testing;
Application:
Various animal husbandry stations, hospitals and ranches carry out rapid clinical diagnosis of animal disease antigens, antibodies, inflammation, endocrine and breeding projects.
Technical parameters and functions of SY-B174V Dry Immunofluorescence Quantitative Analyzer:
1.Input power:40VA
2.Input wavelength:610nm
3.Excitation wavelength:365nm
4.Measurement channel:single
5.Display:7 inch LCD touch screen
6.Printer:Built in miniature printer
7.Interface:USB, RS232, Network, Power interface
8.N.W.:1.65Kg(main unit)
9.Volume:L*W*H:210mm*210mm*130mm
10.The design life is 5 years under the condition of routin
11.Safety is classified as:
(1) Anti electric shock rating:Class I;
(2) Equipment category (overvoltage category):Class II;
(3) The registration category is class II.
2.Relative humidity: ≤ 80%
3.Atmospheric pressure: 86KPa ~ 106KPa
4.Surrounding environment:There is no strong electromagnetic interference source,avoid direct exposure of strong light, and has a good grounding environment.
5.Power supply: AC 100~240V 50Hz/60Hz
6. Space requirements: the required space is at least capable of lowering this instrument at an elevation of not more than 2000 meters.
7.Avoid direct exposure of strong light.
8.It has good grounding environment and indoor use.
Principle of SY-B174V Dry Immunofluorescence Quantitative Analyzer:
(1) Use UZ LED as the excitation light source,when detection, add the sample with buffer after thoroughly into the sample hole of test card, sample of being formed in the process of chromatographic analysis of immune complex.
(2) When test card is inserted into the dry immune fluorescence quantitative analyzer, light irradiation to the testing area of the test card and quality control area, stimulate the adhesion of fluorescent material, emitting light are collected and translated into electrical signals, the strength of the electrical signals and fluorescence molecular quantity strictly related, analyzer, automatic scanning and calculate the sample under test can be the amount of analyte and printing paper report.
Feature of SY-B174V Dry Immunofluorescence Quantitative Analyzer:
* microprocessor-based dry immunofluorescence quantitative analyzer
* equipped with immunofluorescence quantitative rapid test reagents
* 7 inch touch screen LCD monitor;
* Portable light main unit: N.W. 1.65kg
* WIFI wireless data transmission;
* built-in thermal printer;
* buil-in large capacity battery;
* Large storage space: more than 10,000 images
* Rapid testing;
Application:
Various animal husbandry stations, hospitals and ranches carry out rapid clinical diagnosis of animal disease antigens, antibodies, inflammation, endocrine and breeding projects.
Technical parameters and functions of SY-B174V Dry Immunofluorescence Quantitative Analyzer:
1.Input power:40VA
2.Input wavelength:610nm
3.Excitation wavelength:365nm
4.Measurement channel:single
5.Display:7 inch LCD touch screen
6.Printer:Built in miniature printer
7.Interface:USB, RS232, Network, Power interface
8.N.W.:1.65Kg(main unit)
9.Volume:L*W*H:210mm*210mm*130mm
10.The design life is 5 years under the condition of routin
11.Safety is classified as:
(1) Anti electric shock rating:Class I;
(2) Equipment category (overvoltage category):Class II;
(3) The registration category is class II.

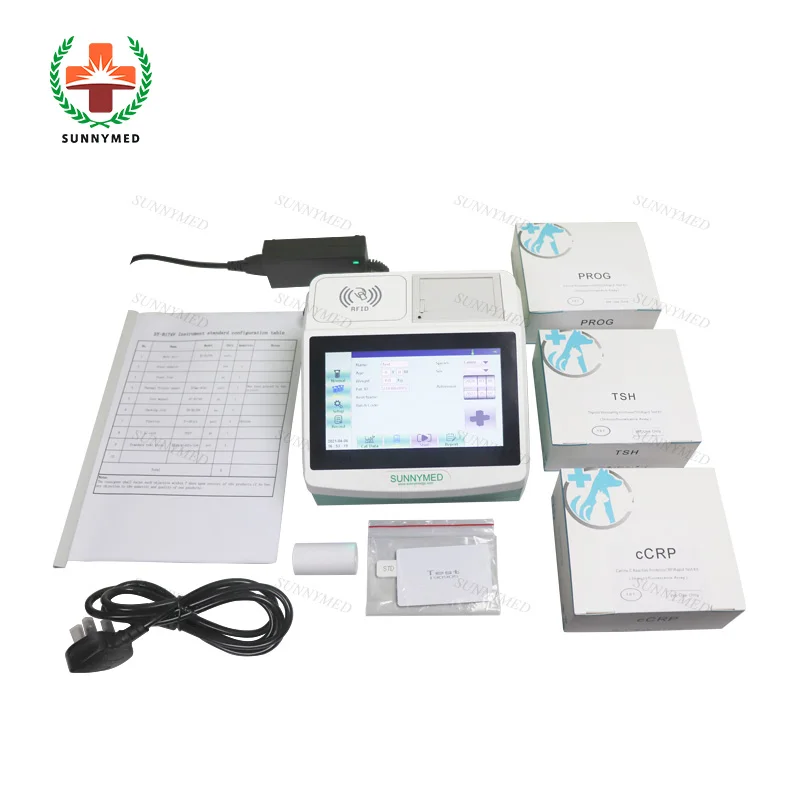

Details Images
Packing&Delivery
Product to be used together
FAQ
2. How to pay?
A. Trade assurance
B. Credit Card
C. Paypal in Alibaba
B. Credit Card
C. Paypal in Alibaba
D.T/T(Bank Transfer)
E. Western union
F. L/C
E. Western union
F. L/C
Return policy
3. How long to wait for the order?
A. Ready stock within 24 hours
B. OEM need 2-7 working days
C. Safety delivery:special one-to-one inspection service before arranging the delivery
3. How long to wait for the order?
A. Ready stock within 24 hours
B. OEM need 2-7 working days
C. Safety delivery:special one-to-one inspection service before arranging the delivery
4. How to use our product?
A. Video tutorial: including installation, operation, repairing and maintenance
B. Real Time Online Video Call at your convenience: Pre-sales and after-sales online video training
5. Warranty and after-sales service
A.12-60 months
B. After-sales service: Reply within 8 hours
A. Video tutorial: including installation, operation, repairing and maintenance
B. Real Time Online Video Call at your convenience: Pre-sales and after-sales online video training
5. Warranty and after-sales service
A.12-60 months
B. After-sales service: Reply within 8 hours
Why Choose Us
We are based in Guangdong, China, starting from 2014. Products are sold to South America, Southeast Asia, North America, and Africa, ect. .
