Высокоизносостойкая поплавковая водосточная труба из полиэтилена высокой плотности для дренажа сточных вод речной дренажной работы
- Категория: >>>
- Поставщик: Henan Hesu Group Co. Ltd.
Сохранить в закладки 1600535409489:
Описание и отзывы
Характеристики
Welcome to HESU HOME
Professional HDPE pipe/ PVC pipe manufacture
we are sincerely recruit agents from all over the world.

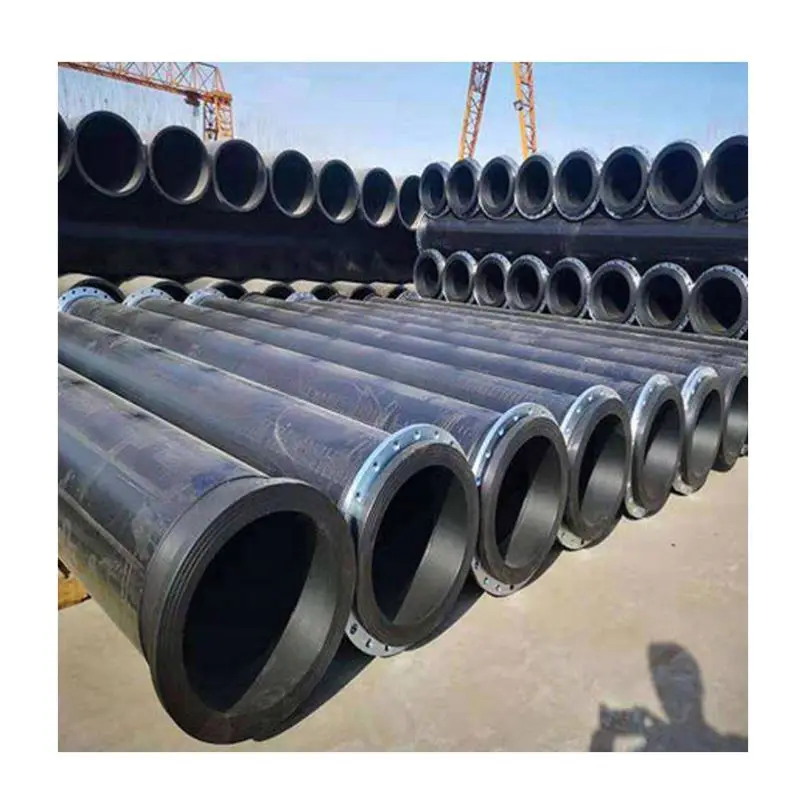

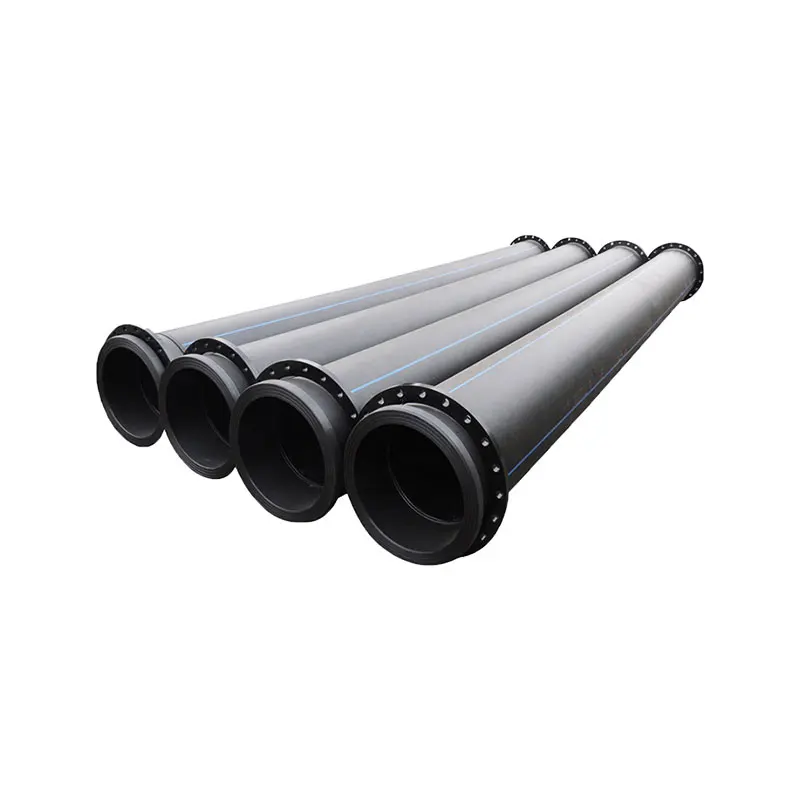

high wear resistant HDPE floating water mud sand dredging pipe mine suction pipe sewerage drainage for river dredge project
Product Description
Product Name | hdpe dredging pipe |
Color | Black |
Standard | GB/T13663-2000,ISO 4427-1:2007 |
Specification | dn20-2000mm |
Pressure | 0.6MPa SDR26,0.8MPa SDR21,1MPa SDR17,1.25MPa SDR 13.6,1.6MPa SDR 11 |
Main application | Water Supply and dredge |
Guarantee | More than 70 years |
Dredger Pipeline :
Ace Flowtech Co., Ltd is focused on serving dredger pipeline, which includes Floating/Shore HDPE Pipe, Discharge Steel Pipe, Pipe Floater and Suction/Discharge Hose, Floating Hose&Armored Hose.
The assemblies on land for dredging conducts mainly by HDPE Pipe with several steel accessories like bends, hydraulic valves, ball joints, diffusers, spreaders and reclamation boxes.
Ace Flowtech Co., Ltd dredger pipeline have unique features for a long term, corrosion free abrasion resistant & low maintenance performance in the seas, lakes and all other water bodies. The high density PE pipes are pre- welded with stub-ends & steel angles.
Product Paramenters
HDPE PIPE Paramenters：
Nominal Diameter (mm) | Wall Thickness (mm) | ||||||||||||
SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR9 | SDR7 | |||||||
PN6 | PN8 | PN10 | PN12.5 | PN16 | PN20 | PN25 | |||||||
110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 | 12.3 | 15.1 | ||||||
160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | 17.9 | 21.9 | ||||||
200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | 22.4 | 27.3 | ||||||
225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | 25.2 | 30.8 | ||||||
250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | 27.9 | 34.2 | ||||||
280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | 31.3 | 38.3 | ||||||
315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 | 35.2 | 43.0 | ||||||
400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | 44.7 | 54.6 | ||||||
450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | 50.3 | 61.5 | ||||||
500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | 55.8 | -- | ||||||
560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | 62.5 | -- | ||||||
630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 | 70.3 | -- | ||||||
710 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 | 79.3 | -- | ||||||
800 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 | 89.3 | -- | ||||||
900 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 | -- | -- | ||||||
1000 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 | -- | -- | ||||||

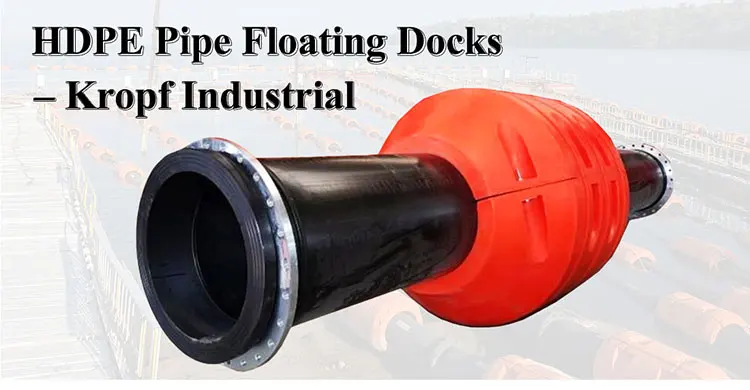

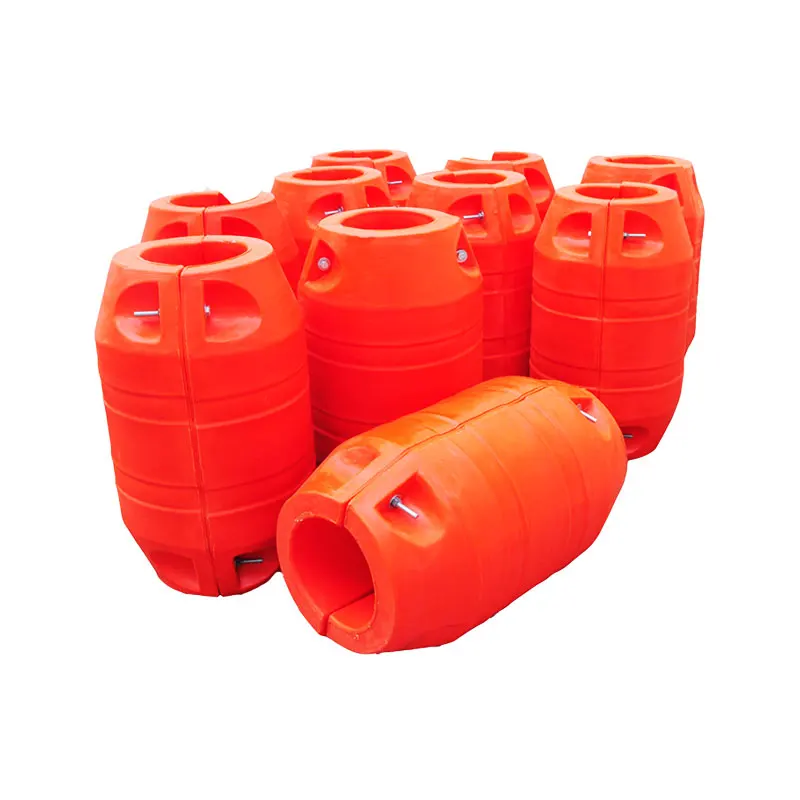

Pipe Floater Paramenters:
Nominal Diameter (mm) | Floater Inner Diameter (mm) | Floater Outer Diameter (mm) | Floater Length (mm) | Buoyancy (kg) |
100 | 130 | 500 | 500 | 90 |
150 | 180 | 500 | 800 | 140 |
200 | 230 | 600 | 700 | 170 |
250 | 280 | 700 | 900 | 340 |
300 | 330 | 1000 | 1000 | 500 |
350 | 380 | 1100 | 1100 | 550 |
400 | 430 | 1200 | 1200 | 1100 |
450 | 480 | 1300 | 1300 | 1150 |
500 | 530 | 1300 | 1400 | 1300 |
550 | 580 | 1400 | 1500 | 1600 |
600 | 630 | 1450 | 1650 | 1900 |
650 | 680 | 1500 | 1800 | 2100 |
700 | 730 | 1600 | 1900 | 2200 |
750 | 780 | 1700 | 1900 | 2700 |
800 | 830 | 1800 | 2000 | 3100 |
850 | 880 | 2000 | 2500 | 4600 |
900 | 930 | 2200 | 2600 | 5000 |

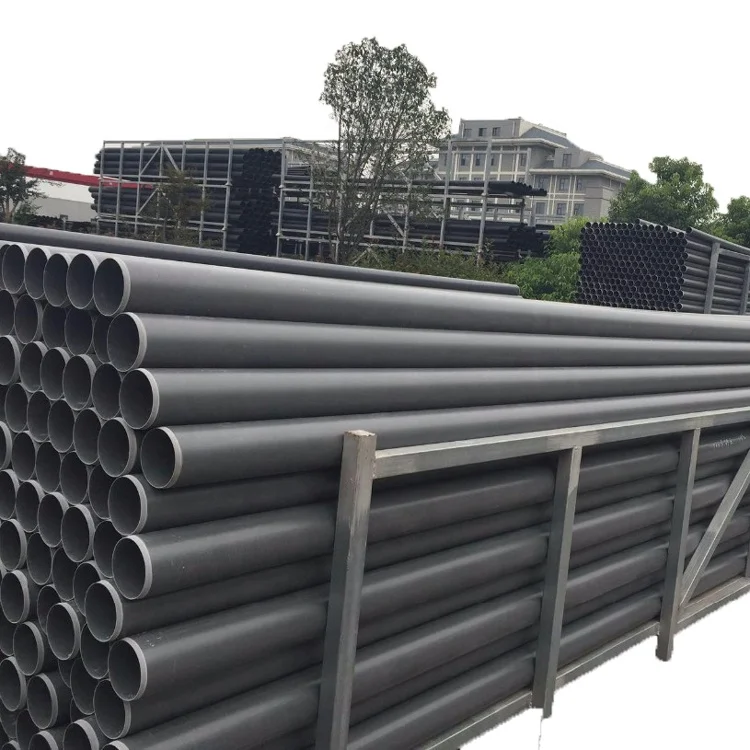

HDPE PIPE
AVAILABLE IN:
• Qualities PE80 and PE100
• Pressure levels PN4 up to PN25
• Various diameters
• All lengths, up to 20 meters
HDPE WELDING COLLARS
AVAILABLE IN:
• Qualities PE80 and PE100
• Pressure levels PN4 up to PN25
• Various diameters
• Qualities PE80 and PE100
• Pressure levels PN4 up to PN25
• Various diameters
• All lengths, up to 20 meters
HDPE WELDING COLLARS
AVAILABLE IN:
• Qualities PE80 and PE100
• Pressure levels PN4 up to PN25
• Various diameters
FLANGES
Steel flanges in various patterns and according to international standards (ISO, JIS, DIN, ASTM etc. ) adjusted to the outside
diameter of the HDPE pipe.

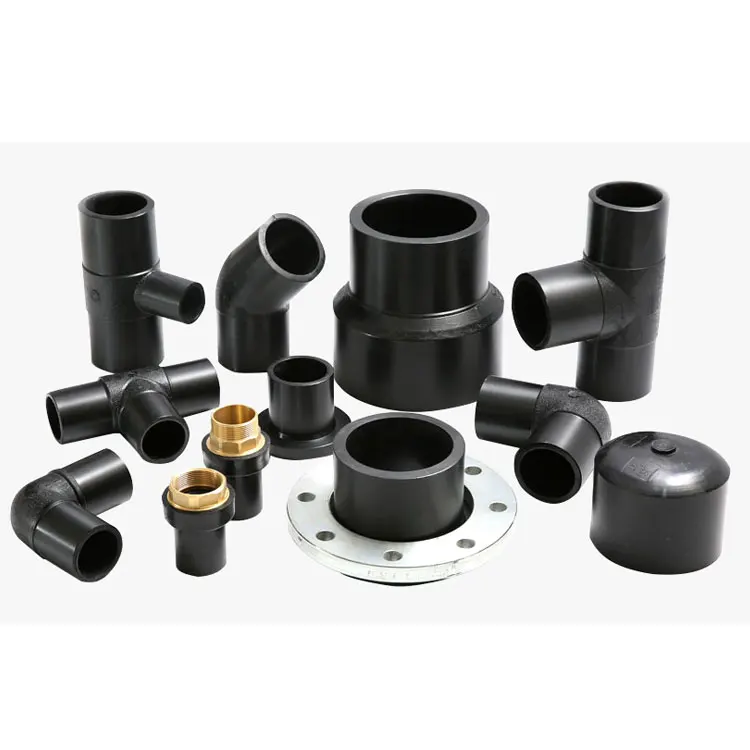

HDPE BENDS
HDPE bends for shore lines, available in various wall thicknesses, diameters and angles.
Y-PIECES
HDPE Y-pieces for shore lines, available in various wall thicknesses and diameters.
Steel flanges in various patterns and according to international standards (ISO, JIS, DIN, ASTM etc. ) adjusted to the outside
diameter of the HDPE pipe.
HDPE BENDS
HDPE bends for shore lines, available in various wall thicknesses, diameters and angles.
Y-PIECES
HDPE Y-pieces for shore lines, available in various wall thicknesses and diameters.
Details Images

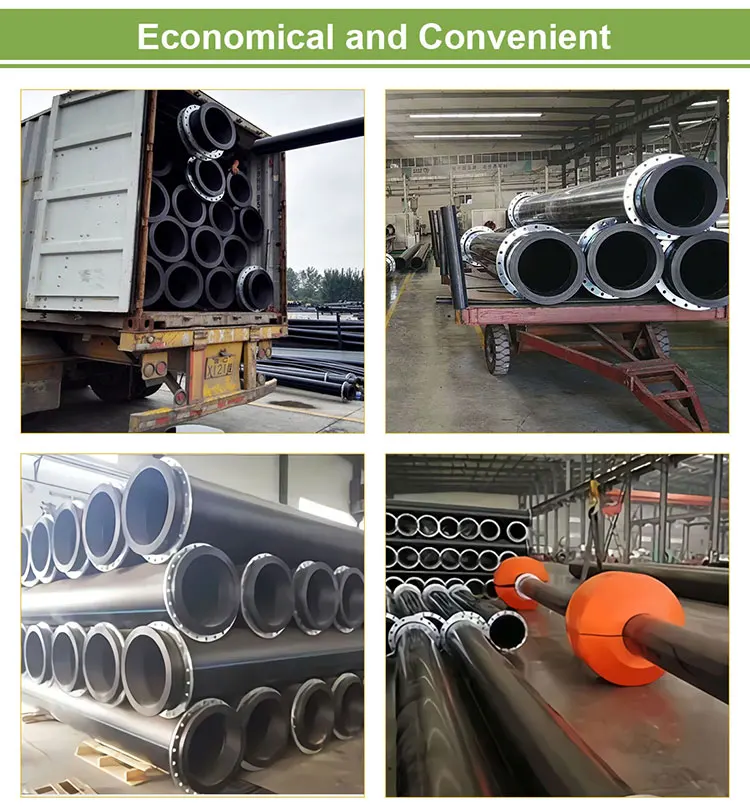

Packing & Delivery
HESU HDPE Pipe have for several years been confidently supplying their range of HDPE pipes, fittings and saddles for successful use in a variety of applications in the Civil, Agricultural, Municipal, Mining and Industrial sectors. Because of the good chemical resistance and abrasion resistance properties they are also extensively used in chemical, waste and slurry applications.
Customer Photos
Company Profile
CORE COMPETITVENESS：
Professional------60 sets of advanced HDPE pipe production lines and production capacity of more than 80,000 MT per year .Owing expeirnced producing and international marketing teams.
Quality-----Well-equipped laboratory and advanced test machines ensure each process from HDPE raw materials to finished HDPE pipe meet the international standards.
Service------Providing professional support and guanrantee in each stages of the sales of the HDPE pipe.
Professional------60 sets of advanced HDPE pipe production lines and production capacity of more than 80,000 MT per year .Owing expeirnced producing and international marketing teams.
Quality-----Well-equipped laboratory and advanced test machines ensure each process from HDPE raw materials to finished HDPE pipe meet the international standards.
Service------Providing professional support and guanrantee in each stages of the sales of the HDPE pipe.
FAQ
Q: What the Raw material ?
A: We only use 100% HDPE material.
Q: What is your MOQ?
A: As customer's request.
Q: What is the production ability ? or delivery time ?
A: Our production ability support 40HQ order finish in one week.
Q: What is the regular shipping port ?
A: Shanghai port or Ningbo port
Q: What is your payment ?
A: 30% advance payment before production,70% payment before shipment.
Q: Can we have sample ?
A: Sample free, freight free in China any place. Overseas freight cost you.
Q: For urgently doubuts, who online ?
A: Sales and marketing Manager 24 hours online service.
A: We only use 100% HDPE material.
Q: What is your MOQ?
A: As customer's request.
Q: What is the production ability ? or delivery time ?
A: Our production ability support 40HQ order finish in one week.
Q: What is the regular shipping port ?
A: Shanghai port or Ningbo port
Q: What is your payment ?
A: 30% advance payment before production,70% payment before shipment.
Q: Can we have sample ?
A: Sample free, freight free in China any place. Overseas freight cost you.
Q: For urgently doubuts, who online ?
A: Sales and marketing Manager 24 hours online service.
Contact us
Dear customers:
Thank you for your attention on our products, we are appreciated that you giving us this chance.
Please feel free to contact us if you have any questions.
Thank you for your attention on our products, we are appreciated that you giving us this chance.
Please feel free to contact us if you have any questions.
You are always welcome!
It is our honour to have this opportunities to service you!
Kind regards!
If you have any questions, For more or free sample trying, please leave your message in the message box below and click ' send ' button, thank you!
Have a good Day!
It is our honour to have this opportunities to service you!
Kind regards!
If you have any questions, For more or free sample trying, please leave your message in the message box below and click ' send ' button, thank you!
Have a good Day!
