Термоусадочный туннель для мяса с охлаждающим туннелем термоусадочная оберточная
- Категория: >>>
- Поставщик: Henger Manufacturing (Shandong) Machinery Technology Co. Ltd.
Сохранить в закладки 1600535843322:
Описание и отзывы
Характеристики
Meat food heat shrinking machine is one of the more advanced packaging methods in the market. After heating, the shrinking film shrinks and wraps the product or package. It can be used for heat shrinkage of high-grade beef, mutton, and fresh meat after vacuum packaging to improve product appearance, improve product grade, and increase aesthetics value.

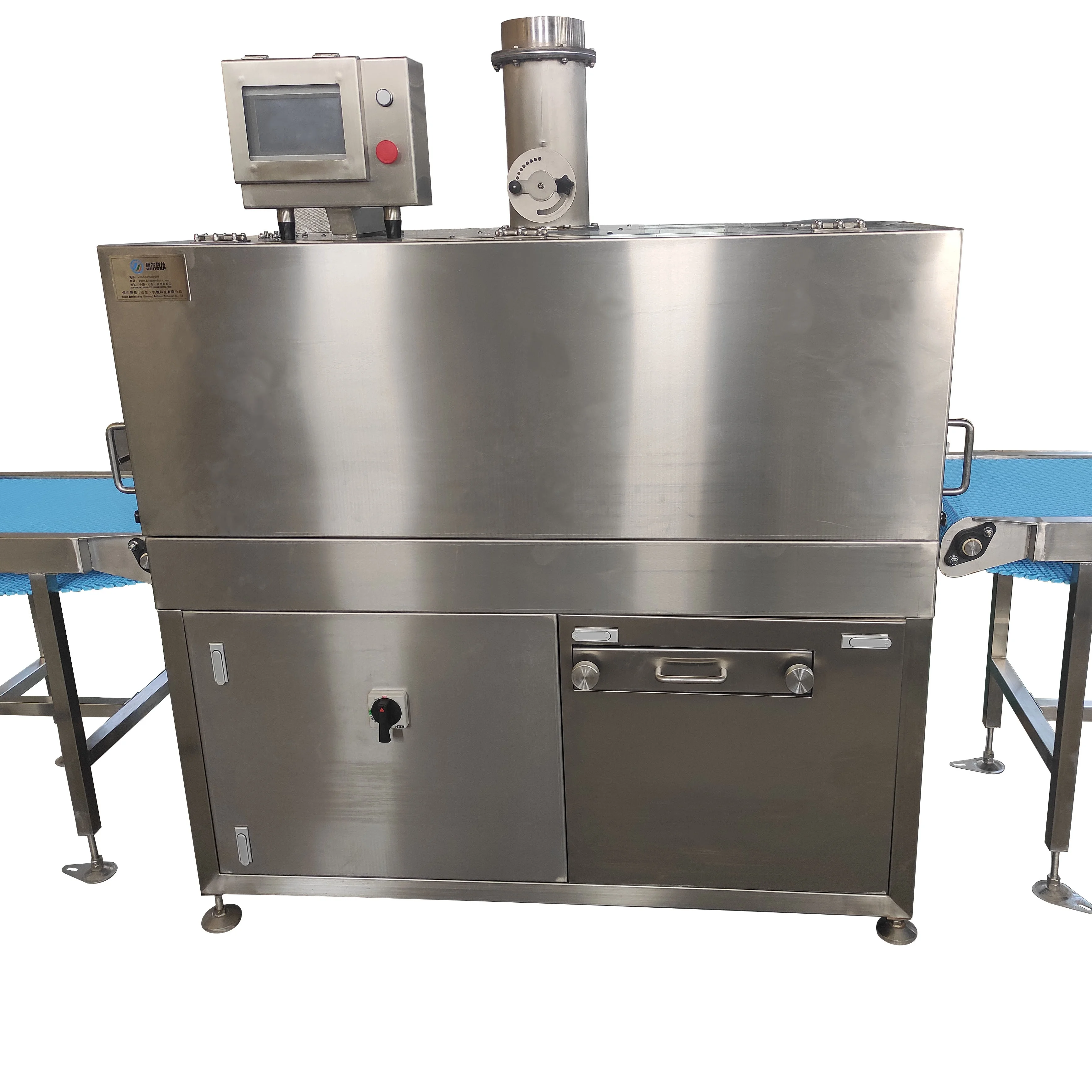

Meat Processing Plant Heat Shrink Tunnel Machine
Tunnel heat shrinking machine feature:
1. Whole frame is made of 304 stainless steel with thickness of 1.5-2 mm . The plate around the shrinking tunnel is equipped with insulation layer,which can ensure staff safety during operation;
2. Whole machine frame is designed disassembly type,easy for staff maintenance.Cylinder support is adopted for the left and right door opening, saving time and effort;The door body is sealed by food grade silicone strip, waterproof and heat preservation;
3. Equipped with four high-power electric heating tubes to ensure constant water temperature and heat shrinkage effect of products
4.PLC touchable control screen;Whole shrinking process can be set manually or automatically
1. Whole frame is made of 304 stainless steel with thickness of 1.5-2 mm . The plate around the shrinking tunnel is equipped with insulation layer,which can ensure staff safety during operation;
2. Whole machine frame is designed disassembly type,easy for staff maintenance.Cylinder support is adopted for the left and right door opening, saving time and effort;The door body is sealed by food grade silicone strip, waterproof and heat preservation;
3. Equipped with four high-power electric heating tubes to ensure constant water temperature and heat shrinkage effect of products
4.PLC touchable control screen;Whole shrinking process can be set manually or automatically
;operation language can be set into English and Chinese ;
5.The water tank is equipped with automatic water level control device to ensure the water volume of the tank. And when water source is lacking ,the water tank is provided with water shortage protection, water pump automatically stops working, control panel error warning;
6. Water tank is with two filter layer system to make sure water quality and ensure the service life of electric heating tube
7. High-temperature POM resistant conveyor belt;
8. 6 soft leather curtains inside the heat shrink tunnel to keep heat and prevent heat loss;
5.The water tank is equipped with automatic water level control device to ensure the water volume of the tank. And when water source is lacking ,the water tank is provided with water shortage protection, water pump automatically stops working, control panel error warning;
6. Water tank is with two filter layer system to make sure water quality and ensure the service life of electric heating tube
7. High-temperature POM resistant conveyor belt;
8. 6 soft leather curtains inside the heat shrink tunnel to keep heat and prevent heat loss;
9. Polymer excessive roller connection is adopted for both import and export;
10.Using up and down spray mode, hot water to form a fan surface to cover the whole product, to ensure the product heat shrinkage effect;
11.Product shrinking time is 1 seconds,which guarantees the food quality not to be affected.
10.Using up and down spray mode, hot water to form a fan surface to cover the whole product, to ensure the product heat shrinkage effect;
11.Product shrinking time is 1 seconds,which guarantees the food quality not to be affected.
Voltage | 380V 3PH; 50HZ/60HZ；Can be customized |
Power | 12.2KW |
Water tank size | 610x420x520mm ≈100L |
Stroke | Max 330mm |
Material | SUS304 |
Dimension | 1010*697*1300mm |
Control method | Automatic (cyclic) / manual (single) |
Weight | 115KG |

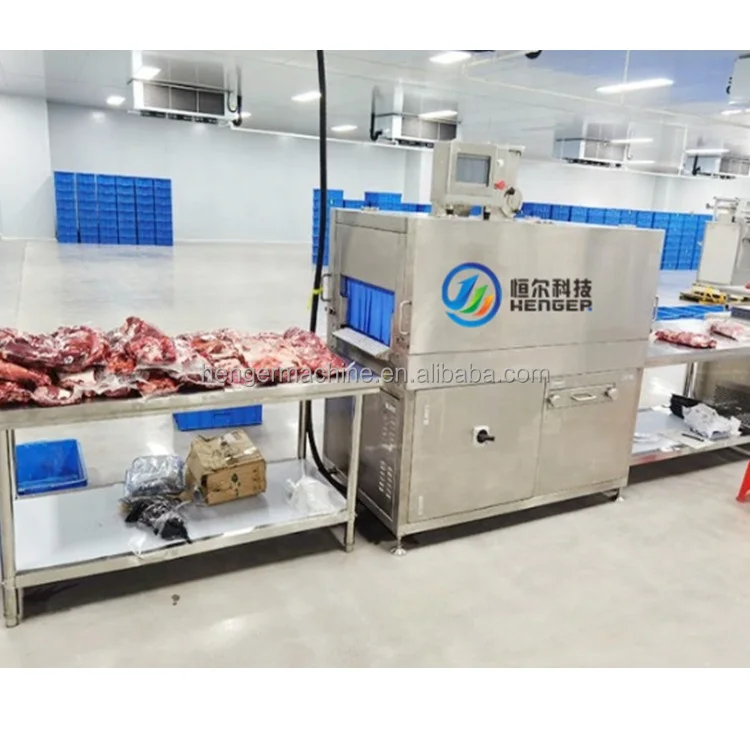

Packaging Effect Show

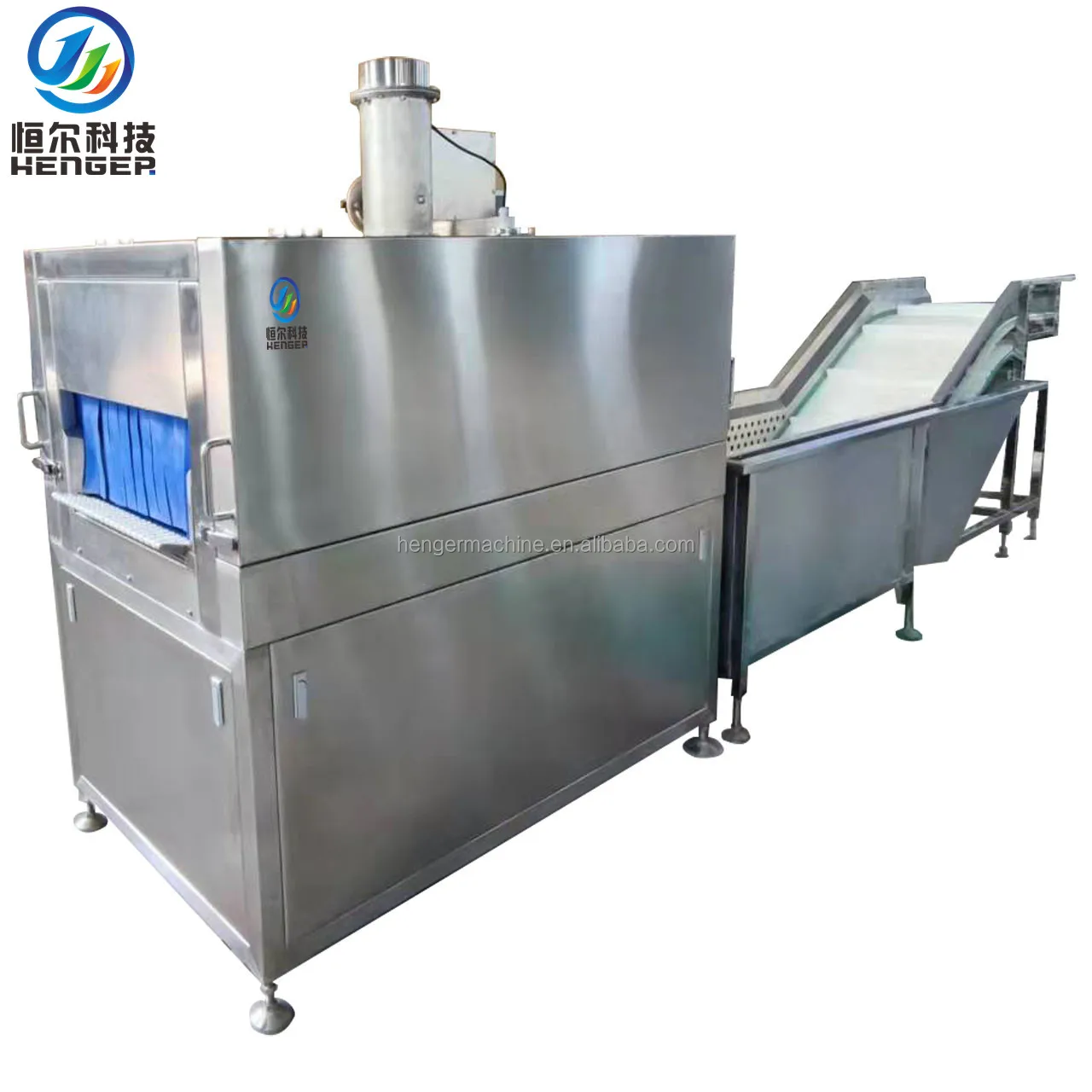

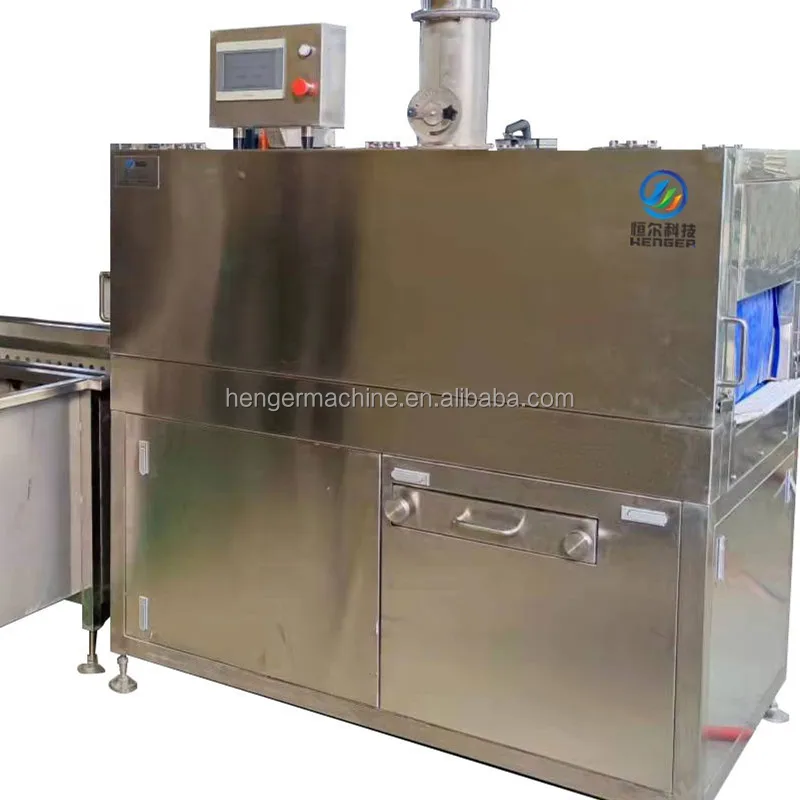

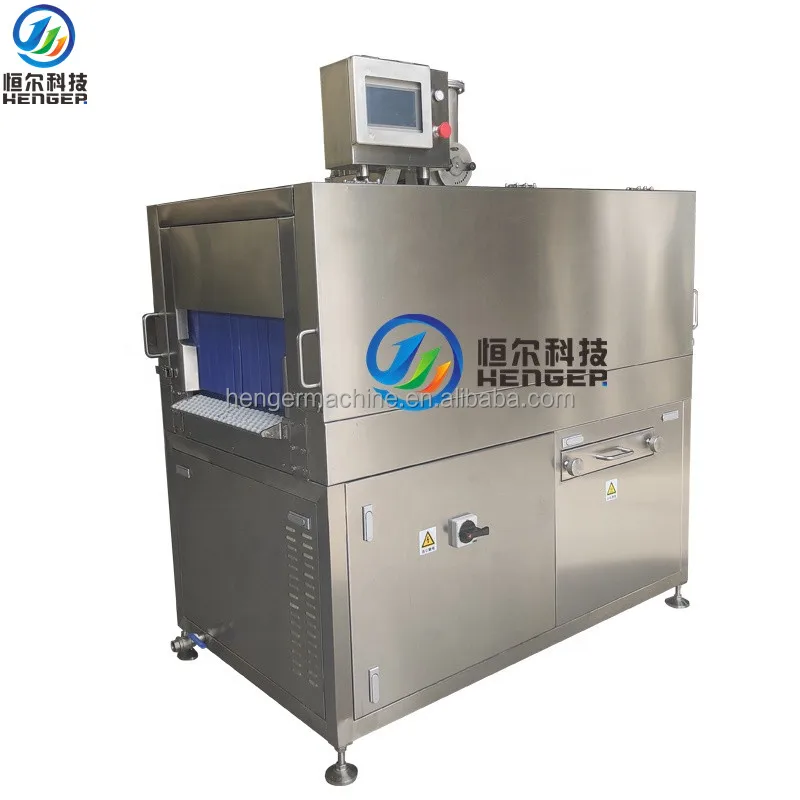

Product Detail Show
Workshop
Hot Product
Packing&Shipping
Company Profile
FAQ
1.Where is your factory located ?
Henger Machinery factory is located in boxing city of Shandong province in the northeast of China Welcome you visit our factory .
From raw material purchase to production,Henger company has strict restriction.And we will provide 1 year warranty time for all the products .ISO 9001 and CE certification can be provided.
2. How long is one order production time?
After you place a order,the production handling time is about 10-25 days. It will subject to our factory production schedule.
After you place a order,the production handling time is about 10-25 days. It will subject to our factory production schedule.
3. Can you accept special order?
Yes, we have our own R&D center , and our engineer can provide machine drawing according to your requirement.Special order for your own factory.
4.Are your engineers available for oversea project ?
Yes ,our engineers can be delegated aboard for machine installation and debugging .
5.How can you make sure the deal safe?
Insurance order payment is preferred on Alibaba platform. You can pay by TT ,credit card .
Making the world a better place is our company's beautiful vision, we will be your trusted partner.
