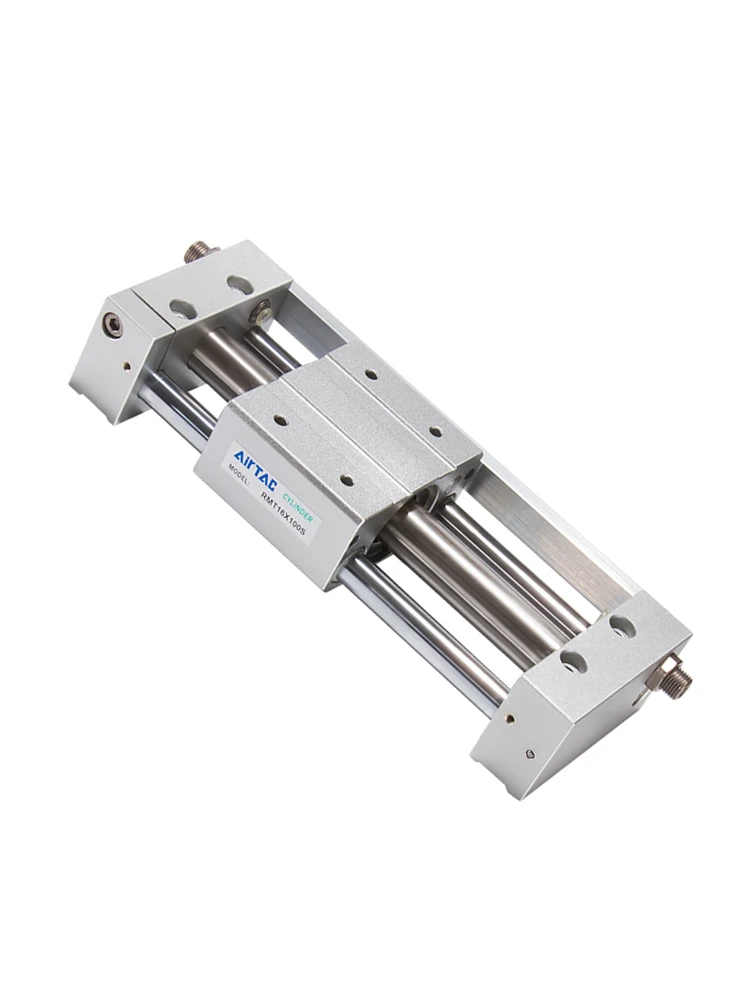

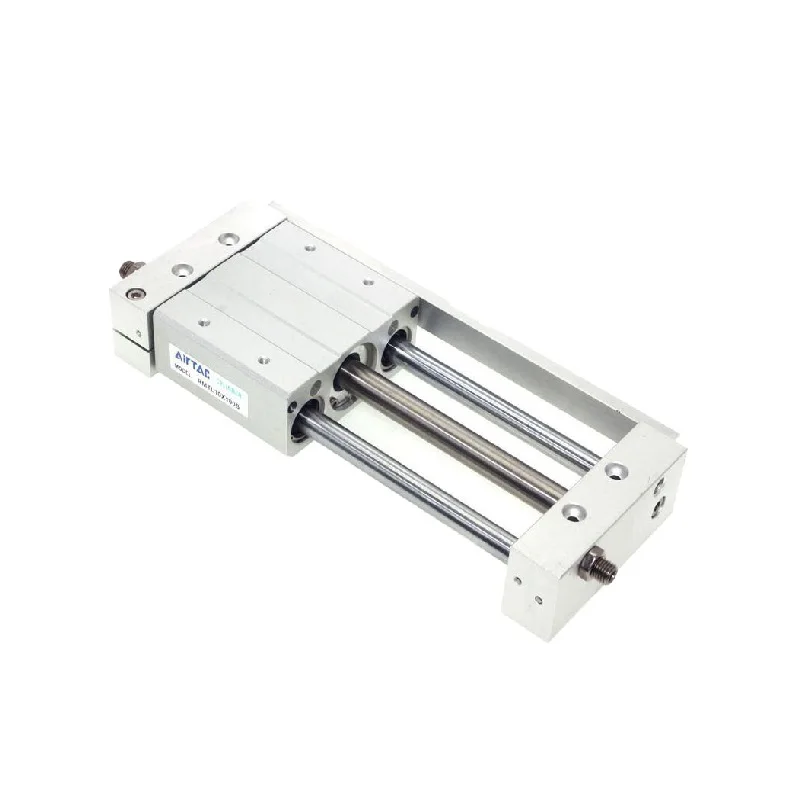

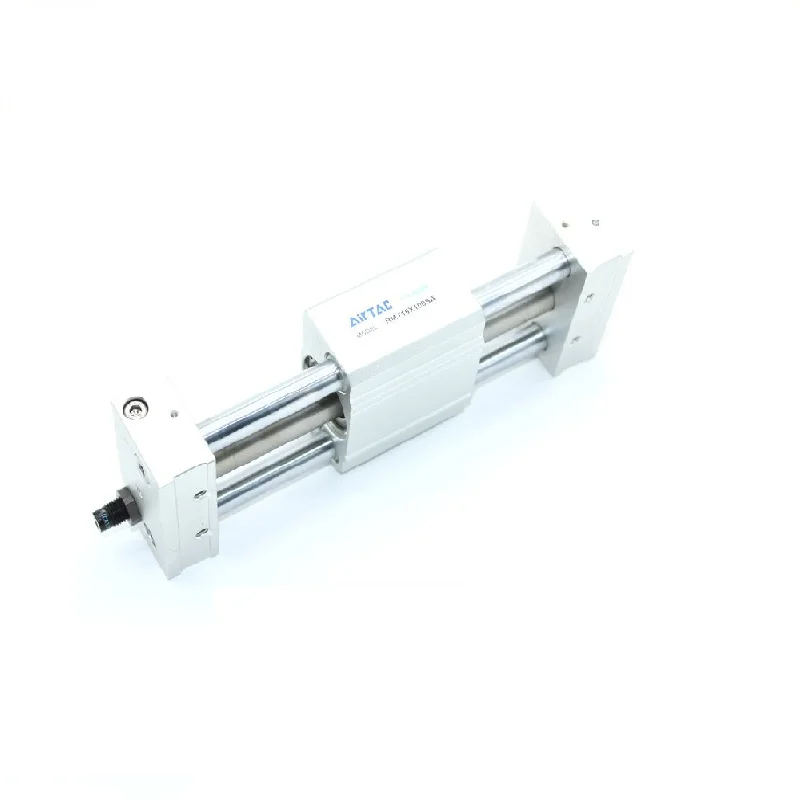

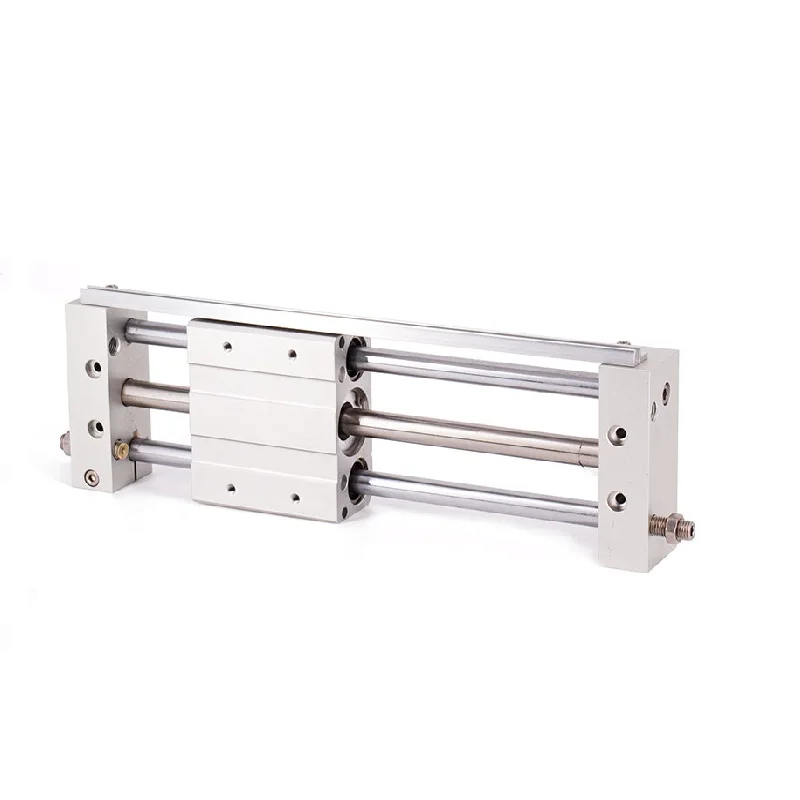

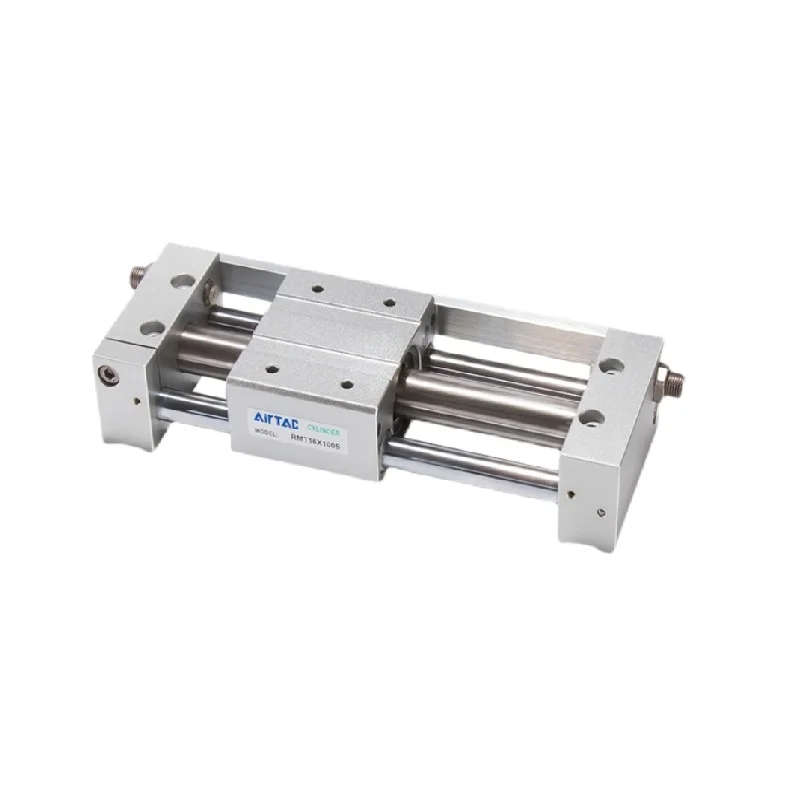

Трехосевой направляющий стержень Airtac RMT16X100 пневматический бесштоковый цилиндр
- Категория: >>>
- Поставщик: Sichuan Focus Science And Technology Co. Ltd.
Сохранить в закладки 1600536155495:
Описание и отзывы
Характеристики
Product Feature
1.This magnetic cylinder is basically a pneumatic rodless cylinder featuring a mobile piston fitted with annular magnets. The mobile carriage is also equipped with magnets to provide magnetic coupling (carriage/piston). The carriage slide freely along the main tube.
2.It is dust-proof as the isolation between the carriage and piston.
3.It is compact in space.
4.The non adjustable rubber bumpers and the adjustable pneumatic cushioning on both ends of the cylinder ensure the smooth action.if shock absorber be used, the cushioning effect is more perfection.
5.Double guides ensure high precision and can endure proper side load r prejudicial load.
2.It is dust-proof as the isolation between the carriage and piston.
3.It is compact in space.
4.The non adjustable rubber bumpers and the adjustable pneumatic cushioning on both ends of the cylinder ensure the smooth action.if shock absorber be used, the cushioning effect is more perfection.
5.Double guides ensure high precision and can endure proper side load r prejudicial load.
Details Images
Specification
Bore size: | 10 | 16 | 20 | 25 | 32 | 40 | |||||
Acting type: | Double Acting | Double Acting | |||||||||
Fluid: | Air(to be filtered by 40μm filter element) | Air(to be filtered by 40μm filter element) | |||||||||
Operating Pressure: | 0.18~0.7MPa（28~100psi）（1.8~7bar） | 0.15~0.7MPa（22~100psi）（1.5~7bar） | |||||||||
Proof Pressure: | 1.0MPa（145psi）（10.0bar） | 1.2MPa（175psi）（12bar） | |||||||||
Temperature（℃）: | -10~60 | -20~70 | |||||||||
Speed rang (mm/s): | 50~500 | ||||||||||
Speed rang (mm/s): | 0~250(0~+1.0) 251~1000(0~+1.4) 1001(0~+1.8) | ||||||||||
Cushion type: | Variable Cushion+Fixed Cushion | Bumper | |||||||||
Repeatability (mm): | 60 | 140 | 200 | 320 | 550 | 850 | |||||
Port Size: | M5X0.8 | PT1/8 | PT1/4 | ||||||||
Stoke
Bore size(mm) | Standard Stroke(mm) | Max Stroke(mm) |
10 | 50 100 150 200 250 300 | 500 |
16 | 50 100 150 200 250 300 350 400 450 500 | 750 |
20 | 50 100 150 200 250 300 350 400 450 500 600 700 750 800 | 1000 |
25 | 50 100 150 200 250 300 350 400 450 500 600 700 750 800 | 1500 |
32 | 50 100 150 200 250 300 350 400 450 500 600 700 750 800 | 1500 |
40 | 50 100 150 200 250 300 350 400 450 500 600 700 750 800 900 100 | 1500 |

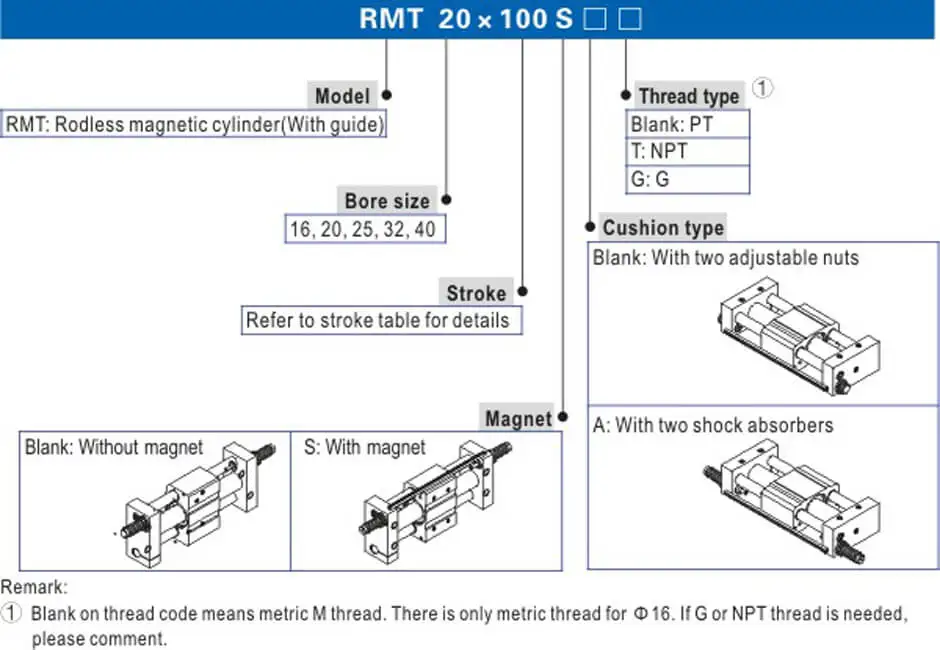

Order Code
Company Profile
Sichuan Focus Science and Technology Co., Ltd.
Sichuan Focus Science and Technology Co., Ltd. is a young team but with full engergy! We have more than 10 years' experience in the pneumatic products which are used in the industry automation field!

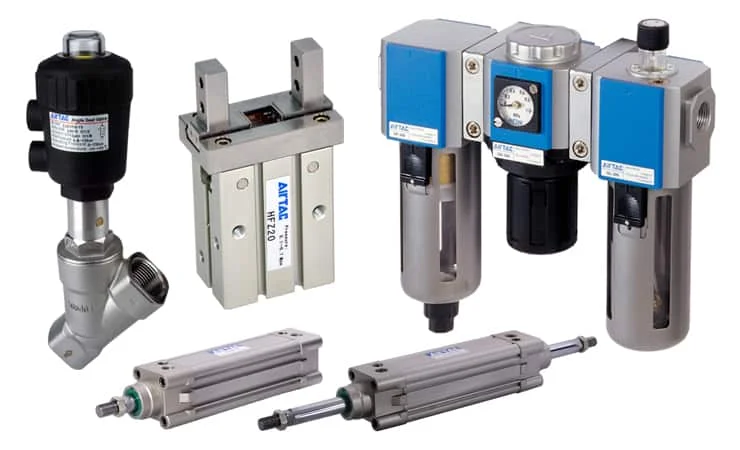

We mainly focus on the pneumatic products such like pneumatic actuators, pneumatic control valve, air preparation products and accessories! We have exported our pneumatic products to more than 50 countries and areas! We have our own brand FOUCS and also have close and long-term cooperation with famous brands such like AirTac, Festo and SMC and so on! Because of our high quality, competitive price and fast delivery, we have helped most of our customers succeed in their market! We will keep on to improve ourselves to meet more requirements from customers!
Why Choose Us
We focus on one-stop service for our customres and we are good at most famous brands for pneumatic automation products such like Airtac SMC Festo Rexroth CKD Honewell Koganer ...
Genuine Products
We only supply genuine products with original packages! We mainly work on these famous brands such like Airtac, Festo, SMC...
Customers no need to worry about the quality because we supply after sales warranty for each product sold by us!
We always keep high stock for these popular models from different brands so we can ship out in very short time once our customers pay us! Our customers no need to wait long time for shipping!
Flexiable Shipping Ways
We have different shipping ways! For your urgent order we can ship out by the air express service such like DHL and FedEx and for your bulk order, we can ship out by sea to save you the shipping freight!
FAQ
1. who are we?
5. what services can we provide?
We are based in Sichuan, China, start from 2020,sell to Southeast Asia(35.00%),North America(20.00%),South America(10.00%),Africa(10.00%),Mid East(10.00%),Western Europe(10.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Always final Inspection before shipment;
3.what can you buy from us?
Air cylinder,air valve,solenoid valve,magnetic switch,limit sensor.
4. why should you buy from us not from other suppliers?
4. why should you buy from us not from other suppliers?
Sichuan Focus Science and Technology Co., Ltd. (Focus) has more than 10 years' experience in the pneumatic industry field! Focus main products include air valve, air cylinder, solenoid valve, magnetic switch, limit sensors ect.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Russian.
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Russian.
Похожие товары

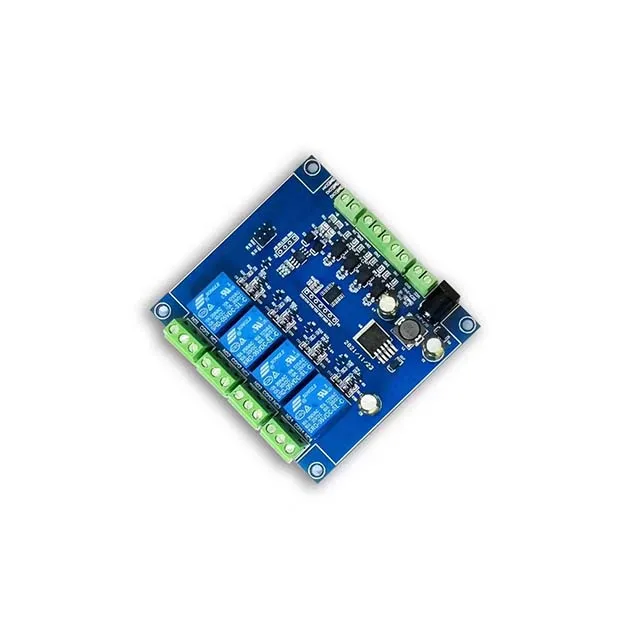

4-ходовой модуль реле Modbus RTU RS485/TTL UART 4-ходовой вход 4-ходовой выход

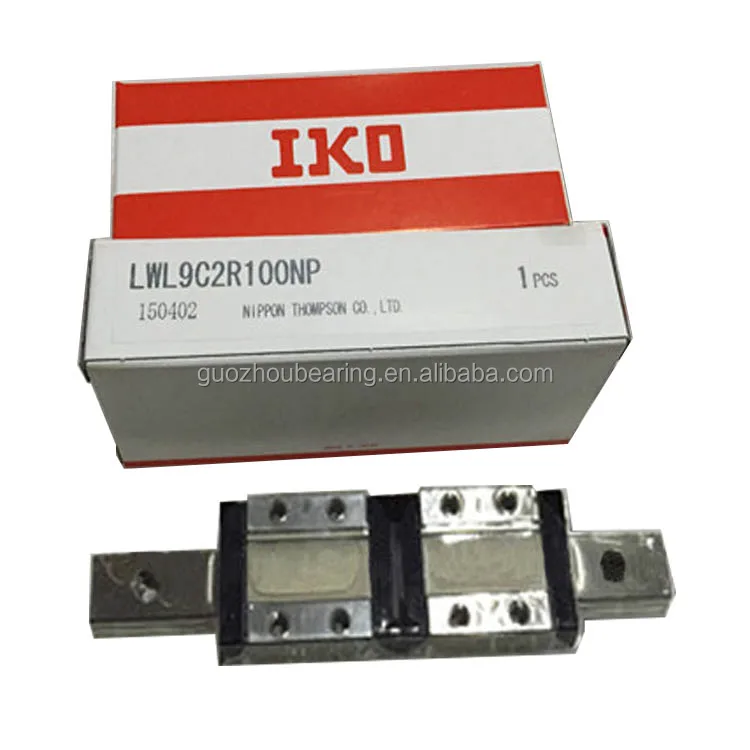

Япония, линейный направляющий блок IKO LWL9 LWL9B, линейная направляющая, линейная направляющая LWL9C2R100NP

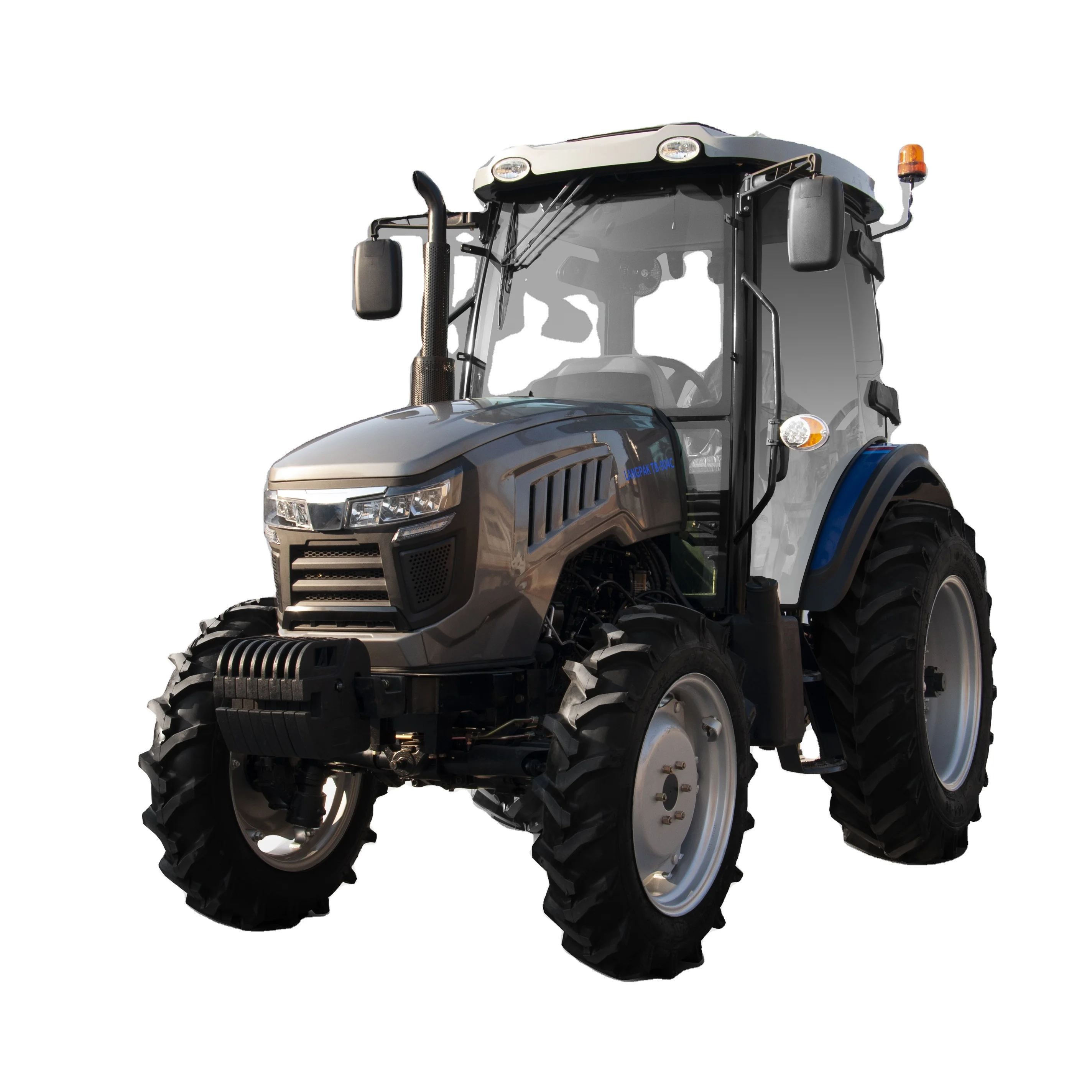

Распродажа, скидка, TB-904C Kubota 4x4, компактный двигатель, колесный трактор, мини-Дизель, доступный по лучшим ценам
9 500,00 $ - 10 200,00 $
JQX-129M 20A 220VAC DPDT сбалансированный силы наивысшей мощности герметичные реле 48 28 12 6VDC аэрокосмической морской катер
Высококачественный большой рулон металлической молнии

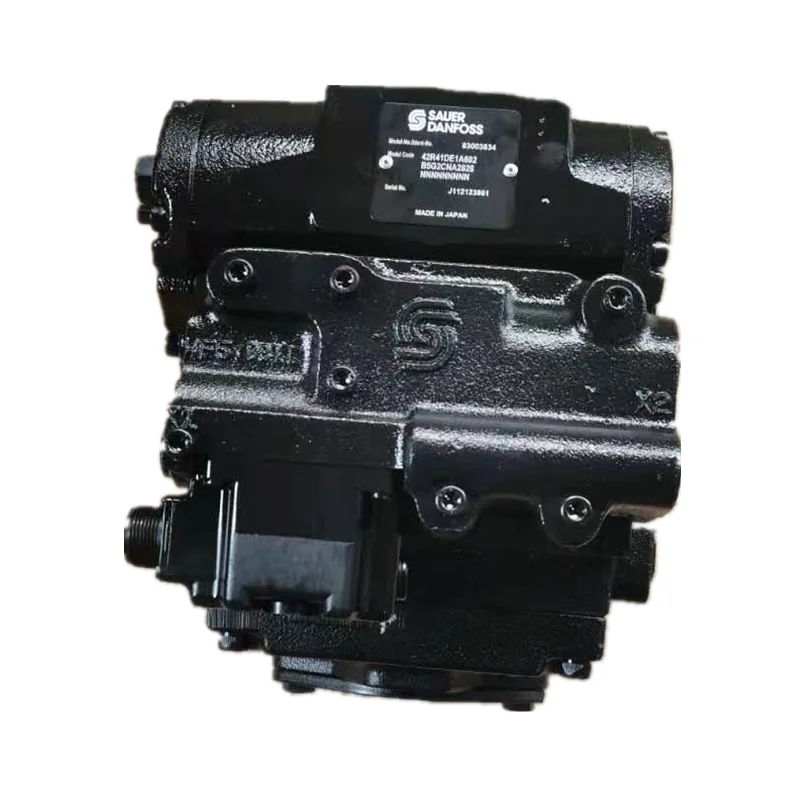

Высокое Качество Гидравлический поршневой насос bomog 05818893 Вибрационный насос для BW80AD-3 BW120AD-2 BW120AD-4 BOMAG ролик

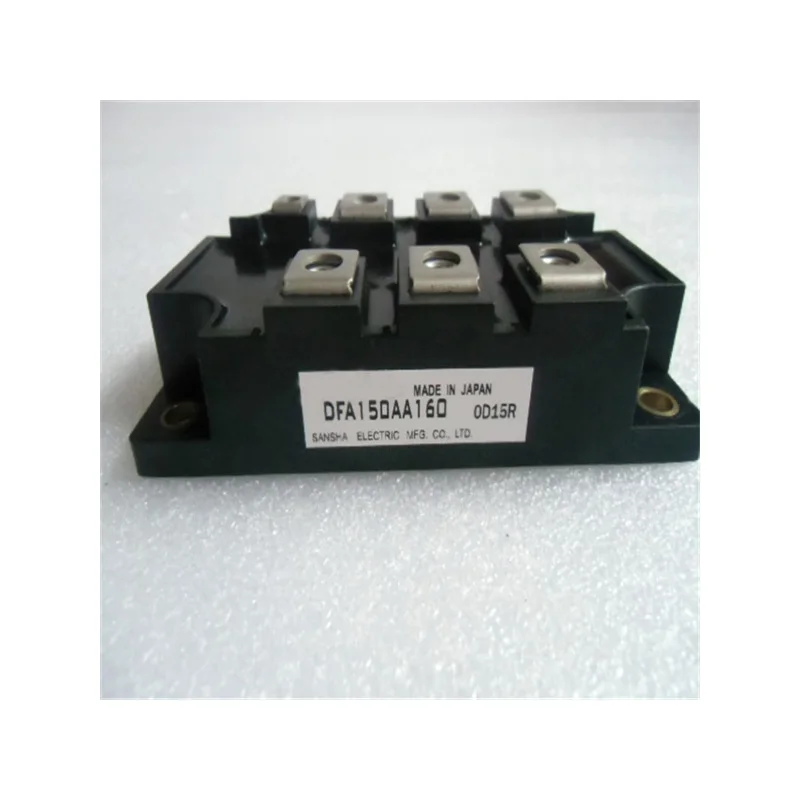

Электронные компоненты высокого качества 10A мостовой выпрямитель DFA150AA80
