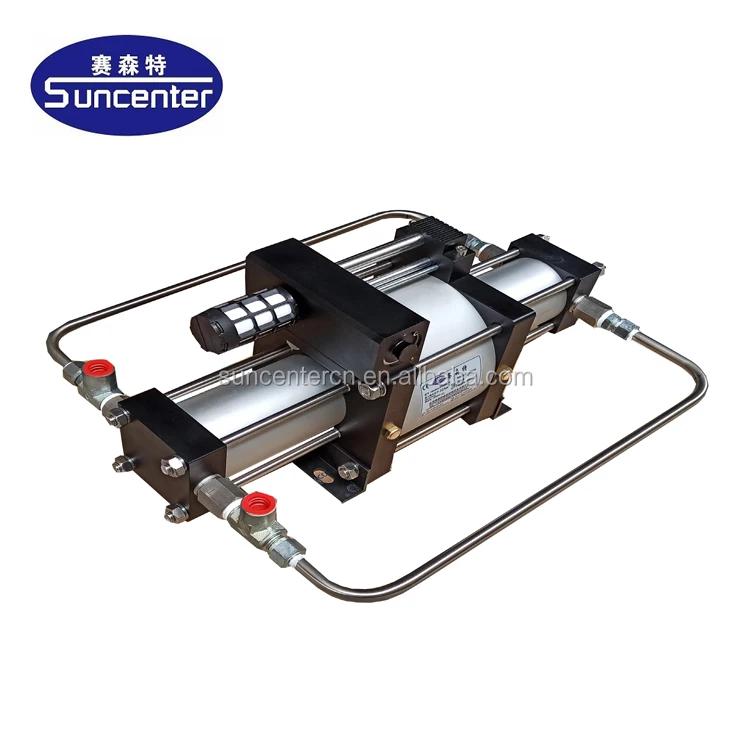

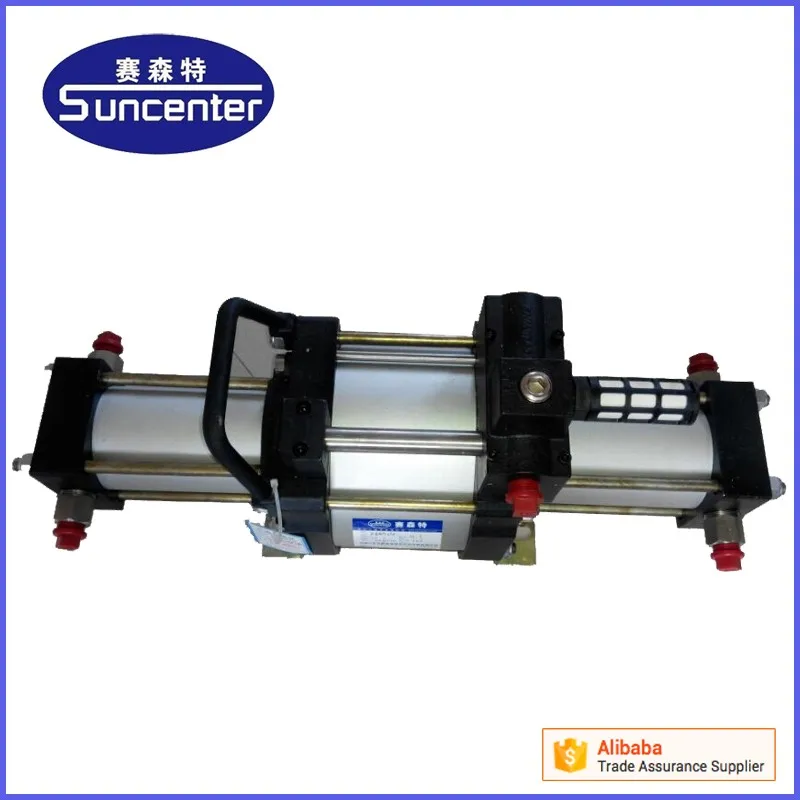

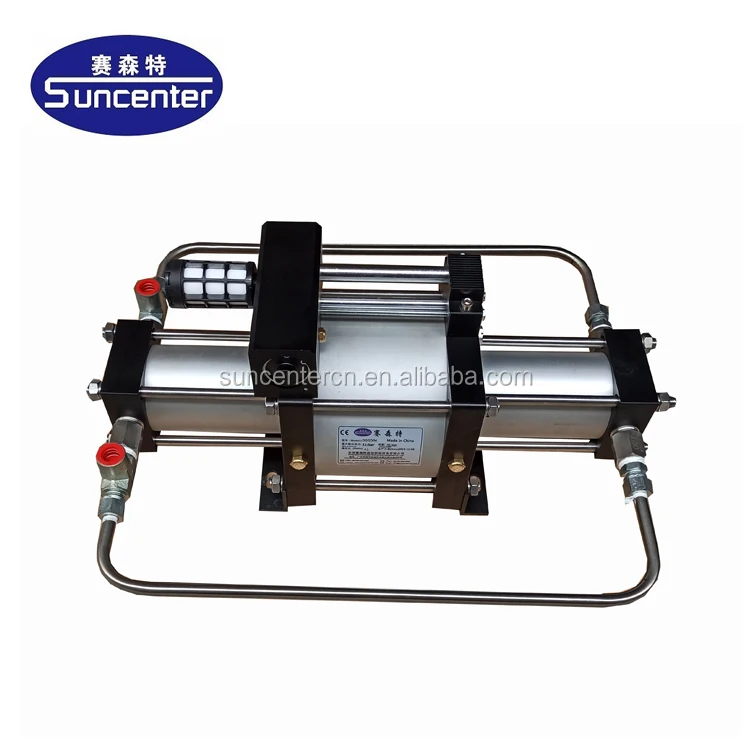

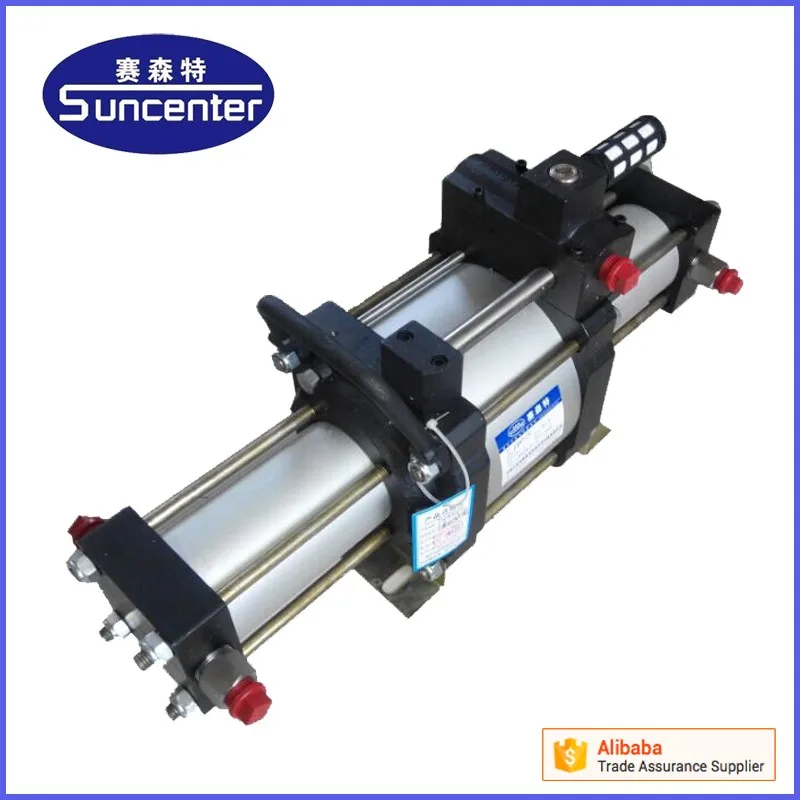

DGGD4 model LPG booster pump
Suncenter Air Driven Gas Boosters provide for pressures up to 80Mpa (11,600 psi). Used for virtually all known gases, these boosters are ideal for increasing gas pressure, transferring high pressure gas, charging cylinders and scavenging. Key features include:
l Compressed Air driven - no electricity required (connect to normal air compressor)
l In order to extend the lifetime of the pump, the driving air pressure should
not be higher than 8 bar
l No airline lubricator required
l Hydrocarbon free - separation between air and gas sections
l Pressures to 80Mpa (11,600 psi)
l Wide range of models with different ratios
l Built-in-cooling on most models
l Easy to install, operate and maintain
l Best price / performance ratio
l No heat, flame or spark risk and explosion proof
l Automatic pressure holding, whatever the cause of the pressure drop, the Suncenter pump will automatically start, keep the loop pressure constant
l In order to extend the lifetime of the pump, the driving air pressure should
not be higher than 8 bar
l No airline lubricator required
l Hydrocarbon free - separation between air and gas sections
l Pressures to 80Mpa (11,600 psi)
l Wide range of models with different ratios
l Built-in-cooling on most models
l Easy to install, operate and maintain
l Best price / performance ratio
l No heat, flame or spark risk and explosion proof
l Automatic pressure holding, whatever the cause of the pressure drop, the Suncenter pump will automatically start, keep the loop pressure constant
Application: various kinds of liquefying gas such as LNG, LPG, butane, propane, DME, etc
Model | Pressure Boost Ratio | Driven air pressure PL | Formula to calculate outlet pressure | MAX Outlet Pressure(bar)* | Liquid inlet Connection | Liquid outlet Connection | MAX Flow (L/min)** |
DGGD4 | 4:1 | 2bar-8 bar | 4XPL | 8bar-32bar | NPT1/2 | NPT1/2 | 70.00 |
The outlet high pressure=Driven air pressure*boost ratio
The standard system including following parts:
Stainless steel frame cabinet
F.R.L combination for driven air (adjusts air pressure, add lubricating oil and water filter)
Driven air switch (Pump starting switch), driven air pressure gauge
Gas inlet switch, Gas inlet pressure gauge
Gas outlet switch, Gas outlet pressure gauge, unloading valve, interconnecting pipes etc.
And we could also customize it according to clients’ special requirement.
Model | Pressure Boost Ratio | Driven air pressure PL | Formula to calculate outlet pressure | MAX Outlet Pressure(bar)* | Liquid inlet Connection | Liquid outlet Connection | MAX Flow (L/min)** |
DGS-DGGD4 | 4:1 | 2bar-8 bar | 4XPL | 8bar-32bar | NPT1/2 | NPT1/2 | 70.00 |
The outlet high pressure=Driven air pressure*boost ratio
DGS-DGGD4 model LPG booster system working picture
