12V/24V/36V/48VDC линейный привод высокой скорости 160 мм/сек. DC задатчик линейного перемещения Электрический Привод движения со встроенным концевые
- Категория: >>>
- Поставщик: Ningbo Limei Intelligent Technology Co. Ltd.
Сохранить в закладки 1600537590391:
Описание и отзывы
Характеристики
Certifications
Product Description

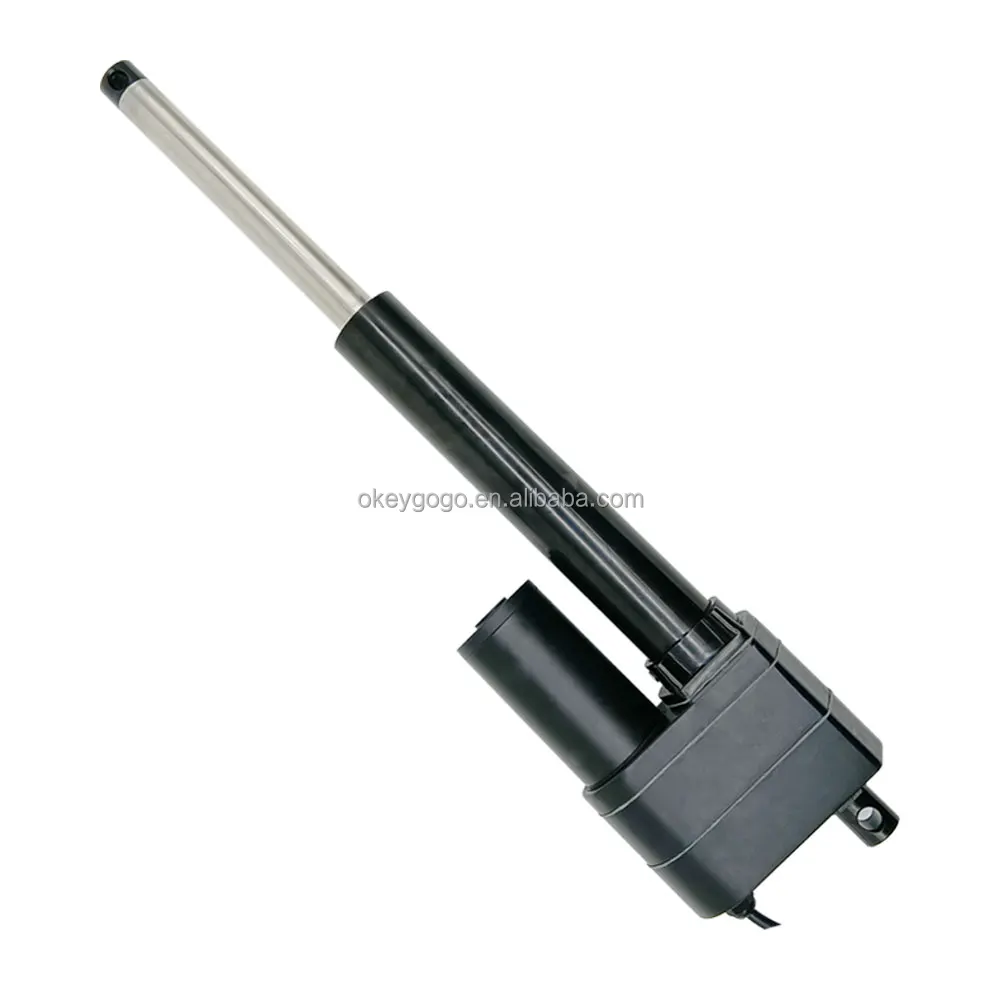

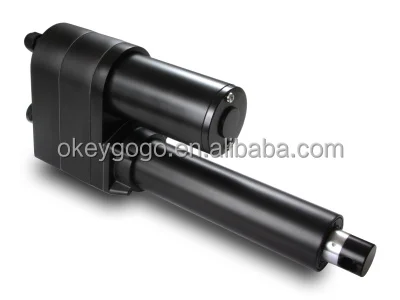

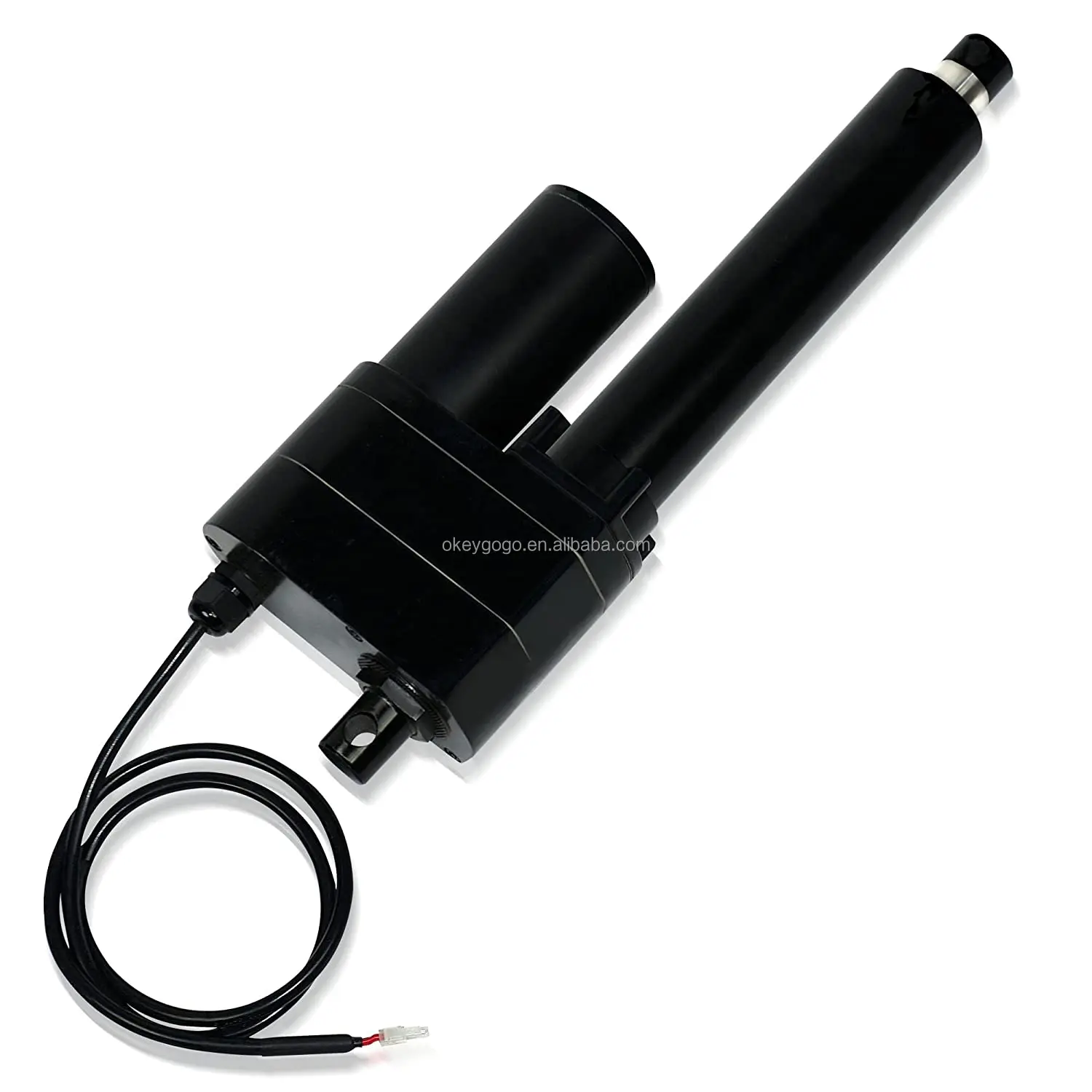

Fast electric actuator 12V / 24V 1000N 160mm / s
The LA50 series is intended primarily for demanding solutions where precision, reliability and reliable operation are important for many years. These include agriculture (tractors, spreaders, combine harvesters, plant cultivation and animal husbandry), heavy industry , production lines , and logistics .
The volume of work is about 48dB .
The LA50 series is intended primarily for demanding solutions where precision, reliability and reliable operation are important for many years. These include agriculture (tractors, spreaders, combine harvesters, plant cultivation and animal husbandry), heavy industry , production lines , and logistics .
Choose speed and reliability
For linear actuators, the high extension speed usually excludes a high load capacity, and vice versa. But with the LA50, you don't need to limit yourself anymore. The 1000N lifting capacity , which translates into a 100kg load , at the piston rod
extension speed of 160mm / s , will allow for quick and reliable automation of work in various projects. To control the actuator, we need a 12V power source and an appropriate controller. Quick and precise extension with a length of 600 mm is ensured by high-quality components from which the actuator was made and metal drive modes in the gear with a metal drive nut .
For linear actuators, the high extension speed usually excludes a high load capacity, and vice versa. But with the LA50, you don't need to limit yourself anymore. The 1000N lifting capacity , which translates into a 100kg load , at the piston rod
extension speed of 160mm / s , will allow for quick and reliable automation of work in various projects. To control the actuator, we need a 12V power source and an appropriate controller. Quick and precise extension with a length of 600 mm is ensured by high-quality components from which the actuator was made and metal drive modes in the gear with a metal drive nut .
Thanks to the high degree of protection IP66 , the LA50 electric actuator can work without any obstacles outdoors in conditions of contact with water. The actuator duty cycle is 25%, which ensures optimal operation of the device in industrial conditions.
The volume of work is about 48dB .
Linear actuator 160mm /s examples of applications :
The fast electric actuator is perfect for, among others:
* Agricultural machinery, incl. tractors, harvesters, tractors, seeders, sprayers, balers, spreaders, self-propelled forage
harvesters
* Agriculture and animal and plant breeding, e.g. animal feeding automation, ventilation and climate regulation system, transport of grain and other crops
* Boats, e.g. yachts, lifting engines and engine flaps, adjusting skylights
* Forklifts
* Vehicles and installations for the disabled
* Household, e.g. windows, flaps, self-propelled lawn mowers, heating boilers
* Rotating large elements: solar systems, large-size antennas, large-format mobile advertising, automated mast lifting, valves in a sewage treatment plant.
The fast electric actuator is perfect for, among others:
* Agricultural machinery, incl. tractors, harvesters, tractors, seeders, sprayers, balers, spreaders, self-propelled forage
harvesters
* Agriculture and animal and plant breeding, e.g. animal feeding automation, ventilation and climate regulation system, transport of grain and other crops
* Boats, e.g. yachts, lifting engines and engine flaps, adjusting skylights
* Forklifts
* Vehicles and installations for the disabled
* Household, e.g. windows, flaps, self-propelled lawn mowers, heating boilers
* Rotating large elements: solar systems, large-size antennas, large-format mobile advertising, automated mast lifting, valves in a sewage treatment plant.

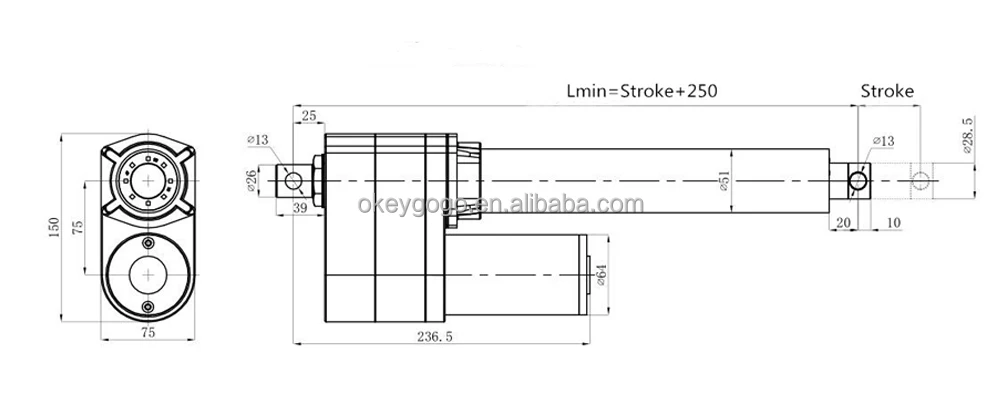

Dimension
Specification
Product name | Industry linear actuator |
Warranty | 1 Year |
Place of Origin | China |
Zhejiang | |
Brand Name | OKEYGOGO |
Model Number | LA50 |
Usage | BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Industrial, Agriculture Usage |
Type | GEAR MOTOR |
Torque | 1000N |
Construction | Permanent Magnet |
Commutation | Brush |
Protect Feature | Waterproof |
Speed(RPM) | 160mm/s |
Continuous Current(A) | 5.5/20A |
Efficiency | IE 4 |
Product Name | Industry Linear Actuator |
Input Voltage | 12V / 24VDC |
Speed | 5-160mm/s |
Stroke | 20-1000mm |
Max Load | 10000N |
Retracted Length | Stroke+250mm |
Extend Length | Stroke*2 +250mm |
Noise | Less than 48dB |
IP Grade | IP65 |
Duty Cycle | 25%. Max 2mins. Continuous use , 18mins rest |
Working temperature | -25 ° C ~ + 65 ° C |
