330 Ом 30% 75 градусов 500 В MZ11A керамические Термисторы с предварительным
- Категория: Resistors >>>
- Поставщик: Dongguan Tianrui Electronics Co. Ltd.
Сохранить в закладки 1600537970980:
Описание и отзывы
Характеристики
Product Description

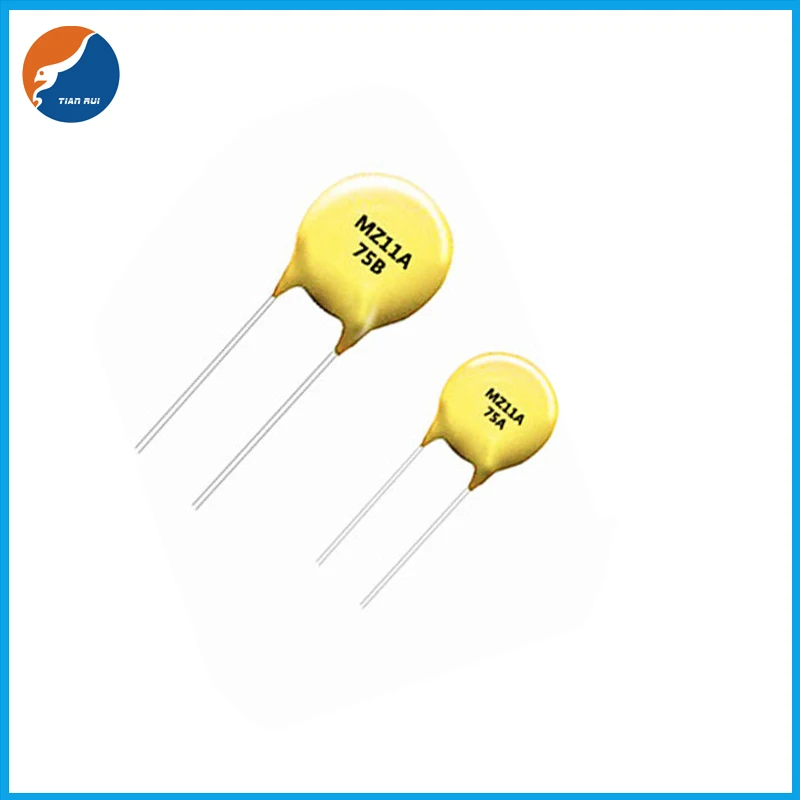

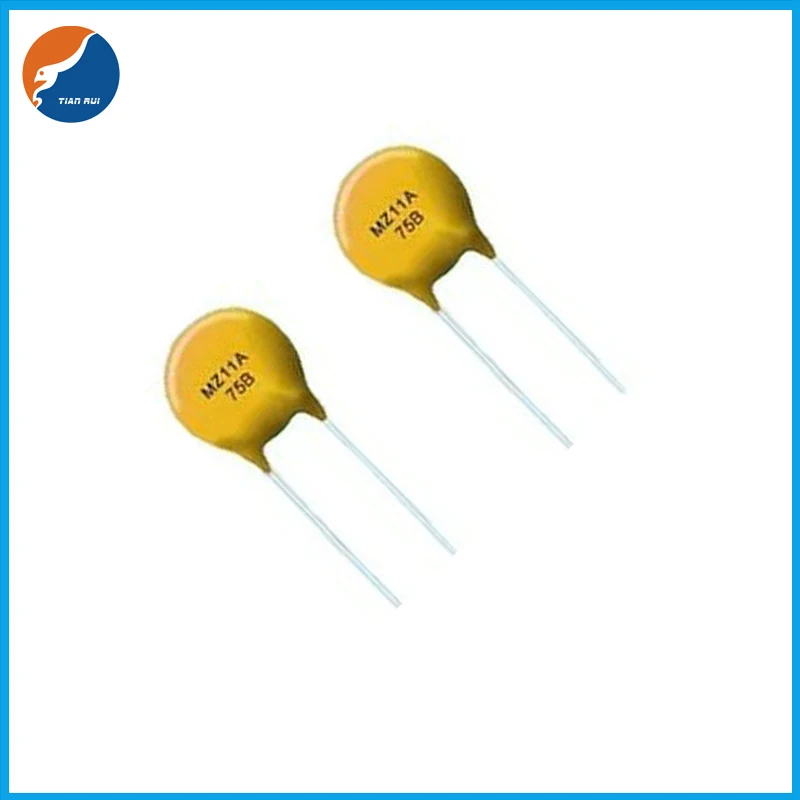

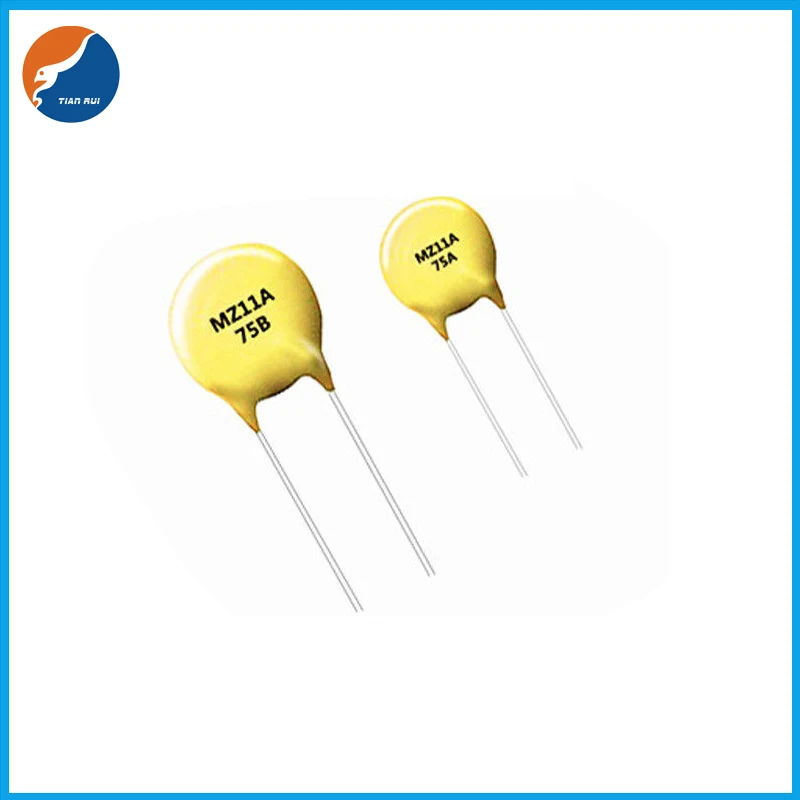

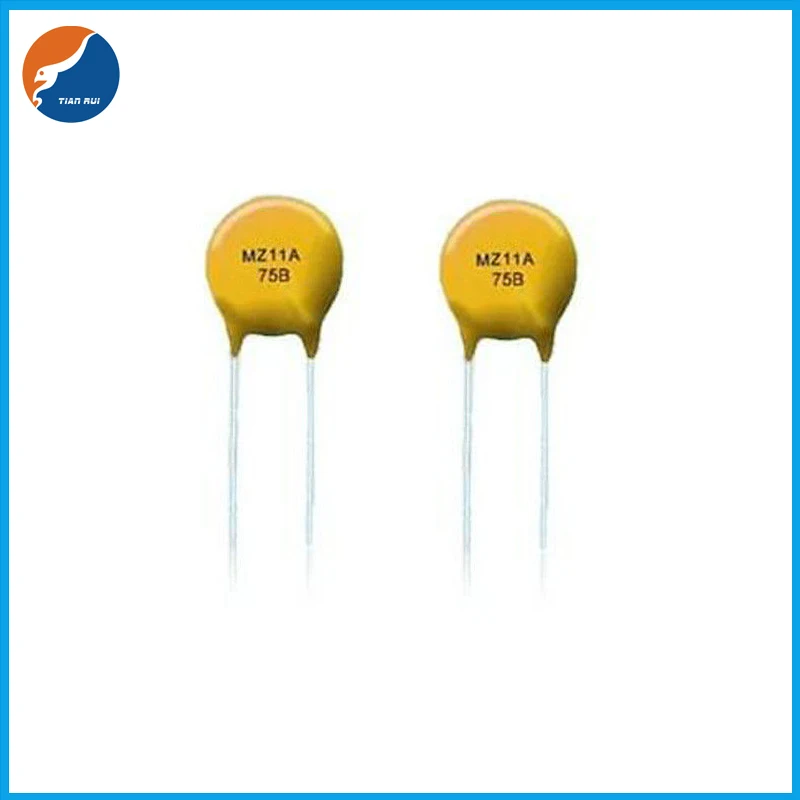

330 OHM 30% 75 Deg 500V MZ11A Filament Preheating Ceramic PTC Thermistors
A. The Applications Of MZ11A PTC thermistors
It can be applied in the electronic ballast of kinds of luorescent lamps and electronic energy-saving lamps. No necessity to modify the circuitry.I proper thermistor is parallelconnected on the two ends of resonant capacitor ot lamps,cold startup of electronic ballast and elec-tronic energy-saving lamps will urn into the Preheatstartup which can make the Preheatingtime reach 0.4-2S and extend the life of service to three times of the primary.
B. Features Of the ceramic PTC Thermistor
1.Execution tlizing the characterstic of PTC material.
2.Smallsize of product.
3.High voltag resistance.
4.Longevity of service.
5.Low power when normally working.

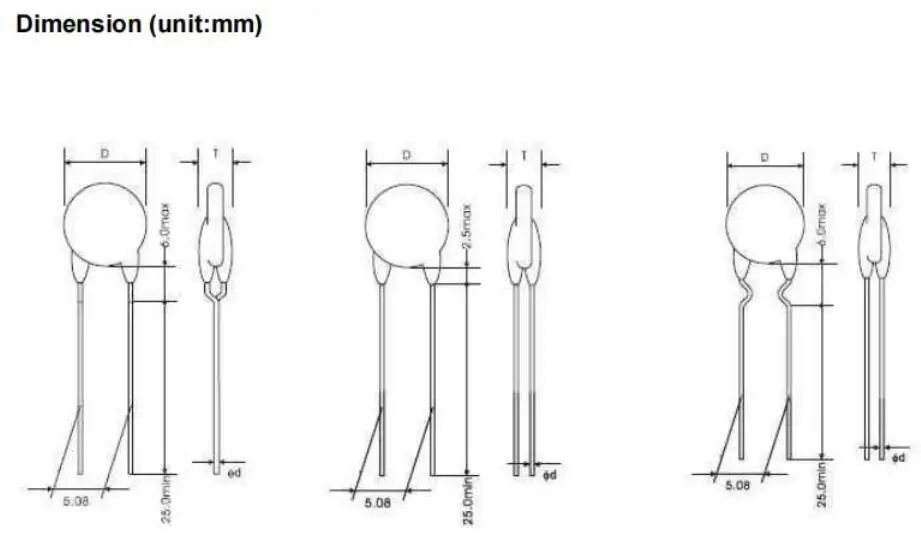

C. Dimension in mm Of The Ceramic PTC Thermistor 330 OHM
| Lead shape | Dmax | Tmax | F±1 | d±0.05 |
| S | 4 | 4.5 | 5 | 0.5 |
| L | 5 | 4.5 | 5 | 0.6 |
| A | 6 | 4.5 | 5 | 0.6 |
| HV | 6 | 5 | 5 | 0.6 |
| B | 8 | 4.5 | 5 | 0.6 |
| BHV | 8 | 5 | 5 | 0.6 |
| LB | 9 | 4.5 | 5 | 0.6 |
| M | 11.5 | 5 | 5 | 0.6 |
| SL | 14.5 | 5 | 7.5 | 0.8 |
| ML | 18.5 | 5 | 7.5 | 0.8 |
| ML | 21 | 5 | 7.5 | 0.8 |
D.Electrical Performance Of the Resettable Filament Preheating Ceramic PTC Thermistors
| No. | Part Number | Rated Zero-power Resistance Rn(Ω) | Breakdown Voltage. | Max Operating Current Imax(mA) | Switch Temperature Tsw(℃) | Dimension(mm) | ||
| (VAC) | Dmax | Tmax | d | |||||
| 1 | MZ11A-50S68RNU | 68±30% | 360 | 200 | 50±7 | 4 | 4.5 | 0.5 |
| 2 | MZ11A-50S101NU | 100±30% | 400 | |||||
| 3 | MZ11A-50S151NU | 150±30% | 400 | |||||
| 4 | MZ11A-50S221NU | 220±30% | 500 | |||||
| 5 | MZ11A-50S331NU | 330±30% | 600 | |||||
| 6 | MZ11A-50S471NU | 470±30% | 600 | |||||
| 7 | MZ11A-50S681NU | 680±30% | 600 | |||||
| 8 | MZ11A-50S102NU | 1000±30% | 600 | |||||
| 9 | MZ11A-50S152NU | 1500±30% | 600 | 140 | ||||
| 10 | MZ11A-50S222NU | 2200±30% | 600 | 90 | ||||
| 11 | MZ11A-50S332NU | 3300±30% | 600 | 60 | ||||
| 12 | MZ11A-50S472NU | 4700±30% | 600 | 40 | ||||
| 13 | MZ11A-75S68RNU | 68±30% | 360 | 200 | 75±7 | |||
| 14 | MZ11A-75S101NU | 100±30% | 400 | |||||
| 15 | MZ11A-75S151NU | 150±30% | 400 | |||||
| 16 | MZ11A-75S221NU | 220±30% | 500 | |||||
| 17 | MZ11A-75S331NU | 330±30% | 500 | |||||
| 18 | MZ11A-75S471NU | 470±30% | 500 | |||||
| 19 | MZ11A-75S681NU | 680±30% | 600 | |||||
| 20 | MZ11A-75S102NU | 1000±30% | 600 | |||||
| 21 | MZ11A-75S152NU | 1500±30% | 600 | 140 | ||||
| 22 | MZ11A-75S222NU | 2200±30% | 600 | 90 | ||||
| 23 | MZ11A-75S332NU | 3300±30% | 600 | 60 | ||||
| 24 | MZ11A-75S472NU | 4700±30% | 600 | 40 | ||||
| 25 | MZ11A-105S68RNU | 68±30% | 360 | 180 | 105±7 | |||
| 26 | MZ11A-105S101NU | 100±30% | 400 | |||||
| 27 | MZ11A-105S151NU | 150±30% | 400 | |||||
| 28 | MZ11A-105S221NU | 220±30% | 400 | |||||
| 29 | MZ11A-105S331NU | 330±30% | 500 | |||||
| 30 | MZ11A-105S471NU | 470±30% | 500 | |||||
| 31 | MZ11A-105S681NU | 680±30% | 600 | |||||
| 32 | MZ11A-105S102NU | 1000±30% | 600 | |||||
| 33 | MZ11A-105S152NU | 1500±30% | 600 | 140 | ||||
| 34 | MZ11A-105S222NU | 2200±30% | 600 | 90 | ||||

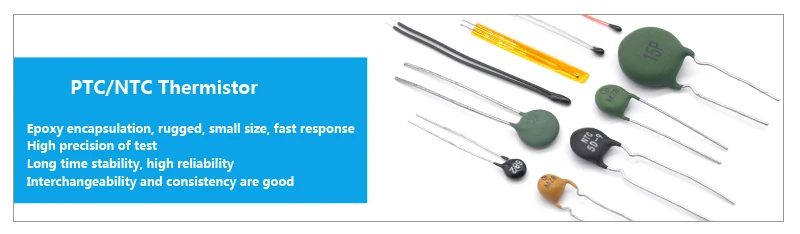

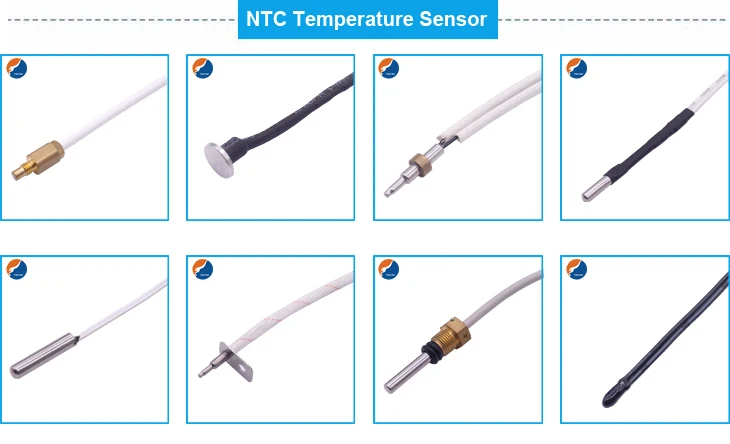

The Pictures of related NTC Thermistor/PTC Thermistor
The Features of NTC Thermistor/PTC Thermistor
1. Small volume, large power, strong ability to suppress inrush current
2. Quick reaction time
3. The material constant (B value) is large, while the residual resistance is small
4. Long life and high reliability
5. Complete series and wide working range
2. Quick reaction time
3. The material constant (B value) is large, while the residual resistance is small
4. Long life and high reliability
5. Complete series and wide working range
The Application of NTC Thermistor/PTC Thermistor
1. Coversion power-supply, switch power, ups power
2. Electronic energy saving lamps, electronics ballast and all kinds of electric heater
3. All kinds of RT, dispaly
4. Bulb and other lighting lamps
Our Services
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance, T/T.
If you have another question, pls feel free to contact us.
