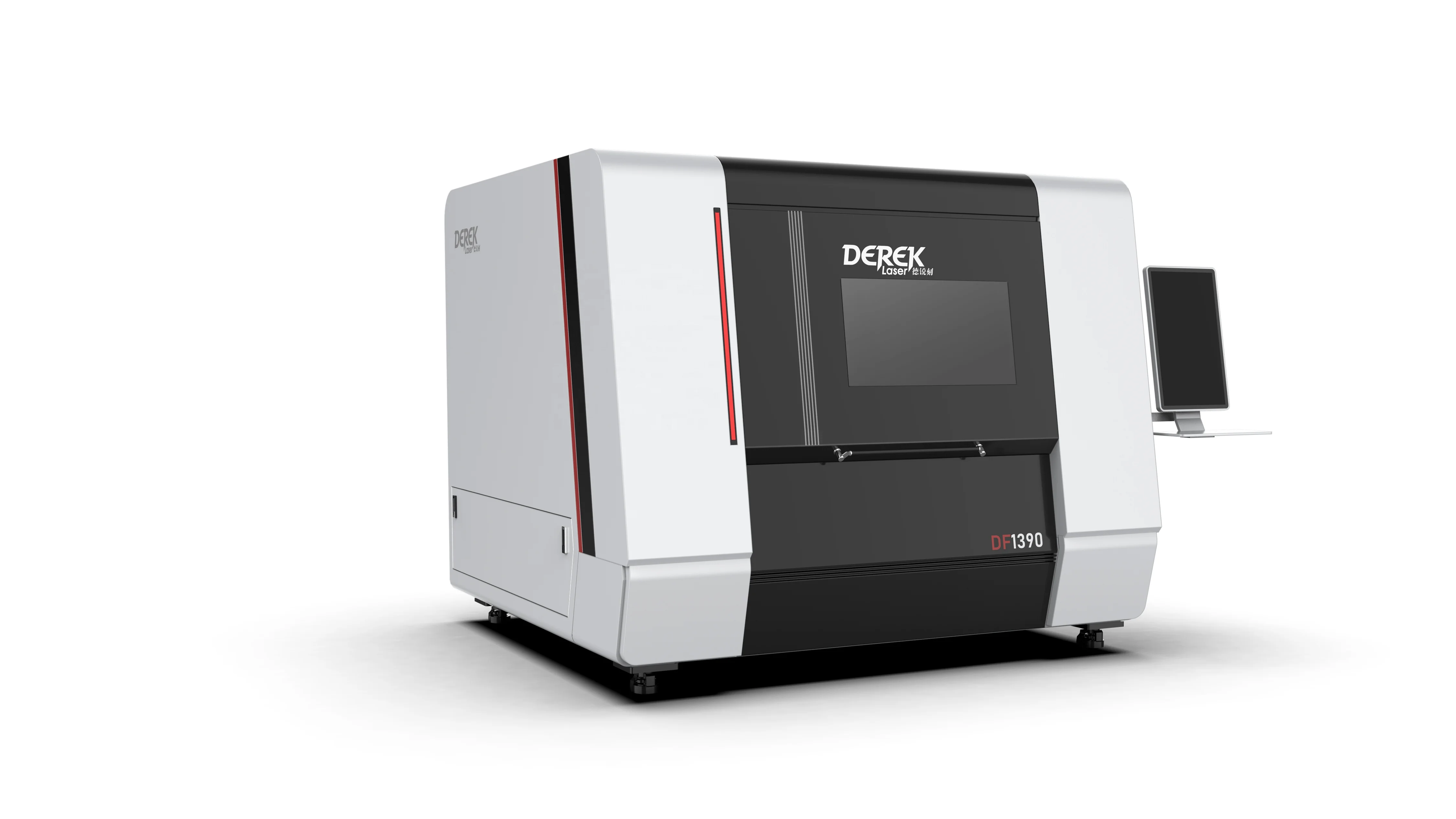

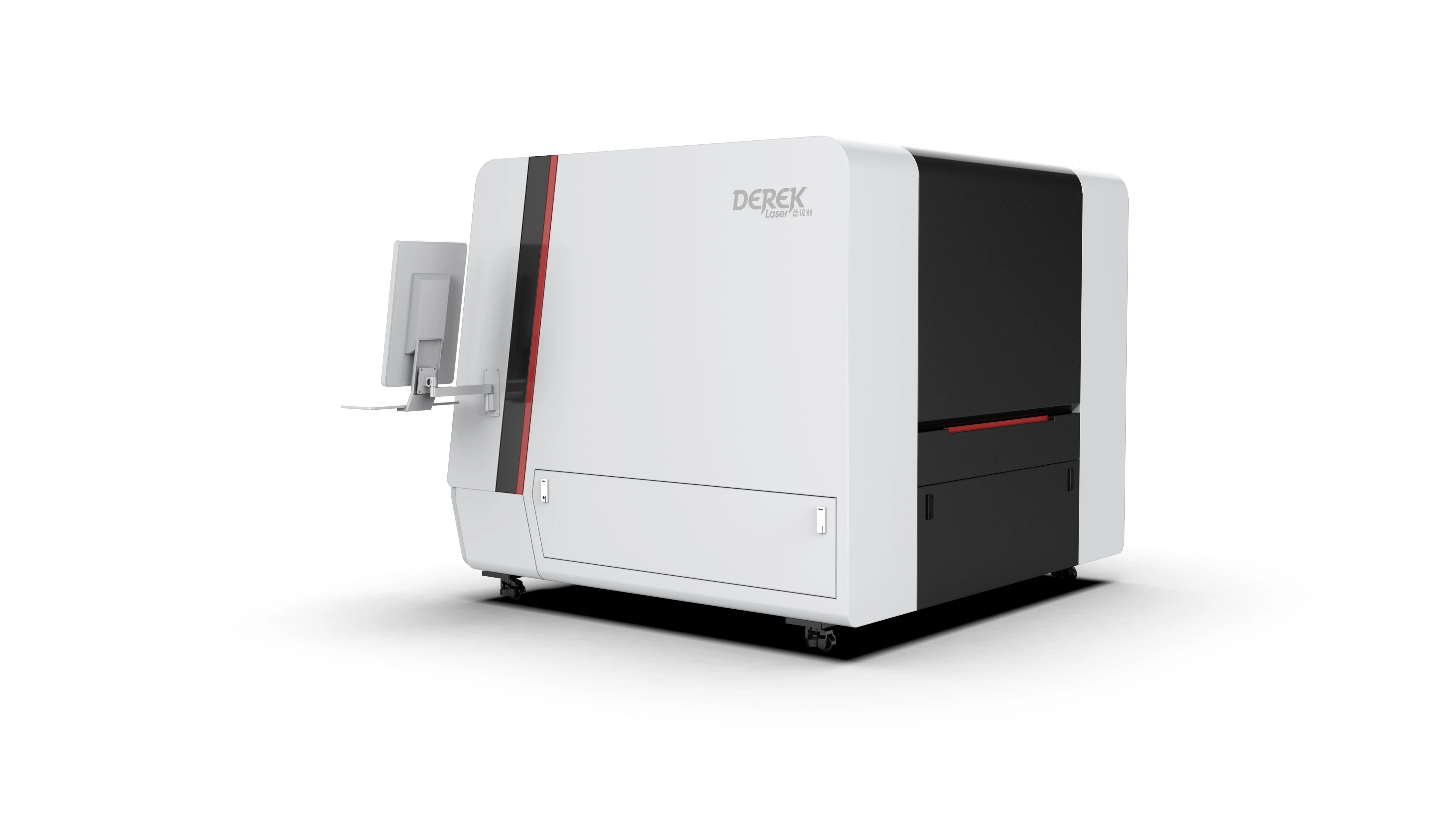

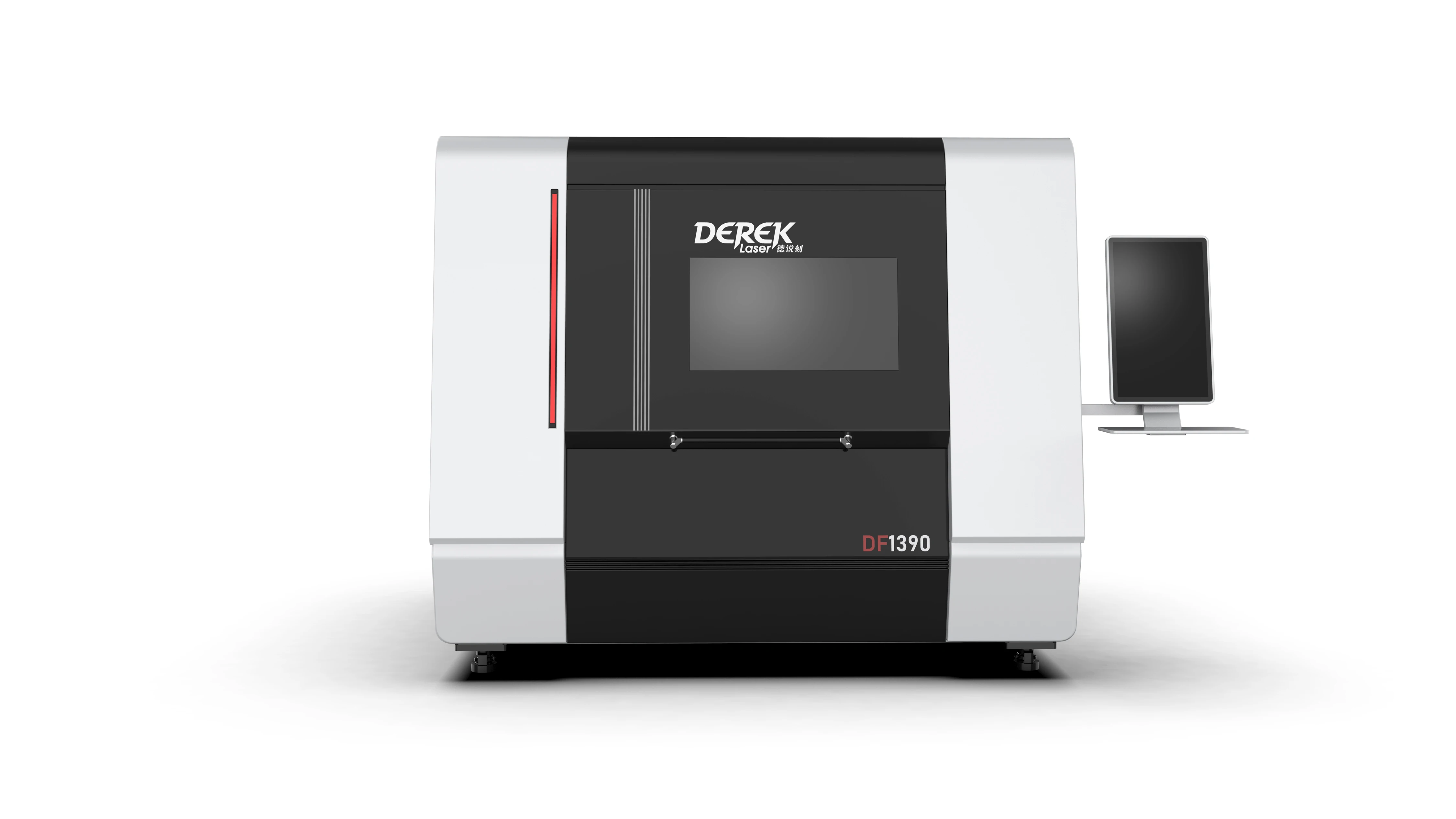

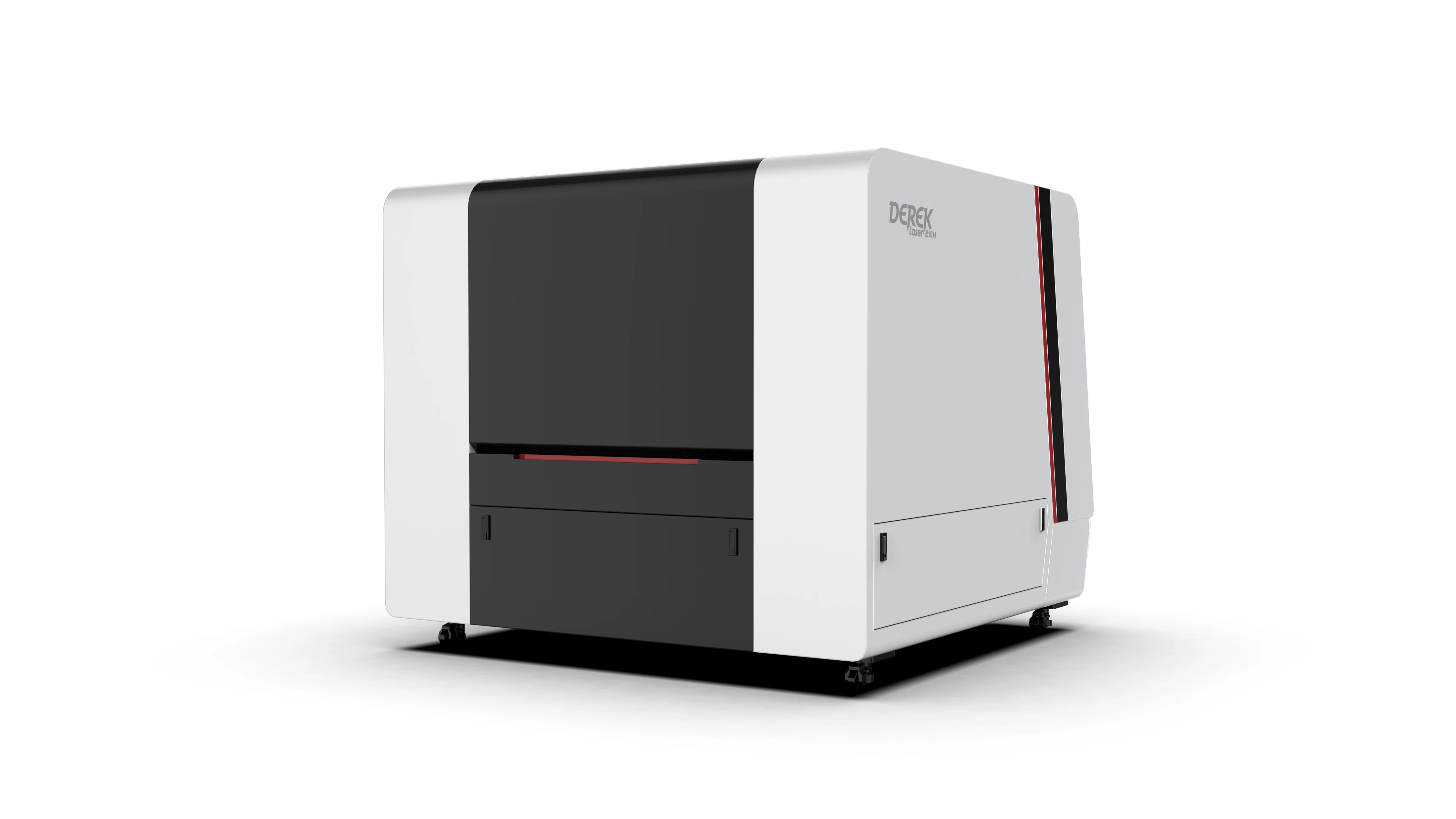

Машина для волоконной лазерной резки малого формата 1390 1510 машина цена

Сохранить в закладки 1600538453808:


Цена:26 000,00-29 500,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description




fiber laser metal cutting machine for both stainless steel tube and sheet 1390 fiber laser cutter


1390.png)X68US`E{{US)P$GXL2SBRW5FLRWYGHHF{1OEKS1B[JYES`0~[(UNRVT9FT(EA4O_T[)2P5ELEUYQ(4XV_B]]O11C0K[TFZ38452[HBWOMHD)H9GL



3015L GL13015L GL23015L GL33015L.png

fiber laser cutting machine desktop



































































































SPECIFICATIONS FOR DRK1390F FIBER LASER CUTTING MACHINE



Model


DF1390F metal laser cutting machine


Cutting Tube maximum diameter


200mm


Rotary Attachment


For both sheet and tube cutting


Control System


Cypcut


Laser Power


Domestic 500W - 12000W IPG/Raycus


Position Type


red dot


Working Area


3000*1500mm


Power Consumption


≤12KW


Laser Wave Length


1064nm


Working Voltage


220V/50Hz/60Hz


Auxiliary Gas


oxygen,nitrogen,air


Maximum Idle Running Speed


1400mm/s


Working life of fiber module


More than 100000 hours


Fiber laser cutting head


Worthing Raytools


Liner guider system


PMI made in Taiwan , (Option THK made in Japan)


Transmit system


Dual Rack & Pinion type


Warranty time


Whole machine for 24 mouths


Delivery time


15 days


Gross weight


1500kg


Driver system


Janpan Yaskawa servo motor


Working life of fiber module


More than 100000 hours


keywords








fiber laser cutting machine desktop


Features for high quality fiber laser cutting machine:1. Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;2. High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours;3. High speed and efficiency, the speed of cutting metal sheets close to tens of meters;


4. The laser maintenance free;5. The cutting edge looks perfect and the appearance is smooth and beautiful;6. Imported the transmission mechanism and servo motor, and high cutting accuracy;7. Dedicated software enables graphic or text to be instantly designed or processed.







Configuration of fiber laser cutting machine








1300*900mm working area;

Worthing laser cutting head;

X,Y axis Japan YASKAWA servo motor;

Z axis Japan Panasonic servo motor;

Taiwan HIWIN guide rail;

Taiwan APEX   Gear rack;

France MOTOREDUCER reducer;

Taiwan TBI ball screw;

Japan SMC /Taiwan AirTac pneumatic components;

France Schneider electrical components;

Tongfei Teyu water chiller;

Cypcut control system;

Gross weight 1500kg;









Fiber Laser Cutting Machine Application
Available Materials:Stainless Steel SheetMild Steel PlateCarbon Steel Sheet, Alloy Steel PlateSpring Steel SheetIron PlateGalvanized IronGalvanized SheetAluminum PlateCopper SheetBrass SheetBronze PlateGold PlateSilver PlateTitanium PlateMetal SheetMetal PlateTubes and Pipes, etcfiber laser cutting machine desktop



fiber laser cutting machine desktop






Cutting speed of fiber laser cutting machine


Derek Laser cuttting.jpg







fiber laser cutting machine desktop
