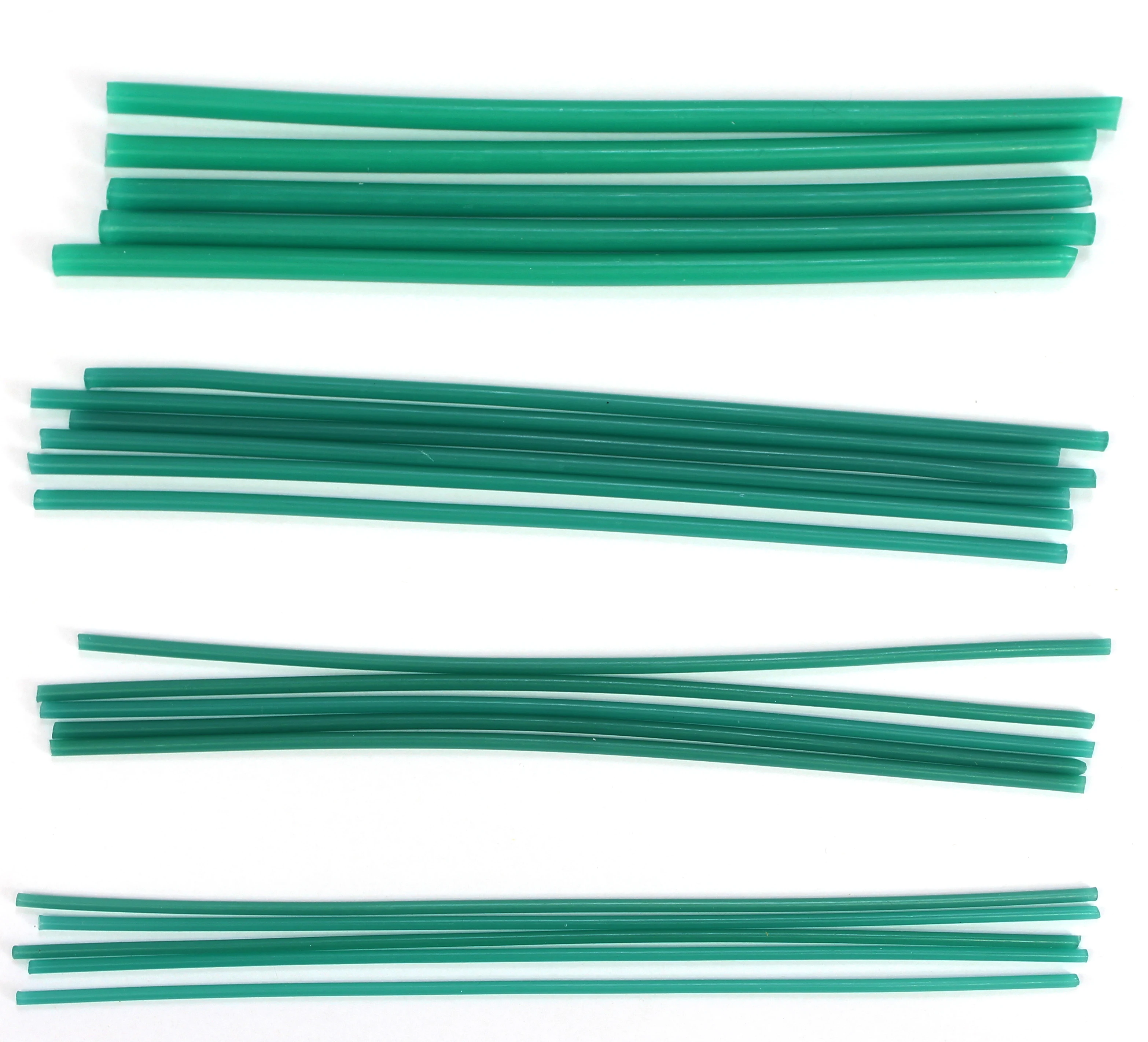

Линия для удаления воска, инструмент для изготовления ювелирных изделий
269,75 ₽ - 345,28 ₽

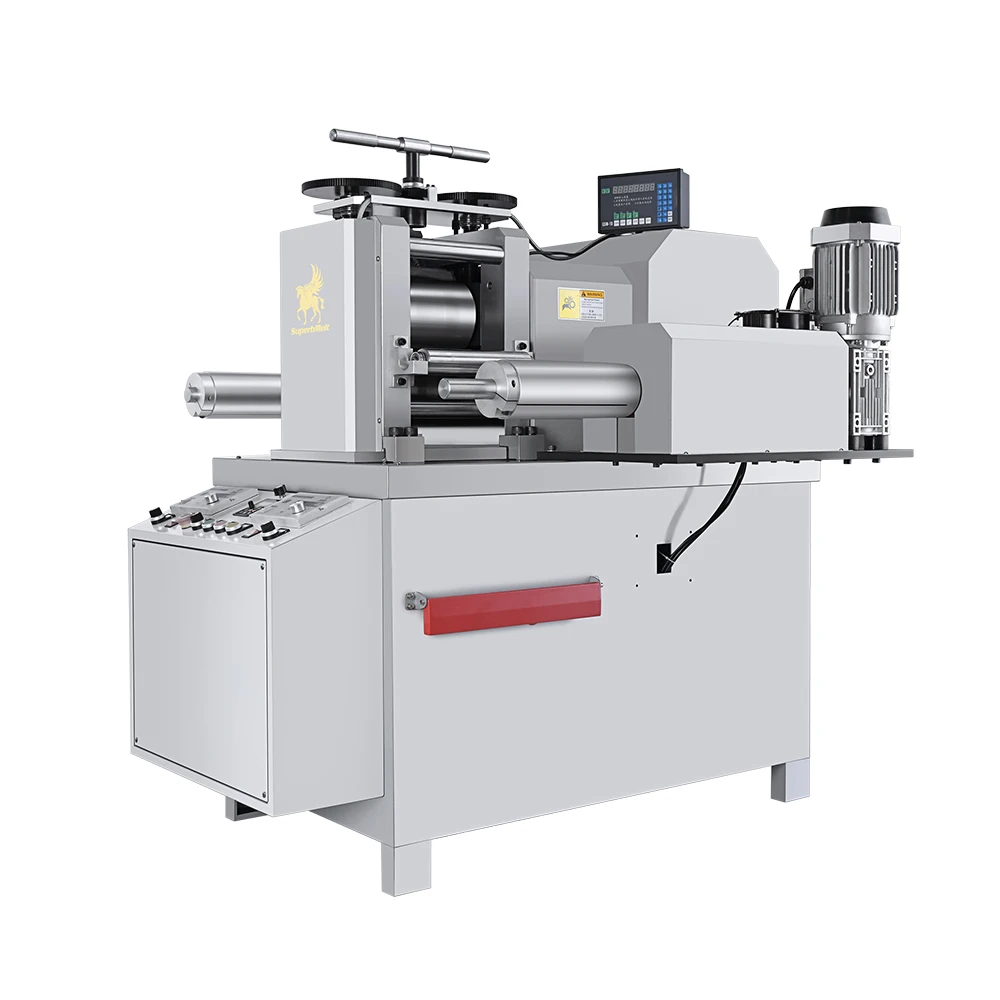

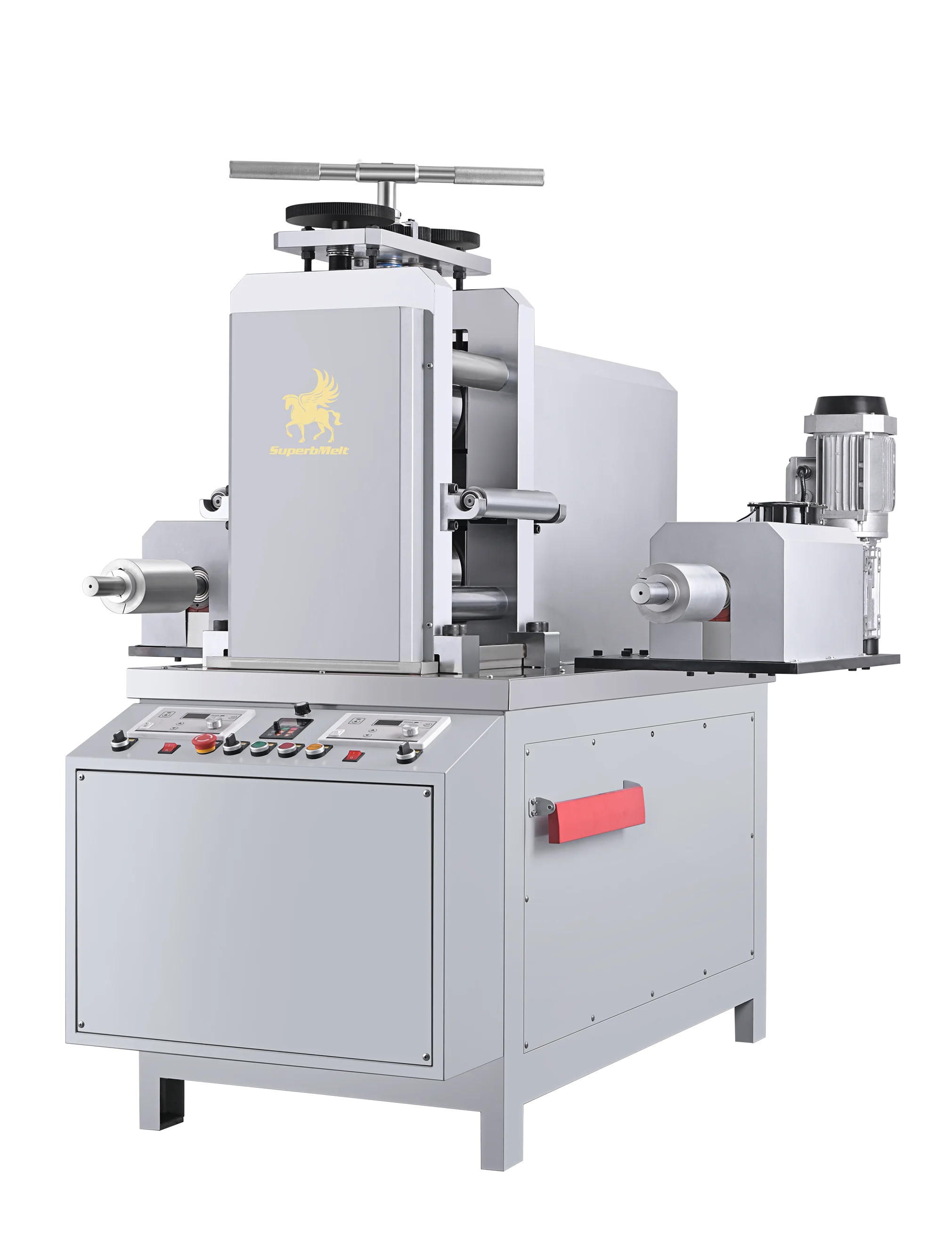

Ролик с золотистой пластиной superbfuse обмоткой ювелирный металлический листовой рулон холодная прокатная мельница
- Категория: >>>
- Поставщик: Longgang Superb Electromachinery Co. Ltd.
Сохранить в закладки 1600538555410:
Описание и отзывы
Характеристики
Products Description
Model number | SPB-YP-15-B |
Type | 12P integrated sheet rolling machine(with winding) |
Power source (V) | 380 |
Power (kw) | 9 |
Roller size (D * L mm) | 150*210mm |
Max. thickness (mm) | 25mm |
Min. thickness(mm) | 0.01mm |
Optimum tablet width | Within 80mm |
Revolving speed (rpm) | 24/min |
lubricating system | Automatic lubricating oil supply |
Max. width | 200 |
Dimensions (mm) | 1320*1200*1400 |
Weight (kg) | 1100kg |
Lubrication system | Automatic oil supply |

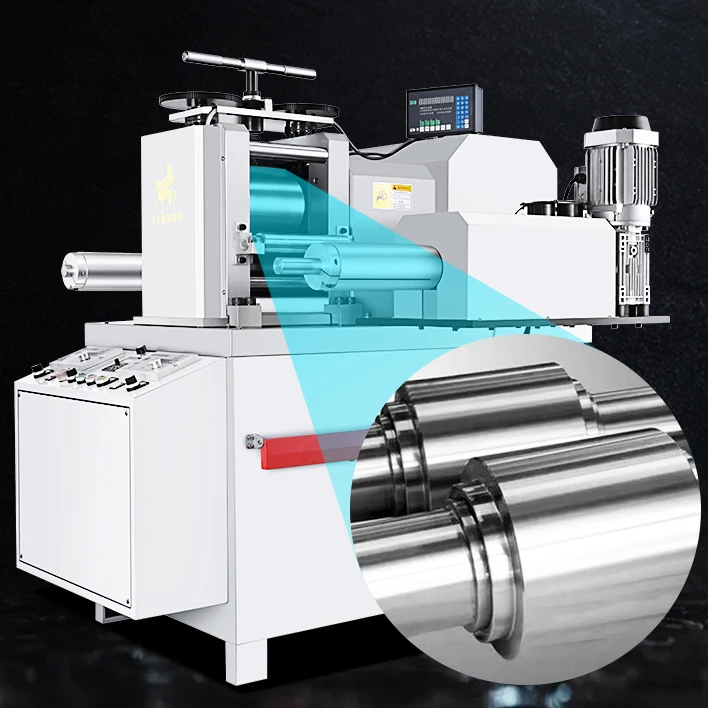

High hardness finale
Both shafts are driven by precision cross couplings,the hardness is as high as HRA60-62 degrees, the efficiency is guaranteed, and the selected materials make the life longer
Germany INA roller bearings
Roller pressing is realized by gear rotation, use imported bearings, high precision, more durable
High precision
The finished product is neat and straight, the thickness is uniform, the tolerance is within 0.005, and the error is low

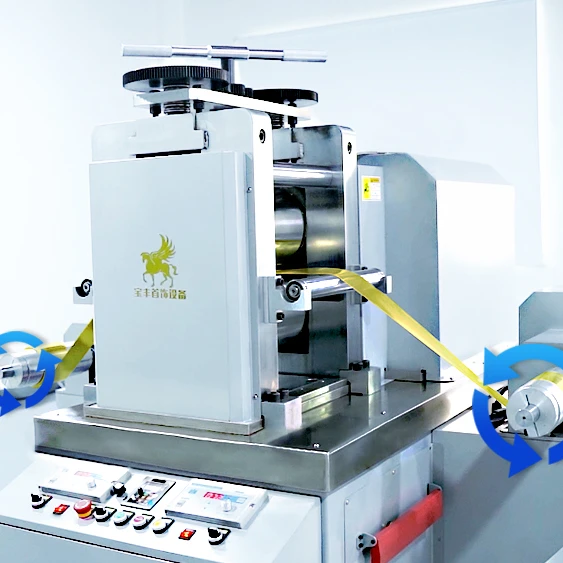

With winding
Double-sided tape rewinding and unwinding greatly improves production efficiency and finished product qualification rate

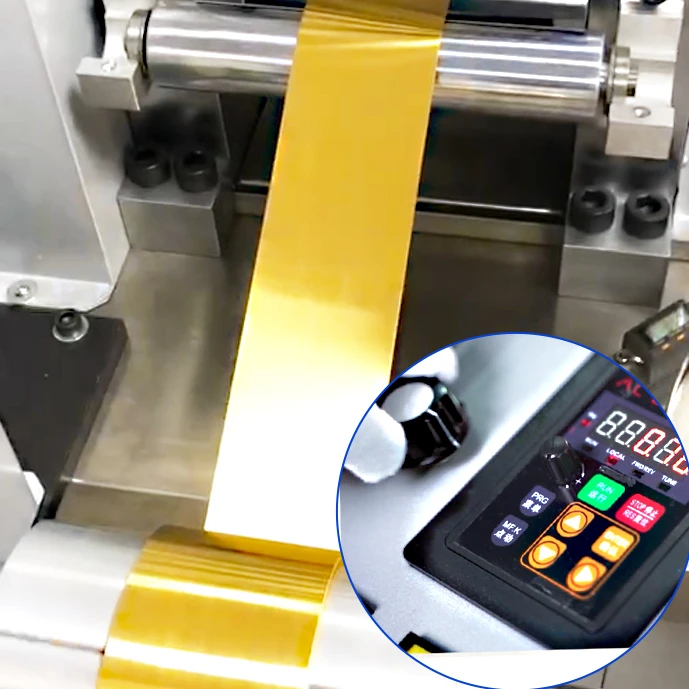

Screen display
Real-time display of tablet thickness, no need for manual repeated measurement
Adjustable retractable tension
Use the highly sensitive adjustable magnetic powder device is used to avoid fragmentation due to excessive tension.
Performance Features
1. The reel roll of the equipment is made of super-hard alloy steel, which is the current high-hardness reel roll material.
2. The movable roller adopts a linkage mechanism, the same as above and below, to ensure the uniform thickness of the processed metal, and is equipped with a thickness adjustment scale, which can ensure the thickness accuracy of the finished product
3. It adopts multi-stage transmission, combined with various transmission structures, and the speed is adjustable.
4. The fuselage is thick and the equipment works smoothly and without noise
5. The manufacturing process strictly controls the machining accuracy of the parts and improves the mechanical service life.
Applications
1.Metal motors with good ductility such as K gold, sterling silver, gold, pressed 925 silver, copper, and aluminum can be forward and reversed.It is easy to return materials if problems are found during operation.
2.SuperbMelt provides mostly various types of rolling machines to meet different width and thickness rolling requirements. They are widely used in semi-finished products of jewelry and gold artworks.
Our Advantages
About SuperbMelt
1.Superb is a top-notch professional manufacturer and exporter of precious metal melting, casting and forming machines which are used in fields like precious metal, Rapid Prototyping, Jewelry and Artistic Sculpture.
2.Our mission is to build the most innovative melting and casting equipment for jewelry and
precious metal manufacturing, providing you with the highest reliability in your daily operations that guarantees the best quality.
3. As a leading precious metal melting and casting solutions provider, the provision of timely technical support for our manufacturers is an essential part of our services. With a strong technical support team that comprises of qualified and well trained (in China) local technicians, we are committed to solving any problems that you may have.
2.Our mission is to build the most innovative melting and casting equipment for jewelry and
precious metal manufacturing, providing you with the highest reliability in your daily operations that guarantees the best quality.
3. As a leading precious metal melting and casting solutions provider, the provision of timely technical support for our manufacturers is an essential part of our services. With a strong technical support team that comprises of qualified and well trained (in China) local technicians, we are committed to solving any problems that you may have.
Customer Photos
Advancing an industry caught up in the sleaze of the ordinary meant collaboration, dedication, and a workforce built on communal values. Fast track to this day, we pride ourselves as a major distributor of melting, casting, and forming machines in over 30countries.
Exhibition
FAQ
1.Q: Are you the factory? Can you make the equipment according to our requirements?
A:Yes, We are leading manufacturer specialized in Gold and Jewelry machinery field over 20 years in China.Our company already passed ISO9001 quality management system.
Our machines are designed and produced due to European directives (Machinery directive / Low voltage directive / EMC directive).
At delivery we add the corresponding declaration of conformity (CE). You are warmly welcome to visit our factory for deep
cooperation with you.
To further ensure our quality for customers, we will provide machine’s running testing video for your confirmation before
delivery. We will make sure that the machine which is delivered out from factory is 100% no problem.
2.Q: when can I get quotation?
A: we usually quote within 24 hours after receiving your inquiry. If you are eager to get the price, please call us or let us know in your email so that we can give priority to your inquiry.
3.Q: what is the delivery time?
A: Mostly, one machine lead time is 5~20 days and air courier to arrive within 7 working days worldwidely.
4.Q: if I place an order on you, how should I pay?
A: Generally, PayPal, T / T, visa ,West Union and other payment methods are acceptable.
5.Q: What kind of delivery methods can we use?
A: By sea,by air or express are all acceptable.It depends on your will.And we will recommend the best way to you.
6.Q: how about the shipping costs and tax?
A: the cost of delivery depends on the mode, destination and weight. The tax depends on your local customs.
7.Q:About setup and training: Is the technician needed here? What dose it costs?
A:English manual and detailed video are provided for your guide. We are 100% sure that you could install and operate machine under the guide as our former customers’ experience. If you are interested, please contact us for video sharing.
8.Q: How is your after-sale servise?
A:We have an professional engineer team to do it.All problem will be responded within 12 hours.We provide life-long service.Any problem ,we will arrange engineer to check for you remotely.
9.Q:How about package? If machine damaged, what should I do ?
A:Usually machine is packed with plywood case and standard export carton.
Damage haven't happened before as our previous experience. If happen, we will provide free replacement for you first. Then we will negotiate with our agent to solve the compensation issue. You will not afford any loss about this part.
A:Yes, We are leading manufacturer specialized in Gold and Jewelry machinery field over 20 years in China.Our company already passed ISO9001 quality management system.
Our machines are designed and produced due to European directives (Machinery directive / Low voltage directive / EMC directive).
At delivery we add the corresponding declaration of conformity (CE). You are warmly welcome to visit our factory for deep
cooperation with you.
To further ensure our quality for customers, we will provide machine’s running testing video for your confirmation before
delivery. We will make sure that the machine which is delivered out from factory is 100% no problem.
2.Q: when can I get quotation?
A: we usually quote within 24 hours after receiving your inquiry. If you are eager to get the price, please call us or let us know in your email so that we can give priority to your inquiry.
3.Q: what is the delivery time?
A: Mostly, one machine lead time is 5~20 days and air courier to arrive within 7 working days worldwidely.
4.Q: if I place an order on you, how should I pay?
A: Generally, PayPal, T / T, visa ,West Union and other payment methods are acceptable.
5.Q: What kind of delivery methods can we use?
A: By sea,by air or express are all acceptable.It depends on your will.And we will recommend the best way to you.
6.Q: how about the shipping costs and tax?
A: the cost of delivery depends on the mode, destination and weight. The tax depends on your local customs.
7.Q:About setup and training: Is the technician needed here? What dose it costs?
A:English manual and detailed video are provided for your guide. We are 100% sure that you could install and operate machine under the guide as our former customers’ experience. If you are interested, please contact us for video sharing.
8.Q: How is your after-sale servise?
A:We have an professional engineer team to do it.All problem will be responded within 12 hours.We provide life-long service.Any problem ,we will arrange engineer to check for you remotely.
9.Q:How about package? If machine damaged, what should I do ?
A:Usually machine is packed with plywood case and standard export carton.
Damage haven't happened before as our previous experience. If happen, we will provide free replacement for you first. Then we will negotiate with our agent to solve the compensation issue. You will not afford any loss about this part.
Похожие товары

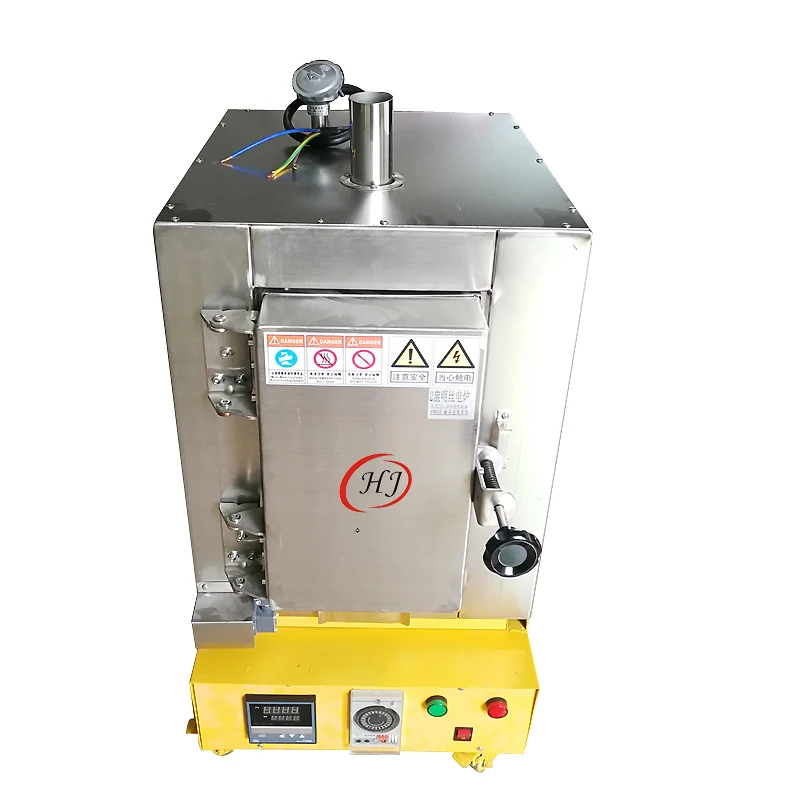

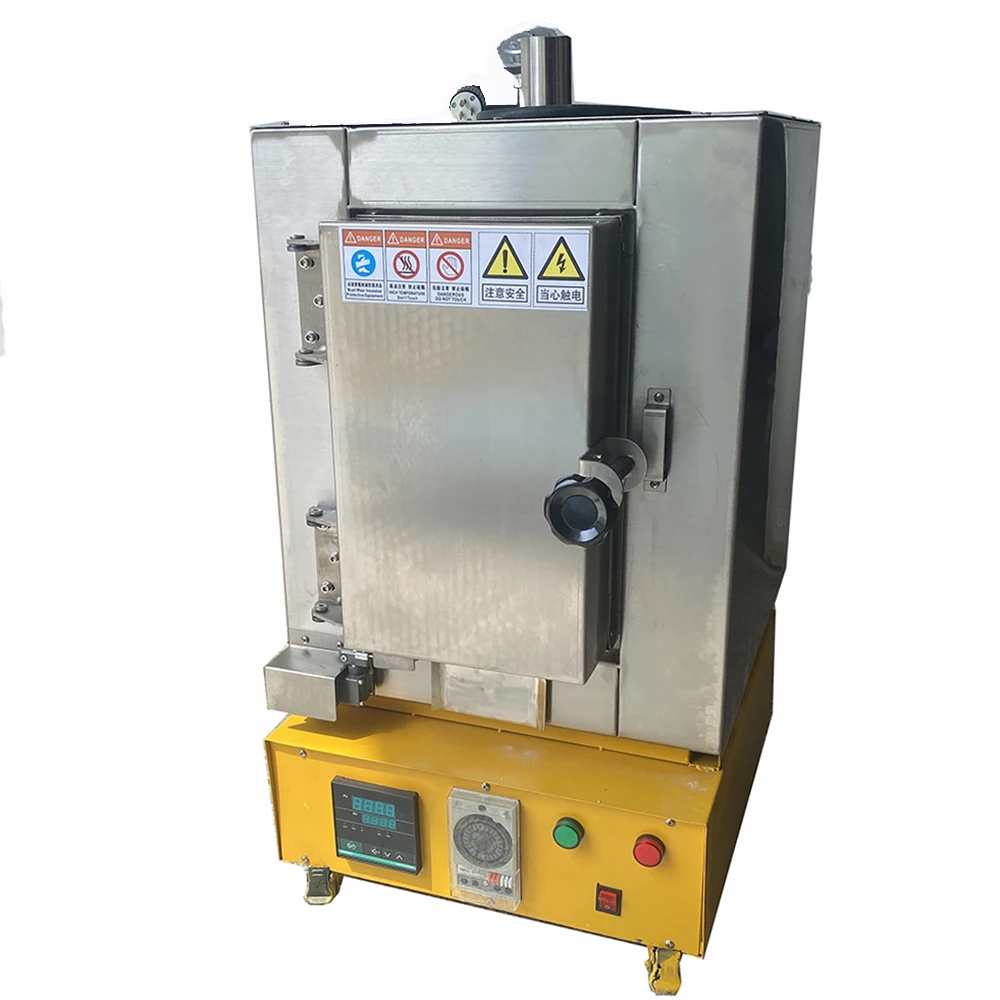

Машина для изготовления золотых ювелирных изделий, стоматологическая печь для выгорания воска, мини печь для выгорания ювелирных изделий
2x9 фляжки, инструменты для ювелирных изделий, оптовая цена, 2 фляжные печи для выгорания, литье ювелирных изделий, печь для депарафинизации
63 551,81 ₽
Восковая линия Dewax, инструмент для изготовления ювелирных изделий
269,75 ₽ - 345,28 ₽
Превосходный молоток из необработанной кожи с использованием плотных рулонов кожи (кожи), пропитанных смолой или шеллаком для затвердевания и надевающих деревянную ручку
5,40 ₽
Золотая вращающаяся мельница HAJET, ювелирная вращающаяся мельница, мини ювелирные инструменты, вращающаяся мельница

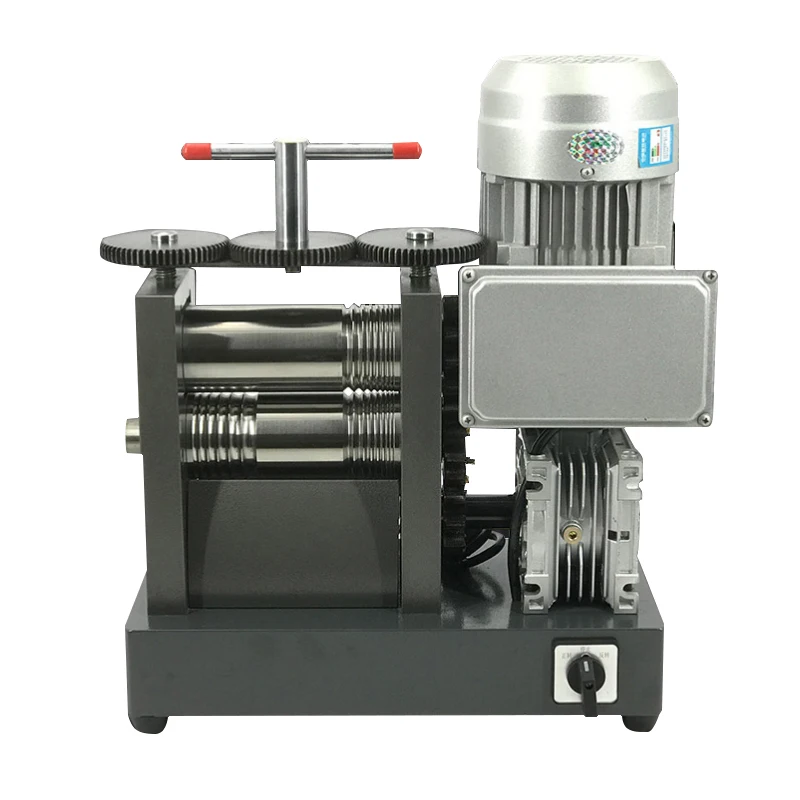

Машина для изготовления ювелирных изделий на заказ роликовые 0.5HP/1HP мини электрический прокатный стан прокатного стана
69 594,09 ₽

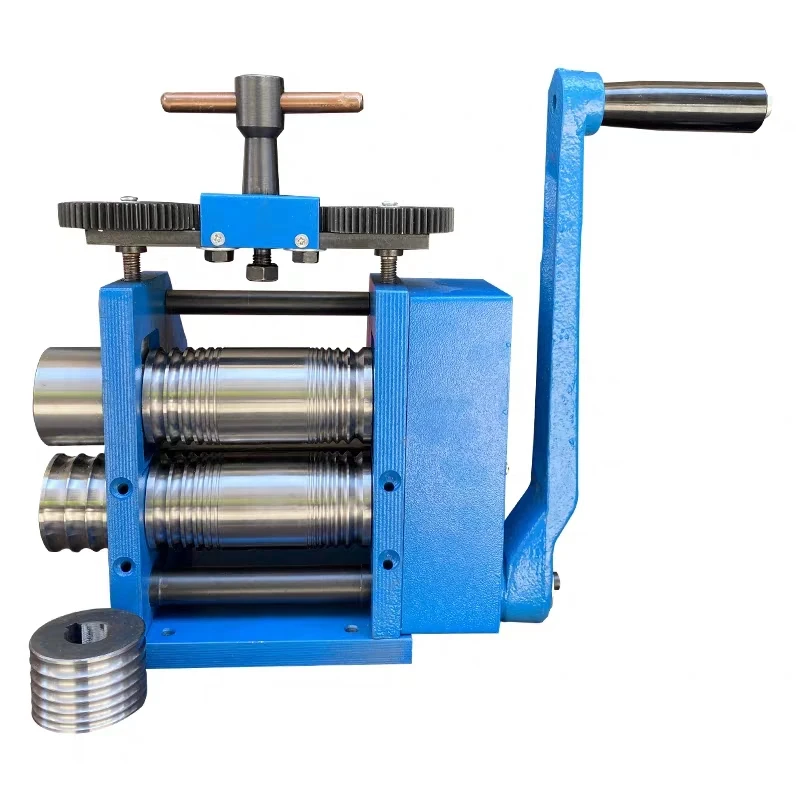

Мини-прокатный стан
