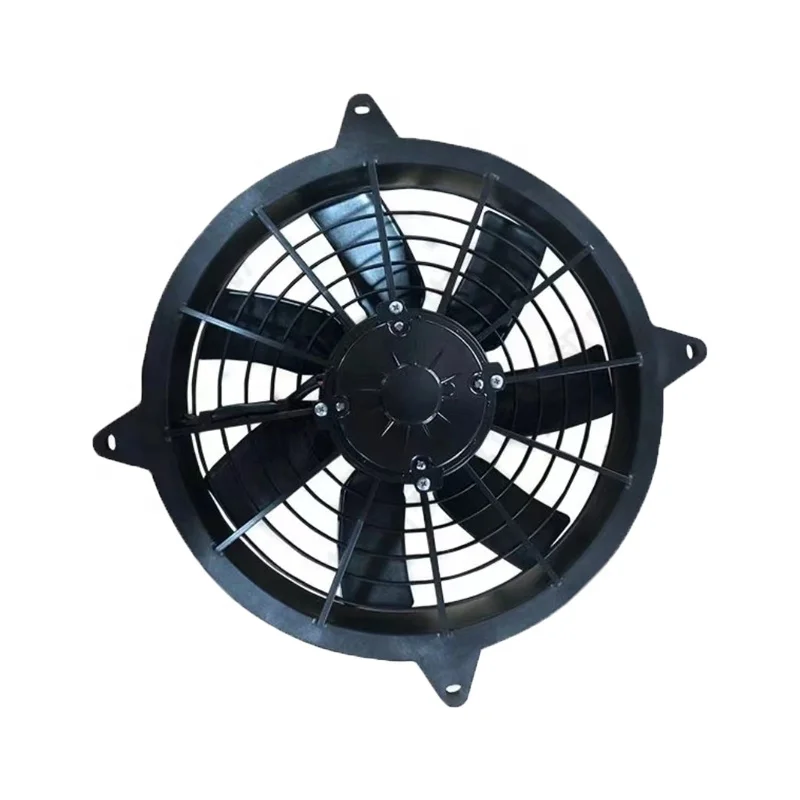

SDLG погрузчик 933 953 956 955f Вентилятор охлаждения кондиционера Завод Поставщик
38,00 $ - 49,00 $
Трехфазный накладной трансформатор 3000 кВА 34 5 кв по заводской цене
- Категория: >>>
- Поставщик: Beijing Daelim Green Ep Technology Co. Ltd.
Сохранить в закладки 1600538633627:
Описание и отзывы
Характеристики
BEI JING DAELIM have 20 years of experience in international transformer projects and have helped many customers around the world complete transformer projects. For example, Canada, Mexico, Panama, Ecuador, Guatemala, Honduras, Chile, Salvador,Venezuela, Australia,New Zealand, Spain, Belgium, Algeria, South Africa, Ethiopia, Myanmar, Kazakhstan, etc.DAELIM transformer have at least two-year warranty, moreover Daelim has installation teams abroad, so if you have transformer needs, please contact us.
Product Description

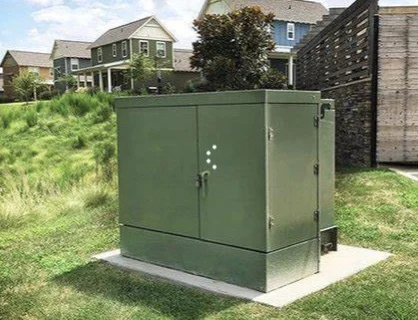

Pad mounted transforemers
Pad-mounted transformers are made in power ratings from around 75 to around 5000 kVA and often include built-in fuses and
switches. Primary power cables are connected with elbow connectors, which can be operated when energized using a hot stick and
allows for flexibility in repair and maintenance.
switches. Primary power cables are connected with elbow connectors, which can be operated when energized using a hot stick and
allows for flexibility in repair and maintenance.
Our pad mounted transformer is designde and tested in accordance with industry standards including CSA,ANSI C.57,DOE,and IEEE as applicable.
Technical Specification
Rated Power (KVA) | High Voltage (KV) | Low Voltage (V) | Loss (W) | |||||
No-load Loss (W) | On-load Loss (W) | |||||||
75KVA | 34.5KV/ 19.92KV/ 13.8KV/ 79.57KV/ 13.2KV/ 7.62KV/ 12.47KV/ 7.2KV or others | 240V 480V 480Y/ 277V 600Y/ 347V | 180 | 1250 | ||||
112.5KVA | 200 | 1500 | ||||||
150KVA | 280 | 2200 | ||||||
225KVA | 400 | 3050 | ||||||
300KVA | 480 | 3650 | ||||||
500KVA | 680 | 5100 | ||||||
750KVA | 980 | 7500 | ||||||
1000KVA | 1150 | 10300 | ||||||
1500KVA | 1640 | 14500 | ||||||
2000KVA | 2160 | 20645 | ||||||
2500KVA | 2680 | 27786 | ||||||
3000KVA | 3300 | 30300 | ||||||
3750KVA | 4125 | 37875 | ||||||
1200KVA | 1320 | 12120 | ||||||
Product Details
Liquid-Filled Loop Feed Pad Mounted Transformer.
Our Liquid-Filled Loop Feed Pad Mounted Transformer is designed and tested in accordance with industry standards including CSA, ANSI C.57, DOE, and IEEE as applicable.
− Mild steel, optional stainless steel tank
− Three-point latching door for security
− Removable sill for easy installation
−Stainless steel cabinet hinges and mounting studs
− Removable sill for easy installation
−Stainless steel cabinet hinges and mounting studs
Bolted-on cabinet with removable sill having the following depths:
19"dedp for 300kva through 750 kva
22"deep for 1000kva through 1500 kva
24"deep for 2000kva through 3750kva
30"deep for 5000kva through 7500kva
− Live front construction & dead front construction
− Steel HV/LV compartment barrier
− Oil drain plug for 500 kVA and below
− 1” drain valve with sampler for 750 kVA and above
− Live front construction & dead front construction
− Steel HV/LV compartment barrier
− Oil drain plug for 500 kVA and below
− 1” drain valve with sampler for 750 kVA and above
− Five-legged core/coil assembly.
− Removable LV neutral ground strap; as required
− Nameplate per ANSI requirement
−Self-actuating pressure relief valve
− Lifting lugs (4)Three-point latching door for security
− Removable sill for easy installation
−Stainless steel cabinet hinges and mounting studs
− Live front construction & dead front construction
− Steel HV/LV compartment barrier
− Oil drain plug for 500 kVA and below
− 1” drain valve with sampler for 750 kVA and above
− Oil fill plug
− Five-legged core/coil assembly.
− Removable LV neutral ground strap; as required
− Nameplate per ANSI requirement
− Removable LV neutral ground strap; as required
− Nameplate per ANSI requirement
−Self-actuating pressure relief valve
− Lifting lugs (4)Three-point latching door for security
− Removable sill for easy installation
−Stainless steel cabinet hinges and mounting studs
− Live front construction & dead front construction
− Steel HV/LV compartment barrier
− Oil drain plug for 500 kVA and below
− 1” drain valve with sampler for 750 kVA and above
− Oil fill plug
− Five-legged core/coil assembly.
− Removable LV neutral ground strap; as required
− Nameplate per ANSI requirement
Through years of international engineering experience, our factory is capable of producing transformers meeting various
international standards, such as IEC, IEEE, ANSI, CSA.
international standards, such as IEC, IEEE, ANSI, CSA.

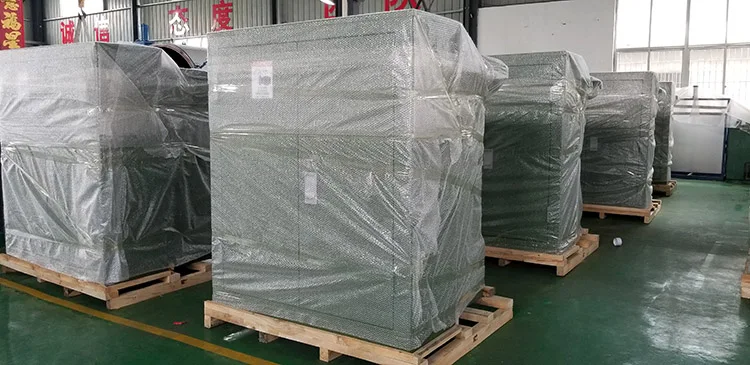

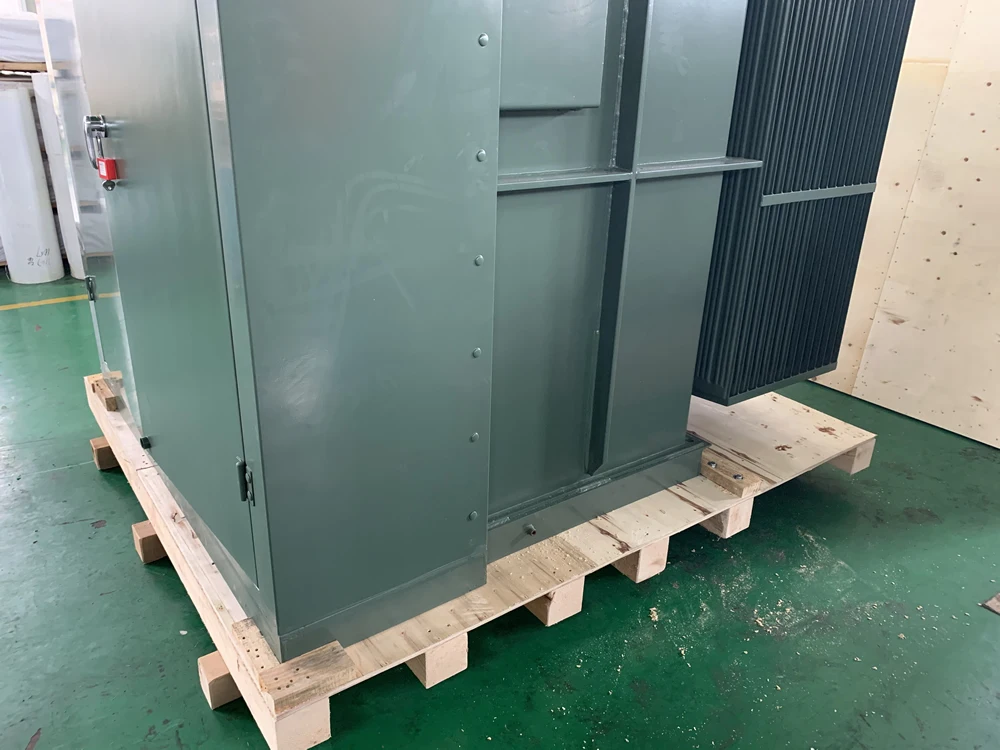

Packing & Delivery
Packaging: Wooden case or according to client's requirements
The requirements for the making and reinforcement of packing boxes were strictly in accordance with the international standards.
Shipping: Land transportation/Ocean transportation
Our products have been shipped all around the world, with an extensive logistic network, we provide the best transportation option for our clients.
7 years of business experience makes us pack well and deliver fast, satisfying our customers all over the world!
The requirements for the making and reinforcement of packing boxes were strictly in accordance with the international standards.
Shipping: Land transportation/Ocean transportation
Our products have been shipped all around the world, with an extensive logistic network, we provide the best transportation option for our clients.
7 years of business experience makes us pack well and deliver fast, satisfying our customers all over the world!
Our Service
Over Service
1. We provide customized service and we can produce transformers according to several international standards, such as: ANSI/IEEE,
IEC, etc.
2. We provide technical solutions and price solutions for our customers for free.
3. We provide local installation service for many countries, in which we have professional installation team in cooperation.
IEC, etc.
2. We provide technical solutions and price solutions for our customers for free.
3. We provide local installation service for many countries, in which we have professional installation team in cooperation.
Daelim Story
Twenty years ago, China's transformer manufacturing industry just got rid of the stage of pure imitation and began to focus on the development of higher performance transformers. Driven by the wave of reform and opening up, China's transformers began to be exported to the world. As the earliest transformer trader, DAELIM had been sold Chinese transformers to all around the world in just a few years. The transformers sold by DAELIM are of high quality and low price, which can meet the basic requirements of most markets and are deeply loved by customers. More and more customers are willing to give orders to DAELIM, which has laid a solid foundation for the rapid development of DAELIM, which became one of the best domestic power equipment exporter and overseas project contractor ten years ago.
Sales record
Our products got a high reputation and selling well around Canada, Mexico, Honduras, Ecuador, Guyana, Panama, Spain, Australia, and Africa.
Q&A
Q: Are you a trading company?
A: No. We are a transformer manufacturer. We have our own transformer factory in Jiangsu province.
Q: How long is your delivery time?
A: Generally it is 20 days if the goods are in stock, or 30 days if the goods are not. It is according to the quantity.
Q: What is the standard of package?
A: Export standard package or special package according to customer's requirement.
Q: Which markets have you already sold your products to?
A: South America, North America, Europe, Middle East, Africa, etc.
Q: How long have you been worked in the electric industry?
A: We have been worked in the electric industry for nearly 25 years.
Q: Why should I choose Daelim?
A: After comparing the quality, delivery, and price of the same products, you will find out the answer.
A: No. We are a transformer manufacturer. We have our own transformer factory in Jiangsu province.
Q: How long is your delivery time?
A: Generally it is 20 days if the goods are in stock, or 30 days if the goods are not. It is according to the quantity.
Q: What is the standard of package?
A: Export standard package or special package according to customer's requirement.
Q: Which markets have you already sold your products to?
A: South America, North America, Europe, Middle East, Africa, etc.
Q: How long have you been worked in the electric industry?
A: We have been worked in the electric industry for nearly 25 years.
Q: Why should I choose Daelim?
A: After comparing the quality, delivery, and price of the same products, you will find out the answer.
Hot Sale Products
BEIJING DAELIM GREEN EP TECHNOLOGY CO.,LTD
Tel: 86-10-65001715
Phone: 86-15932232071
Email： 1642134695@qq.com
Skype: 1642134695@qq.com
Whatsapp： 86-15932232071
Website:www.daelimtransformer.com
www.daelimtransformer.com
www.daelimtransformer.com
Похожие товары
USB-аромадиффузор, ультразвуковой увлажнитель воздуха, аромадиффузор эфирного масла для дома
3,00 $ - 3,60 $

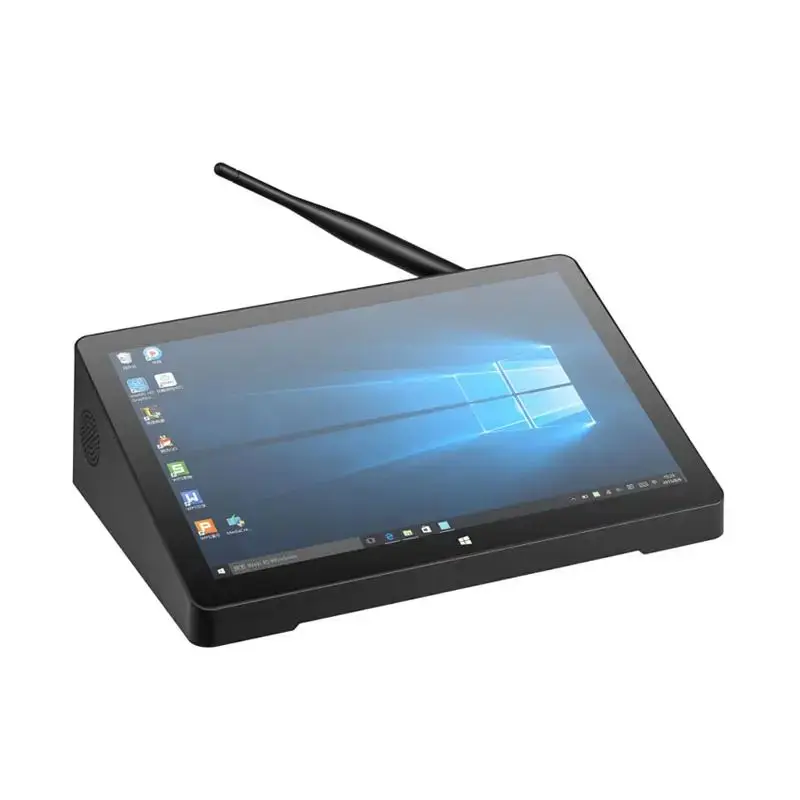

Мини-ПК PiPo H10PRO, 8 + 64/128 ГБ, промышленный ПК, Win 10, Intel Celeron J4125, сенсорный экран
Маленький минимальный заказ, рекламные светоотражающие нейлоновые полиэфирные крошечные спортивные рюкзаки на завязках, рюкзаки, сумка для хранения обуви
0,90 $ - 1,90 $
Светодиодная маска для Хэллоуина, маска с подсветкой из электролюминесцентного провода для косплея, фестиваля, вечеринки, костюмы
2,14 $ - 2,60 $
HOUSING LOWER PART na ic chip HMI PLC
1,30 $ - 3,80 $

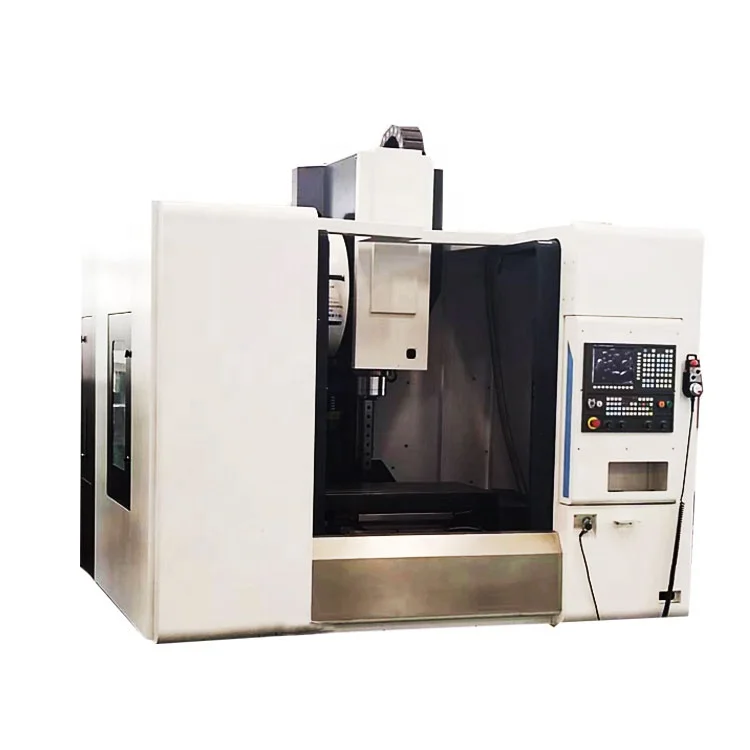

VMC855 5-axis cnc вертикальный обрабатывающий центр с ЧПУ Новый фрезерный станок с ЧПУ fanuc siemens cnc controltal
