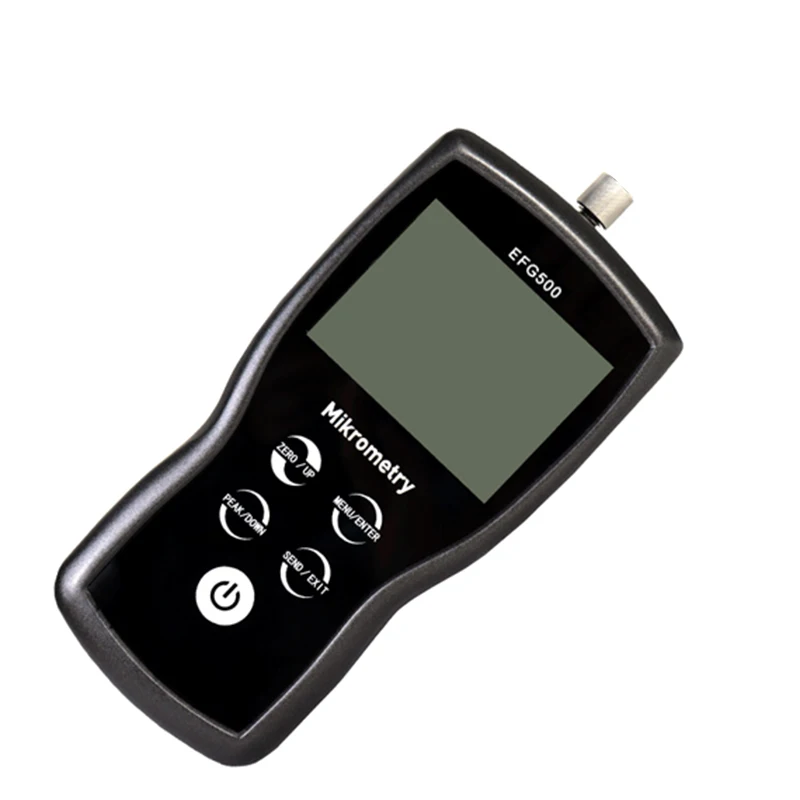

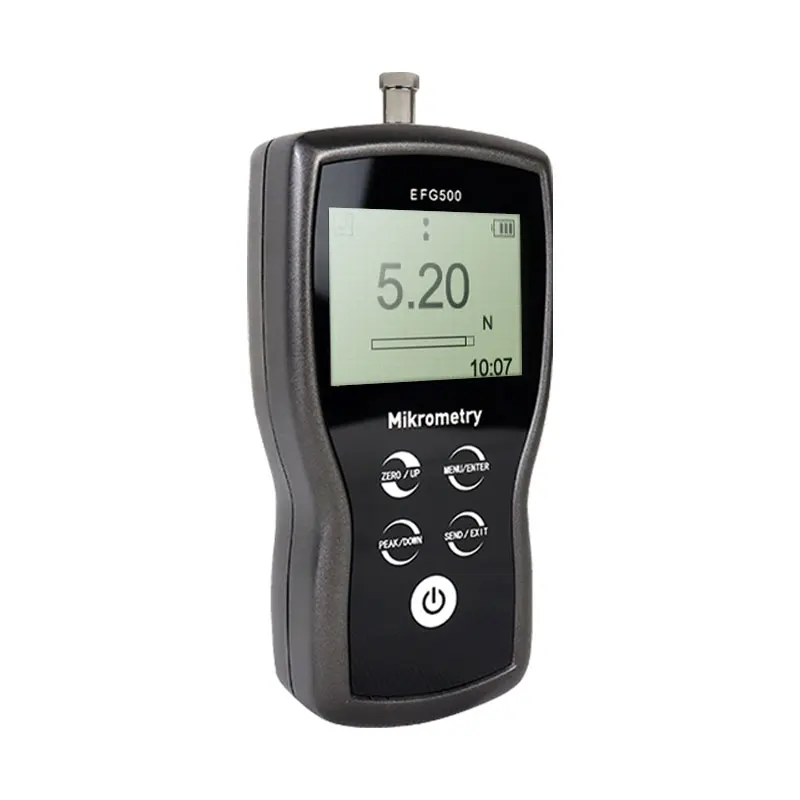

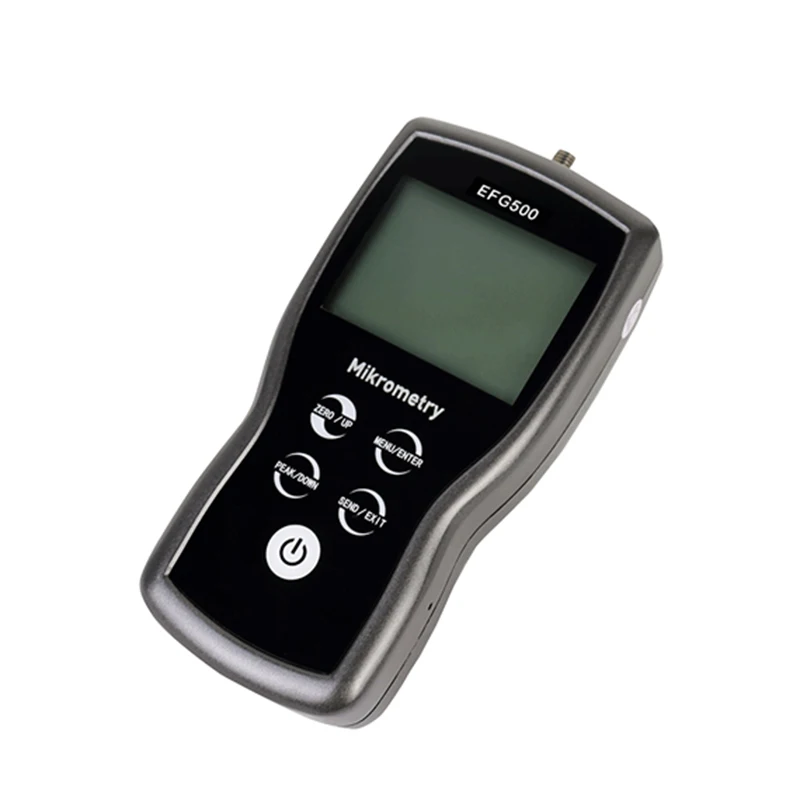

Цифровой датчик силы измеритель нажима с дополнительной подставкой Встроенный перезаряжаемый Ni MH аккумулятор 800 мАч EFG микрометрия

Сохранить в закладки 1600539460091:


Цена:228,00 $ - 247,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Digital Push Pull Force Gauge with optional stand Built-in Rechargeable 800 mAh Ni-Mh Battery EFG by Mikrometry 500N






Product Description


Mikrometry digital push pull force gauge. The main features are:  high accracy,  automatic reversible display, curve or digital display modes.


 EFG_01


Features:


Durable metal case


Automatic reversible display


Touch key for minimized disturbance


Mechanical overload protection


Curve or digital display modes


Calibration certificate Included


Charger with US/EUR/UK Plugs selectable


USB or RS232 communication interface ,easy to communicate with PLC


Accuracy: ± 0.2% FS


Sampling Rate: 2KHz


EFG_02


Specifications:

















































































































 Accuracy ± 0.2% F.S.
 Selectable Units N,mN,gf, kgf, ozf and lbf
 Display 160 * 128 dot matrix LCD(2.8 inch) with LED Backlight
 Overload Capacity 150% of F.S. (LCD blinks beyond 110%)
 Overload Protection Overload Protection Mechanism to prevent to be damaged
 Measurement Mode Track, Peak, Auto-Peak, First Peak
 Display Mode Curve/ digital
 Data Sampling Rate 2KHz
 Display Update Rate 10 times/second
 Memory 1000 data
 Set Point Programmable high and low limits
 Battery Indicator Display flashed battry icon when battery is low
 Power 3.6 VDC 800 mAh Ni-Mh rechargeable batteries
 Battery Life Approx. 14 hours per charge
 Charger / Adapter Universal USB / BM charger, input: 110~240 VAC
 Temperature Effects <0.03% FS per °C

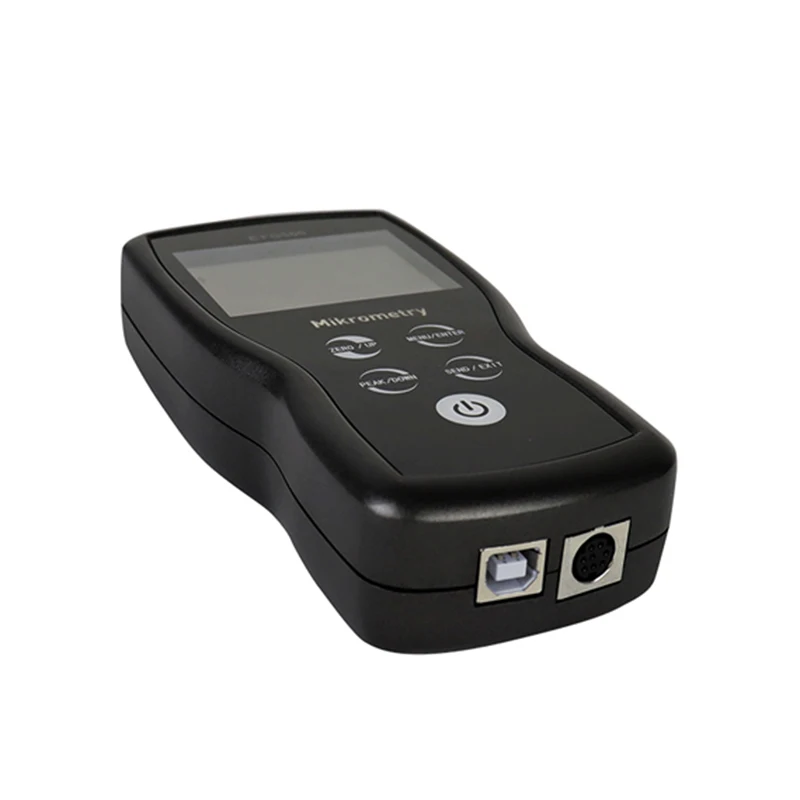

 Communication USB or RS-232
 Software Free software for USB communication
 Outputs RS-232, "Within" set point output, "Under or over" set point output
 Operating environment Temperature: -10 to 40°C
 Relative Humidity:  20 to 80%
 Storage environment Temperature: ­ -20 to +50°C
 Relative Humidity:  5 to 90%
 Dimension 160*73*34mm
 Weight: 0.7 kg (1.5 lb)

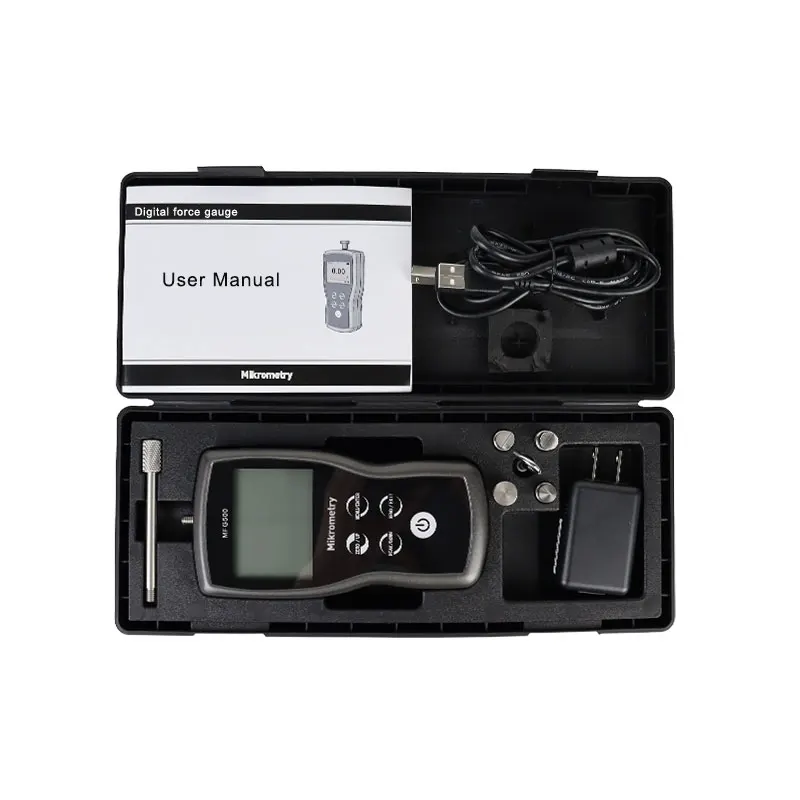

 Accessories AC adapter/charger, USB cable, 6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft
 Options Mini-printer, Measuring Adapters, EST-FG1M1 Test Stand, EST-FG2V Motorised Test Stand, EST-FG2H Motorised Test Stand, Ergonomics measuring Kit.

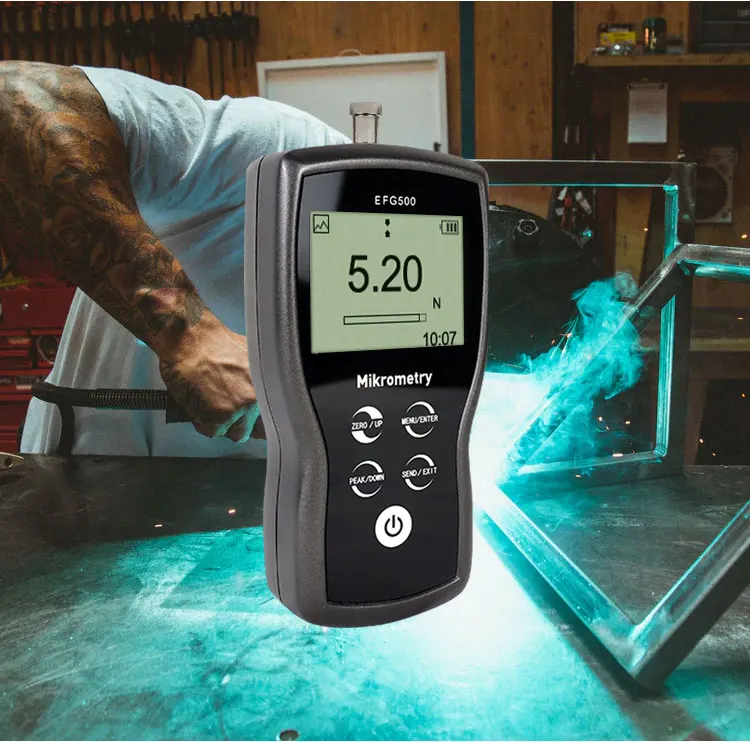

 EFG_03EFG_04

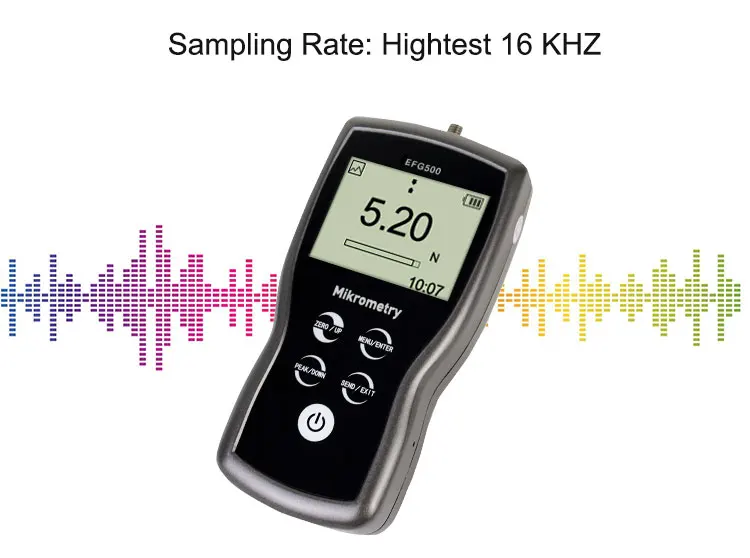

EFG_05

























































































ModelsCapacity / Resolution
NkgflbfOzfgfmN
EFG55/0.0005-1.1/0.000118/0.005500/0.055000/0.5
EFG1010/0.0011/0.00012.2/0.000535/0.011000/0.110000/1
EFG2020/0.0052/0.00054.4/0.00170/0.012000/0.520000/5
EFG5050/0.0055/0.000511/0.005180/0.055000/0.550000/5
EFG100100/0.0110/0.00122/0.005350/0.110000/1-
EFG200200/0.0520/0.00544/0.01700/0.120000/5-
EFG500500/0.0550/0.005110/0.011800/0.5--
EFG10001000/0.1100/0.001220/0.053500/1--

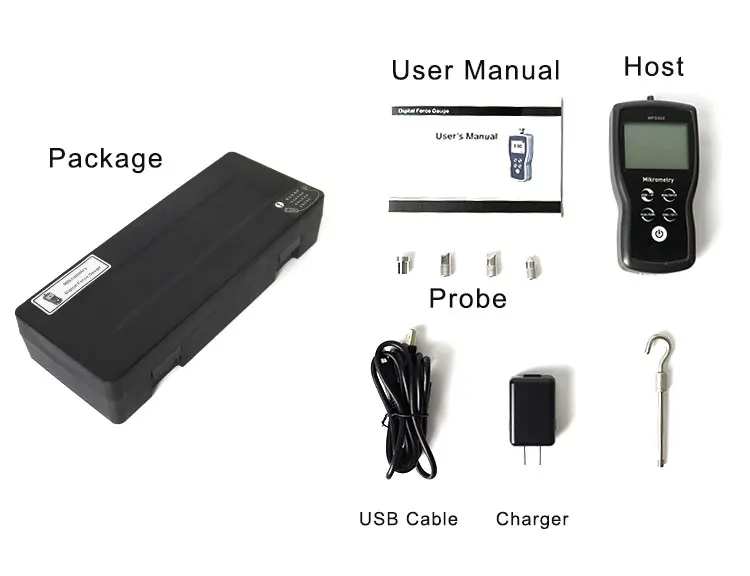

EFG_07EFG_09


Packaging & Shipping


1. We guarantee to ship goods out within 3~5 working datys after payment confirmation except holiday.


2. We ship by DHL, FEDEX, TNT and so on, according to your choice when placing orders.





Warranty:


1. All items have 1 year guarantee. If your purchase do not meet mechantable quality, fitness for purpose or match the description, we can make sure your issues are resolved.


2. For wrongly-shipped items, please contact us in 48 hours after delivery. We will arrange to deliver the correct items or return all your payment.


3. For defective or faulty products, please take photos or videos, we would resend or refund after confirmation.








Company Information





Mikrometry Instrument Limited is a designer and manufacturer of height gauge, force and torque measurement products, portable hardness tester and coating thickness gauge. Since our founding in 2007, our products have proven themselves in numerous applications at companies in the automotive, machinery, electric product, film, medical device, textile, pharmaceutical, cosmetic, packaging, food, and many other industries. We also offer optimized solutions for special requirements.





R & D


Mikrometry have more than 20 R& D engineers, and our products have more than 100 patents for inventions. From PCBA to firmware, ID/MD. All the sensor and products are assembled and produced by Mikrometry.





Integrated Manufacturing


Mikrometry products (Include sensors and key devices) are done in-house. Integrated manufacturing helps ensure high quality standards and allows us to maintain extensive stock for quick shipment.





Service & Support


We offer 7 x 24 hours online. And we have a technology team with more than 10 years experience, good technical skill, English communication and project management.


 EFG_10EFG_12EFG_14
