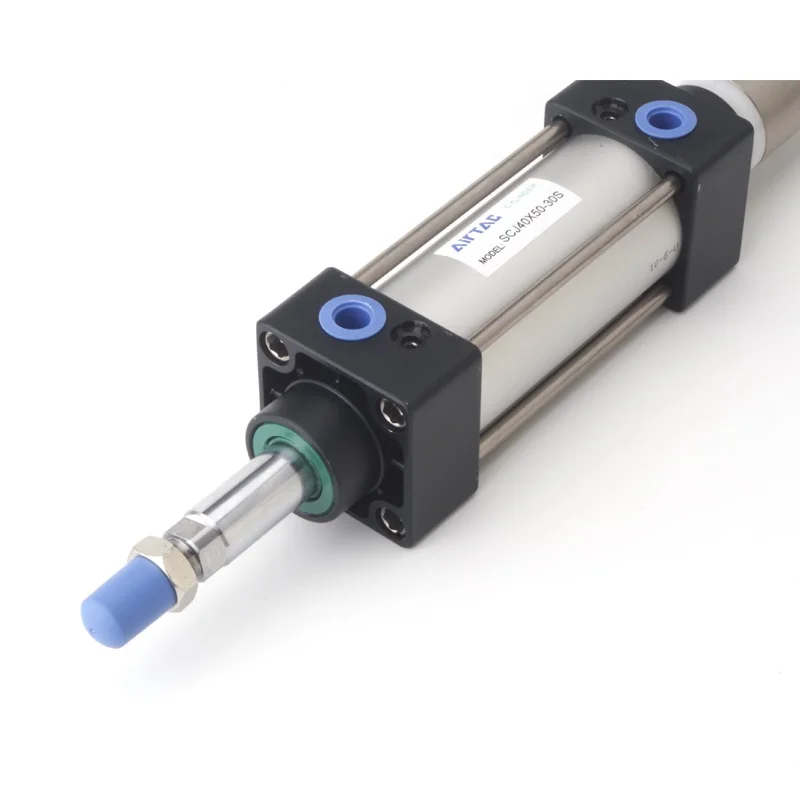

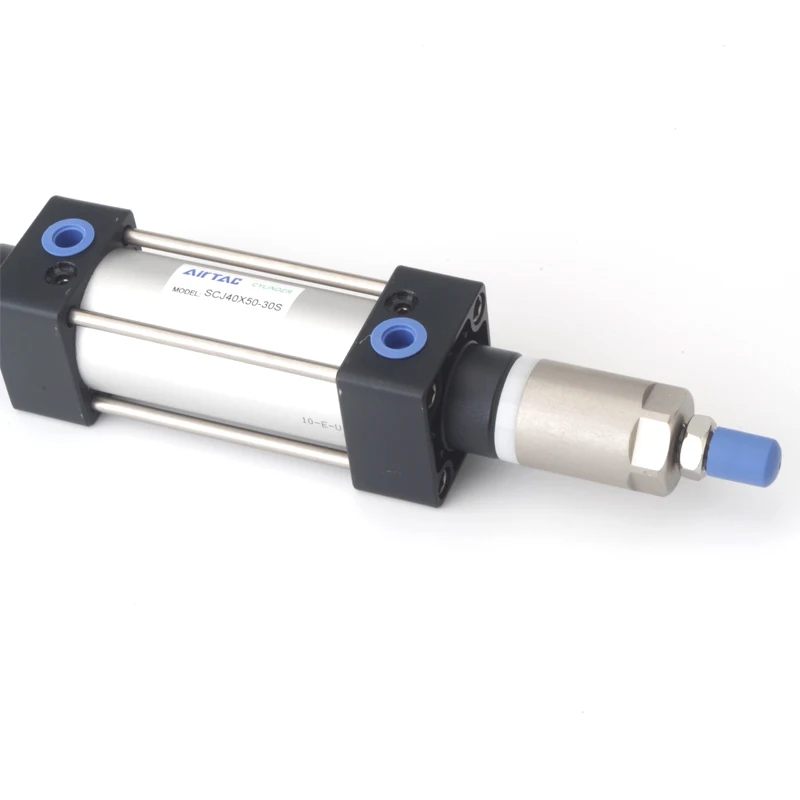

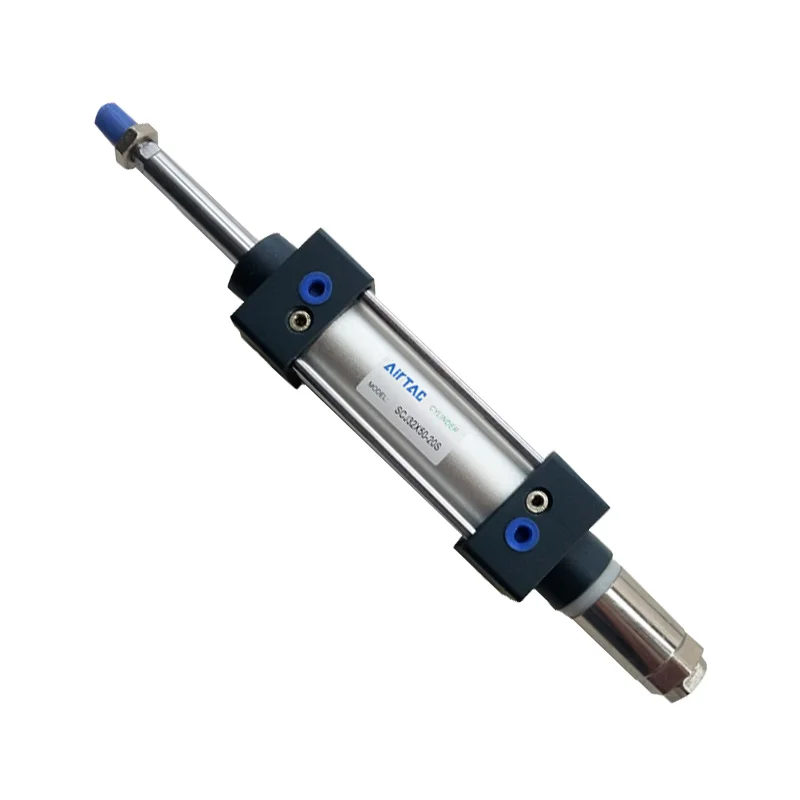

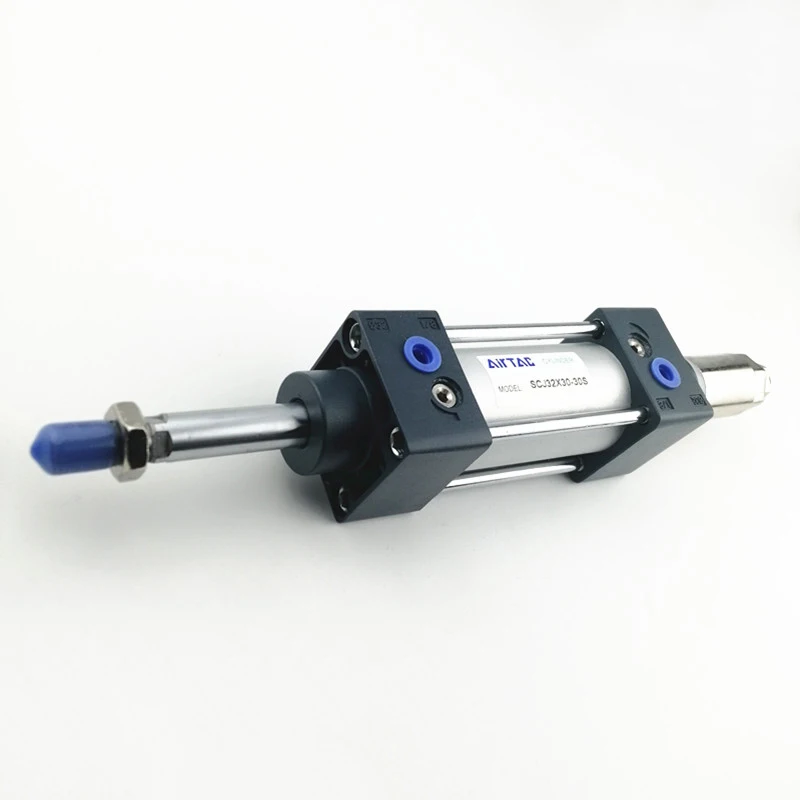

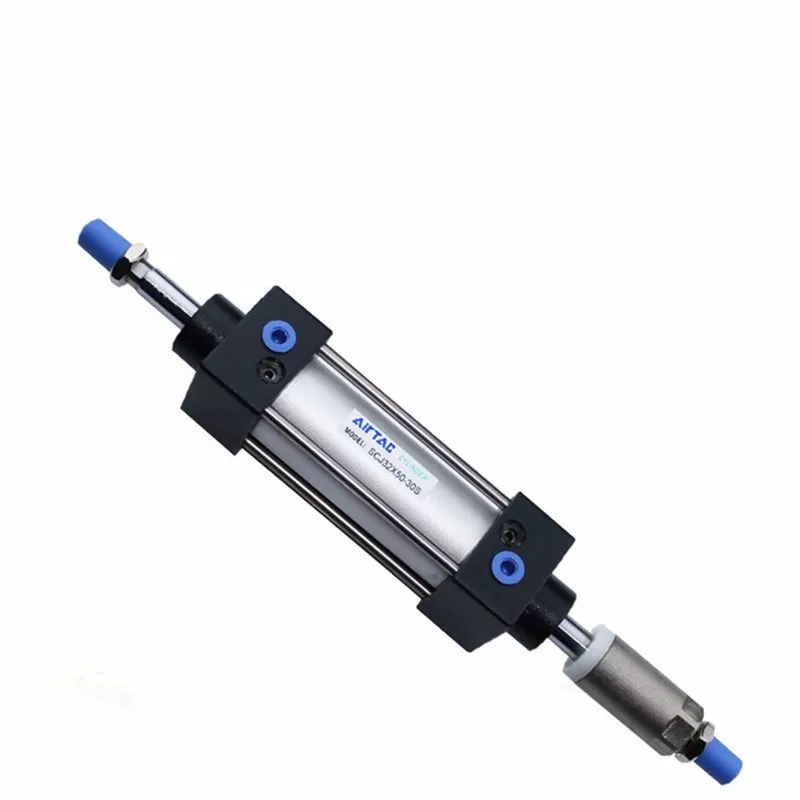

Airtac SCJ40x50 32S двойного действия высокой тяги пневматические стандартные цилиндры

Airtac SCJ40x50 32S двойного действия высокой тяги пневматические стандартные цилиндры

Категория: >>>
Поставщик: Sichuan Focus Science And Technology Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Feature

1.Standard cylinder manufactured by our enterprise.
2.The seal of piston adopts heterogeneous two way seal structure. It’s dimension is tight and it has the function of grease reservation.
3.It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with high reliability.
4.Compared with ISO15552 standard cylinder, SC series cylinder with the same bore size is shorter.
5.The buffer adjustment of cylinder is smooth and steady.
6.Cylinders and mounting accessories with several specifications are optional.

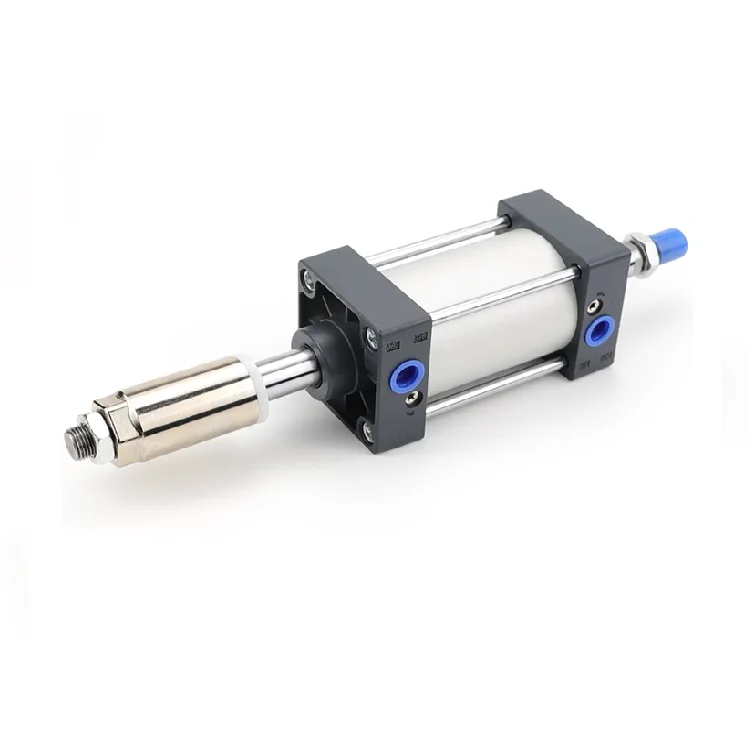

Details Images

Specification

Bore size:

100

Acting type:

Double Acting

Fluid:

Air(to be filtered by 40μm filter element)

Mounting Type:

Basic FA FB CA CB LB TC TCM1

SCD、SCJ

Basic FA LB TC TCM1

Operating pressure:

0.10~1.0MPa(15~145psi)(1.0~10.0bar)

Proof pressure:

1.5MPa（215psi）(15bar)

Temperature（℃）:

-20~80

Speed rang (mm/s):

30~800

Stroke tolerance：

0~250(0~+0.1) 251~1000(0~+1.4) 1001~1500(0~+1.8)

Cushion Type:

Variable Cushion

Adjustable Cushion Stroke mm:

Port Size：

PT1/8

PT1/4

PT3/8

PT1/2

① PT thread, NPT thread and G thread are available.

Bore size(mm)	Standard stoke(mm)	Max Stroke(mm)	Allow Stroke(mm)
32	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	1000	1800
40	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800	1200	1800
50	25 50 75 80 100 1245 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	1800
63	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
80	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
100	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800

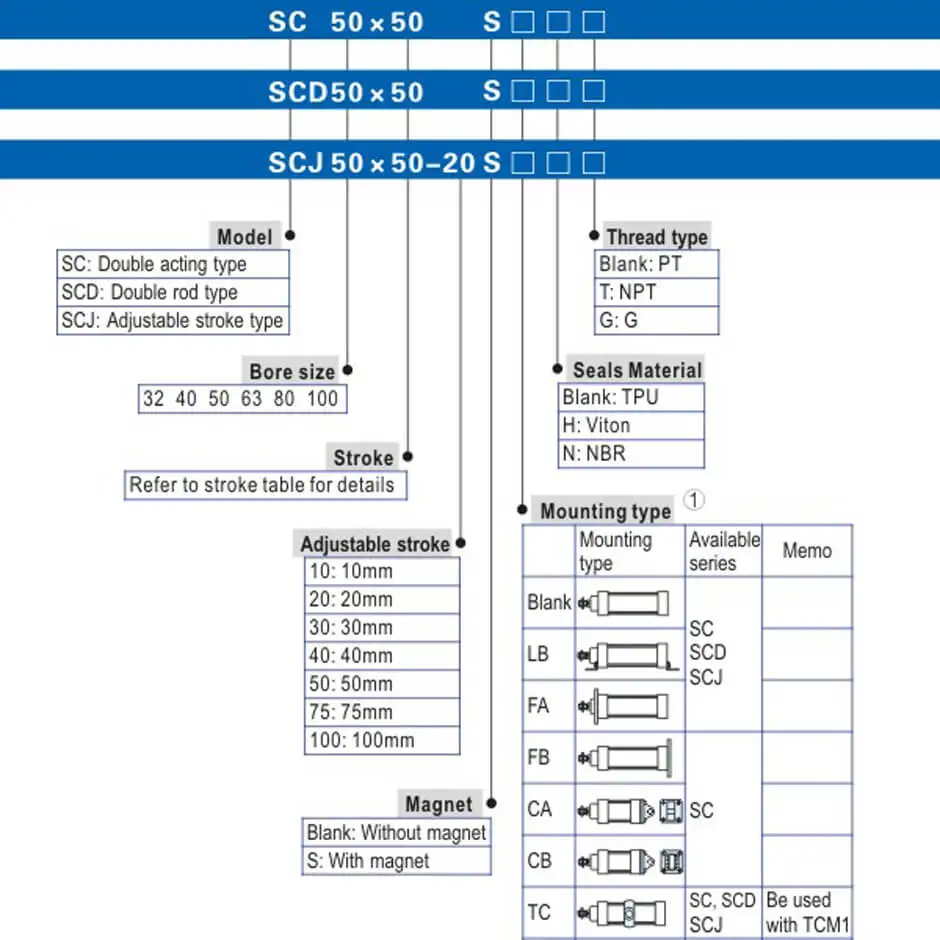

Order Code
