Центробежный экстрактор/асфальтовые центрифуги/центрифужные
3 699,00 $ - 3 899,00 $
Прямая продажа с завода оборудование для горных работ установка мойки угля машина очистки золота минерального сепаратора
- Категория: Separation Equipment >>>
- Поставщик: Shicheng Oasis Mineral Equipment Manufacturing Co. Ltd.
Сохранить в закладки 1600542235734:
Описание и отзывы
Характеристики
Product Overview

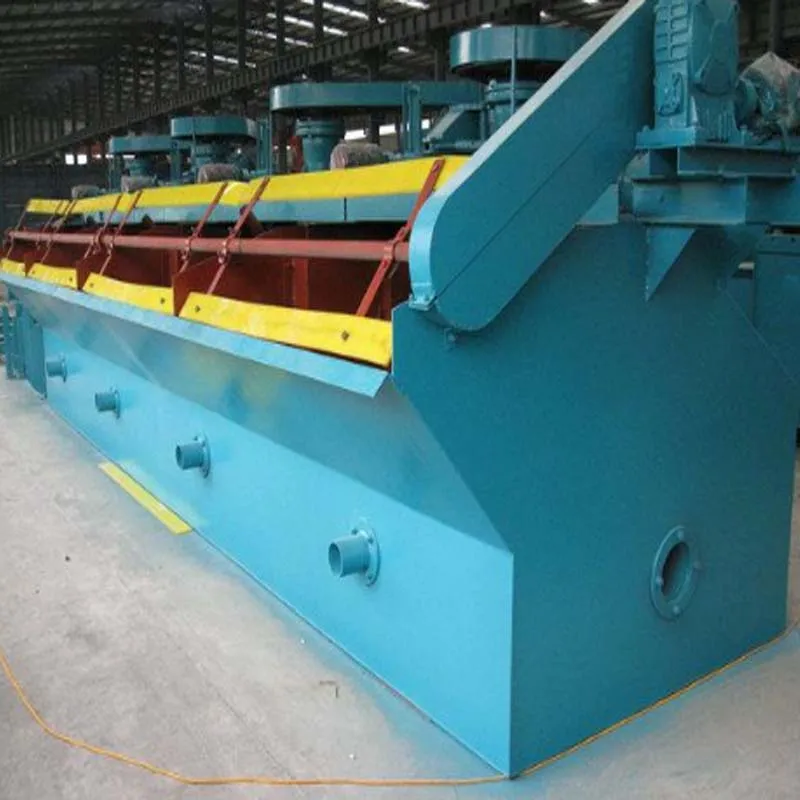

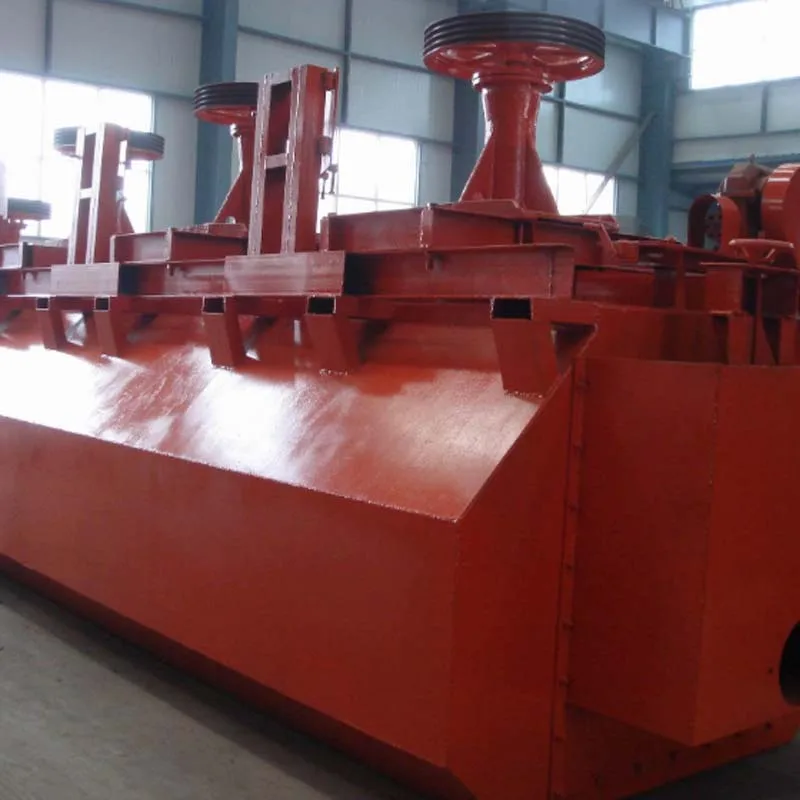

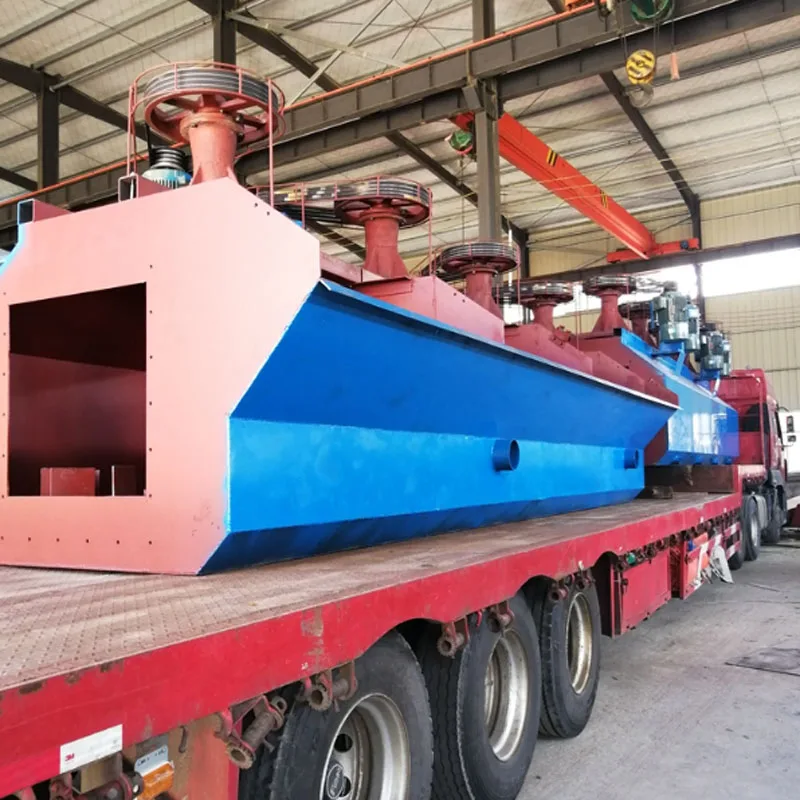

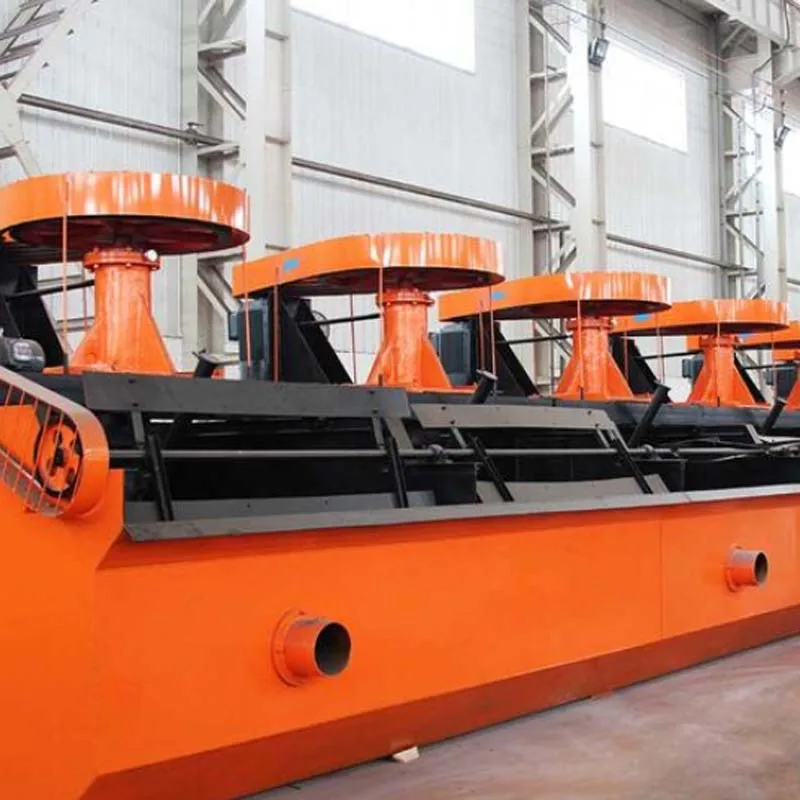

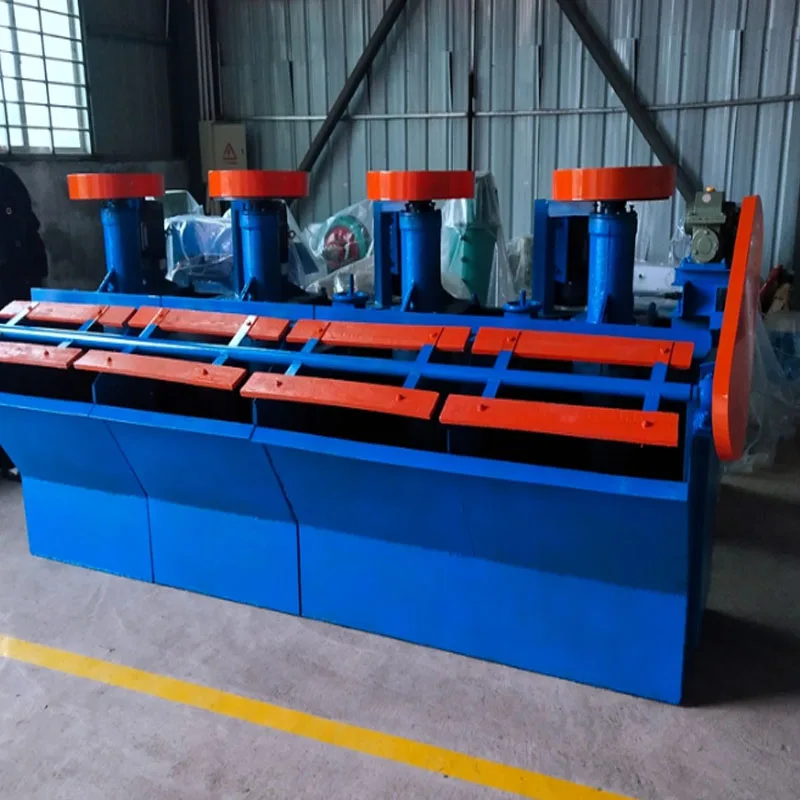

Flotation machine is also called flotation cell, which is the mineral separation equipment based on different physical and chemical properties of mineral particles, difference floating or chemical reaction to separate materials.
The flotation machine has air suction, pulp suction and flotation functions, which can form self flotation circuit without any auxiliary equipment.
It is horizontally configured, which is easy for process changes. The pulp has reasonable cycle, which can minimize the sand sediments.
Product Paramenters
Model | Volume (m³） | Impeller Dia(mm) | Impeller speed(r/min) | Capacity (m³/min) | Power(kw) | Weight (kg) | ||
Impeller | Scraper | |||||||
LZJK1A | 0.13 | 200 | 600 | 0.05-0.16 | 2.2 | 0.55 | 190 | |
LZJK2A | 0.23 | 250 | 500 | 0.12-0.28 | 3 | 0.55 | 390 | |
LZJK3A | 0.35 | 300 | 480 | 0.18-0.4 | 2.2 | 0.55 | 426 | |
LZJK4A | 0.62 | 350 | 400 | 0.3-0.9 | 3 | 1.1 | 752 | |
LZJK5A | 1.1 | 500 | 330 | 0.6-1.6 | 5.2 | 1.1 | 1208 | |
LZJK6A | 2.8 | 600 | 280 | 1.5-3.5 | 11 | 1.1 | 2108 | |
LZSF4A | 0.37 | 280 | 383/473 | 0.2-0.4 | 1.5 | 0.55 | 466 | |
LZSF5A | 1.2 | 450 | 312 | 0.6-1.6 | 5.5 | 1.1 | 1360 | |
LZSF6A | 2.8 | 550 | 300 | 1.5-3.5 | 11 | 1.5 | 2126 | |
LZSF7A | 4 | 650 | 220 | 2-4 | 15 | 1.5 | 2579 | |
LZSF8A | 8 | 760 | 191 | 4-8 | 30 | 1.5 | 4116 | |
Our Service
1. Our Service:
(1) Select equipment model;
(2) Design and manufacture products according to clients' special requirement;
(3) Train technical personnel for clients.
2. Serivces during the sale:
(1) Pre-check and accept products ahead of delivery;
(2) Help clients to draft solving plans;
(3) Guide clients how to install equipment successfully without problem.
3. After-sale services:
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site.
(1) Select equipment model;
(2) Design and manufacture products according to clients' special requirement;
(3) Train technical personnel for clients.
2. Serivces during the sale:
(1) Pre-check and accept products ahead of delivery;
(2) Help clients to draft solving plans;
(3) Guide clients how to install equipment successfully without problem.
3. After-sale services:
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site.
Company Profile
Shicheng Oasis Mineral Equipment Manufacturing Co.,Ltd is an import-export trade enterprise specializing in the production, sale and installation of mineral equipment, environmental protection equipment, hardware and machinery. We awarded CE and ISO9001:2008 international quality management system certification.
Company mainly produces laboratory and production crushers, conveyors, feeders, vibrating screens, ball mill, washing machine, mixing tank, magnetic separator, shaking table, jigging machine, spiral chute, flotation machine, melting furnace, sand washing machine and etc.
Company mainly produces laboratory and production crushers, conveyors, feeders, vibrating screens, ball mill, washing machine, mixing tank, magnetic separator, shaking table, jigging machine, spiral chute, flotation machine, melting furnace, sand washing machine and etc.
Certifications
Customer Photos
Exhibition
FAQ
1.Q:What Information needed to get accurate quotation and proposal?
A:1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone, what is the general particle size(mm) of the raw ore?
3). What is the handling capacity (tons per hour) you need?
4) .What is the elements of the raw ore? How much percent % of each minerals?
2.Q:Can we send the mineral samples to you to run the ore-dressing experiment test?
A:?Yes, we can run the ore-dressing experiment for our customers. After the test, we will give you the reasonable flowchart, suitable solution and equipment selection. etc. based on the test results.
3.Q:What about warranty of the equipment? Any spare parts supplied?
A:The warranty period of OASIS equipment is 12 months. And of course we will supply the spare parts to you for life-long time at lowest cost.
4.Q: The reason you choose OASIS?
A:1). Professional manufacturer of supplying mining equipment, Ore beneficiation equipment and mining dryers.?
2). Experienced and professional R&D team and manufacturing team.
3). Professional sales team consisted of dedicated, dynamic and innovative staff with international version.
4). Professional logistics service ensuring safety and timely delivery of products all over the world.
A:1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone, what is the general particle size(mm) of the raw ore?
3). What is the handling capacity (tons per hour) you need?
4) .What is the elements of the raw ore? How much percent % of each minerals?
2.Q:Can we send the mineral samples to you to run the ore-dressing experiment test?
A:?Yes, we can run the ore-dressing experiment for our customers. After the test, we will give you the reasonable flowchart, suitable solution and equipment selection. etc. based on the test results.
3.Q:What about warranty of the equipment? Any spare parts supplied?
A:The warranty period of OASIS equipment is 12 months. And of course we will supply the spare parts to you for life-long time at lowest cost.
4.Q: The reason you choose OASIS?
A:1). Professional manufacturer of supplying mining equipment, Ore beneficiation equipment and mining dryers.?
2). Experienced and professional R&D team and manufacturing team.
3). Professional sales team consisted of dedicated, dynamic and innovative staff with international version.
4). Professional logistics service ensuring safety and timely delivery of products all over the world.
