Недорогой маленький погрузчик с бортовым поворотом навеска уборочная машина строительное оборудование на
18 300,00 $ - 32 490,00 $

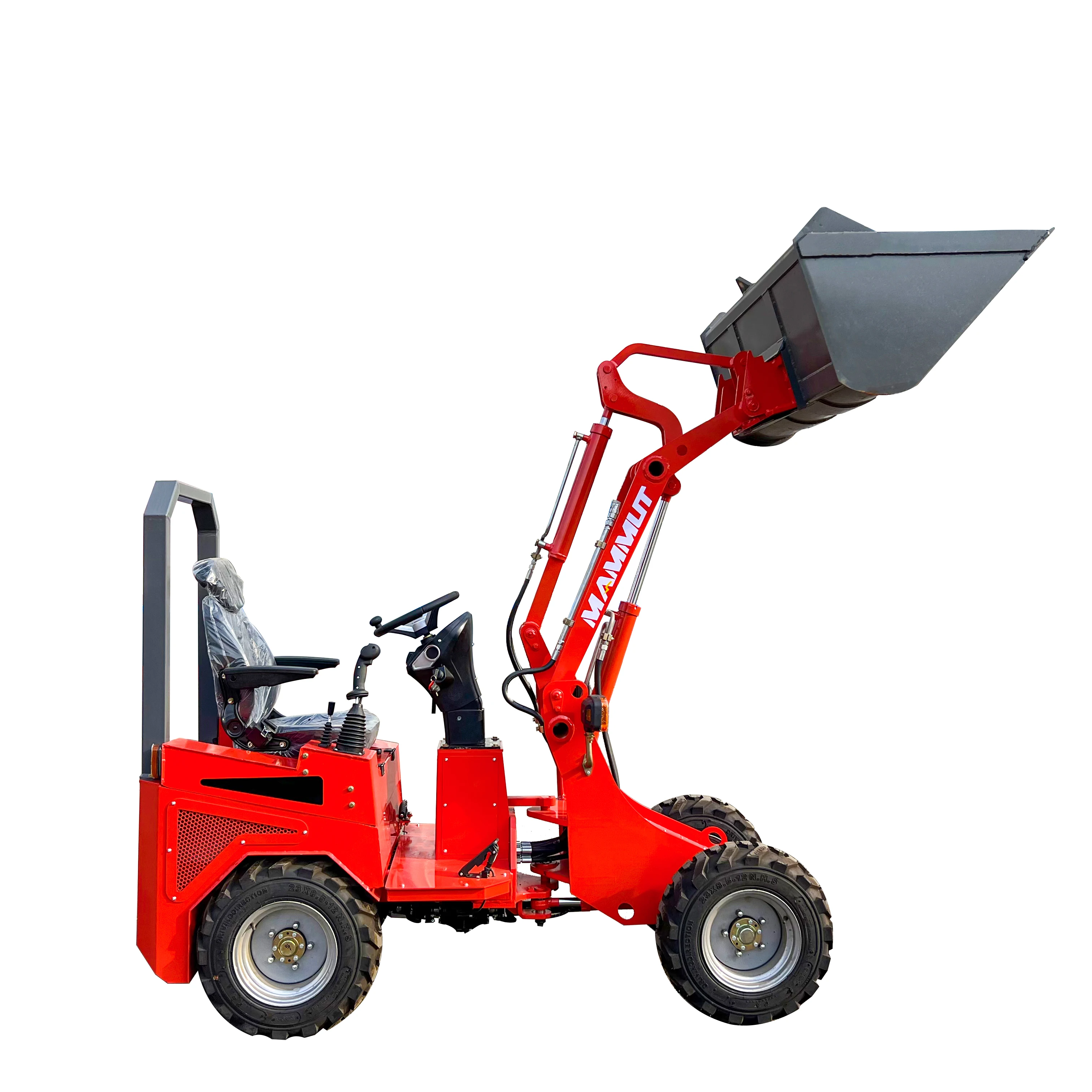

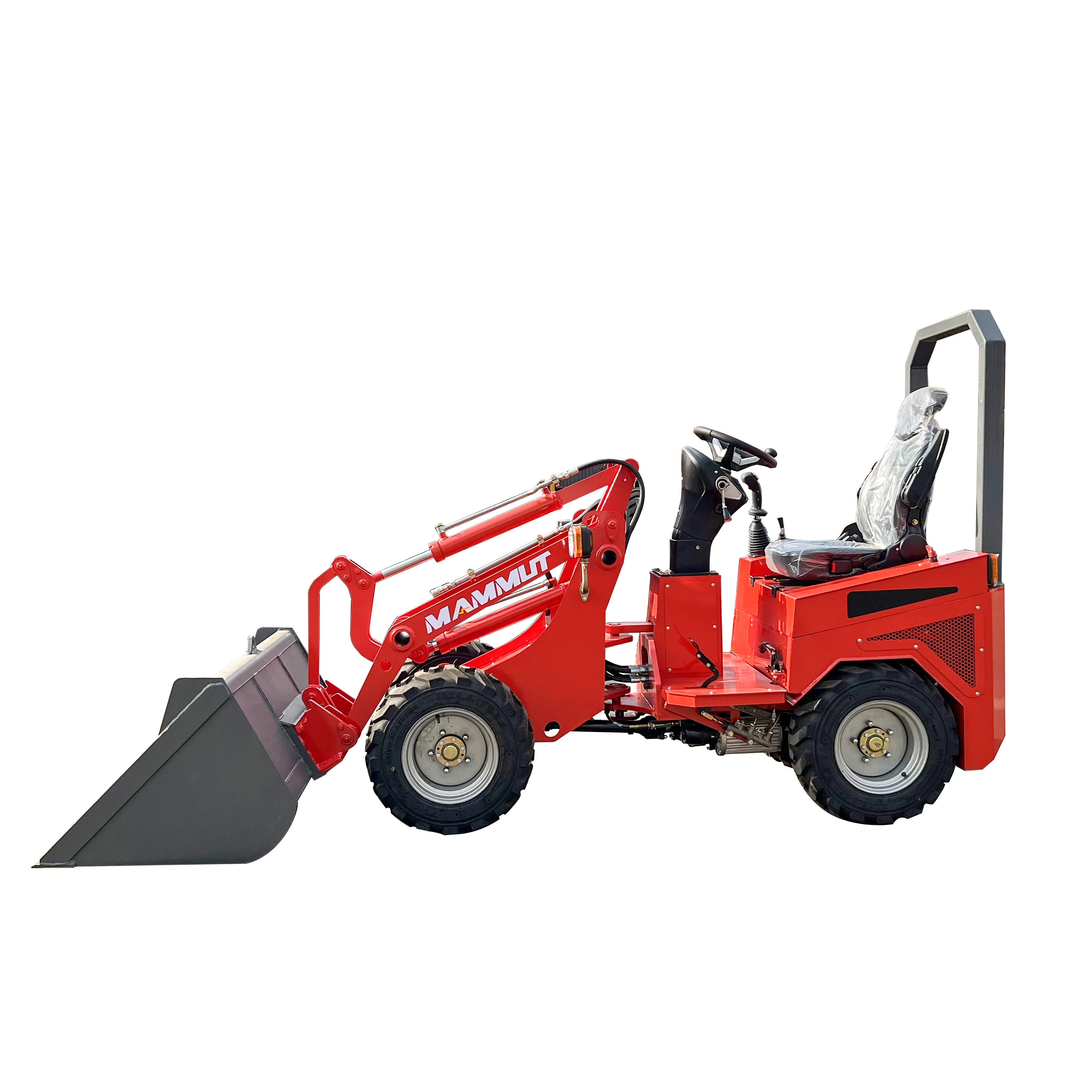

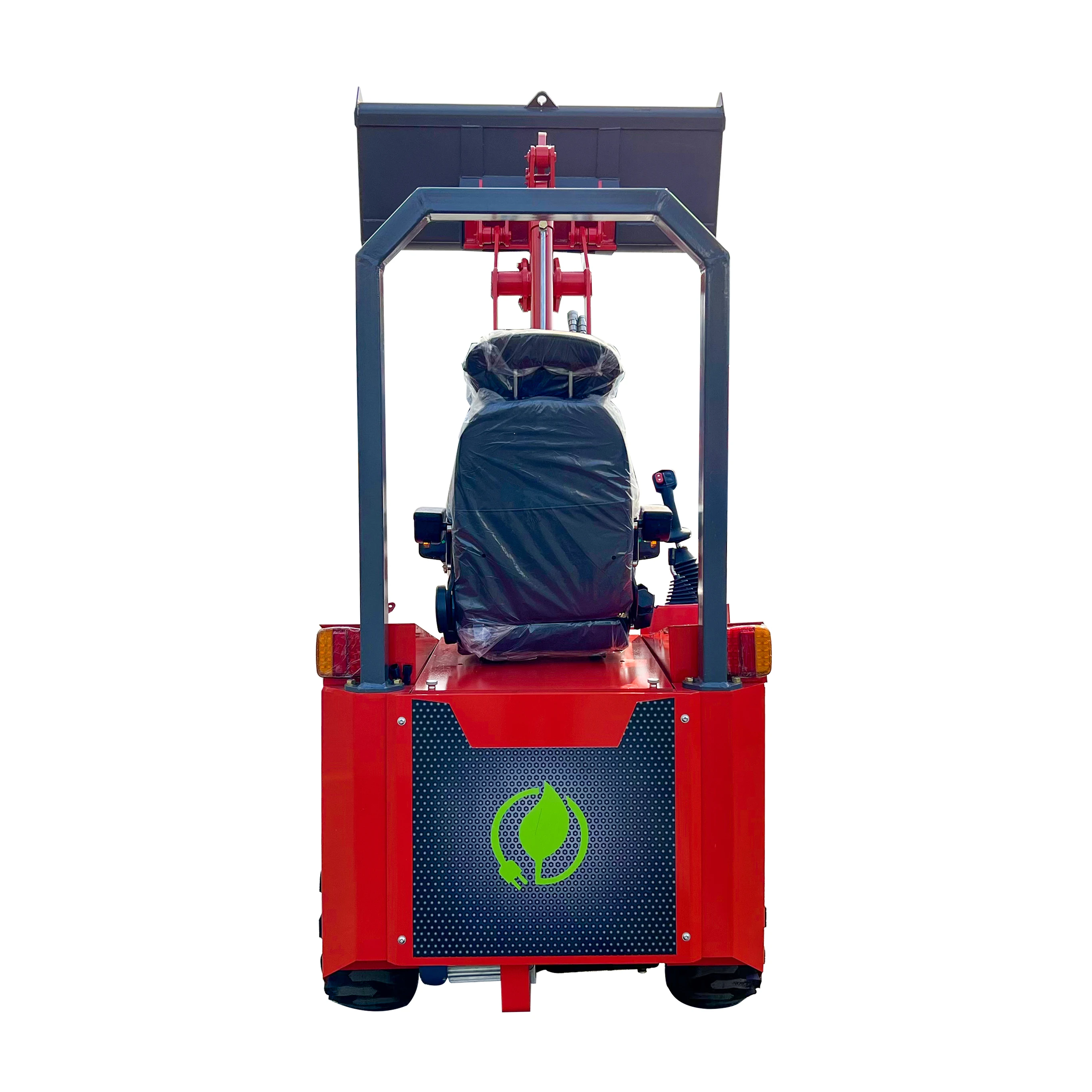

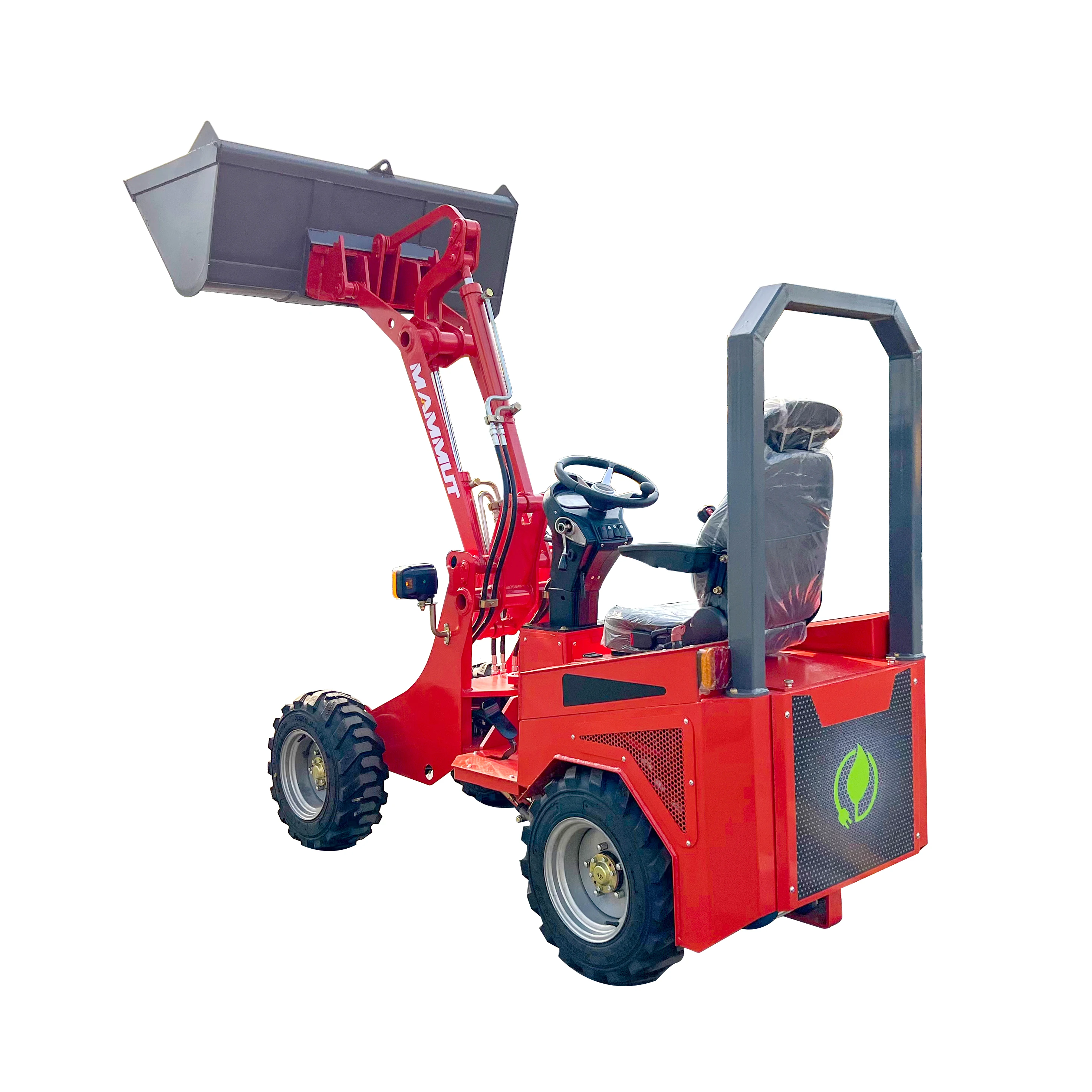

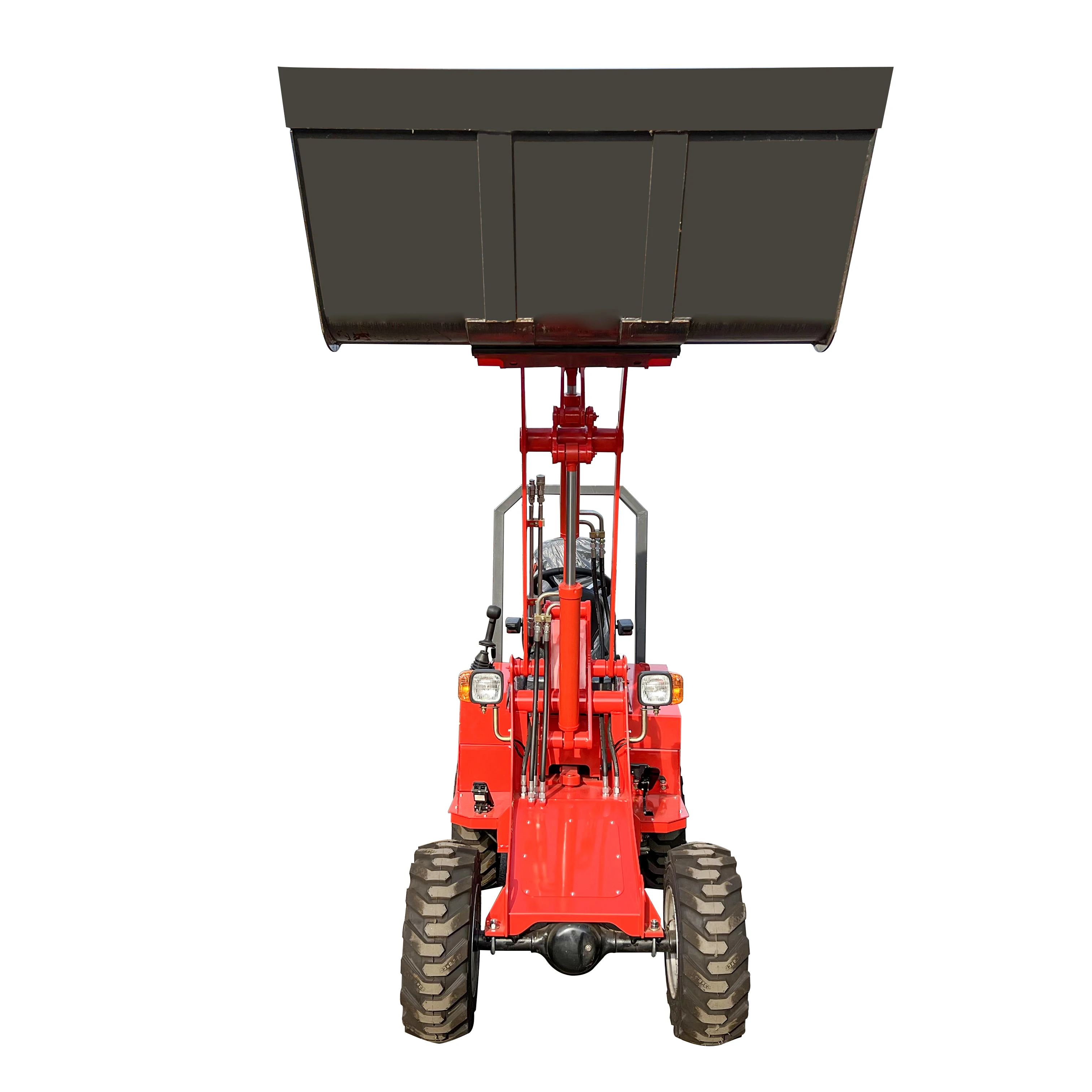

Компактный погрузчик Mammut с нагрузкой 500 кг маленький Электрический колесный
- Категория: Loaders >>>
- Поставщик: Shandong Oujin Engineering Machinery Co. Ltd.
Сохранить в закладки 1600543387520:
Описание и отзывы
Характеристики
Product Description
Standard Configurations For WLE06 Wheel Loader
1. 60V 170AH battery
2. Walking motor 3kw
3.Rated power 3kw
4. 0.3 cbm bucket
5. 23*8.5-12 tires
6. Electric joystick
7. Comfortable seat
8. Mini skid steer manual quick hitch
9. Safety roof
10. Digital adjustable dashboard
11. Automatic flameout
12. Led working lights
5. 23*8.5-12 tires
6. Electric joystick
7. Comfortable seat
8. Mini skid steer manual quick hitch
9. Safety roof
10. Digital adjustable dashboard
11. Automatic flameout
12. Led working lights
Optional Configurations For WLE06 Wheel Loader
1. Hydraulic quick hitch (Customized)
2. Closed cabin with heater
3. Grass or snow tires
4. A/C
5. All kinds of attachments
Product introduction
Frame
All-iron frame, imported steel plate, stamping and welding. The whole body adopts high-strength bolts, pins, and alloy bushings,
which make it have a long service life. Articulation and frame oscillation allow for greater stability and comfort when
maneuvering in rough terrain, and a unique center-type joint allows 8° of frame swing and 40° of articulation in either direction.
which make it have a long service life. Articulation and frame oscillation allow for greater stability and comfort when
maneuvering in rough terrain, and a unique center-type joint allows 8° of frame swing and 40° of articulation in either direction.
Painting
Using electrostatic spraying, high temperature curing process,Compared with ordinary spray paint surface treatment, this technology has the advantages of advanced technology, higher stability, better adhesion, and does not require workers to be in close contact for a long time, ensuring the safety of workers
Quick hitch | Manual quick hitch |
Standard quick hitch (hydraulic) | |
Euro 8 quick hitch | |
Bobcat type quick hitch (Manual/Hydraulic) | |
3 point link | |
Wheel loader quick hitch (Customized) |
Fork | Pallet fork |
Hydraulic pallet fork |
Bucket | Bucket/shovel |
4 in 1 bucket | |
Skeleton bucket | |
Grapple bucket/Grab bucket | |
Dustpan bucket | |
Snow bucket | |
Slight bucket | |
Mixer bucket/Concrete bucket (single or double pump) |
Sweeping& snow removal tools | Snow sweeper |
Snow blade/V-type snow blade | |
Snow blower |
Forestry, garden, farm and road tools | Sweeper |
Round bale gripper | |
Grass fork/silage grapple | |
Hay fork/pitch fork | |
Grass grapple | |
Lawn mower （type 1） | |
Lawn mower （type 2） | |
Flail mower | |
Rake | |
Ripper | |
Hammer/breaking hammer | |
Digger | |
Auger | |
Trencher | |
Backhoe attachment | |
Hook | |
360 ° wood fork/log fork | |
wheel loader wood grapple | |
wheel loader tree moving machine | |
wheel loader mulcher |
Specification
(1) Model: | WLE06 | |
Battery Rated Capacity(3hr) | 170AH | |
No. of Battery Groups | 5 | |
Rated VOLTAGE | 60V | |
2 | ||
Working hours | 5hours | |
Charge time | 5hours | |
Tire | 23*8.5-12 | |
Max speed | 10km/h | |
3.0 Bucket | ||
(1) Bucket capacity: | 0.3m3 | |
(2) Bucket Width: | 1200mm | |
(3) Bucket type: | Heavy-duty bolt on teeth | |
(4) Load capacity: | 500kg | |
(5)Operating Weight | 1200KG | |
4.0 Overall Dimensions | ||
(1) Overall length(bucket on ground) | 2830mm | |
(2) Overall Height | 1100mm | |
(3) Overall width | 1050mm | |
(4) Dumping reach: | 500mm | |
(5) Dumping height: | 1350mm | |
(6) Lifting height: | 3250mm | |
(6) Wheel base: | 1320mm | |
5.0 Operating Specifications | ||
(1) Steering system: | Articulated frame with hydraulic power steering | |
(2) Max.turning radius: | 2144mm | |
(3) Working pressure | 0.25MPA | |
Max. Grade Ability | 15° | |
Power | 1500W | |
Product Advantages
■By sheet metal forming, the driving cab hood has the features of high transparency, anticorrosion and the color won’t wear out;with the international ultraviolet-proof all-steel cab of forming glass adopted, the driving cab is equipped with humanized adjustable seat, scuttle, making your vision broader and your driving safer; all those make the operation easy, natural and accurate, and relieve your fatigue as well.
■Equipped with the national famous brand engine, the heavier special drive bridge is adopted, the torque converter matching is optimized, the traction is greatly increased, strong ability to overcome obstacles, and large carrying capacity; energy-efficient,energy intensity is reduced.
■Optimally designed by the computer, the bucket realizes huge spading force, with single dump cylinder and the “Z” shape turning structure.
■Due to the overall frame stiffening, top and bottom hinge joint with knuckle bearing, there’ll be convenient operation and less vibration; the frame is even more stable in harsh working environment, and the safety factor is greatly raised.
■With the Great Wall, Kunlun and Korean GS hydraulic oil, diesel lubricant used, the service life of the engine is guaranteed.
■High efficiency.
■Due to the overall frame stiffening, top and bottom hinge joint with knuckle bearing, there’ll be convenient operation and less vibration; the frame is even more stable in harsh working environment, and the safety factor is greatly raised.
■With the Great Wall, Kunlun and Korean GS hydraulic oil, diesel lubricant used, the service life of the engine is guaranteed.
■High efficiency.
Fast action: it takes only 5 seconds to complete the “total cycle”
Flexible steering: small turning radius, full hydraulic steering, light weight and high efficiency
Enough power: with the engine of famous brand, the power will be used in a more fully way. Intensively high fuel efficiency, super overloading design. Front and back frames are with box structure, with thick plate and high strength. Finite element analysis is applied in all key structures to ensure that it can operate in every dangerous and heavy working condition. Large distance and wheel base between top and bottom hinged plates make the overall strength higher and the operation more stable.
Flexible steering: small turning radius, full hydraulic steering, light weight and high efficiency
Enough power: with the engine of famous brand, the power will be used in a more fully way. Intensively high fuel efficiency, super overloading design. Front and back frames are with box structure, with thick plate and high strength. Finite element analysis is applied in all key structures to ensure that it can operate in every dangerous and heavy working condition. Large distance and wheel base between top and bottom hinged plates make the overall strength higher and the operation more stable.
■Convenient maintenance
The refuel maintenance of the braking system is convenient and easy. The hydraulic valve is placed in a position that is easiest
to reach so that the check and maintenance will be convenient. The together placed grease filler plugs facilitate the hinge pin maintenance.
The refuel maintenance of the braking system is convenient and easy. The hydraulic valve is placed in a position that is easiest
to reach so that the check and maintenance will be convenient. The together placed grease filler plugs facilitate the hinge pin maintenance.
■All series have passed the EU CE certification, with high standard and high quality.
Our Company
Exhibition
Product packaging
Our certification
RFQ
Q:Are you trading company or manufacturer?
A:We are a manufacturing factory and we have import and export rights.
Q:What is your minimum order quantity?
A:1 units,but if you can order more ,the more you order, the more discount you can get.
Q:How long is your delivery time?
A:Generally it is 5-10 days if the loaders in stock. or it is 30 days if there is no stock,it is according to the order quantity
and the configurations.
Q:What is your term of payment?
A:T/T:30% deposit,70% balance before shipping. L/C at sight.
Q:What is your warranty?
A:We provide after-sales warranty. 1 year or 2000 hours. But not including courier and labor costs.
Q:What is your minimum order quantity?
A:1 units,but if you can order more ,the more you order, the more discount you can get.
Q:How long is your delivery time?
A:Generally it is 5-10 days if the loaders in stock. or it is 30 days if there is no stock,it is according to the order quantity
and the configurations.
Q:What is your term of payment?
A:T/T:30% deposit,70% balance before shipping. L/C at sight.
Q:What is your warranty?
A:We provide after-sales warranty. 1 year or 2000 hours. But not including courier and labor costs.
Похожие товары
Бесплатная доставка сельскохозяйственные погрузчики TH180 4x4 гидравлический колесный погрузчик с сертификацией CE мини-телескопический погрузчик для продажи
660,00 $ - 2 900,00 $
Мини-колесный погрузчик CE Двигатель Дизельный Телескопический Мини-колесный погрузчик
2 001,00 $

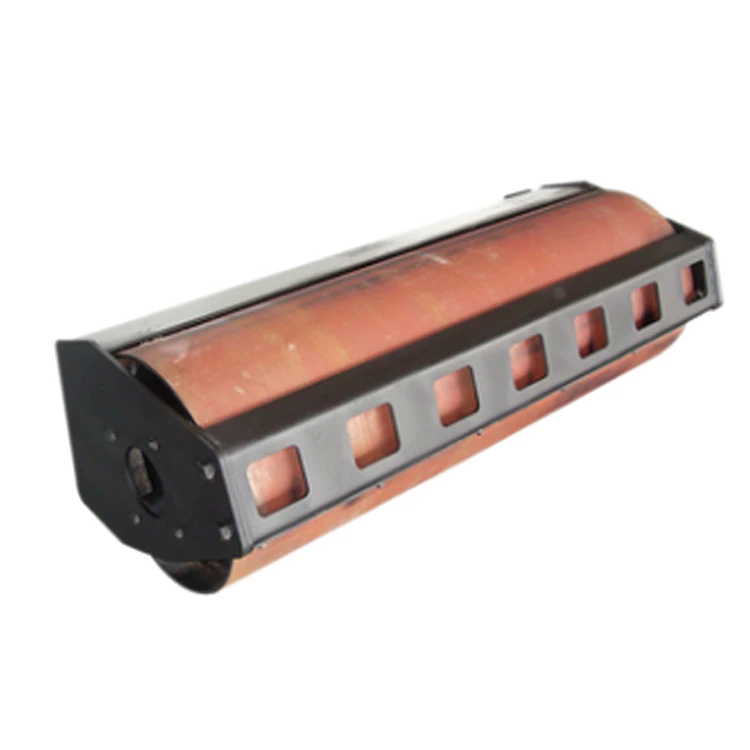

RSBM 60 72 84 дюймовый погрузчик землеройный стабилизатор компактный ролик
С самым лучшим ценой 4 колесный погрузчик с обратной лопатой тракторы мини-погрузчик экскаватор-погрузчик для
6 800,00 $ - 7 200,00 $
Колесный погрузчик колесный 25 л.с. 50 60
13 000,00 $ - 15 000,00 $
Поставка от Shanghai VIFT Строительная техника колесный мини-погрузчик с бортовым поворотом дизельная мощность Быстросменные эксплуатационные
15 600,00 $ - 16 000,00 $

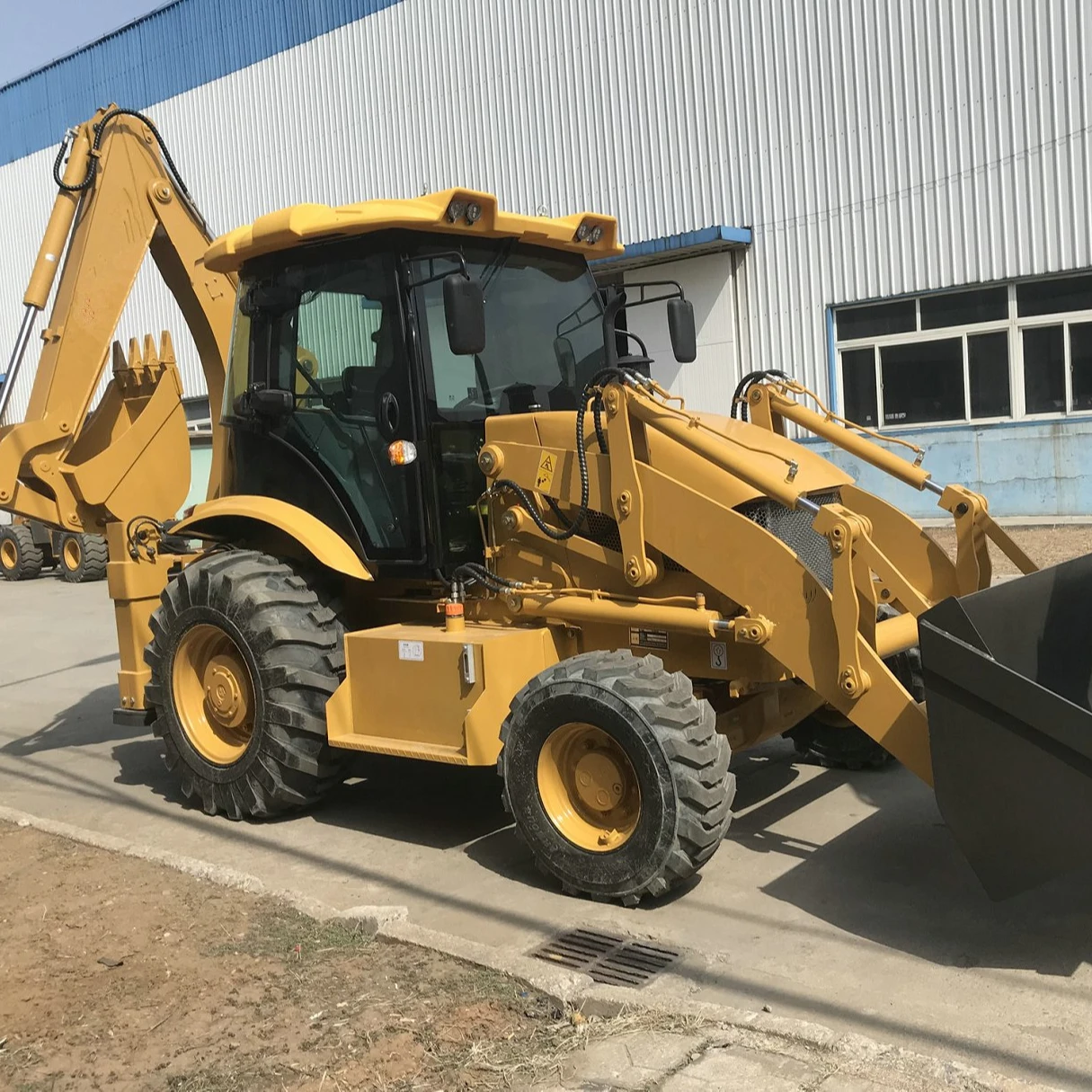

Трактор с экскаватором-погрузчиком и фронтальным погрузчиком 4x4 4WD мини-погрузчик-экскаватор-погрузчик
