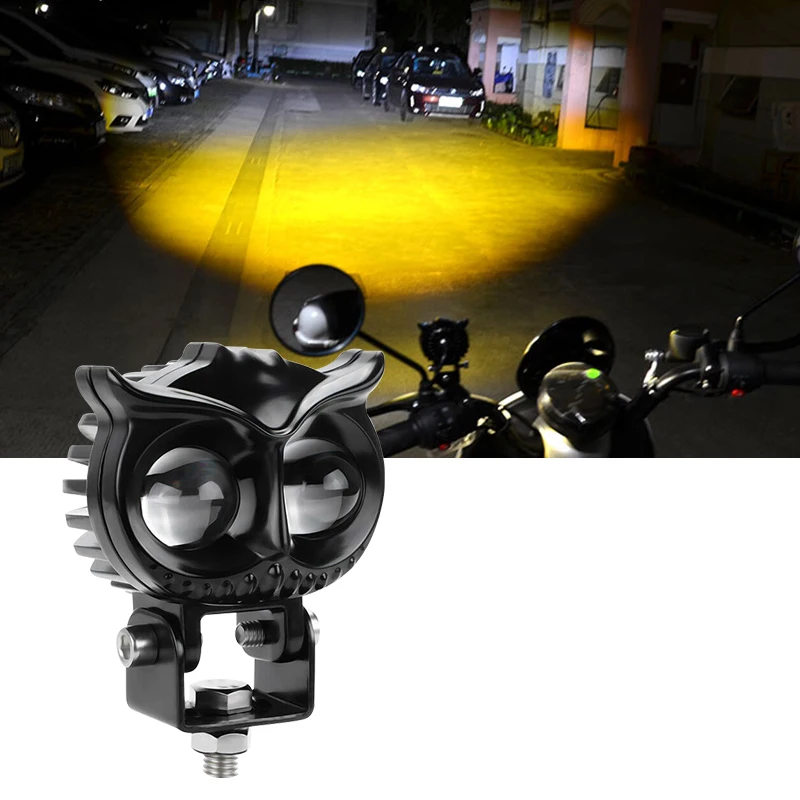

Двухцветные светодиодные мотоциклетные Противотуманные фары в виде совы, мини-фары для вождения мотоцикла, фары в виде совы для системы освещения мотоцикла
3,16 $ - 3,79 $

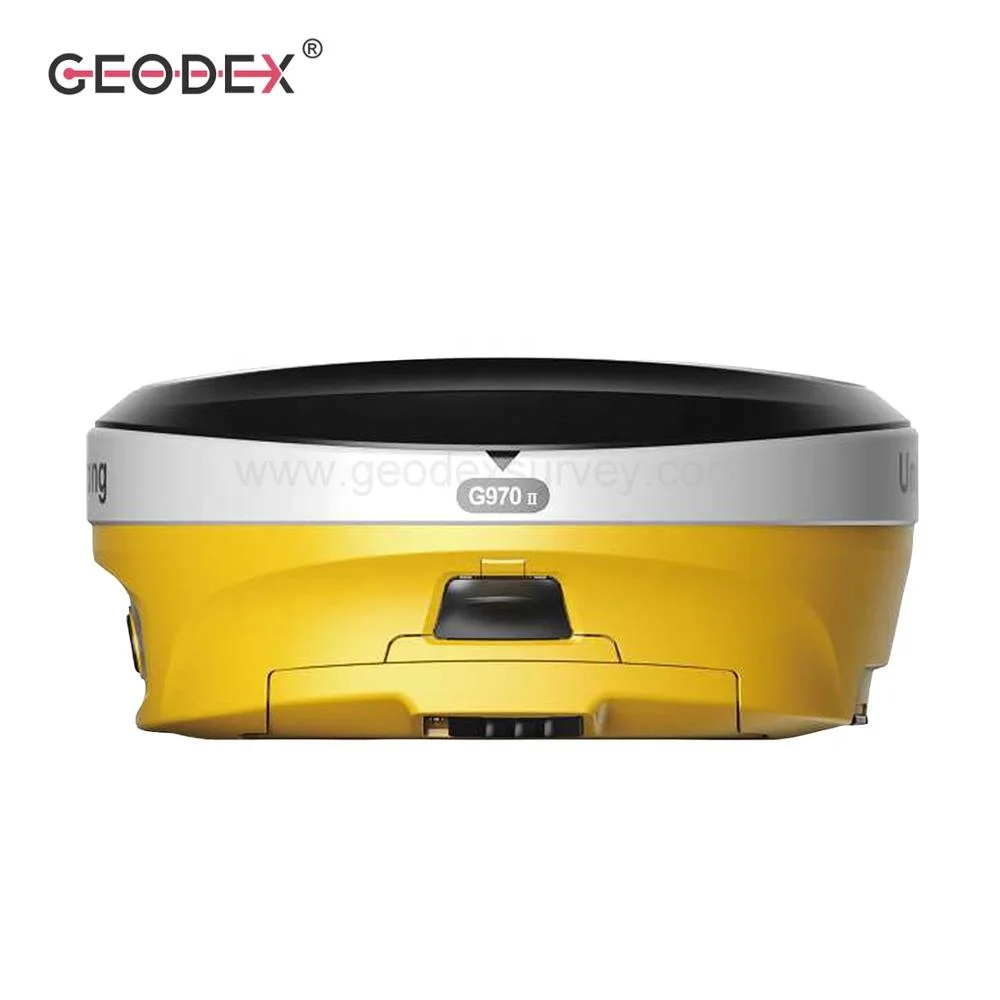

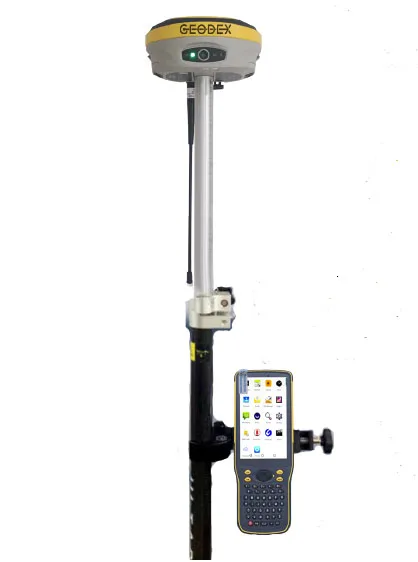

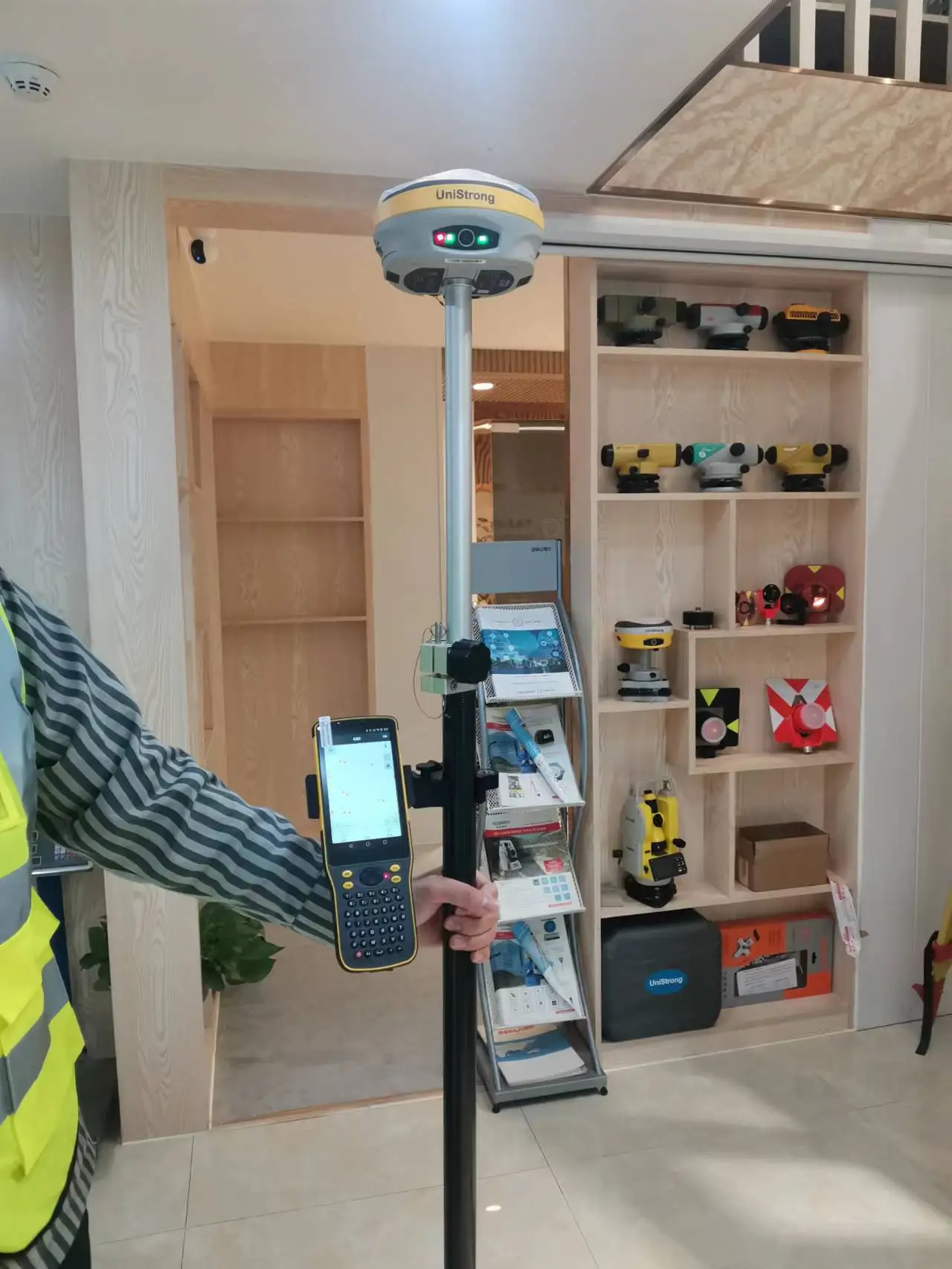

Интеллектуальный приемник RTK GNSS 800 каналов GPS оборудование для измерения
- Категория: >>>
- Поставщик: Guangzhou Geodex Instrument Co. Ltd
Сохранить в закладки 1600543409726:
Описание и отзывы
Характеристики
Products Description
Features&Benefit
1.Adopts professional low-power high-integration real-time dynamic positioning (RTK) module group.
2.Simultaneously receivesmulti-constellation signals to ensure excellent positioning performance
3.Advanced deception and interference detection, excellentradio frequency interference sup-1 pression
Technical Specifications
Channel | 800 Channels |
SATELLITES | GPS:L1C/A,L1P,L1C,L2P,L2C,L5 GLONASS: L1 C/A, L2C, L2P L3, L5 BeiDou:B1,B2,B3 GALILEO:E1, E5a, E5b, E5 Altboc, E6 QZSS:L1 C/A, L1C, L2C, L5, L6 IRNSS: L5 SBAS:L1, L5 |
Update rate | 5Hz(Standard to 5Hz,can pay to activate 50HZ) |
Static Accuracy | Horizon: 2.5mm+1ppm; Vertical: 5mm+1ppm |
RTK Accuracy | Horizon: 8mm+1ppm; Vertical: 15mm+1ppm |
CODE Differential | Horizontal: 0.25m RMS, Vertical: 0.45 RMS |
SABS Positioning | Horizontal: 0.3m RMS, Vertical: 0.6m RMS |
Tilt Survey Sensor | IMU (Optional) |
Battery | Dual Batteries, 7.2V/6800mAh Over 13 hours when simultaneous use of 2 batteries |
Input | 9~28V DC |
OS | *Based on Linux; Supports Web UI, Multi-language supported |
Operation | *RTK rover/base, post-processing RTK Network rover: VRS, FKP, MAC Point-to-Point GPRS through Real-time Data Server Software (internal GPRS or external cell phone) Land XML (Surpad 4.0 RTK Field Software) Total Station Support (Surpad 4.0 RTK Field Software) Import and stake directly from a DXF File ( Surpad 4.0) |
Memory | Internal 8G: TF Extended, Max≥32G |
Button | Power button,also can show Power status |
Indicator | 5 indicators:Satellites,Datalink,Bluetooth,WIFI Status,Power Indicator |
Language | Supports TTS Multi language voice |
I/O Connectors & Interface | 7-pins Lemo-USB Port,NMEA Out put; 5-pins Lemo interfaces (For external radio and external power); Multifunction cable with USB interface for PC connection Micro SIM Slot and TF slot |
Bluetooth | V2.1+EDR、V4.1 Dual Mode,Class2 |
WI-FI | 802.11 b/g/n |
Web UI | To upgrade the software, manage the status and settings, data download, etc. Via smart phone, tablet or other internet enabled electronic device |
4G Band | GSM/GPRS/EDGE, FDD LTE:B2/B4/B12 UMTS/WCDMA:B2/B4/B5 |
Internal UHF | Type: Tx-Rx; TNC interface port; Frequency 410-470MHz Work Distance:3-4KM in good environment |
External Radio (Relay Radio) | Frequency: 410-470MHz; Channel spacing: 12.5KHz/25KHz Work Range: up to 10KM |
Protocol | SATEL,PCC-GMSK,TrimTalk 450S, South, TrimMark III(19200), GeoTalk, GeoMark |
Output Data Formats | RTCM 2.1, 2.3, 3.0, 3.1, 3.2, 3.3 CMR CMR+ RTCA NOVATELX |
D*H | 157mm*76mm |
Weight | 1.2KGS with 2 batteries inside |
Work Temperature | -30℃ ~ + 65℃ |
Stock Temperature | -40℃ ~ +80℃ |
Water/dustproof | IP68 |
Anti-Shock | Withstand 2 meters pole drop, 1.2m drop without pole |
Humidity | 100% condending |
Recommend Products
More Products
Company Profile
We have 15 years experience in production
What we can provide?
1. 12 months after-sales service, but also professional surveying solutions and strong technical supports including maintenance & parts service
2. Fast delivery in seven days
3. The product is well-made, tightly packaged, and has amanual
4. 24-hour response, providing professional, efficient and friendly communication services
1. 12 months after-sales service, but also professional surveying solutions and strong technical supports including maintenance & parts service
2. Fast delivery in seven days
3. The product is well-made, tightly packaged, and has amanual
4. 24-hour response, providing professional, efficient and friendly communication services
About Us
With 15-year exporting experience in the geodetic industry, Geodex is one reliable expert & world-wide provider of Geographic Surveying & Mapping solutions. We have established a lot of good & long term partnerships in many different countries. Further more, we have received good reputation not only because of the high quality products, but also because of the professional technical supports & excellent customer-service.
Full range of geodetic surveying instruments which we have been specializing includes Drone UAV, RTK GPS/GNSS Surveying System, handheld GPS/GNSS, Total Station, theodolite, automatic levels, digital level, laser level and Surveying Prisms, Surveying Accessories ect.
Our products are widely used for high precision measurement, surveying & mapping works, such as land & housing management, building, road, railway & city infrastructure construction, Topographic, Cadastral, monitoring and mining, hydro & marine surveying projects.
We sincerely welcome your cooperation!
About Technical Supports
1. We provide not only high cost-efficiency surveying instruments.
2. but also professional surveying solutions and strong technical supports including maintenance & parts service.
3. Make sure Quality Verified & recalibrated before each shipment.
4. Fast Delivery, stocked in Guangzhou.
5. Professional Export & Import Service.
6. One-year warranty period of surveying equipments.
Contact Information
Guangzhou Geodex Instrument Co., Ltd.
Phone: 0086-139-2957-9611 (WhatsApp/Wechat)
Tel: +86 (0)20-8251 6799
E-mail: sale@geodexdata.com & export@geoland.cn
Website: //www.geoland.cn //www.geodexinstrument.com
Add: 410, No. 7 Minxing Street, Huangpu District, Guangzhou, 510530, Guangdong, China
Full range of geodetic surveying instruments which we have been specializing includes Drone UAV, RTK GPS/GNSS Surveying System, handheld GPS/GNSS, Total Station, theodolite, automatic levels, digital level, laser level and Surveying Prisms, Surveying Accessories ect.
Our products are widely used for high precision measurement, surveying & mapping works, such as land & housing management, building, road, railway & city infrastructure construction, Topographic, Cadastral, monitoring and mining, hydro & marine surveying projects.
We sincerely welcome your cooperation!
About Technical Supports
1. We provide not only high cost-efficiency surveying instruments.
2. but also professional surveying solutions and strong technical supports including maintenance & parts service.
3. Make sure Quality Verified & recalibrated before each shipment.
4. Fast Delivery, stocked in Guangzhou.
5. Professional Export & Import Service.
6. One-year warranty period of surveying equipments.
Contact Information
Guangzhou Geodex Instrument Co., Ltd.
Phone: 0086-139-2957-9611 (WhatsApp/Wechat)
Tel: +86 (0)20-8251 6799
E-mail: sale@geodexdata.com & export@geoland.cn
Website: //www.geoland.cn //www.geodexinstrument.com
Add: 410, No. 7 Minxing Street, Huangpu District, Guangzhou, 510530, Guangdong, China
FAQ
Part 1) Company & Products
Q1：What are your advantages in providing the geographic surveying equipments to the world market ?
1. Work Team with 15 years experience in providing geographic surveying equipments
2. Excellent consultant service on International Logistics solution & Customs Affair
3. Professional technical support on instruments after-sale service
Q2：How can I get the products catalogue?
1. Customer can download products catalogue from our website at geoland.cnor www.geodexinstrument.com
2. Contact us by sending e-mail or leaving message from website.
Q3：Can I get products which is not available from your website?
If you don’t find the product information from our website, you can contact our sales team and send the specific requirements，we will follow it up and contact you immediately.
Q4：Do you support Customization Order for the surveying products?
Yes, for most of the products, we can provide OEM or ODM service. For details, please contact our sales team for further
communication.
Q5：How can I get a products certificate?
Some of our products have already obtained Testing Report or Certificates like RoHS, CE, FCC. For more request, please contact our sales team.
Part 2) Order & Shipment
Q6：How to place an order?
1. Start a Trade Assurance PO directly from our shop on Alibaba.com
2. Contact with Geodex Team to assist creating an order link
3. Send us your ordering list for issuing a Proforma Invoice
Q7: What transportation modes can I have the ordering items to be ship?
1. Door to door delivery service Air Express Courier like DHL, FedEx, UPS, TNT, as well as some local regional specialized courier
2. General Air flight Cargo Service from airport to airport, Consignee make the Customs Clearance by themselves
3. Ocean transportation by sea boat to the nearest port of the destination, customers make the Customs Clearance by themselves
4. International Multi-modal transport, by boat & truck, by flight & truck...
5. Customers can appoint their own forwarder agent who has warehouse in China, we can deliver the goods to shipping warehouse as your shipping instructions.
Q8: How to calculate the shipping cost?
The shipping freight rate is changing from time to time due to the oil price ups and downs, as well as the Epidemic control.
Please contact our sales team for getting best shipping solution & freight rate.
Q9：How long will be the shipment days?
Most of the items are ready to ship.
If it is not available from current stocks, shall be within 15 days.
For bigger order quantity, it depends on the production orders.
Please enquire with our sales.
Q10：What kind payment methods do you accept?
1. By Trade Assurance Order from Alibaba.com, customer can make payment directly to the order link by using visacard, mastercard, T/T, PAYPAL, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER
2. Ask the Sales Manager to send a Proforma Invoice with our banking details, accepting T/T, L/C, Western Union, Money Gram.
Q11: How can I make the Customs Clearance and pay tax for the purchasing goods?
1. Generally, if shipping by Air Express like DHL, FedEx, UPS, TNT, the courier company will provide Customs Clearance Service and door-to-door delivery service, however, customer still need to pay the import customs tax according to the local legal regulations.
2. Ship by General Air Flight Service or Ocean Boat, consignee needs to do the Customs Clearance and pay tax by themselves or can appoint an agent.
3. For some countries, we have some specialized shipping line which offer freight package can cover Customs Clearance Service and Import Tax.
4. Please contact our Sales for further information.
Q12: How can I track my shipping package?
1. For the Trade Assurance PO on alibaba.com, you can track the order shipping information from your order link. As soon as the goods is shipping out, we will upload the Shipping Way Bill to the order link.
2. For non Trade Assurance Order, we will provide Airway Bill, Bill of Lading for following up as soon as the goods is shipping out, customers can track the shipment transportation records from the shipping compay’s website.
Part 3) Technical Support
Q13: How can I get technical support to operate the instruments?
A.) The instruments comes with Operation Manual (User Manual) either in hard copy or digital copy. Please check inside the package you received, or contact us by e-mail.
B.) If there is specific problem during using the device, you can get technical support by contacting us. We will provide Video, Documents of How to operate, and even on-line presentation.
Q14: How can you ensure the product quality and instrument performance?
A.) Firstly, we build a solid product strategy and standard at the factory production and examination.
B.) Secondly, we carry out a double-check system to make sure every instrument is well calibrated before shipment.
Q15: How long will be the warranty of the goods?
A.) For non-human factors fault, we provide 12-month warranty for instrument main unit, and 6 months for consumable items like batteries.
B.) And also provide long-term technical support and repair service.
Q1：What are your advantages in providing the geographic surveying equipments to the world market ?
1. Work Team with 15 years experience in providing geographic surveying equipments
2. Excellent consultant service on International Logistics solution & Customs Affair
3. Professional technical support on instruments after-sale service
Q2：How can I get the products catalogue?
1. Customer can download products catalogue from our website at geoland.cnor www.geodexinstrument.com
2. Contact us by sending e-mail or leaving message from website.
Q3：Can I get products which is not available from your website?
If you don’t find the product information from our website, you can contact our sales team and send the specific requirements，we will follow it up and contact you immediately.
Q4：Do you support Customization Order for the surveying products?
Yes, for most of the products, we can provide OEM or ODM service. For details, please contact our sales team for further
communication.
Q5：How can I get a products certificate?
Some of our products have already obtained Testing Report or Certificates like RoHS, CE, FCC. For more request, please contact our sales team.
Part 2) Order & Shipment
Q6：How to place an order?
1. Start a Trade Assurance PO directly from our shop on Alibaba.com
2. Contact with Geodex Team to assist creating an order link
3. Send us your ordering list for issuing a Proforma Invoice
Q7: What transportation modes can I have the ordering items to be ship?
1. Door to door delivery service Air Express Courier like DHL, FedEx, UPS, TNT, as well as some local regional specialized courier
2. General Air flight Cargo Service from airport to airport, Consignee make the Customs Clearance by themselves
3. Ocean transportation by sea boat to the nearest port of the destination, customers make the Customs Clearance by themselves
4. International Multi-modal transport, by boat & truck, by flight & truck...
5. Customers can appoint their own forwarder agent who has warehouse in China, we can deliver the goods to shipping warehouse as your shipping instructions.
Q8: How to calculate the shipping cost?
The shipping freight rate is changing from time to time due to the oil price ups and downs, as well as the Epidemic control.
Please contact our sales team for getting best shipping solution & freight rate.
Q9：How long will be the shipment days?
Most of the items are ready to ship.
If it is not available from current stocks, shall be within 15 days.
For bigger order quantity, it depends on the production orders.
Please enquire with our sales.
Q10：What kind payment methods do you accept?
1. By Trade Assurance Order from Alibaba.com, customer can make payment directly to the order link by using visacard, mastercard, T/T, PAYPAL, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER
2. Ask the Sales Manager to send a Proforma Invoice with our banking details, accepting T/T, L/C, Western Union, Money Gram.
Q11: How can I make the Customs Clearance and pay tax for the purchasing goods?
1. Generally, if shipping by Air Express like DHL, FedEx, UPS, TNT, the courier company will provide Customs Clearance Service and door-to-door delivery service, however, customer still need to pay the import customs tax according to the local legal regulations.
2. Ship by General Air Flight Service or Ocean Boat, consignee needs to do the Customs Clearance and pay tax by themselves or can appoint an agent.
3. For some countries, we have some specialized shipping line which offer freight package can cover Customs Clearance Service and Import Tax.
4. Please contact our Sales for further information.
Q12: How can I track my shipping package?
1. For the Trade Assurance PO on alibaba.com, you can track the order shipping information from your order link. As soon as the goods is shipping out, we will upload the Shipping Way Bill to the order link.
2. For non Trade Assurance Order, we will provide Airway Bill, Bill of Lading for following up as soon as the goods is shipping out, customers can track the shipment transportation records from the shipping compay’s website.
Part 3) Technical Support
Q13: How can I get technical support to operate the instruments?
A.) The instruments comes with Operation Manual (User Manual) either in hard copy or digital copy. Please check inside the package you received, or contact us by e-mail.
B.) If there is specific problem during using the device, you can get technical support by contacting us. We will provide Video, Documents of How to operate, and even on-line presentation.
Q14: How can you ensure the product quality and instrument performance?
A.) Firstly, we build a solid product strategy and standard at the factory production and examination.
B.) Secondly, we carry out a double-check system to make sure every instrument is well calibrated before shipment.
Q15: How long will be the warranty of the goods?
A.) For non-human factors fault, we provide 12-month warranty for instrument main unit, and 6 months for consumable items like batteries.
B.) And also provide long-term technical support and repair service.
Похожие товары

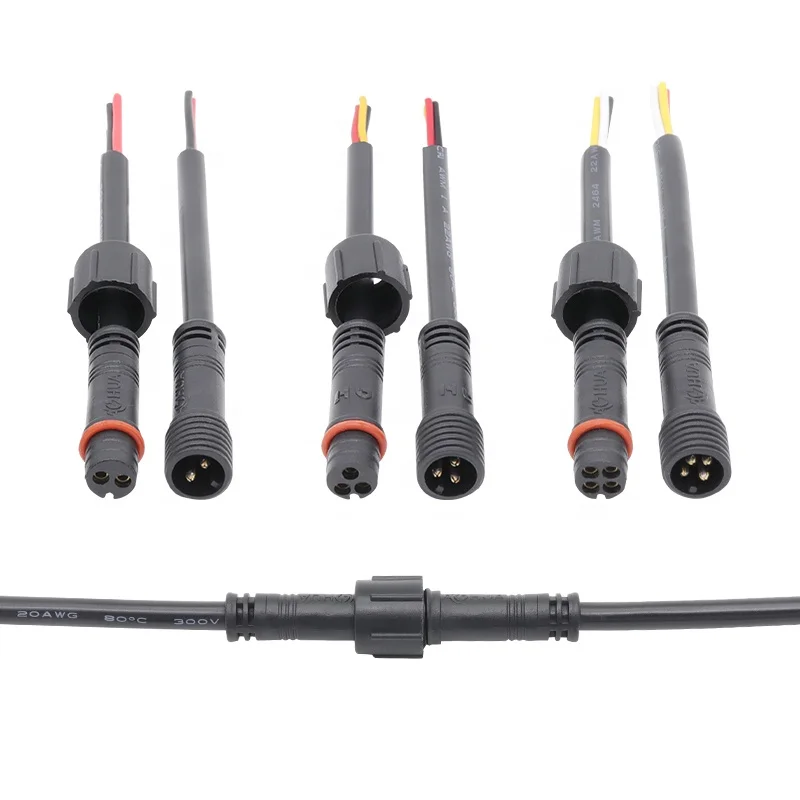

AOHUA PVC M10 male female waterproof connector IP67 plug 2pin
0,80 $ - 1,60 $
Спортивная сумка для багажа, дорожный спортивный мешок для вещей, большие легкие мужские чемоданы на колесиках
20,25 $ - 23,55 $
WCB LCC корпус epdm дисковый пневматический контрольный клапан-бабочка lcb
68,68 $
Детали двигателя для машин 3G-7657 3G7657 для колесного погрузчика cat 966C 966R 4T2626 1U2677 3G2718 3G2746
Импортная самоклеящаяся диализная бумага медицинского класса, стерилизация, отделения больницы, используют термогерметичные бумажные пластиковые пакеты
0,15 $ - 0,30 $
Инструмент для удаления торцевых головок масляного фильтра 76 мм 14 канавки для BMW AUDI VW
2,80 $ - 4,90 $
UIY изоляторы 2000 ~ 2700 МГц 100 Вт радиочастотный коаксиальный изолятор радиочастотный изолятор
Новые поступления
Новинки товаров от производителей по оптовым ценам
OrionStars онлайн-машина для рыбалки и свинга высокоприбыльная монетная игра США оптовая продажа агент с высокой прибылью Разыскивается
Рекламный надувной самолет украшение для костюма самолета ходячие костюмы продажи
C100 % восковая ткань с принтом китайские поставщики поставляют настраиваемые печатные африканские восковые ткани
0,93-0,97 $
Прямые продажи с фабрики могут быть оптовые складные тележки для покупок Удобные и уличные продуктовые
8,39-9,89 $
Hantek щупы осциллографа автоматический Тестовый Кабель Ht30a Bnc к банану двойная Банановая головка многоцелевое автомобильное
3,10-3,44 $
Горячая распродажа ручная работа традиционная деревянная урна для домашних животных квадратная коробка золы собак и кошек персонализированная Лучшая цена
Промышленная серия CL Бесшумная цепь стальная зубчатая Фланцевая контактная звездочка соединяющая бесшумные цепи
1-1,50 $
