YQ32 гидравлический пресс с четырьмя колоннами/колоннами 630 тонн
- Категория: >>>
- Поставщик: Zhongyou Heavy Industry Machinery Equipment Co. Ltd.
Сохранить в закладки 1600543448881:
Описание и отзывы
Характеристики
Product Description

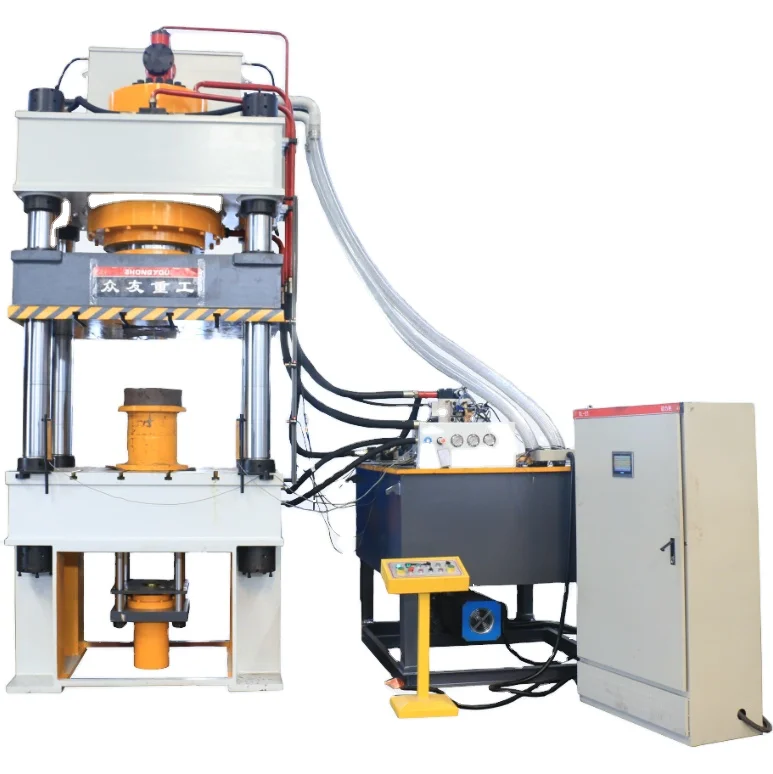

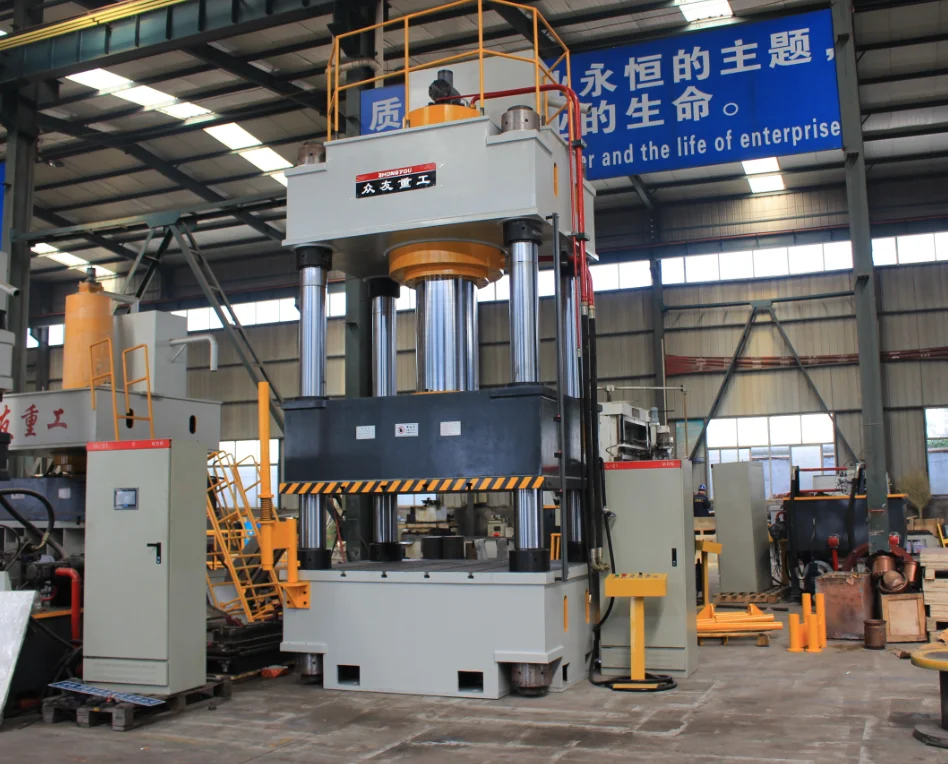

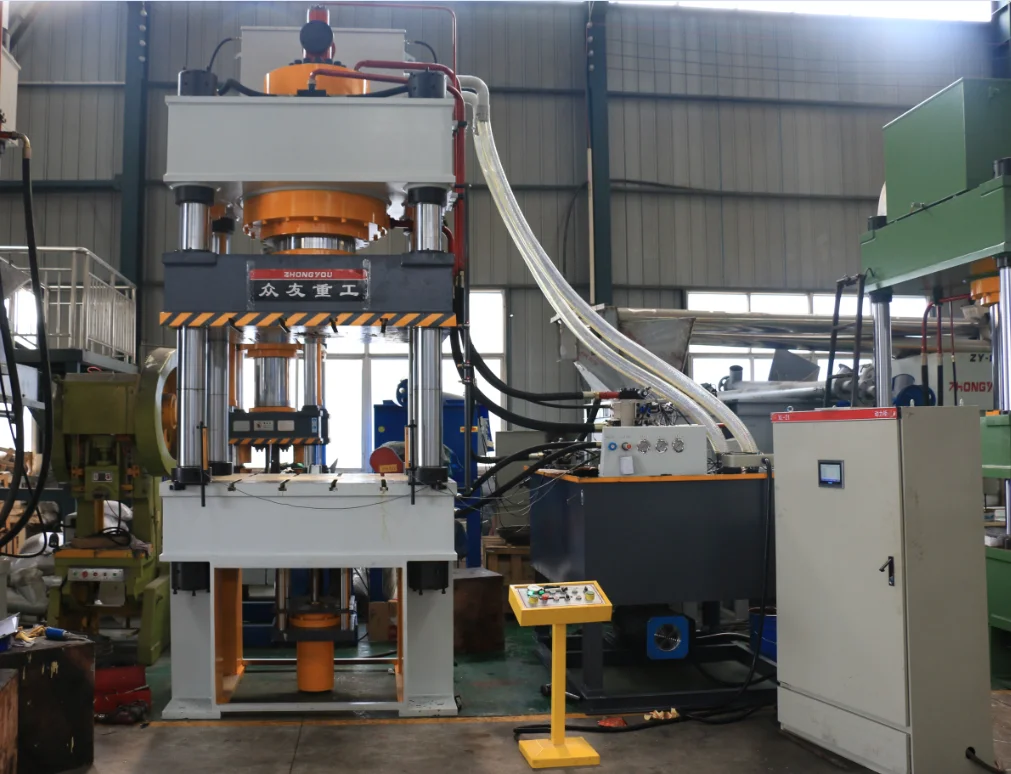

YQ32 four column deep draw hydraulic press machine 630 ton structure is formed, and various parameters and table tops can be customized according to customer needs. The hydraulic control adopts a cartridge valve integrated system, which is durable and has a long service life. Hydraulic press machine adopts buttons for centralized control, which can realize three operation modes manual, semi-automatic and automatic.
Specification
Specification | Unit | YQ32 - 630 |
Nominal force | Kn | 6300 |
Max pressure of hydraulic system | Mpa | 1250 |
Max. Opening height | mm | 1250 |
Slider effective stroke | mm | 1200×1000 |
Working table size | mm | 650 |
Nominal force of Ejection cylinder | Kn | 300 |
Ejection stroke | mm | 950 |
Slider working speed (empty travel) | mm/s | 200 |
Slider working speed (press) | mm/s | 10~20 |
Slider working speed (return stroke) | mm/s | 140 |
motor power | KW | 60 |
Main Features
1.Two methods of processing operation forming with fixed pressure and forming with fixed stroke can be accomplished. For forming foxed pressure the press can perform pressure holding and delayed automatic return after pressing process.
2.The hydraulic control system is composed of plug-in integrated valve which possess the high efficiency.
3.The spool performance makes low noise and reduce the connecting pipeline and leak spot.
4. The pressure adjusted in this hydraulic control system is overflow valve which increase the precision and facility of the pressure adjusted.
Details

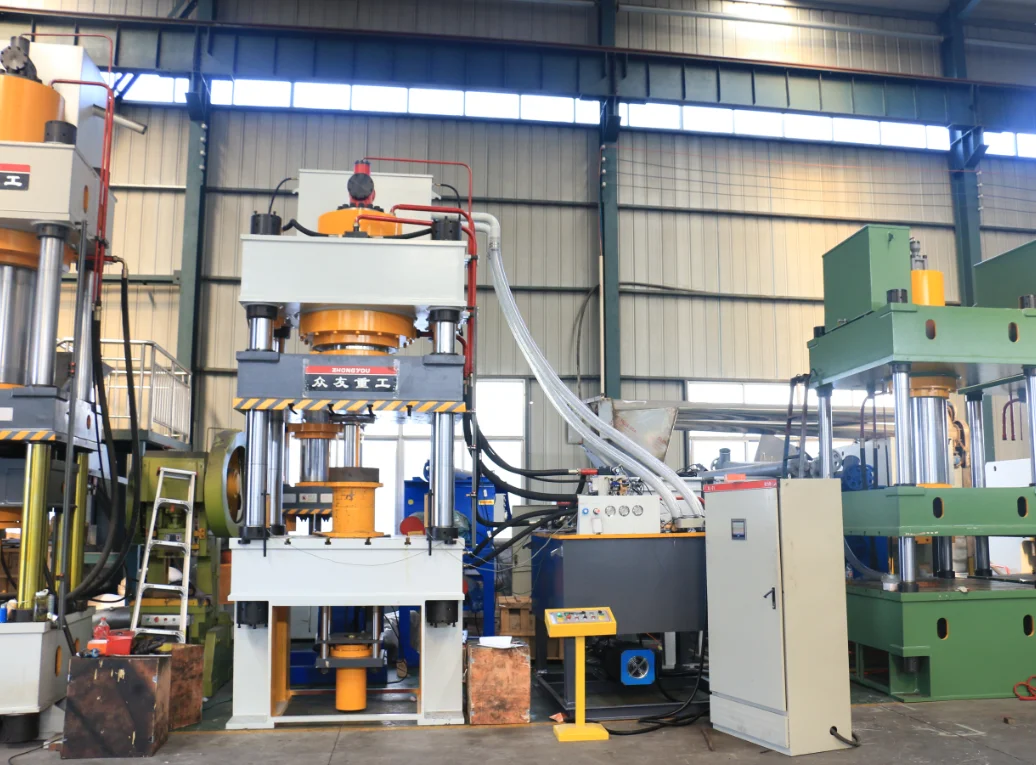

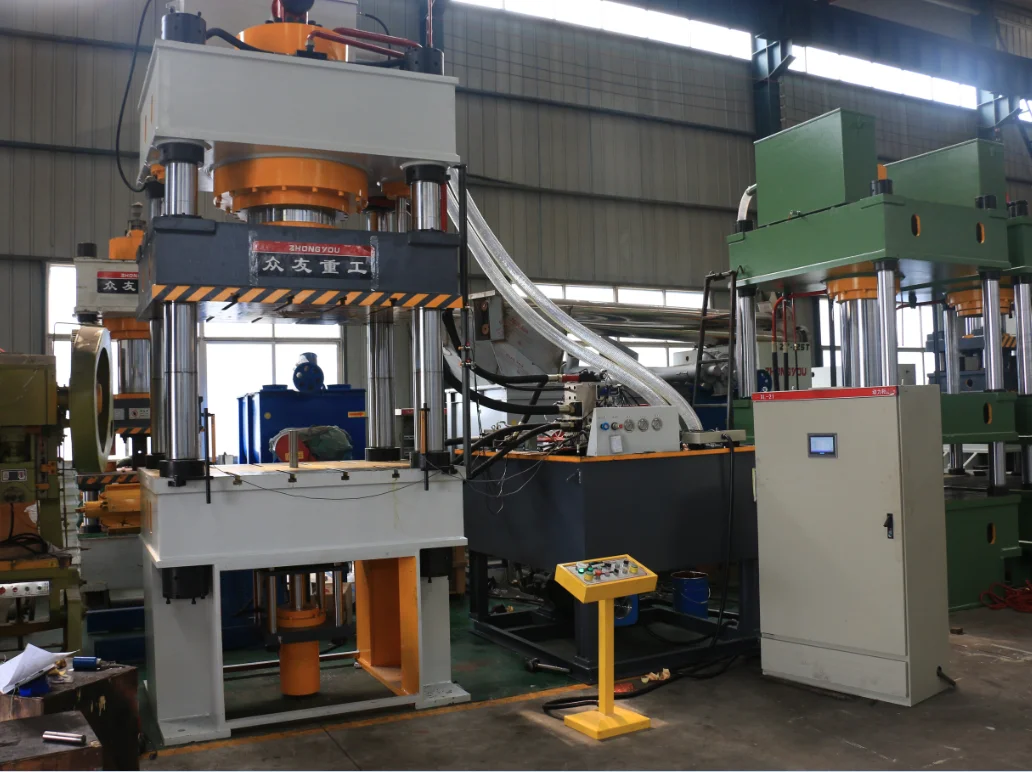

The company has been established for 15 years, and our workshop is equipped with multiple processing machines. We also process the machine parts ourselves to ensure the quality of the machines.
Packing & Delivery
Surface with anti-rust treatment,inner layer of plastic waterproof packaging,outer layer of thick wood or steel frame fixed,And then use a synthetic board package.Combined container transport, or separate container transport.
Company Profile
Zhongyou Heavy Industry Machinery Equipment Co., Ltd. is a professional R&D and production enterprise for hydraulic press machines.
The company's processing equipment includes large-scale CNC floor-standing boring and milling machines, CNC gantry machining centers and other advanced equipment. Our company has passed the ISO,CE,SGS and other certification,has a number of product innovation patents and honorary certificates. Our main products include four-column three-beam hydraulic presses, frame hydraulic presses, C frame hydraulic presses, hydraulic punching machine, etc. Each of our machine undergoes a multi-step superb machining process and rigorous measurement and assembly. Every producing step of the machine undergo quality inspection and mutual inspection,The company has complete testing methods and advanced inspection techniques.All the machines should be 100% qualified before sales.
The company's processing equipment includes large-scale CNC floor-standing boring and milling machines, CNC gantry machining centers and other advanced equipment. Our company has passed the ISO,CE,SGS and other certification,has a number of product innovation patents and honorary certificates. Our main products include four-column three-beam hydraulic presses, frame hydraulic presses, C frame hydraulic presses, hydraulic punching machine, etc. Each of our machine undergoes a multi-step superb machining process and rigorous measurement and assembly. Every producing step of the machine undergo quality inspection and mutual inspection,The company has complete testing methods and advanced inspection techniques.All the machines should be 100% qualified before sales.
FAQ
Q: How can I choose the most suitable machines?
A: Just let me know your specifications, or what model do you want to produce.We will produce as your requests.
Q: Do you have stock?
A: Actually most of our machines are customized.For some common types we have.
Q: How about your after-sale service?
A: Some operating problems can be solved with us online. Our engineers are also available to service overseas.
Q: What is your trade terms and payment terms?
A: FOB, CFR and CIF all acceptable. 30% deposit, 70% balance payment before shipment.
A: Just let me know your specifications, or what model do you want to produce.We will produce as your requests.
Q: Do you have stock?
A: Actually most of our machines are customized.For some common types we have.
Q: How about your after-sale service?
A: Some operating problems can be solved with us online. Our engineers are also available to service overseas.
Q: What is your trade terms and payment terms?
A: FOB, CFR and CIF all acceptable. 30% deposit, 70% balance payment before shipment.
Похожие товары

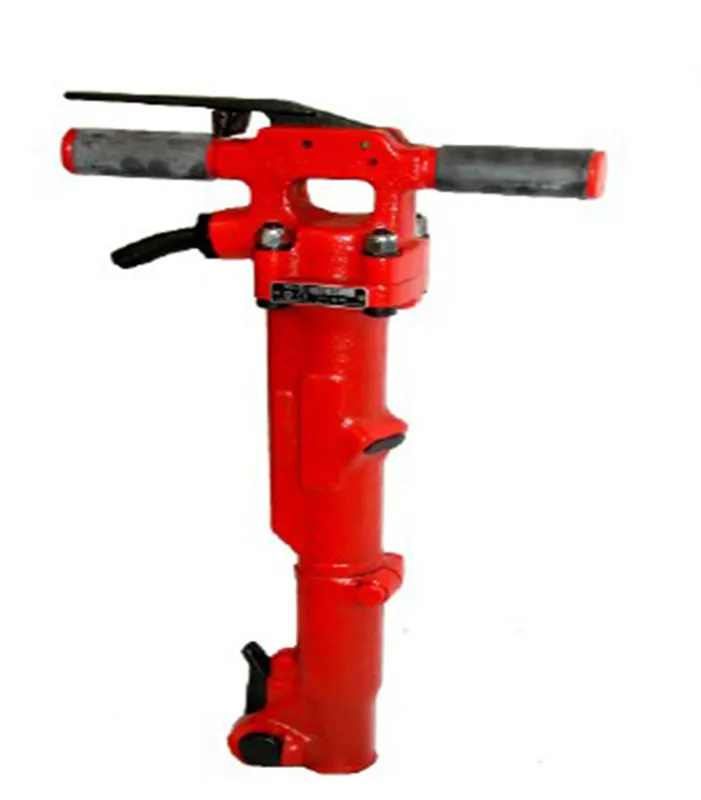

Toku break пневматический перфоратор/Джек Хаммер TPB40
Ins wind прозрачные розовые золотые I-образные гвозди в коробке студенческие офисные переплетные принадлежности для кнопок пробковые гвозди декоративные пресс-гвозди
0,79 $ - 0,83 $

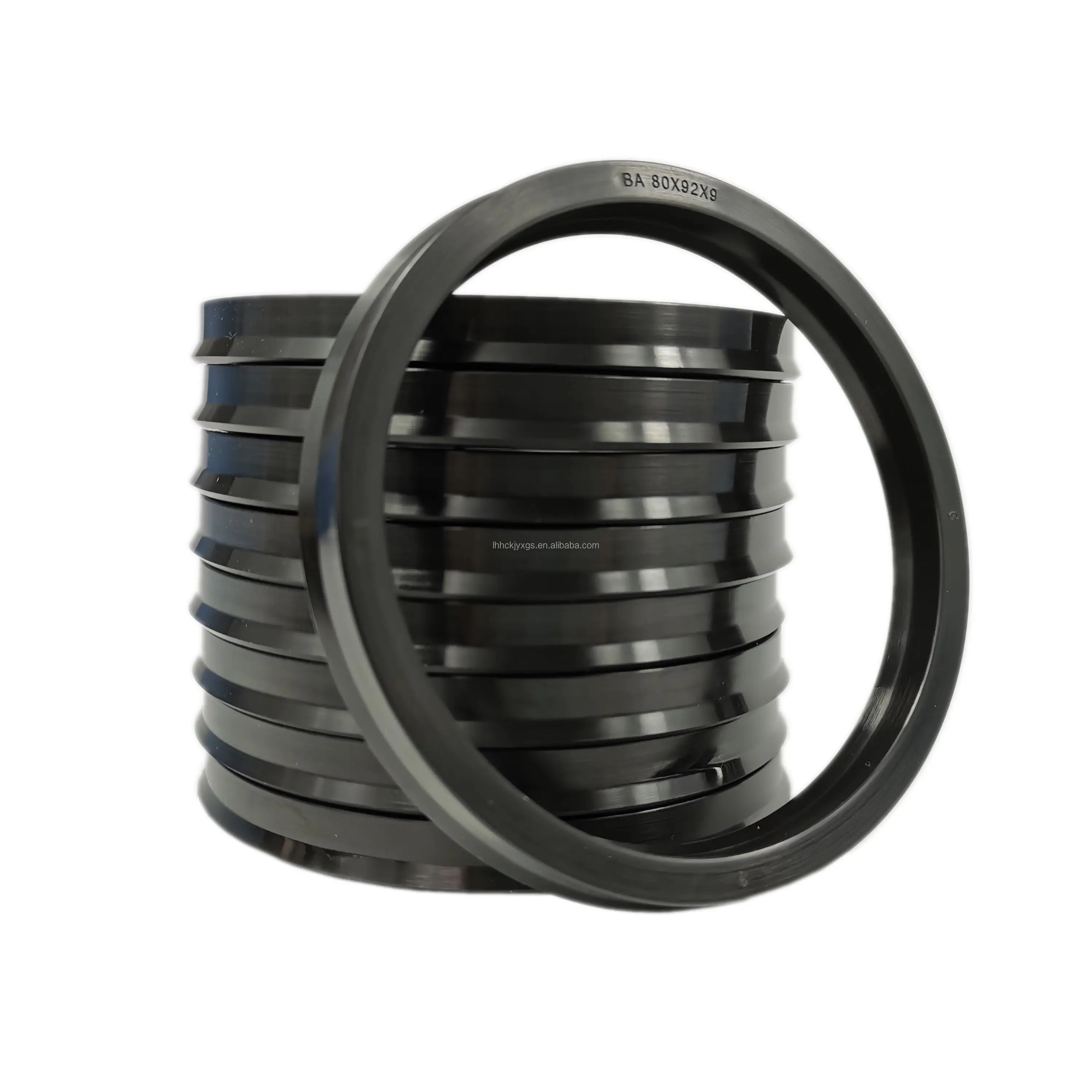

Уплотнение Parker BA BS BD, U-образное уплотнение, поршневой стержень из полиуретана, гидравлический цилиндр, пневматическое уплотнение Parker, гидравлическое уплотнение
